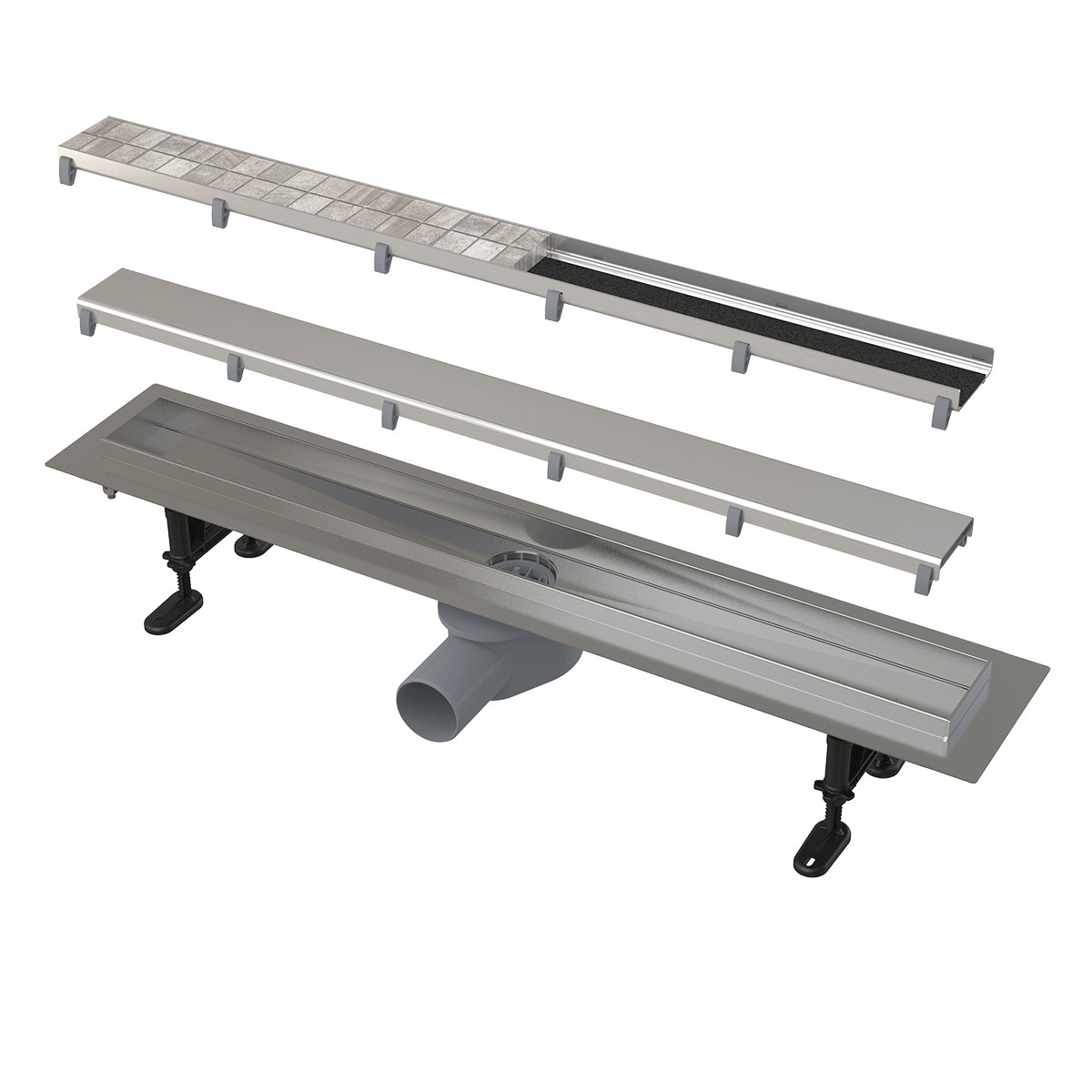

Alca Shower drain with tileable grid 950 (cpz13-double9-950)
- Product reference: APZ13-DOUBLE9-950
- EAN: 8595580562748
Features
- 25 year warranty
- Channel made from a single sheet of 1.5 mm stainless steel (hardened by pickling, passivation and electrochemical polishing)
- Adhesive tape for high quality sealing
- Slope inside the channel body

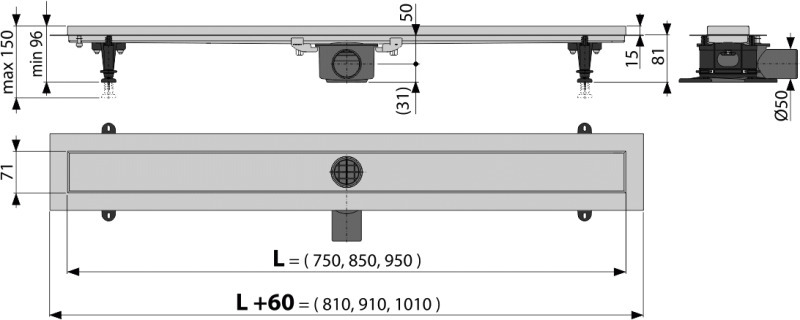

- Installation height from 54 mm
- Adjustable height from 96 mm to 150 mm
- Load class K3: 300 kg
- 100% European manufacture and design
- Integrated patented odour trap (even without water)
Applications
- Wheelchair access
- Drainage for walk-in showers
Scope of delivery
- Removal hook
- Fixing set for height adjustment of the feet: 4 screws 4.2×38, 4 dowels
- Comb for applying glue to the grid frame
- 4 adjustable feet
- Reversible DOUBLE grate made of solid stainless steel (full grate or tileable grate)
- Protective film for the edges of the channel and the drain
- Waterproof adhesive tape
- Trap for APZ-S9 channel
- Shower channel
Alcaplast was founded in 1998 in the Czech Republic. It currently has seven foreign subsidiaries and exports to over 40 countries worldwide. Alcaplast is the largest manufacturer of sanitary ware in Central and Eastern Europe and produces a wide range of more than 580 items - valves, traps, modules, grates, drains, toilet seats and other products. Quality and design are the two main pillars of the company.
- Material:Stainless steel
- Length (cm):95
- Width (cm):9.6
- Height (cm):9.6
