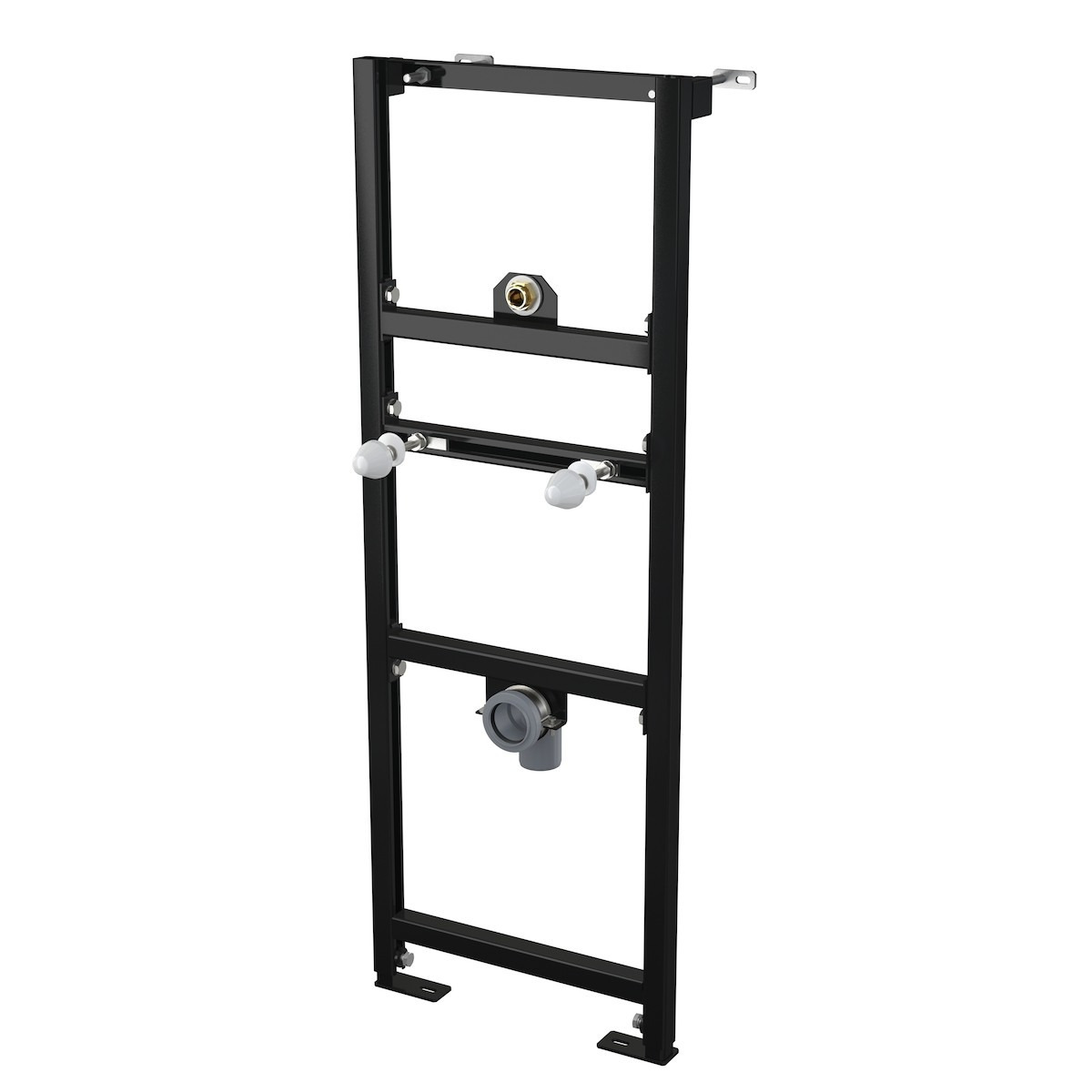

Alca Mounting frame for urinal 112cm (A107/1120)
- Product reference: A1071120
- EAN: 8595580552725
Brand:
Product warranty:
2
years
Features of the Alca Mounting frame for urinal 112cm (A107/1120):
Application:
- For wall-hung urinals
- For mounting pressure flusher
- For mounting in front of a support wall or in to a plasterboard construction

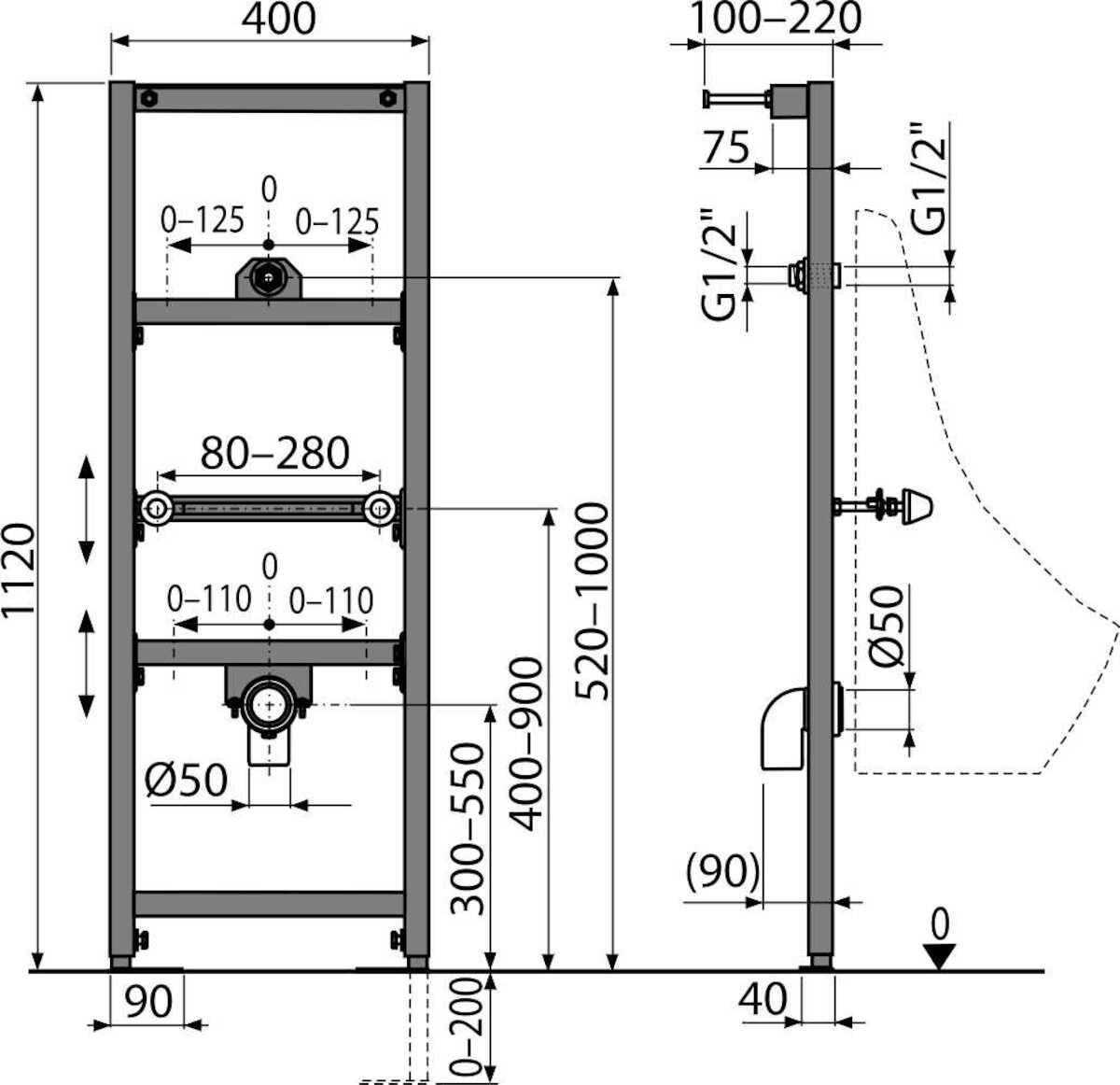

Technical features:
- To connect the pressure urinal flusher ATS001
- Height adjustable partitions
- Adjustable anchor feet and a spring-lock system, with a range of 0–200 mm
- Mounting pitch of the urinal is 80–280 mm
- Water connection adjustable 0–125 mm from center
- Adjustable waste 0–110 mm from centre
- The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
- Material: powder-coated metal
Scope of supply:
- Self-supporting frame with a C-profile
- Fixation set: screw Ø8×60 – 4 pcs, dowel Ø12 – 4 pcs
- Fixing hardware for mounting the urinal: M10 screw – 2 pcs
- Covers for the fixing material
- Connection fittings G1/2"–G1/2"
- Waste elbow HT 50 with seal
Attention! When the parcel is delivered, please mention "subject to unpacking" on the delivery note and accept the parcel. No claims can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
Product technical properties
- Colour:Black
- Material:Metal
- Length (cm):112
- Height (cm):112
- Frame brand:Alca
- Type of frame:Standard
- Weight:9
