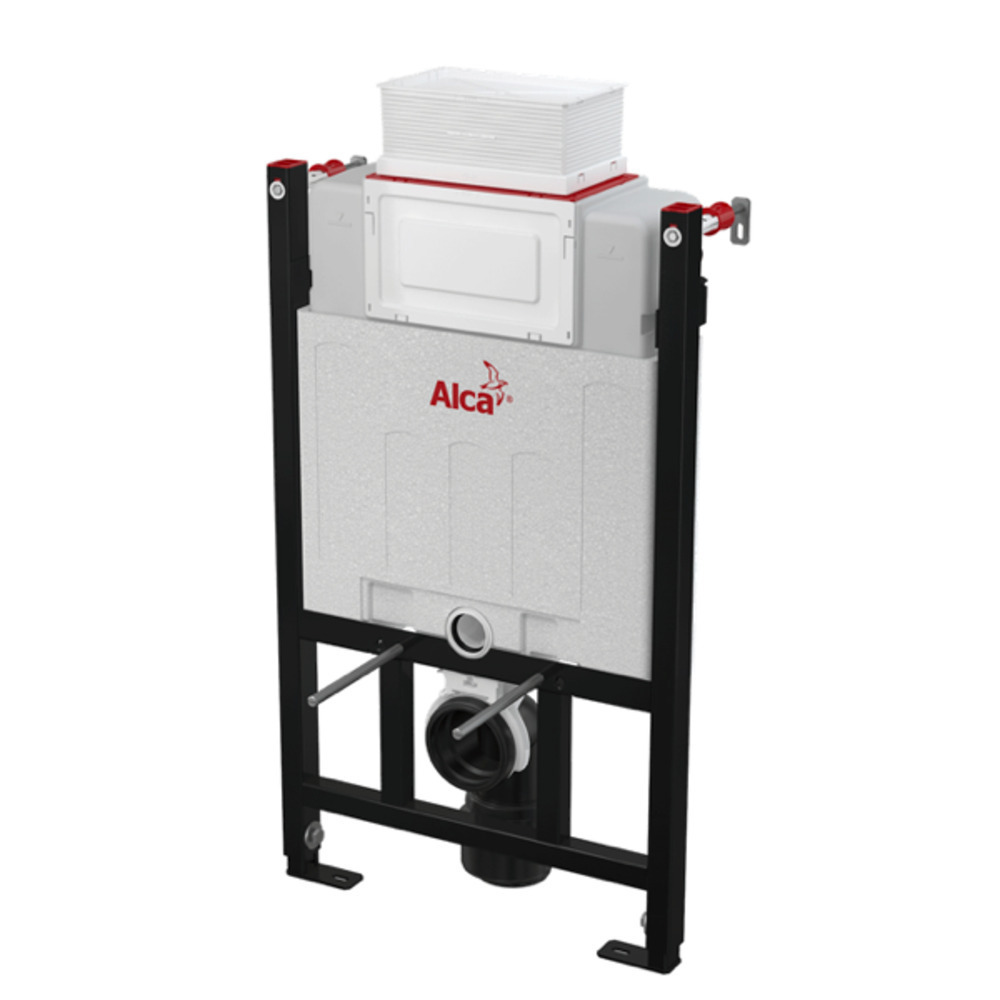

Alca 85CM support frame for wall-hung toilets (AM118/850)

  • Product reference: AM118850
  • EAN: 8595580559830
  • Brand:
Product warranty: 2 years
£
10990
TAX INCL.
£
31069
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
( 64.63% saving)
Currently not in stock
Contact us

Alca 85CM support frame for wall-hung toilets (AM118/850) (AM118/850):

  • For wall-hung WC
  • For mounting in front of a support wall or in to a plasterboard construction
  • For floor thickness 0–200 mm
  • For installation of wall-hung WC pans with a connecting pitch of 180 mm or 230 mm
  • The flush plate can be placed in front of or above the support frame.

Features of Alca 85 cm support frame for wall-hung toilets (AM118/850):

  • Adjustable anchor feet and a spring-lock system, with a range of 0–200 mm
  • Sliding rail holder for the waste connector can be set to eight positions between 0–93 mm
  • Angle valve with the ability to connect to the Mepla piping system
  • The frame allows the anchoring to a separate sufficiently strong plasterboard partition, in front of the bearing wall
  • The installed module is covered with a plasterboard panel and there is no need for any additional fixing or anchoring elements
  • The construction of polystyrene insulation prevents condensation forming on the surface of the tank and dampens the vibrations from the tank into the building structure
  • Prepared for connecting a bracket with a DG 1/2” conversion for bidet seats and sprays
  • Dual flush independently adjustable with hygienic reserve
  • Possibility of built-in remote flushing
  • Compatible with all flush plates Alca except sensor flush plates and NIGHT LIGHT
  • Pre-wall installation system with top or front actuation
  • Maintenance work without using any tools
  • Water supply from the rear/top
  • The cistern is made of one piece, thus ensuring 100% impermeability
  • The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
  • Installation depth adjustable from 20–95 mm
  • Installation depth 170 mm
  • Frame material: powder-coated metal

Product technical properties
  • Frame brand:Alca
  • Type of frame:Standard
