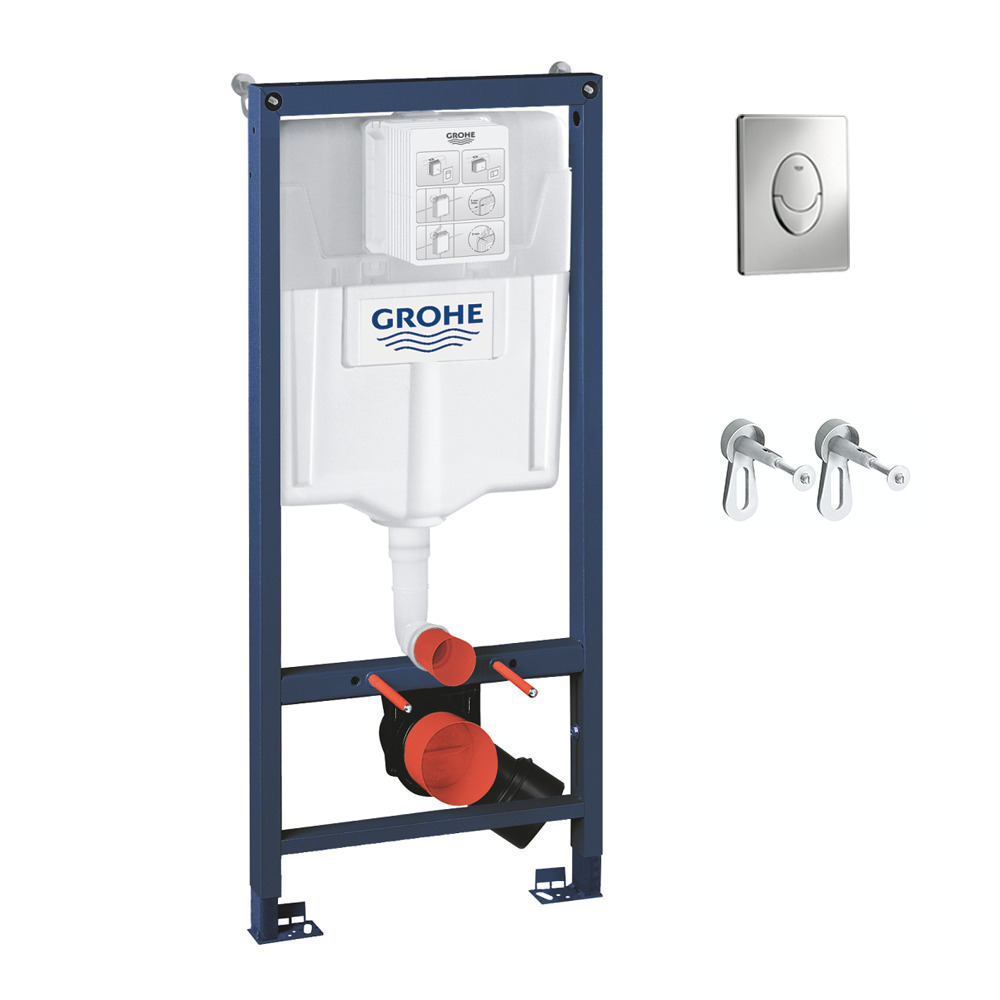

Grohe Pack Rapid SL Support Frame + Skate Air flush plates, Chrome (rapidslskateair)
- Product reference: rapidslskateair
- EAN: 3052351464205
Brand:
Product warranty:
5
years
Features of the Pack Rapid SL Support Frame + Skate Air flush plates, Chrome (rapidslskateair) :
- Grohe Element for WC, 1.13 m installation height (38536001)
- Grohe Skate Air Flush plate (38505000)
- Grohe Rapid SL Front wall brackets (3855800M)
.

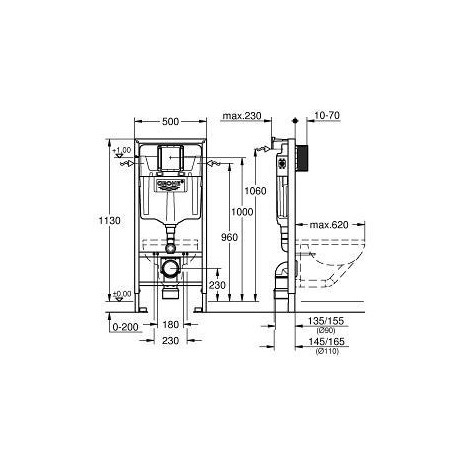

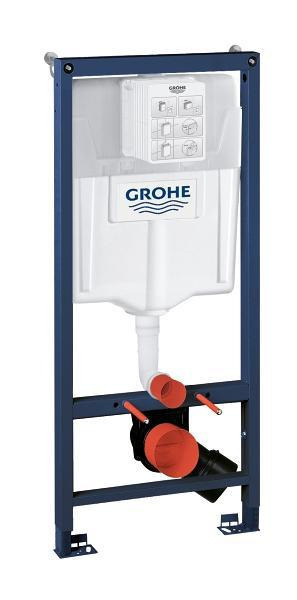

Grohe Element for WC, 1.13 m installation height (38536001) :
- with flushing cistern GD 2 , 6 l - 9 l
- for on-the-wall installations or studded walls
- powder coated steel frame, self-supporting
- with fixed connections
- TÜV approved
- 2 WC fixing bolts
- fixing device for ceramic
- WC ceramics with small bearing area (< 205 mm) require
- additional accessory 38 779 000
- distance of fixing bolts 180/230 mm
- outlet bend Ø 90 mm
- depth adjustable
- reducer Ø 90/110 mm
- inlet and outlet connecting set
- flushing cistern GD 2, 6 - 9 l, containing following features:
- water supply from left/right or back
- ½" water supply connection including integrated
- angle valve and push fit flexible hose union
- including wall brackets 38 558 00M for on-the-wall installation
- for mounting of small flush plates please order
- revision shaft 40 911 000 (sold separately)
.

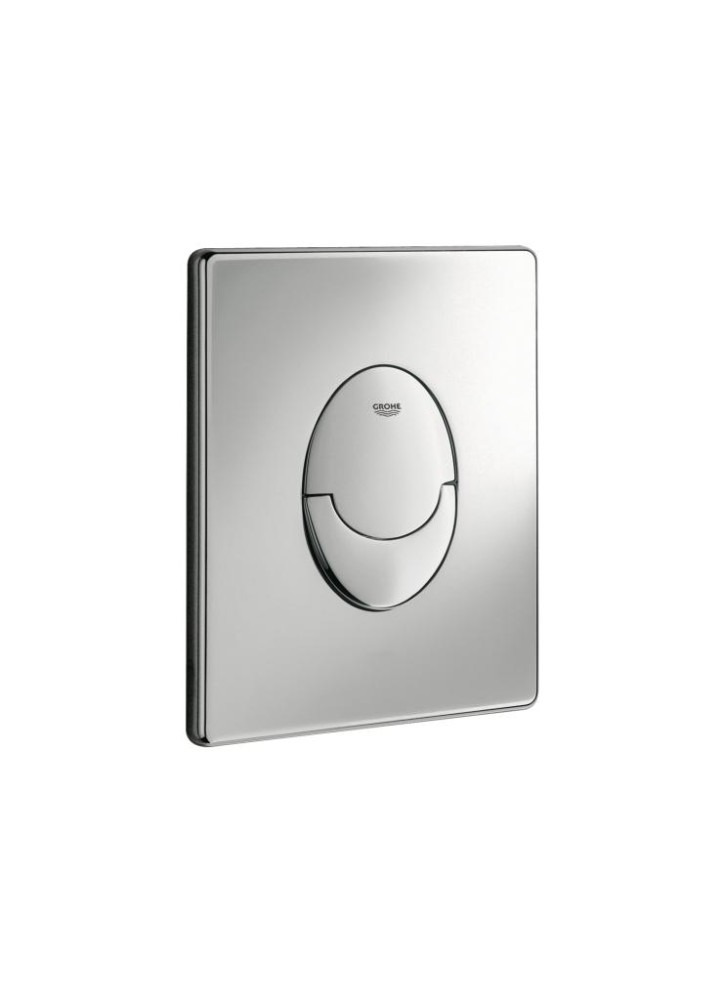

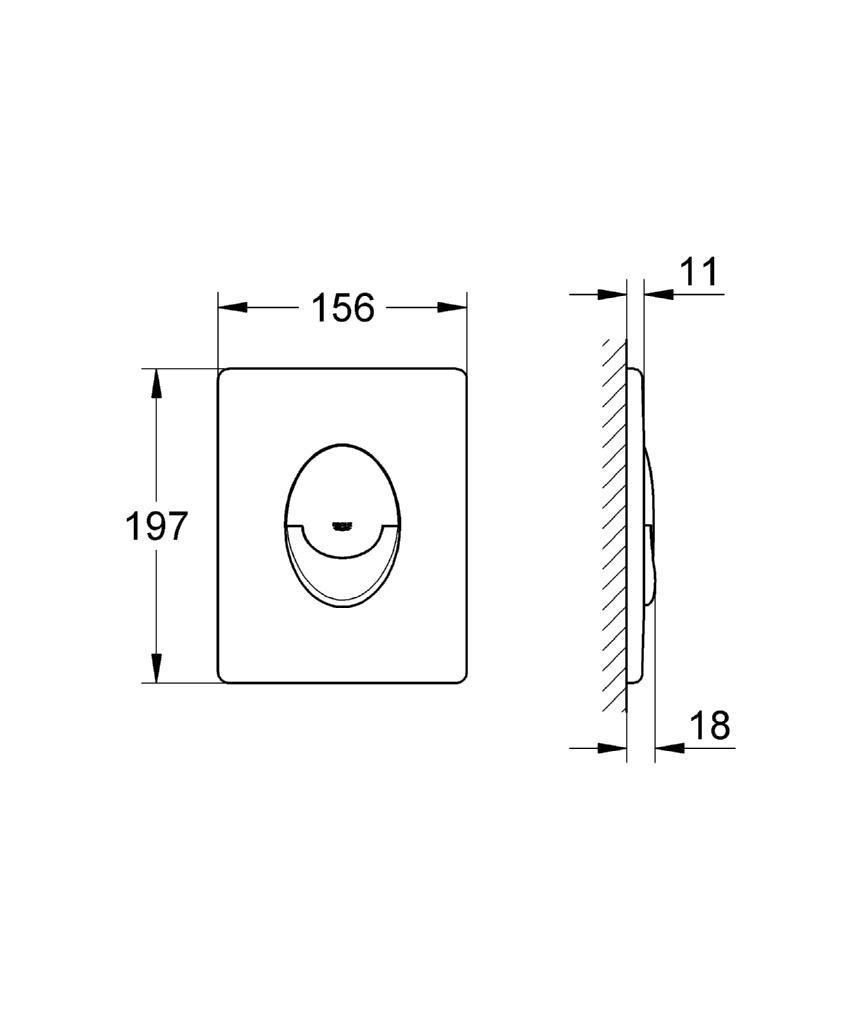

Grohe Skate Air Flush plate (38505000) :
- for dual flush or start & stop actuation
- for pneumatic drop valve AV1
- for vertical installation
- GROHE StarLight chrome finish
- GROHE EcoJoy technology for less water and perfect flow
- for combination with Rapid SL 1.13 m with GD 2 cistern
- for use with Rapid SLX please order shaft 66 791 000 (sold separately)
.

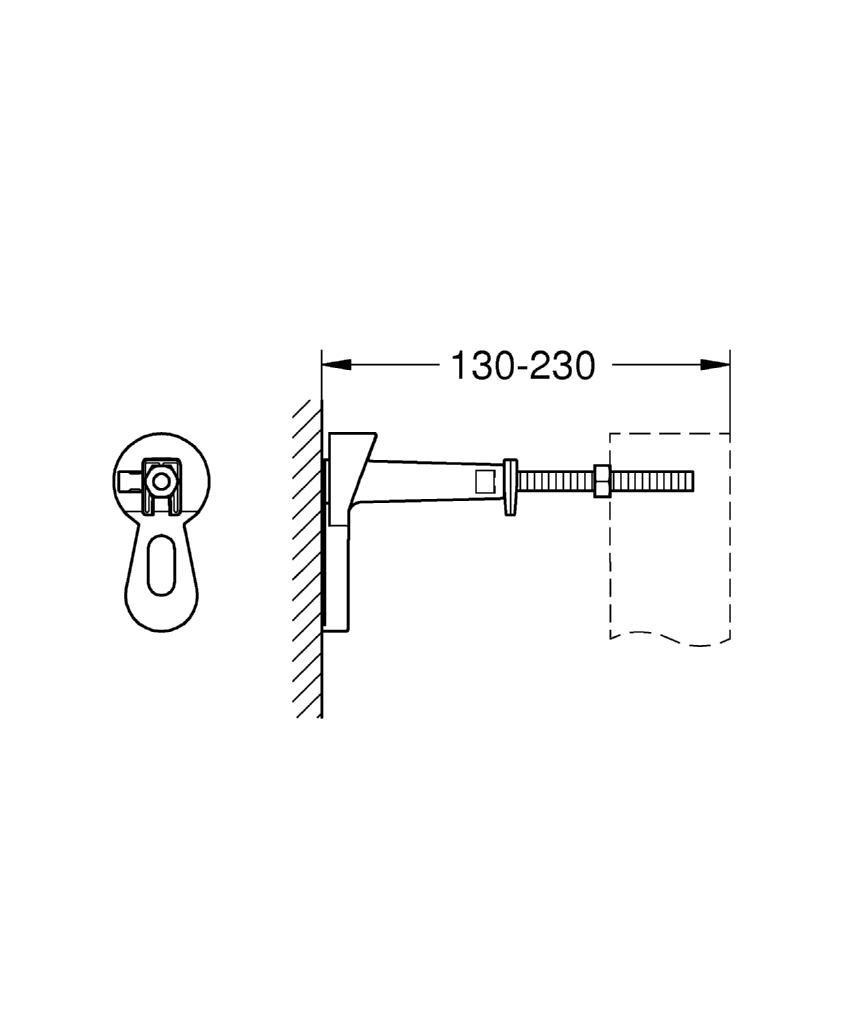

Grohe Rapid SL Front wall brackets (3855800M) :
- for against-the-wall installations
- for fixing the elements at the brick-wall or in front of the studded wall
- adjustment from 130 - 230 mm
- 2 pieces
Product technical properties
- Frame brand:Grohe
- Type of frame:Standard
- Plate colour:CHROME
