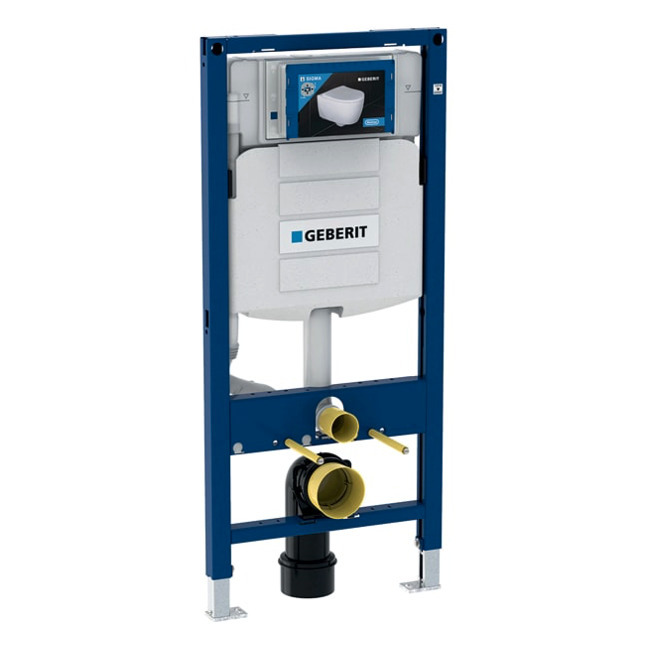

Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5)

Features of Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5):

• Geberit Duofix support frame with concealed cistern
• Front actuation
• Self-supporting frame

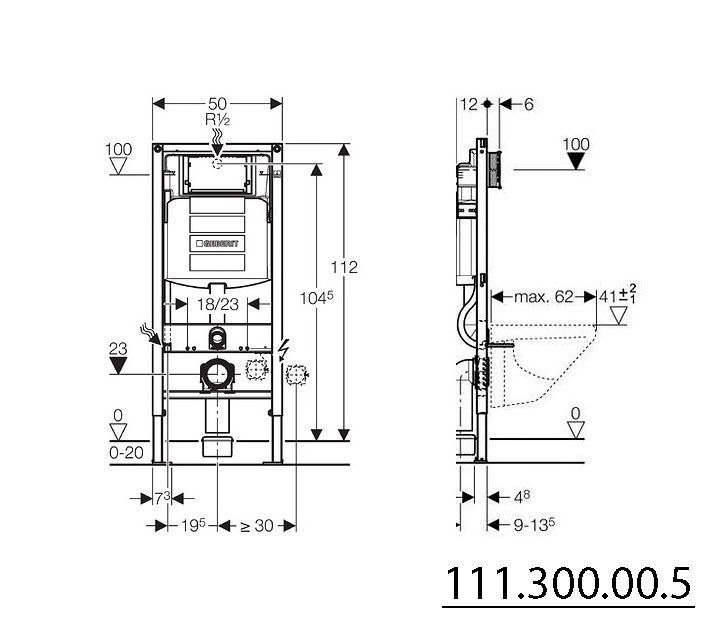

• 100-112cm (H) x 50 (W) x 12 (D)
• Suitable for Sigma flush plates

Use:

• For drywall construction
• For installation in part- or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung toilets with connection dimensions in accordance with EN 33:2011
• For wall-hung toilets with projection up to 62 cm
• For single flush, dual flush or stop-and-go flush
• For floor constructions 0–20 cm

Technical information:

• Self-supporting frame, powder-coated
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for ceramic toilets with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20 cm
• Non-slip leg supports
• Rotatable foot plates
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation
• Concealed cistern fully insulated against condensation
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection

Included:

• Water supply connection R 1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 protection plugs
• Connection set for toilets, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adapter socket made of PE-HD, ø 90 / 110 mm
• 2 threaded M12 rods
• Fixing material

Does not include:

Wall bracket for load-bearing wall (111.815.00.1)

Flush plate

.
