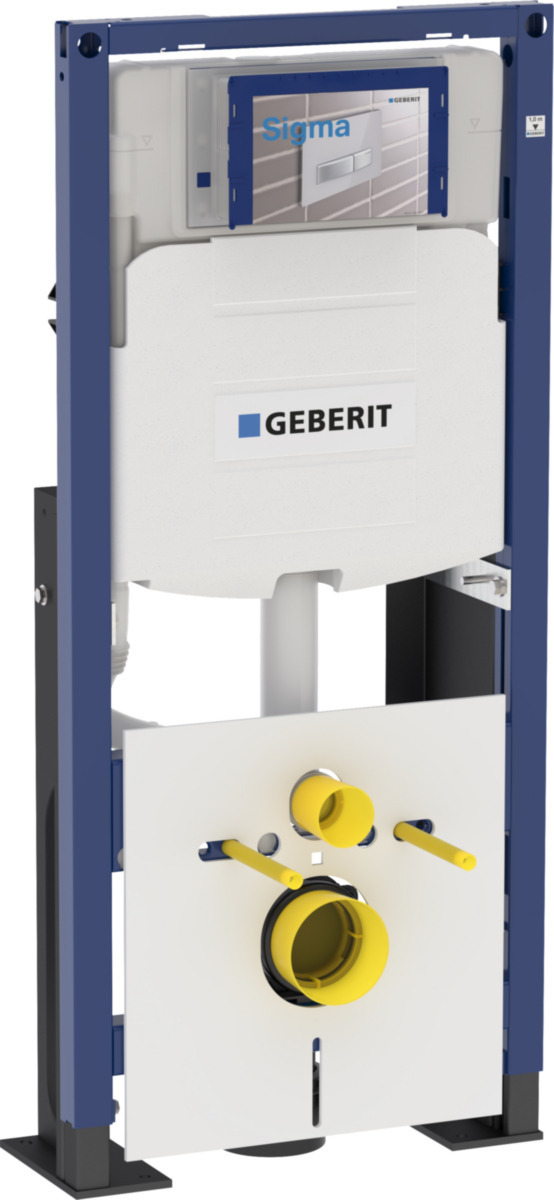

Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, freestanding, reinforced (111.380.00.5)
- Product reference: 111.380.00.5
- EAN: 4025416266327
- Line: Duofix
Brand:
Product warranty:
2
years
£
47990
TAX INCL.
£
44866
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
-6.96%
saving)
Currently not in stock
Features of the Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, freestanding, reinforced (111.380.00.5):
- Flow pressure: 0.1-10 bar
- Maximum operating temperature, water: 25 °C
- Flush volume, factory setting: 6 and 3 l
- Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
- Flush volume small, adjustment range: 2-4 l
Application purposes:
- For drywall construction
- For freestanding installation on concrete floors
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with large projection up to 70 cm
- For floor constructions 0–18 cm
Characteristics:
- Self-supporting frame, powder-coated
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Leg supports protected against corrosion
- Feet adjustable 0–18 cm
- Non-slip leg supports
- With large foot plates, reinforced, for raised power supply in floors
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Concealed cistern with front actuation
- Concealed cistern, fully insulated against condensation
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the rear or top centre
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- With fastening option for electrical connection
Scope of delivery:
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 protection plugs
- Connection set for WC, ø 90 mm
- Connection bend made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- 2 threaded rods M12
- 6 heavy-duty dowels M8
- Sound insulation set
- Fastening material
Product technical properties
- Material:Metal
- Length (cm):112 cm
- Width (cm):50 cm
- Height (cm):20 cm
- Frame brand:Geberit
- Type of frame:Freestanding
- Weight:10 kg
£
