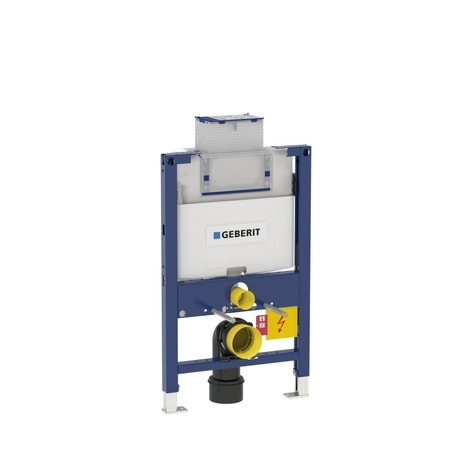

Geberit Duofix support frame for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm (111.003.00.1)
- Product reference: 111.003.00.1
- EAN: 4025416301806
- Line: Duofix
Brand:
Product warranty:
2 years
£
30990
TAX INCL.
£
35867
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
13.60%
saving)
10 In stock
Shipped today
Quantity:
Use:
- For drywall construction
- For installation in partial-height overlay walls
- For wall-hung toilets with connection dimensions according to EN 33:2011
- For wall-hung toilets with a projection of up to 62 cm
- For two-touch flushing
- For screed height 0-20 cm
Features:
- Self-supporting, powder-coated frame
- Frame with ø 9 mm drill holes for fixing in wooden construction
- Frame prepared for ceramic WC supports with small support surface
- Galvanised support feet
- Adjustable support feet 0-20 cm
- Anti-slip support feet
- Pivoting base plates
- Base plate depth suitable for installation in U-profiles UW 50 and UW 75 and rails for Geberit Duofix system
- Connecting bend for different depth positions, can be fitted without tools, adjustment range 45 mm
- Sound-insulated connection bend fastening - Concealed cistern with front or top operation
- Built-in tank insulated against condensation
- Immediate post-flushing possible with factory setting
- Installation and maintenance work on built-in tanks without tools
- Supply from the side or rear, left
- Access panel housing can be cut off
- Equipped with a supply line sleeve for connection to Geberit AquaClean flushing toilets
- With fixing possibilities for electrical connection
Contents of the box:
- Water inlet R 1/2", MeplaFix compatible, with integrated angle valve and hand wheel
- Reservation box for inspection cover
- WC connection set, ø 90 mm
- 90° PE-HD connection bend, ø 90 mm
- Transition sleeve made of PE-HD, ø 90 / 110 mm
- 2 protective caps
- 2 threaded rods M12
This set does not include :
Wall bracket for load-bearing wall 111.815.00.1
Flush plates are not included
Product technical properties
- Length (cm):90
- Width (cm):20
- Height (cm):20
- Constructor warranty:2 years
£
