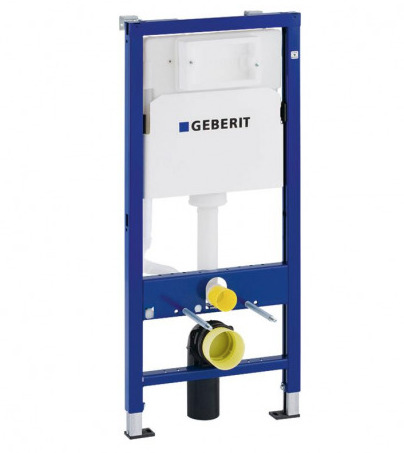

Geberit Duofix UP100 Toilet Support Frame + Concealed Cistern 112 cm (458.103.00.1)
- Product reference: 458.103.00.1
- EAN: 4025416758877
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of Geberit Duofix UP100 Toilet Support Frame + Concealed Cistern 112 cm (458.103.00.1):
- 112 cm galvanised support frame with adjustable feet from 0-20 cm
- UP100 water tank (with 25-year manufacturer's warranty on spare parts)
- Pre-painted frame in Geberit blue
- Support feet with cm scale marking
- Swivel feet for mounting in UW50/UW75 profile
- Crossbar for cladding support
- 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
- Concealed cistern 4-6-7.5 L, insulated against condensation
- Dual flush front actuation with Delta21, Delta20 or Delta50 plates
- Supply from the back/top
- Angle stop valve R1/2",
- Housing for inspection hatch
- Construction protection made of styrophor
- Drain elbow Ø 90 mm
- Sleeve fitting Ø 90 mm
- Fixing material
Please note: Only the Geberit Delta21, Delta20, or Delta50 flush plates are compatible
Does not include:
Wall bracket for load-bearing wall 111.815.00.1
Delta21, Delta20 or Delta50 plates are not included
.
IMPORTANT: Please make sure to check the products upon delivery. If there's any damage, be sure to note it with the delivery person on the delivery note for each specific item. Unfortunately we won't be able to accept any claims otherwise as the delivery companies are very strict about this. Thank you for your understanding.
- Length (cm):112
- Width (cm):20
- Height (cm):20
- Constructor warranty:2 years
