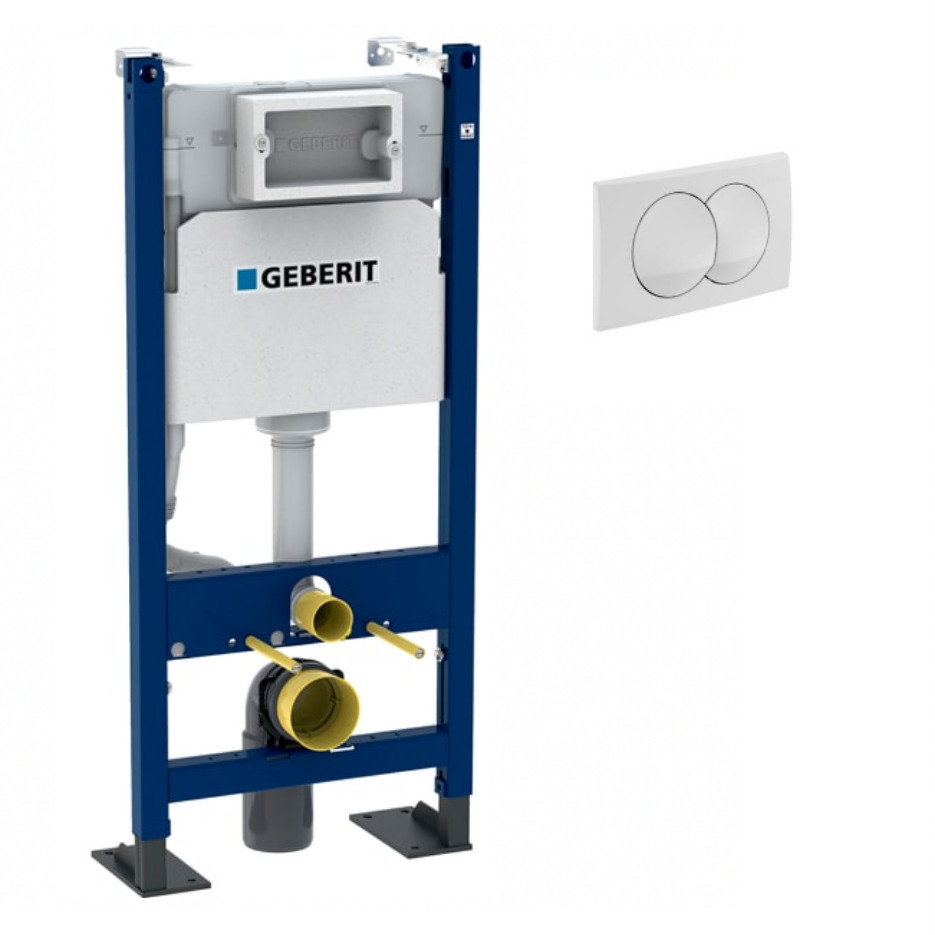

Geberit Pack Duofix 112cm self-supporting + Delta20 white flush plate + wall fixings (111.154.11.1-GebX)
- Product reference: 111.154.11.1-GEBX
- EAN: 0750122367726
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
This toilet pack includes the Geberit Metal Free-standing Feet Set. By purchasing this toilet pack, you can install your Geberit support frame at your convenience according to your wall. You have two options:
- You have a load-bearing wall: you can install the support frame as it is by using the wall fixings.
- You don't have a load-bearing wall: thanks to the Geberit self-supporting feet, you can fix the support frame to the floor, perfect for light partitions!
see detailed description- Frame brand:Geberit
- Type of frame:Self-supporting
- Plate colour:White
- New:New
Features of the Pack Duofix 112cm self-supporting + Delta20 white flush plate + wall fixings (111.154.11.1-GebX) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta concealed cistern (111.153.00.1)
- Geberit white trigger plate (115.100.11.1)
- Set of self-supporting feet for Geberit Duofix support frame (111.849.00.2)
- DuofixBasic pre-wall mounting set (111.839.00.1)
.

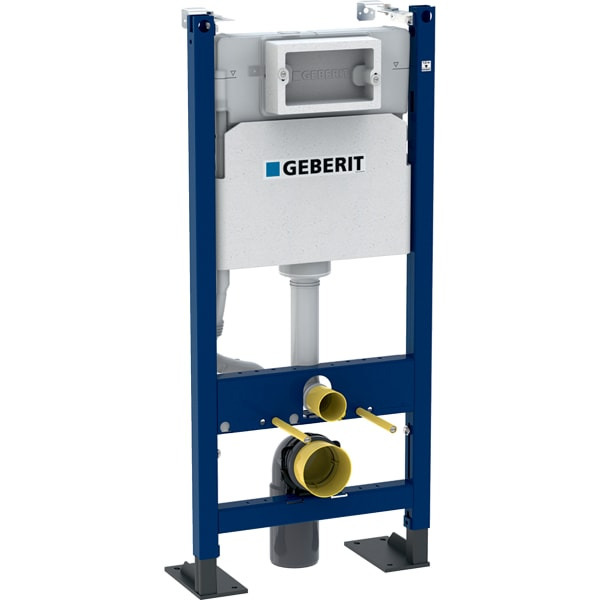

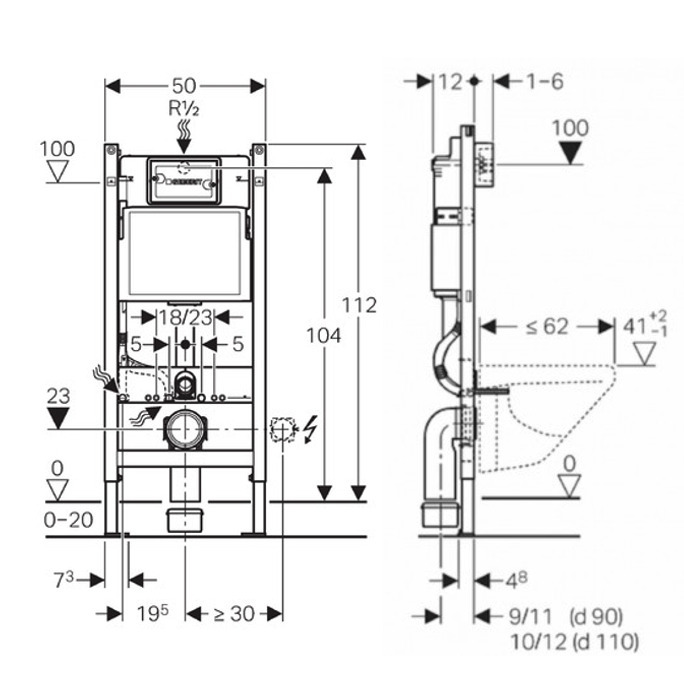

Geberit DUOFIXBasic for wall-hung toilets, with Delta concealed cistern (111.153.00.1) :
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)

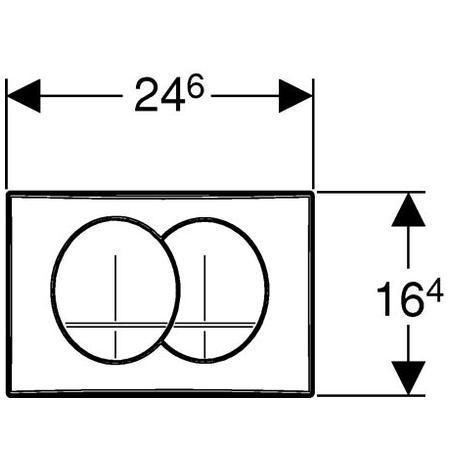

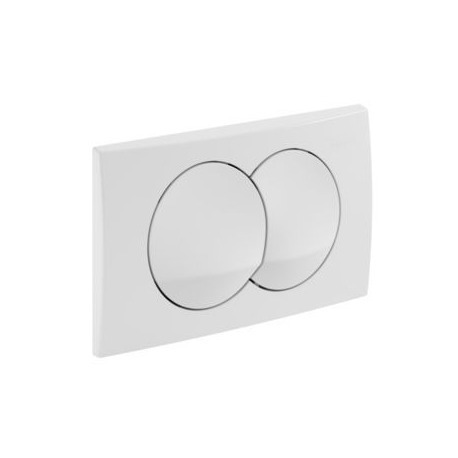

Geberit White Trigger plate DELTA20 (115.100.11.1) :
- 2 actuator rods, one for a small 3L flush and one for a large 6L flush
- Water saving
- Front actuation

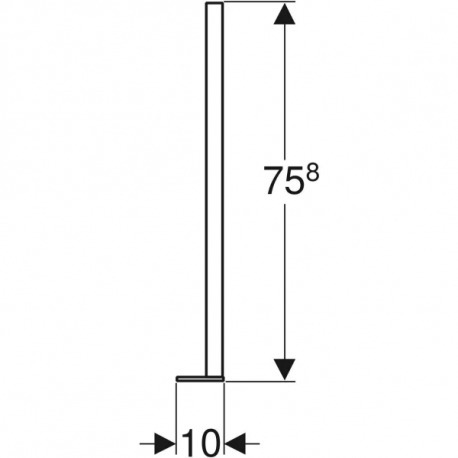

Set of self-supporting feet for Geberit Duofix support frame (111.849.00.2) :
- For screed heights of 0-20 cm
- For use with Geberit Duofix support frames for better force transfer to the floor
- Continuously adjustable feet
- Metal feet, protected against corrosion
- Self-supporting wide legs, suitable for all types of walls.
