Geberit Duofix set extra-flat support frame 114 cm UP720, space-saving + two-touch flush plate, white (111.796.00.1-B)
- Product reference: 111.796.00.1-B
- EAN: 0750122364213
- Line: Duofix
Brand:
Product warranty:
2
years
£
29190
TAX INCL.
£
49654
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
41.21%
saving)
10 In stock
Shipped before
the 26 December
Quantity:

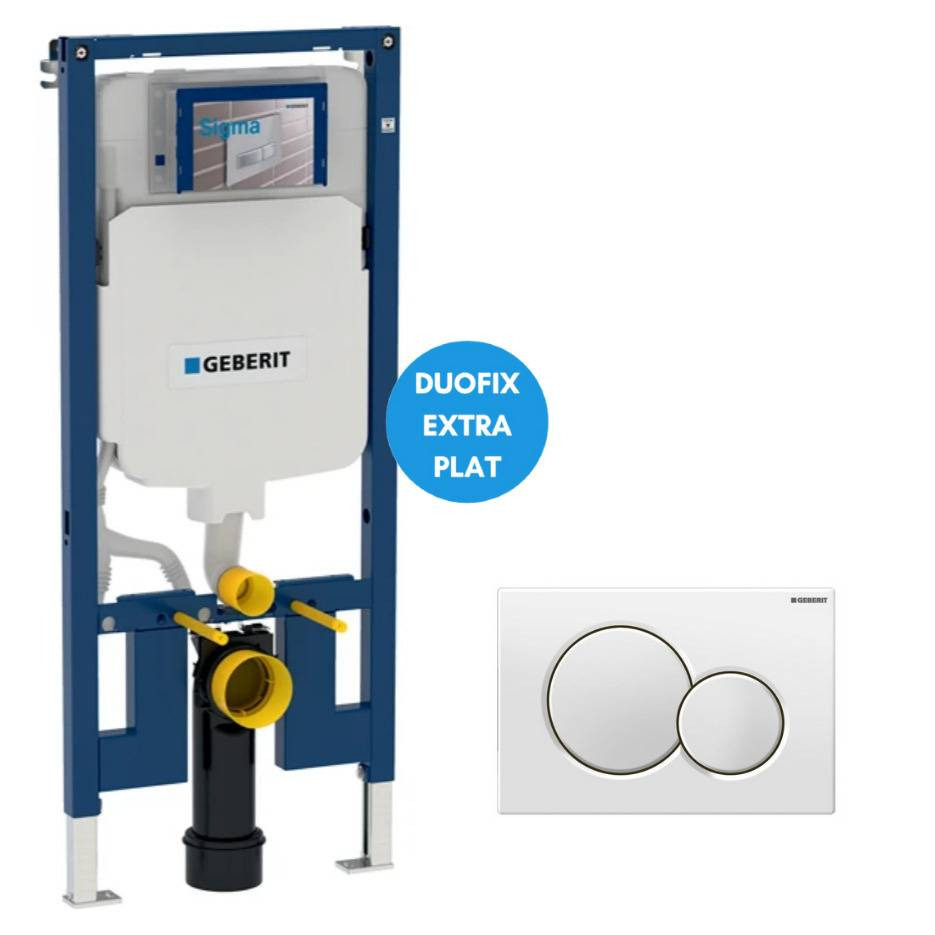

Features of the Duofix set extra-flat support frame 114 cm UP720, space-saving + two-touch flush plate, white (111.796.00.1-B) :
- Geberit Duofix extra-flat support frame 114 cm UP720, space-saving with 8 cm Sigma concealed cistern (111.796.00.1)
- Geberit White SIGMA 01 two-touch flush plate (115.770.11.5)
.

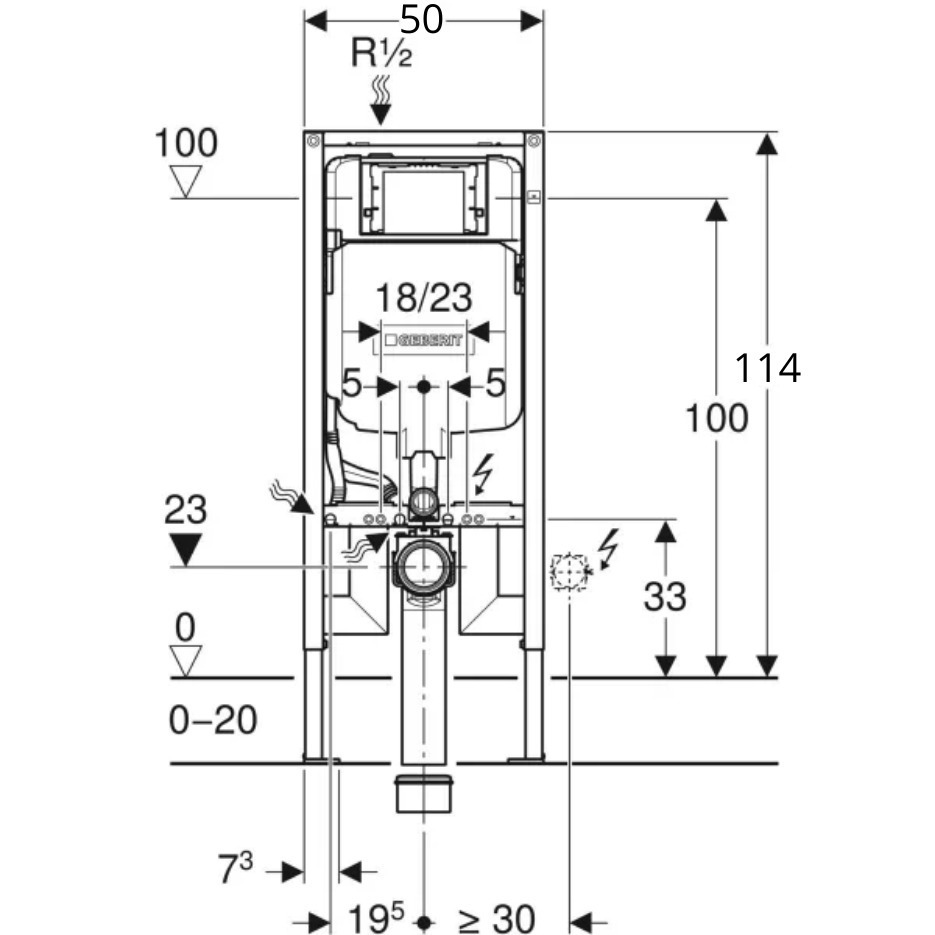

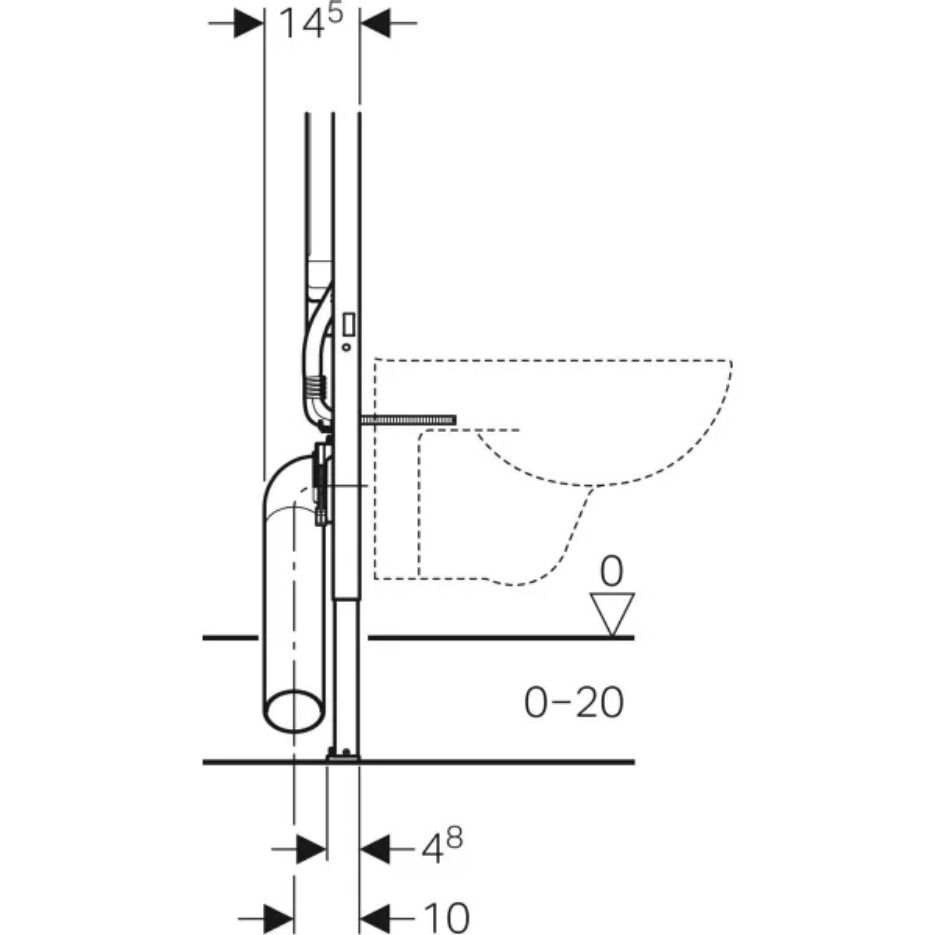

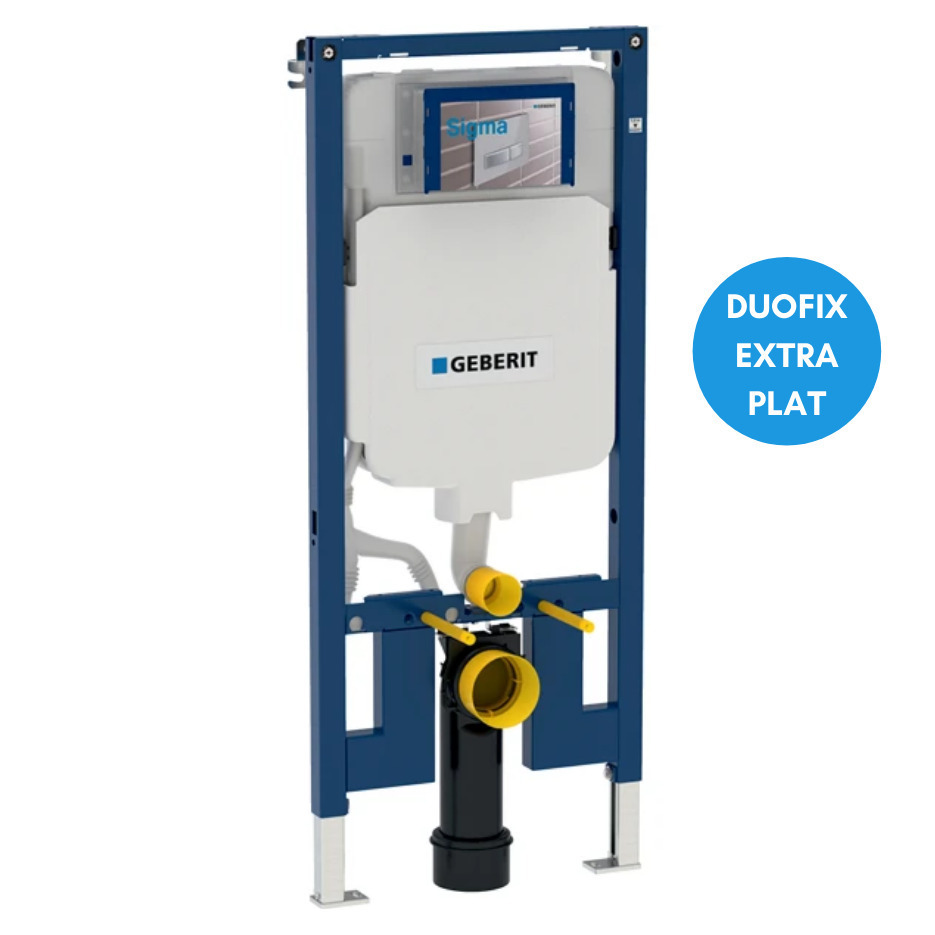

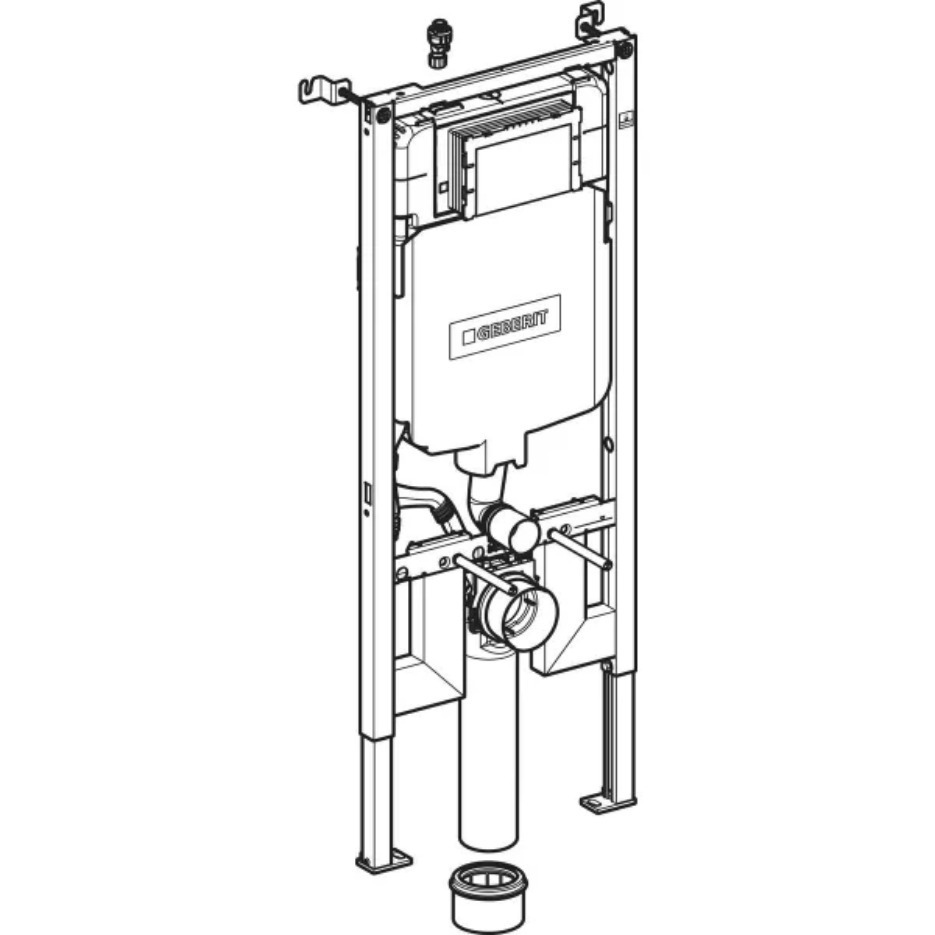

Space-saving, extra-flat 114 cm UP720 stand with 8 cm Sigma concealed cistern, Geberit Duofix (111.796.00.1) :
- Frame suitable for WC bowls with small support surface (with pressure-resistant wall cladding)
- Galvanised, infinitely adjustable, non-slip support feet
- Depth of foot plates suitable for installation on UW 50 profiles and Geberit Duofix system rails
- Connecting bend for different depth positions, can be mounted without tools
- Connecting bend for depth position flush with the front for vertical installation
- Extended connection bend, for floor connection
- Connection bend fastening with sound insulation
- Built-in tank with front release
- Built-in tank insulated against condensation
- Immediate post-flushing possible with factory setting
- Installation and maintenance work on concealed cisterns without tools
- Water inlet from the top left
- Access panel housing, protects against moisture and dust
- Access panel box, can be cut to size, suitable for flush-mounted trigger plates
- Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
- With fixing possibilities for electrical connection
Use :
- For dry wall construction
- For installation in walls at room height or partial height
- For installation in installation walls at room height

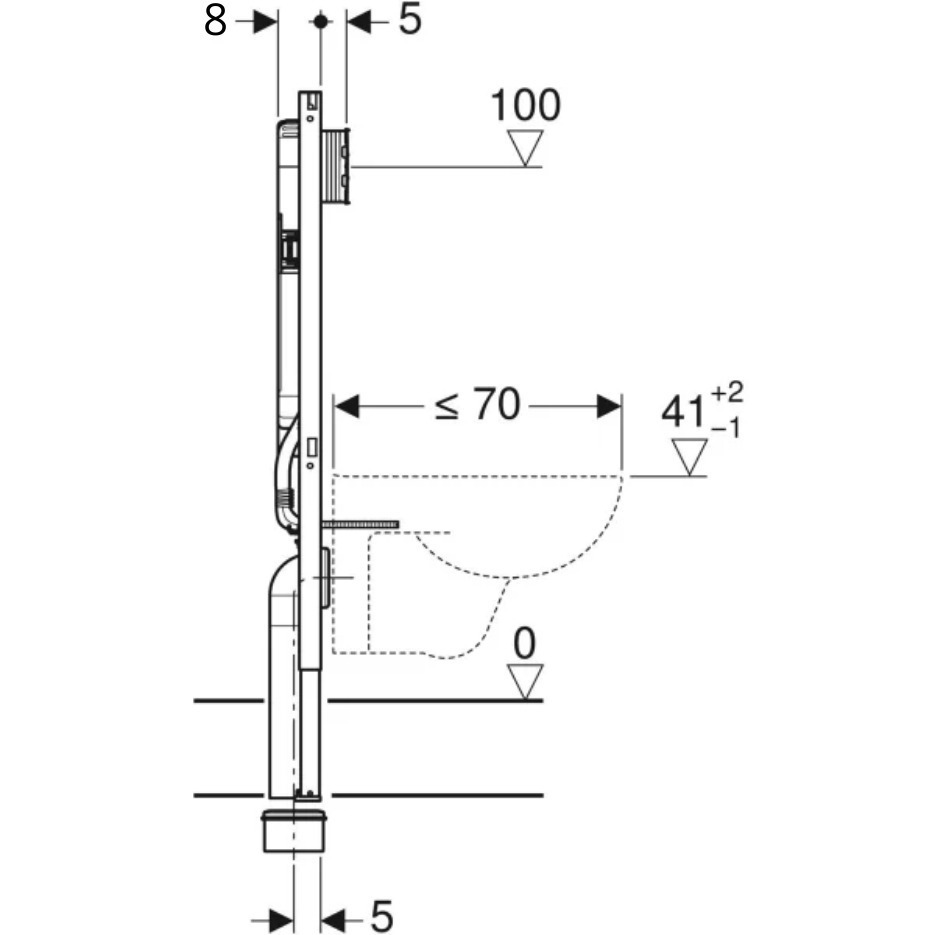

- For wall-hung toilets extended to 70 cm
- For one-touch, two-touch or interruptible flushing
- For screed heights of 0-20 cm
Scope of delivery :
- R 1/2" supply line, MF compatible, with integrated angle valve and hand wheel
- Reservation box for inspection hatch
- 2 wall mountings
- WC connection set, ø 90 mm
- 90° PE-HD connection bend, ø 90 mm
- Transition sleeve made of PE-HD, ø 90 / 110 mm
- 2 protective caps
- 2 threaded rods M12
- Fixing material
.

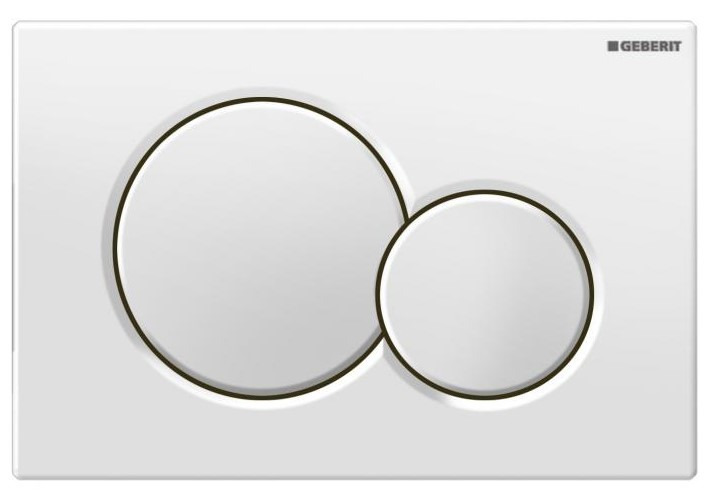

Geberit White SIGMA 01 two-touch flush plate(115.770.11.5) :
- Trigger plate with two circular buttons.
- Double button 3/6L water saving
- Made of high quality synthetic material
- Plate compatible with the blue water block diffuser
- Dimensions: 246x164 mm.
Product technical properties
- Colour:White
- Material:Synthetic
- Length (cm):114
- Width (cm):24.6
- Height (cm):16.4
- Type of frame:Standard Extra Flat
- New:New
- Weight:10
£
