Grohe 3 in 1 Rapid SL Set Support frame + Gloss black flush plate , Long-lasting gloss + Wall bracket (39940000)
- Product reference: G39940000
- EAN: 4005176737879
- Line: Rapid SL
Features of the 3 in 1 Rapid SL Set Support frame + Gloss black flush plate , Long-lasting gloss + Wall bracket (39940000) :
.

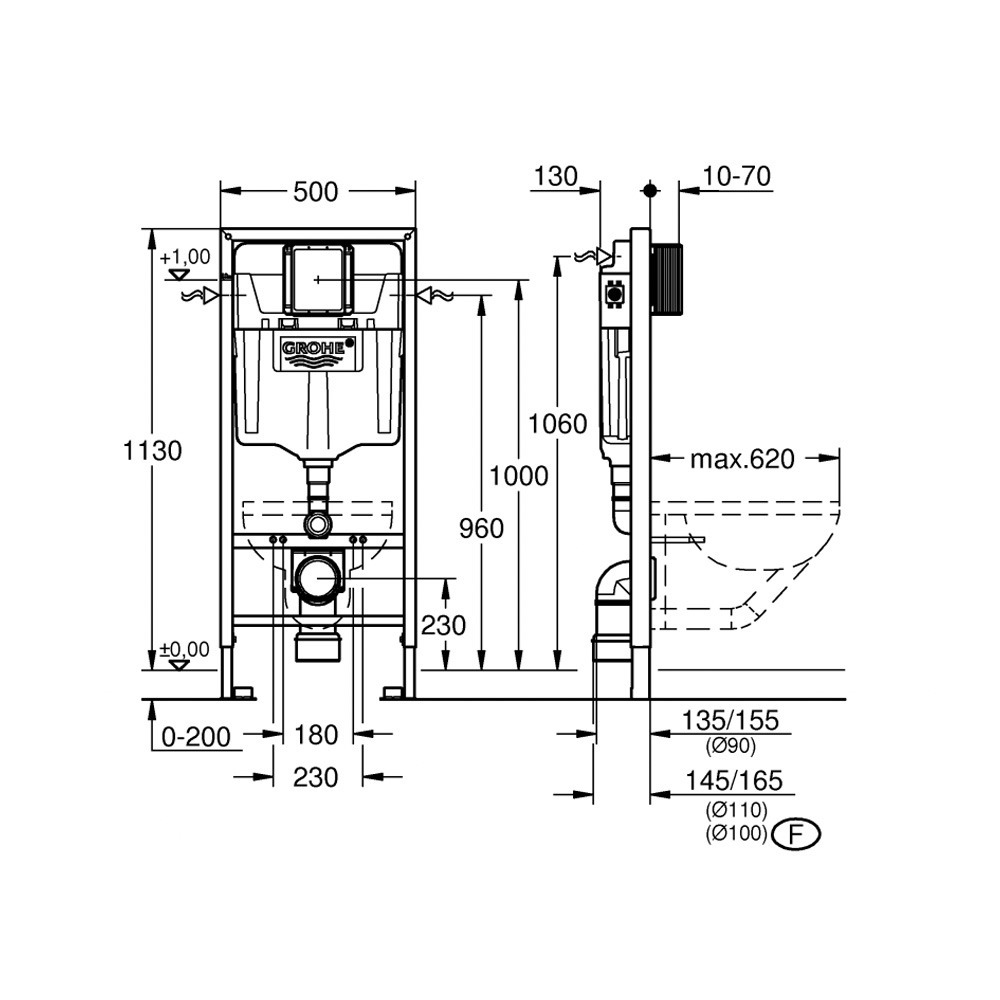

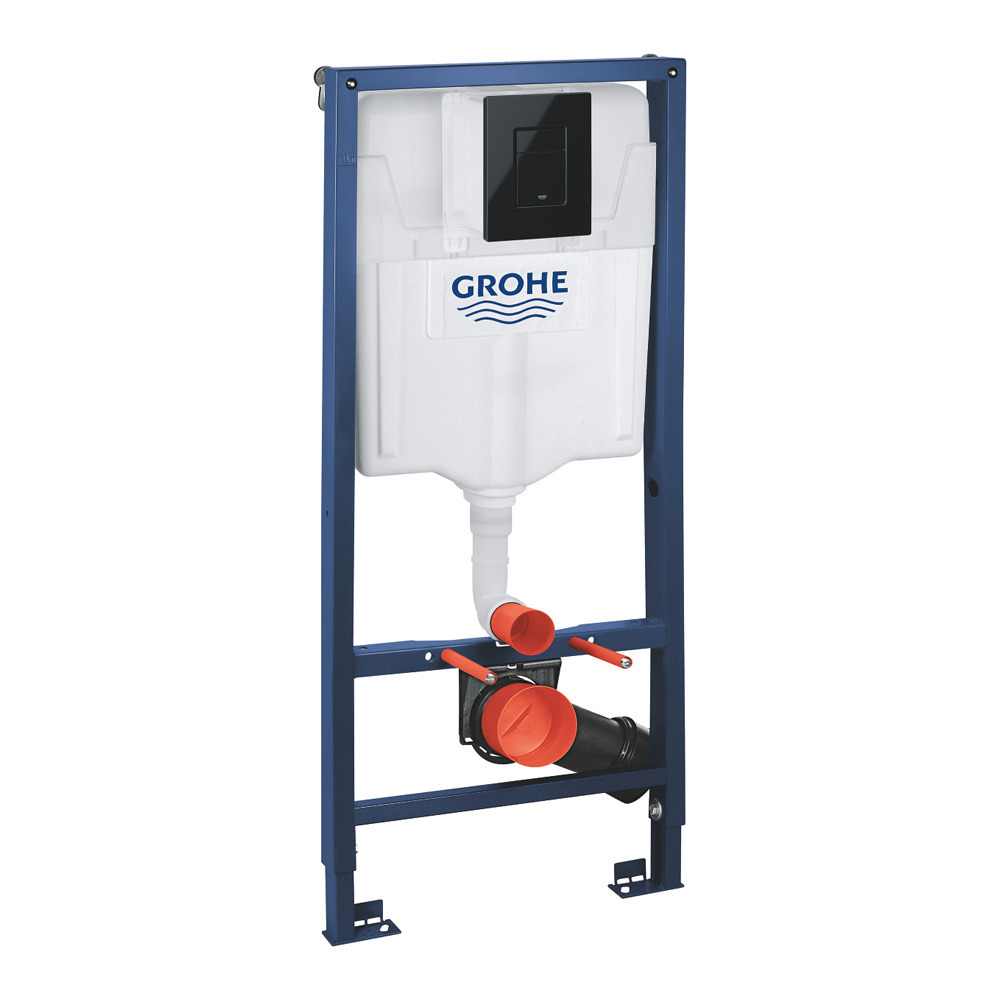

Grohe Rapid SL toilet frame for wall-hung toilets (38528001):
-
with flushing cistern GD 2 , 6 l - 9 l
-
for on-the-wall installations or studded walls
-
powder coated steel frame, self-supporting
-
TÜV approved
-
2 WC fixing bolts
-
fixing device for ceramic
-
WC ceramics with small bearing area (< 205 mm) require additional accessory 38 779 000
-
distance of fixing bolts 180/230 mm
-
outlet bend Ø 90 mm
-
depth adjustable
-
reducer Ø 90/110 mm
-
inlet and outlet connecting set
-
flushing cistern GD 2, 6 - 9 l, containing following features:
-
water supply from left/right or back
-
Insulated against condensation
-
½" water supply connection including integrated angle valve and push fit flexible hose union
Please note :
- for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
- for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
.

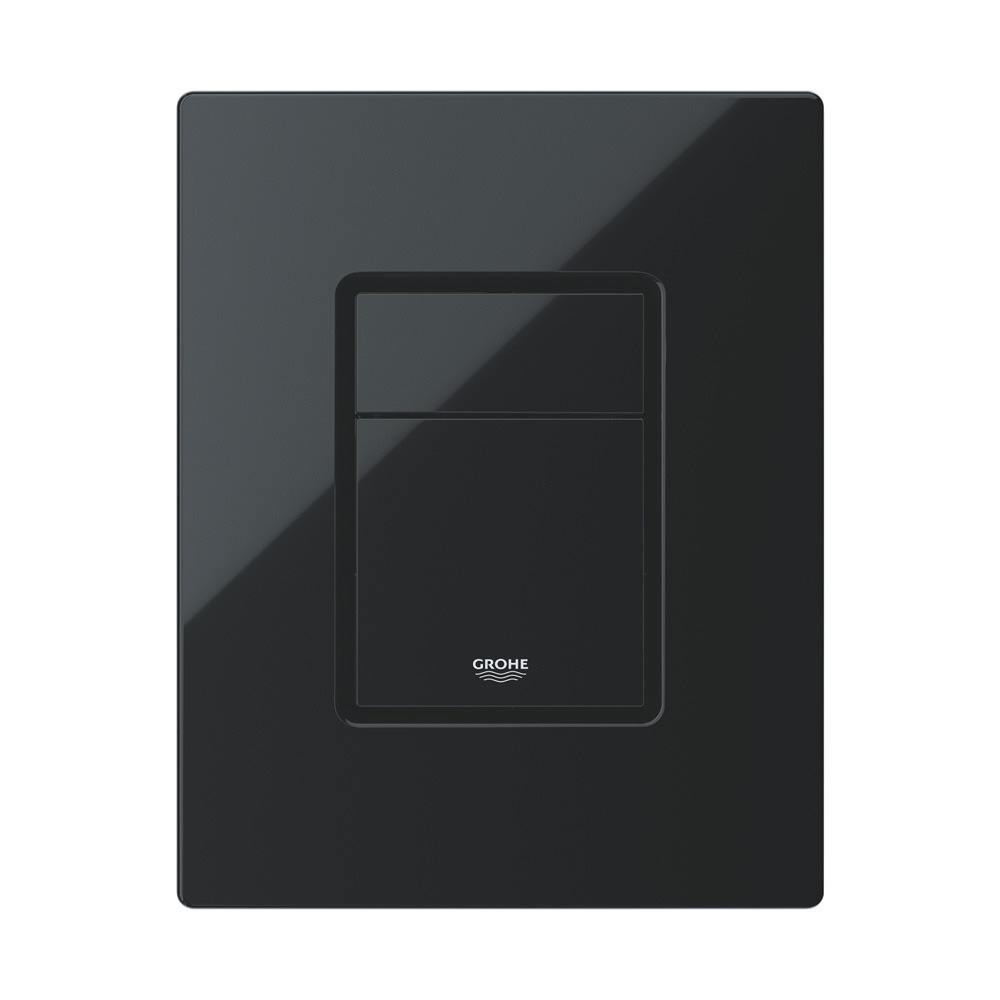

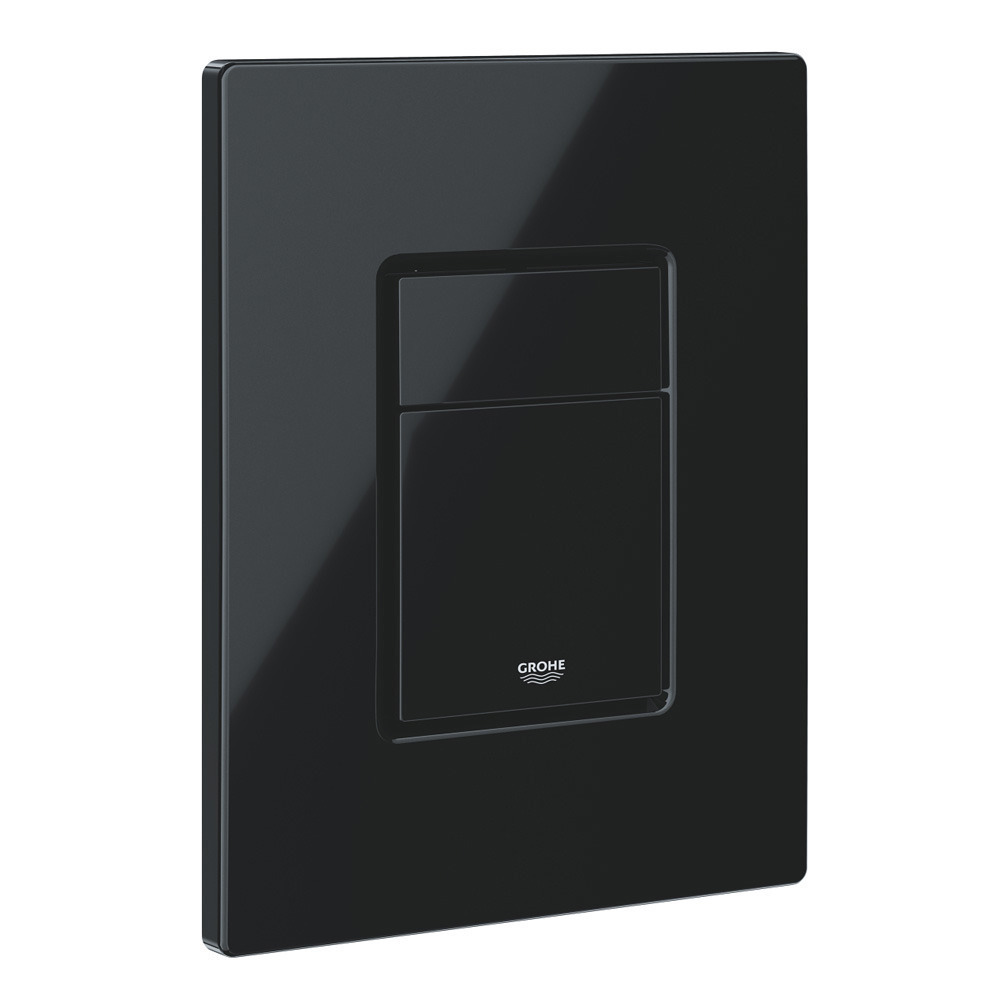

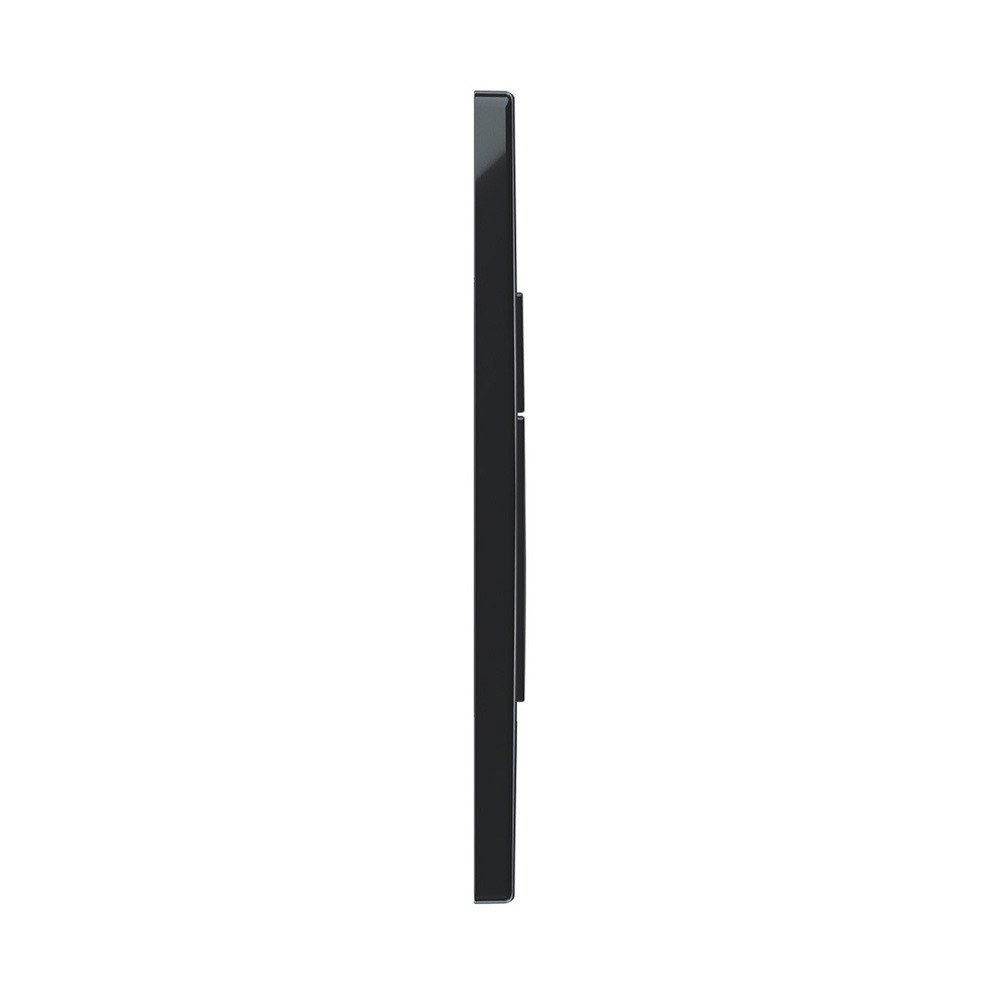

Grohe Even Flush plate for dual flush, long-lasting gloss, gloss black (38732KV0):
- For the 2-effect rinsing or on/off function
- For pneumatic drain valve AV1
- Vertical mounting

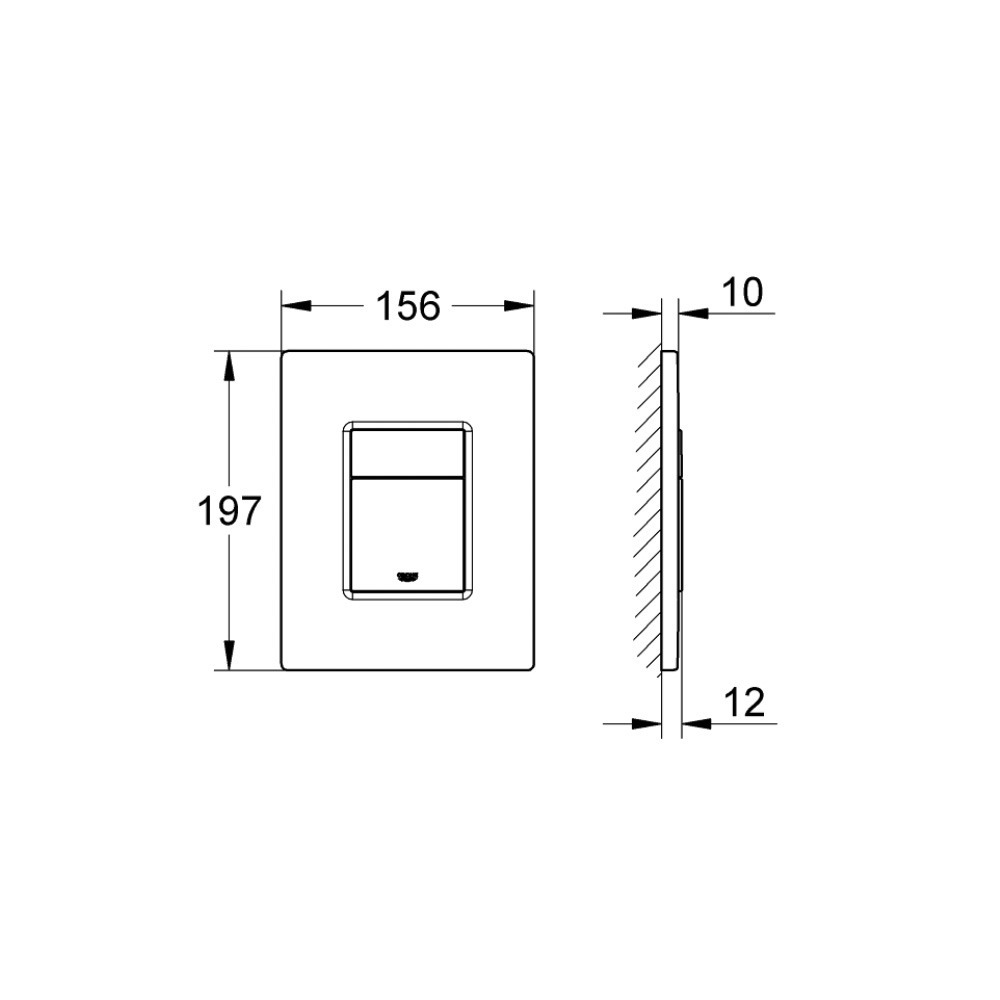

- 156 × 197 mm
- ABS
- Finish: GROHE Long-Lasting gloss
- GROHE Water Saving Technology low water consumption and perfect flow
- To combine with Rapid SL and Uniset tanks
.

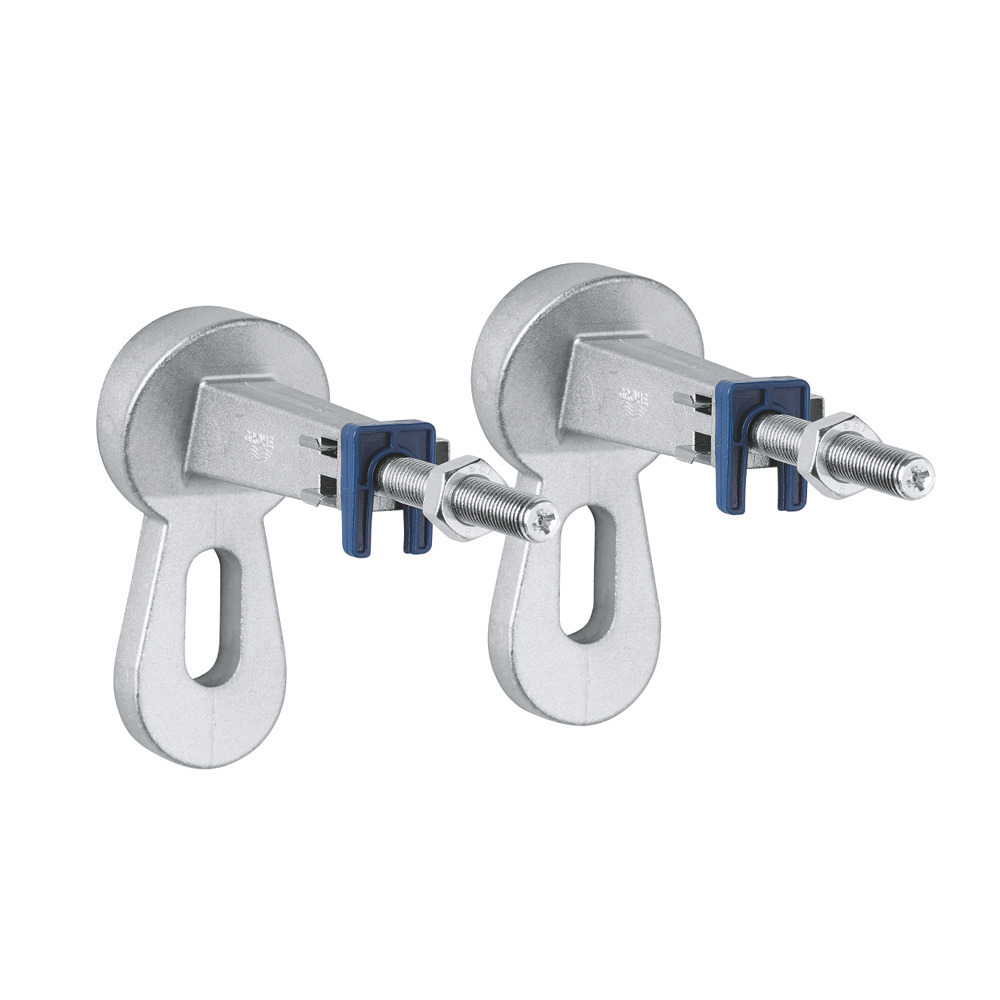

Grohe Rapid SL wall brackets (3855800M) :
- Rapid SL wall bracket
- For surface mounting
- For mounting on wall or partition
- Infinitely variable depth adjustment 130 - 230 mm
- Supplied with fixing materials
- 2 pieces
.
- Material:Metal
- Height (cm):113 cm
- Type of frame:Standard
- New:New
