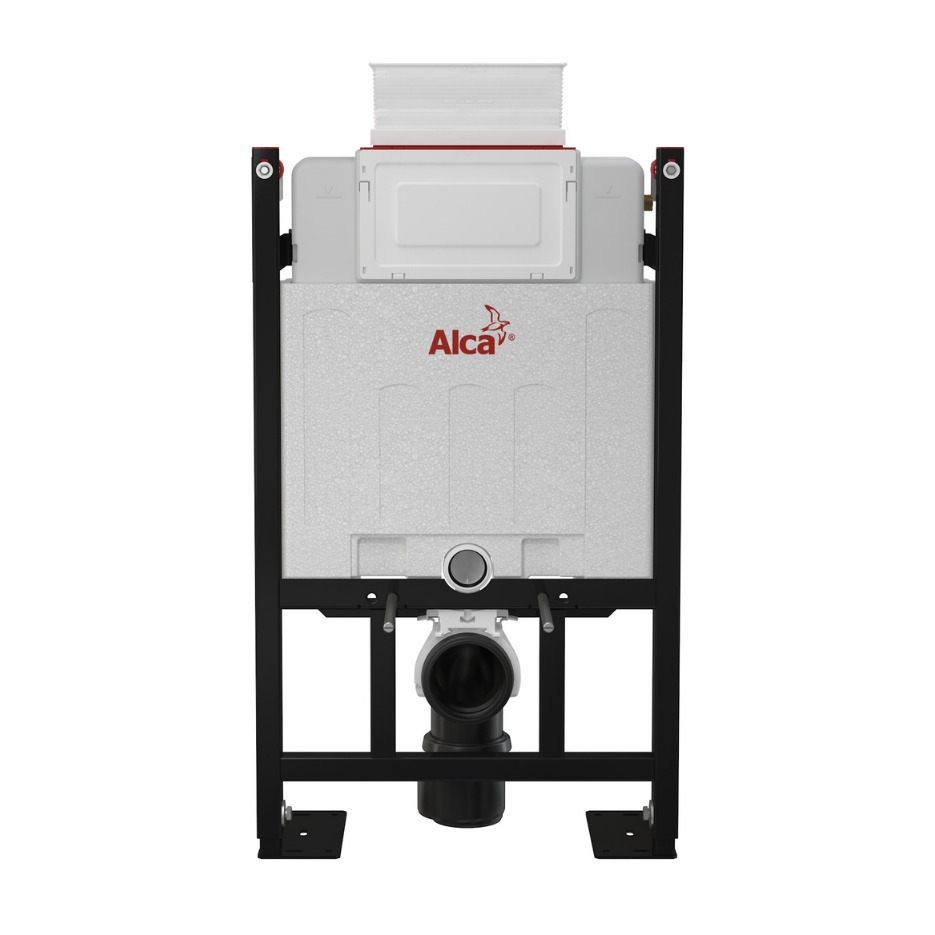

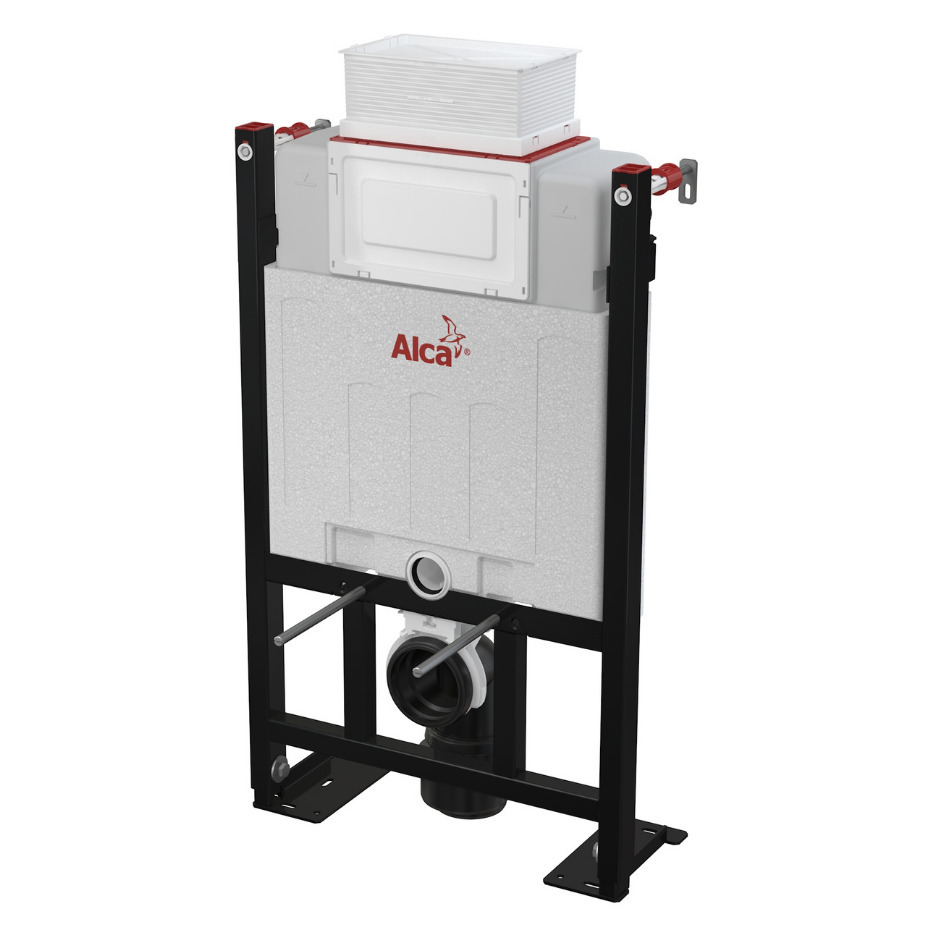

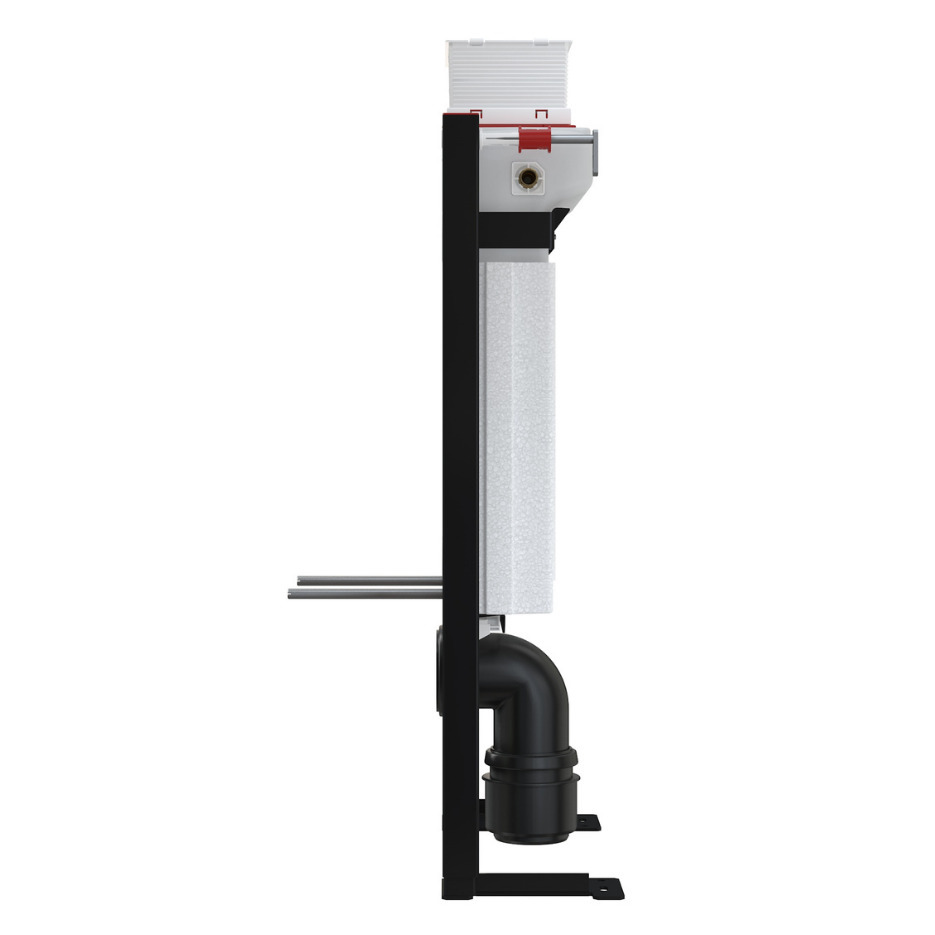

Alca Self-Supporting Frame for Wall-Hung Toilets, 85cm (AM118/850F)
- Product reference: AM118850F
- EAN: 8595580573522
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
The AM118/850F self-supporting frame is designed for wall-hung toilets and accommodates floor thicknesses ranging from 0 to 200 mm.
It is intended for installation in front of a load-bearing wall or within drywall constructions, offering flexibility in anchoring and adjustment thanks to adjustable feet and a sliding rail support.
The integrated design prevents condensation and minimizes vibrations with a polystyrene insulator. The monobloc cistern ensures perfect sealing. Maintenance work is simplified, requiring no tools, and a Schell shut-off valve is included.
see detailed description- Type of frame:Self-supporting
Features of Alca Self-Supporting 85cm Wall-Hung Toilet Frame (AM118/850F):
-
- Self-supporting toilet frame
- For wall-hung toilets
- Suitable for installation in front of a load-bearing wall or in a plasterboard construction
- For floor thicknesses of 0 to 200 mm

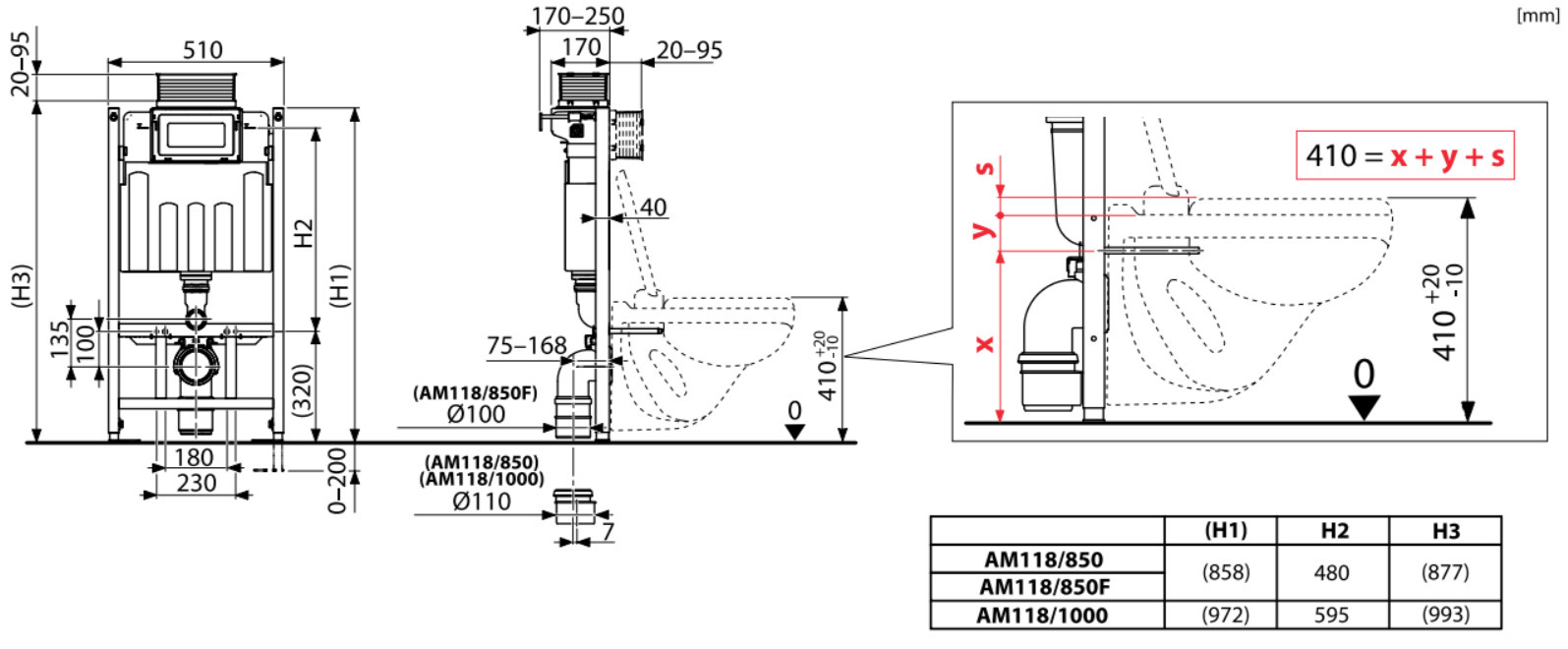

- For installation of wall-hung toilet bowls with a connection distance of 180 mm or 230 mm
- Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
- The sliding rail support for the waste connector can be adjusted to eight positions between 0 and 93 mm
- Angle valve with the option to connect to the Mepla piping system
- The frame allows for anchoring to a separate plasterboard partition that is sufficiently strong, in front of the load-bearing wall
- For drywall, completely pre-assembled
- The installed module is covered with a plasterboard panel and no additional fixing or anchoring elements are required
- Polystyrene insulation construction prevents condensation on the tank surface and dampens vibrations in the structure
- Prepared for connecting a support with a DG 1/2" conversion for bidet seats and sprays
- Double flush independently adjustable with hygiene reserve
- Top or front actuation
- Tool-free maintenance
- Water supply from the back/top
- The cistern is made of a single piece, make it 100% watertight
- The service opening cover makes installation easy and prevents dirt and moisture from entering
- Adjustable installation depth from 20 to 95 mm
- Frame material: powder-coated metal
- Metal feet
- Schell shut-off valve included
