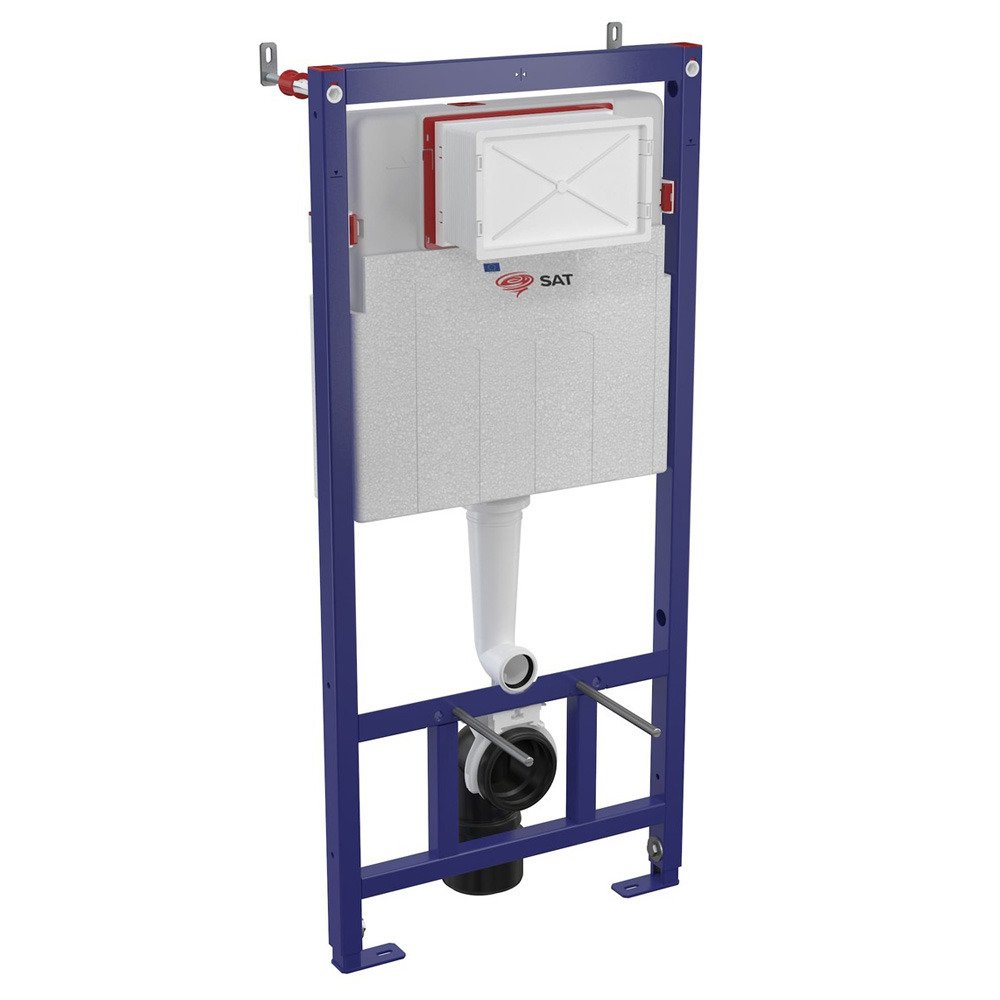

Swiss Aqua Technologies Wall-Hung Toilet Frame + Cistern 112 cm (SATAMSK)
- Product reference: SATAMSK
- EAN: 8592127148526
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Swiss Aqua Technologies AG (SAT) is a Swiss company based in Cham.
For nearly 20 years, it has been developing products to improve water quality, conserve water, and use water’s natural properties to the fullest, with a focus on health and the environment. Its revolutionary products include the Ion Polarization System (IPS), the Optim Flush System (OFS) and the Water Care System (WCS).
SAT aims to equip half the toilets sold in developed countries with its patented technology by 2030. It exports to 50 countries, including China, India, Australia and Brazil.

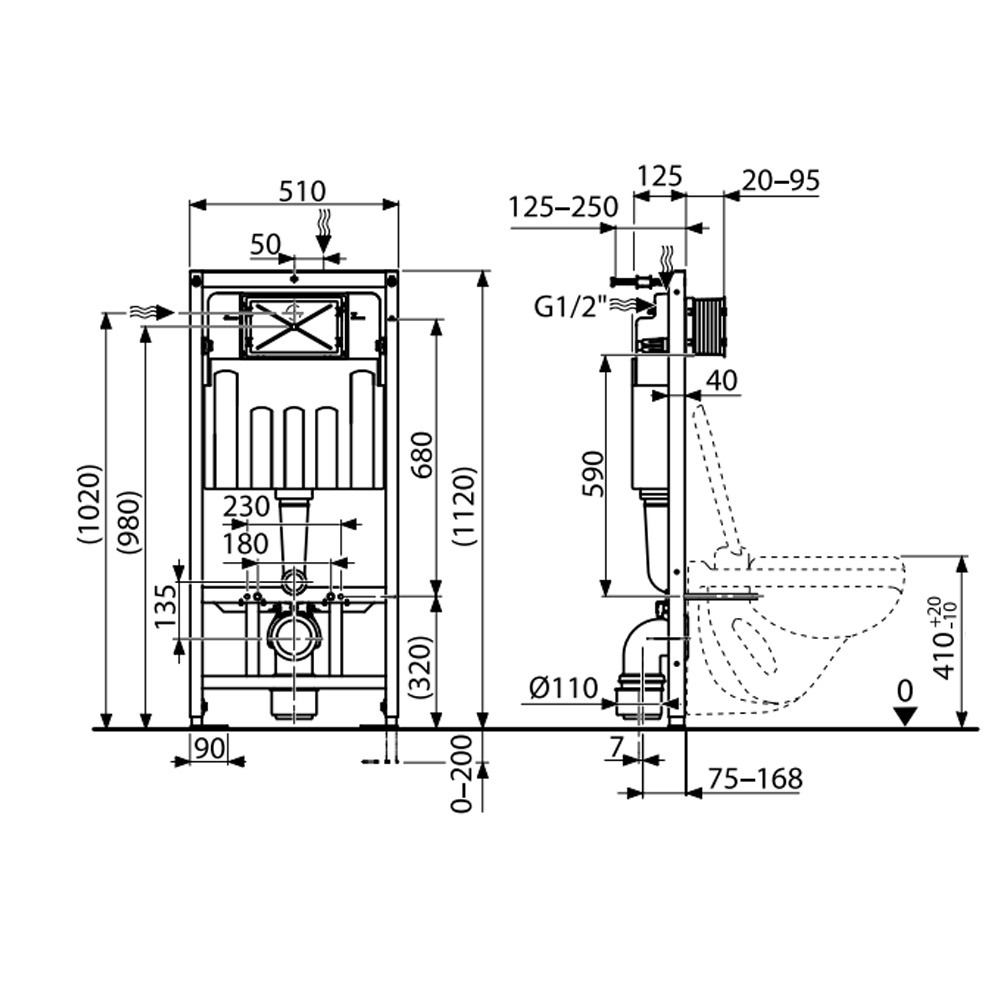

see detailed description- Width (cm):51
- Height (cm):112
- Frame brand:Swiss Aqua Technologies
- Type of frame:Standard
- New:New
- Depth:12.5
Features of Swiss Aqua Technologies Wall-Hung Toilet Frame + Cistern 112 cm (SATAMSK):
Use:
- For installation in front of a load-bearing wall or in plasterboard construction
- For the installation of a wall-hung toilet with a connection distance of 180 mm or 230 mm
- For floor constructions of 0 to 200 mm
- For wall-hung toilets
Features:
- Adjustable Dual Flush
- Compatible with all SAT control buttons
- Polystyrene insulation construction prevents condensation on the tank surface and dampens vibrations in the structure

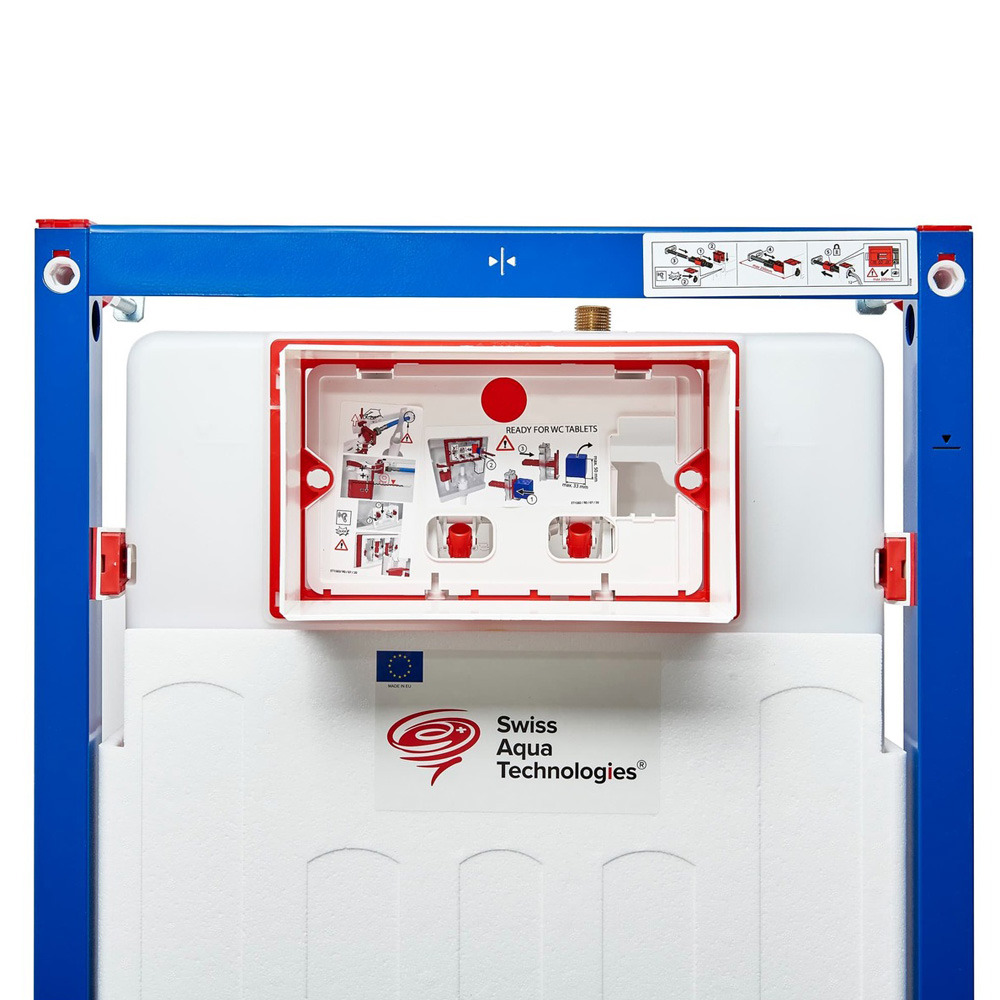

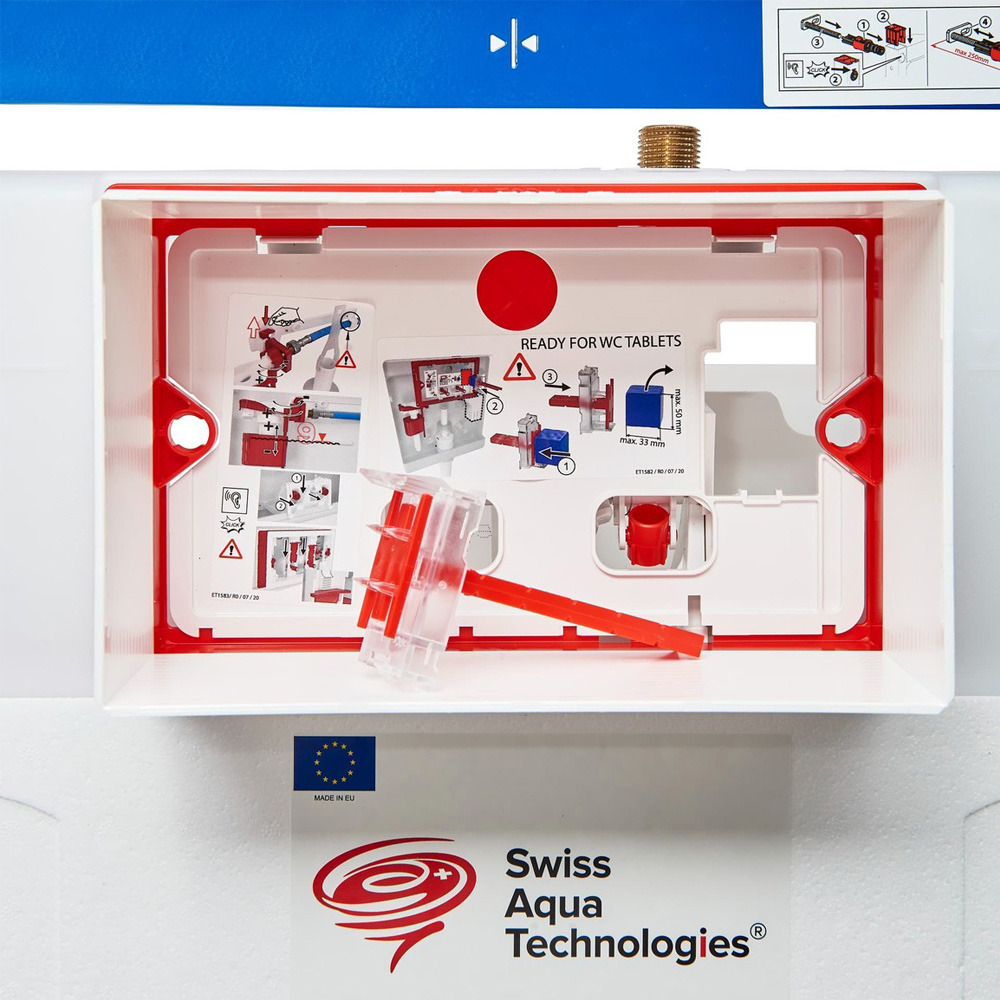

- The service opening cover simplifies installation and prevents accumulation of moisture and dirt

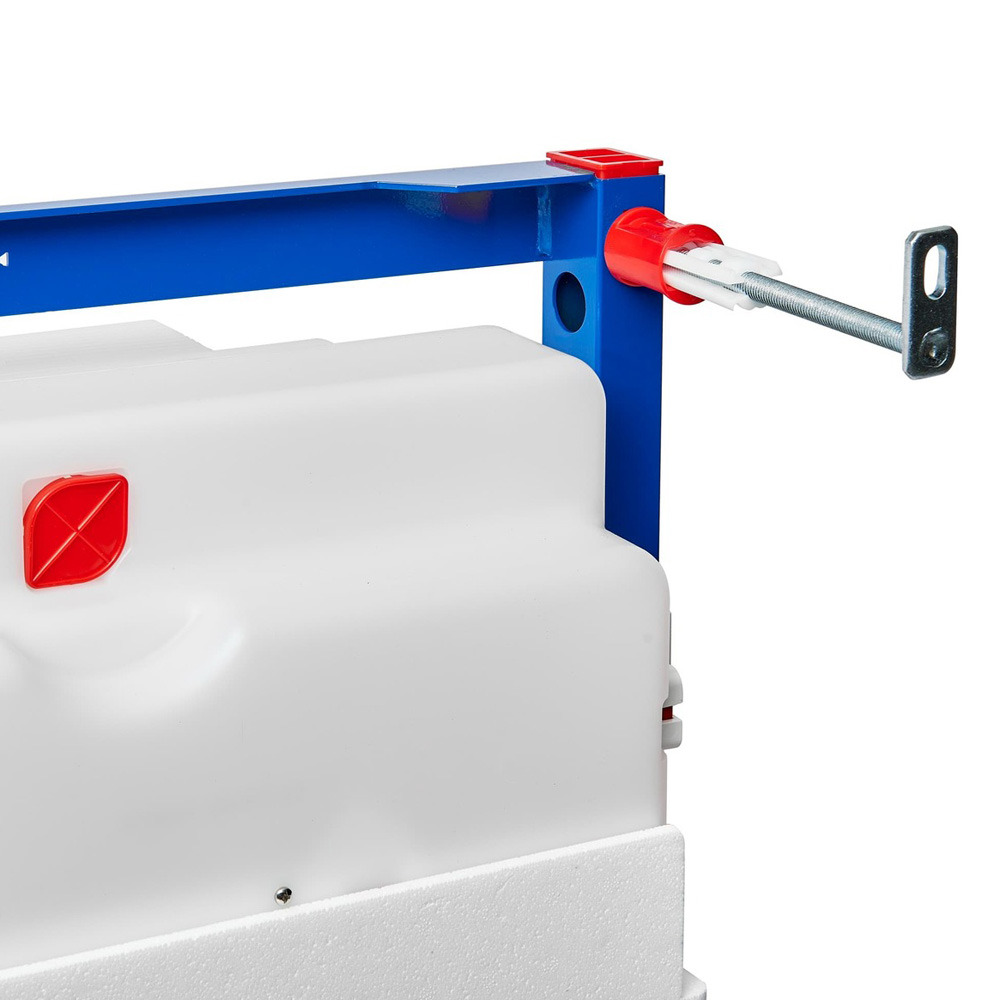

- Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
- Structural material: powder-coated metal
- Adjustable installation depth in the range of 20-95 mm
- Possibility of installing remote flushing or sensor flushing
- The tank is made in one piece, making it 100% watertight

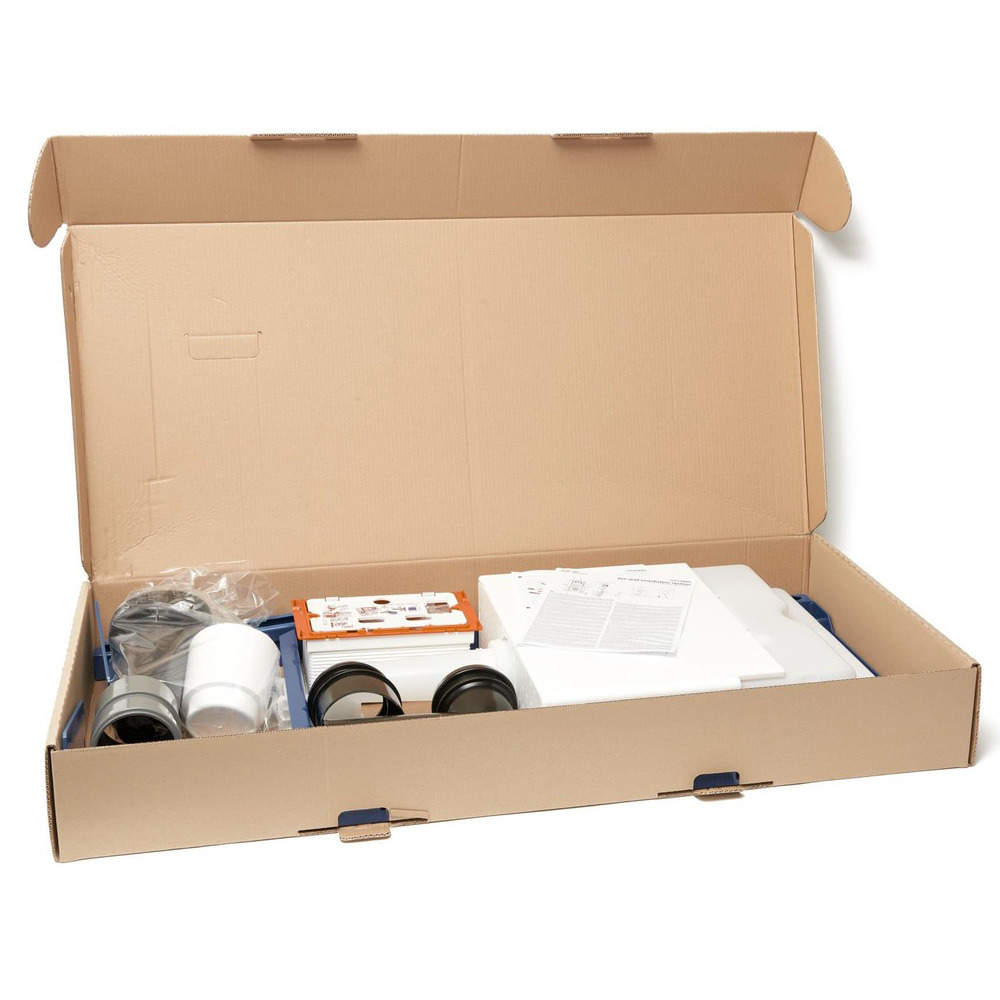

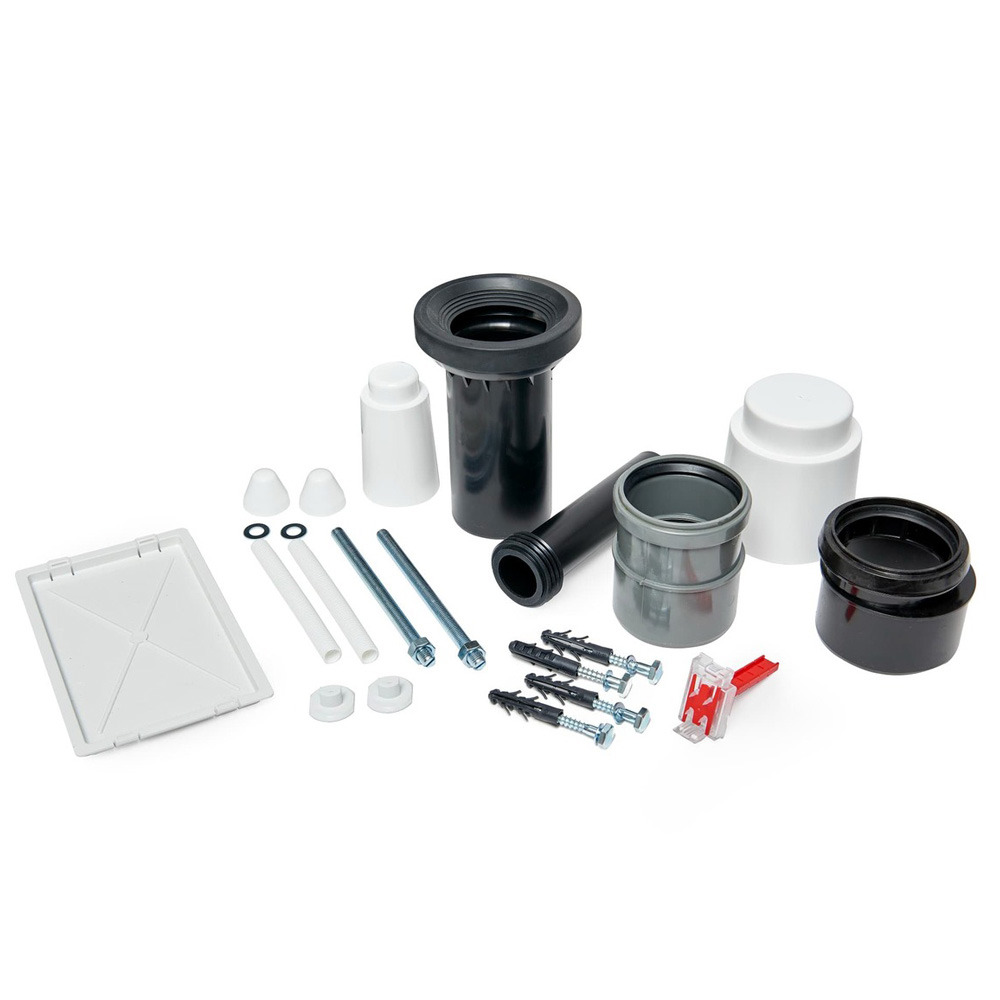

Delivery Contents:
- Fixing kit for toilet bowl installation: M12 threaded rod - 2 pieces, washers - 4 pieces, cap - 2 pieces, nut - 2 pieces, thread protector - 2 pieces
- Fixing kit: Ø8×60 screws - 4 pcs., Ø12 plugs - 4 pcs
- 90/90 HT polyethylene drain elbow, PE-HD
- Two-part service opening cover, easily shortened
- Tank with filling and flushing valve
- 90/100 HT polyethylene waste reduction
- Set of plugs to protect connection holes during system installation
- Self-supporting frame connection
- 1/2" screw connection for water connection with integrated angle valve Schell 1/2"-3/8"
- Drainage gasket, PP connector, connector gasket
- Entry, exit PP gasket, packaging gasket
Technical details:
- Recommended water pressure range 0.3-0.5 MPa
- Functional water pressure range 0.05-0.8 MPa
- Water volume in the tank 9 L
- Water connection from the back or top via G1/2" mounting holes
- Small flush factory setting: 3 L
- Large flush factory setting 6 L
- Small flush 2.5-3.5 L
- Large flush 6-9 L
- Max load: 400 kg
.
