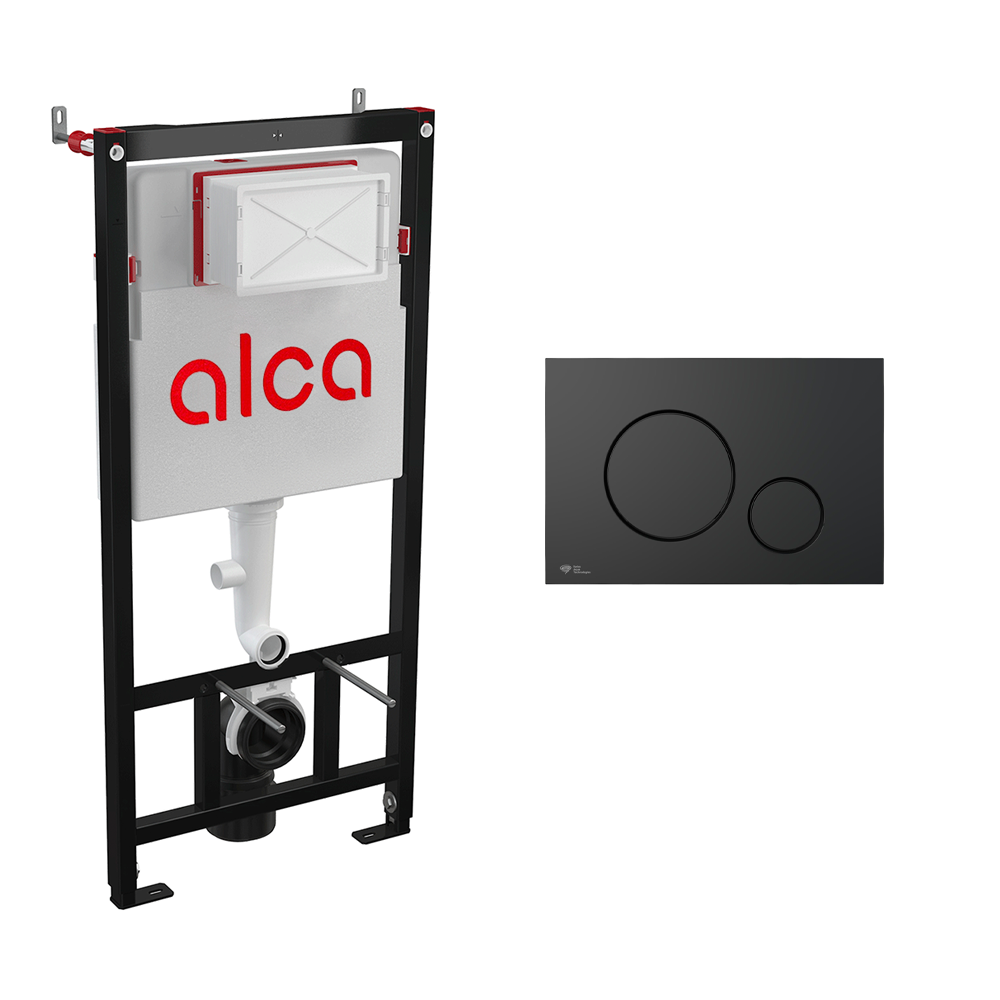

Alca Frame Pack + SAT Matt Black Dual Flush Plate (Alca-SATAT68)

Features of Alca Frame Pack + SAT Matt Black Dual Flush Plate (Alca-SATAT68):

• Alca Support Frame for Wall-Hung Toilets + Cistern  (AM101/1120)
• Swiss Aqua Technologies Dual Flush Plate, Matt Black (SATAT68)

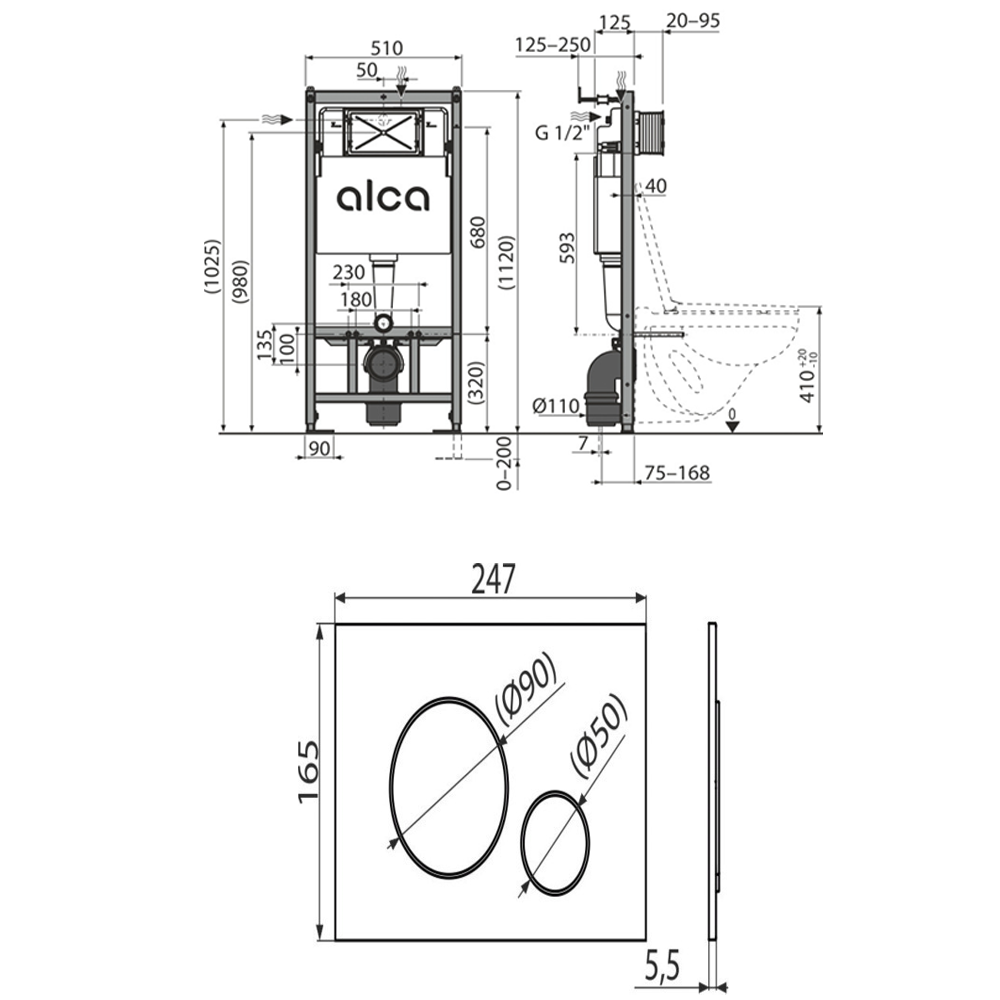

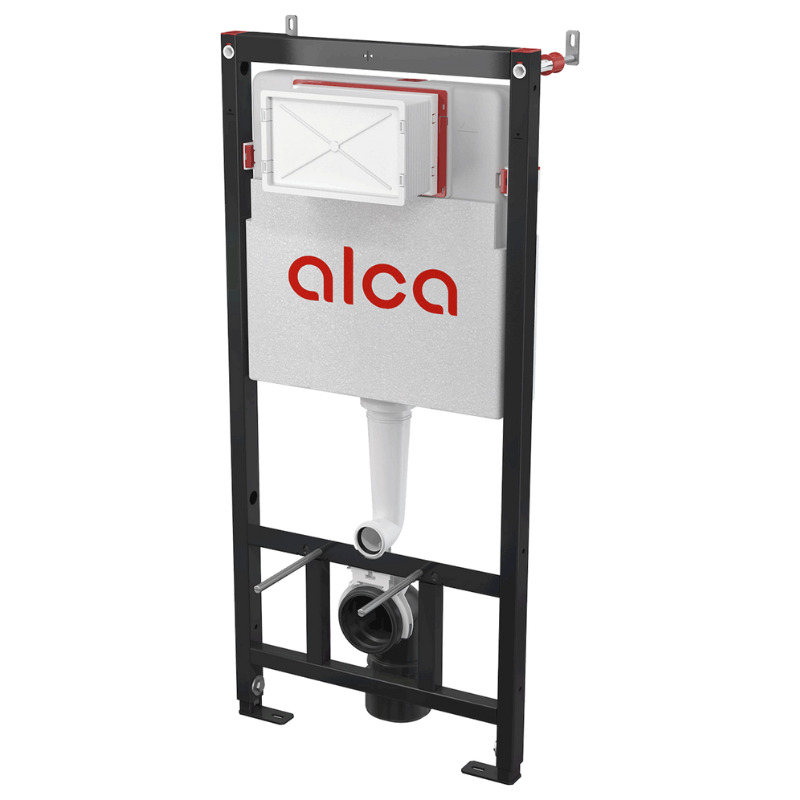

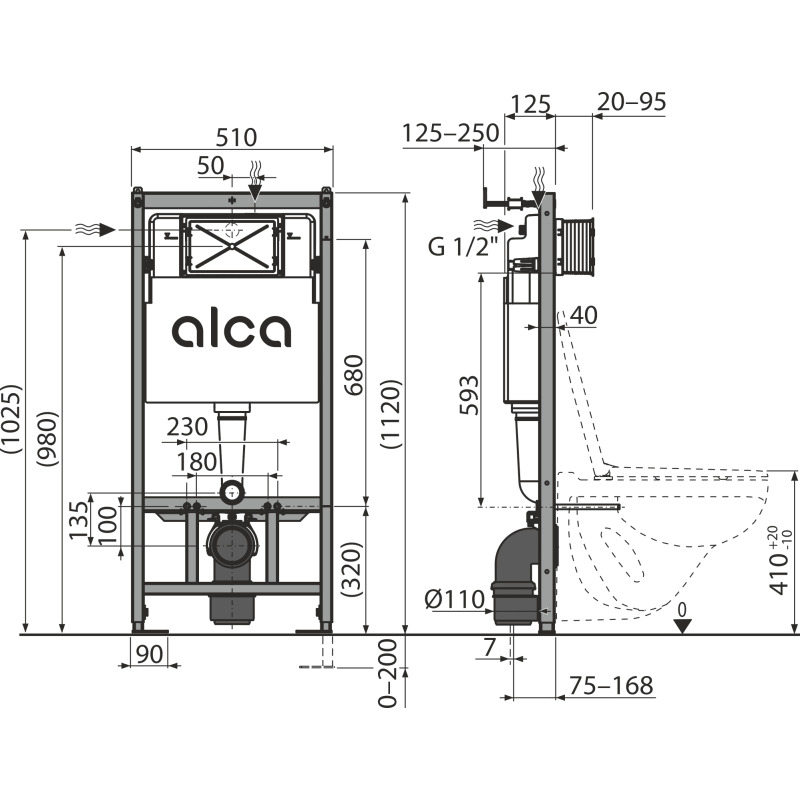

Alca Support Frame for Wall-Hung Toilets + Cistern (AM101/1120):

Technical Info:

• Water connection from the back or top via mounting holes: G1/2"
• Functional water pressure range: 0.05 – 1.6 MPa
• Recommended water pressure range: 0.3 – 0.5 MPa
• Large flush: 6 – 9 liters
• Small flush: 2.5 – 3.5 liters
• Factory setting for large flush: 6 liters
• Factory setting for small flush: 3 liters
• Hygienic reserve: 3 liters
• Water volume in the cistern: 9 liters
• Load test: 400 kilograms

Use:

• For wall-hung toilets
• For installation in front of a load-bearing wall or in a plasterboard construction
• For floor thickness from 0 to 200 mm
• For installation of wall-hung toilets with a connection pitch of 180 mm or 230 mm

Features:

• Toilet bowl tablets dispenser included
• Adjustable anchoring feet and spring locking system, with a range from 0 to 200 mm
• Visible marks for leveling and centerline
• Sliding rail support for waste connector, adjustable in eight positions between 0 and 93 mm
• Angle valve with the option to connect to the Mepla piping system
• The frame allows anchoring to a sufficiently sturdy plasterboard partition, in front of the load-bearing wall
• The installed module is covered with a plasterboard panel, and no additional fixing or anchoring elements are required
• The polystyrene insulation construction prevents condensation formation on the cistern surface and dampens cistern vibrations in the building structure
• Prepared for connecting a support with a DG 1/2" conversion for bidet seats and hand showers
• Bi-component material cistern hinges isolate from building vibration transmission
• Possibility to tilt the cistern for easy installation in wooden construction buildings or mobile cells
• Adjustable dual flush independently with hygienic reserve
• Suitable for remote or sensor-operated flush installation
• Compatible with all ALCA flush plates
• Maintenance work without any tools
• Water supply from the back/top
• The cistern is made in one piece, ensuring 100% tightness
• The service opening cover simplifies installation and prevents moisture and impurities penetration
• Adjustable installation depth from 20 to 95 mm
• Embedding depth 125 mm
• Frame material: powder-coated metal

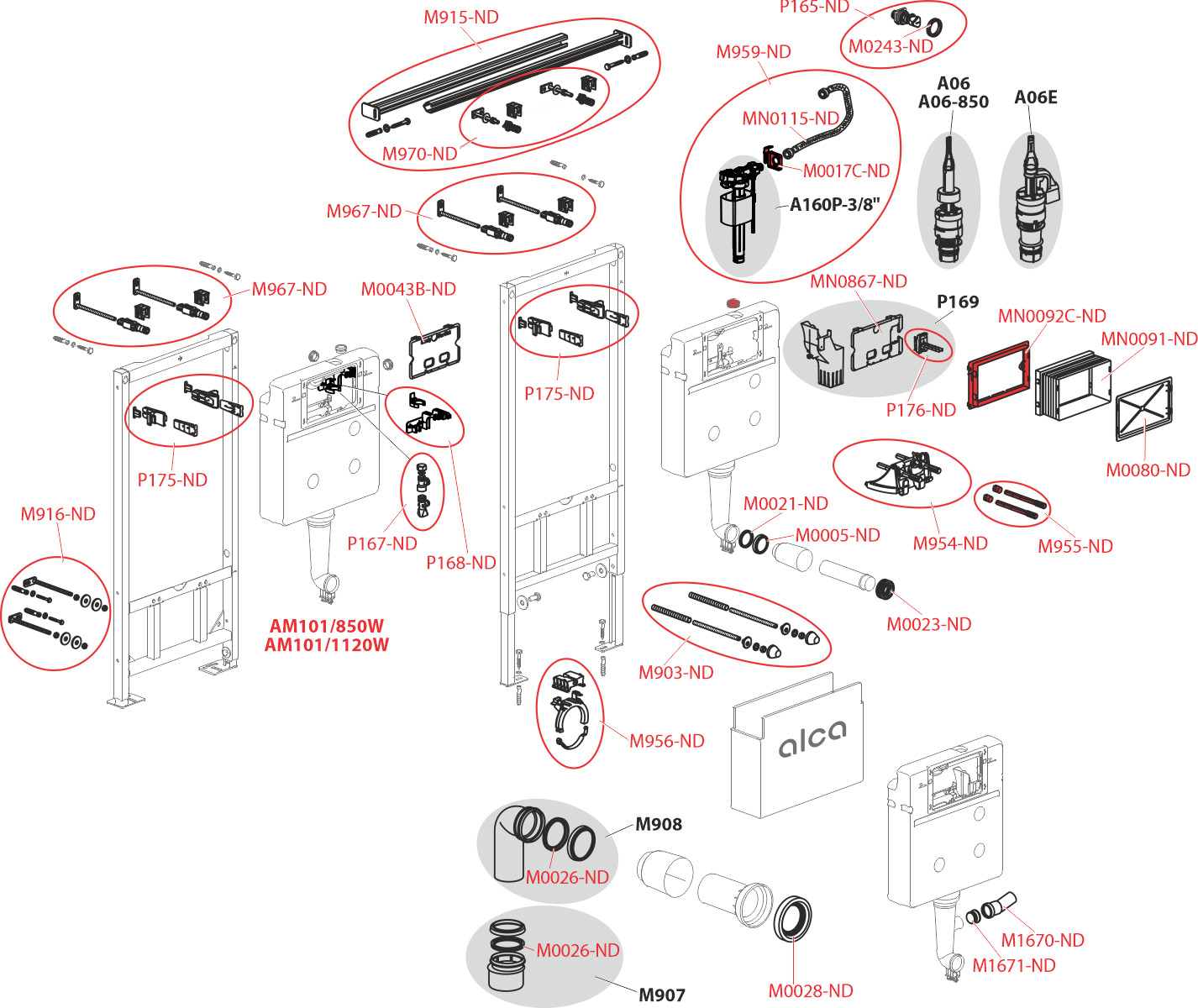

Delivery Contents:

• Cistern with filling and flush valve
• Self-supporting frame
• Water connection fitting 1/2" with integrated angle valve Schell 1/2–3/8"
• Mounting kit: screws Ø8×60 – 4 pcs, dowels Ø12 – 4 pcs
• Fixing material for toilet bowl installation: threaded rod M12 – 2 pcs, washers – 4 pcs, cover – 2 pcs, nut – 2 pcs, thread protector – 2 pcs
• Bent waste connector HT 90/90 polyethylene, PE-HD
• Waste reduction Polyethylene HT 90/110, PE-HD
• Inlet seal, outlet PP, packing seal
• Drain seal, PP connector, connector seal
• Set of caps to protect connection holes during system installation
• The two-part cover of the service opening is easily adjustable
• Kit for inserting toilet tablets

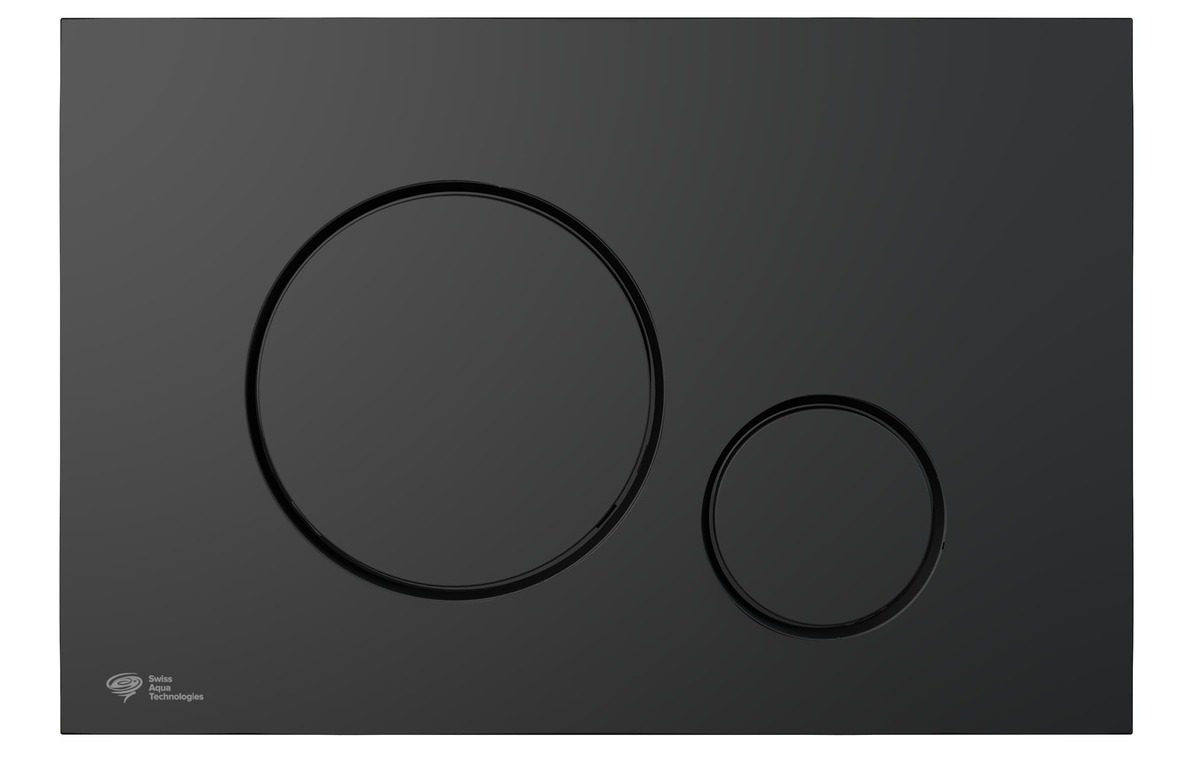

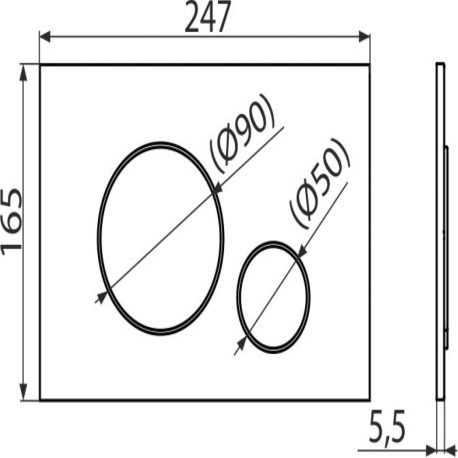

Swiss Aqua Technologies Dual Flush Plate, Matt Black (SATAT68):

• Compatible with all Swiss Aqua Technologies installation systems and pre-wall tanks
• Slim: only comes out 5.5 mm from the wall
• Dual Flush
• Colour: Matt Black
