Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1)
- Product reference: 111.154.11.1X
- EAN: 4025416802860
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

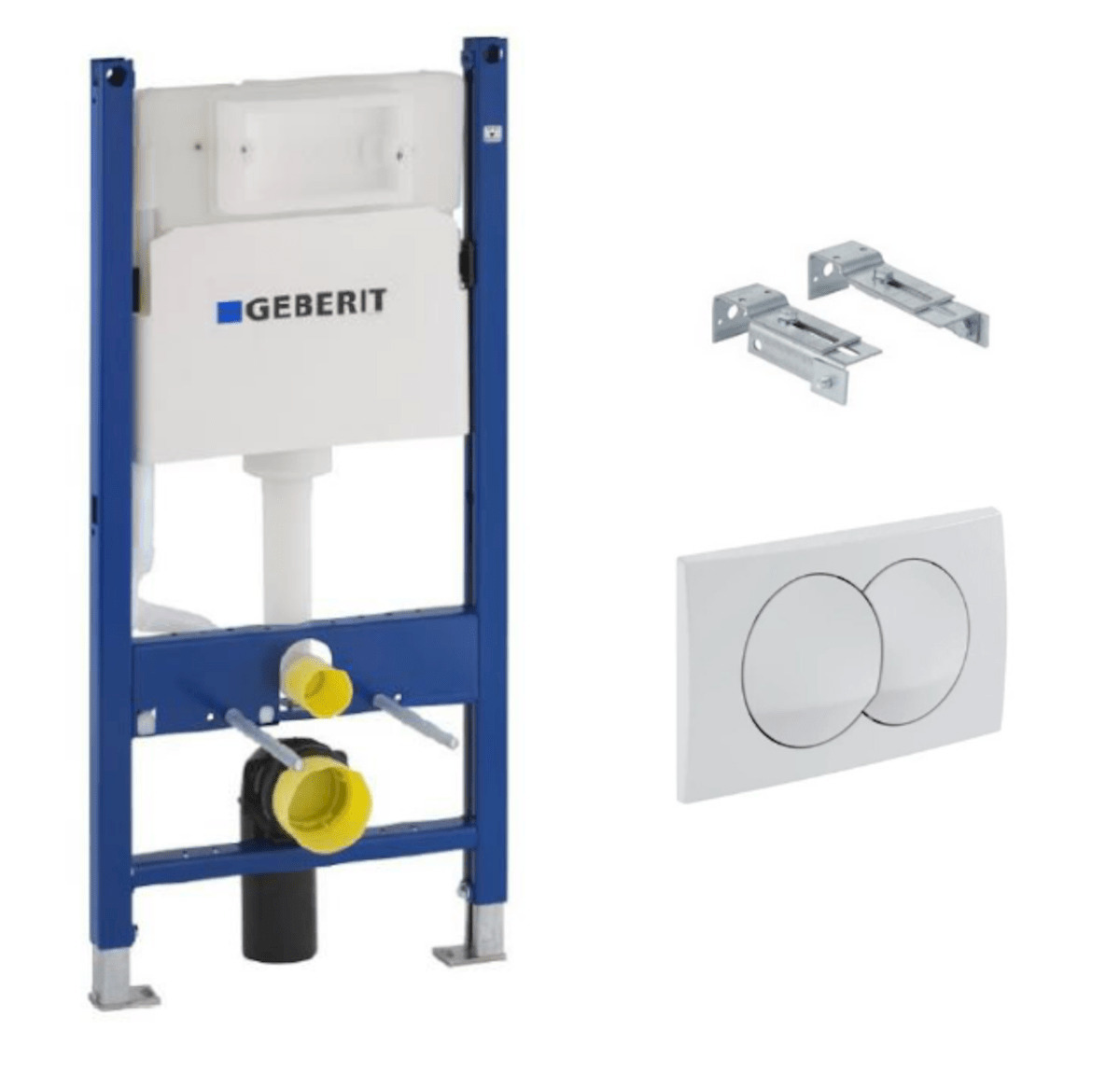

Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1) includes :
.
- Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1)
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
- Geberit Trigger plate DELTA20 white (115.100.11.1)
.
Features of the pack :
.

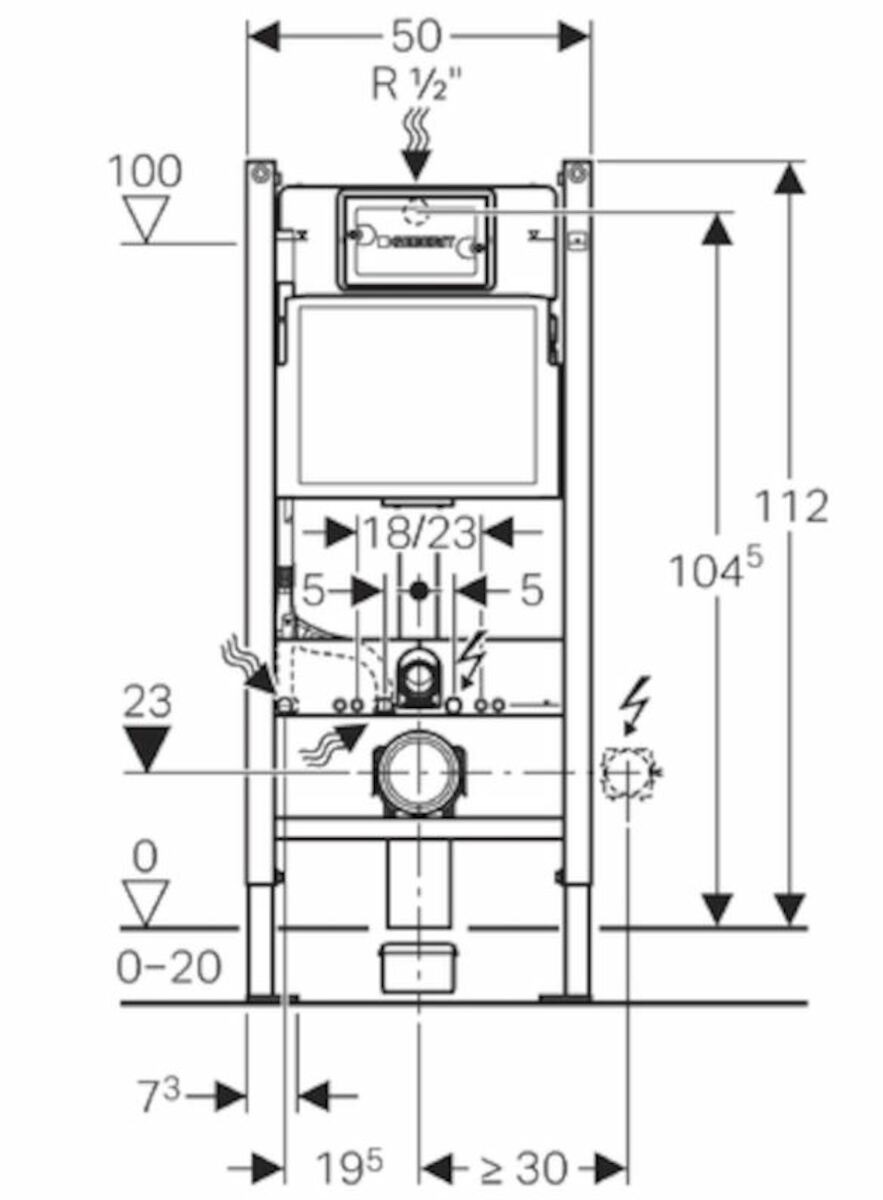

Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1) :
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011

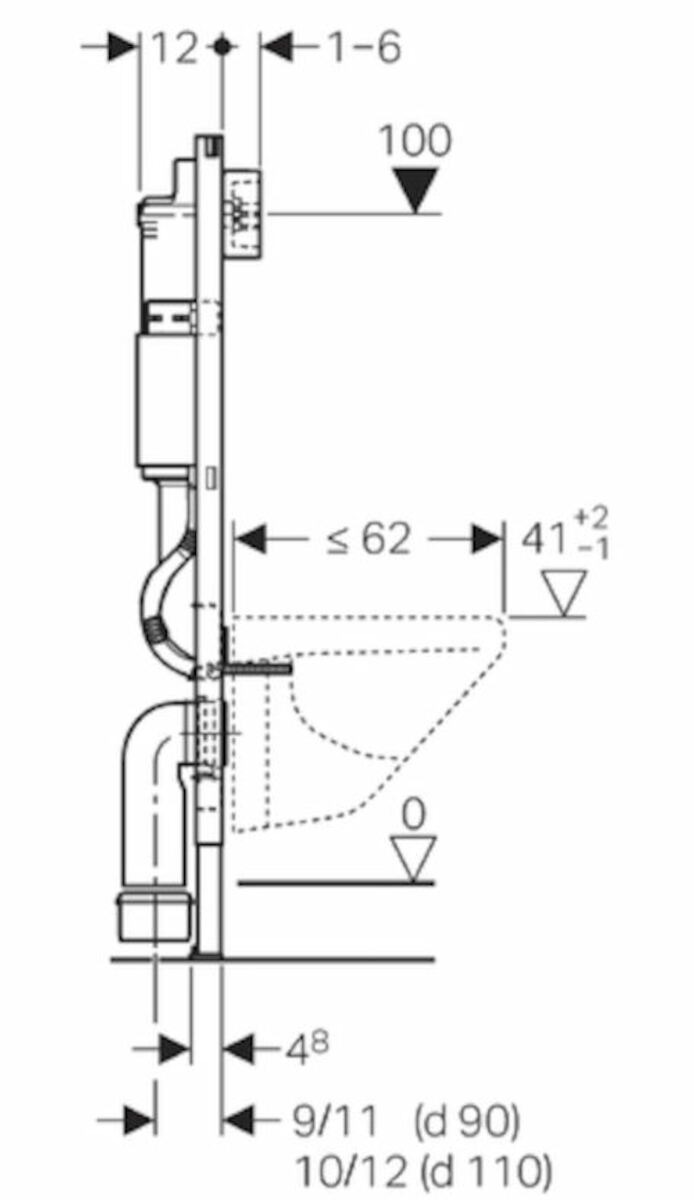

- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
.

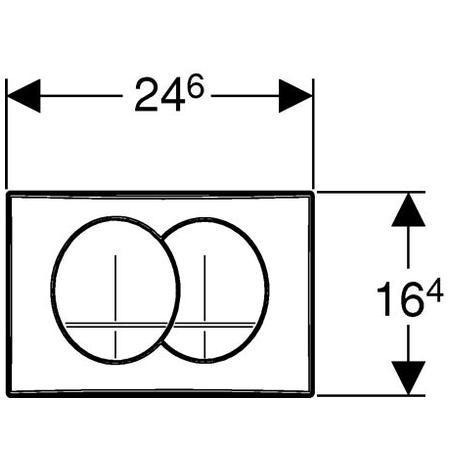

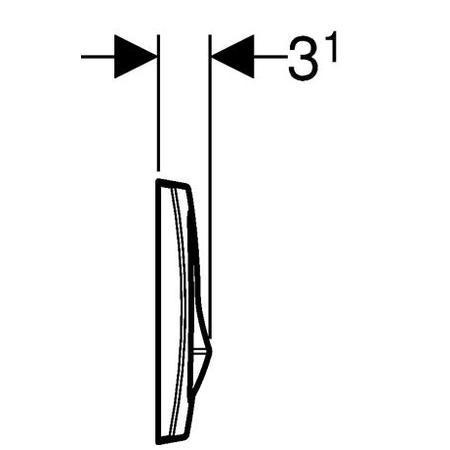

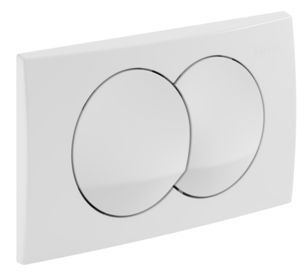

Geberit Trigger plate DELTA20 (115.100.11.1) :
- 2 actuator rods, one for a small 3L flush and one for a large 6L flush
- Water saving
-
Front actuation
.
.
Attention! When the parcel is delivered, please mention "subject to unpacking" on the delivery note and accept the parcel. No claims can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
- Colour:White
- Material:Metal/plastic
- Length (cm):112
- Height (cm):112
- Frame brand:Geberit
- Type of frame:Standard
- Weight:12
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(24.28% saving)
