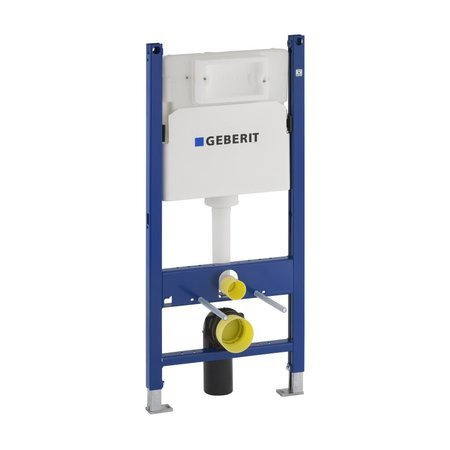

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)

Features of the DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1):

Purpose of use

• For installation in the pre-wall installation in all or part
• The height of the room in front of a solid wall or a dry wall
• For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
• For floor thickness 0 - 20 cm
• For front control
• For Geberit control, use the Delta control buttons
• For Geberit AquaClean
• Not suitable for concreting

Characteristics

• Delta Geberit flush tank 12 cm (UP100) front control
• Flush tank against condensation
• Adjustable large flow rate
• Small fixed flush rate
• Adjustable instantaneous flushing possibility
• Water supply from the rear/upper center
• Connection pipe to the corner valve can be screwed on manually
• 1 flush with Geberit Delta15 control knob
• 2 flushes with Geberit Delta20 control knobs
• Powder-coated frame surface, color blue Geberit self-supporting element
• Frame with ø 9 mm holes for fixing in wooden structures
• Galvanized supports, infinitely adjustable from 0 to 20 cm
• Plastic base plates, depth suitable for installation UW50
• Installation depth 12 cm

Technical information

• Flush quantity - factory setting 6 and 3.5 l
• Large flush volume - setting range 4.5 / 6 / 7.5 l

Scope of delivery

• 2 threaded rods M12 for ceramic fixing
• Drain valve for 2 flush volumes
• Cover for rough-in for service hole, polystyrene foam
• 2 protective caps
• Corner valve R 1/2" with adapter ring
• Geberit AquaClean water supply hose
• Repairing the knee joint
• Connection set ø 90 mm
• Waste bend for WC, PE-HD, ø 90/90 mm
• Adapter, ø 90/110 mm
• Fixing material
• Does not contain: Control knob
• Does not contain: Construction kit for wall mounting
