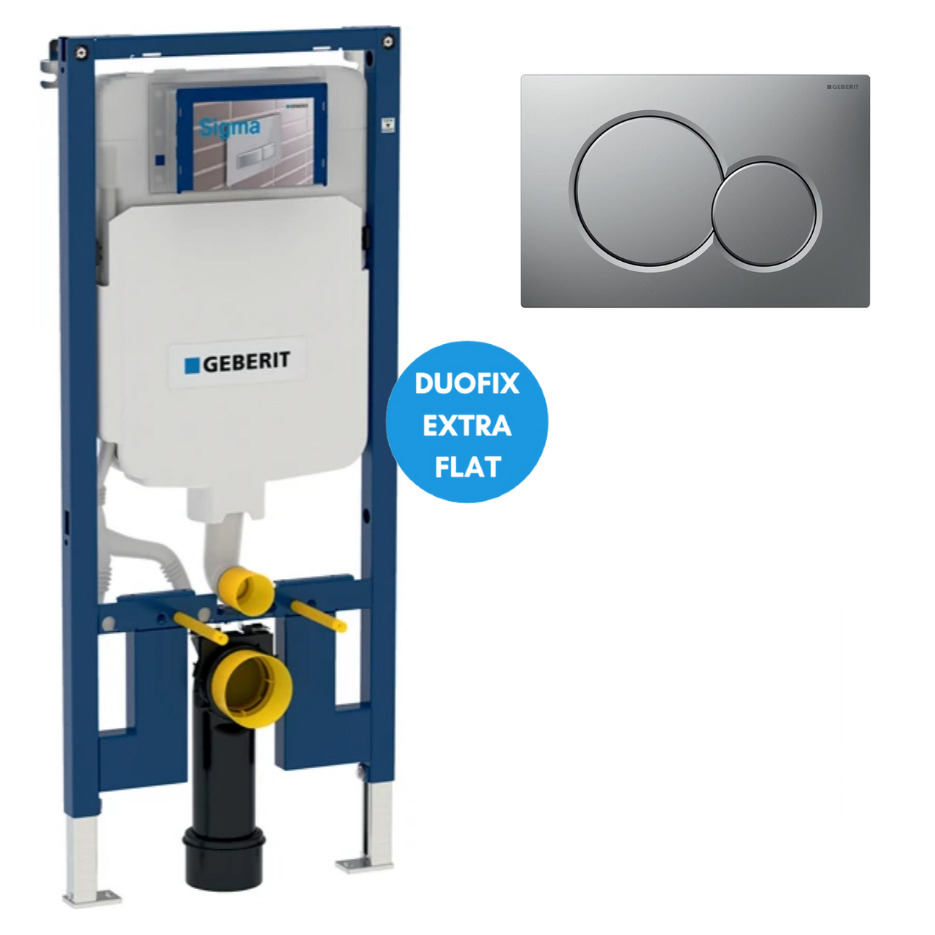

Geberit Duofix Pack UP720 Extra-Flat Frame 114 cm + Sigma01 Dual Flush Plate, Matt Chrome (111.796.00.1-E)
- Product reference: 111.796.00.1-E
- EAN: 0750122364237
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Characteristics of Geberit Duofix Pack UP720 Extra-Flat Frame 114 cm + Sigma01 Dual Flush Plate, Matt Chrome (111.796.00.1-E):
- Geberit Duofix UP720 Extra-Flat Support Frame 114 cm, space-saving, with Sigma Concealed Cistern (111.796.00.1)
- Geberit Sigma01 Dual Flush Plate, Matt Chrome (115.770.JQ.5)

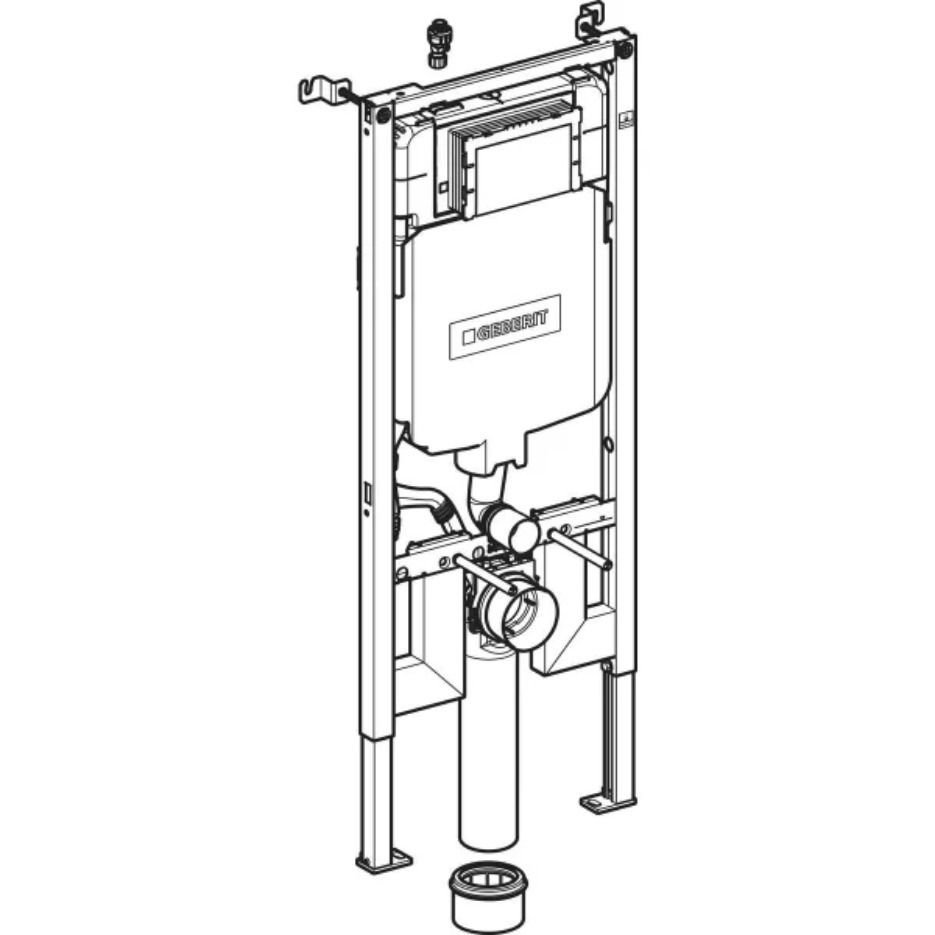

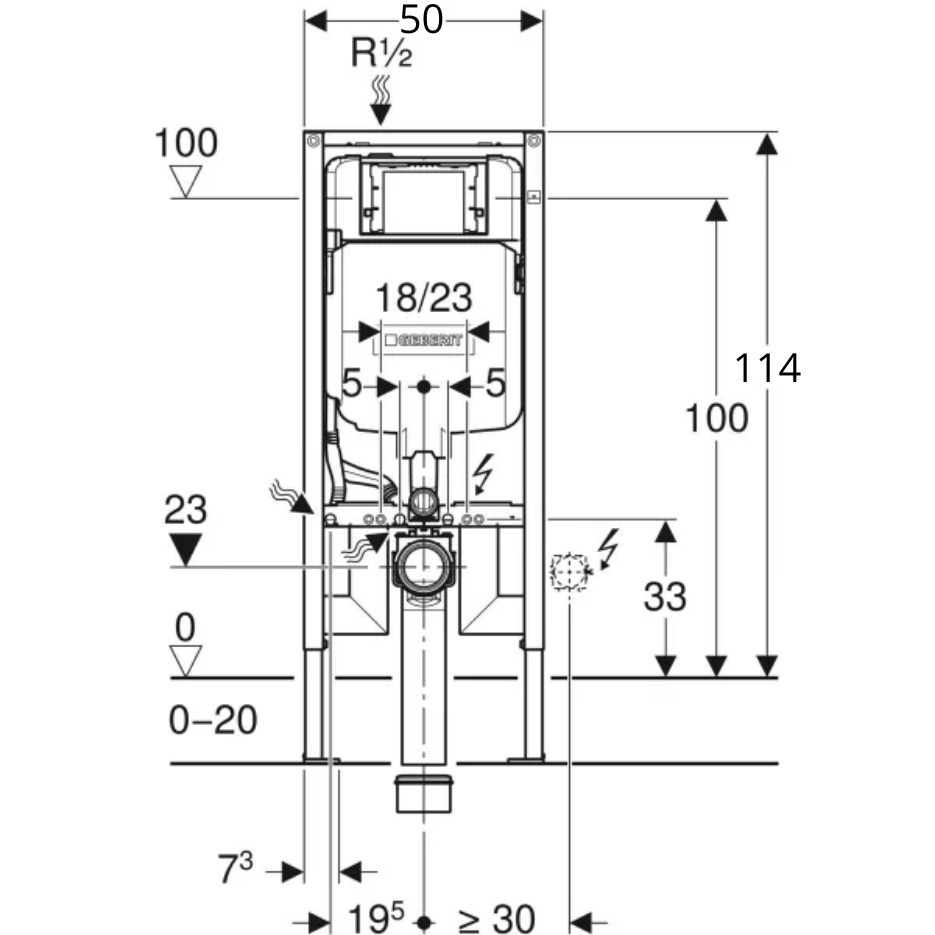

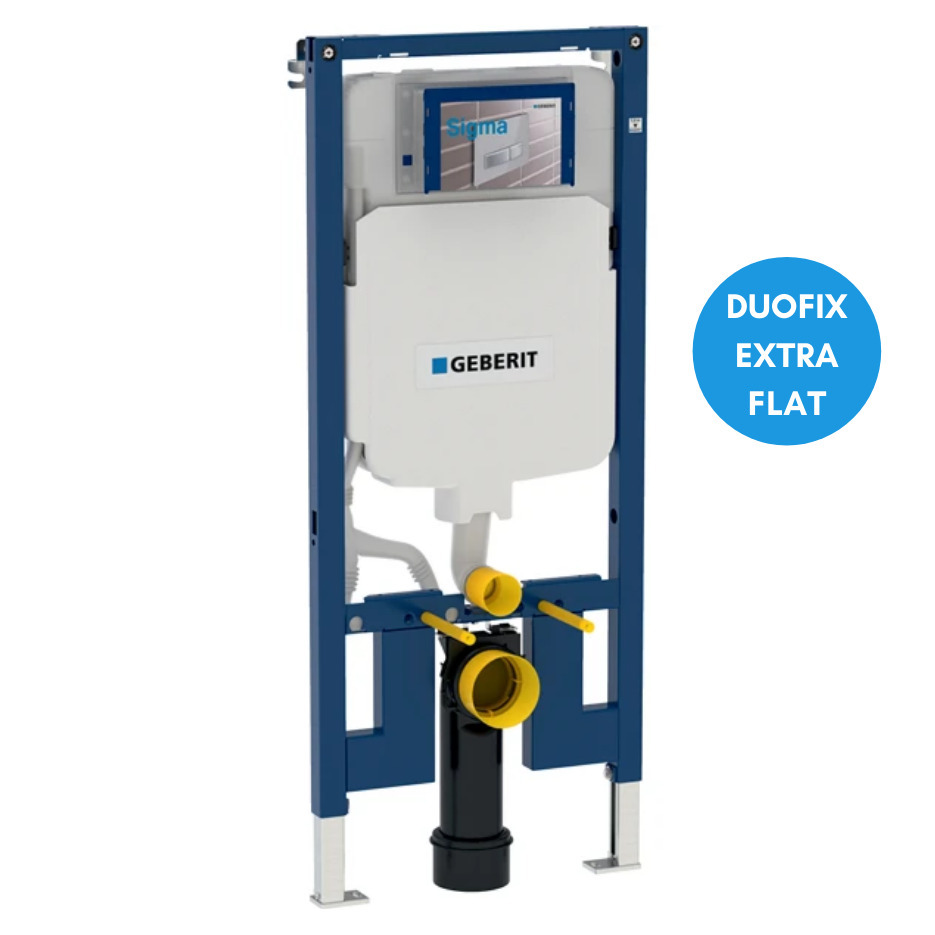

Geberit UP720 Extra-Flat Support Frame 114 cm, space-saving, with Sigma Concealed Cistern (111.796.00.1):
- Self-supporting frame, powder-coated
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Frame suitable for ceramic toilets with small contact surface (with pressure-resistant wall covering)
- Galvanised, infinitely adjustable, non-slip support feet
- Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails
- Connection bend can be installed without tools at different depths
- Connection bend can be mounted vertically with front flush
- Waste connector bend, extended, for floor connection
- Fastening for connection bend, sound-absorbing
- Concealed cistern with front actuation, fully insulated against condensation
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection at the top, offset to left side
- Protection box for service opening can be cut to length, suitable for surface-even actuator plates
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
Use:
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011

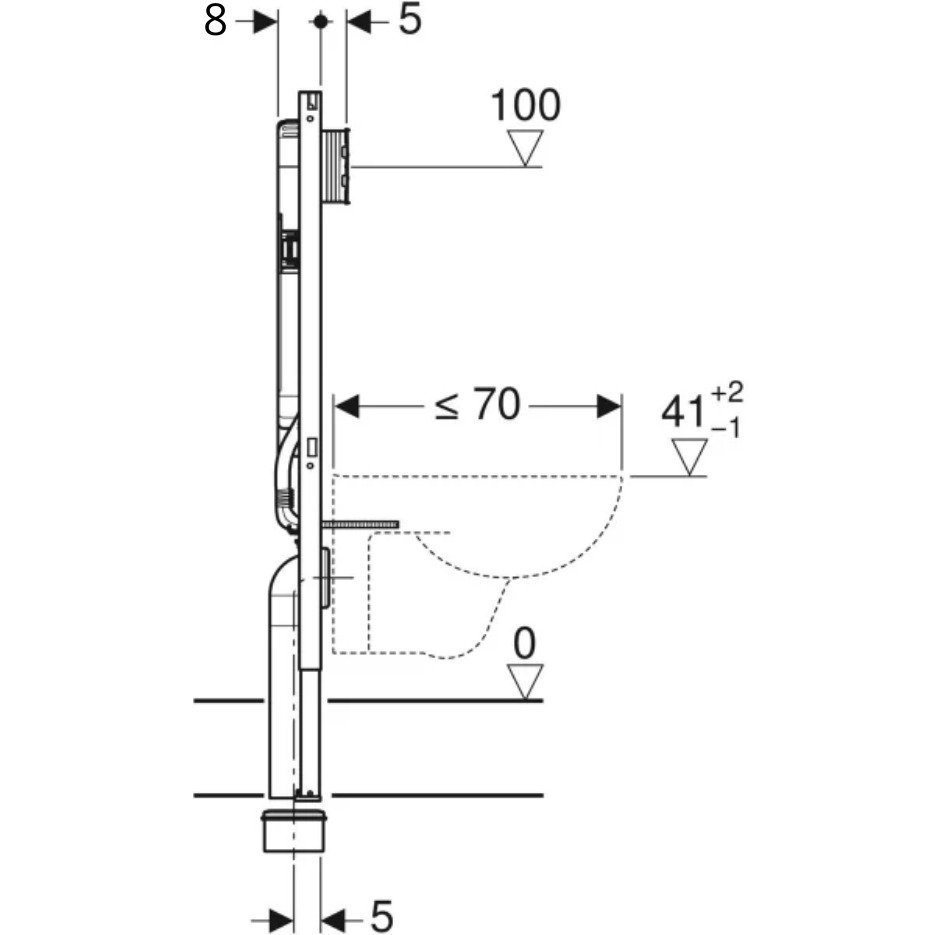

- Suitable for wall-hung WCs with projection up to 70 cm
- For single flush, dual flush or stop-and-go flush

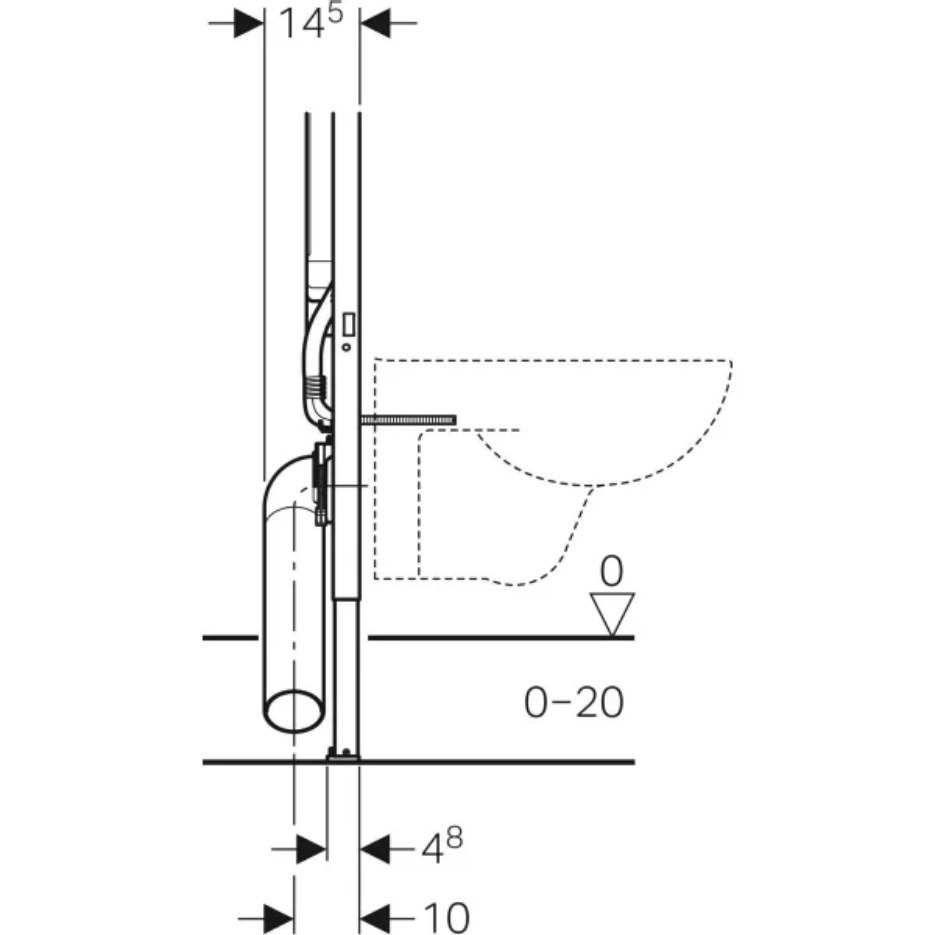

- For floor constructions 0–20 cm
Included:
- Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 wall anchorings
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adapter socket made of PE-HD, ø 90 / 110 mm
- 2 protection plugs
- 2 threaded rods M12
- Fixing material

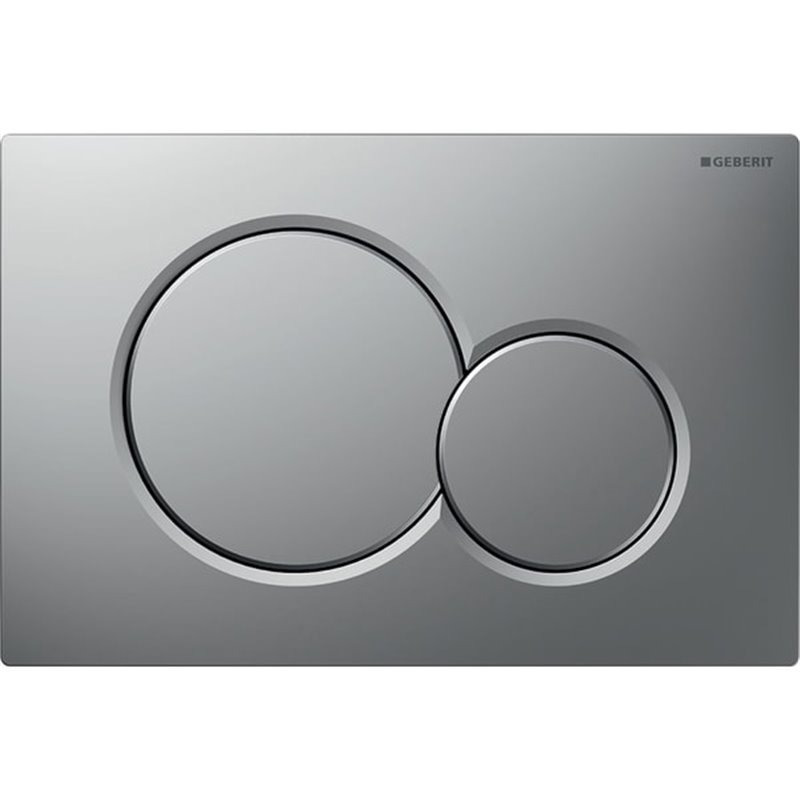

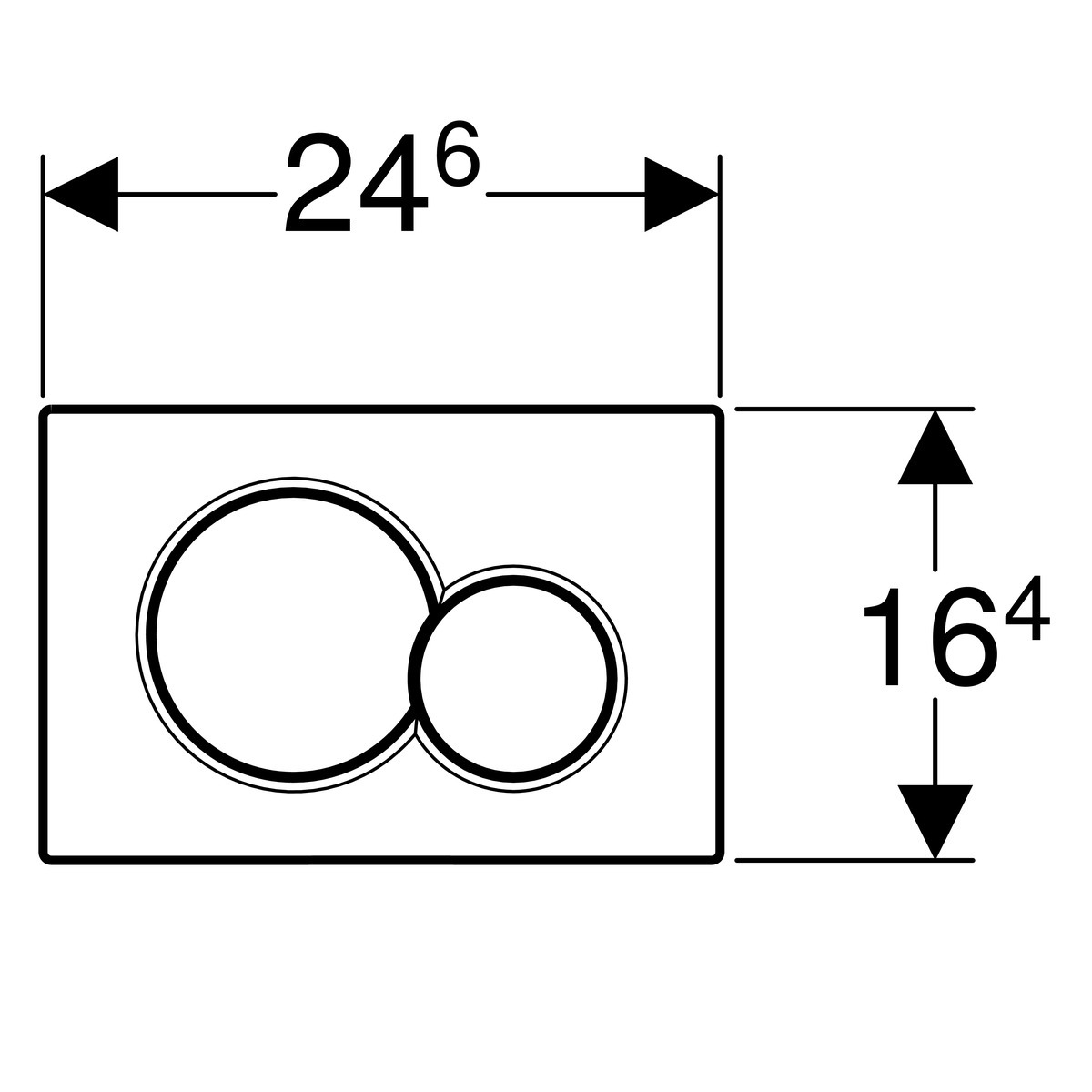

Geberit Sigma01 Dual Flush Plate, Matt Chrome (115.770.JQ.5):
- Triggering force < 20 N
- Front actuation
- Sound-insulated release rods, quick adjustment without tools
- Material: plastic
- Design: matt chrome-plated, easy-to-clean coating
- Compatible with Geberit Sigma cisterns
.
IMPORTANT: Please make sure to check the products upon delivery. If there's any damage, be sure to note it with the delivery person on the delivery note for each specific item. Unfortunately we won't be able to accept any claims otherwise as the delivery companies are very strict about this. Thank you for your understanding.
- Frame brand:Geberit
- Type of frame:Classic Extra-flat
