Jackon Tileable shower tray Aqua Centered 900x900x40mm with free vertical drain (4512087 + 4512008)
- Product reference: 4512087-4512008
- EAN: 0633710861113
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

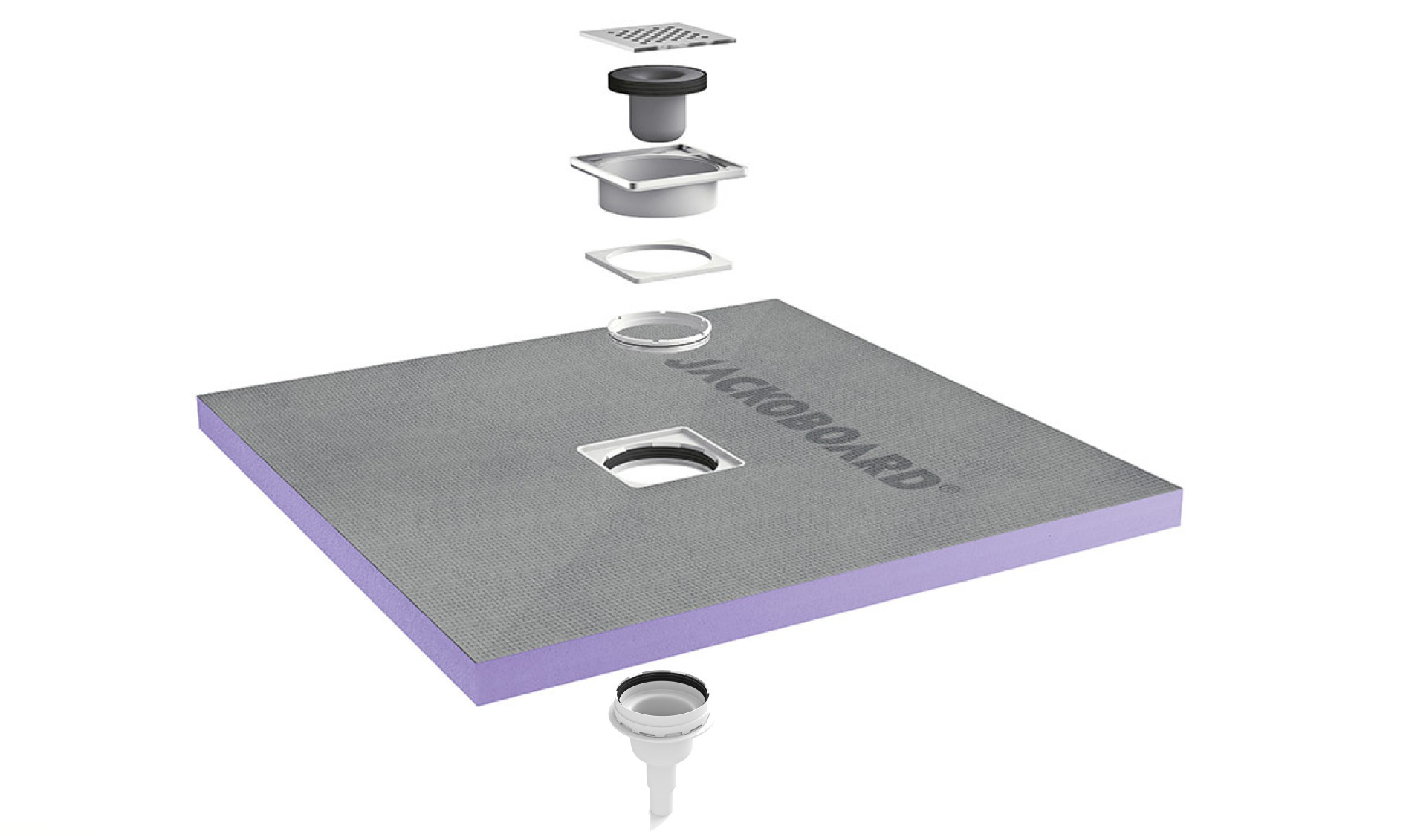

Features of Tileable shower tray Aqua Centered 900x900x40mm with free vertical drain (4512087 + 4512008) :

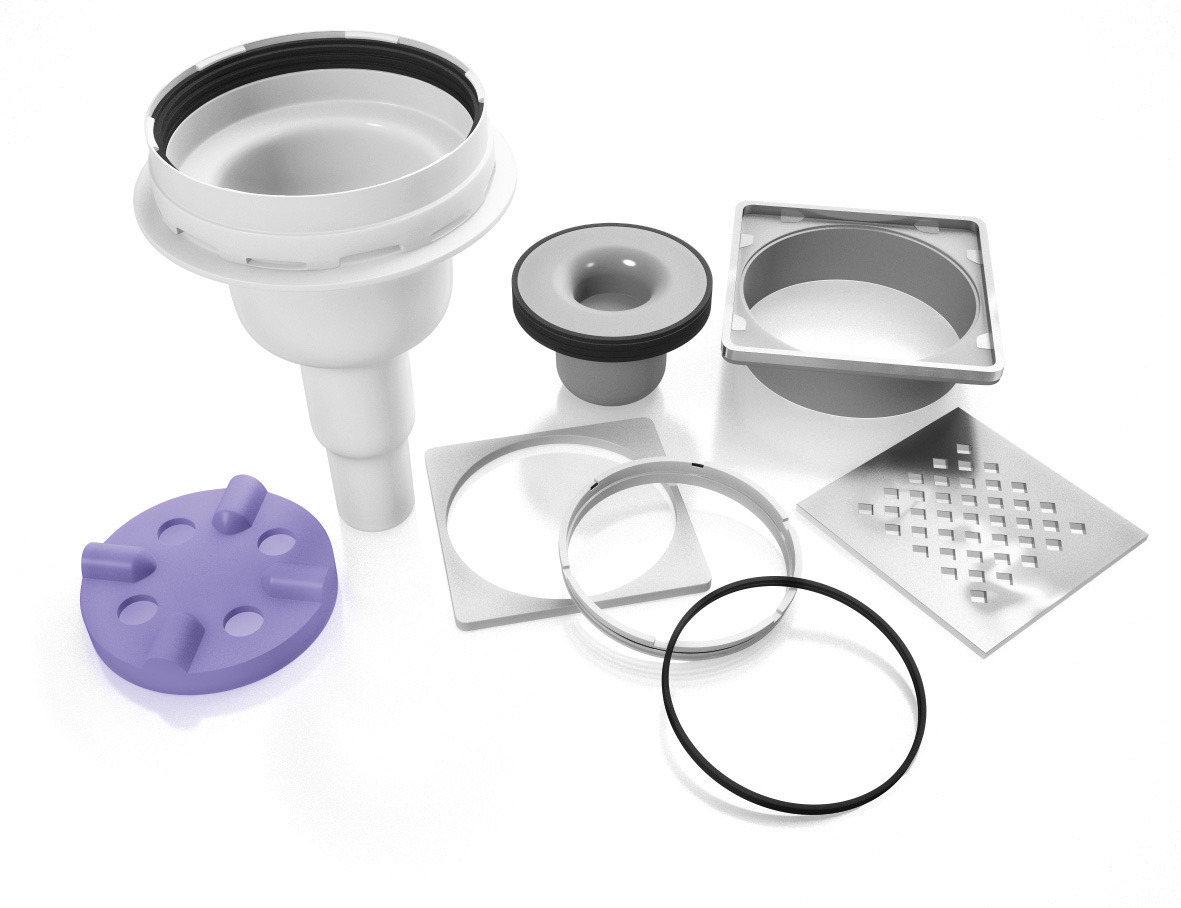

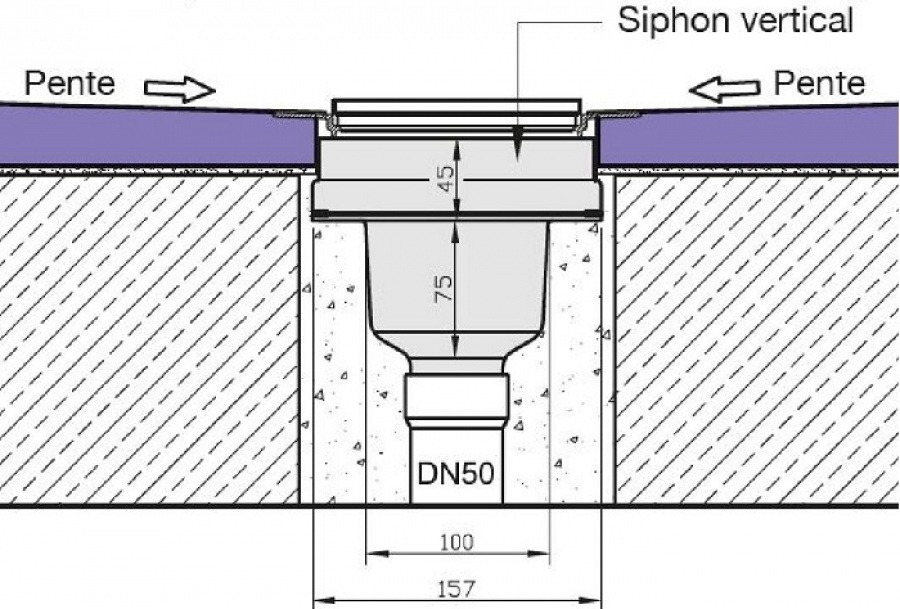

Vertical siphon kit and high-end design grid in solid brushed stainless steel offered (4512008)
- Grate support adjustable in height from 3 to 38 mm
- Ultra-flat drain with a minimum thickness of only 97 mm, including the tray
- High flow capacity of 0.9l/s
- 50 mm headroom
- DN 50
- Drainage connection made of glueable ABS plastic
Technical data of JACKOBOARD® Aqua :
- Extra flat shower tray made of extruded polystyrene hard foam with special coating on both sides
- Dimensions: 900 mm * 900 mm * 40 mm
- Water-repellent
- Special coating on both sides
- Ready to tile
- Preformed slope
- Thickness: 40 mm
- Compressive strength > 300 kPa
- Wheelchair accessible
- Excellent insulating properties λD = 0.035 W/( m-K)
- Flow rate > 0.9 l/s

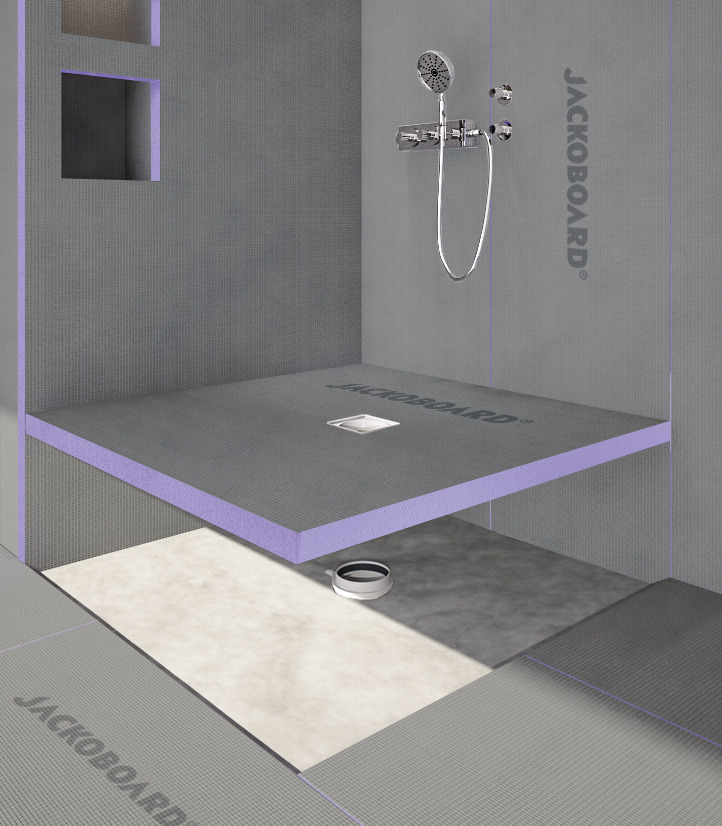

Step-free and level: The shower for everyone.
JACKOBOARD® Aqua shower trays allow you to create beautiful, individual bathrooms. They are available in all standard formats and a large number of customised sizes and shapes. They have a water-repellent extruded polystyrene foam core (XPS), a preformed slope and a special coating on both sides that allows them to be tiled directly without any additional preparation.
Advantages of JACKOBOARD® Aqua :
- Very low installation height
- Available in a wide range of sizes and cut-to-size shapes (e.g. square, rectangular, semicircular, centre, wall or corner)

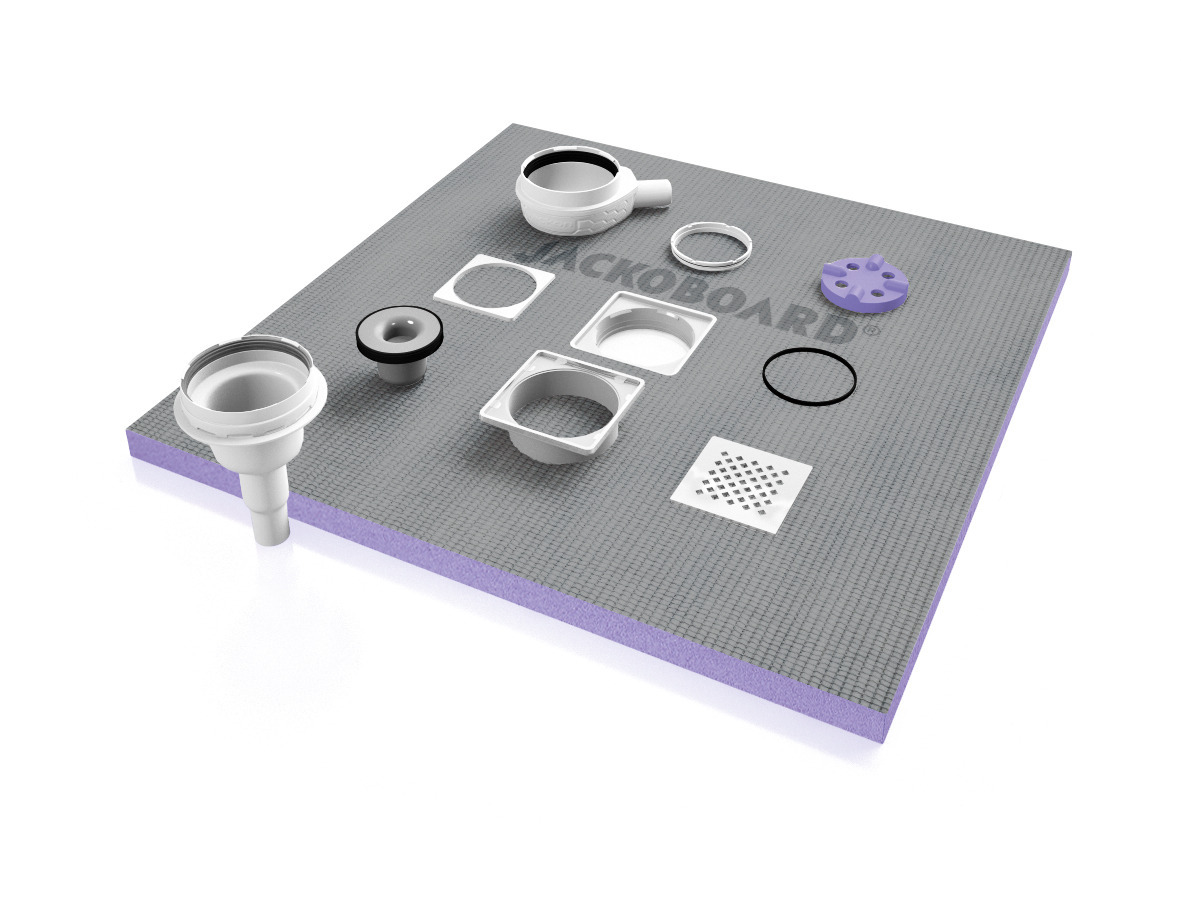

- Various drainage systems with a choice of positioning and solid stainless steel grate
- Sealed drain flange
Made in Germany
10-year guarantee
Video presentation : https://www.youtube.com/watch?v=QuToE1_YmW0
- Material:Polystyrene (PS)
- Length (cm):90
- Width (cm):90
