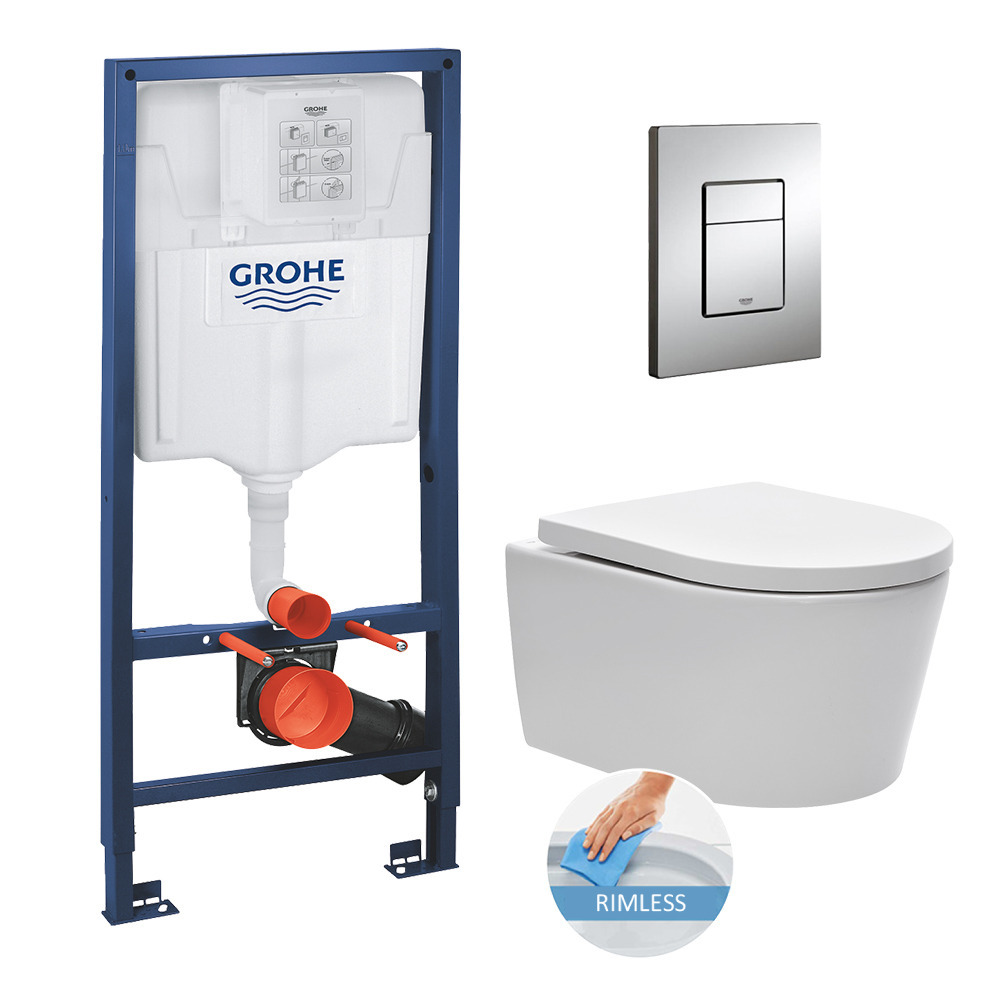

Grohe Toilet Set Rapid SL + SAT rimless toilet, invisible fixings + Skate chrome plate + Wall cladding set
- Product reference: RSLSAT1SB
- EAN: 0034966357410
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Toilet Set Rapid SL + SAT rimless toilet, invisible fixings + Skate chrome plate + Wall cladding set (RapidSL-SATrimless-sabo):
- Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
-
Grohe Rapid SL toilet support frame (38528001)
- Jackon JACKOBOARD® Sabo Installation kit for cladding WC frame systems (4521871)
.
Grohe Rapid SL toilet support frame (38528001)

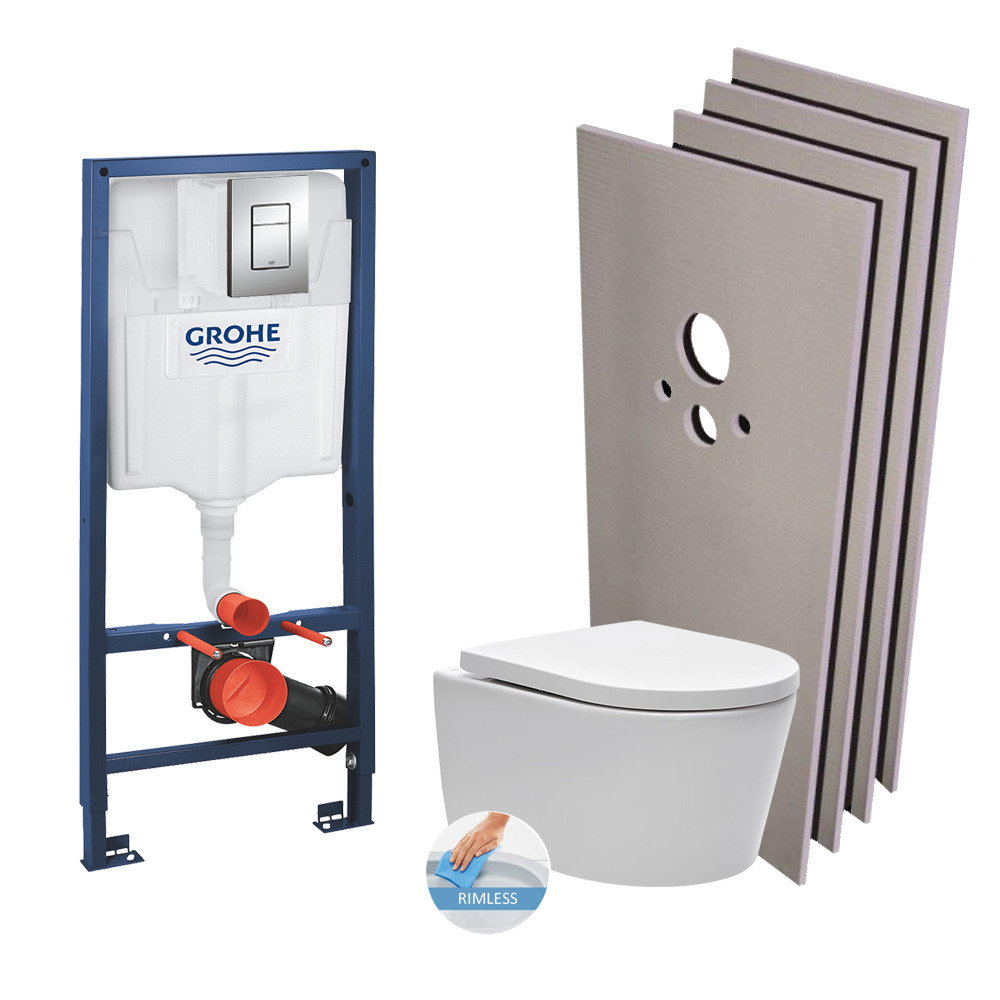

This set includes:

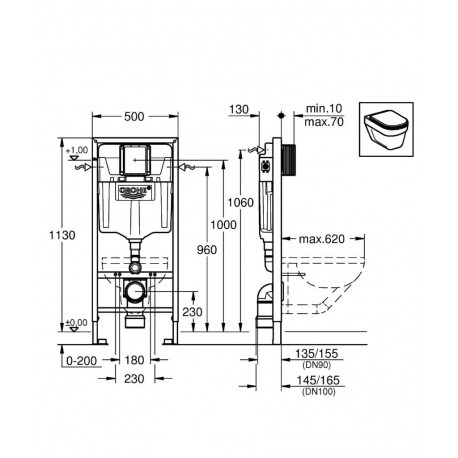

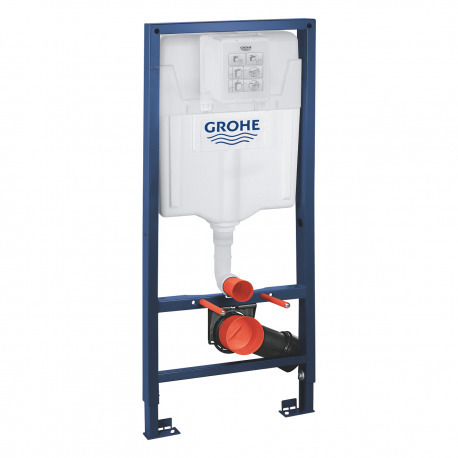

- Grohe Rapid SL toilet support frame (38528001)
- GD 2 cistern, with inspection hatch
- Height: 1,13 m
- Steel frame with epoxy finish
- Mounting on load-bearing walls or in light weight double framed walls
- Quick adjustment and locking of the height up to 200 mm
- Supplied with fixing material
- TÜV approved
- Supplied with bolts and nuts for fixing the toilet bowl, ceramic fixing
- Distance between fixings 180/230 mm
- PP drain elbow Ø 90 mm
- Depth and height adjustable (200 mm)
- Reducing connection DN 90/110
- Drainage and supply fitting
- Tank 6 - 9 l
- Factory setting 3 and 6 l
- Pneumatic release mechanism (AV1) for one-touch (interruptible) and two-touch (interruptible) control panel
- Side or rear supply
- Condensation-proof tank
- Water supply with angle valve and flexible connection
- Installation of the template, horizontal or vertical, without tools

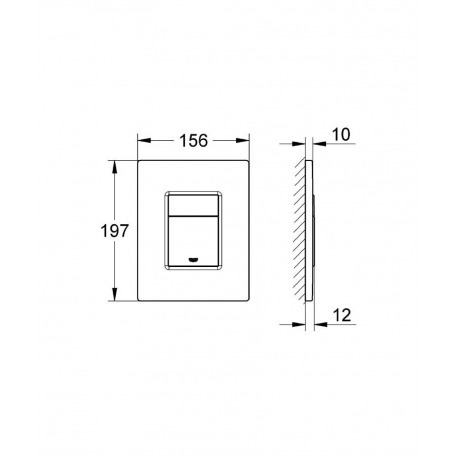

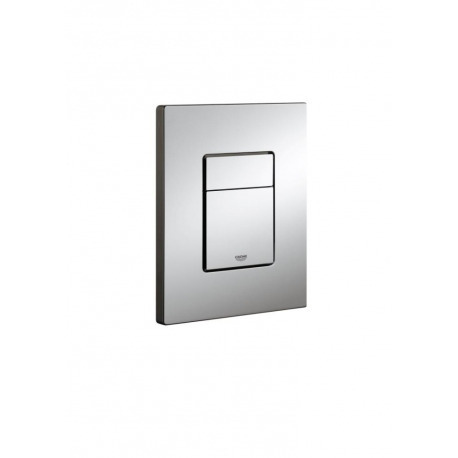

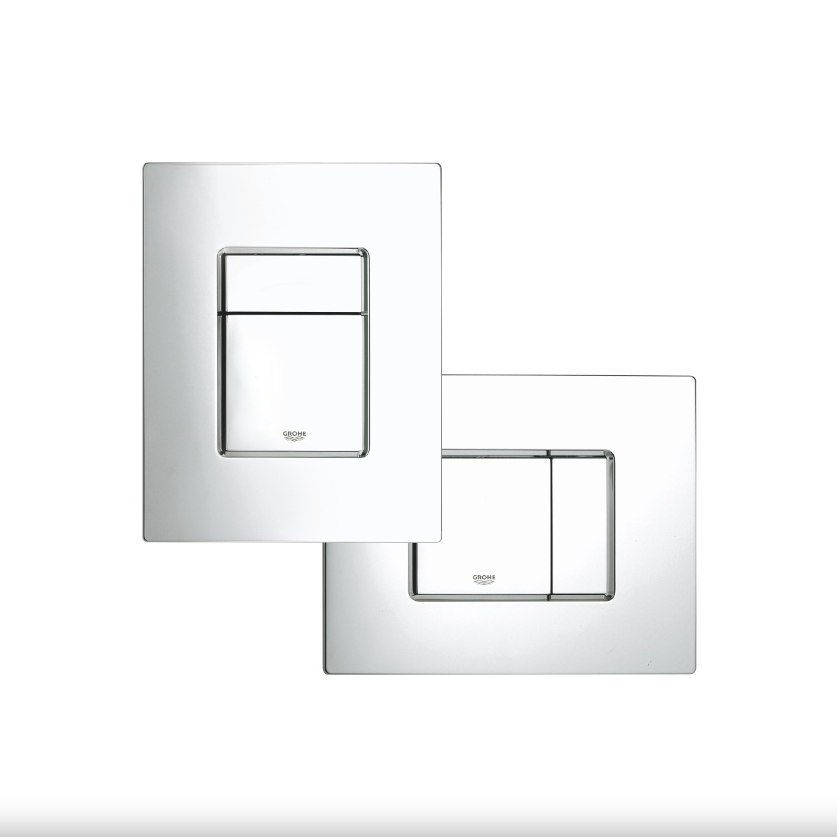

Skate Cosmopolitan toilet flush plate (38732000)
- Chrome
- Two-touch or interruptable
- For pneumatic mechanism
- 156 x 197 mm
.
Grohe Rapid SL wall bracket fixing kit (3855800M)
.

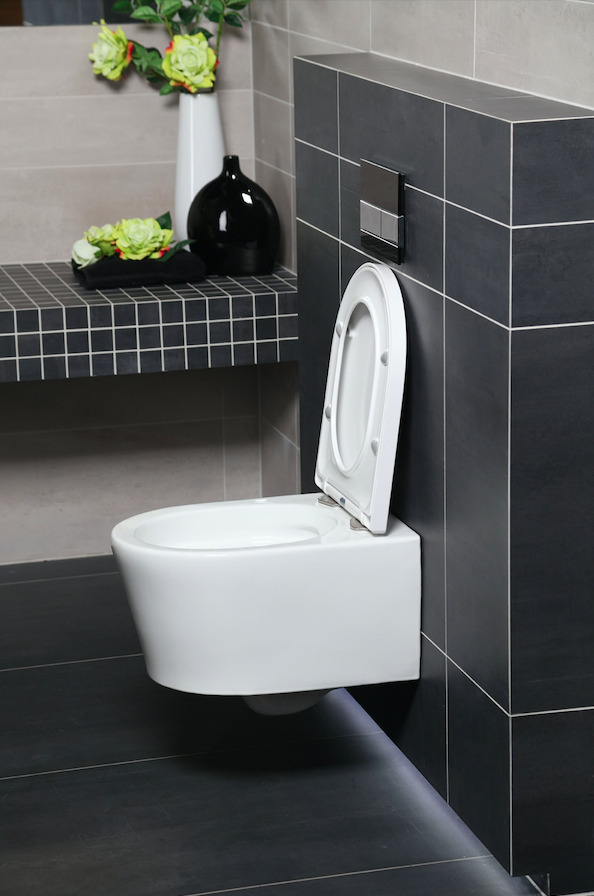

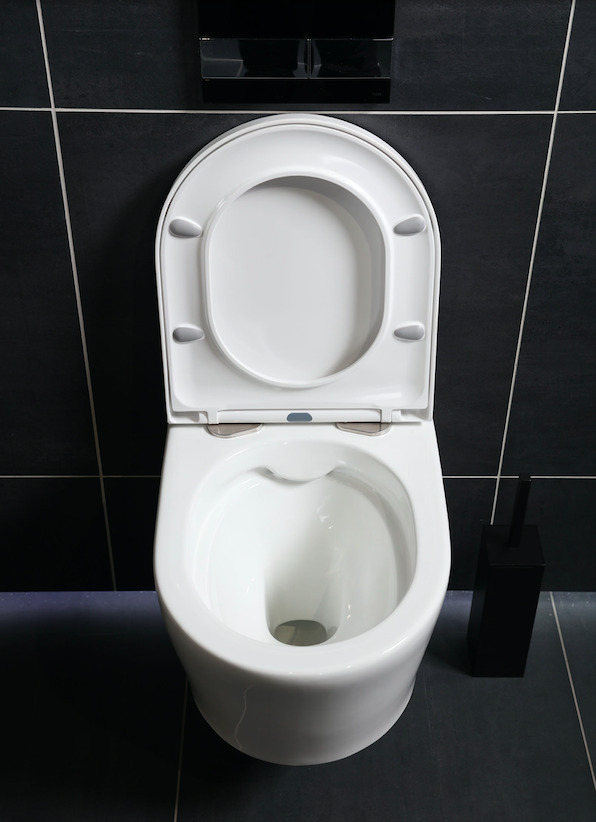

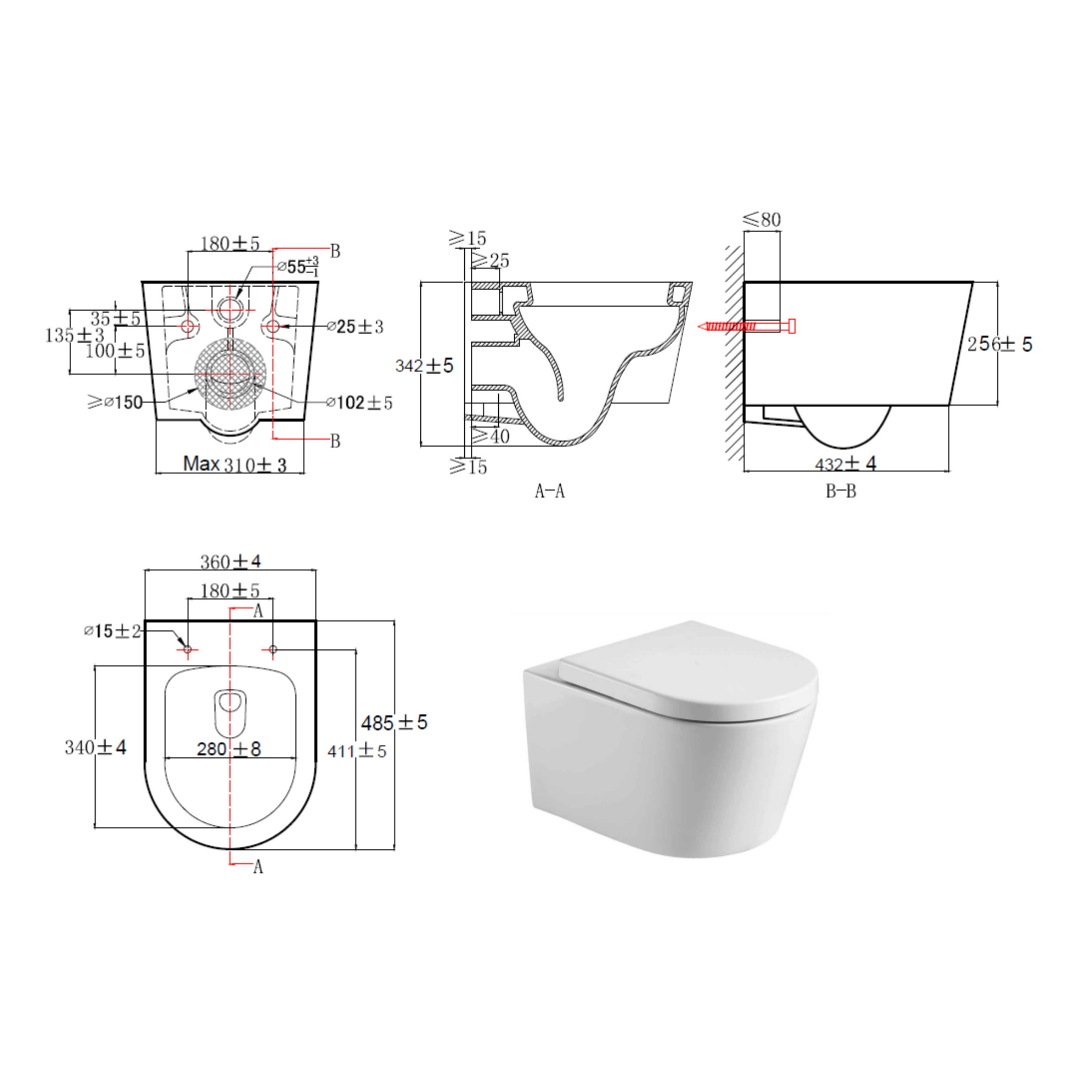

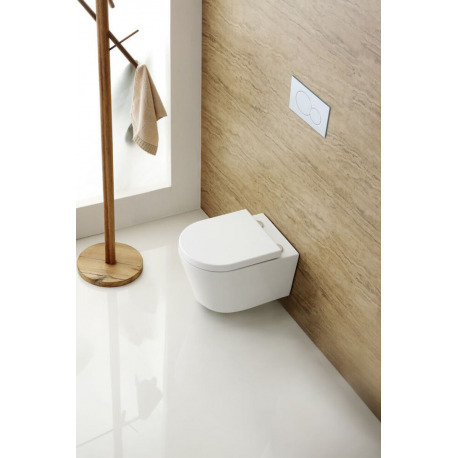

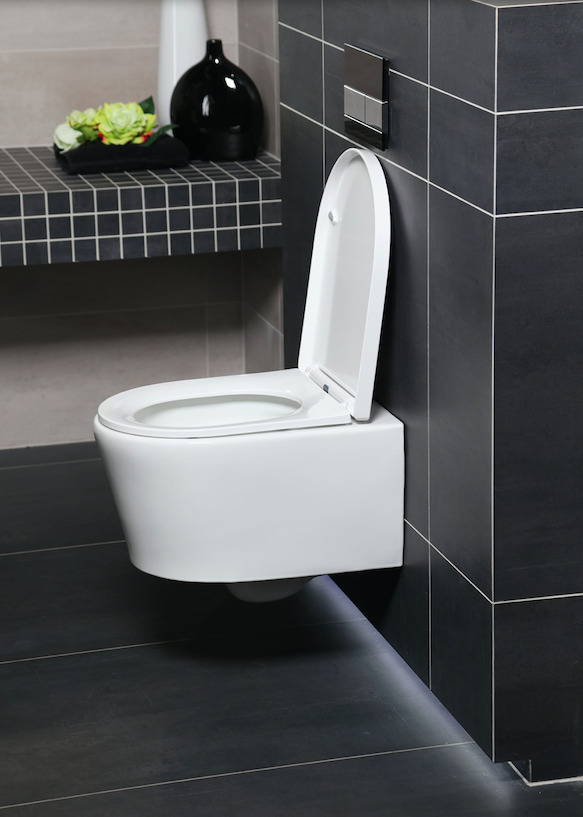

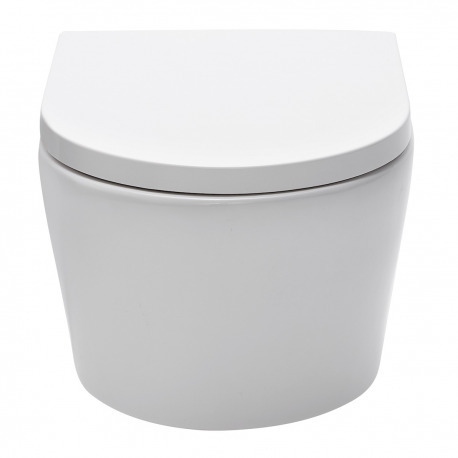

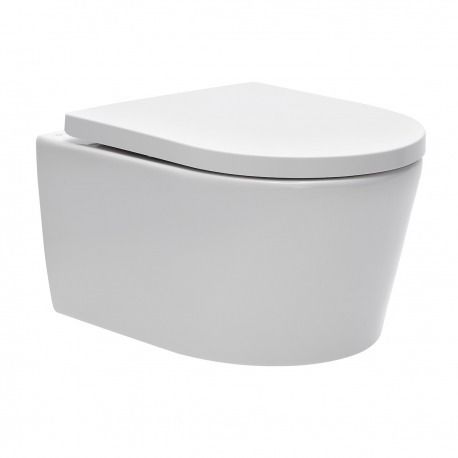

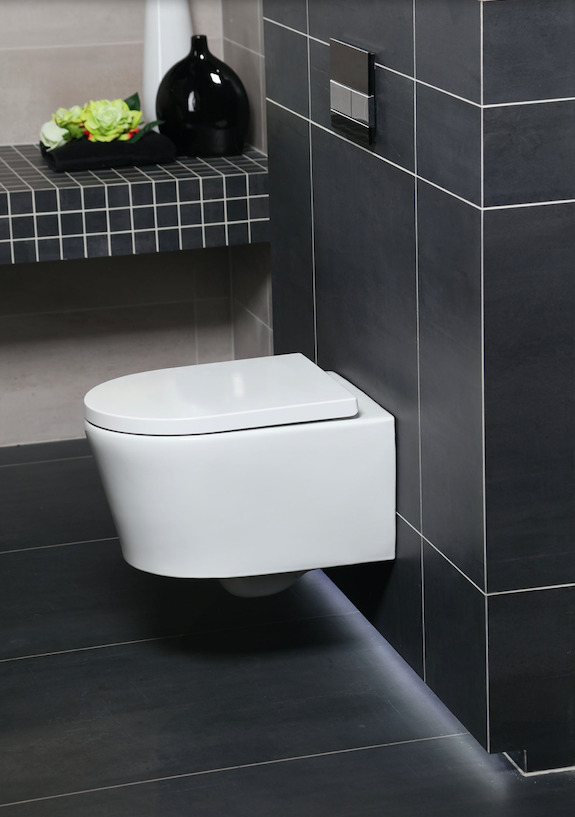

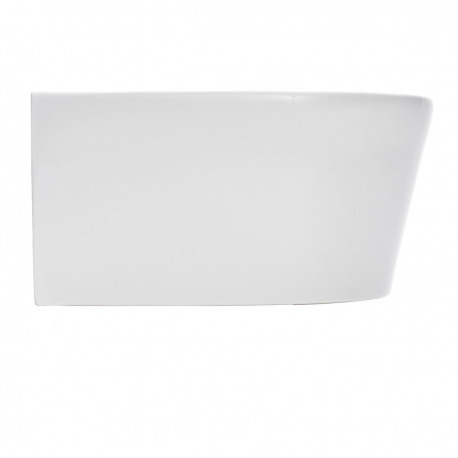

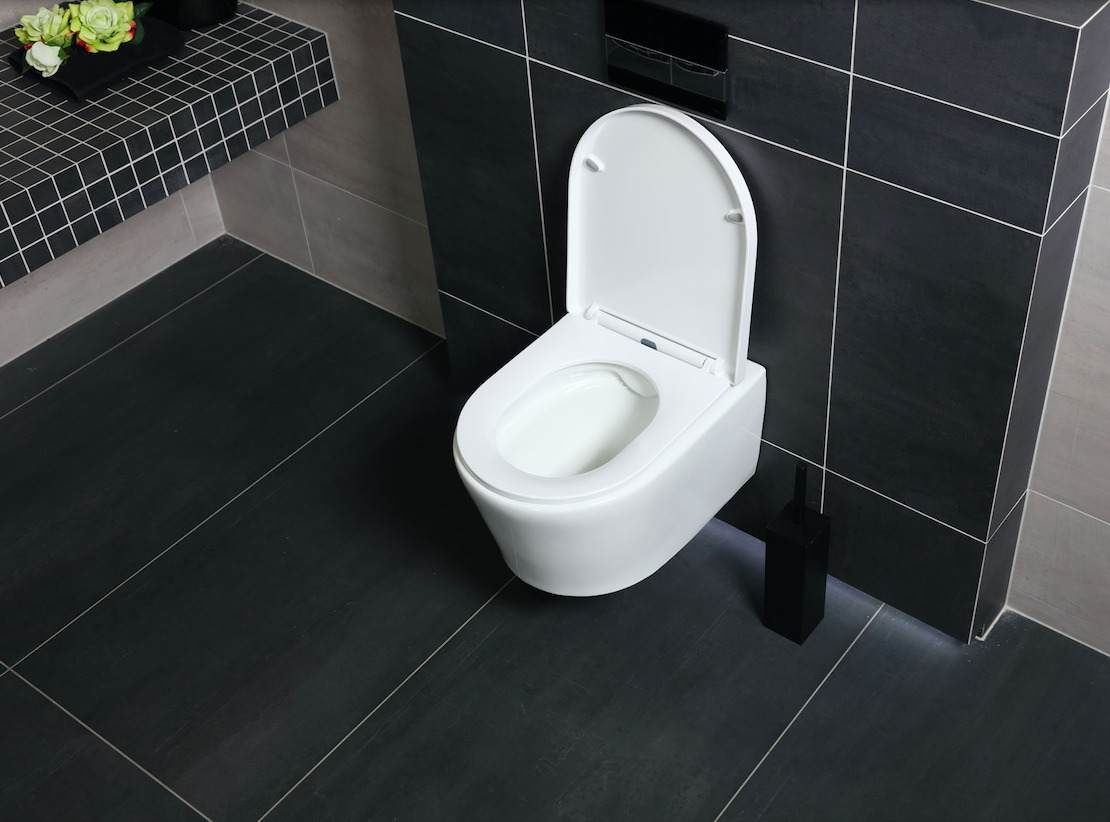

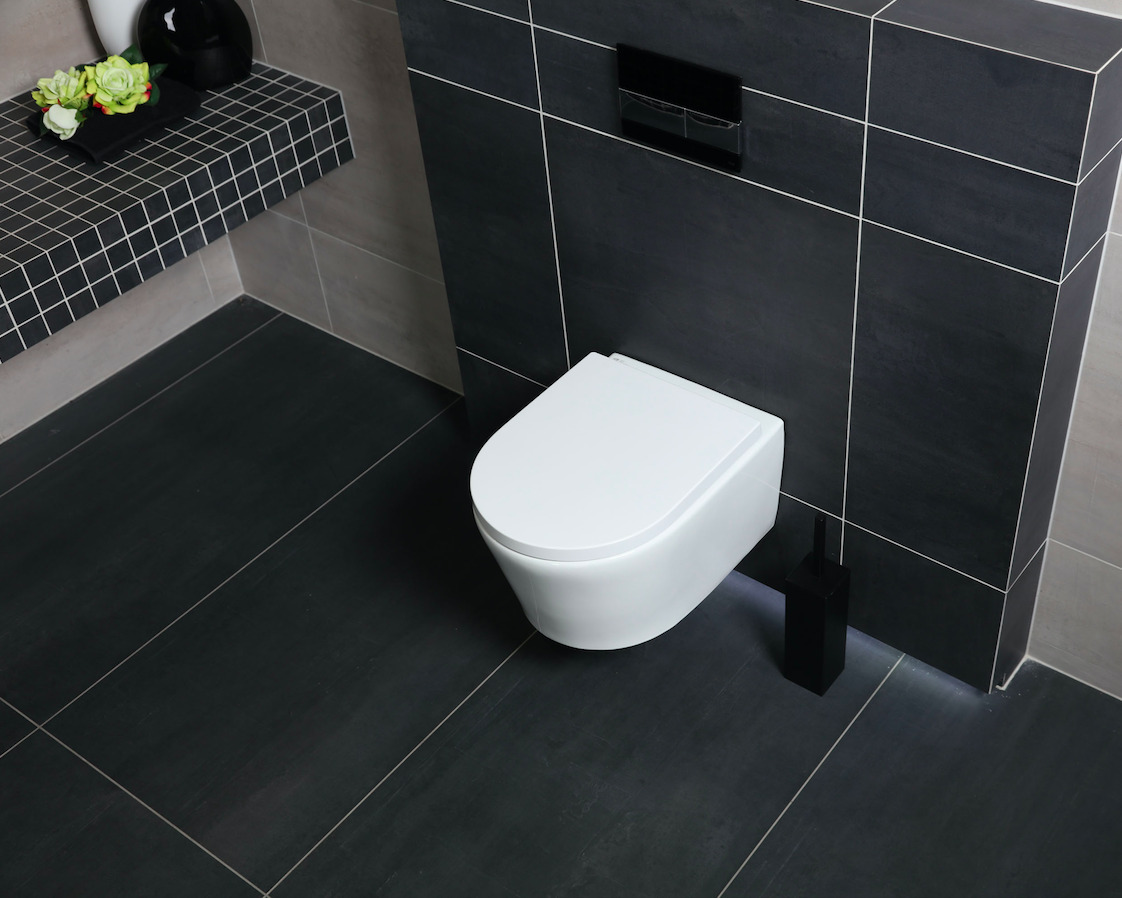

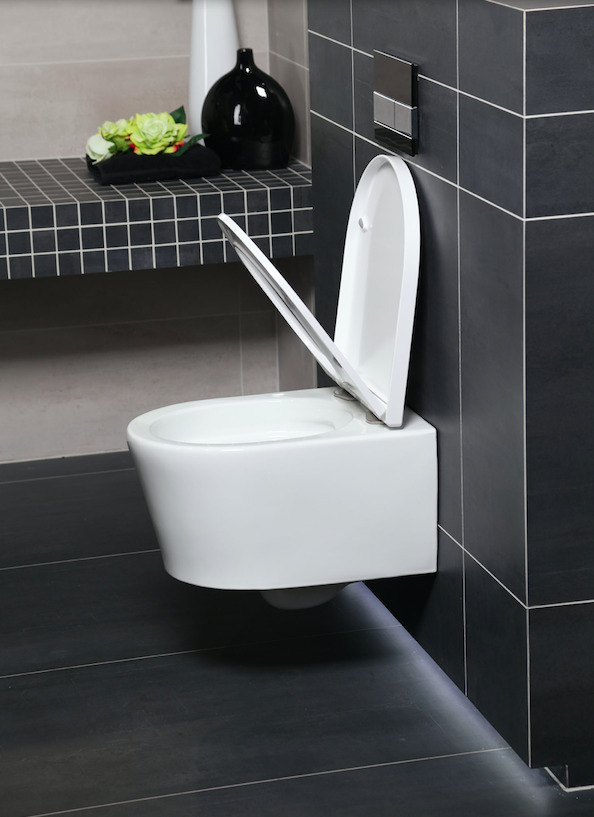

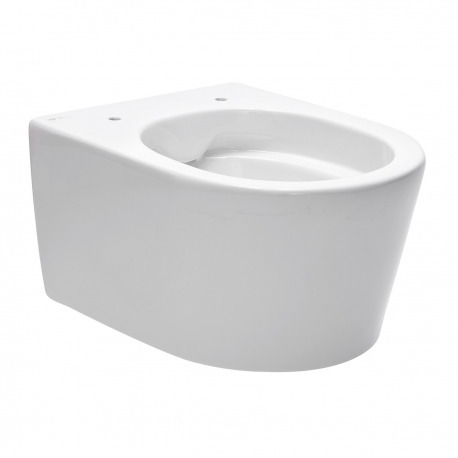

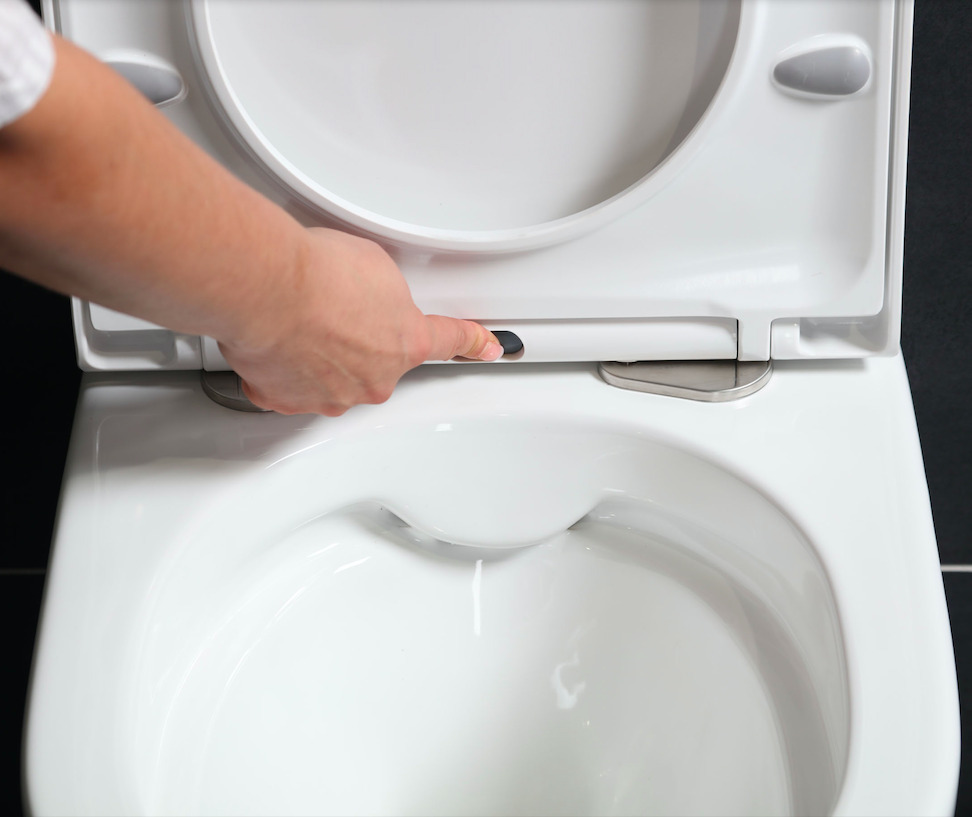

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless):
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L
- Toilet seat with softclose

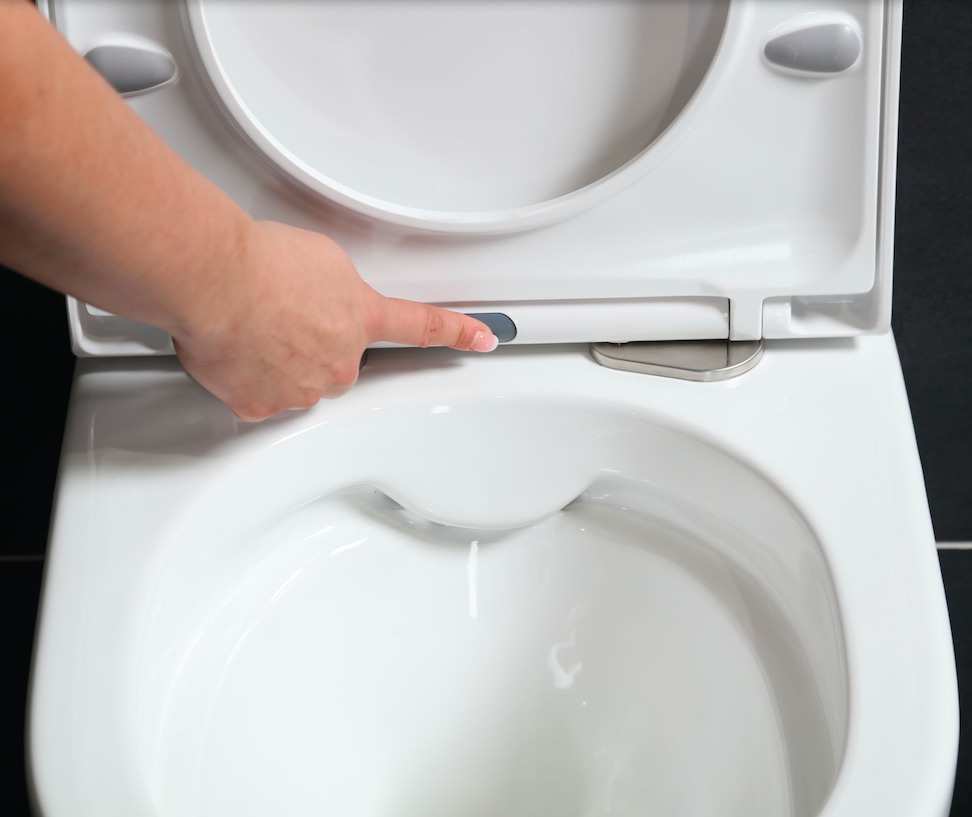

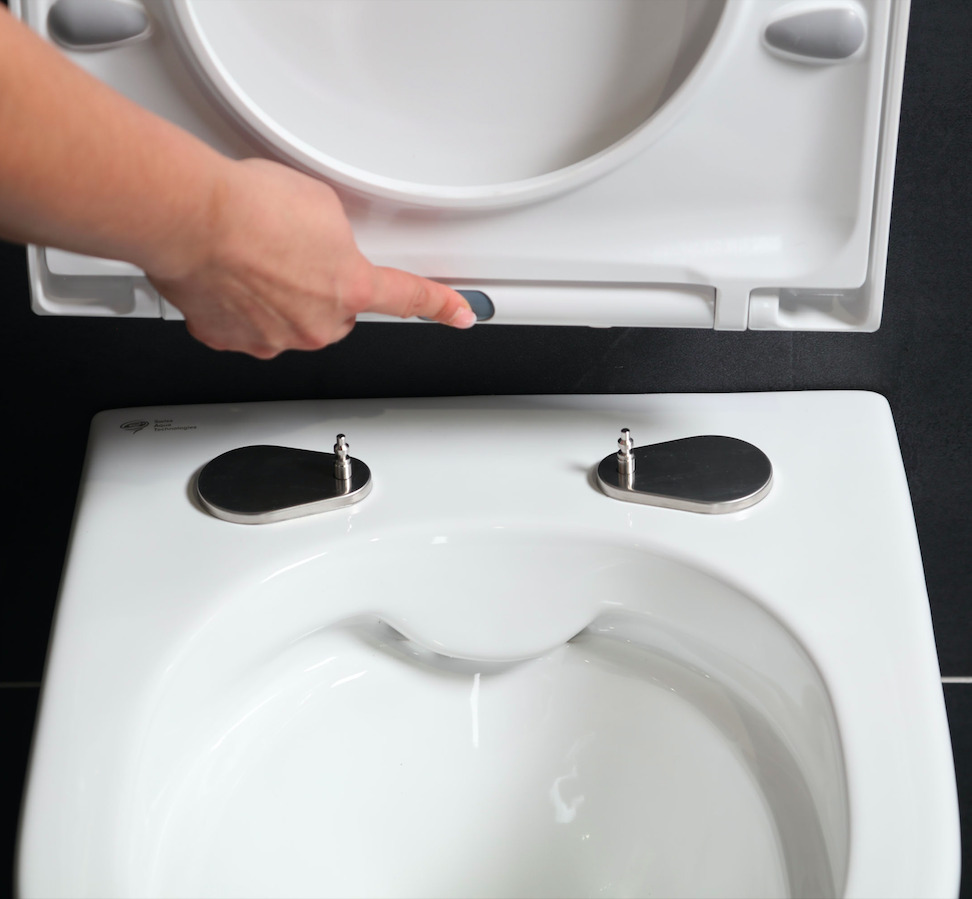

- Snap-on seat
- Easy to maintain thanks to the rimless system and removable seat
- Quick setup
.

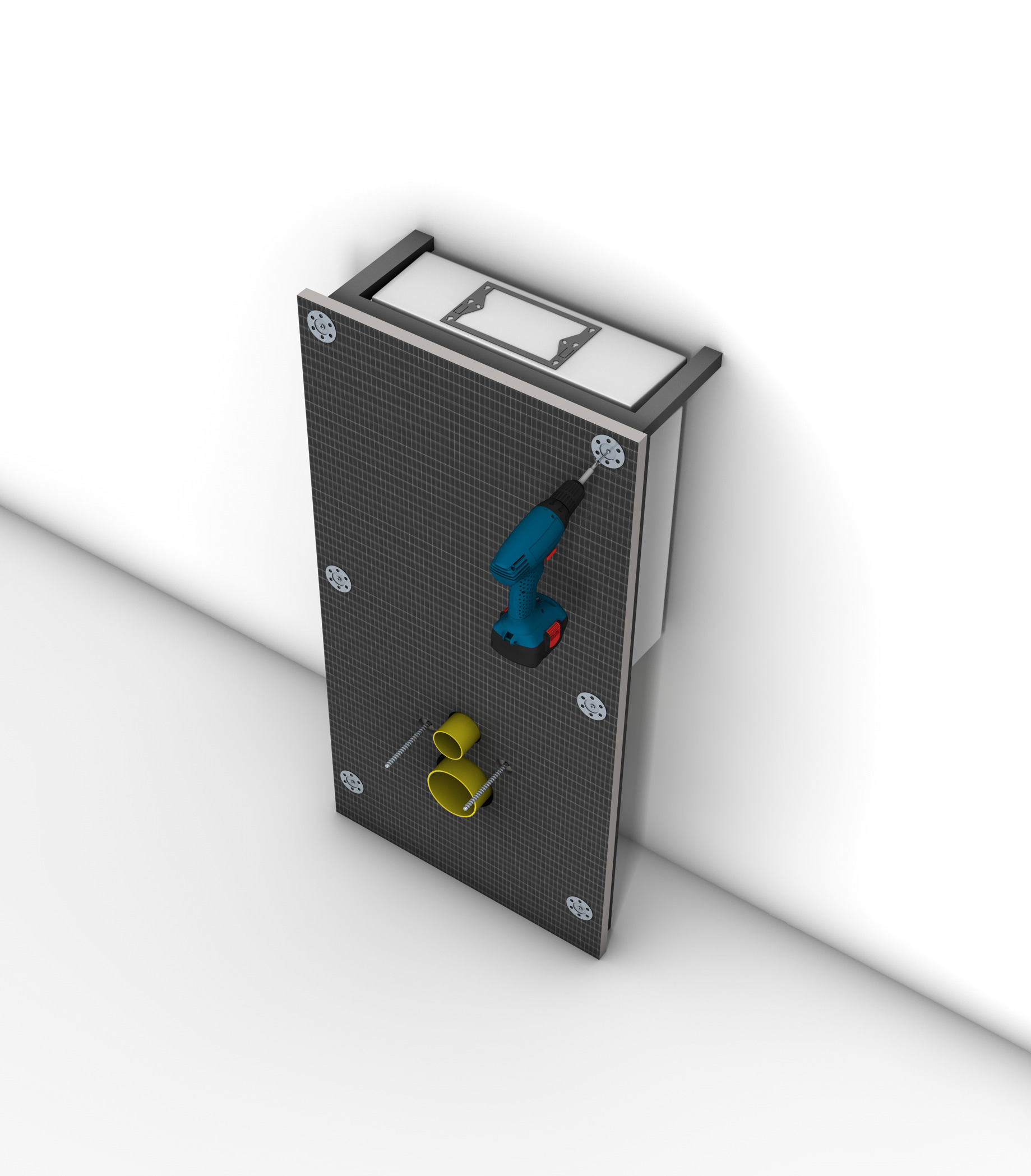

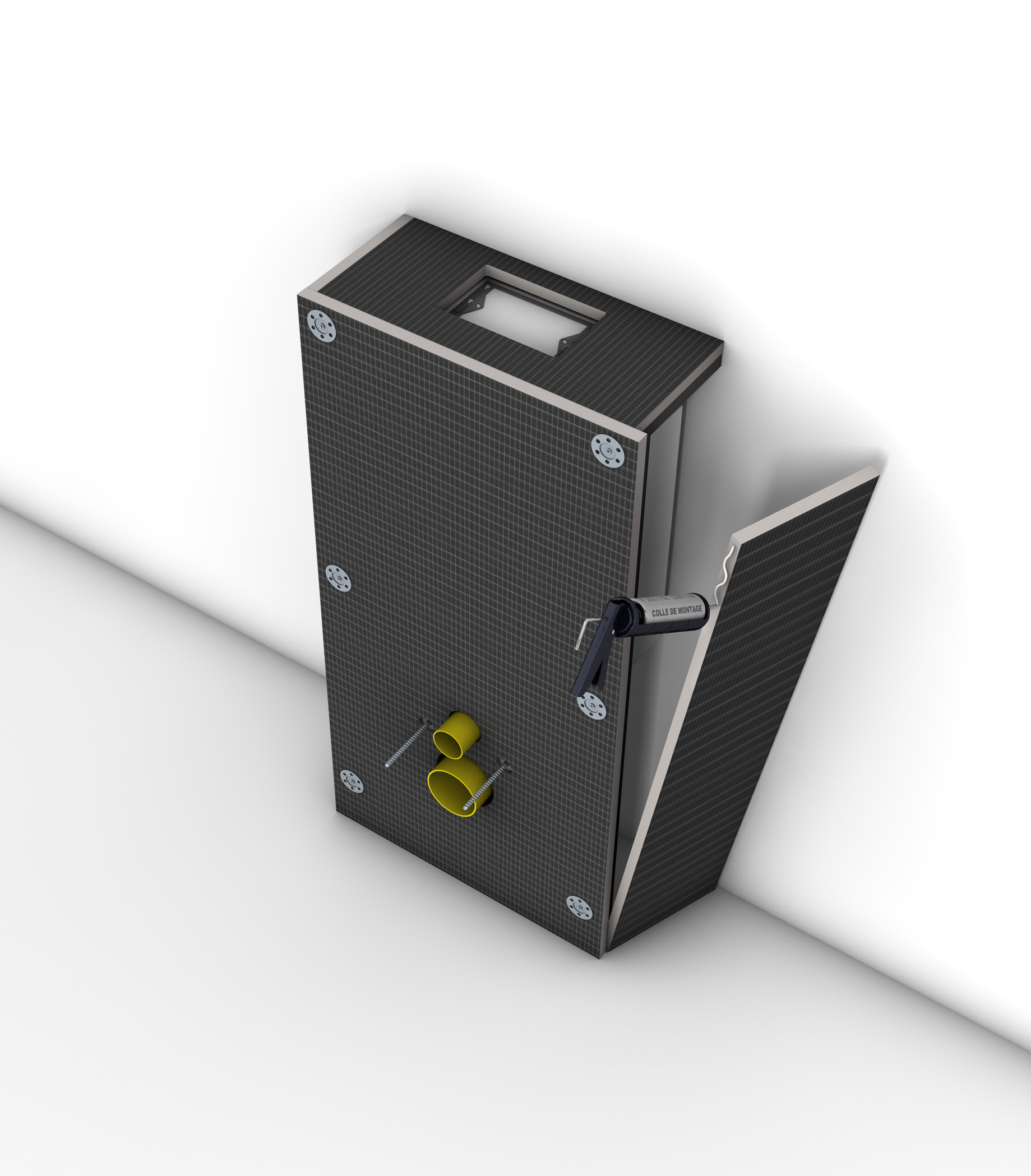

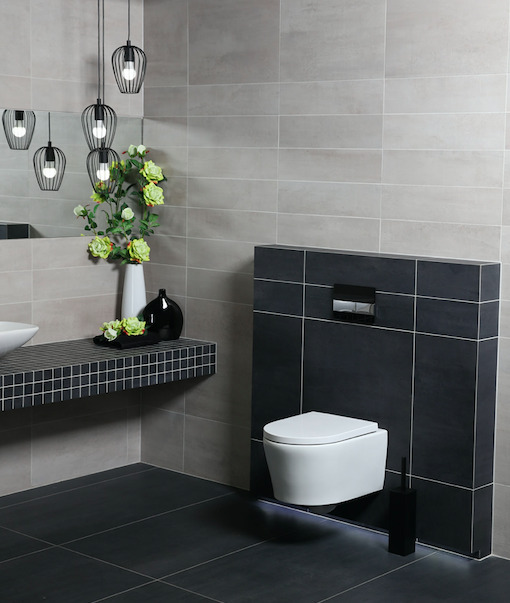

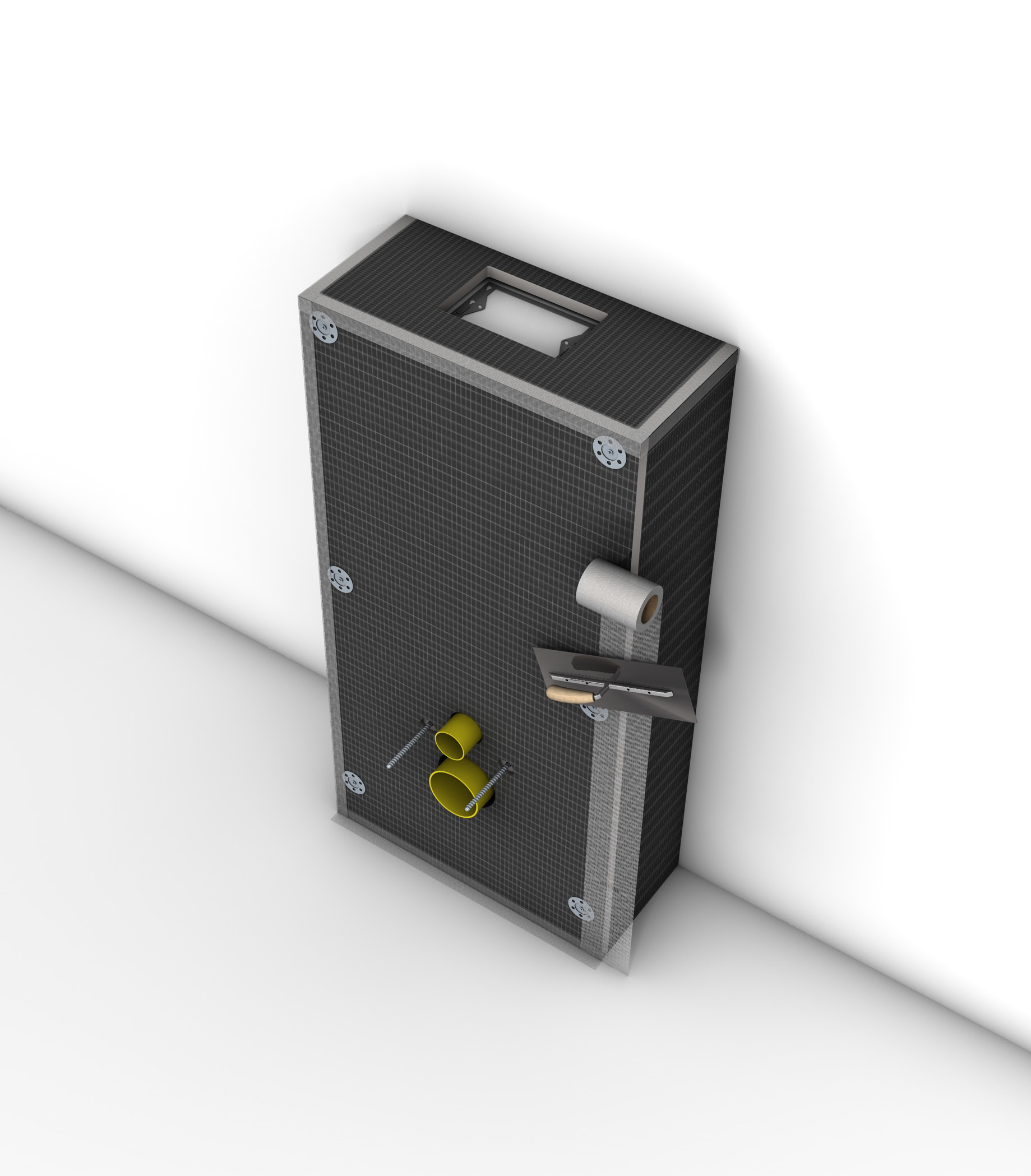

Jackon JACKOBOARD® Sabo Installation kit for cladding WC frame systems (4521871) :
The complete solution for finishing consealed WC systems
The JACKOBOARD® Sabo installation kit enables fast and easy cladding of all standard WC elements. This two-piece special element made of water-repellent extruded polystyrene foam (XPS) has machined holes to accommodate all standard toilet connections. With extremely high compressive strength, its special coating on both sides also permits the time-saving direct application of tiles.
Product characteristics JACKOBOARD® Sabo:
- Made of extruded polystyrene foam
- Water-repellent
- With special coating on both sides
- Low weight, approx. 3–6 kg/m2
- Thickness: 20 mm
- Board dimensions: 1300 x 600 mm and 1300 x 900 mm
- Excellent thermal insulation properties with λD = 0.035 W/(m·K)
- High compressive strength > 300 kPa
- For rooms subject to high moisture loads
Benefits JACKOBOARD® Sabo:
- For all standard toilet frame systems
- Easy to install
- Tiles can be applied directly
- Includes 10 self-tapping screws and 10 insulation board discs
Ideal application:
- For the fast and easy cladding and installation of all standard WC elements with and for direct tiling without preparatory work.
The following (not included) accessories are necessary:
- Mounting glue
- Reinforcement band
- Self-drilling metal screws
- Perforated washers
Made in Germany
10 years warranty
.
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding..
- Colour:White
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Grohe
- Type of frame:Standard
- Plate colour:Chrome
- Bowl colour:White
- Invisible fixings:Yes
