Geberit Toilet Support Frame Pack + Rimless SAT Brevis Toilet, with Invisible Fixings + Slim Soft-close Seat + Flush Plate + Cladding Se
- Product reference: BREVISGEB3-SABO
- EAN: 0734077015314
Brand:
Product warranty:
2
years
£
33450
TAX INCL.
17 In stock
Shipped before
the 21 November
Quantity:

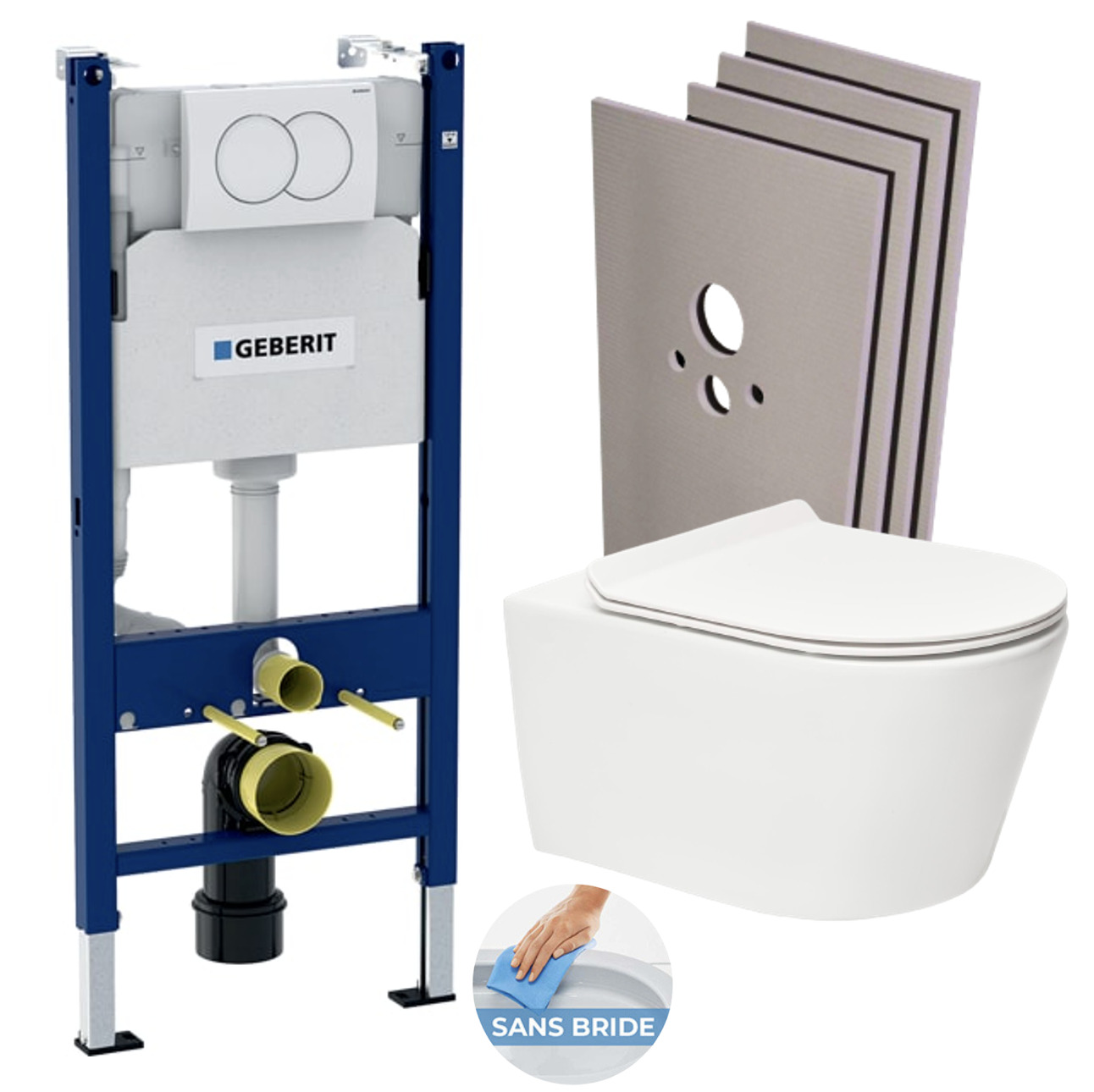

Features of the Toilet Support Pack + Rimless SAT Brevis Toilet, Hidden Fixings + Slim Soft-Close Seat + Plate + Cladding Set:
- Jackon Jackoboard Cladding Mounting Set for Toilet Support Frame (4521871)
- Duofix 112cm Toilet Support Pack + White Delta01 Flush Plate + Wall Fixings (111.154.11.2)
- SAT Brevis Rimless Wall-Hung Toilet by Swiss Aqua Technologies, with Hidden Fixings + Ultra-Slim Soft-Close Seat (BrevisRimless)
- Geberit Delta Flush Plate (115.107.11.1)
.

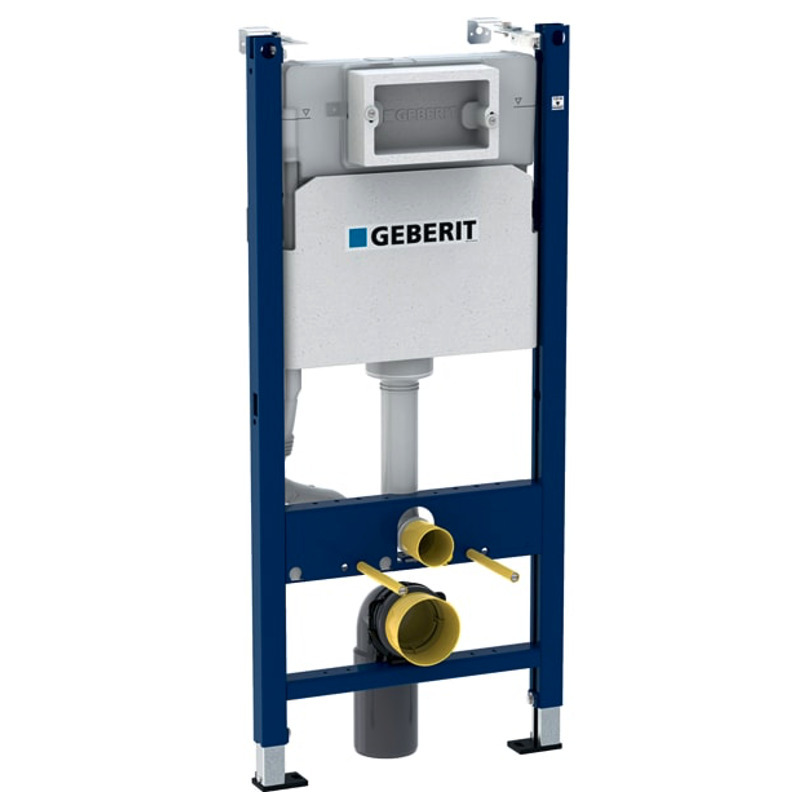

Duofix 112cm Toilet Support Pack + White Delta01 Flush Plate + Wall Fixings (111.154.11.2):
- For installation in part- or room-height prewall installations
- For solid wall or drywall construction
- For mounting wall-hung toilet with 18 cm or 23 cm fixing distance
- For floor constructions 0–20 cm
- For front flush control
- Geberit AquaClean
- Delta Geberit 12 cm (UP100) flush cistern, front control, insulated against condensation
- Wide adjustable flow
- Small fixed flush rate
- Adjustable instant flush possibility
- Water supply connection at the center back/top
- The connection hose to the angle valve can be screwed by hand
- 2 flushes with Geberit Delta01 buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized supports, continuously adjustable from 0 to 20 cm
- Foot plate depth suitable for installation in U-profiles UW 50
- Installation depth 12 cm
- Flush quantity - factory settings 6 and 3.5 liters
- Large flush rate - adjustment range 4.5 / 6 / 7.5 liters
- Included in the frame:
- 2 M12 threaded rods for ceramic fixation
- Drain valve for 2 flush rates
- Cover for rough installation hole, expanded polystyrene
- 2 protection plugs
- Angle valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Connection set ø 90 mm
- Waste bend for toilet, PE-HD, ø 90/90 mm
- Adapter socket ø 90/110 mm
- Fastening material
- Geberit Duofix wall fixings kit for self-assembly (111.839.00.1)
.

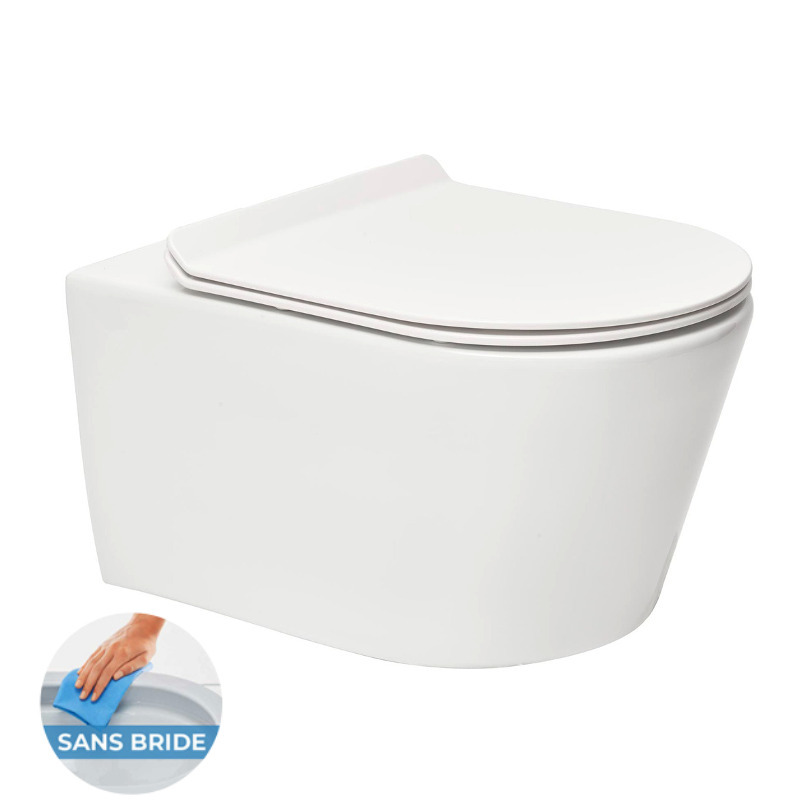

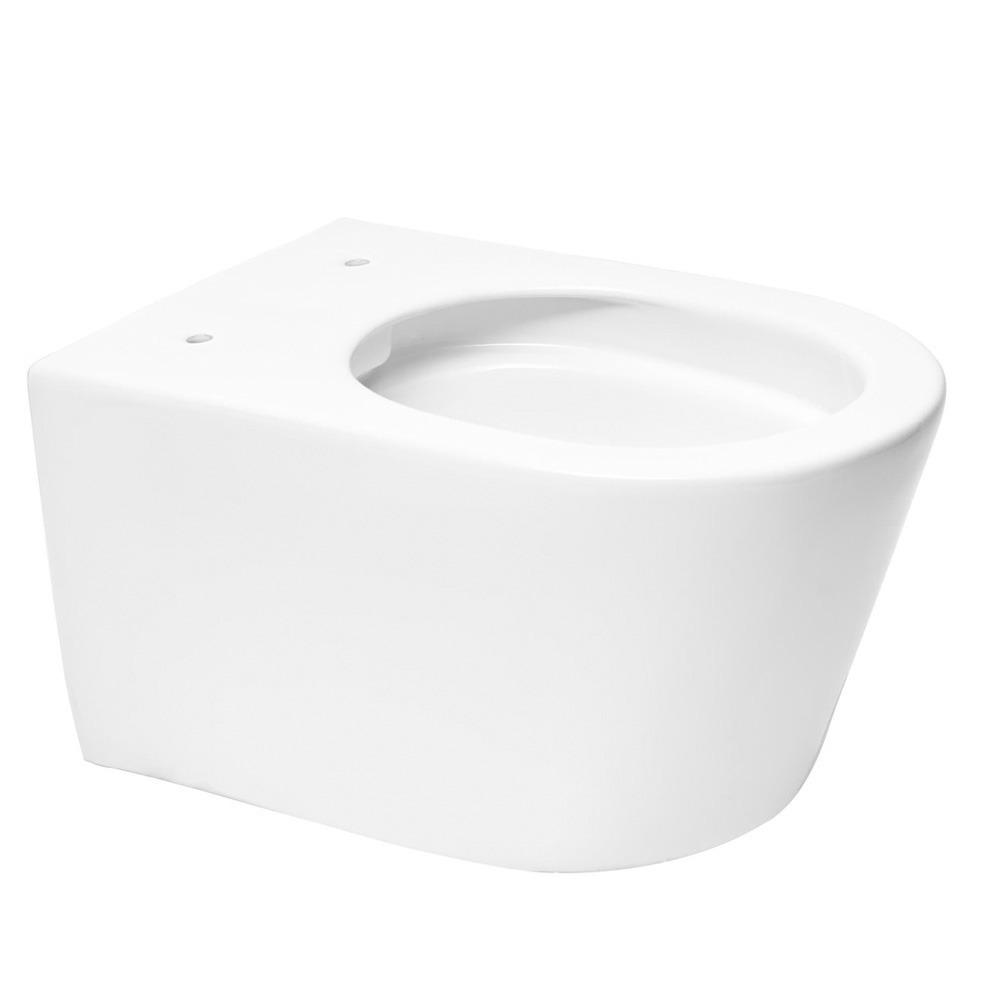

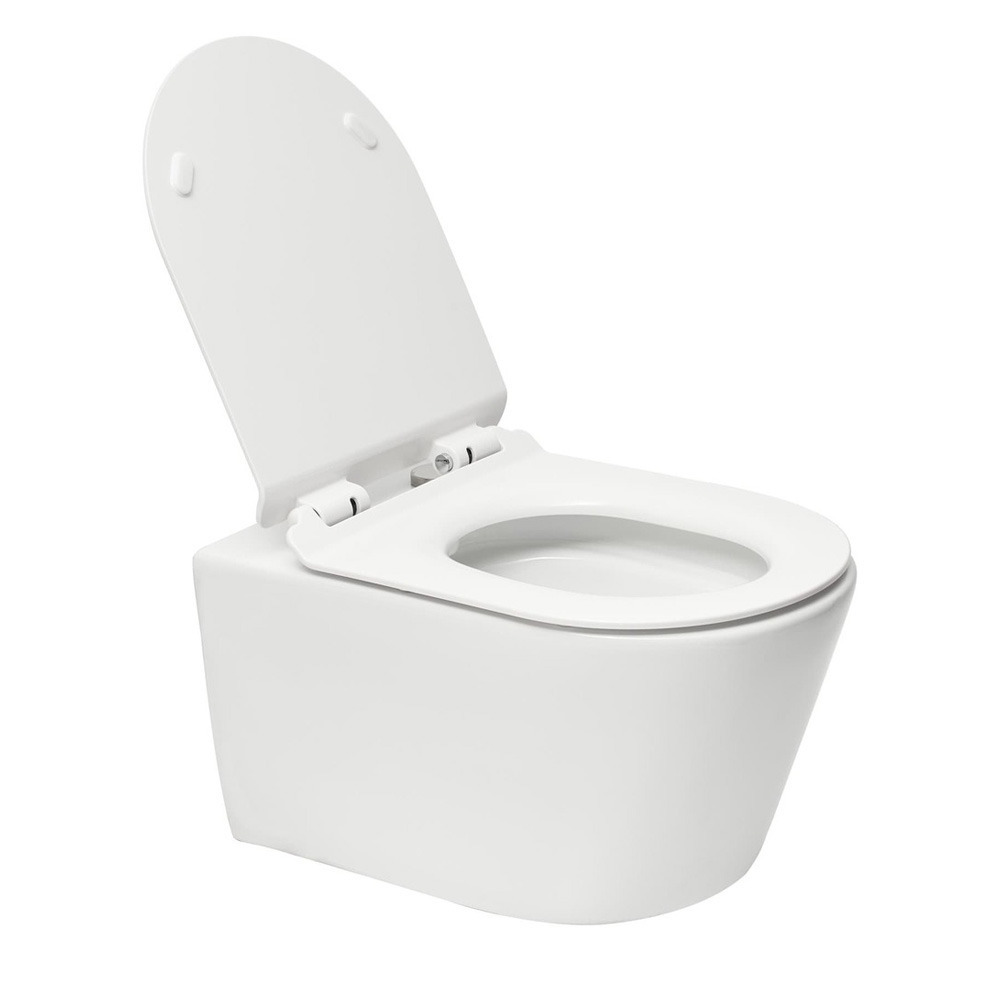

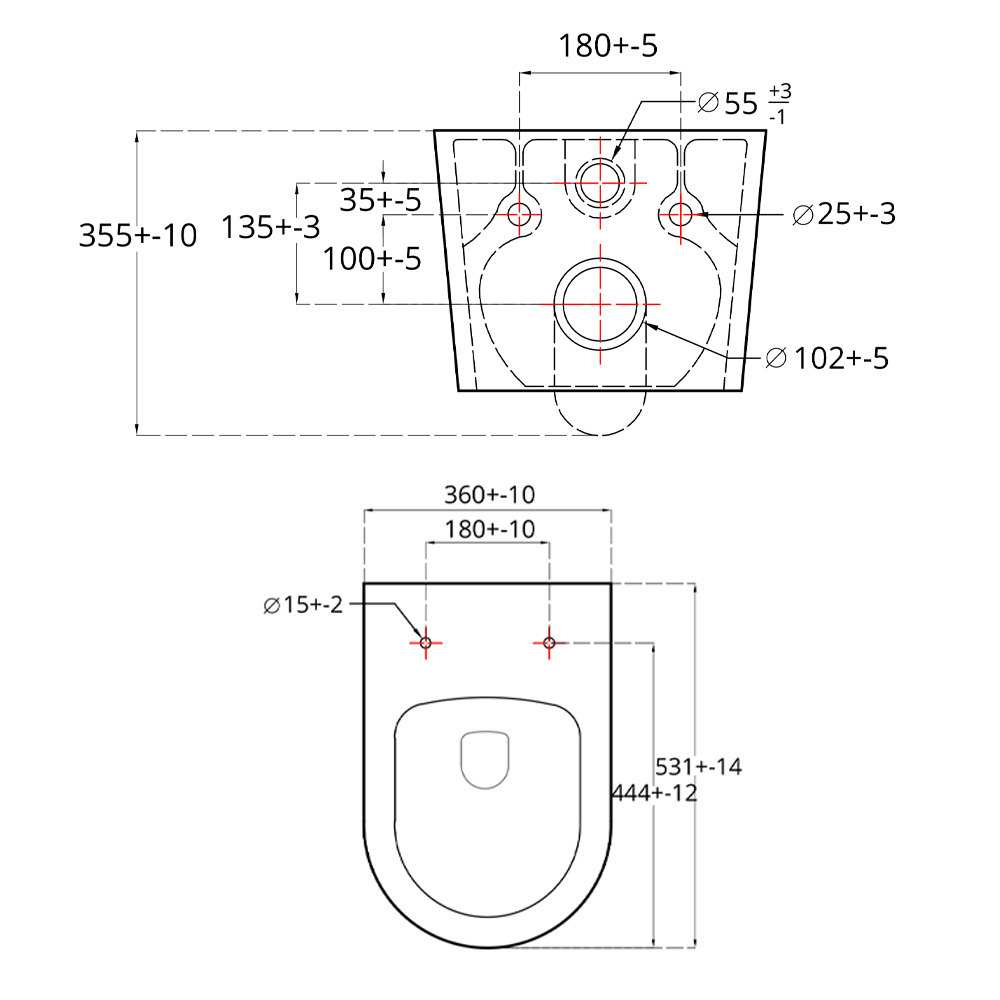

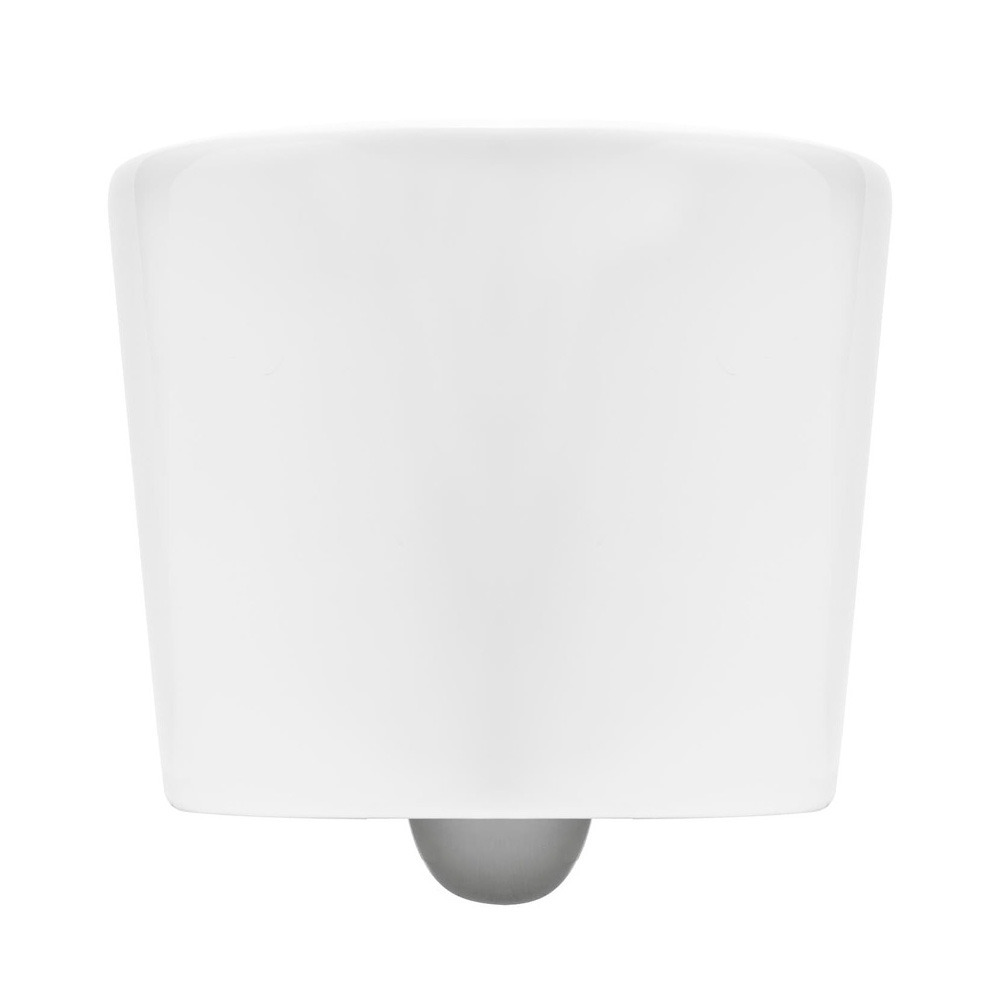

SAT Brevis Rimless Wall-Hung Toilet by Swiss Aqua Technologies:
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Simple and sleek style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- Depth of 53 cm
- Economical 3 / 4.5 L flush

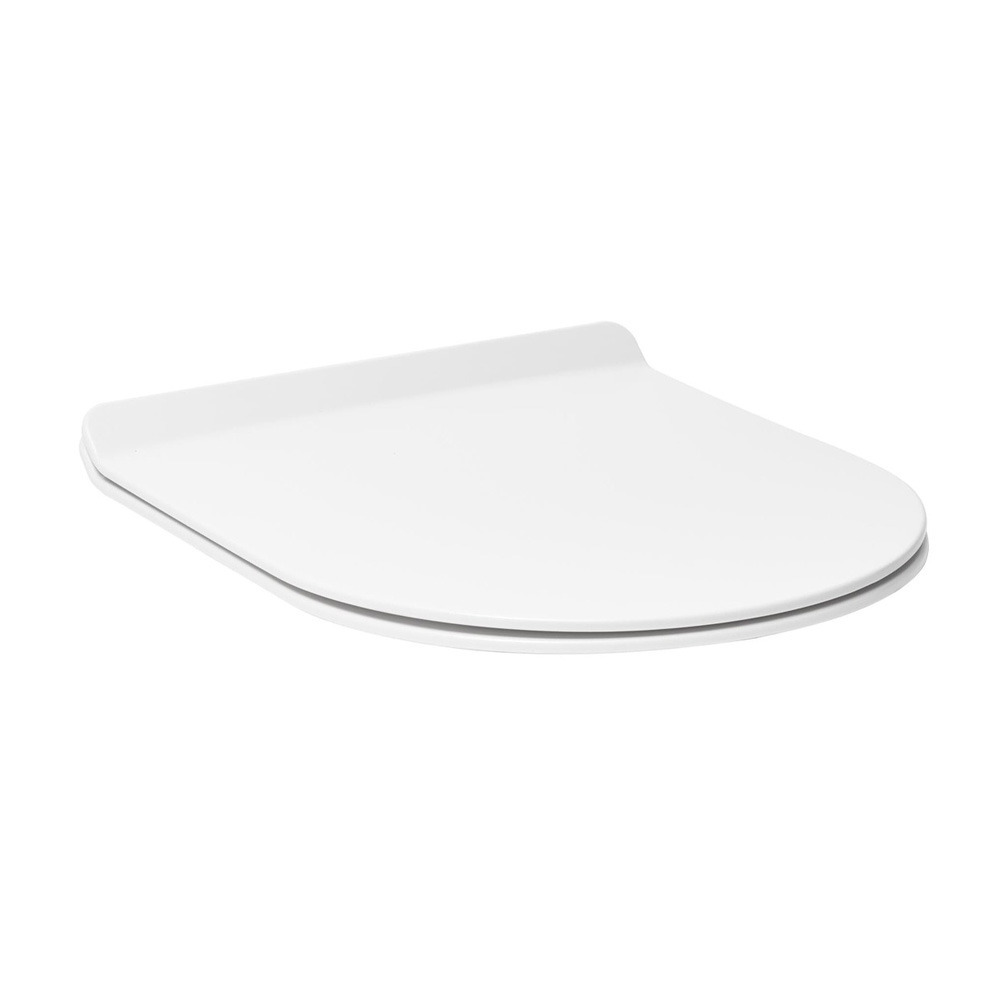

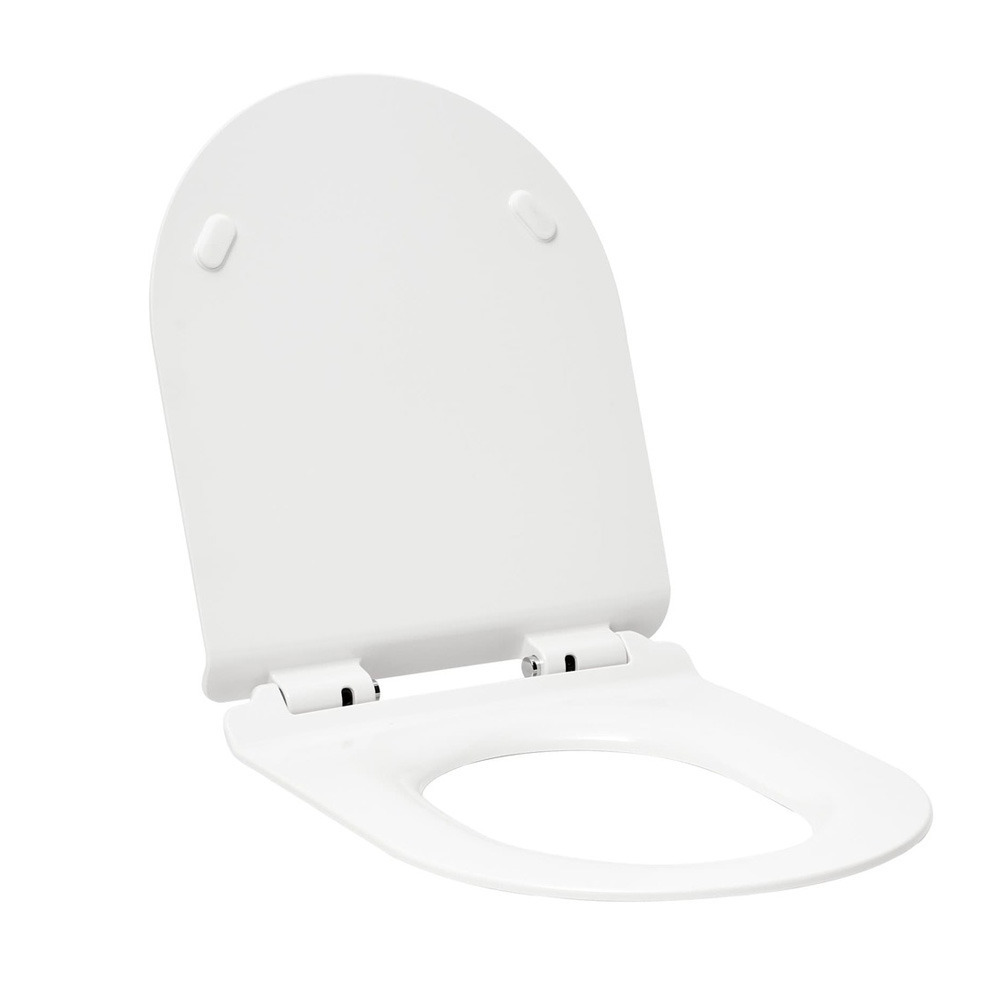

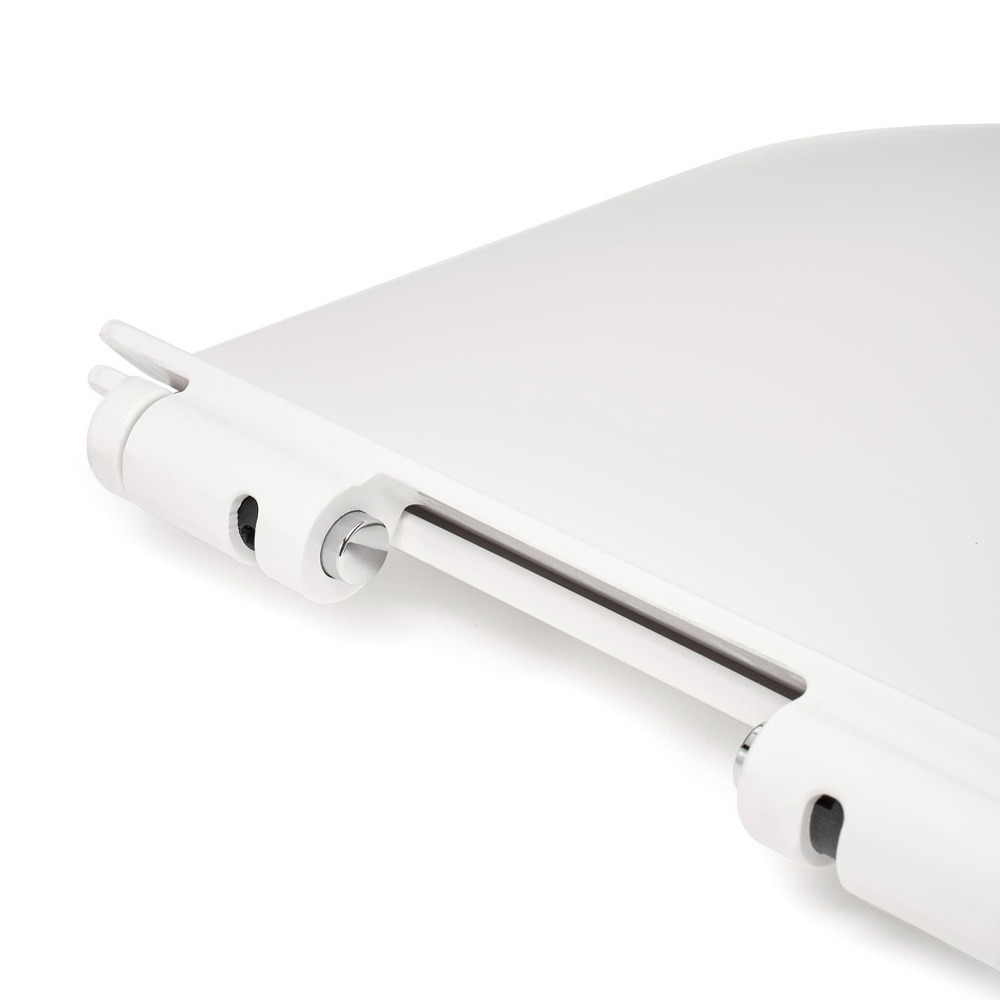

- Soft-close seat with slow closing
- Removable seat
- Easy to clean due to rimless design and removable seat
- Quick installation
.

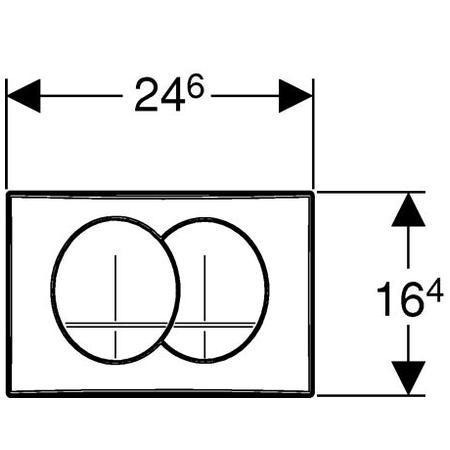

Geberit Delta Flush Plate (115.107.11.1):
- Delta features 2 buttons, one for a 3L small flush and the other for a 6L large flush
- Water-saving
- Front flush actuation
.

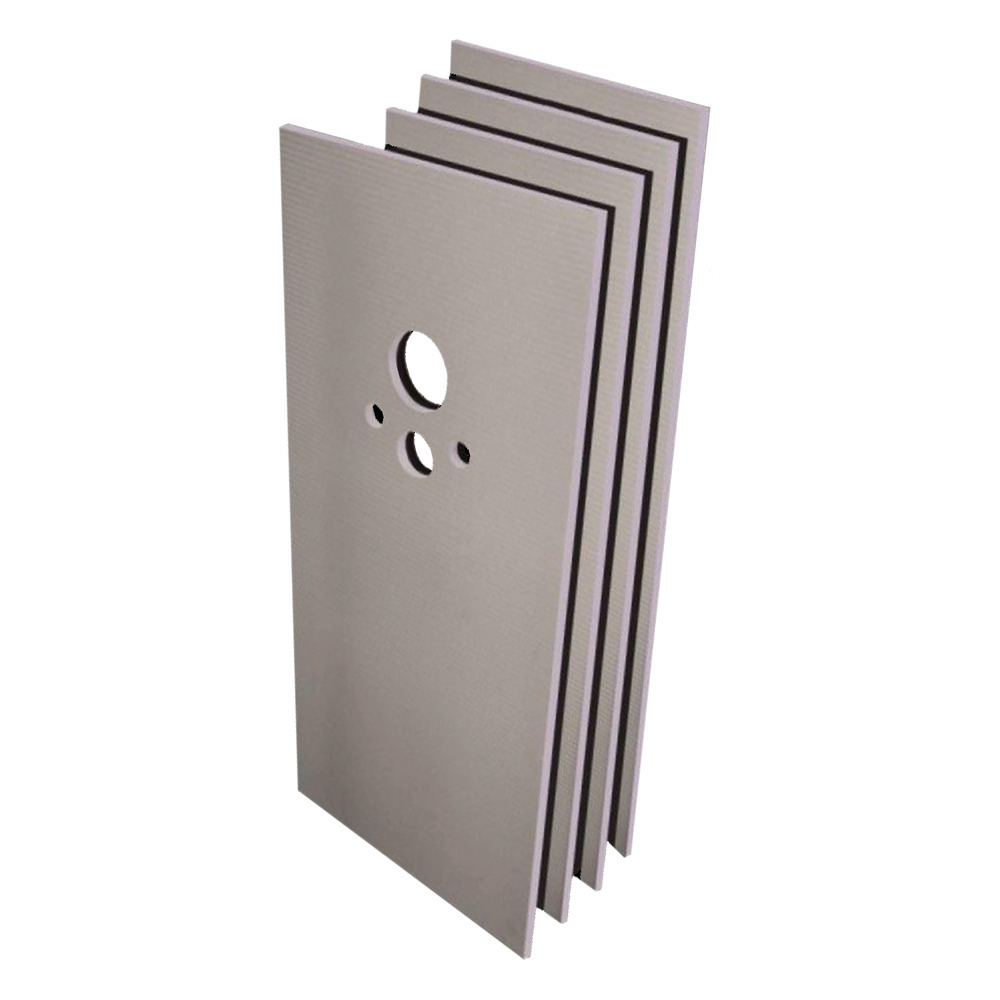

Jackon Jackoboard Cladding Mounting Set for Toilet Support Frame (4521871):
- Water-repellent
- Made in Germany
- Special coating on both sides
- Lightweight: approx. 3–6 kg/m2
- Thickness: 20 mm
- Panel dimensions: 1 panel 1300 x 600 x 20 mm (with cutouts for pipe passages) and 3 panels 1300 x 450 x 20 mm
- Excellent insulating power λD = 0.035 W/(m·K)
- High compression resistance > 300 kPa
- Approved and certified
- Suitable for high humidity rooms – rooms EB/EB+/EV
- Suitable for all common toilet connections
- Easy to install
- Can be tiled, plastered, or textured directly
- For quick and easy cladding of common toilet support frames with tile without prep work
- Required Accessories (not included):
- Mounting adhesive
- Reinforcement tape
- Self-drilling metal screws
- Perforated washers
.
Attention! It is imperative to check the products upon delivery. Any damage must be noted precisely for each product on the delivery receipt while in the presence of the delivery person. No claims can be accepted afterward, as carriers are very strict about this. Thank you for your understanding.
Product technical properties
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:Yes
£
