Villeroy & Boch Toilet set Frame + SATrimless toilet and invisible fixings + Chrome plate + Wall cladding set
- Product reference: VCNSAT1SB
- EAN: 0750122361373
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Choose the quality and ease of installation of the WC Pack Support frame + WC SAT without rim and invisible fixings + Chrome plate + Wall cladding set (ViConnectSATrimless-1-sabo).

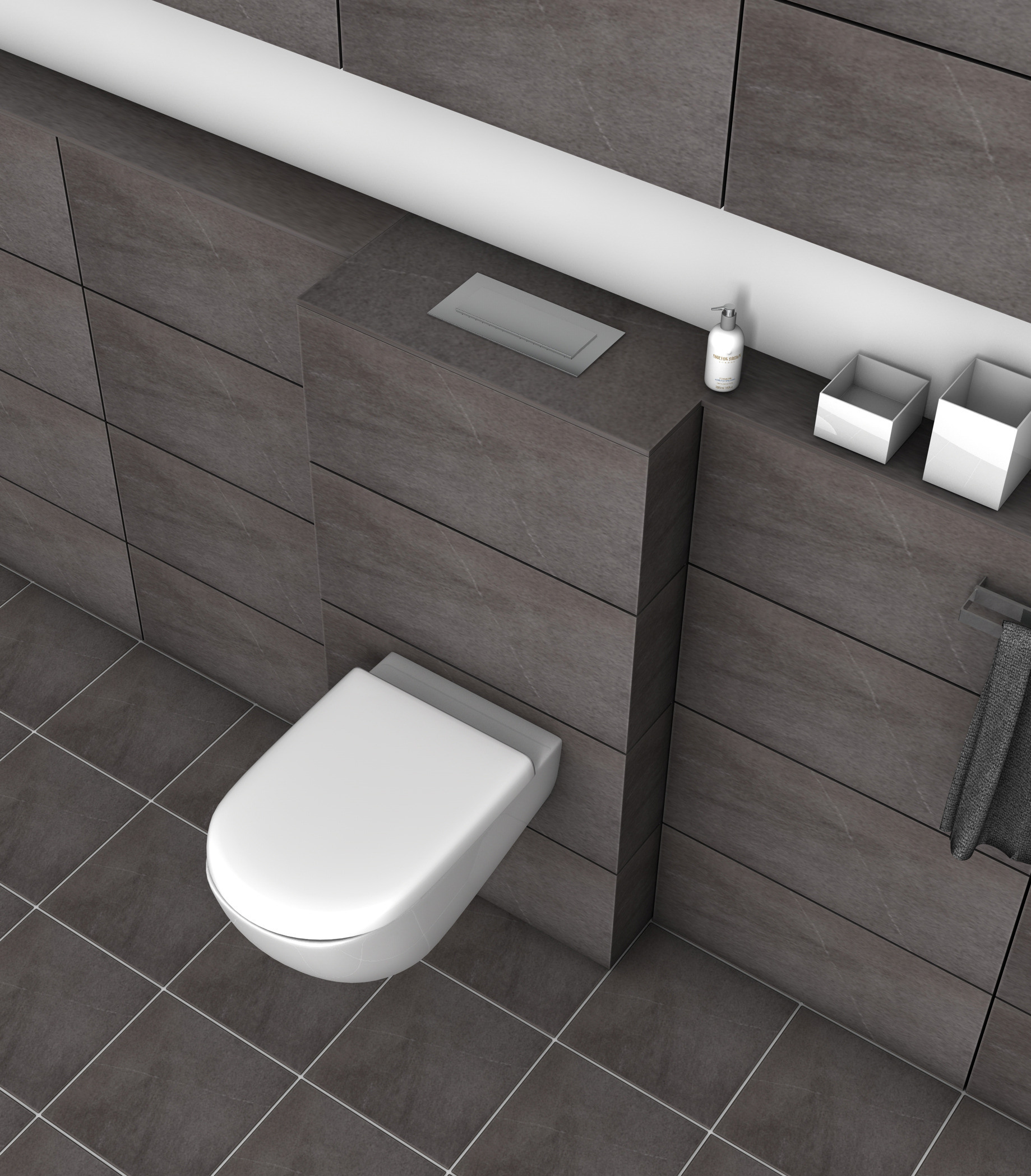

This WC set links the bowl of the Swiss Aqua Technologies brand and the Villeroy & Boch brand. The quality of the items in this pack is recognized and the modernity and design of these will certainly satisfy you by providing you with solutions adapted to your projects. In addition, the Jackoboard by Jackon wall cladding set will allow you to quickly and efficiently cover the Villeroy & Boch support frame.
see detailed description- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Villeroy & Boch
- Type of frame:Standard
- Plate colour:Chrome
- Invisible fixings:Yes
Villeroy & Boch is committed: All spare parts for the frame are available for 25 years after purchase.
.

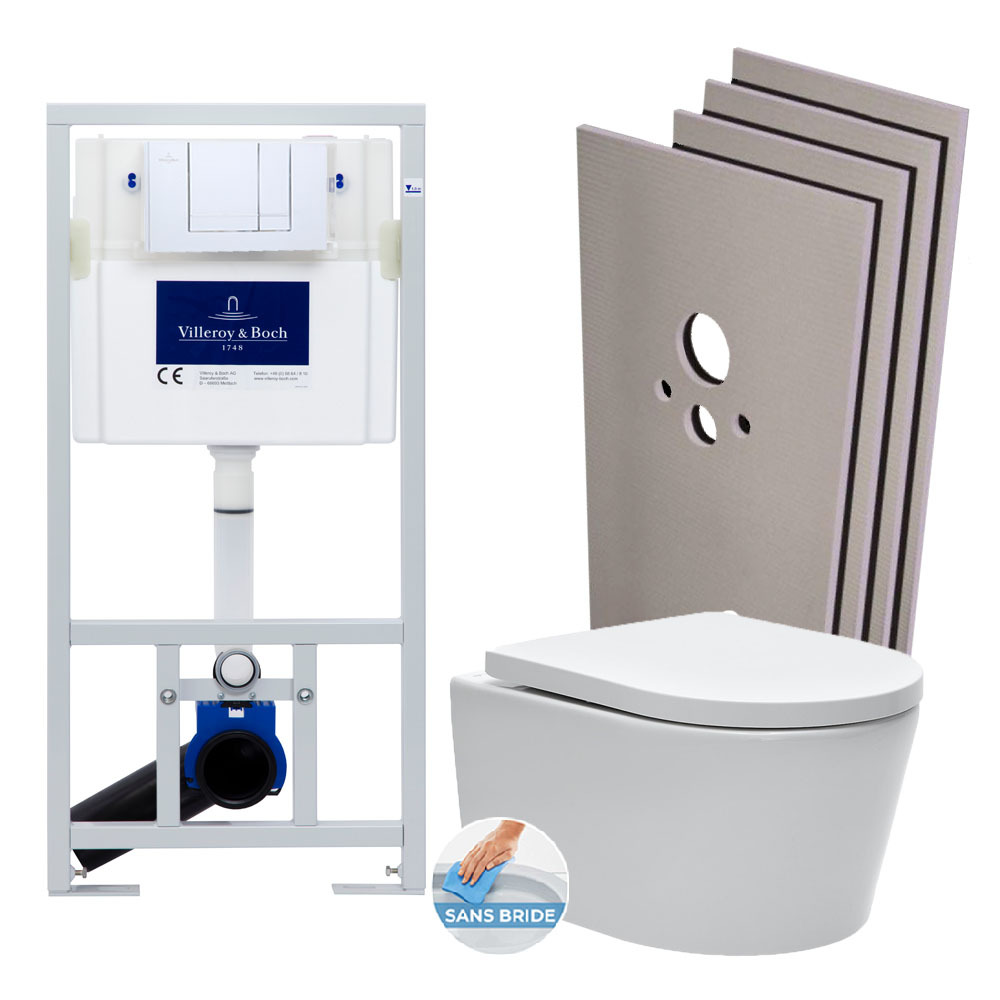

Features of the WC pack Frame + rimless SAT WC with invisible fixings + chrome plate + Wall cladding set (ViConnectSATrimless-1-sabo):

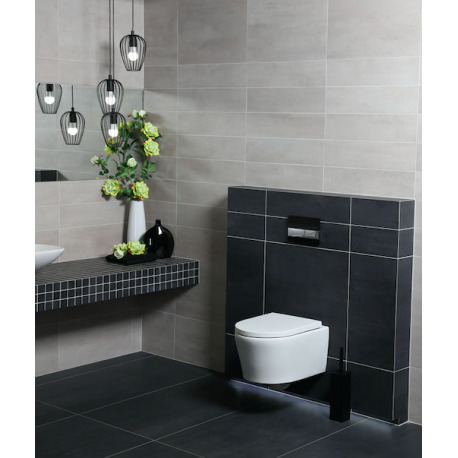

- Swiss Aqua Technologies Rimless wall-hung toilet with invisible fixings + soft-close seat (SATrimless)
- Villeroy & Boch Viconnect Pro Pack Wall-hung WC frame + Dual flush plate chrome (92214461)
- Jackoboard Mounting kit for WC frame cladding (4521871)
.

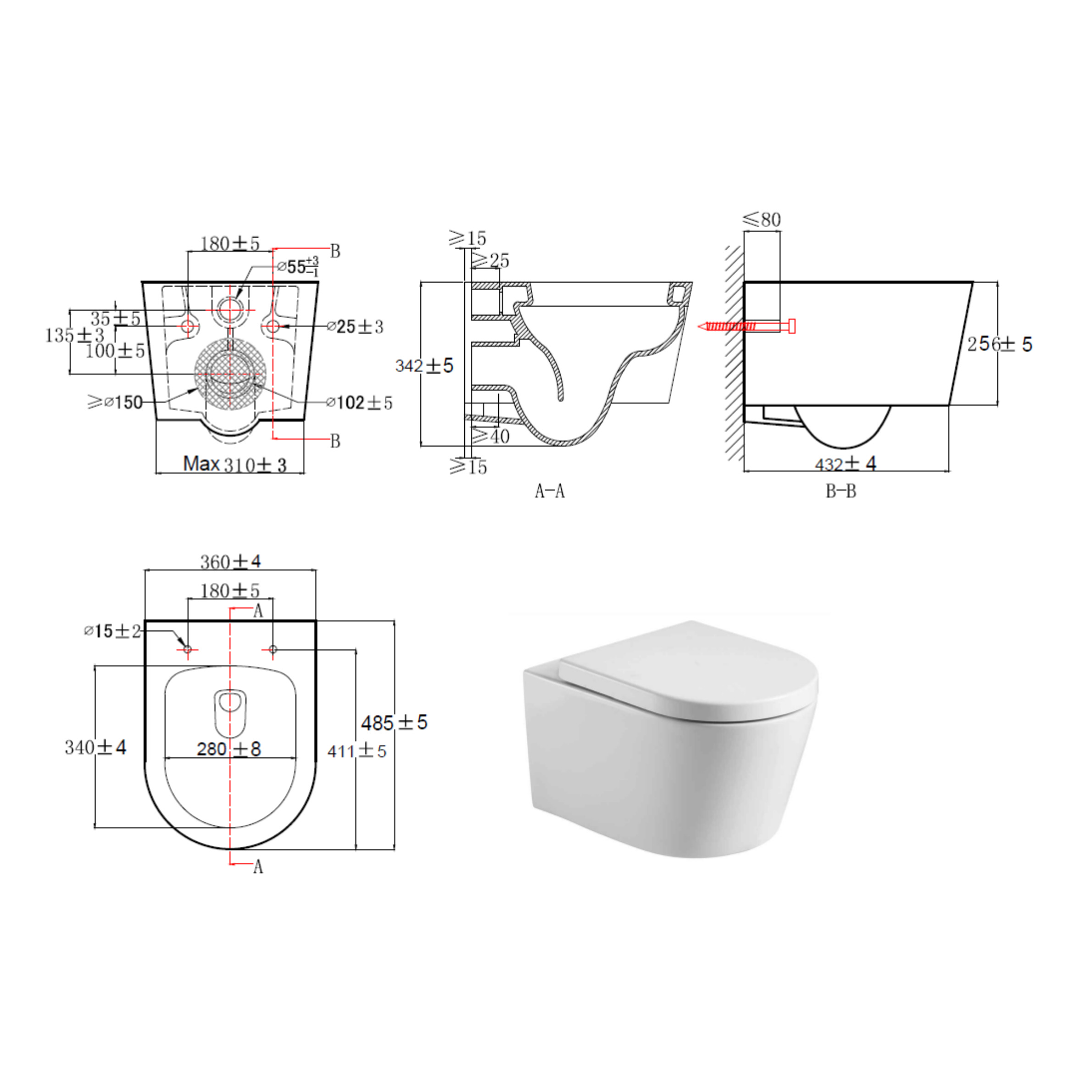

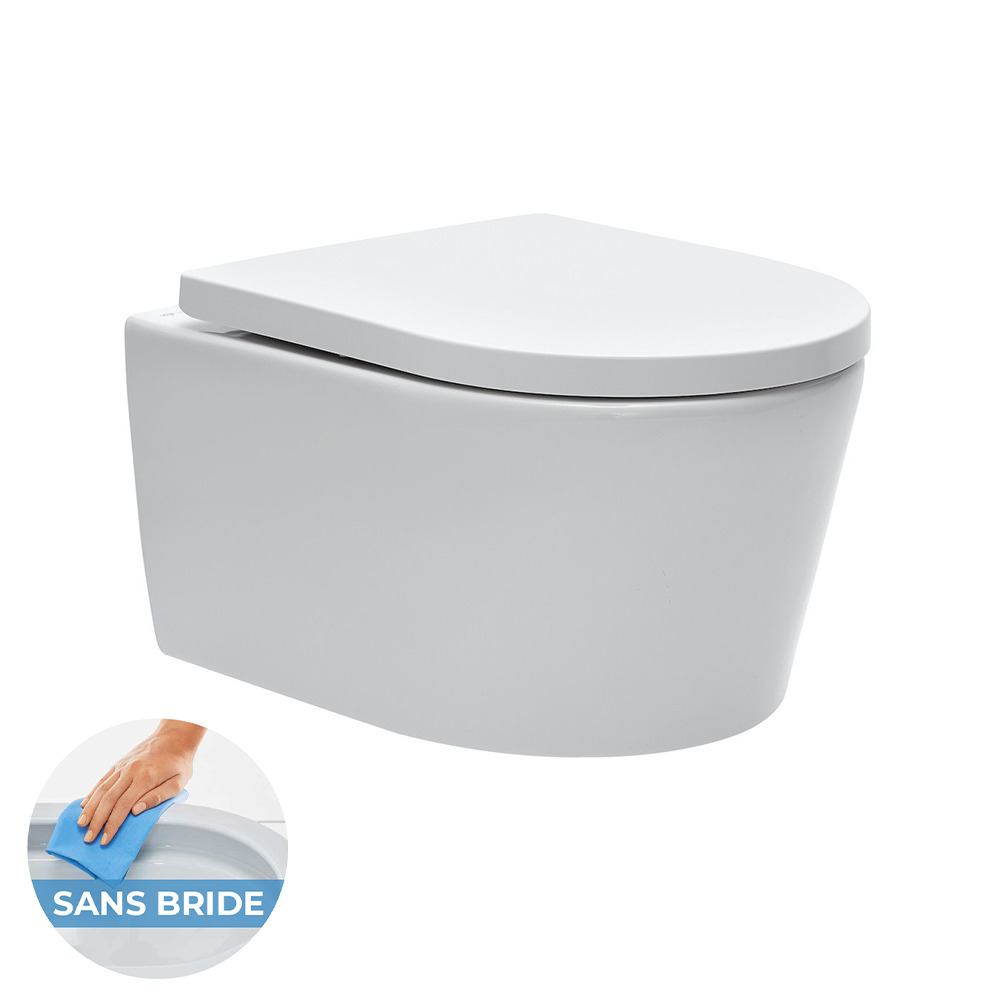

Swiss Aqua Technologies Rimless wall-hung toilet with concealed fixings + soft-close seat (SATrimless):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet suitable for small spaces
- Simple and refined toilet style
- Rimless toilet
- Concealed fixings
- Depth of 48 cm
- Economical flush 3 / 4.5 L
- Soft-close seat fall

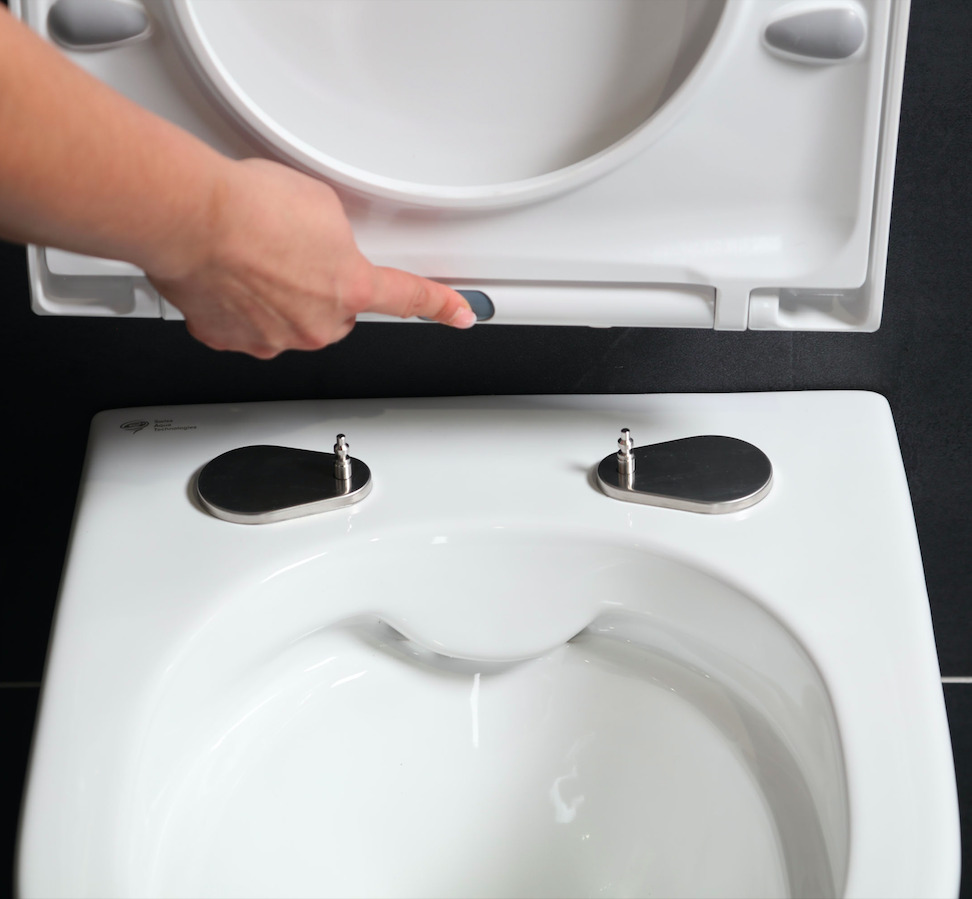

- Removable seat
- Easy to maintain thanks to the rimless system and the removable seat
- Quick installation
.

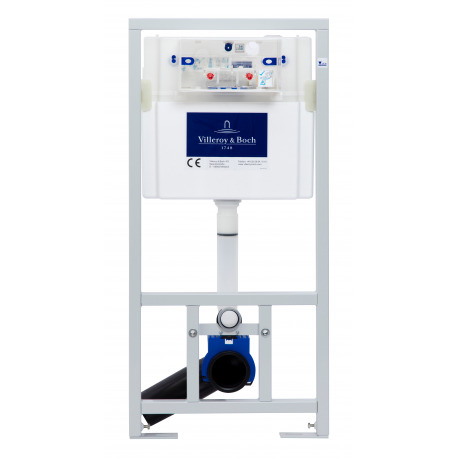

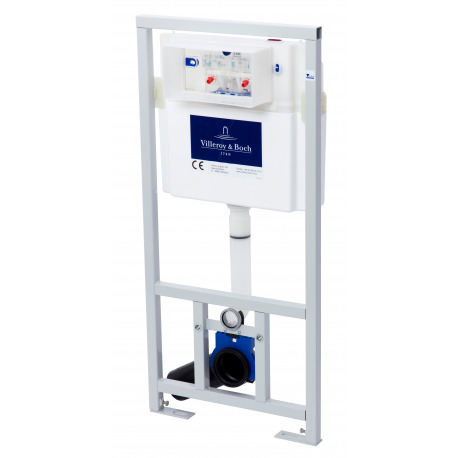

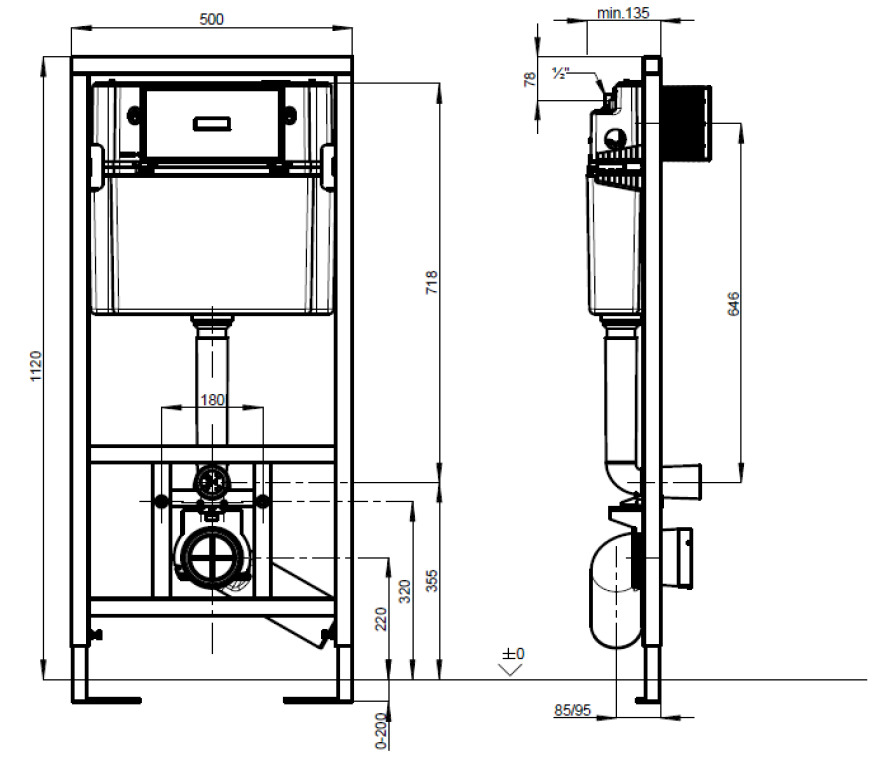

Support frame for Villeroy & Boch ViConnect Pro (92214200):
- For drywall constructions
- To be built on a load-bearing wall
- Adjustment range of the feet: 0-200mm
- Adjustment range in front of the wall: 135-205mm (when mounted on wall brackets)
- 4-point fixing with wall brackets
- Includes support feet and fixing materials for installation in front of a wall, on the side or for corners
- With protective cap for the flush pipe
- 180 mm adjustable WC retaining bolts with protective caps and nuts
- Installation instructions
- To be combined with wall-hung WCs
- Combinable with Aquareduct ceramics (LEED points: 4)
- Completely pre-assembled
- Concealed cistern with condensation insulation with dual flush 3/6l
- Adjustable to 3/4.5l, maximum flush quantity 7.5l
- Concealed flush cistern: Noise class I
.

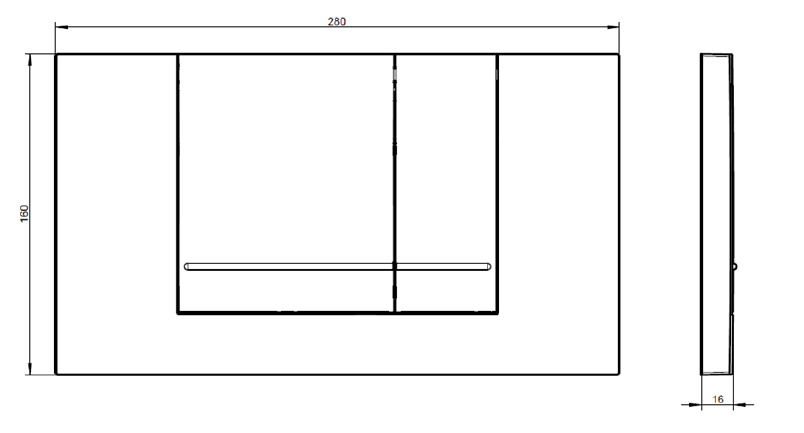

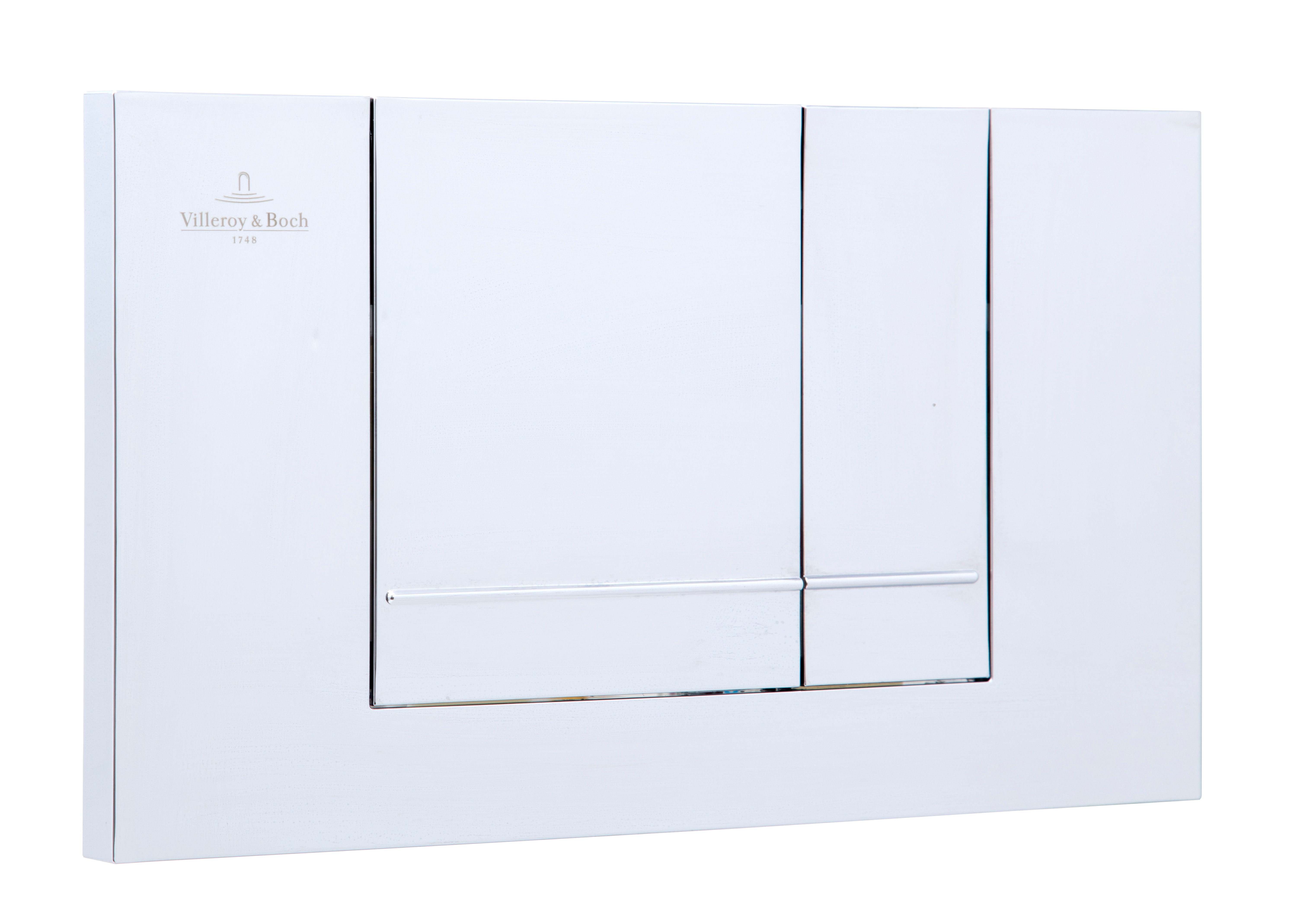

Villeroy & Boch Viconnect Pro (92214361):
- Dimensions: 280 x 160 x 16 mm
- Water-saving dual flush technology
- Made of high-quality materials
- Can be combined with Aquareduct toilets
.

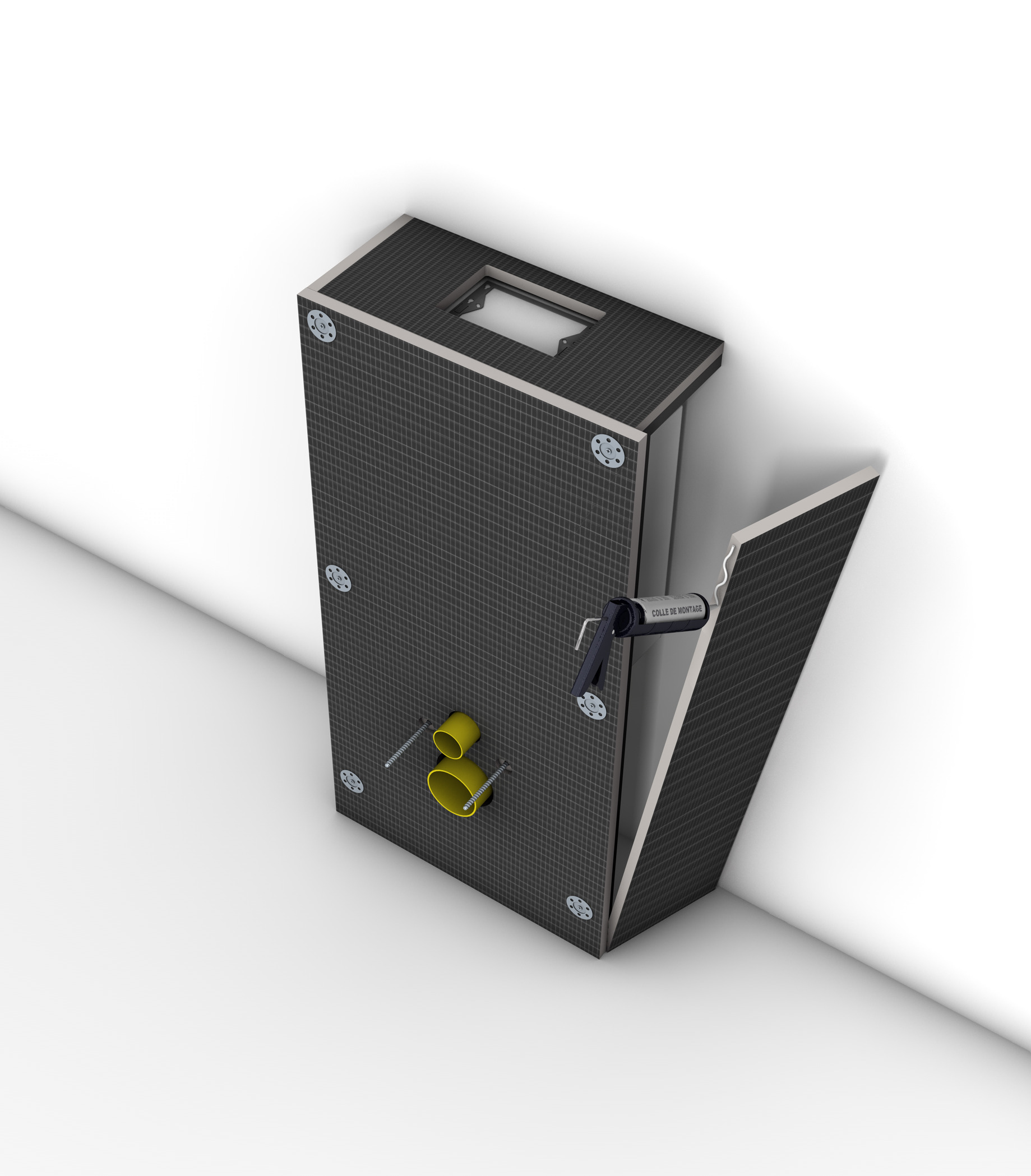

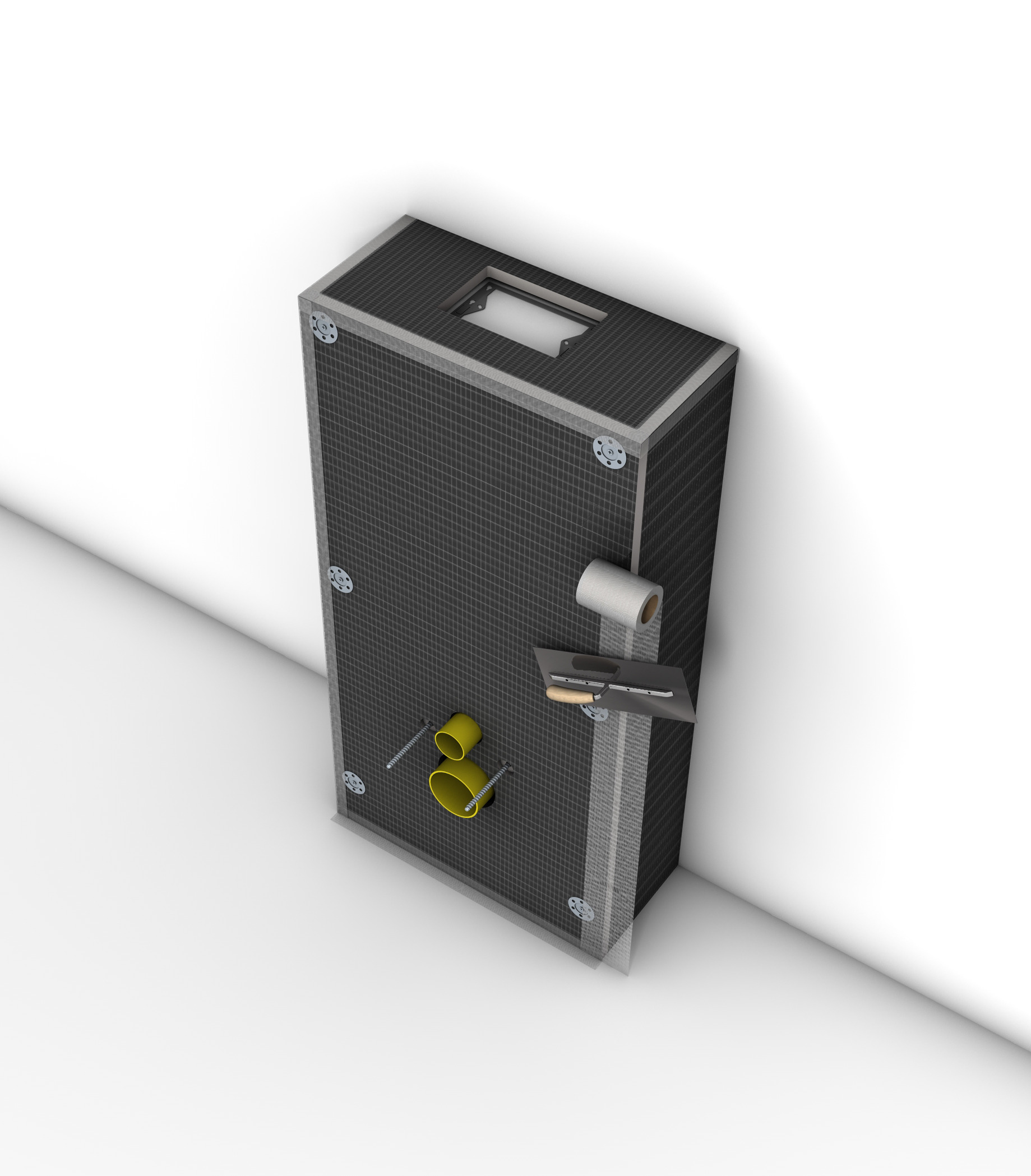

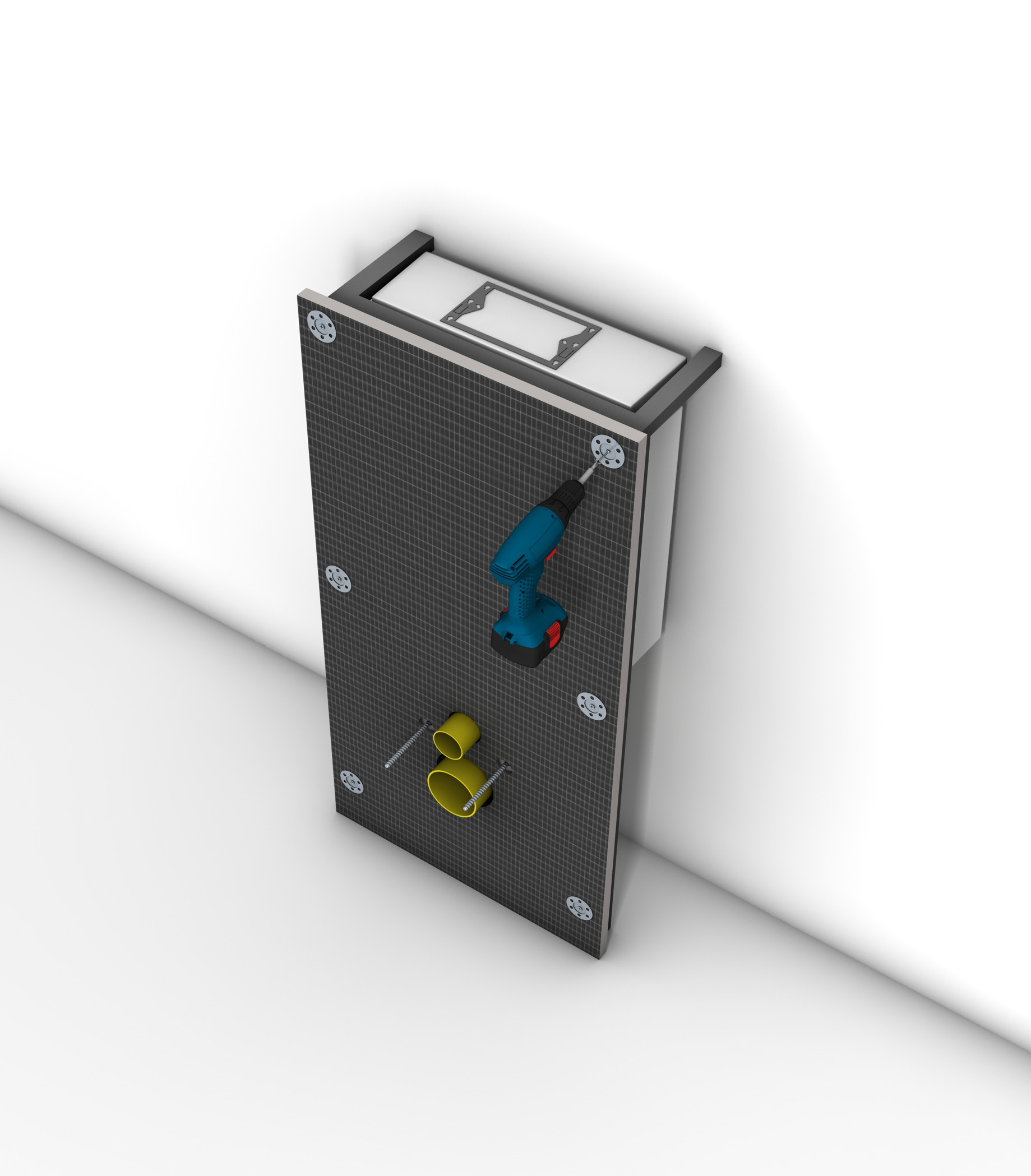

Jackoboard mounting set for WC frame cladding (4521871):
- Water-repellent
- Special coating on both sides
- Lightweight: approx. 3–6 kg/m2
- Thickness: 20 mm

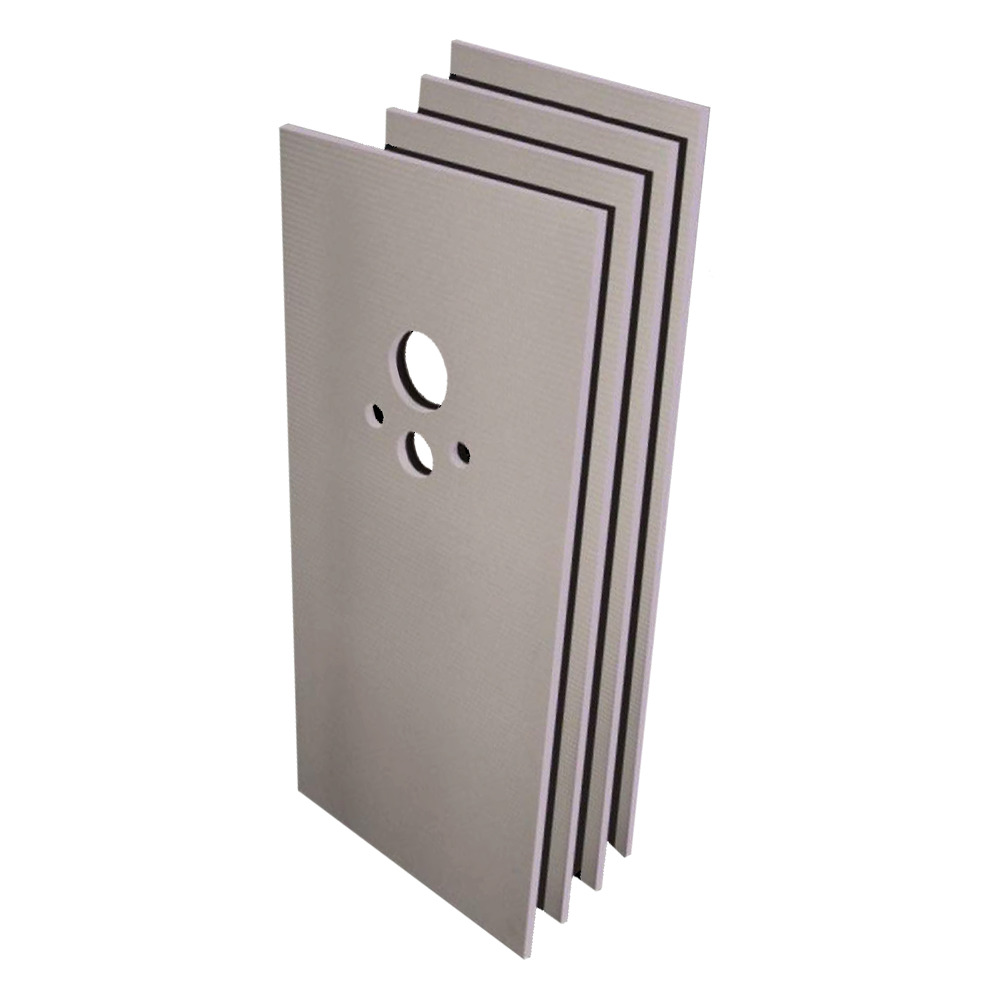

- Panel dimensions: 1 panel 1300 x 600 x 20 mm (with cut-outs for pipes) and 3 panels 1300 x 450 x 20 mm
- Excellent insulating power λD = 0.035 W/( m K)
- High compressive strength > 300 kPa
- Approved and certified
- Suitable for rooms with high humidity – EB/EB+/EV rooms
Advantages:
- Suitable for all standard toilet connections
- Easy to install
- Directly tileable, plasterable and plasterable
Ideal solution:
- For quick and easy cladding of all standard toilet frames with tiles without preliminary work
The following accessories (not included) are required:
-Mounting adhesive
-Reinforcement strip
-Self-drilling metal screws
-Perforated washers
Made in Germany
10-year warranty
.
