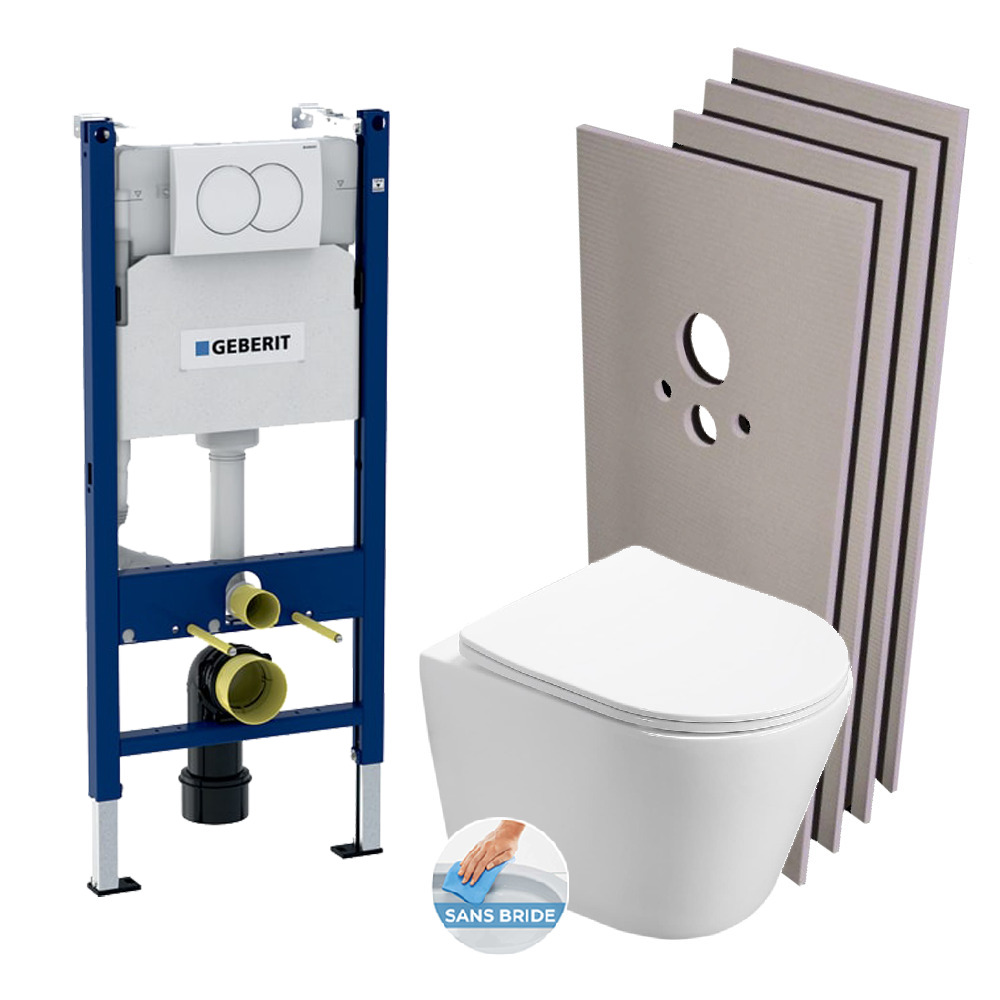

Geberit WC Frame + SAT Infinitio Rimless Toilet + Soft-Close Seat + White Flush Plate + Wall cladding set (INFINITIOGEB3-SABO)
- Product reference: INFINITIOGEB3-SABO
- EAN: 0750122360086
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Choose quality and ease of installation with the WC Pack – Concealed Frame + Swiss Aqua Technologies Infinitio Rimless Toilet + White Flush Plate + Finishing Set (InfinitioGeb3-sabo).
This WC pack combines the reliability of Geberit with the cutting-edge Infinitio range from Swiss Aqua Technologies—brands renowned for their exceptional quality. The concealed frame and high-performance toilet bowl offer practical, innovative solutions for all your projects and are sure to meet all your expectations.

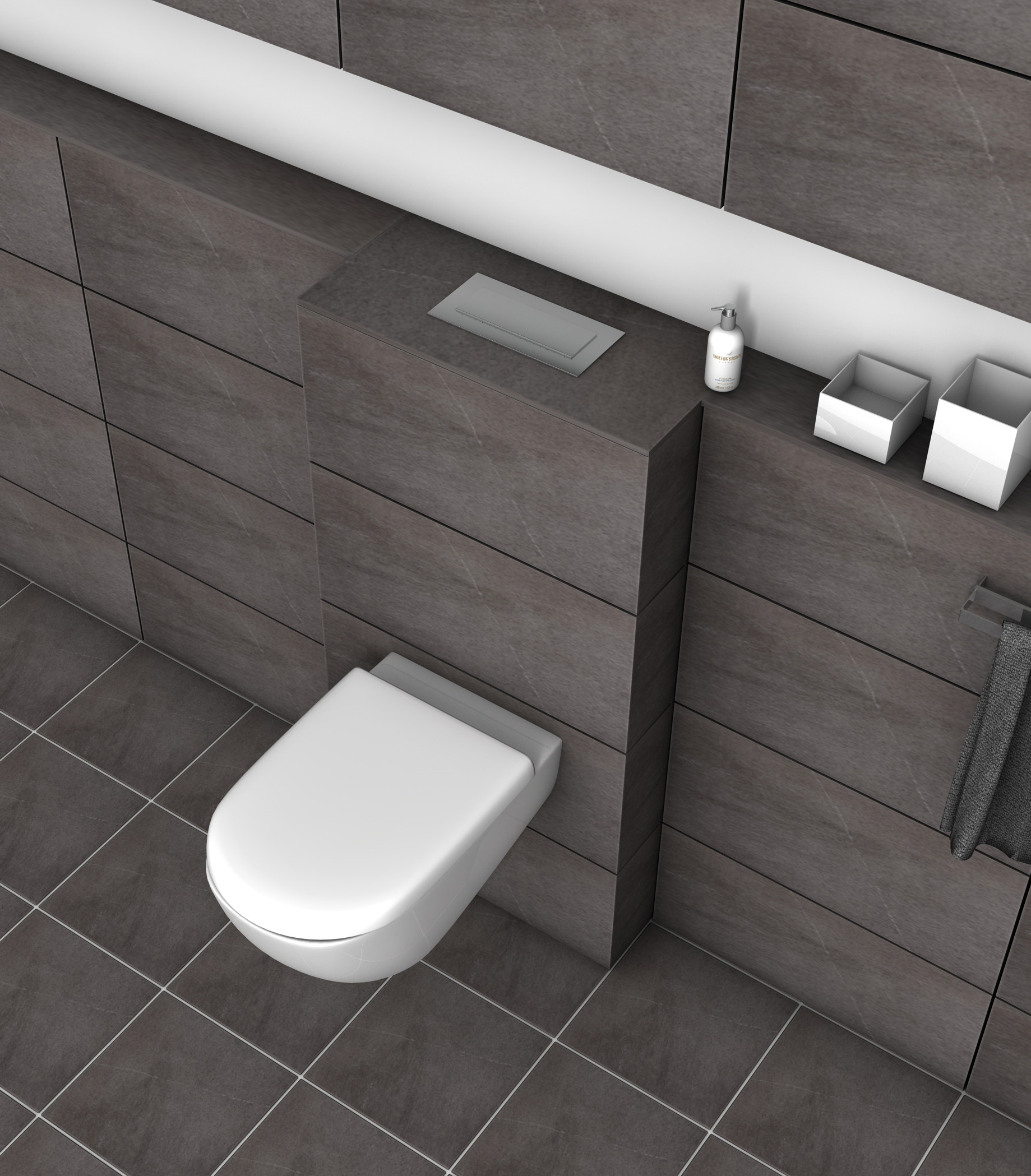

Additionally, the included Jackoboard by Jackon finishing set allows for quick and efficient cladding of the Geberit frame, saving you time and effort on-site.
see detailed description- Colour:White
- Material:Ceramic
- Length (cm):66.00
- Width (cm):184.000000
- Height (cm):60.00
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Weight:35
- Depth:66.00
- Invisible fixings:Yes
- Product type:Toilet pack + wall cladding
Features of the Geberit WC Frame + SAT Infinitio Rimless Toilet + Soft-Close Seat + White Flush Plate + Wall cladding set (INFINITIOGEB3-SABO) :
- Swiss Aqua Technologies Infinitio Rimless Wall-Hung Toilet, with hidden fixings + Soft-Close Seat (Ref: Infinitiorimless)
- Geberit DUOFIX Basic Frame for wall-hung toilets, with Delta Concealed Cistern (Ref: 111.153.00.1)
- Geberit Wall Mounting Kit for Duofix frame, for self-assembly (Ref: 111.839.00.1)
- Geberit DELTA01 Dual-Flush Plate, White (Ref: 115.107.11.1)
- Jackoboard Mounting Set for WC frame cladding (Ref: 4521871)
.

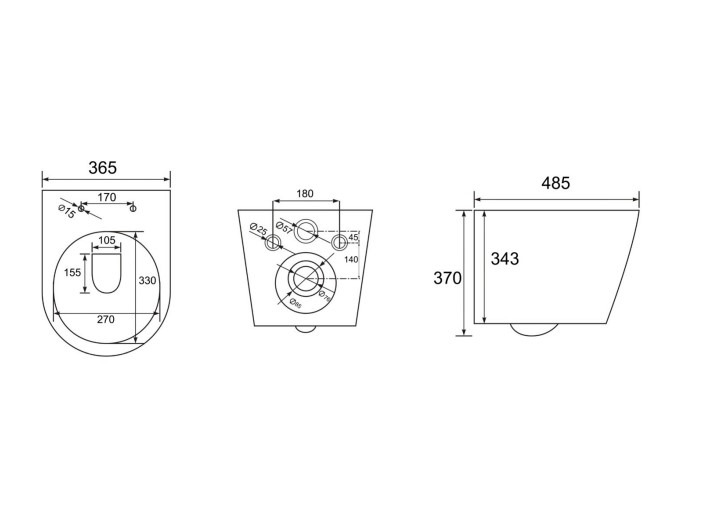

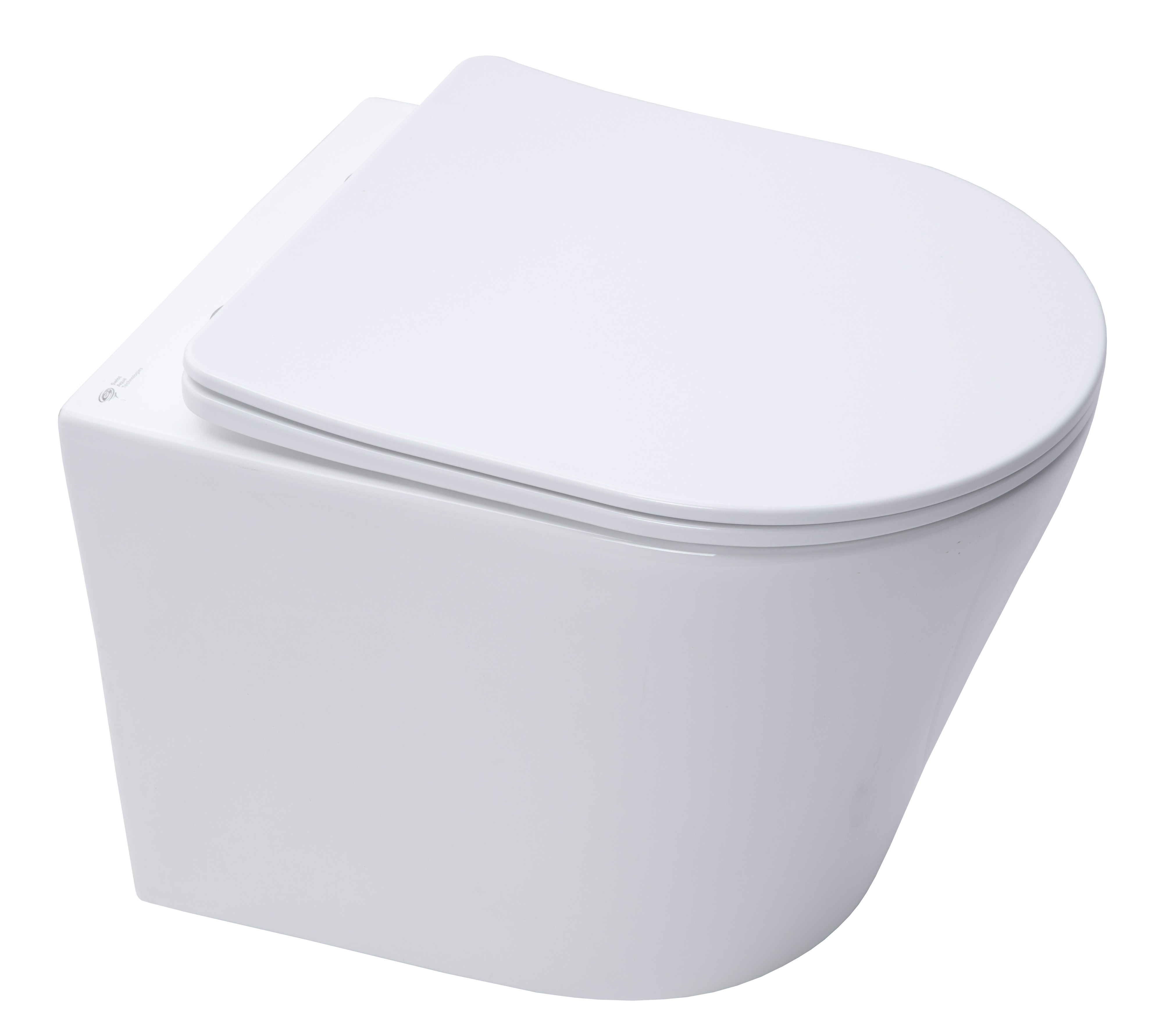

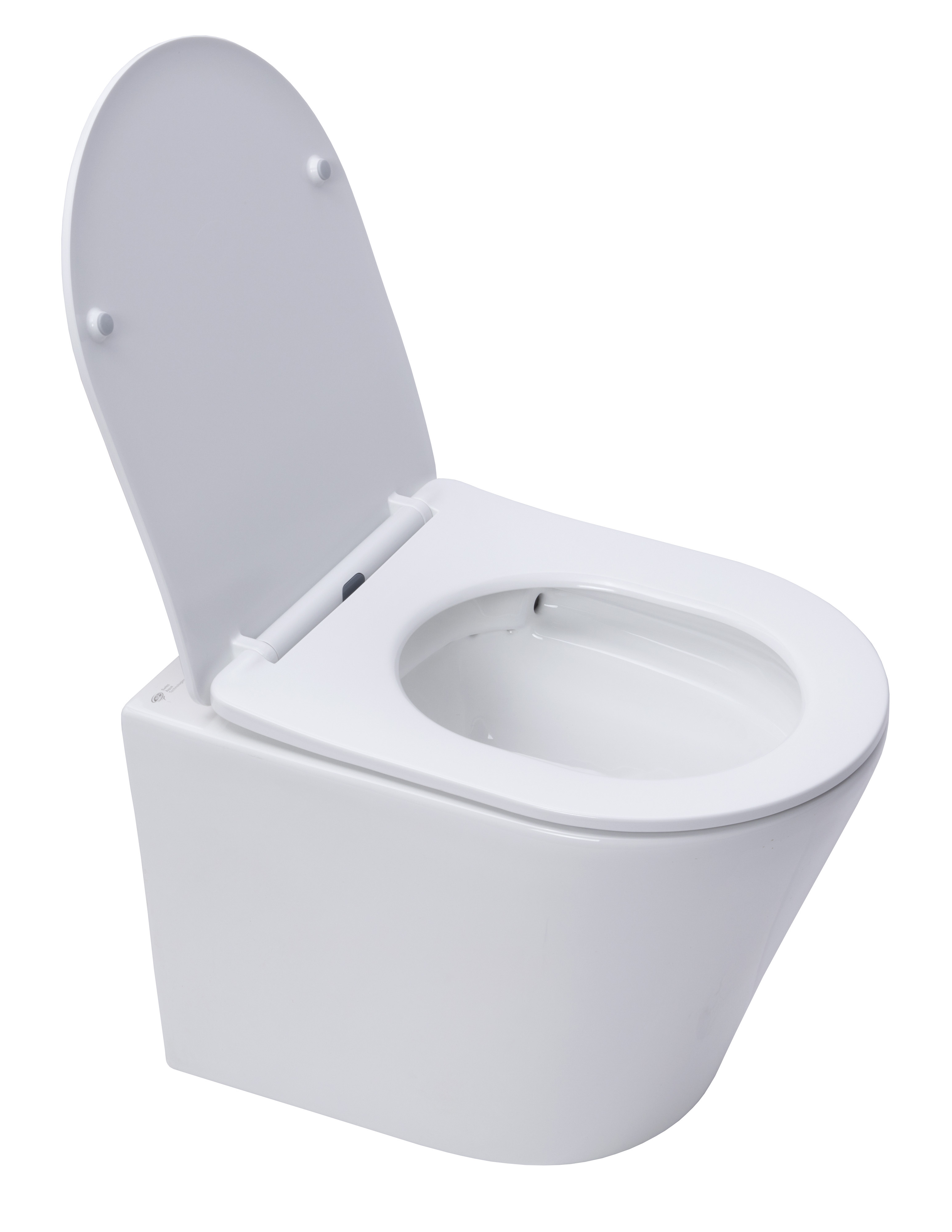

Swiss Aqua Technologies Infinitio Rimless Wall-Hung Toilet with Hidden Fixings + Soft-Close, Quick-Release Seat (SATINF010RREXP):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet, ideal for small spaces
- Sleek, minimalist bowl design
- Rimless bowl for improved hygiene
- Concealed fixings for a clean look
- Depth: 48 cm
- Flush volume: 3 / 6 liters
- Soft-close seat included
- Quick-release seat for easy removal
- Easy to clean, thanks to the rimless design and removable seat
- Quick and easy installation
.

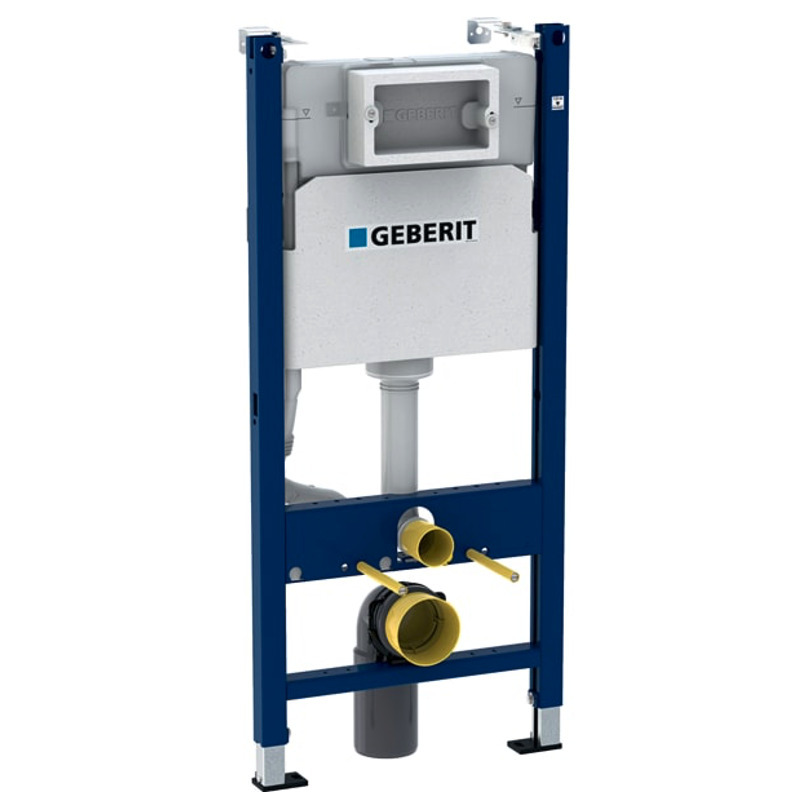

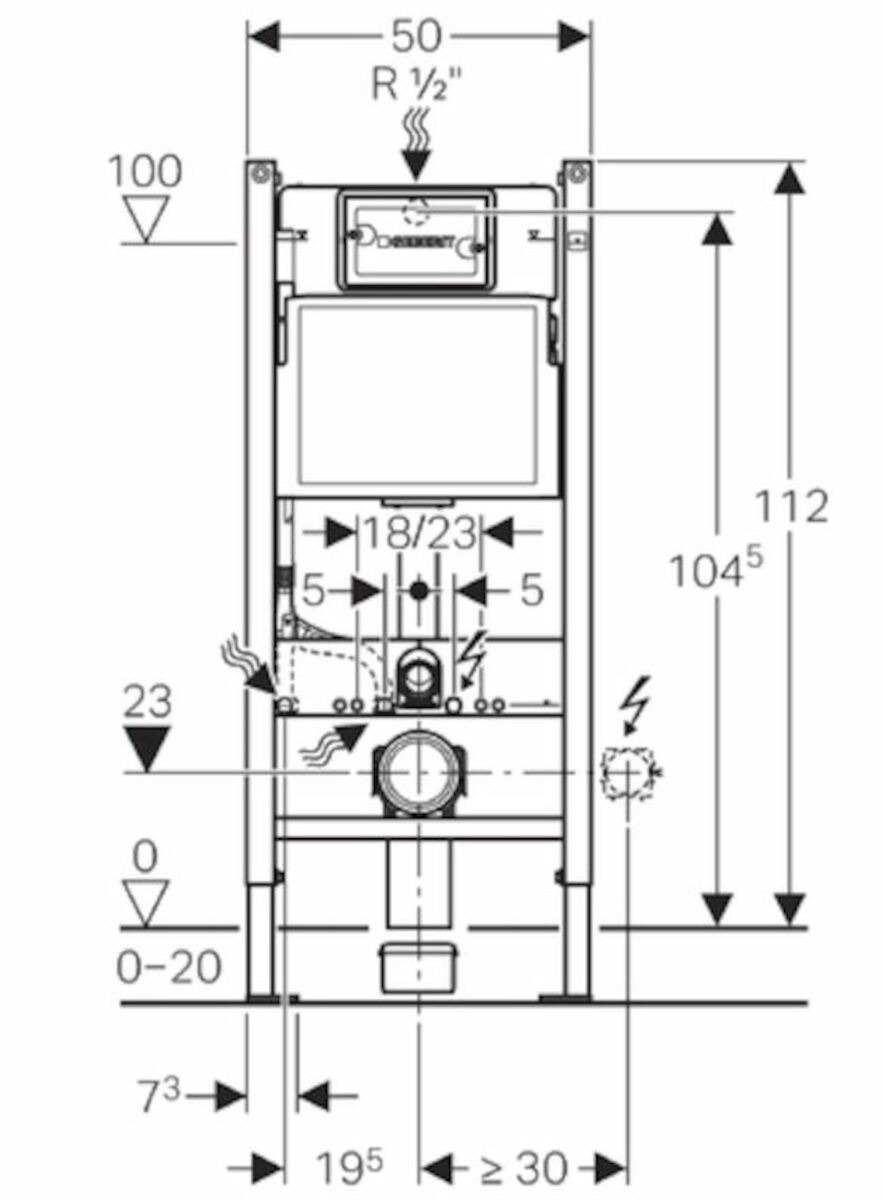

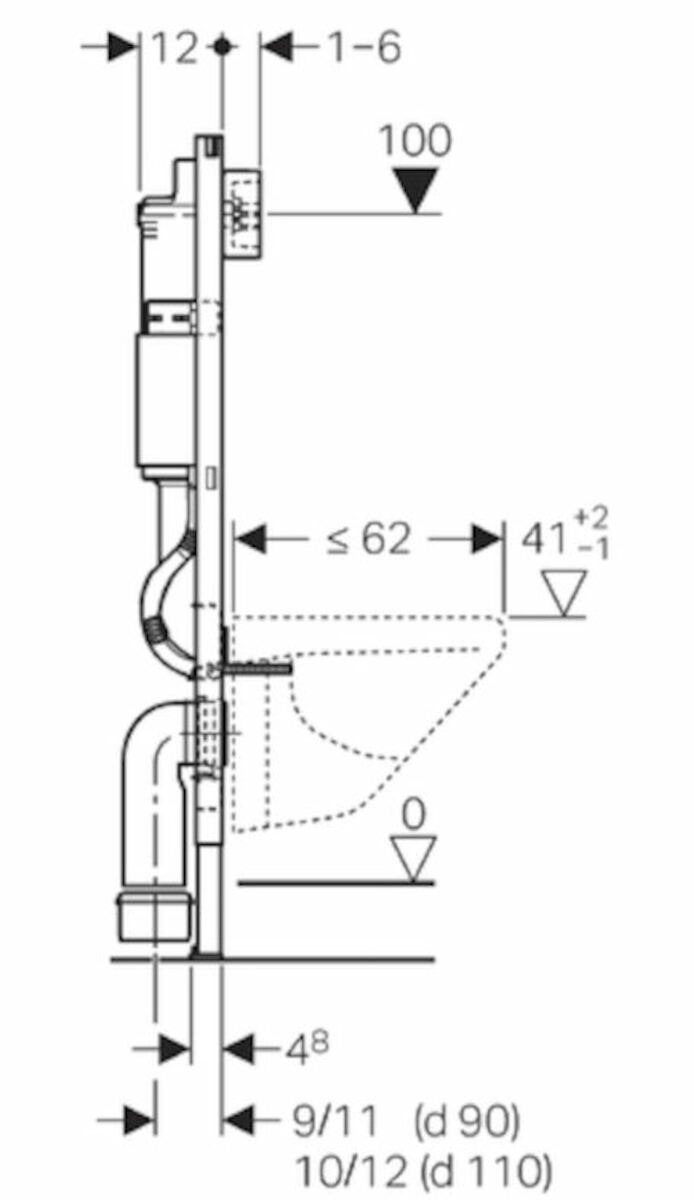

Geberit DUOFIX Basic Frame for Wall-Hung Toilets with Delta Cistern (Ref: 111.153.00.1):
- For installation in a stud wall, in whole or in part
- Suitable for both solid and drywall construction
- For wall-hung toilet installation with fixing distances of 18 cm or 23 cm
- Floor thickness: 0 - 20 cm
- For front control
- Compatible with Geberit AquaClean
- Not suitable for concreting
- Features:
- Delta Geberit Cistern 12 cm (UP100), front control, condensation protection
- Adjustable large flush rate
- Fixed small flush rate
- Adjustable instant flush
- Water supply from the center, back, or top
- The connection pipe to the angle valve can be screwed manually
- Dual flush with Geberit Delta20 control buttons
- Frame with Ø 9 mm holes for fixation in wooden structures
- Galvanized support legs, continuously adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for UW50 installation profiles
- Installation depth: 12 cm
- Technical Information:
- Flush volume (factory setting): 6L and 3.5L
- Large flush rate: Adjustable range of 4.5L / 6L / 7.5L
- Included in the frame:
- 2 M12 threaded rods for ceramic fixation
- 2 flush valve options for dual flush
- Raw installation cover for service hole, expanded polystyrene
- 2 protective caps
- R 1/2" angle valve with adapter ring
- Geberit AquaClean water supply hose
- Ø 90 mm connection set
- Waste elbow for toilet, PE-HD, Ø 90/90 mm
- Mounting hardware
- Geberit Duofix Wall Mounting Kit for self-assembly (Ref: 111.839.00.1)
- .

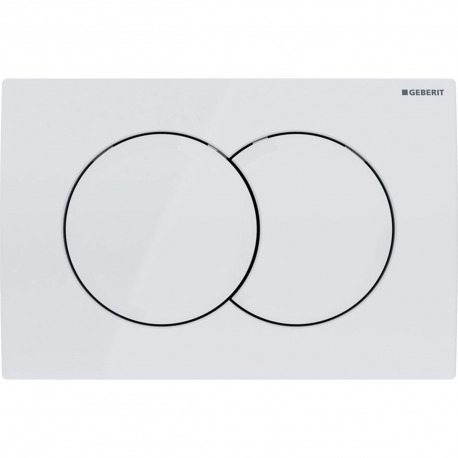

Geberit DELTA01 Flush Plate (Ref: 115.107.11.1):
- Dual Flush: 2 buttons, one for a small flush of 3L and the other for a large flush of 6L
- Water-saving design
- Front activation
.

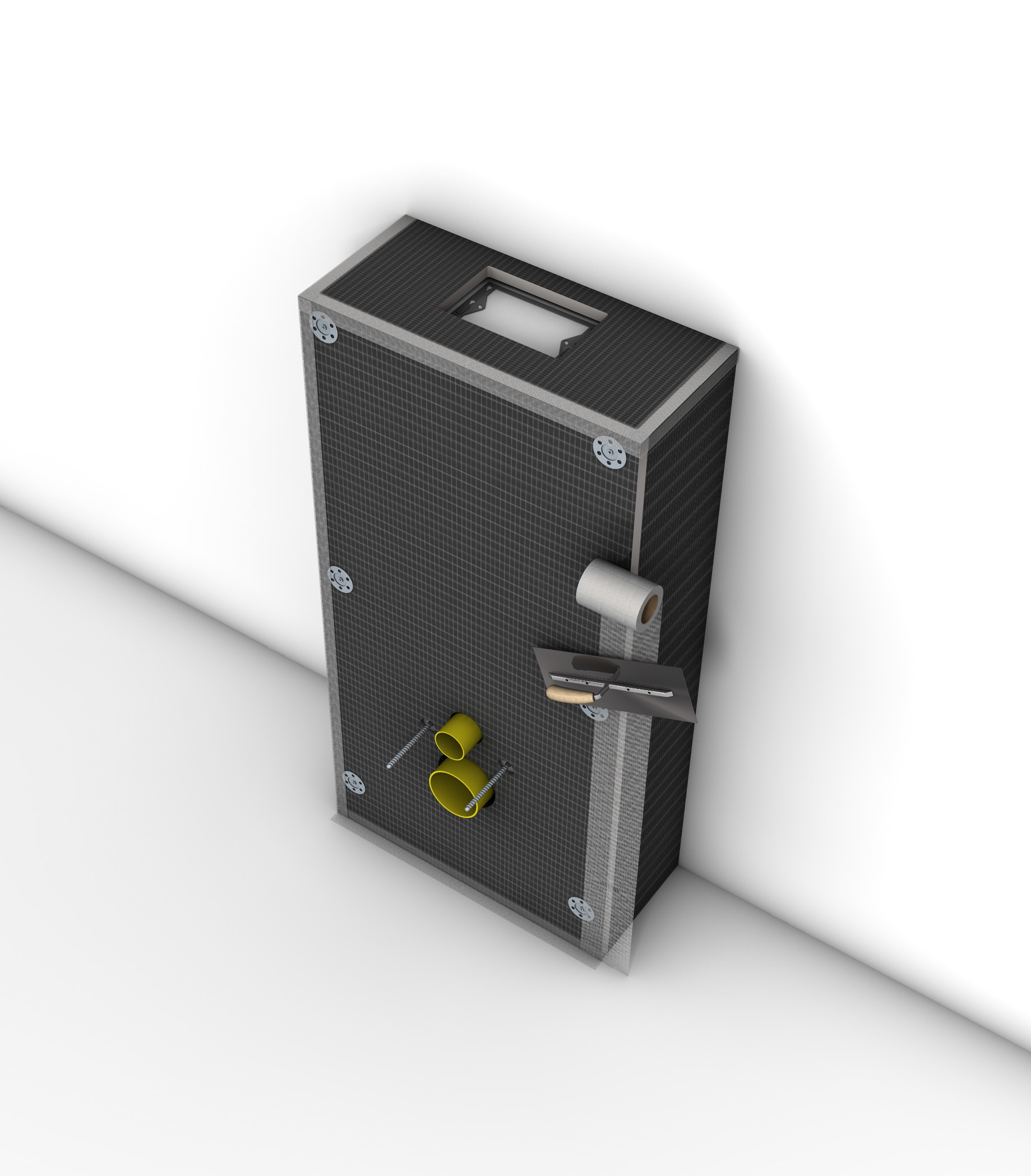

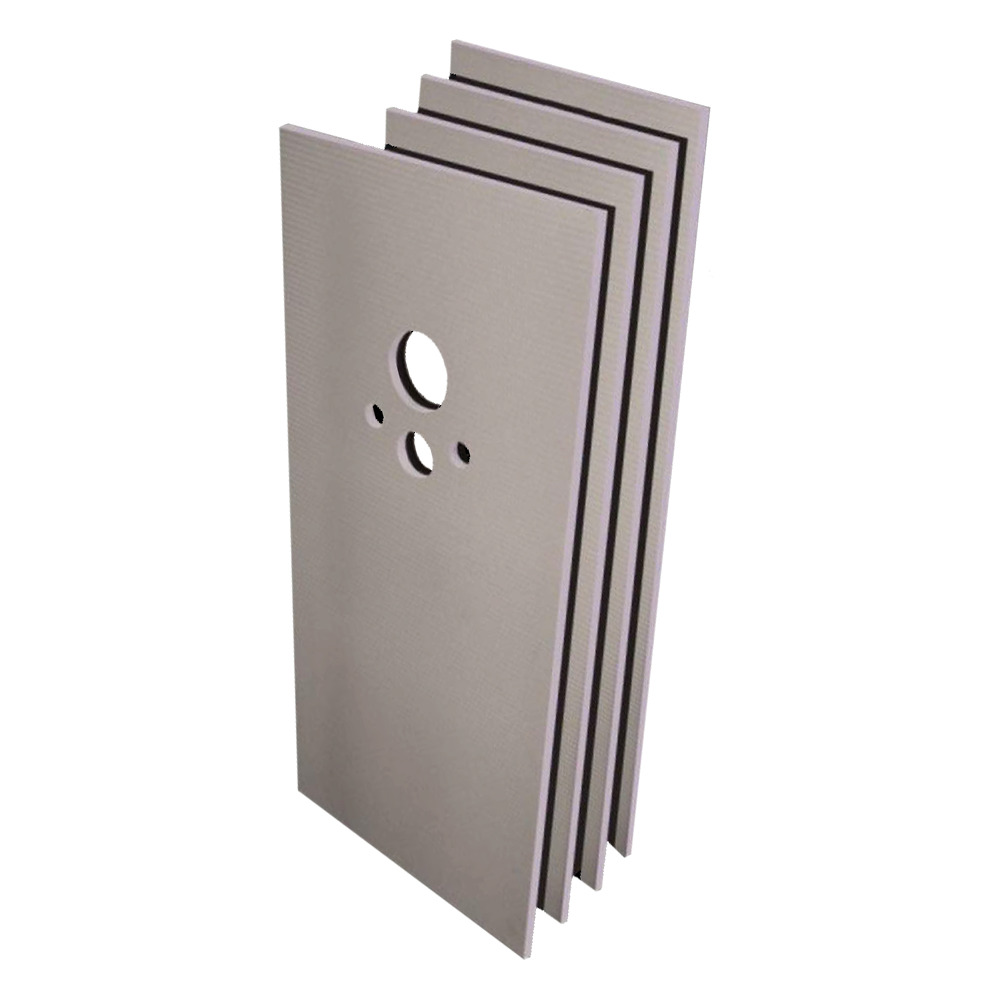

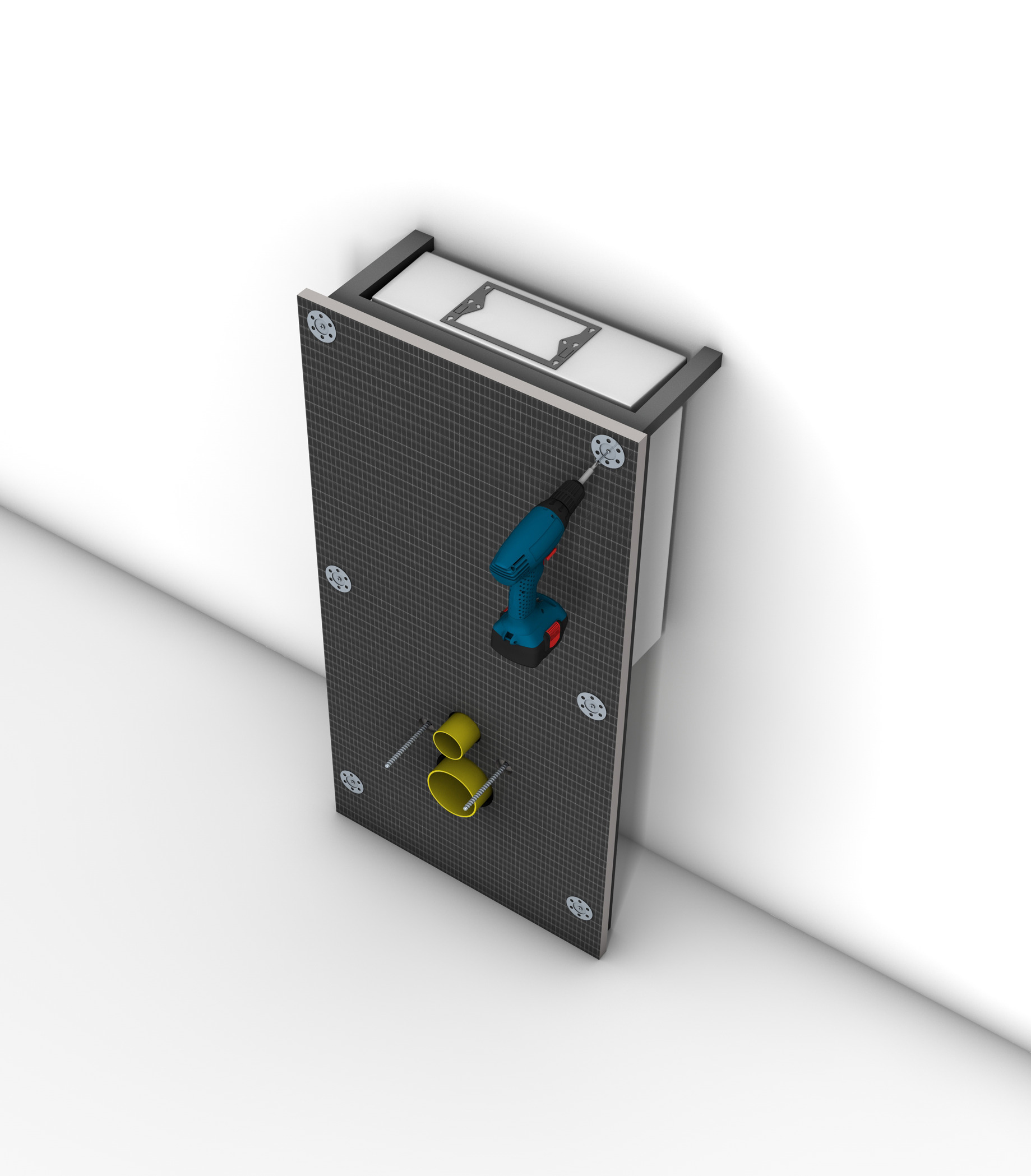

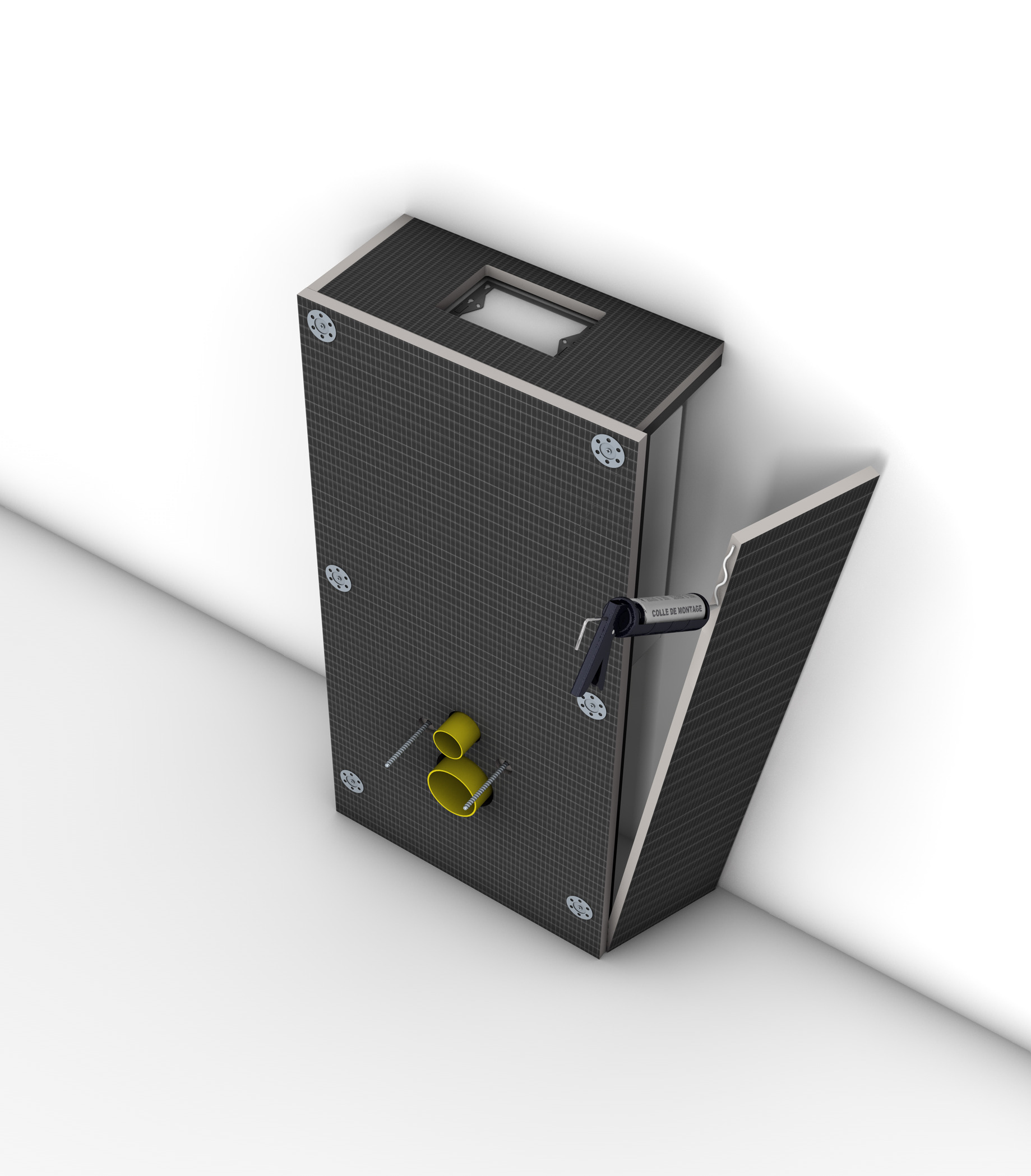

Jackoboard Mounting Set for WC Frame Cladding (Ref: 4521871):
The complete solution for the aesthetic finishing of WC installations.
The Jackoboard by Jackon mounting kit allows for quick and simple cladding of all standard WC frames. The special component, made up of four panels crafted from rigid, waterproof extruded polystyrene foam (XPS), is pre-cut to suit all common WC connections. It is highly compression-resistant and can be directly and quickly tiled thanks to the special coating on both sides.
Technical Features:
- Waterproof
- Special coating on both sides
- Lightweight: Approx. 3–6 kg/m²
- Thickness: 20 mm
- Panel dimensions: 1 panel 1300 x 600 x 20 mm (with cut-outs for pipe routing) and 3 panels 1300 x 450 x 20 mm
- Excellent insulation performance: λD = 0.035 W/(m·K)
- High compression resistance: > 300 kPa
- Certified and approved
- Suitable for high humidity areas – EB/EB+/EV rooms
Advantages:
- Suitable for all common WC connections
- Easy to install
- Can be directly tiled, plastered, or rendered
- Ideal solution for quickly and easily cladding all standard WC frames with tiles, with no preparatory work required
Required Accessories (not included):
- Mounting adhesive
- Reinforcement tape
- Self-tapping metal screws
- Perforated washers
Made in Germany
10-year warranty
.
