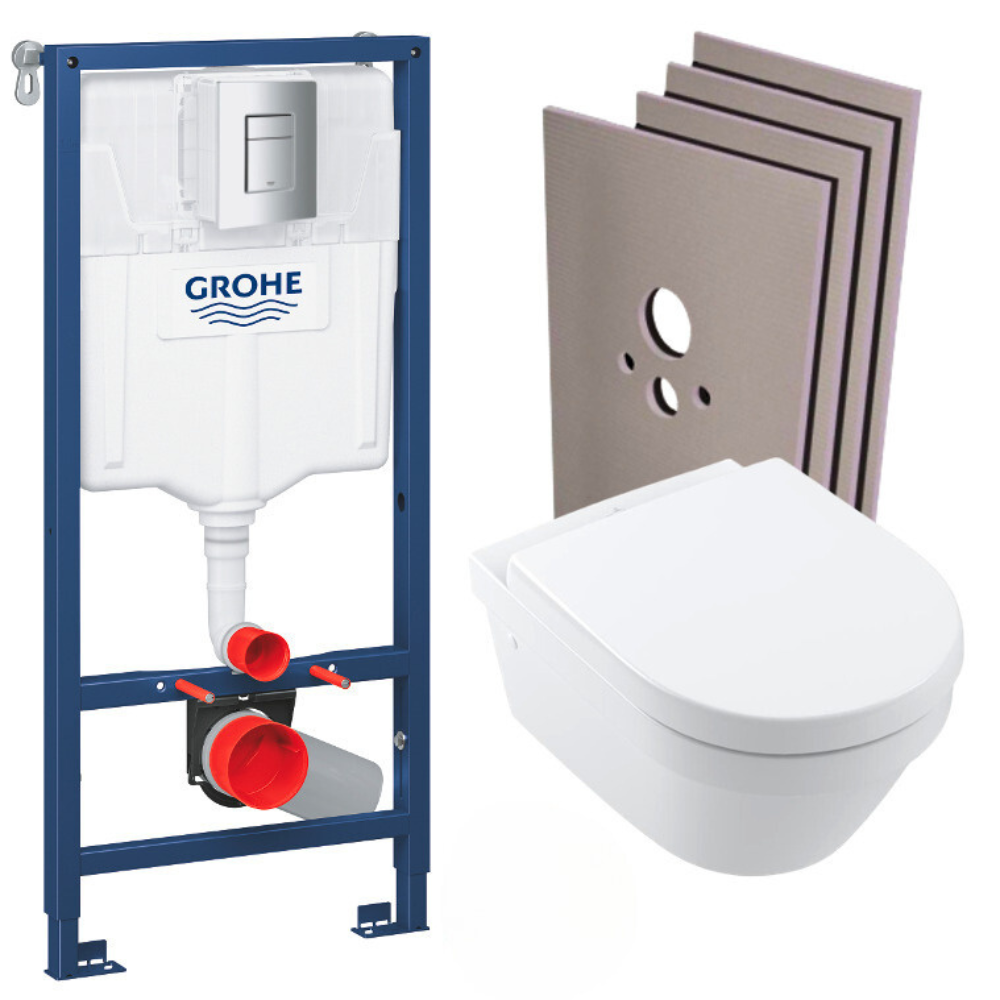

Grohe Toilet pack Grohe Rapid SL + Villeroy&Boch Architectura bowl with concealed fixings + chrome plate + Wall cladding set
- Product reference: RSLARCHI3-1SB
- EAN: 0734077008125
- Line: Rapid SL
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of theToilet pack Grohe Rapid SL + Villeroy&Boch Architectura bowl with concealed fixings + chrome plate + Wall cladding set
38528001) :
- Grohe Rapid SL wall bracket fixing kit (3855800M)
- Villeroy & Boch Architectura Flangeless single bowl, DirectFlush, horizontal outlet (4694R001)
- Villeroy & Boch Architectura Duroplast flap (98M9D101)
- Grohe Skate Air WC control plate (38505000)
- Jackon Jackoboard Mounting set for WC support frame cladding (4521871)

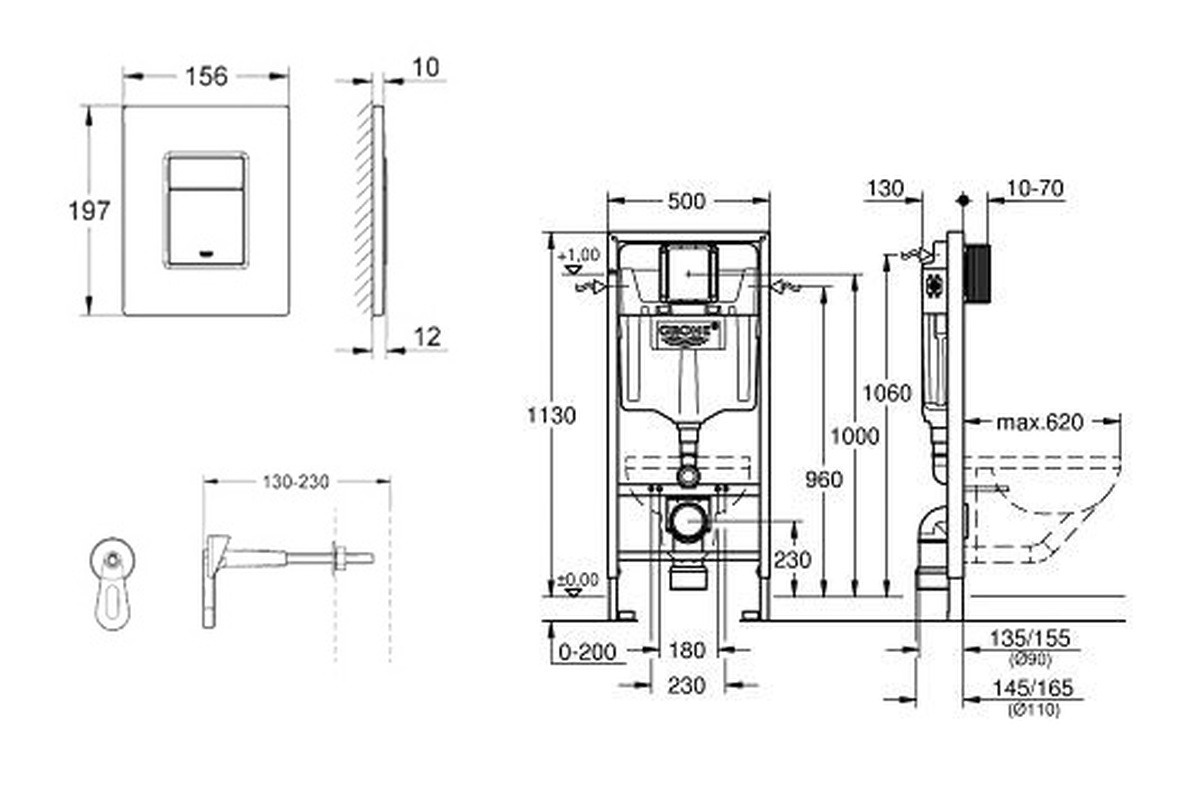

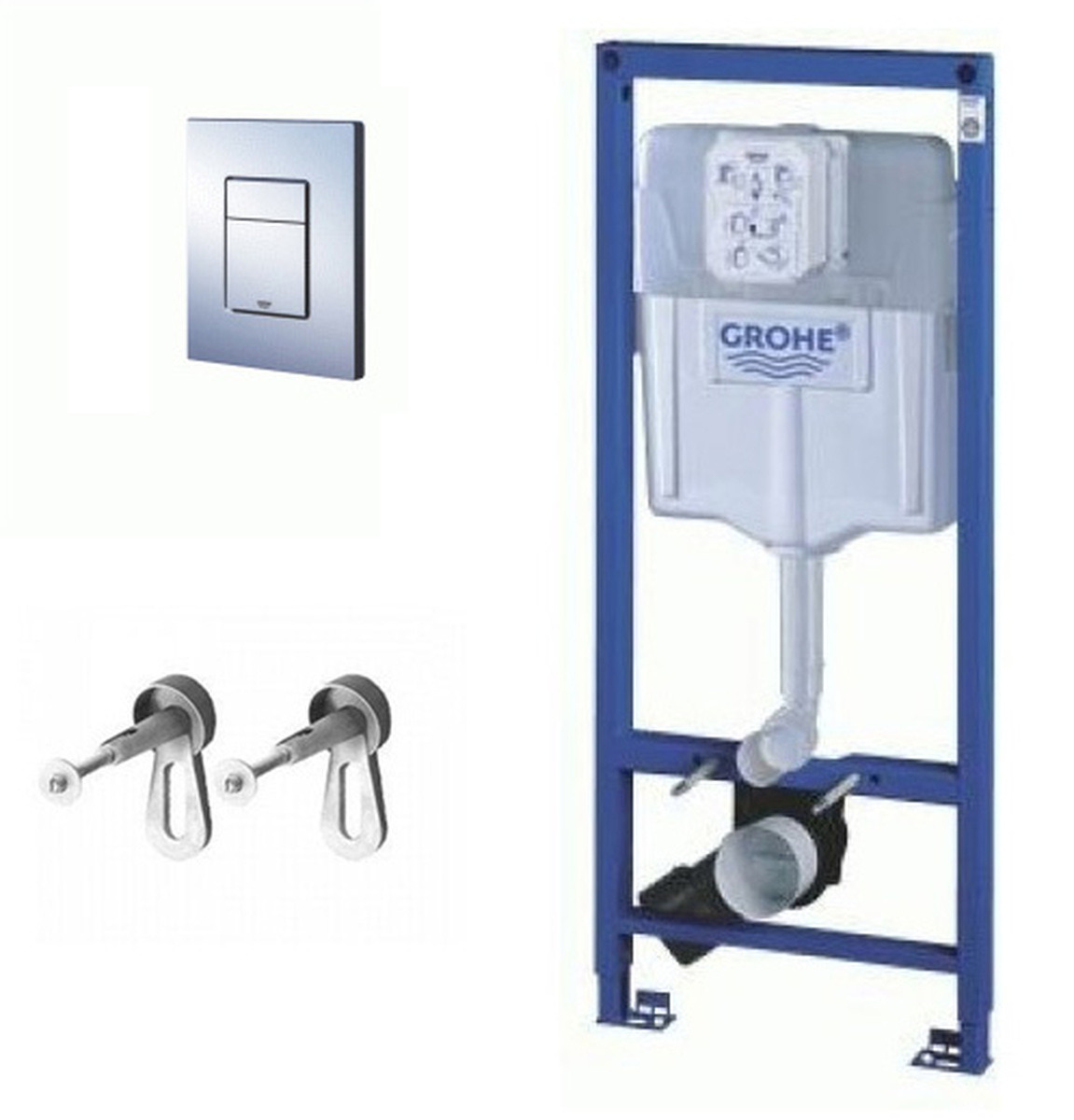

Grohe Set Bati-support Grohe Rapid SL (38811000):
- GD 2 tank, with inspection hatch
- Height: 1.13 m
- Epoxy-finish steel frame
- Surface-mounted on load-bearing wall or in lightweight double-frame reinforced partition wall
- Quick height adjustment and locking up to 200 mm
- Supplied with mounting hardware
- TÜV-approved
- Supplied with nuts and bolts for ceramic toilet bowl mounting
- Fastener spacing 180/230 mm
- PP drain elbow Ø 90 mm
- Depth and height adjustable (200 mm)
- Reducing coupling DN 90/110
- Drain and supply fitting
- Tank capacity 6 - 9 l
- Factory setting 3 and 6 l
- Pneumatic release mechanism (AV1) for single-button (can be interrupted) and double-button (can be interrupted) control panel
- Side or rear feed
- Reservoir insulated against condensation
- Water supply with angle valve and flexible connection
- Template installation, horizontal or vertical, without tools

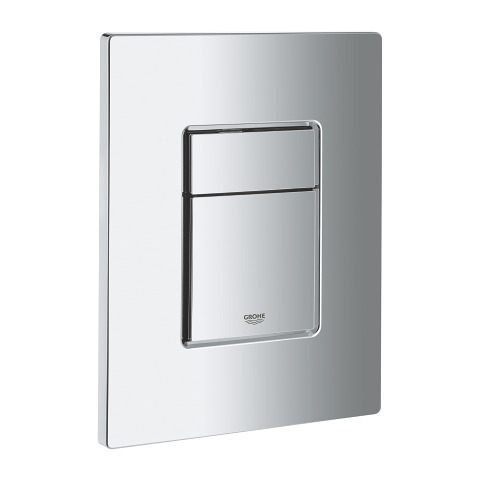

Grohe Skate Cosmopolitan WC control plate chrome (38732000):
Its GROHE EcoJoy flush technology reduces your water consumption by up to 50%. The dual flush system lets you choose a flush volume of 3 or 6 liters. Simultaneously press two buttons to interrupt a full flush.
Interruptible double button
For AV1 pneumatic mechanism
Horizontal or vertical mounting
156 x 197 mm
In ABS
GROHE StarLight for brilliant, long-lasting chrome
GROHE EcoJoy for water savings
Simple, tool-free installation

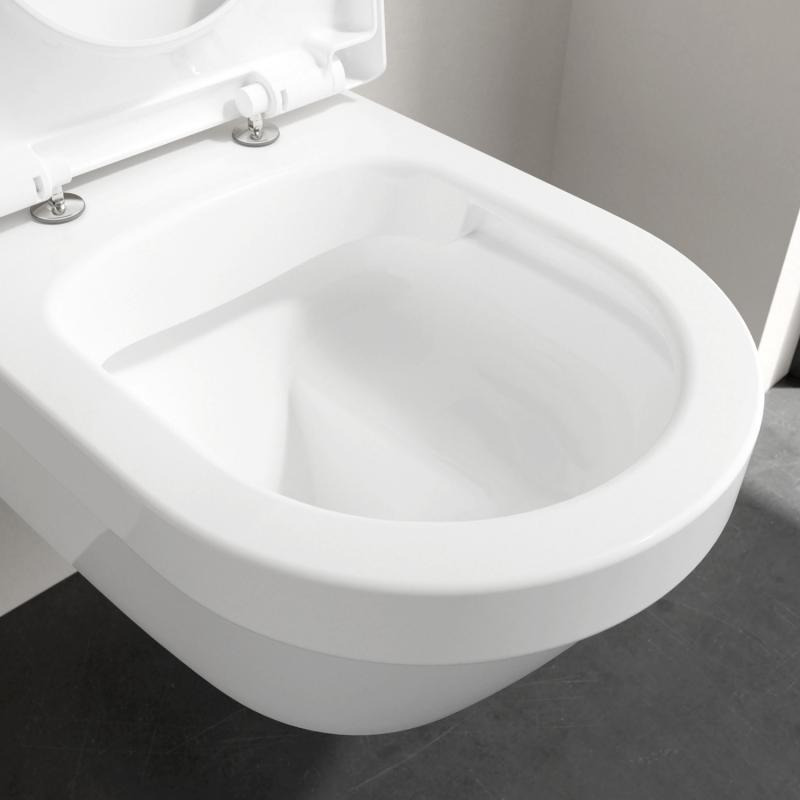

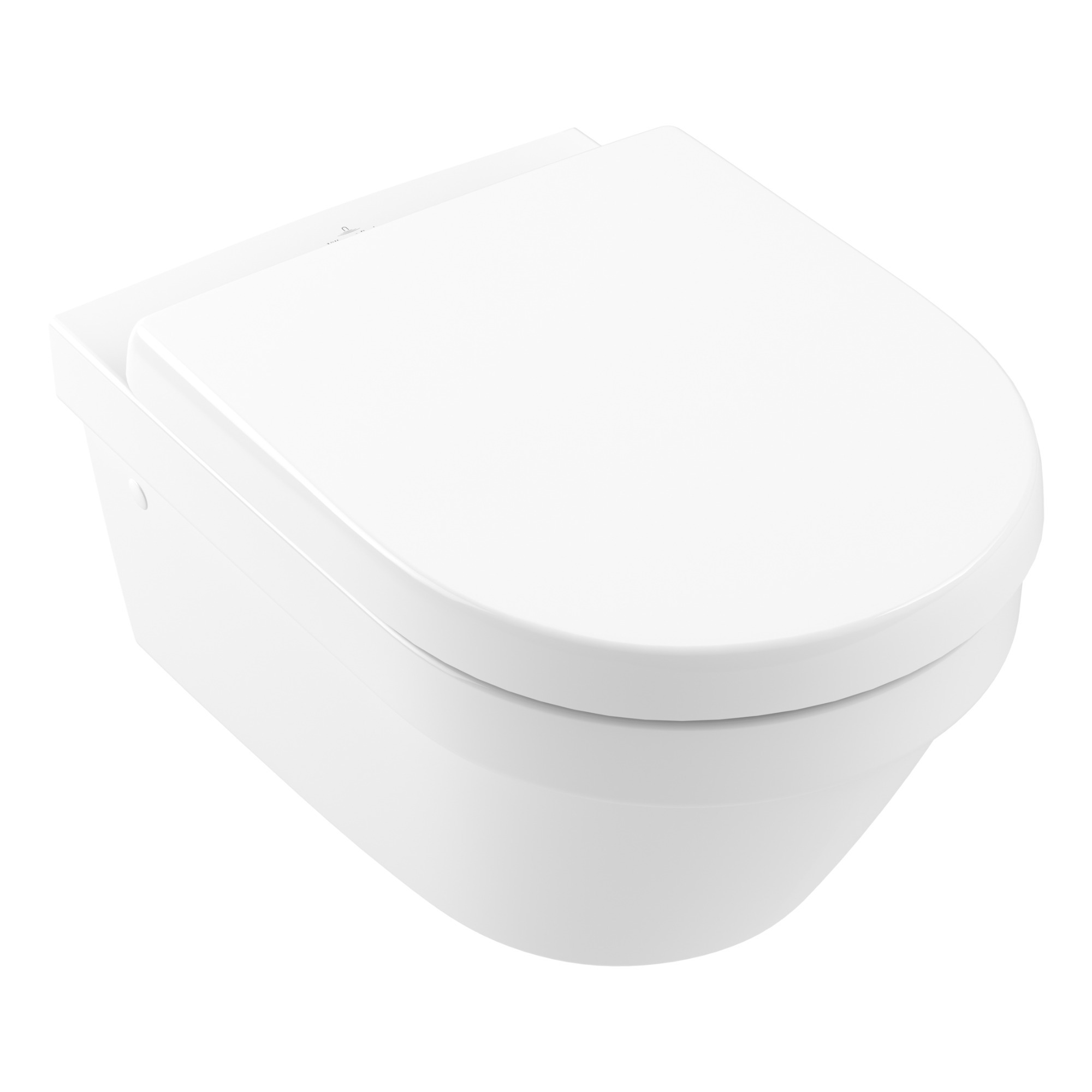

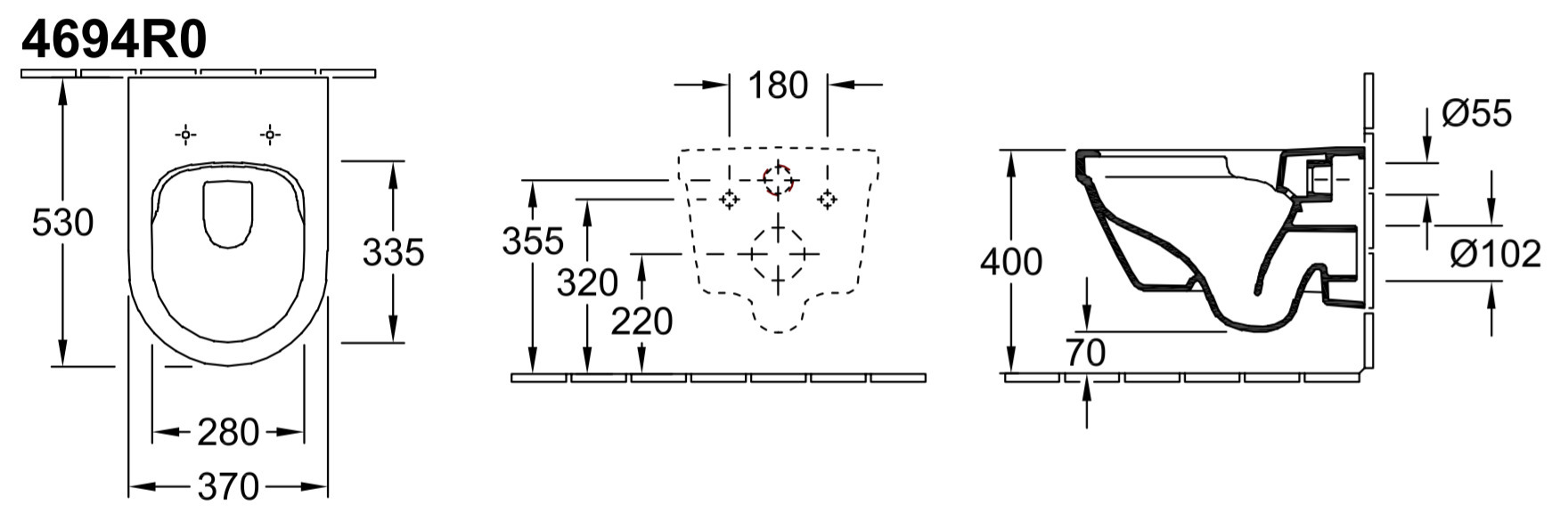

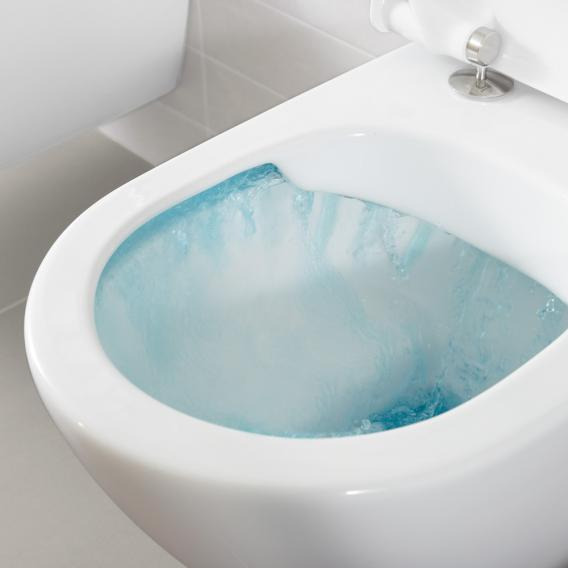

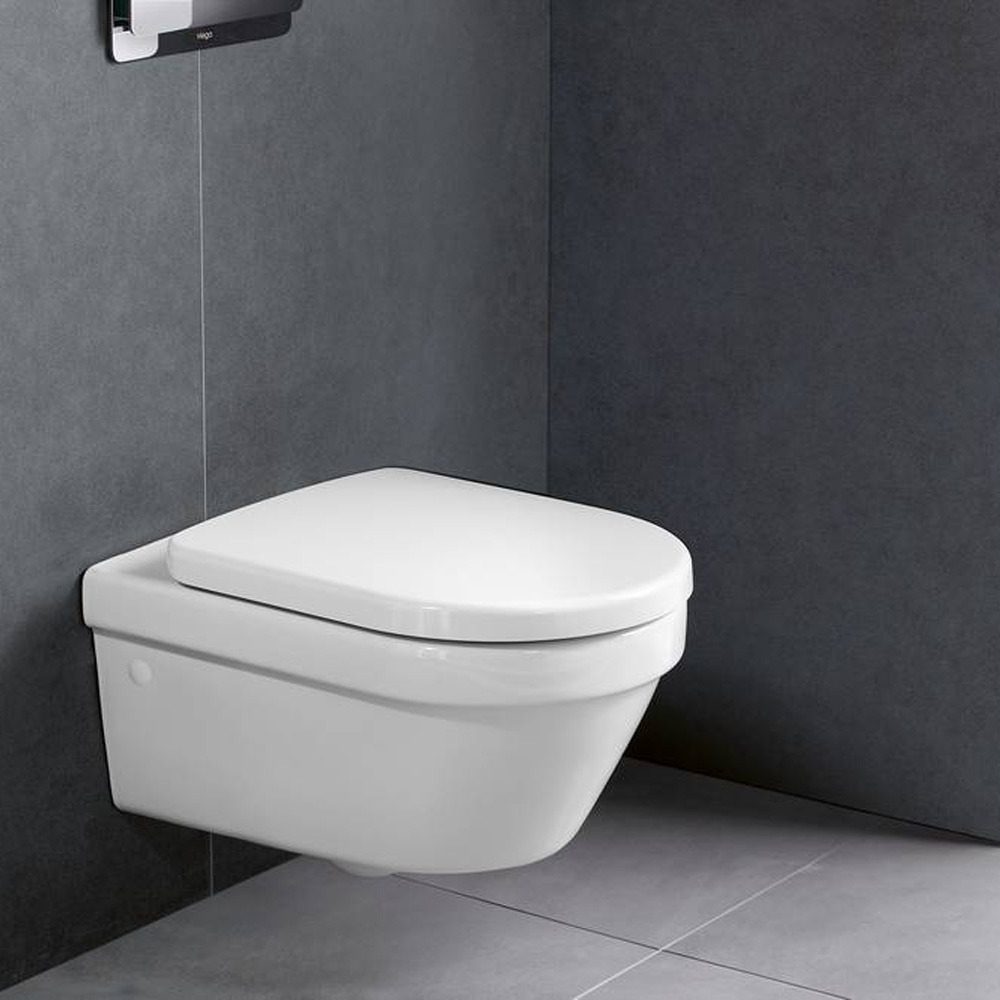

Villeroy & Boch Architectura Flangeless single bowl, DirectFlush, horizontal outlet (4694R001) :
Flangeless

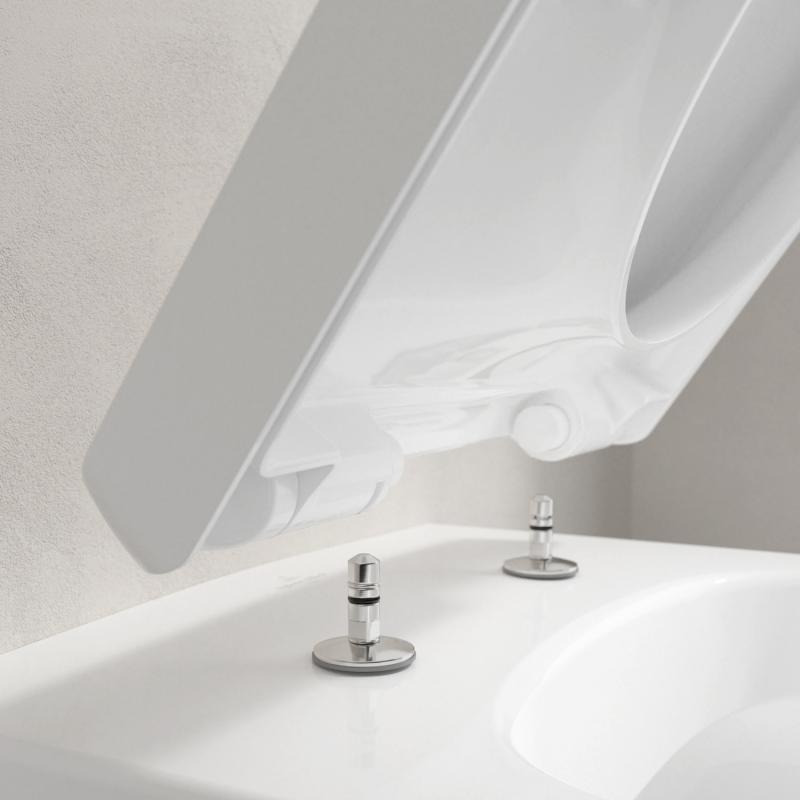

Invisible fastenings
Ceramic sanitaryware

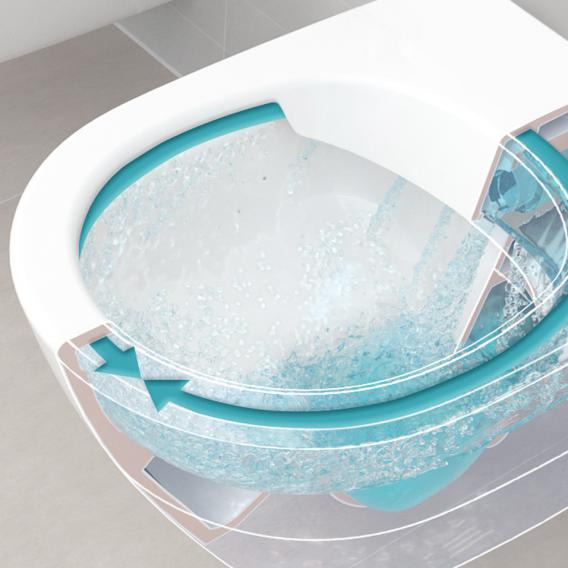

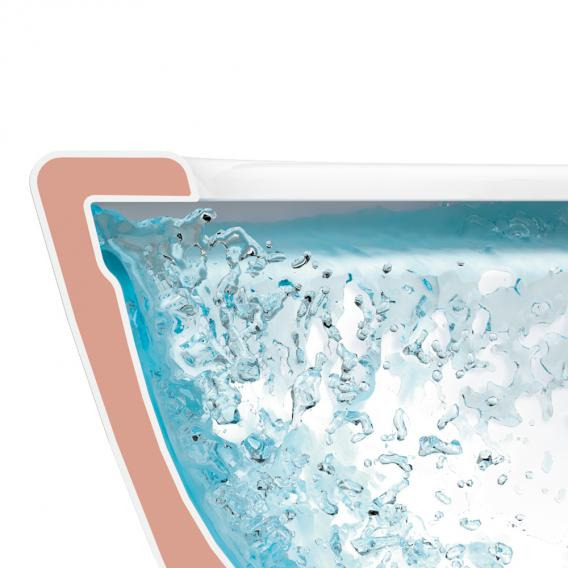

DirectFlush
Water-saving AQUAREDUCT® system: rinsing volume 3 / 4.5 liters
Fixing kit included
Horizontal outlet

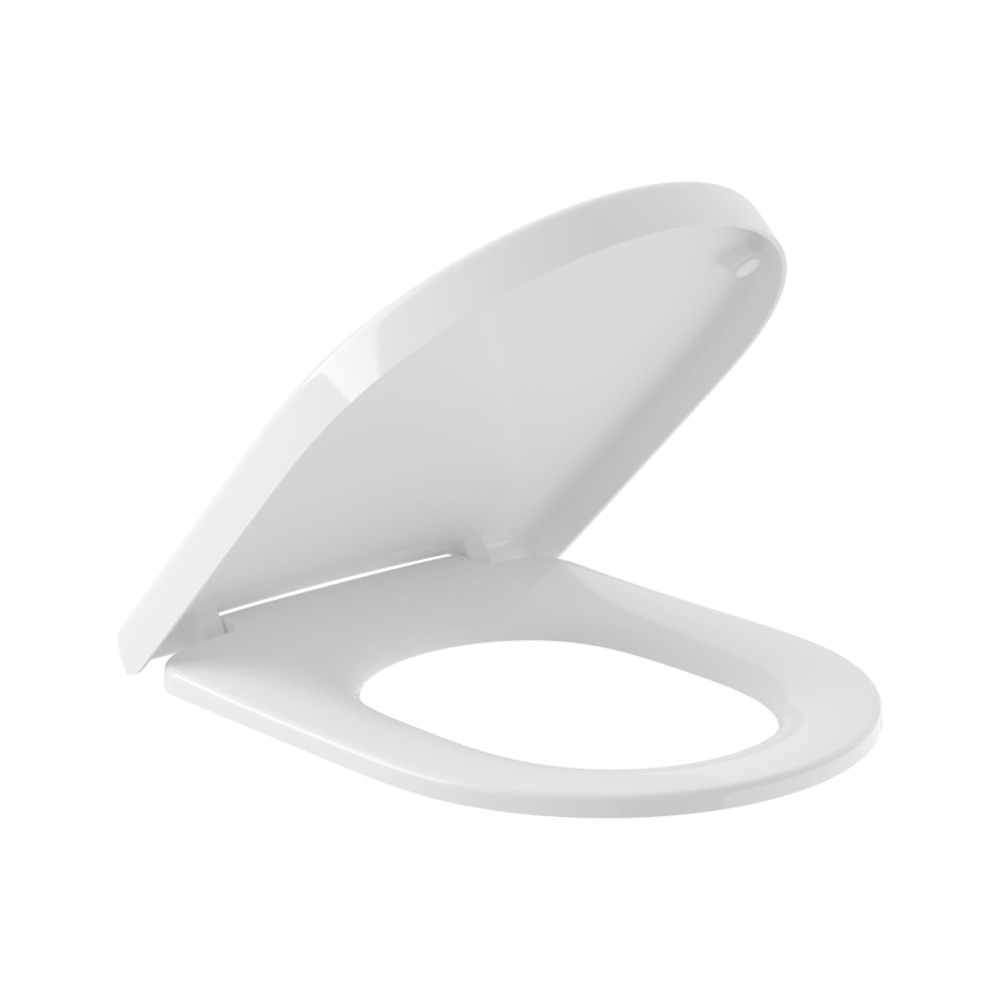

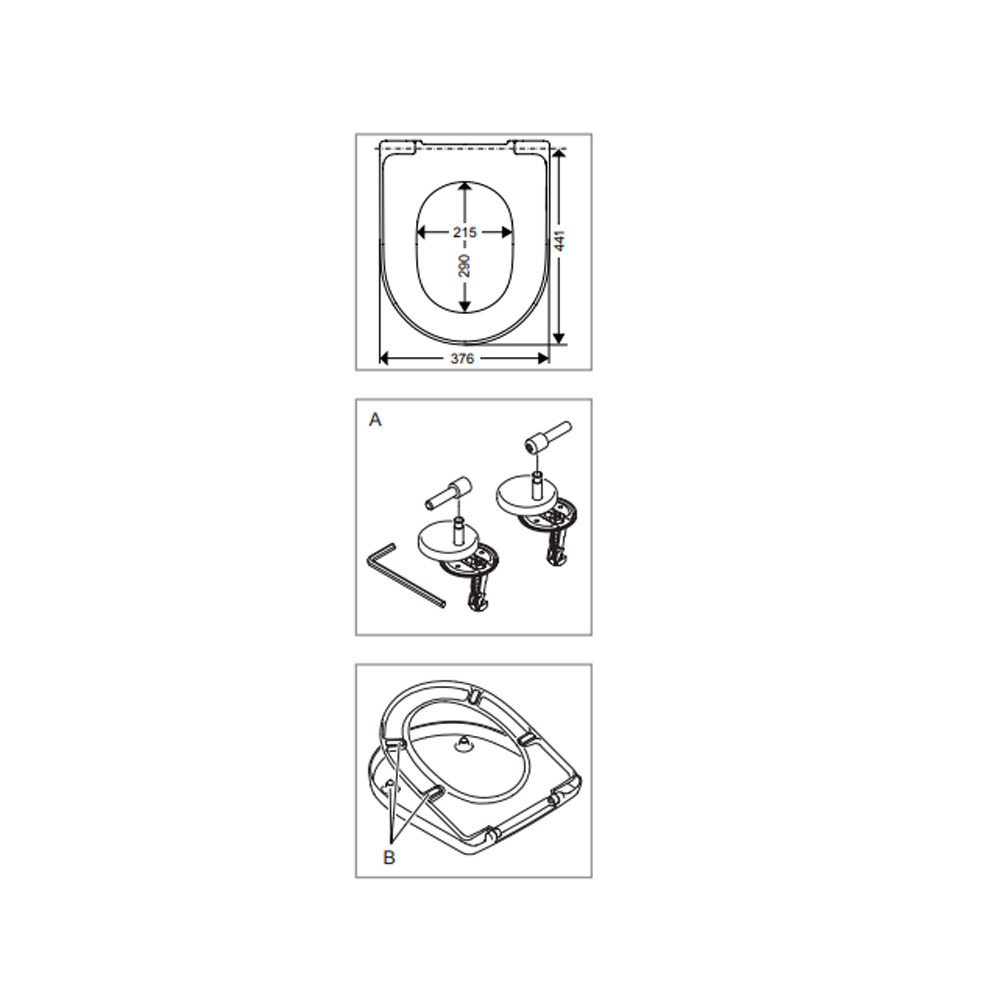

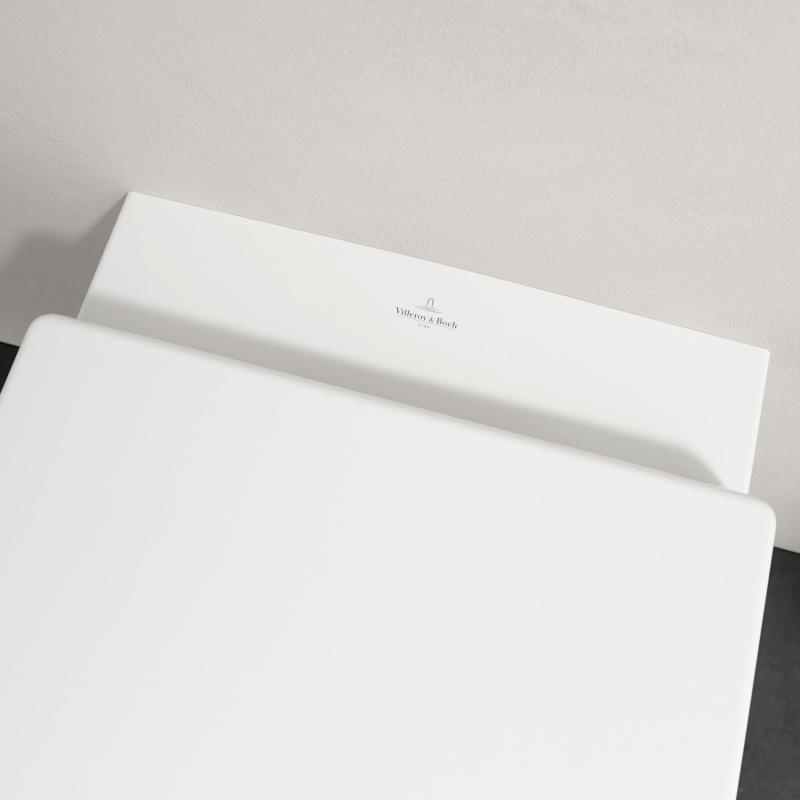

Villeroy & Boch Duroplast flap (98M9D101):
Length: 452 mm
Width: 376 mm
Height: 42 mm
Collection: Architectura
Weight: 2,57 KG
Material: Duroplast
Color: Gloss white
Shape: Oval
Hinges: Steel
Jackon Jackoboard Mounting set for WC support frame cladding (4521871):
Water-repellent
Special coating on both sides
Lightweight: approx. 3-6 kg/m2
Thickness: 20 mm
Panel dimensions: 1 panel 1300 x 600 x 20 mm (with cut-outs for piping) and 3 panels 1300 x 450 x 20 mm
Excellent insulating properties λD = 0.035 W/( m-K)
High compressive strength > 300 kPa
Approved and certified
Suitable for rooms with high humidity levels - EB/EB+/EV areas
Suitable for all common WC connections
Easy to install
Directly tileable, plasterable and renderable
For quick and easy tiling of all standard WC racks without preliminary work
The following accessories (not included) are required:
Mounting adhesive
Reinforcement strip
Self-drilling metal screws
Openwork washers
Made in Germany
10-year warranty
- Toilet bowl brand:Villeroy & Boch
- Toilet bowl:Rimless
- Soft closing seat:STANDARD
- Frame brand:Grohe
- Type of frame:Standard
- Plate colour:Chrome
- New:New
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(41.97% saving)
