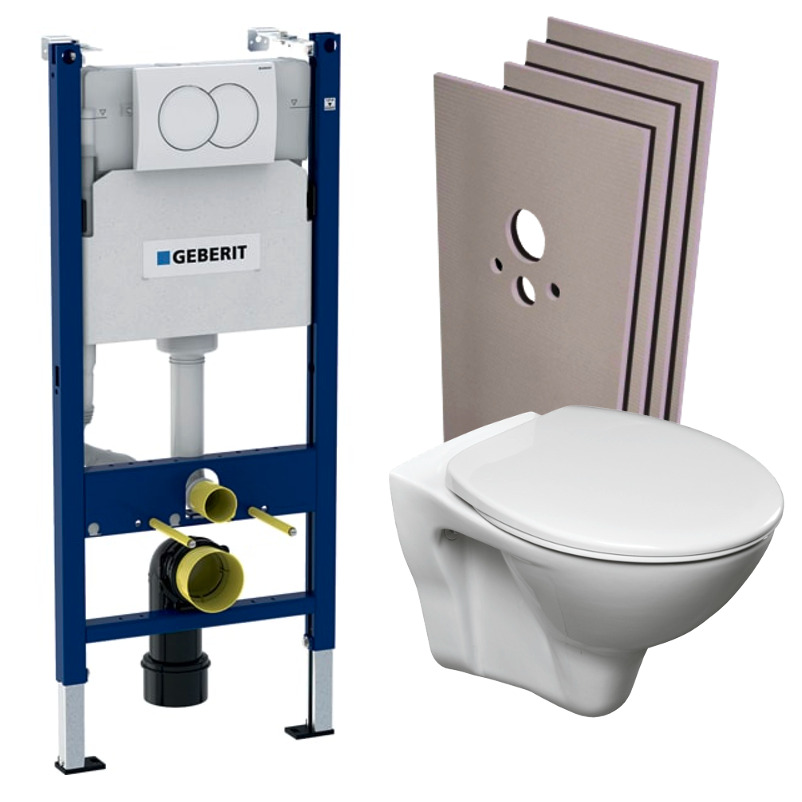

Geberit Duofix support frame + Cersanit S-line Pro toilet + seat + white plate + Wall cladding set (S-LineProGeb3-sabo)
- Product reference: S-LINEPROGEB3-SABO
- EAN: 0734077010241
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit Duofix support frame + Cersanit S-line Pro toilet + Toilet seat + White plate + Cover set (S-LineProGeb3-sabo) :
- Geberit Delta Pack Duofix support frame 112cm + Delta01 white control plate + wall fixings (111.154.11.2)
- Cersanit S-line Pro Fayans wall-hung toilet + seat, white (S-LinePro)
- Jackon Jackoboard Mounting set for WC support frame cladding (4521871)
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
Also, explore the step-by-step installation guide for Jackoboard Sabo! https://www.youtube.com/watch?v=KlKLHKAIbvY
see detailed description- Colour:White
- Material:Ceramic
- Length (cm):112
- Width (cm):52
- Height (cm):37.5
- Toilet bowl brand:Cersanit
- Toilet bowl:With Rim
- Soft closing seat:STANDARD
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Weight:39.72
- Invisible fixings:No

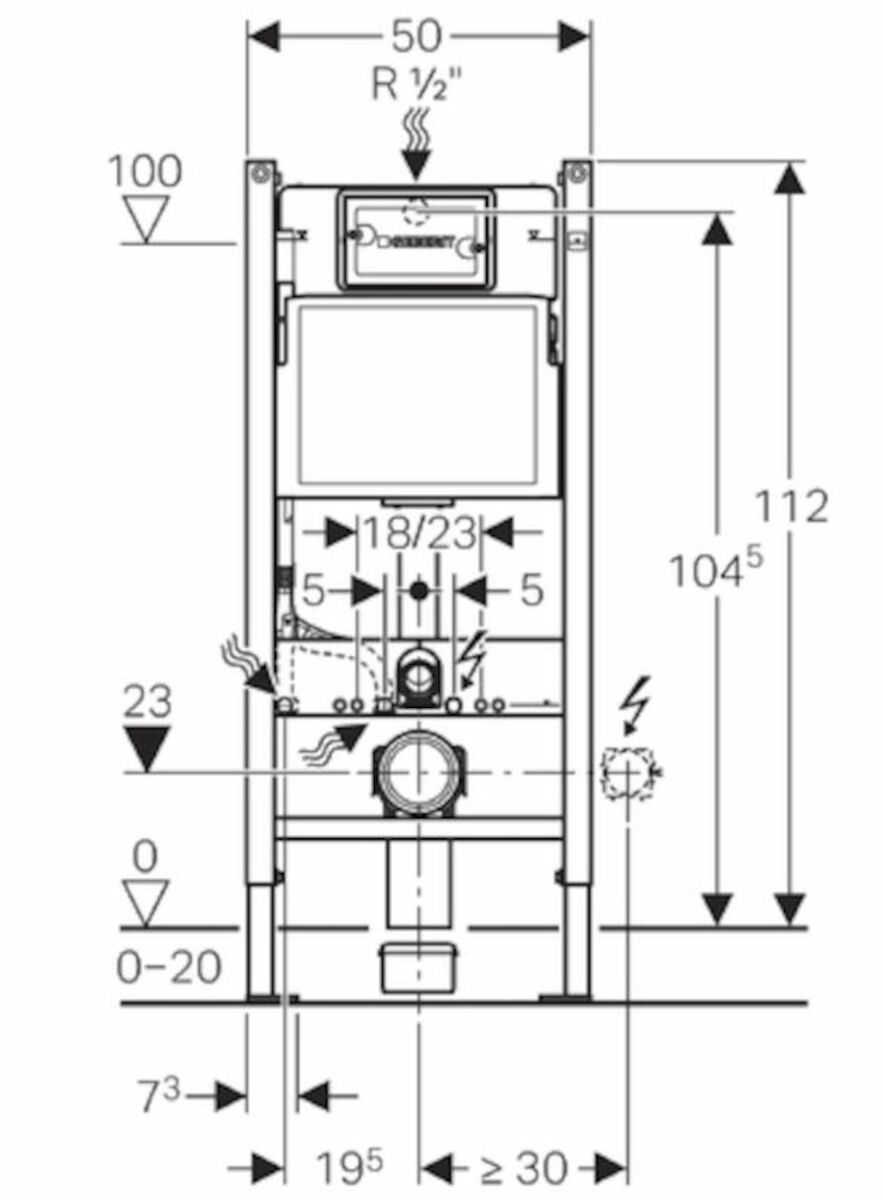

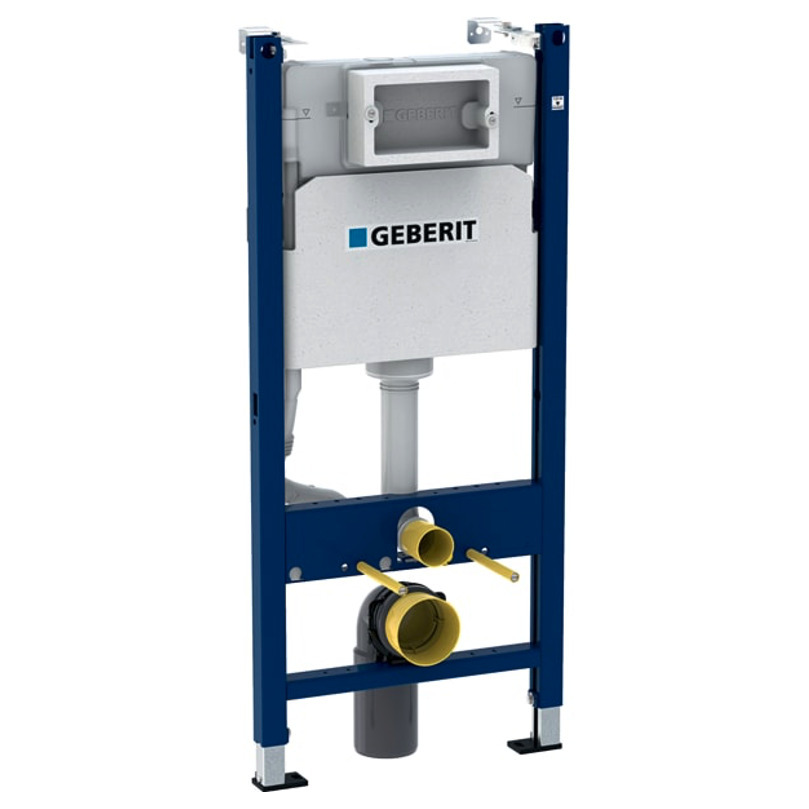

Features of Geberit Delta Pack Duofix 112cm support frame + Delta01 white control plate + wall fixings (111.154.11.2) :
Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1) :
Use:
- For pre-wall installation, full or partial installation
- For solid wall or dry wall installation
- For wall-hung WCs with 18 cm or 23 cm fixing distance
- For floor thickness 0 - 20 cm
- For front control
- Geberit AquaClean
- Not suitable for concreting
- Features :
- Delta Geberit 12 cm flush tank (UP100) front control, against condensation
- Wide adjustable flow
- Low fixed flush rate
- Adjustable instantaneous flush
- Water supply from rear/upper center
- Connection pipe to corner valve can be screwed on manually
- 2 flushes with Geberit Delta01 control knobs
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth adapted to UW50 installation
Technical information :
- Rinse quantity - factory setting 6 and 3.5 l
- Large rinse volume - setting range 4.5 / 6 / 7.5 l
Included in frame :
- 2 M12 threaded rods for ceramic mounting
- Drain valve for 2 flush rates
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Angle tap R 1/2” with adapter ring
- Geberit AquaClean water inlet hose
- Connection set ø 90 mm
- WC waste elbow, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Geberit Duofix wall-mounting kit for self-assembly (111.839.00.1)

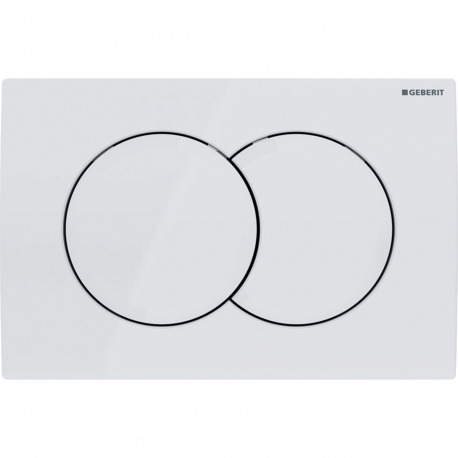

Geberit DELTA01 trigger plate (115.107.11.1):
Delta has 2 buttons, one for a small 3L flush and the other for a large 6L flush.
Water saving
Front release

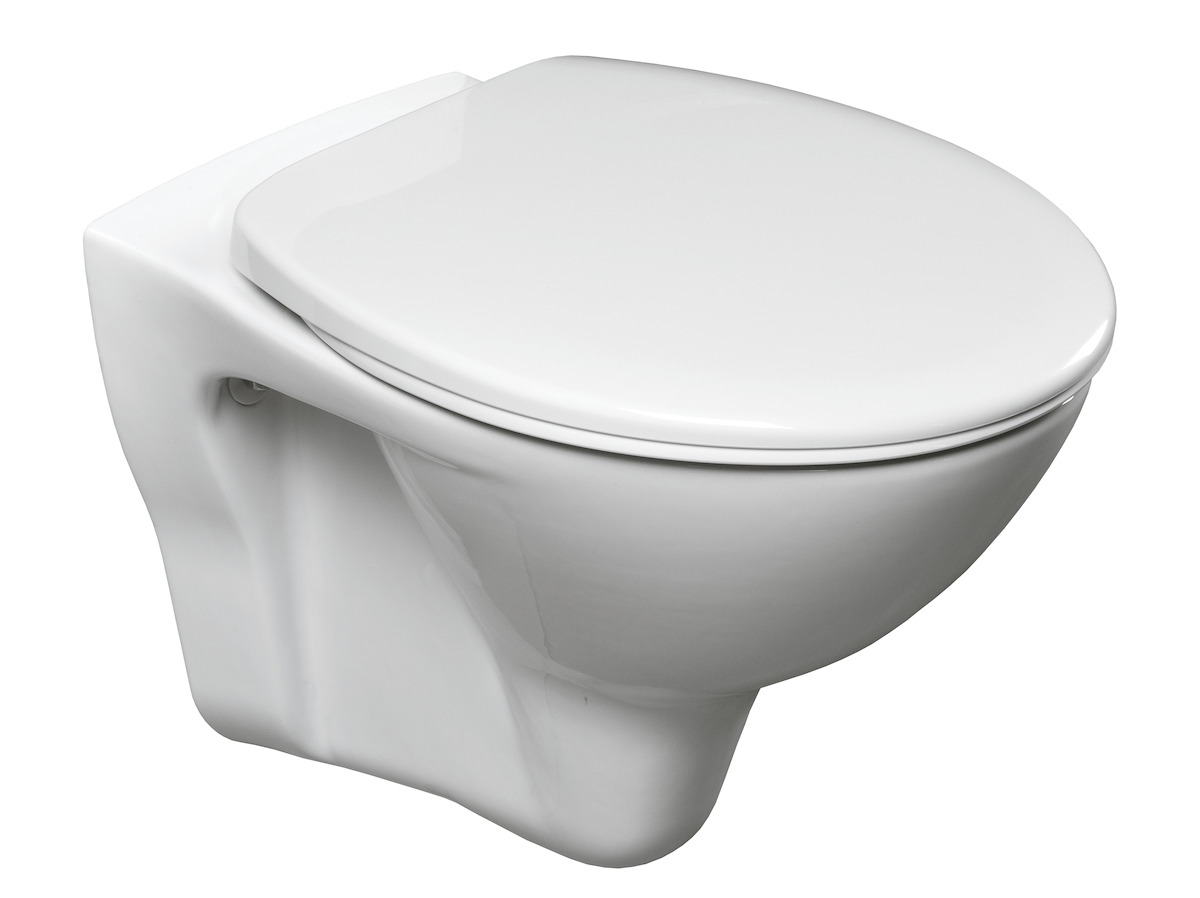

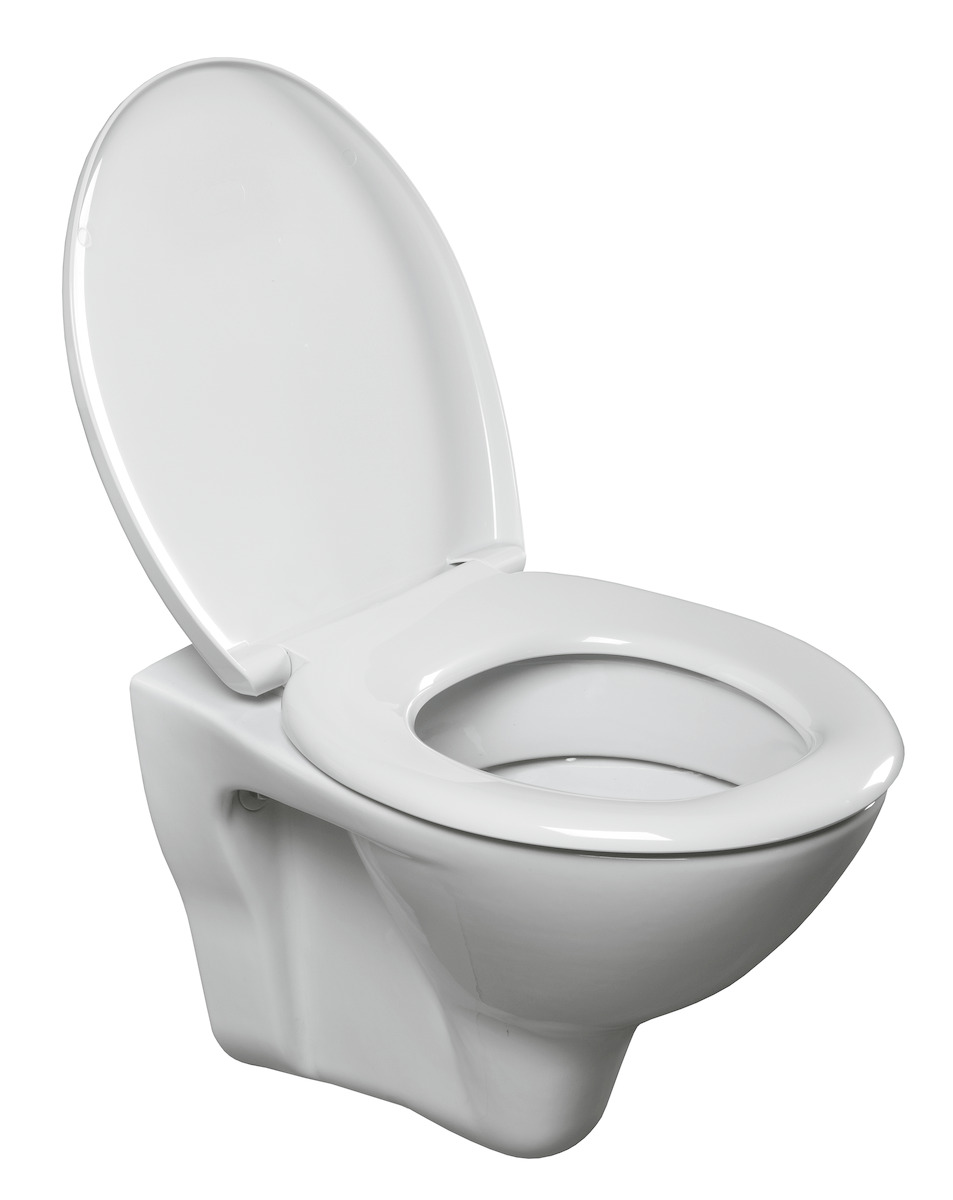

Cersanit S-line Pro Fayans Hanging WC + Cover, White (S-LinePro) :

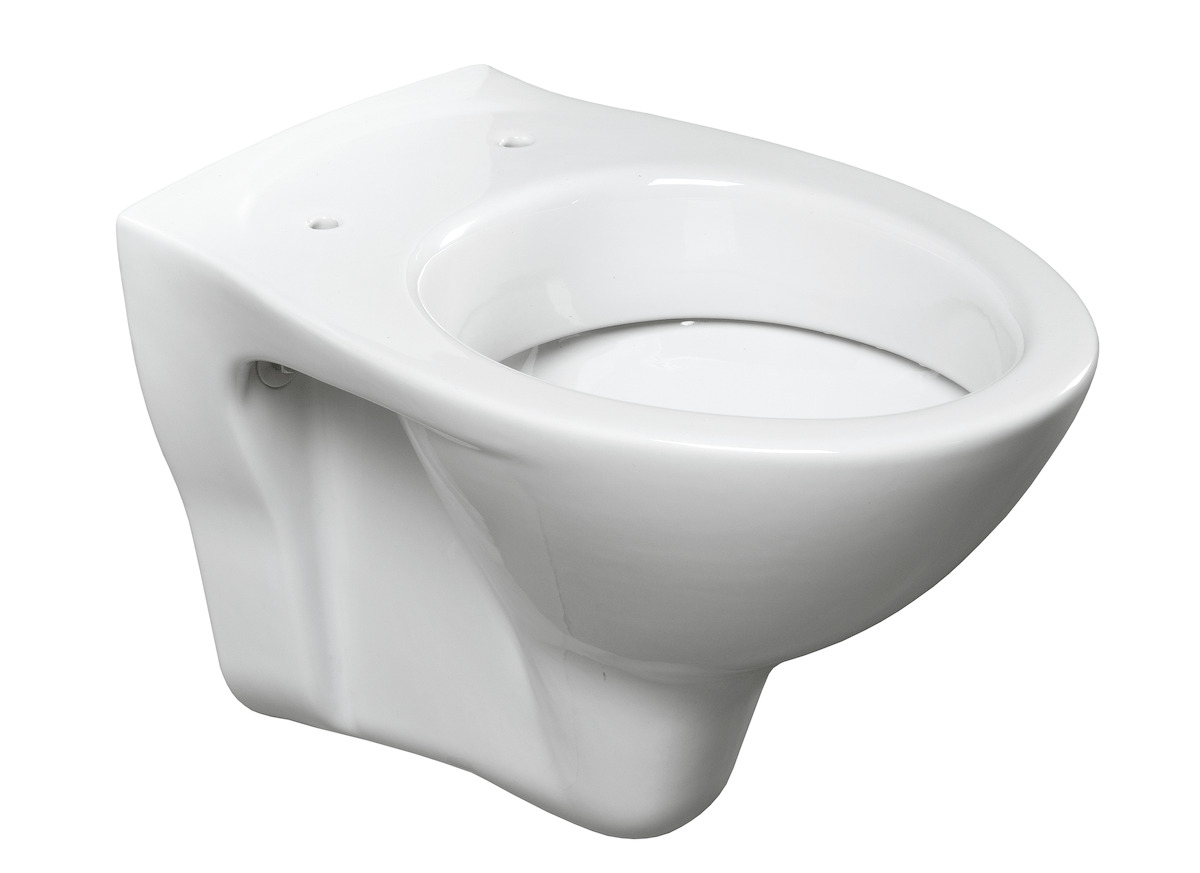

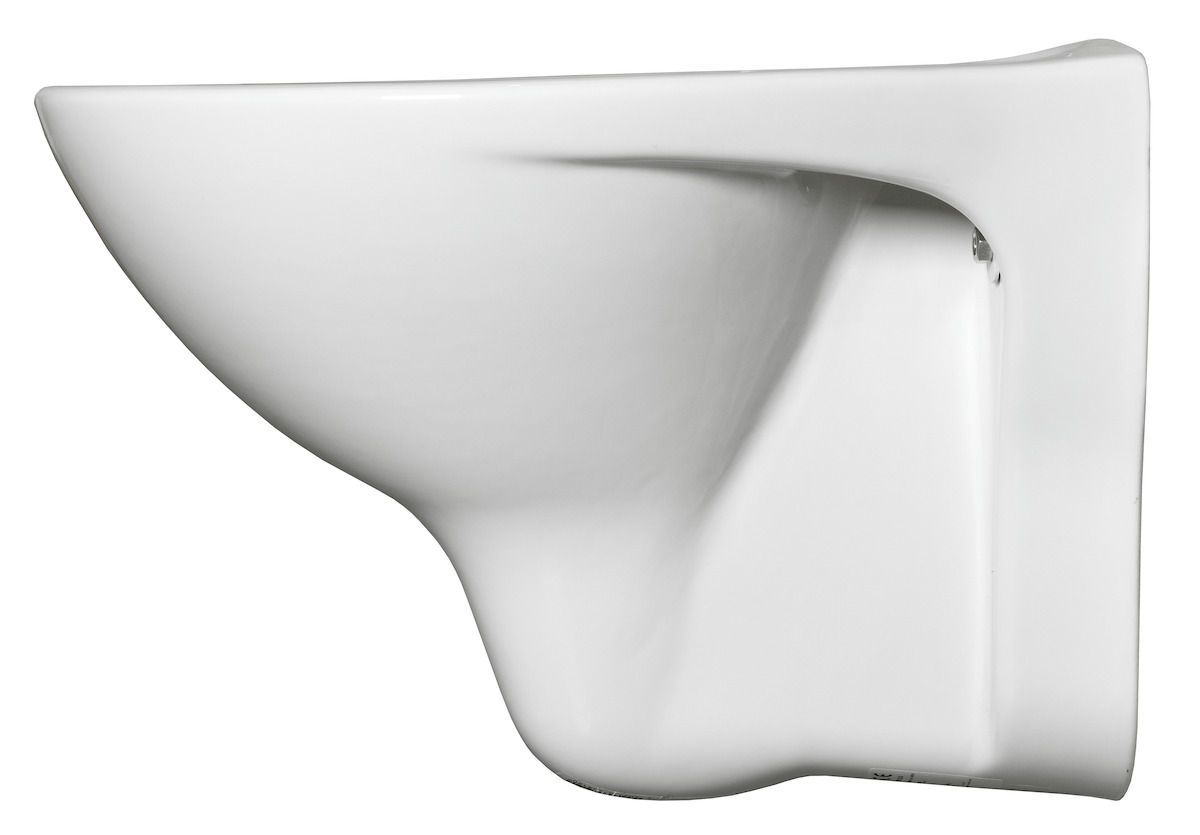

Cersanit S-line Pro Fayans Hanging Toilet, White (K588-003) :
- Suspended bowl
- Color : White
- Material: Ceramic

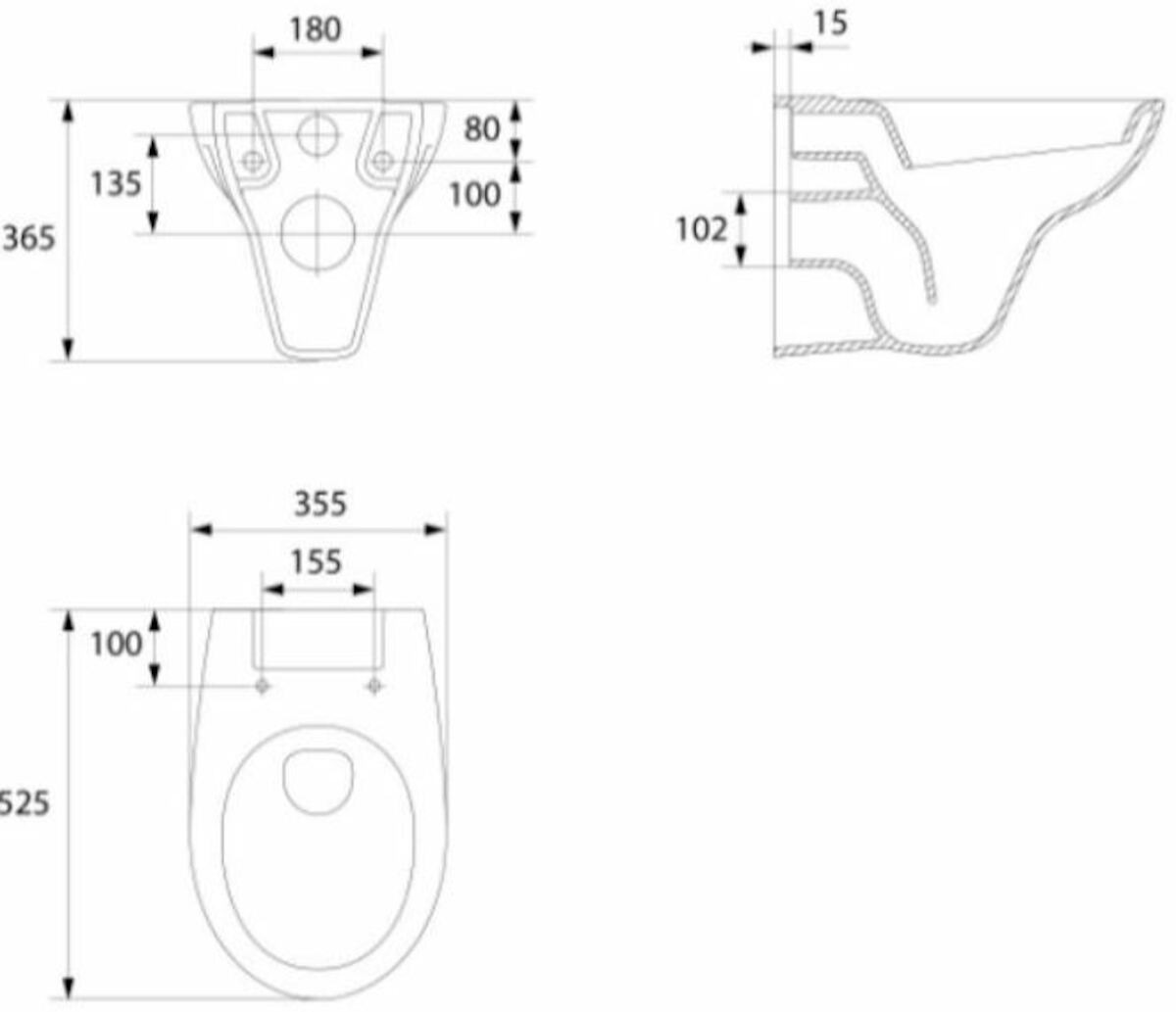

- Dimensions: 35.5 x 52 x 37.5 cm
- Flush volume : 3/6 l
- Height of bowl without plate: 40 cm

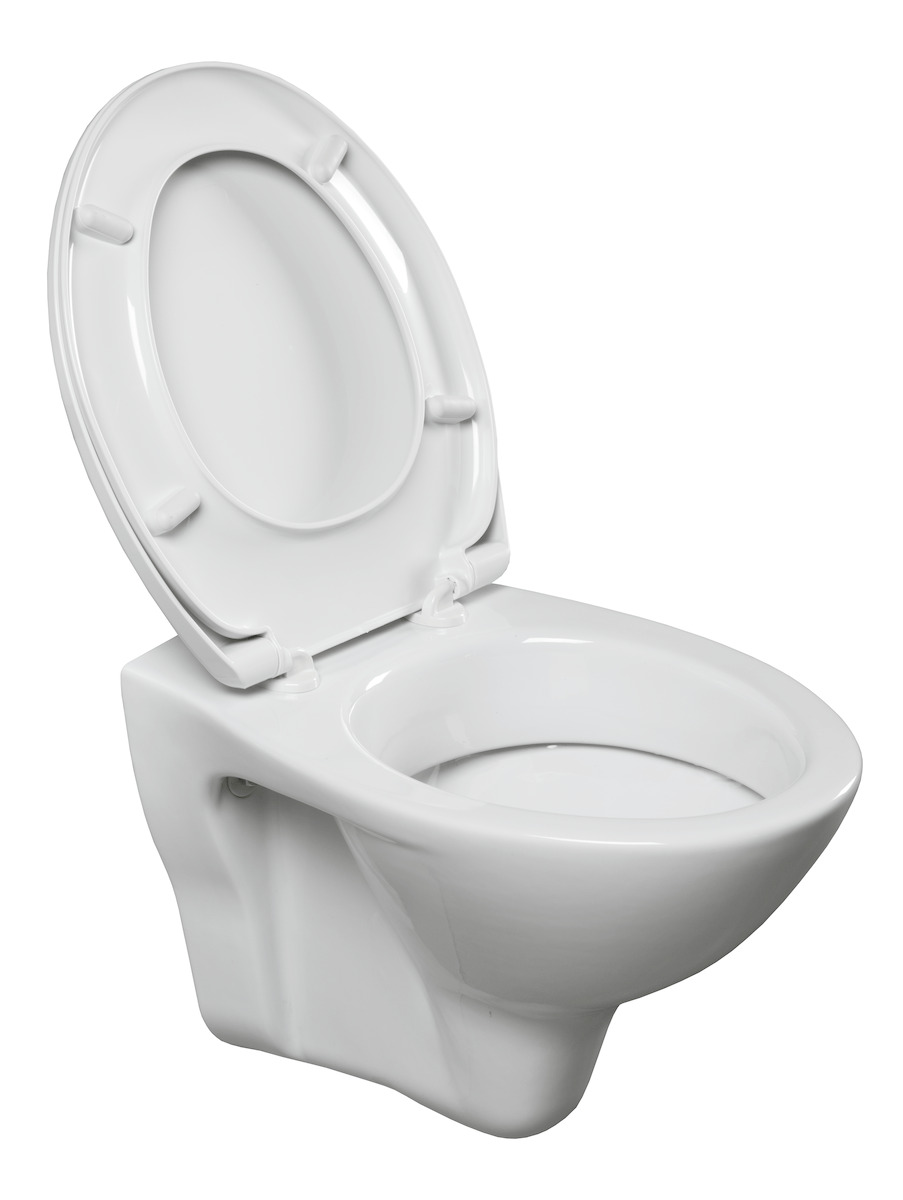

LIVEA Thermoplastic toilet seat, White (UniversalSeat) :
- Colour: White
- Material: thermoplastic
- Plastic hinges with concealed mounting
- Dimensions: 37 x 41.4 cm

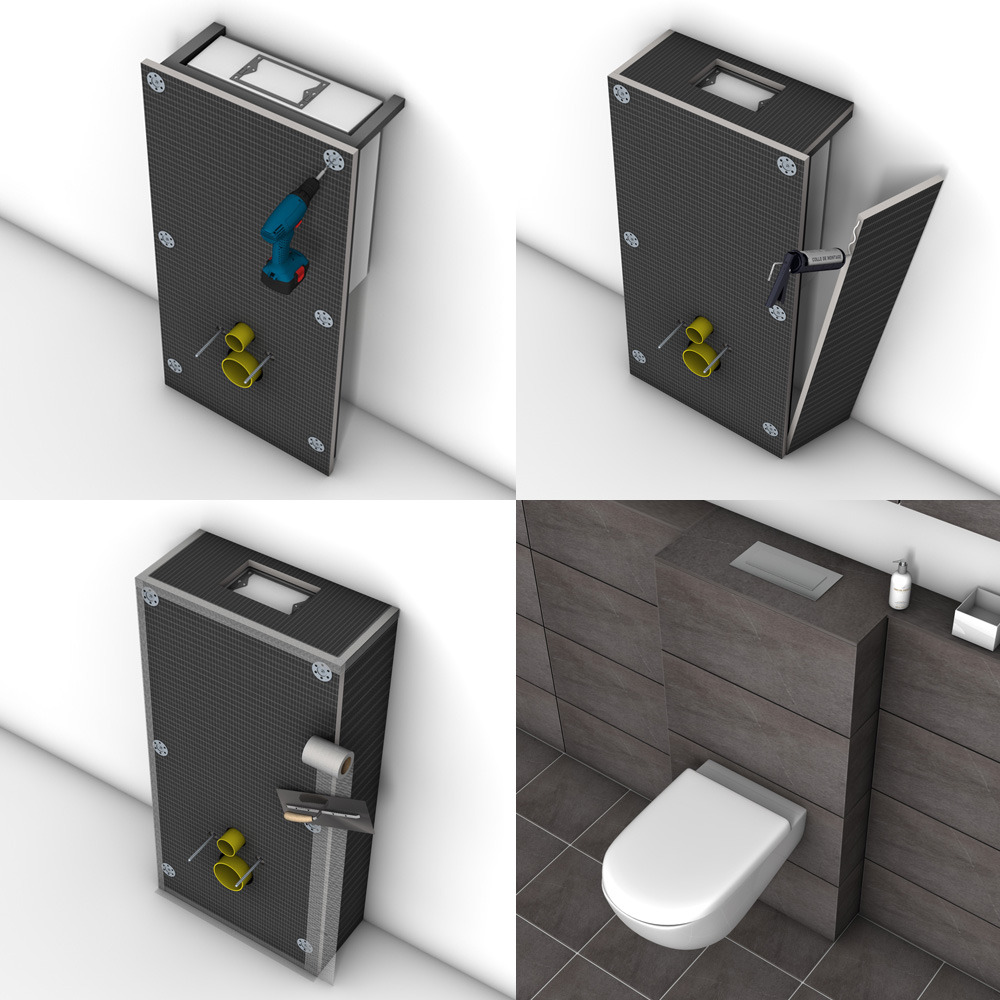

Jackon Jackoboard Mounting set for WC support frame cladding (4521871):
- Water-repellent
- Special coating on both sides
- Lightweight: approx. 3-6 kg/m2
- Thickness: 20 mm
- Panel dimensions: 1 panel 1300 x 600 x 20 mm (with cut-outs for pipe routing) and 3 panels 1300 x 450 x 20 mm
- Excellent insulating properties λD = 0.035 W/( m-K)
- High compressive strength > 300 kPa
- Approved and certified
- Suitable for rooms with high humidity levels - EB/EB+/EV premises
- Accessories (not included) are required:
- Mounting adhesive
- Reinforcing tape
- Self-drilling metal screws
- Openwork washers
- Made in Germany
- 10-year warranty
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(17.73% saving)
