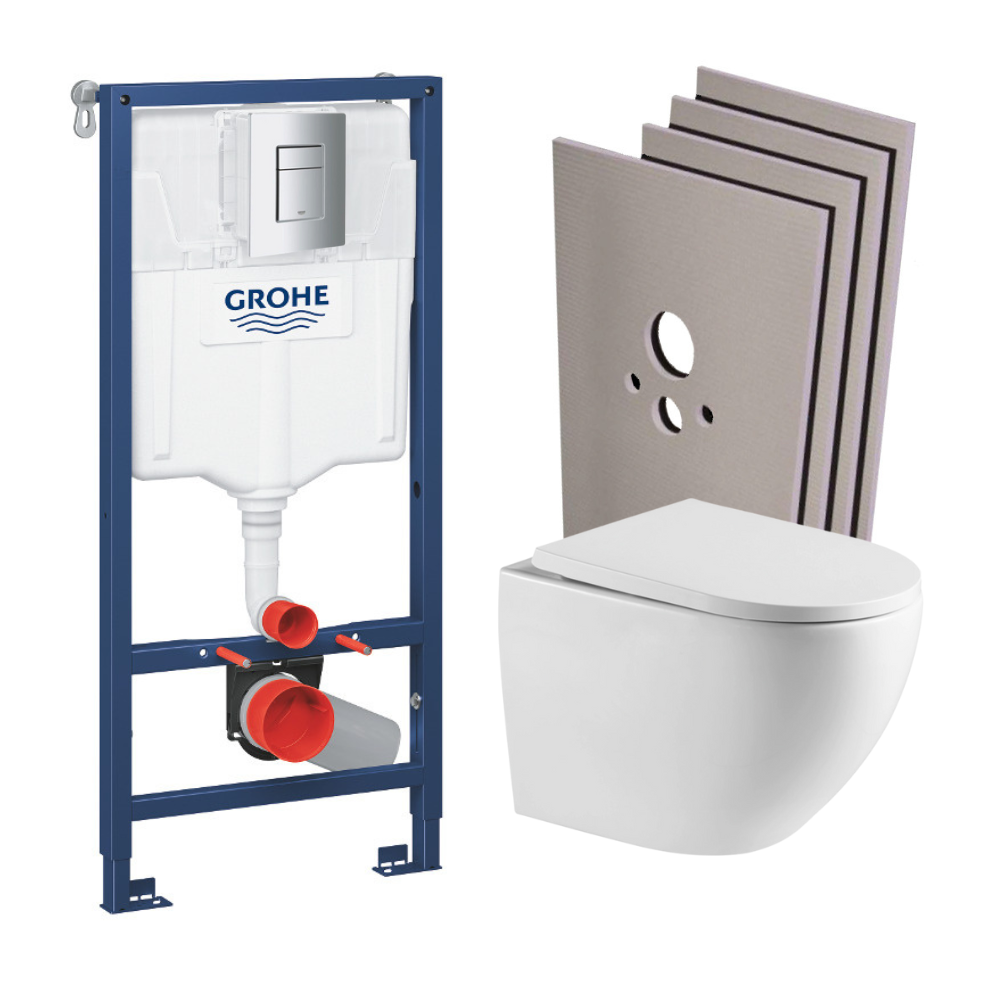

Grohe Rapid SL Pack Support frame + SAT Wall-hung toilet + Chrome plate + Wall cladding set (RSLFUSIONTQ1SB)
- Product reference: RSLFUSIONTQ1SB
- EAN: 8592127212289
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Rapid SL Pack Support frame + SAT Wall-hung toilet + Chrome plate + Wall cladding set (RSLFUSIONTQ1SB) :
- Grohe Set Bati-support Rapid SL (38811000)
- Swiss Aqua Technologies Tornado Quiet rimless wall-hung toilet and invisible fixings, softclose seat (SAT67010RTORP)
- Jackon Jackoboard Mounting set for WC support frame cladding (4521871)
Discover the easy and seamless installation of the Rapid SL Grohe module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=DeW0CIAlbkA&t=19s
Also, explore the step-by-step installation guide for Jackoboard Sabo! https://www.youtube.com/watch?v=KlKLHKAIbvY
.
see detailed description- Colour:White
- Material:Ceramics
- Length (cm):130
- Width (cm):60
- Height (cm):113
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Without Rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Grohe
- Plate colour:Chrome
- Weight:35
- Bowl colour:White
- Invisible fixings:Yes
- Net weight:31.5
Features of the Grohe Rapid SL Bati-support Set (38811000):
- Grohe Rapid SL WC support frame (38528001)
- WC control plate Skate Cosmopolitan (38732000)

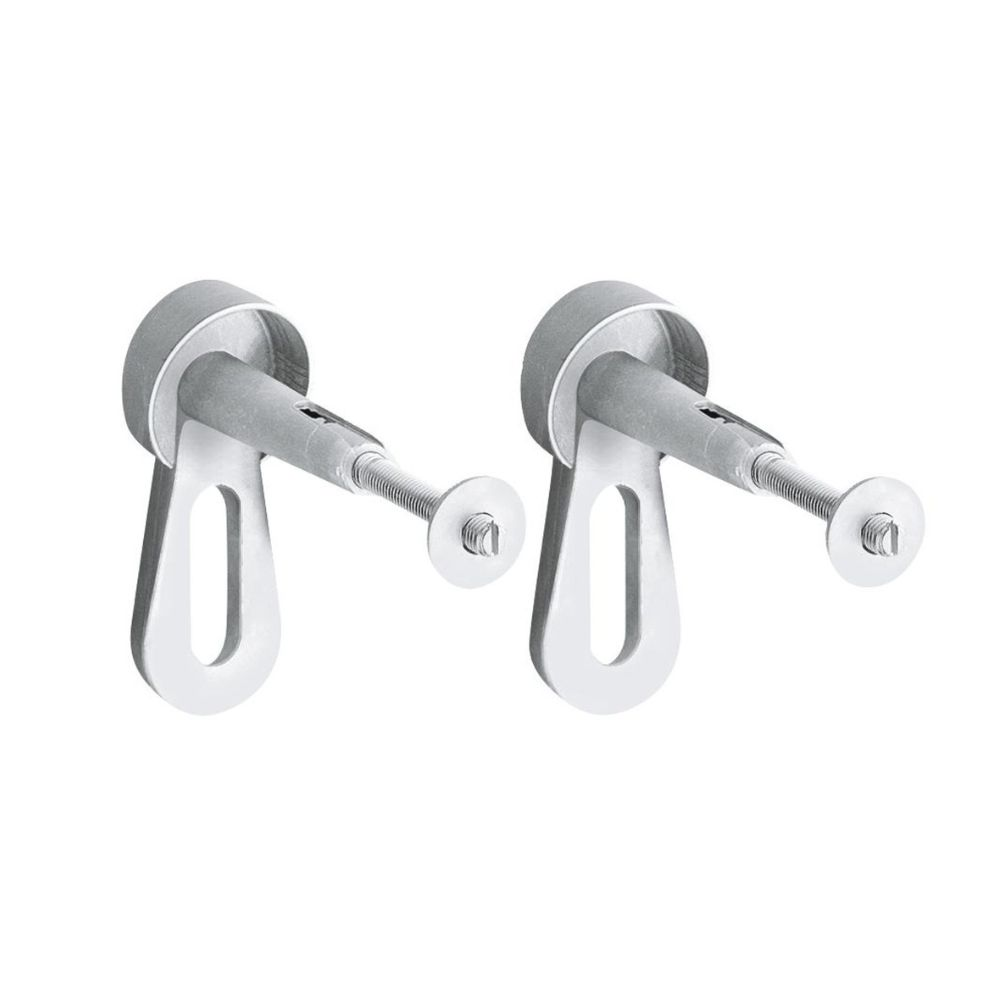

- Grohe Rapid SL wall bracket fixing kit (3855800M)

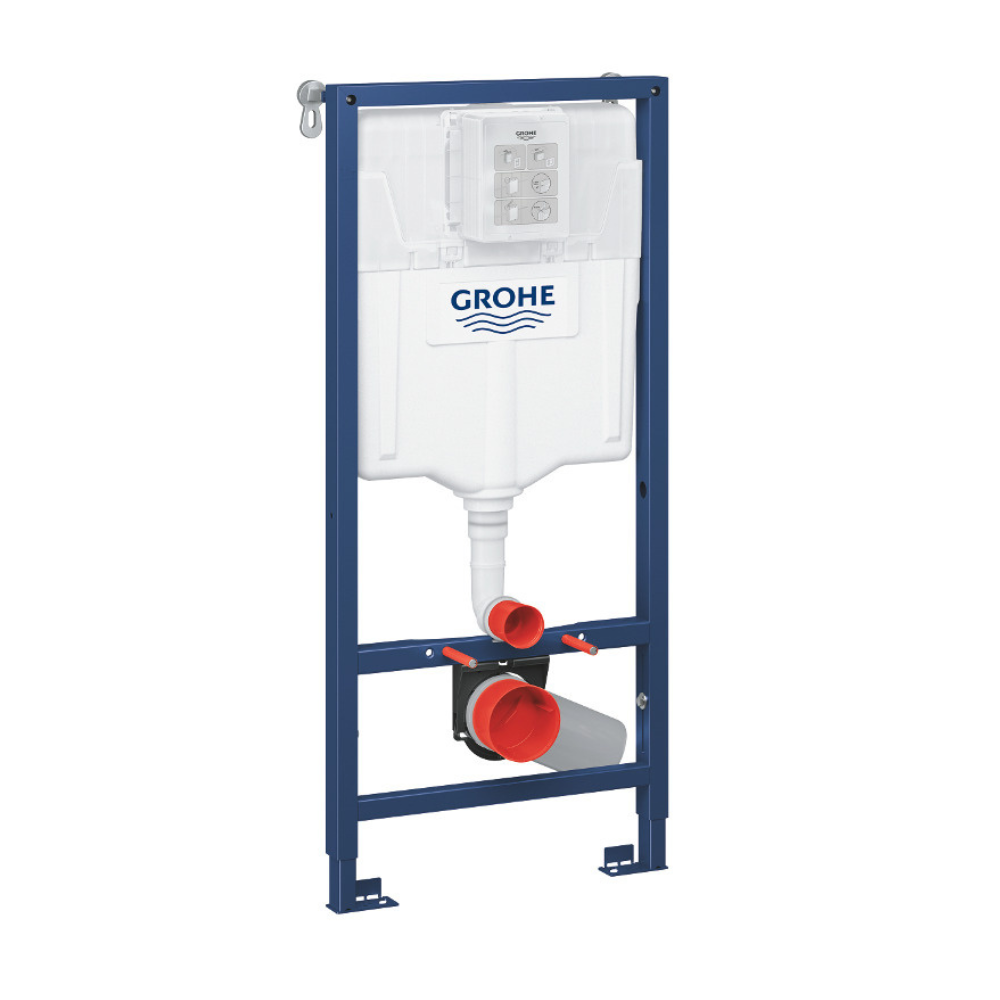

Grohe Rapid SL toilet support frame (38528001) :
- GD 2 cistern, with inspection hatch
- Height: 1.13 m
- Epoxy-finished steel frame
- Mounted on a load-bearing wall or in a reinforced double-frame light partition
- Quick height adjustment and locking up to 200 mm
- Delivered with fixing hardware
- TÜV approved
- Delivered with rods and nuts for toilet bowl fixing, ceramic fixing
- Fixing spacing 180/230 mm
- PP drain elbow Ø 90 mm
- Depth and height adjustable (200 mm)
- Reducing fitting DN 90/110
- Drain and supply fittings
- Tank 6 - 9 l
- Factory setting 3 and 6 l
- Pneumatically actuated mechanism (AV1) for single-touch (interruptable) and double-touch (interruptable) control plate
- Side or rear power supply
- Tank insulated against condensation
- Water supply with angle tap and flexible connection
- Installation of the template, horizontal or vertical, without tools,

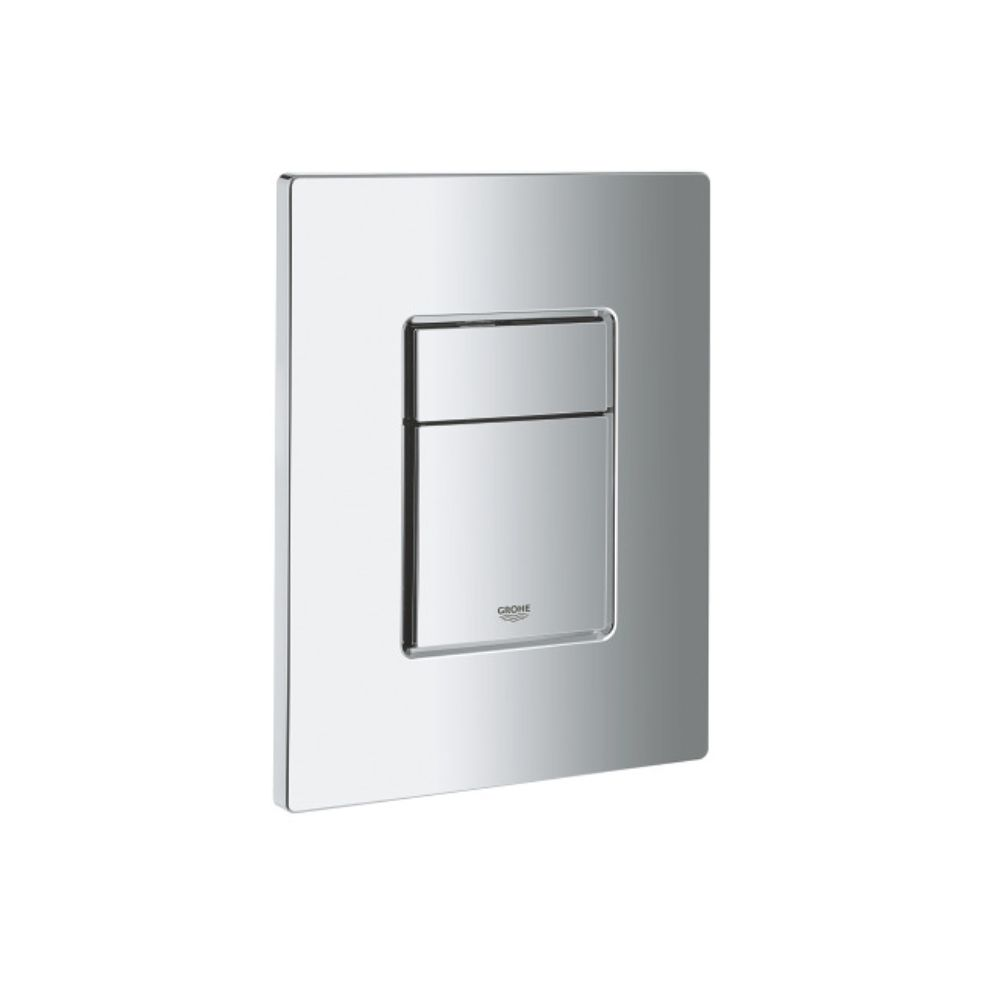

WC Skate Cosmopolitan control plate (38732000) :
- Two-touch or interruptable
- 156 x 197 mm

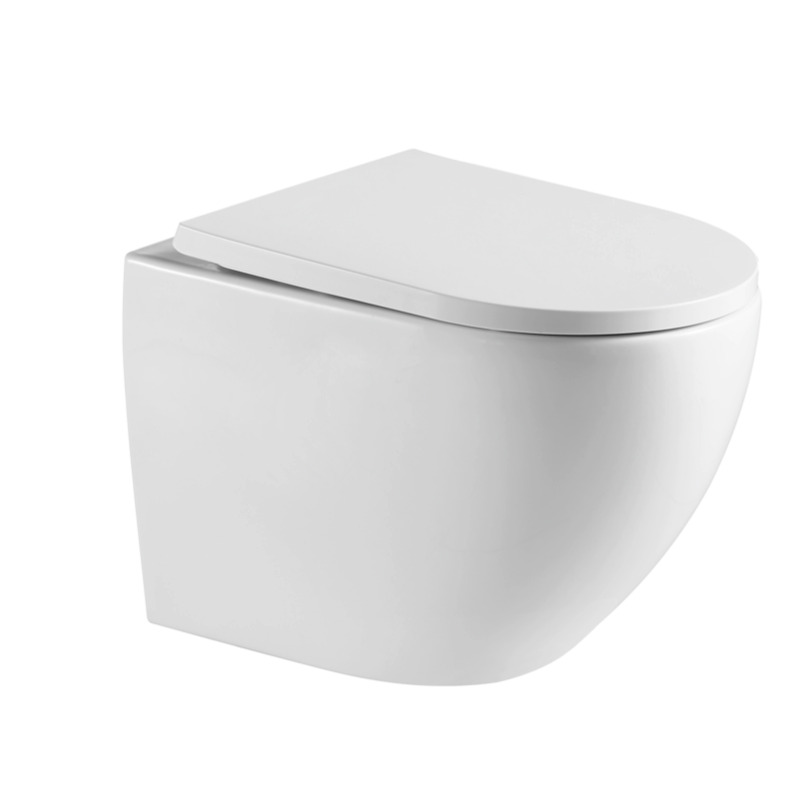

Swiss Aqua Technologies Tornado Quiet rimless wall-hung toilet and invisible fixings, softclose seat (SAT67010RTORP) :
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Bowl with simple, uncluttered style
- Flange-free bowl with Tornado Quiet technology
- Hidden fixings
- Drop-brake flapper
- Unclipable flap
- Easy maintenance thanks to flangeless system and removable flap
- Fast installation
Jackon Jackoboard Mounting set for toilet support frame cladding (4521871)
- Hydro-repellent
- Special coating on both sides
- Light weight: approx. 3-6 kg/m2
- Thickness: 20 mm
- Panel sizes: 1 panel 1300 x 600 x 20 mm (with cut-outs for pipe routing) and 3 panels 1300 x 450 x 20 mm
- Excellent insulating performance λD = 0.035 W/( m-K)
- High compressive strength > 300 kPa
- Homologated and certified
- Suitable for rooms with high humidity levels - EB/EB+/EV premises.
Accessories (not included) are required:
- -Mounting glue
- -Frame strip
- -Self-piercing metal screws
- -Openwork washers
- Manufactured in Germany
- 10-year warranty
