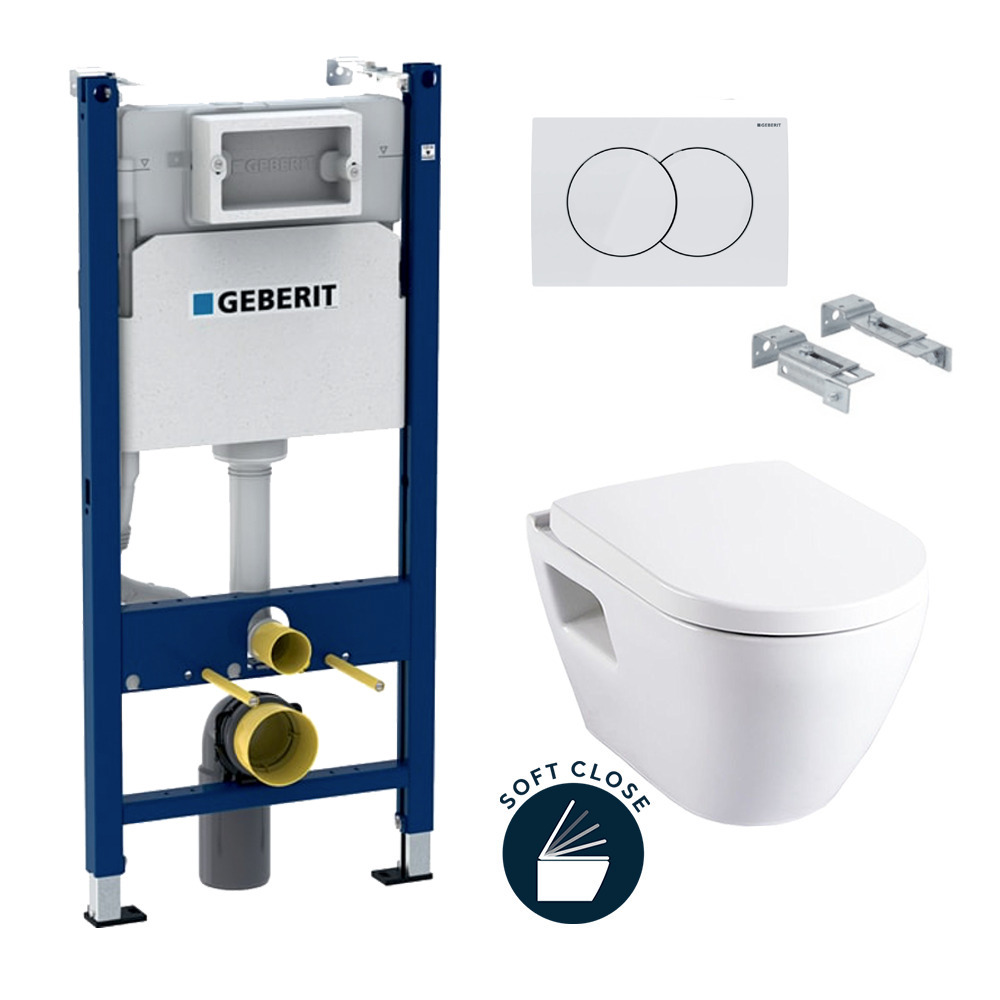

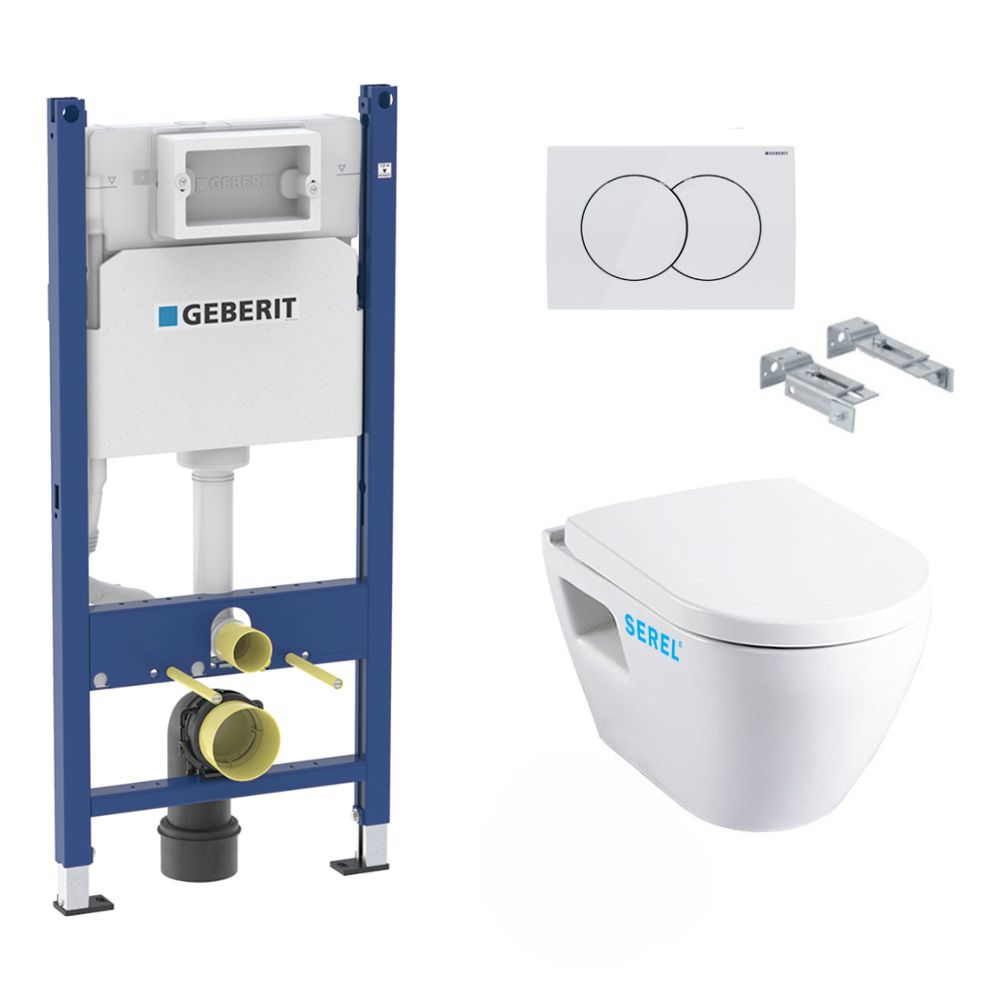

Geberit Toilet set Duofix Toilet Frame + Serel SM10 bowl with flange + Softclose seat + White plate (SM10Geb3)
- Product reference: SM10GEB3
- EAN: 0034966358141
Brand:
Product warranty:
2
years
Features of the toilet set Duofix Toilet Frame + Serel SM10 bowl with flange + Softclose seat + White plate (SM10Geb3):
- Geberit Delta Pack Duofix support frame, with Delta cistern (111.153.00.1)
- Geberit Duofix Set of Wall Anchors (111.839.00.1)
- Geberit DELTA20 flush plate white (115.100.11.1)
- Serel Solido compact bowl + Softclose seat (SM10):

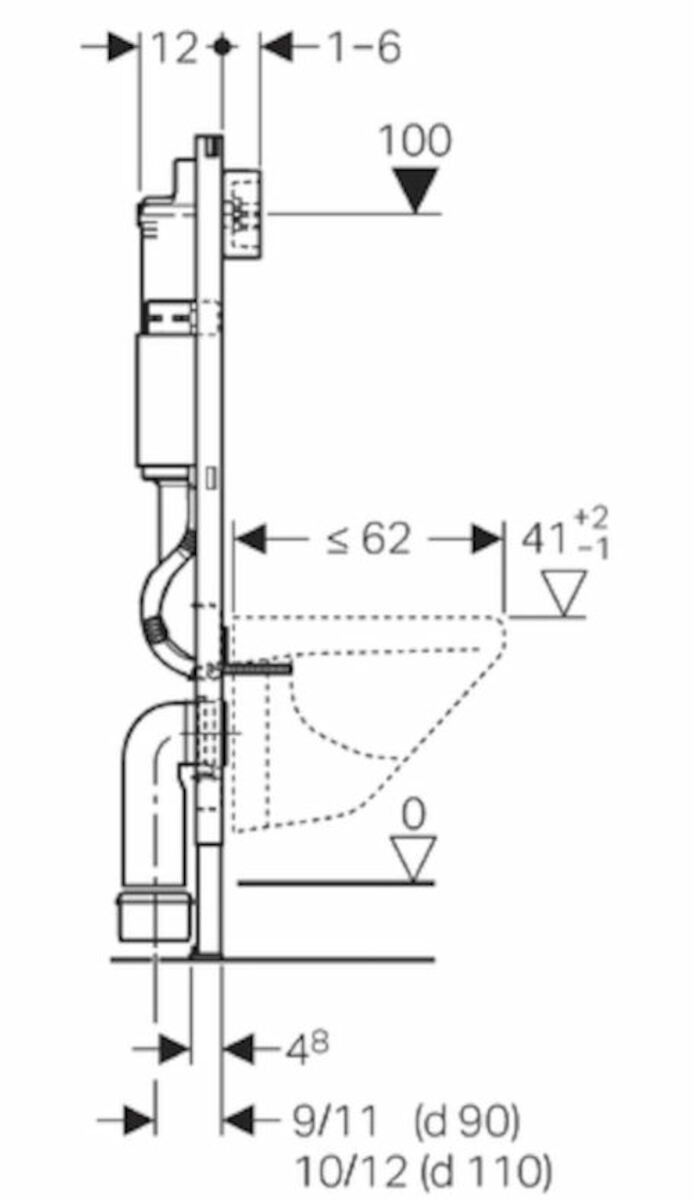

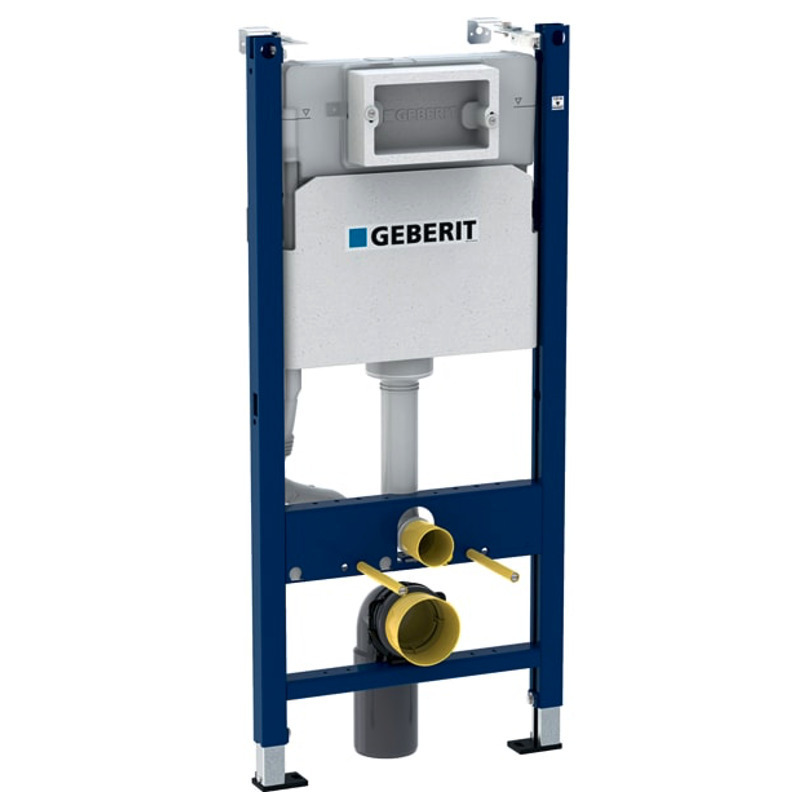

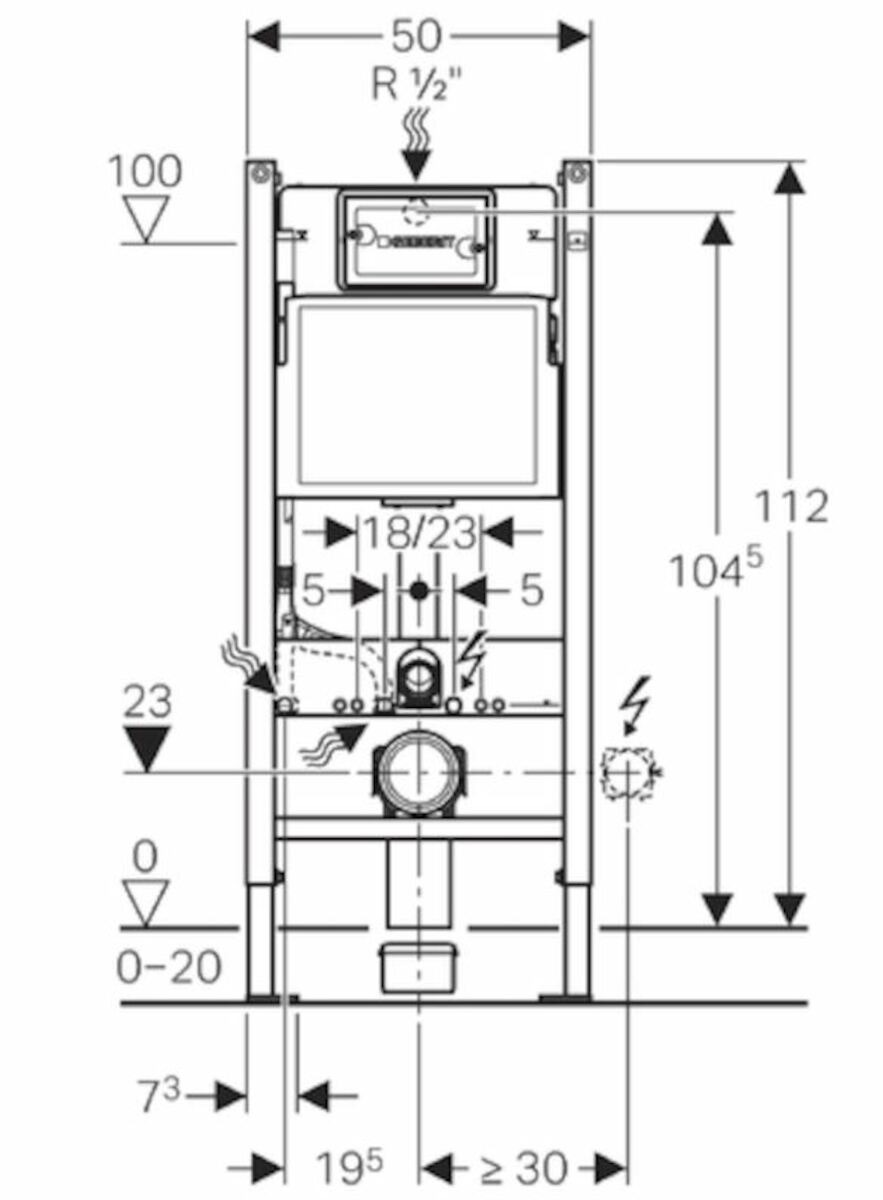

Geberit Delta Pack Duofix support frame, with Delta cistern (111.153.00.1)
Use:
- For pre-wall installation, installation in whole or in part
- For a solid wall or a dry wall
- For installing a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- Geberit AquaClean
- Not suitable for concreting
Features:
- Delta Geberit flush cistern 12 cm (UP100) front control, against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply from the rear/upper centre
- Connection pipe to the corner valve can be screwed on manually
- 2 flushes with Geberit Delta20 control knobs
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanised supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information:
- Rinse quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Included in the support frame:
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for installation, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Connecting set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Geberit Duofix wall bracket set for self-assembly (111.839.00.1)

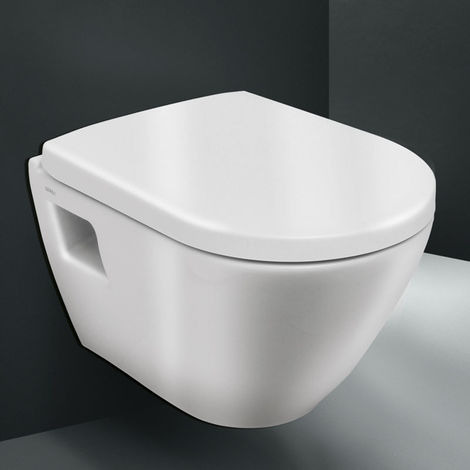

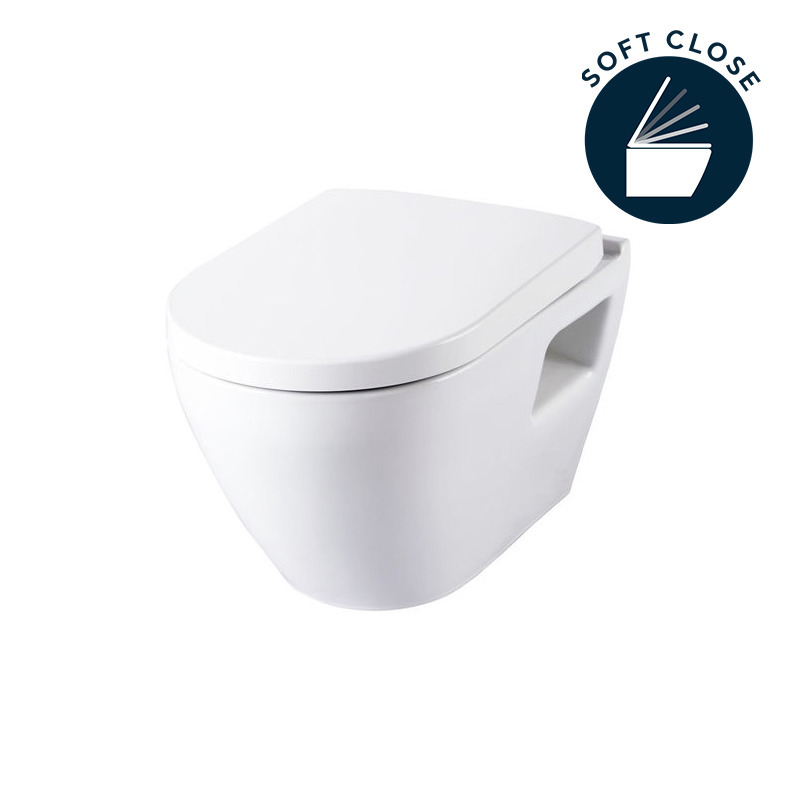

Serel Solido compact bowl + Softclose seat (SM10):
- SEREL ABS toilet seat with fall protection (223bt00002)

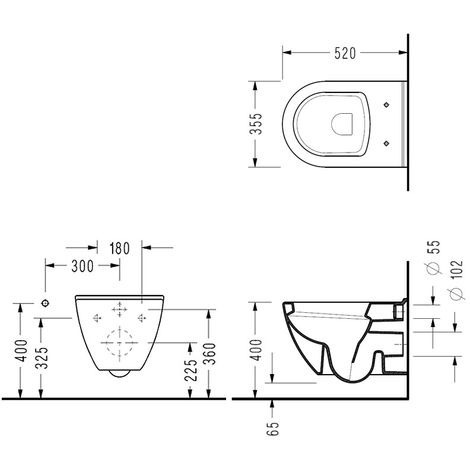

- Dimensions L52xW36xH33 (cm)
- CE marking
- Scratchproof
- Serel
This toilet bowl combines style and comfort. With its minimalist design, it is suitable for all bathrooms and toilets.
.

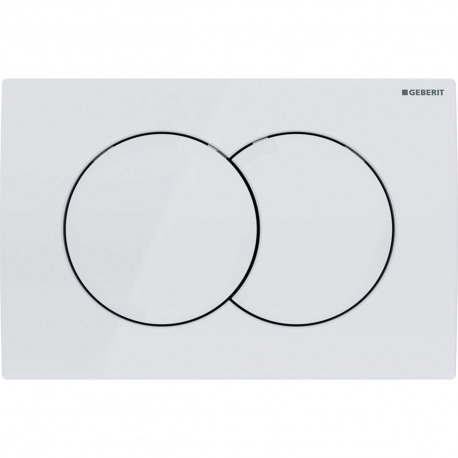

Geberit DUOFIXBasic flush plate (115.100.11.1)
- Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
- Water saving
- Frontal activation
.
Attention! When the parcel is delivered, please mention "subject to unpacking" on the delivery note and accept the parcel.
No claims can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
Product technical properties
- Toilet bowl brand:SEREL
- Toilet bowl:With rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Bowl colour:White
- Invisible fixings:No
