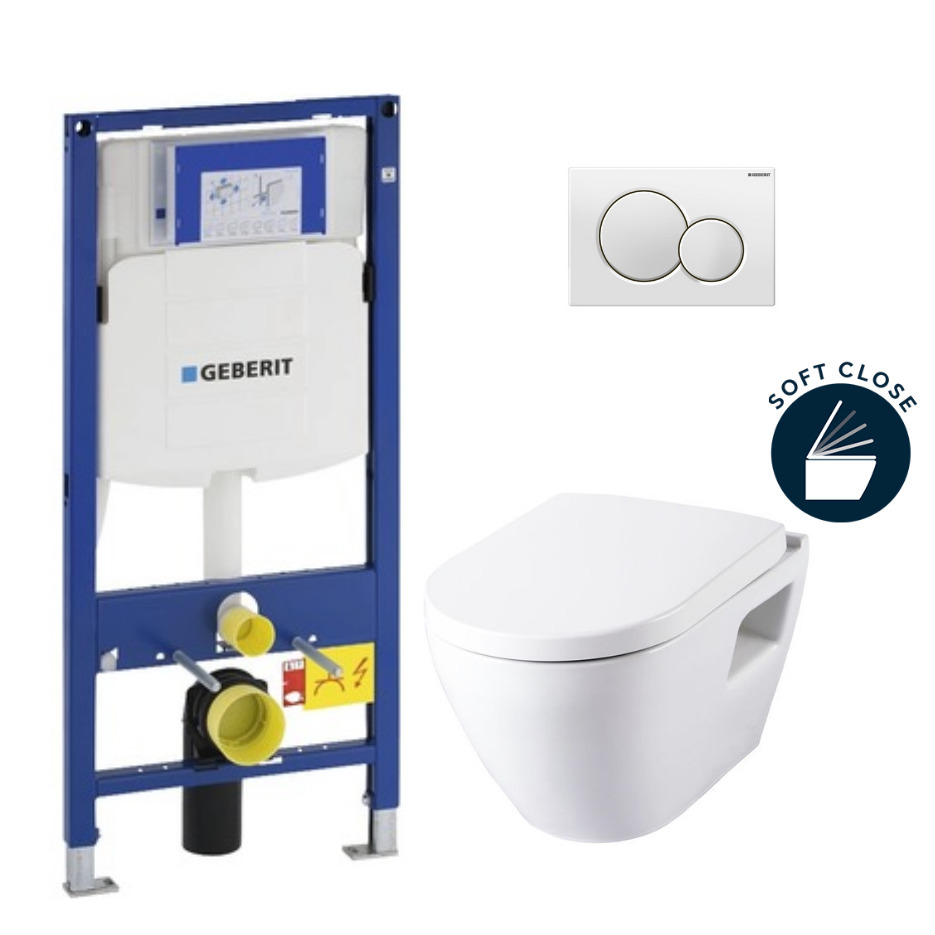

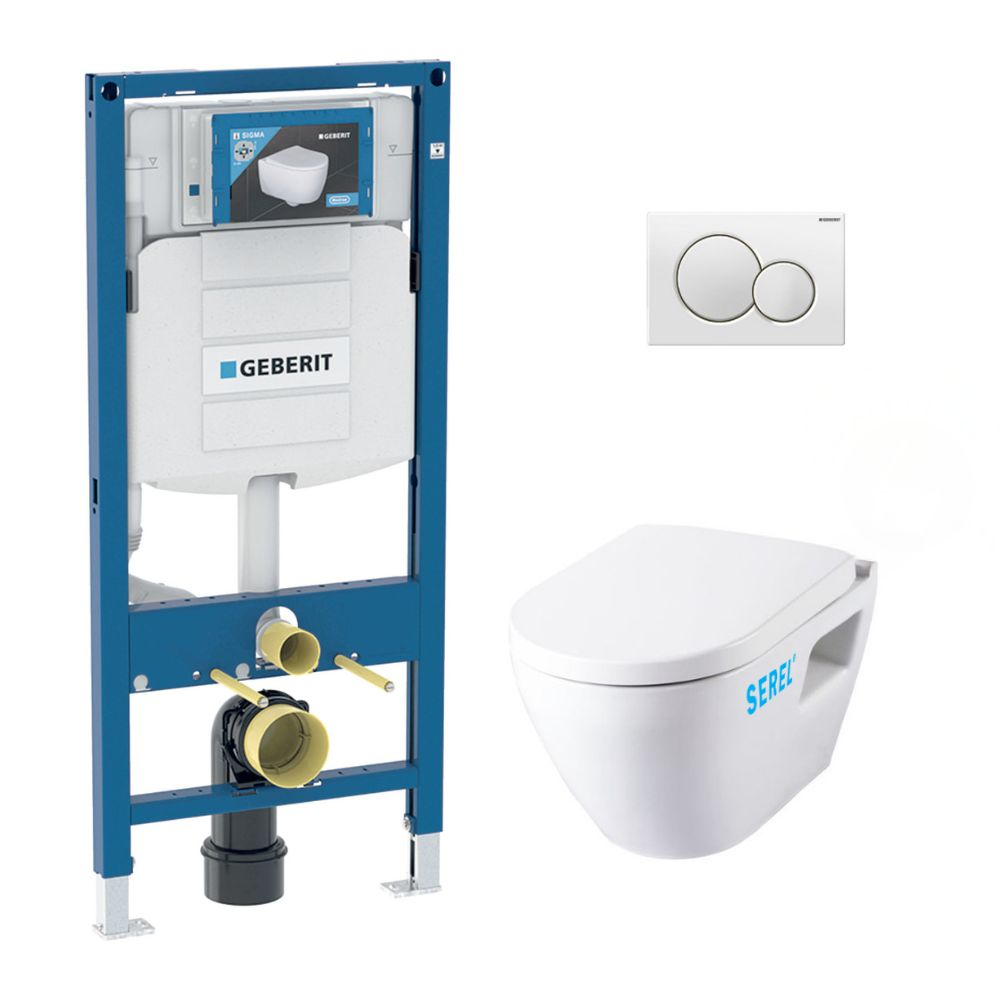

Geberit Toilet set support frame with Serel SM10 bowl + Softclose seat + White control plate (GebSM10-B)
- Product reference: GEBSM10-B
- EAN: 0750122356652
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the toilet set support frame with Serel SM10 bowl + Softclose seat + White control plate (GebSM10-B):
- Serel Solido compact bowl + Softclose seat (SM10)
- Geberit Duofix UP320 frame (111.300.00.5)
- Geberit Flush plate double-touch SIGMA 01 white (115.770.11.5)
- Toilet bowl brand:SEREL
- Toilet bowl:With rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Bowl colour:White
- Invisible fixings:No

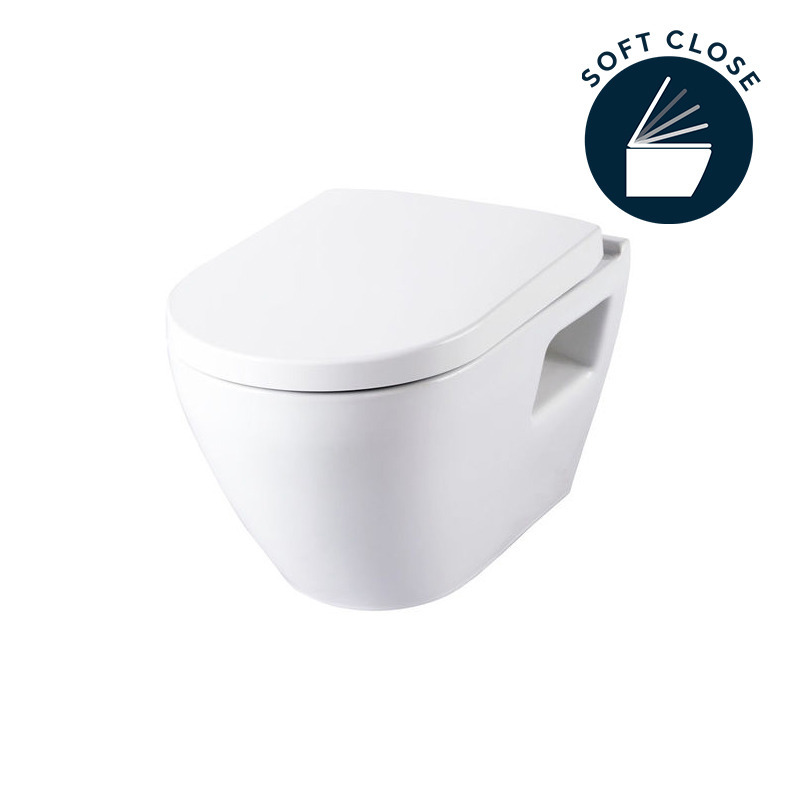

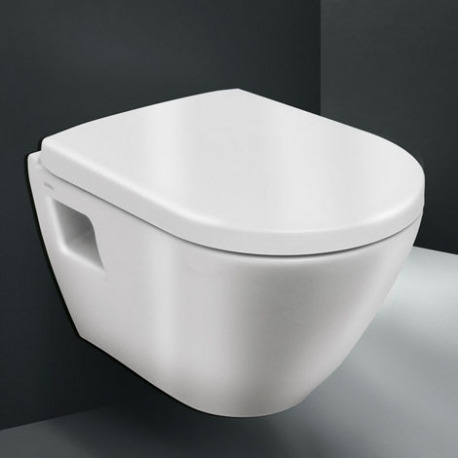

Serel Solido compact bowl + Softclose seat (SM10):
- SEREL Hygiene white vitrified ceramic bowl with flange

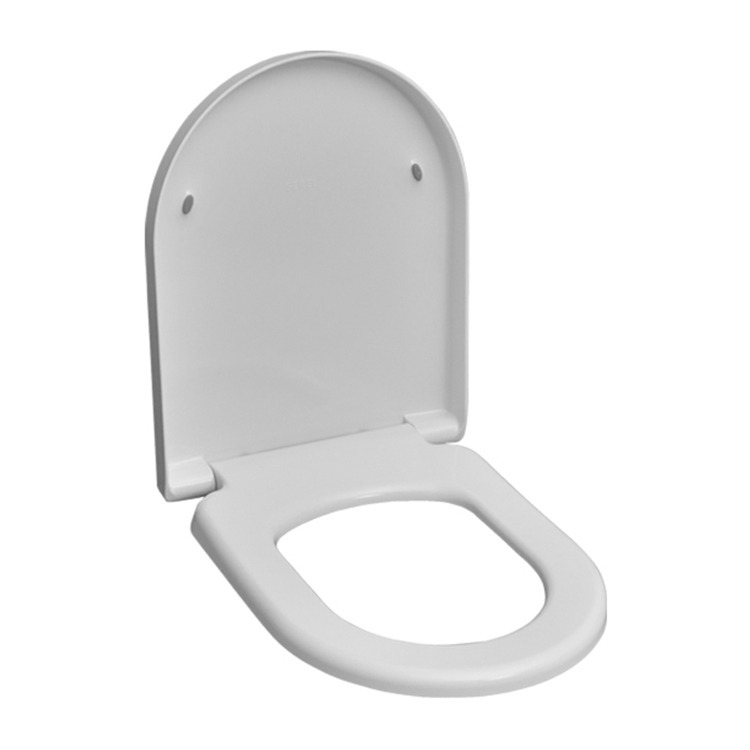

- SEREL ABS toilet seat with fall protection

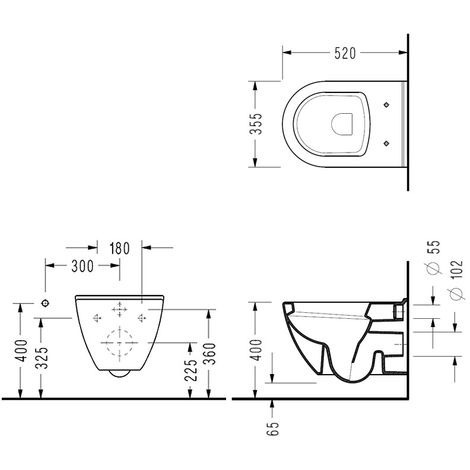

- Dimensions L52xW36xH33 (cm)
- CE marking
- Scratchproof
- Serel

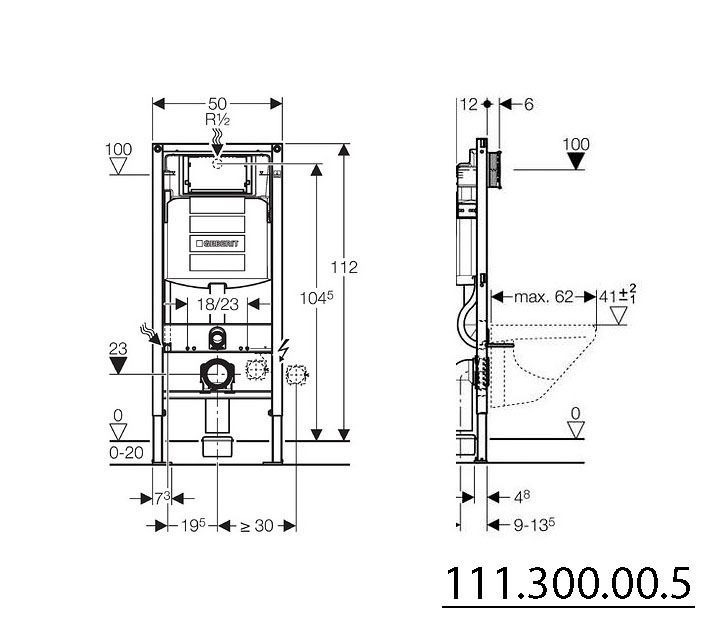

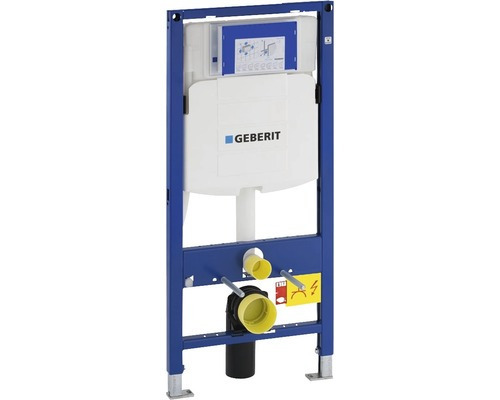

Geberit Duofix UP320 frame (111.300.00.5):
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- For installation with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
-
Water connection from above in the middle, from the back or from above

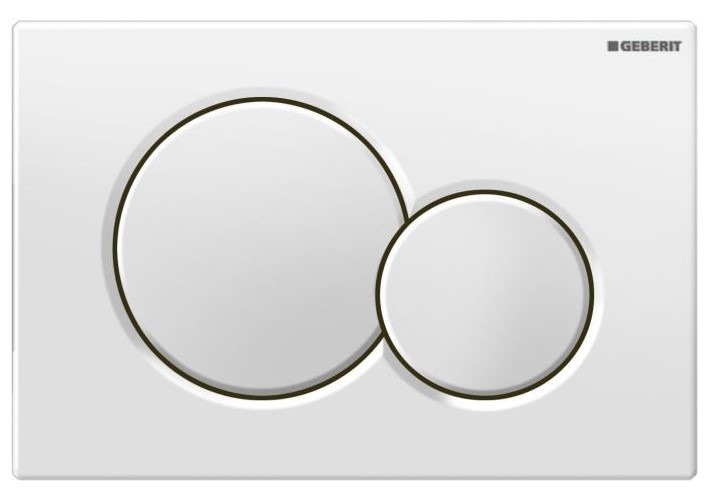

Geberit Flush plate double-touch SIGMA 01 white (115.770.11.5):
- Double button 3/6L water saving
- Made of high quality synthetic material
- Dimensions: 246x164 mm.
The DUOFIX wall mounting set is not supplied, please order under reference 111.815.00.1.
