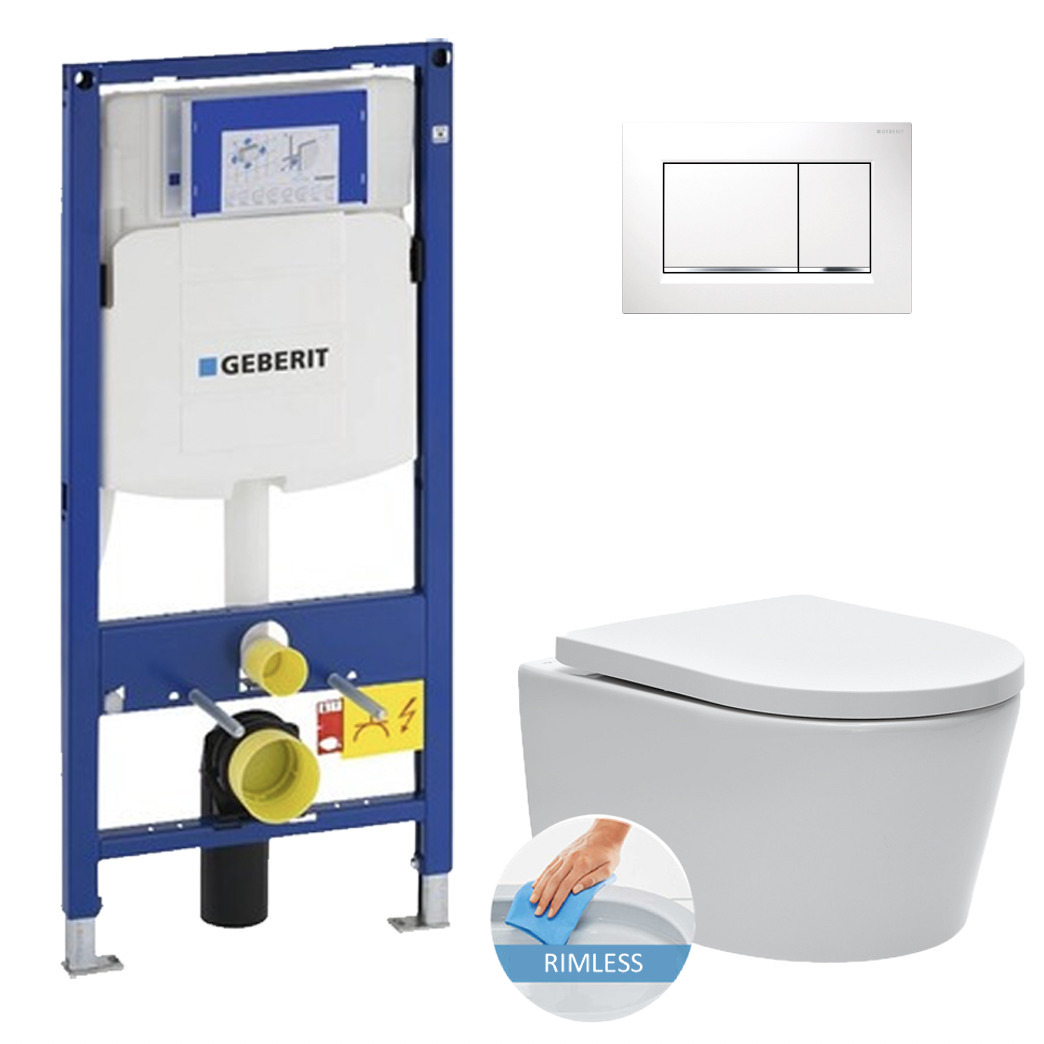

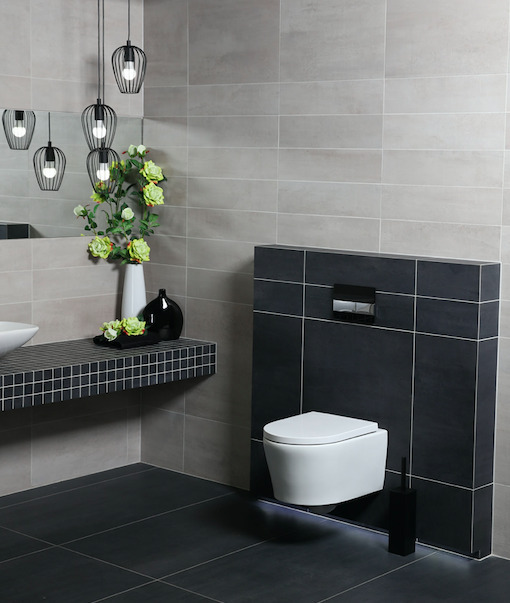

Geberit Toilet set UP320 support frame + SAT rimless WC + Soft close seat + White flush plate (GebSATrimless-H)
- Product reference: GEBSATRIMLESS-H
- EAN: 0750122364473
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Toilet set UP320 support frame + SAT rimless WC + Soft close seat + White flush plate (GebSATrimless-H) :
- Geberit Duofix UP320 wall mounting frame (111.300.00.5)
- Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
- Geberit Flush plate Sigma30 for dual flush, white / gloss chrome-plated (115.883.KJ.1)
- Geberit DUOFIX wall mounting set (111.815.00.1)
- Colour:White
- Material:Ceramic
- Length (cm):48
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Weight:35
- Bowl colour:White
- Invisible fixings:Yes

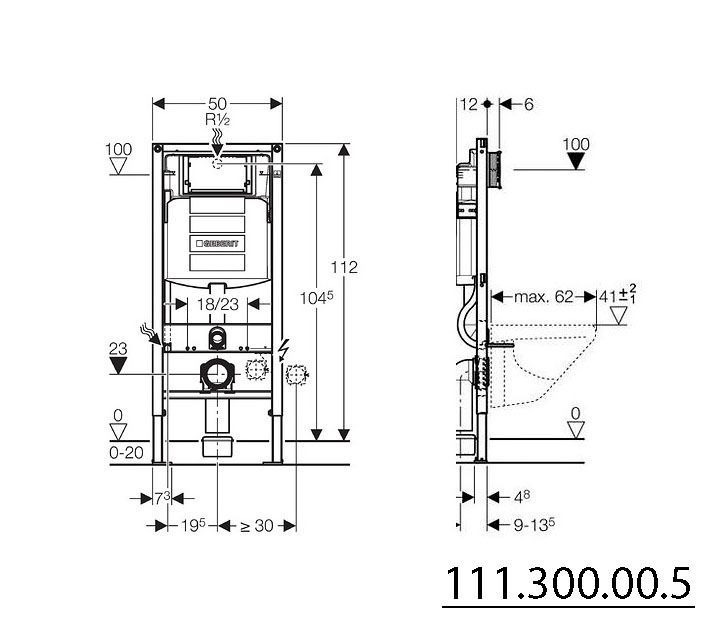

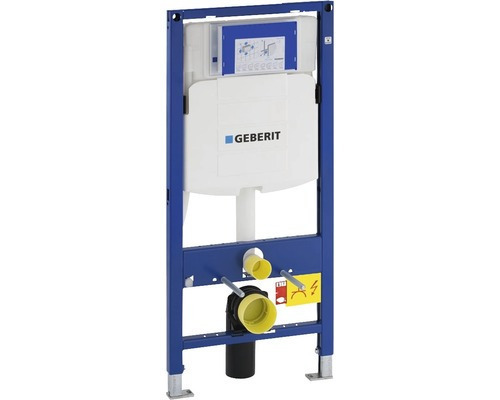

Geberit Duofix UP320 wall mounting frame (111.300.00.5) :
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above
.

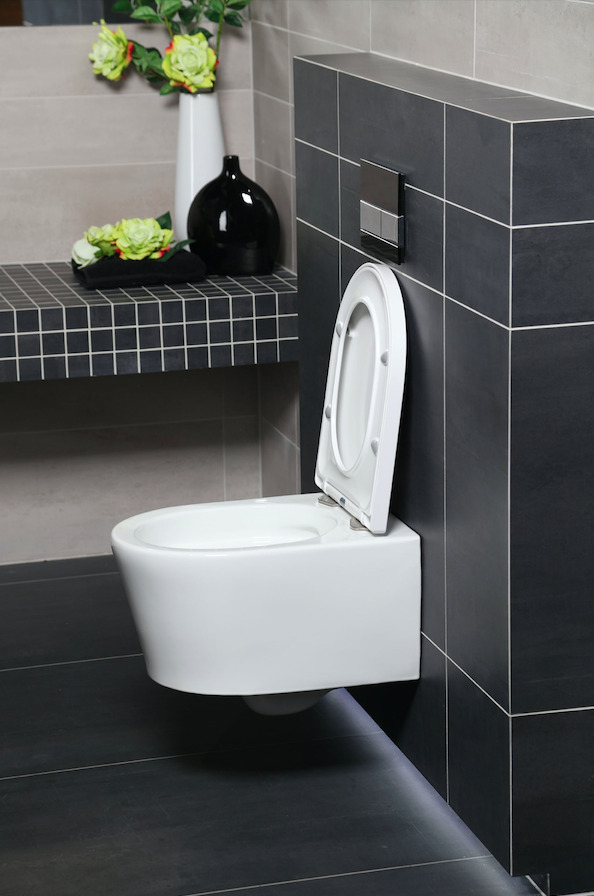

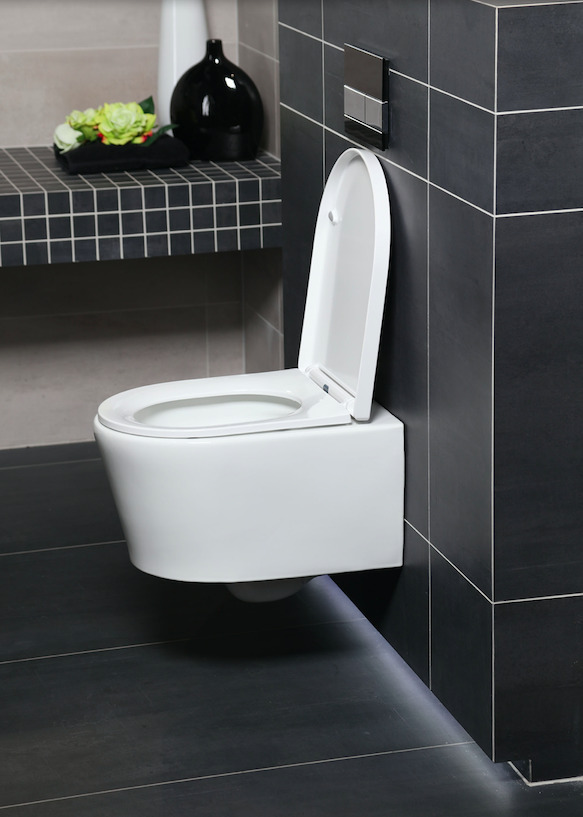

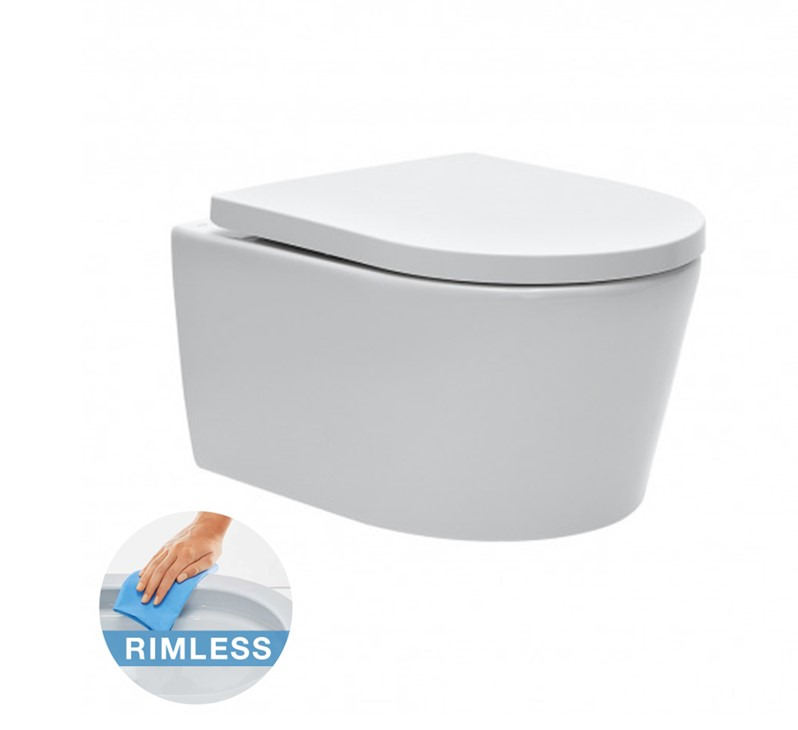

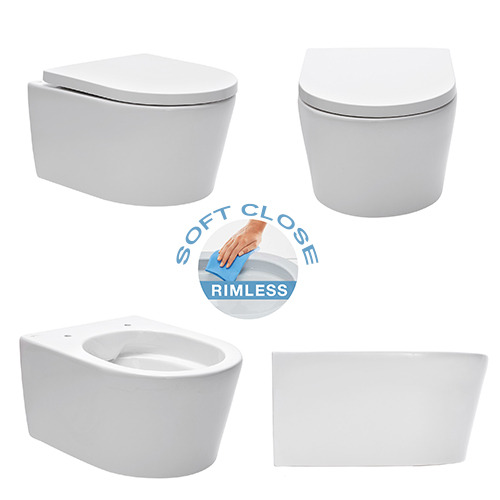

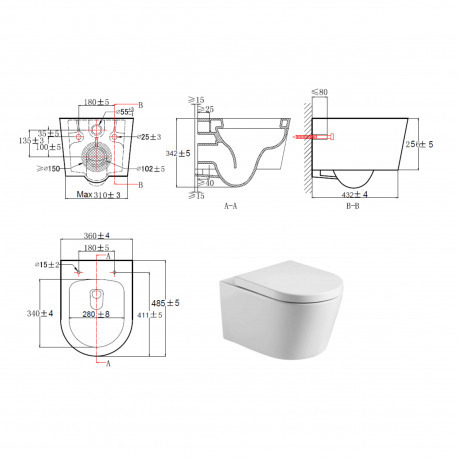

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless) :
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L

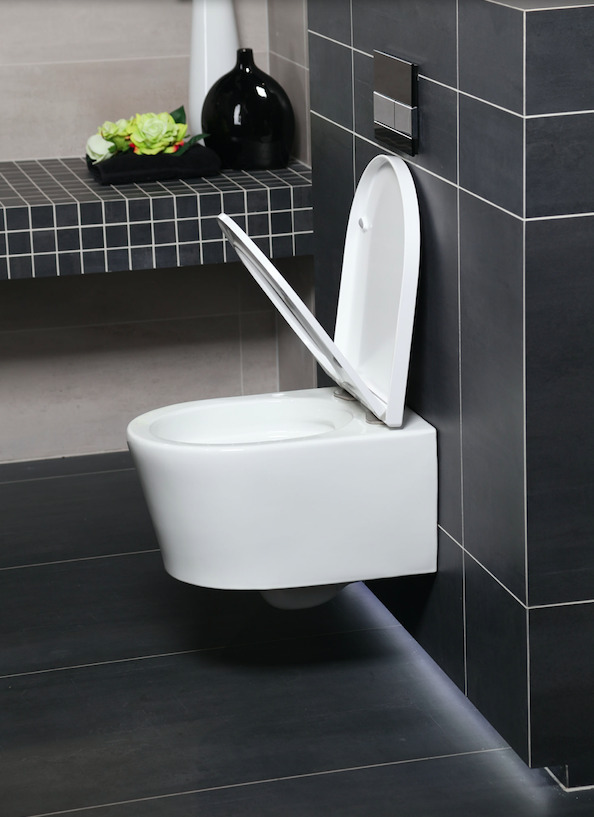

- Toilet seat with fall brake
- Snap-on flap
- Easy to maintain thanks to the rimless system and removable flap
- Quick setup
.

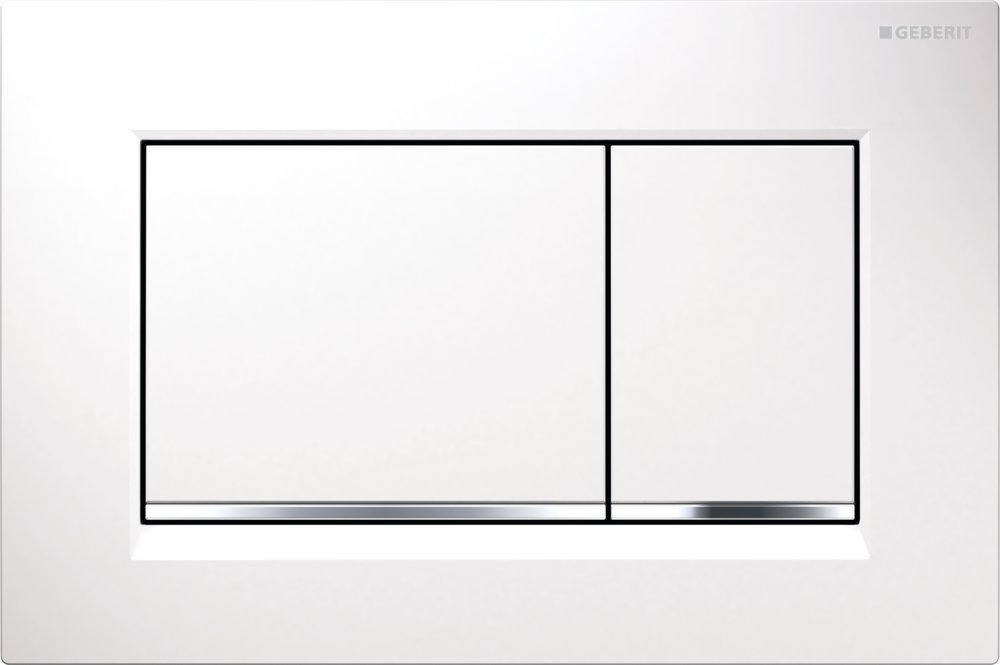

Geberit Flush plate Sigma30 for dual flush, white / gloss chrome-plated (115.883.KJ.1) :
- Suitable for Sigma 12 cm and Sigma 8 cm concealed tanks.
- Tool-free installation of the support frame
- Double button
- Made of synthetic material
- Perfect colourfastness over time
- Resistant to cleaning agents and scratches
- Acts as an access hatch to the tank
.
Geberit DUOFIX wall mounting set (111.815.00.1) :
- For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
- For fastening the cladding in front of partial-height overlay walls.
Please note! It is imperative to check the products upon receipt. Any damage must be reported to the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
