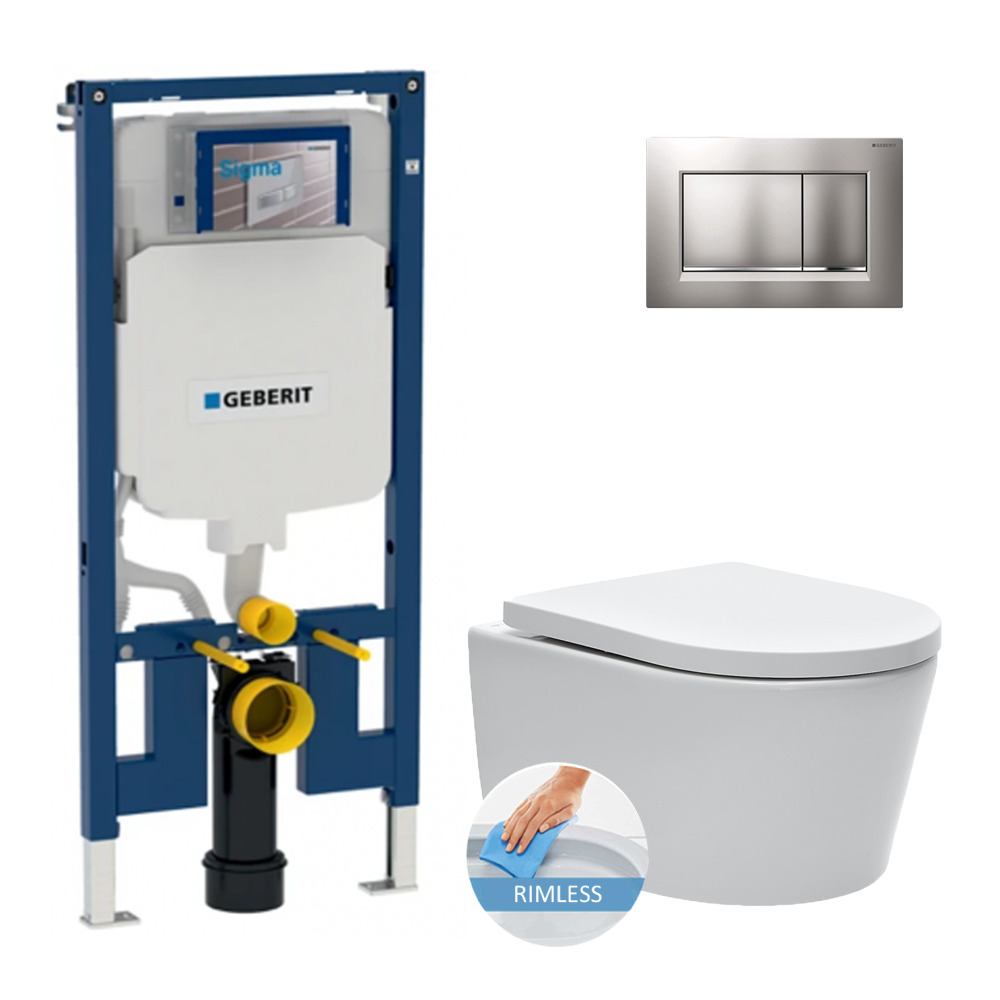

Geberit Toilet set Geberit UP720 + SAT rimless WC + Softclose seat + Matt Chrome Plate (SLIM-SATrimless-L)
- Product reference: SLIM-SATrimless-L
- EAN: 0750122366613
Let yourself be seduced by the simplicity and the ease of installation of this Toilet set + SAT rimless self-supporting toilet bowl + Softclose seat + Matt Chrome control plate.
This toilet set combines the rimless self-supporting toilet bowl and the softclose seat from Swiss Aqua Technologies, as well as the Geberit brand with the Duofix UP720 support frame.
The quality of the items in this set is well known, and the modernity and design of these items will certainly satisfy you by providing you with solutions adapted to your projects.
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:Matt chrome
- New:New
- Bowl colour:White
- Invisible fixings:Yes
Features of the Toilet set Geberit UP720 + SAT rimless WC + Softclose seat + Matt Chrome Plate (SLIM-SATrimless-L) :
- Geberit UP720 extra-flat stand 114 cm support frame, space-saving, with Sigma concealed cistern (111.796.00.1)
- Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
- Geberit Sigma30 Double button flush plate, Matt Chrome (115.883.JQ.1)
.

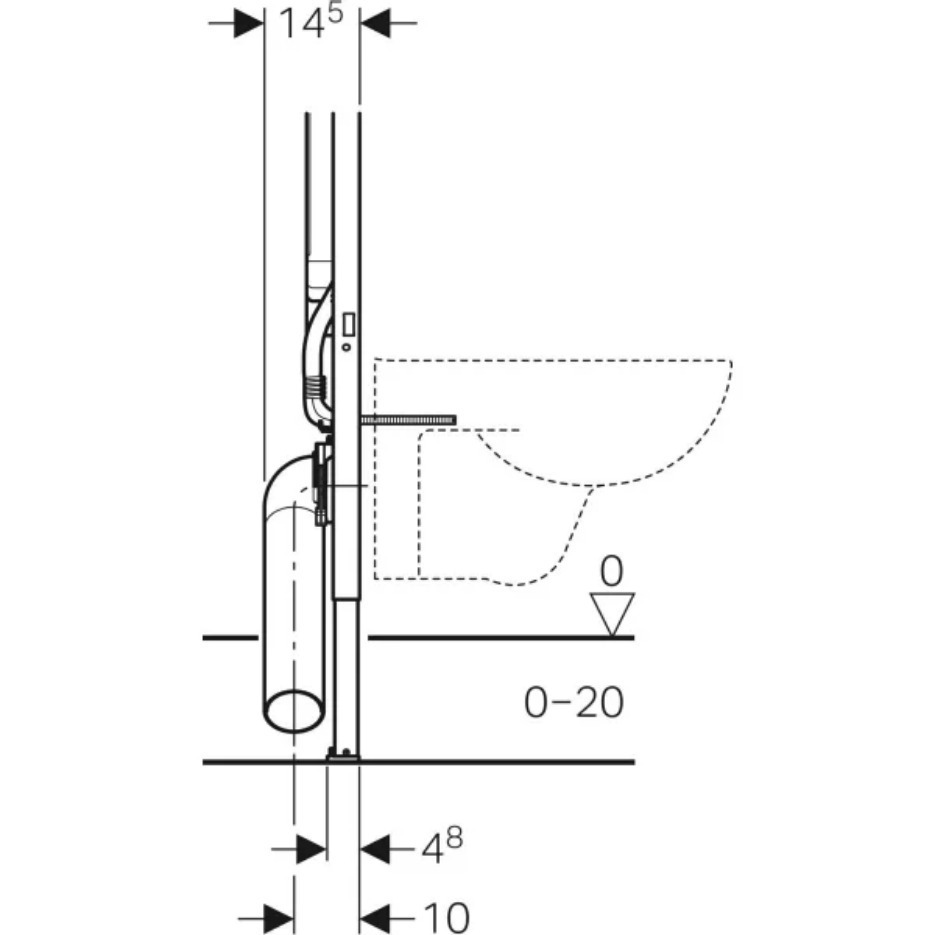

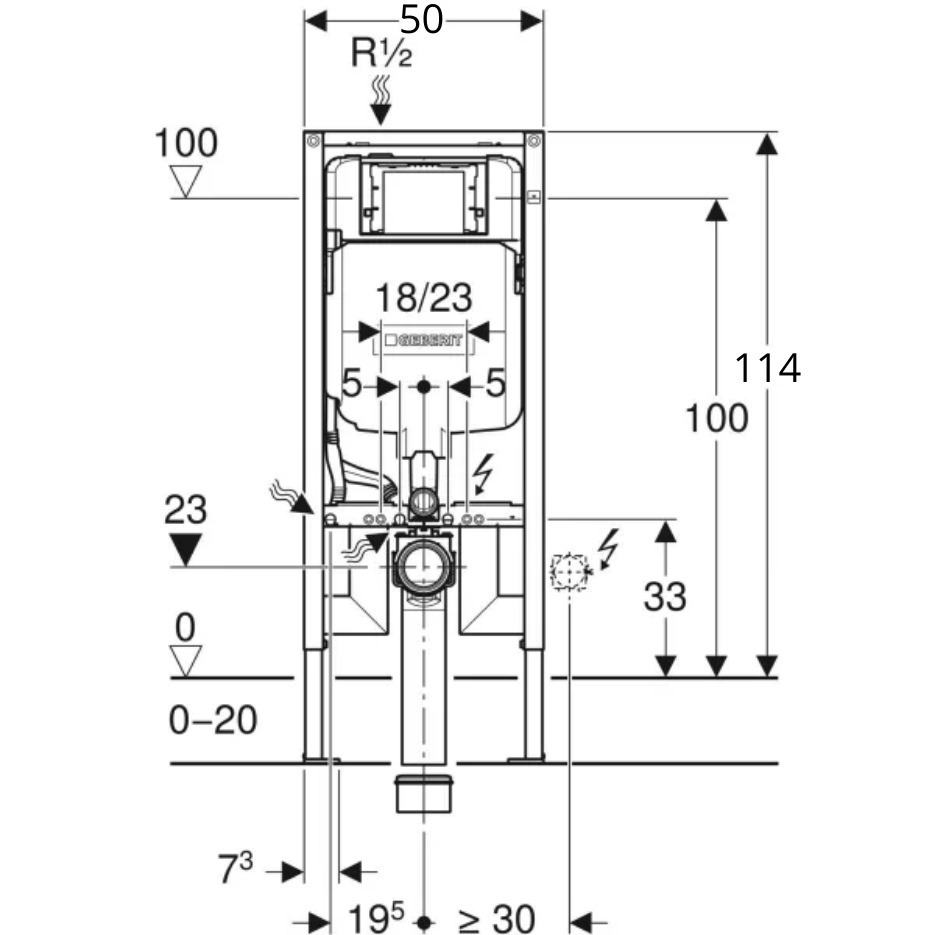

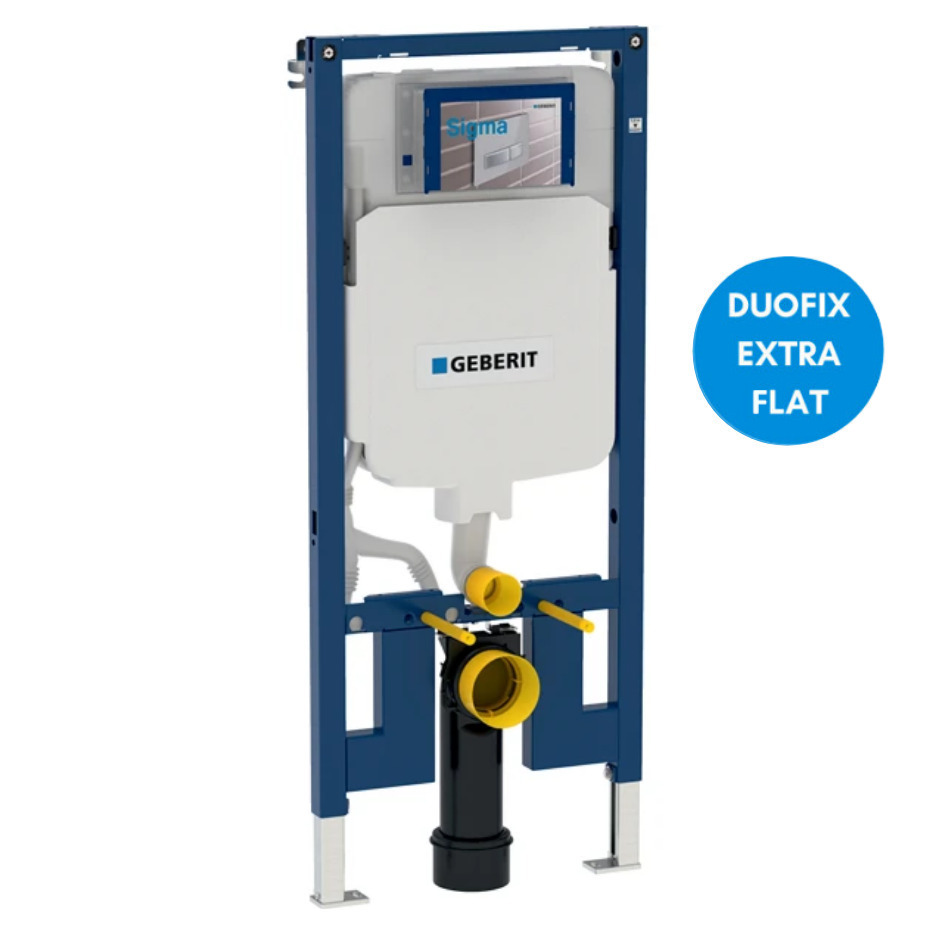

Geberit UP720 extra-flat stand 114 cm support frame, space-saving, with Sigma concealed cistern (111.796.00.1)
- Frame suitable for WC bowls with small support surface (with pressure-resistant wall cladding)
- Galvanised, infinitely adjustable, non-slip support feet
- Depth of foot plates suitable for installation on UW 50 profiles and Geberit Duofix system rails
- Connecting bend for different depth positions, can be mounted without tools
- Connecting bend for depth position flush with the front for vertical installation
- Extended connection bend, for floor connection
- Connection bend fastening with sound insulation
- Built-in tank with front release
- Built-in tank insulated against condensation
- Immediate post-flushing possible with factory setting
- Installation and maintenance work on concealed cisterns without tools
- Water inlet from the top left
- Access panel housing, protects against moisture and dust
- Access panel box, can be cut to size, suitable for flush-mounted trigger plates
- Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
- With fixing possibilities for electrical connection
Use :
- For dry wall construction
- For installation in walls at room height or partial height
- For installation in installation walls at room height

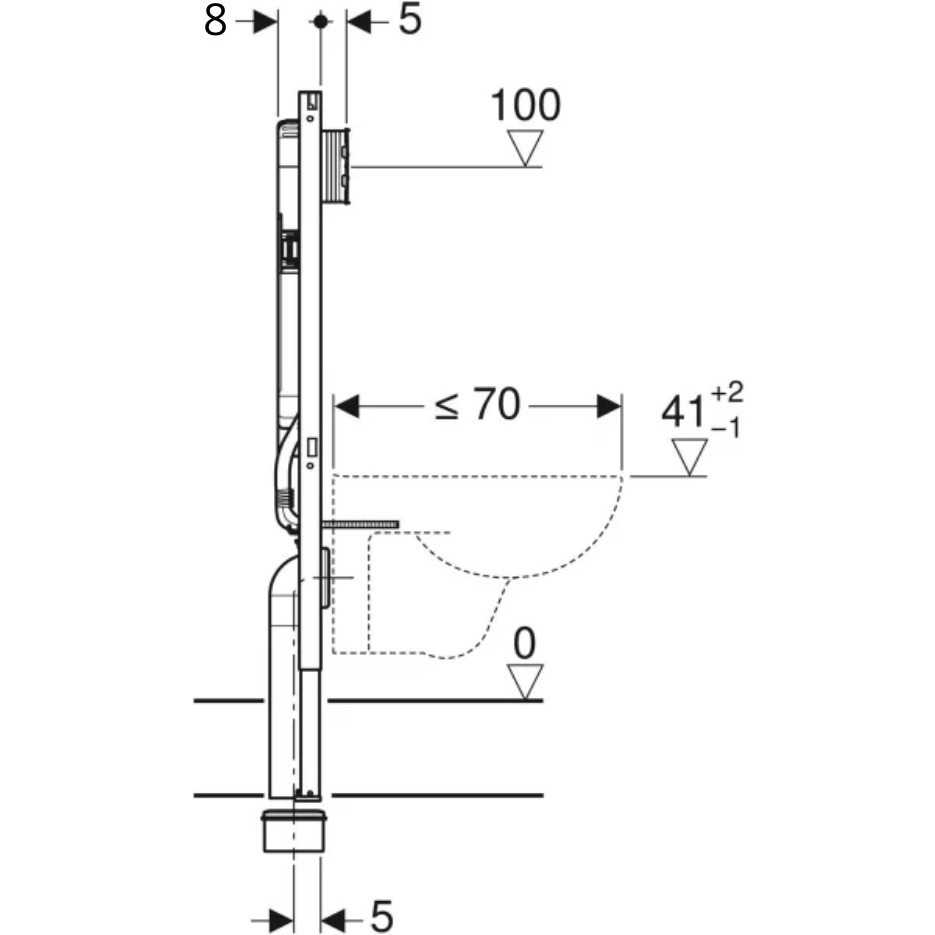

- For wall-hung toilets extended to 70 cm
- For one-touch, two-touch or interruptible flushing
- For screed heights of 0-20 cm
Scope of delivery :
- R 1/2" supply line, MF compatible, with integrated angle valve and hand wheel
- Reservation box for inspection hatch
- 2 wall mountings
- WC connection set, ø 90 mm
- 90° PE-HD connection bend, ø 90 mm
- Transition sleeve made of PE-HD, ø 90 / 110 mm
- 2 protective caps
- 2 threaded rods M12
- Fixing material
.

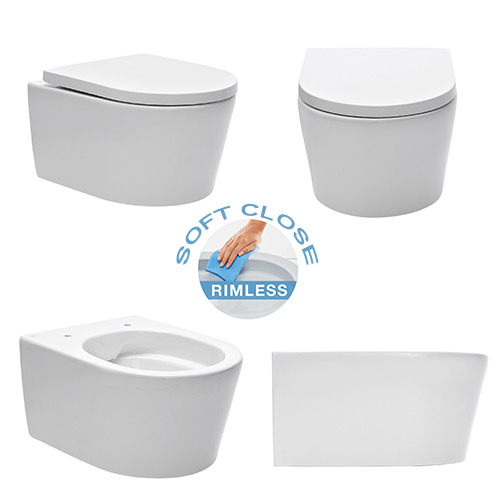

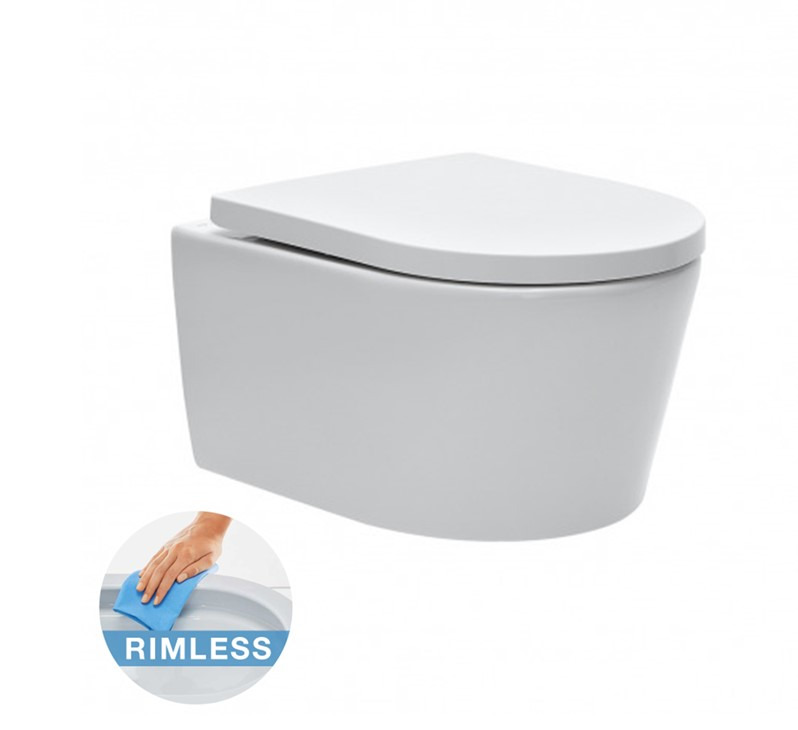

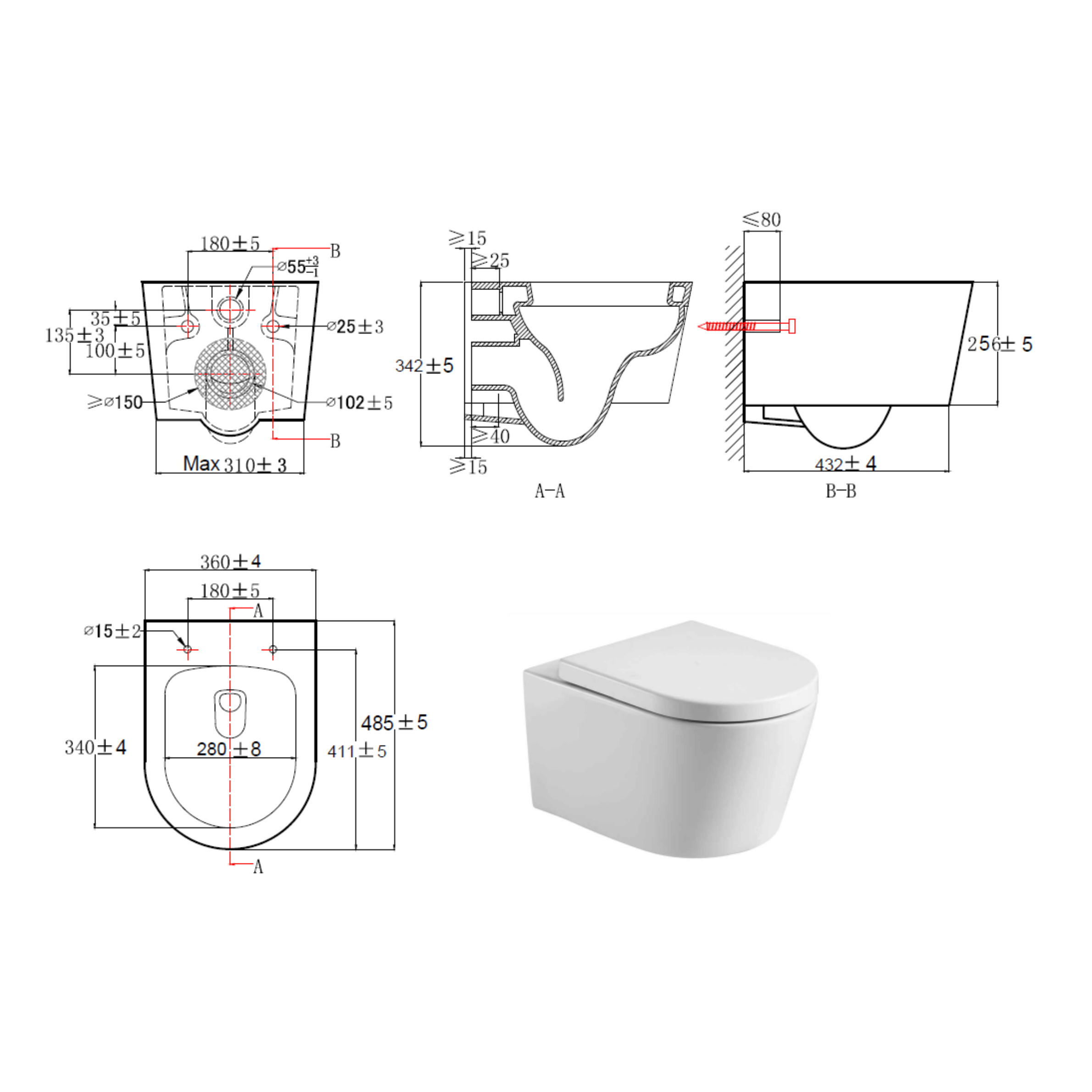

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L
- Toilet seat with fall brake
- Snap-on flap
- Easy to maintain thanks to the rimless system and removable flap
- Quick setup
.

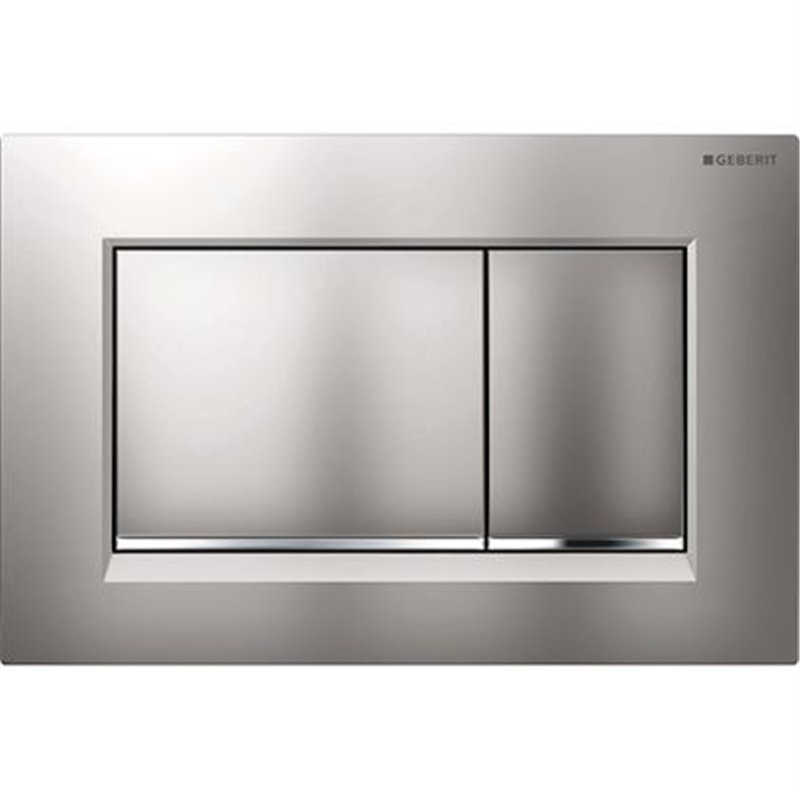

Geberit Sigma30 Double button flush plate, Matt Chrome (115.883.JQ.1)
- Triggering force < 20 N
- Frontal release
- Soundproofed release rods, quick adjustment without tools
- Material: plastic
- Plate and buttons: matt chrome plated, easy to clean
- Design strips: bright chrome-plated
Scope of delivery:
- Mounting frame
- 2 spacer bolts
- 2 release rods
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
