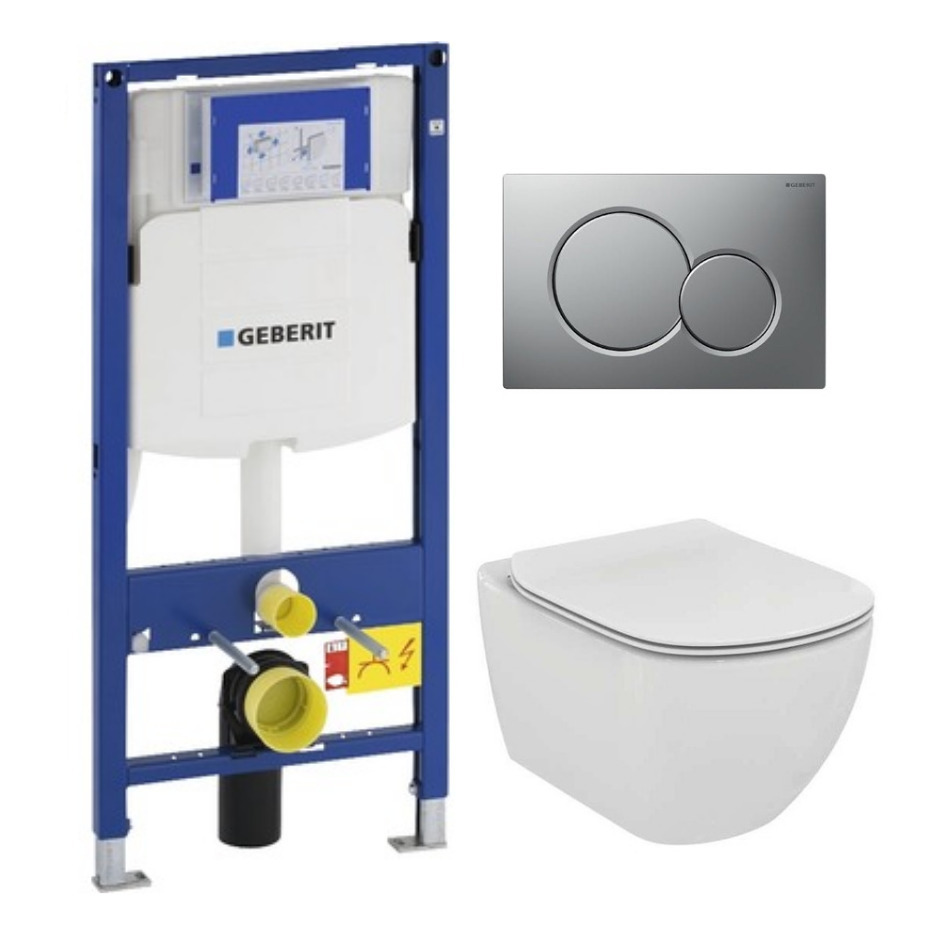

Geberit Duofix toilet set + Ideal Standard Tesi Aquablade bowl + Sigma01 Matt Chrome flush plate (GEBAQUA-M)

Features of the Geberit Duofix toilet set + Ideal Standard Tesi Aquablade bowl + Sigma01 Matt Chrome flush plate (GEBAQUA-M)

• Geberit Duofix UP320 wall mounting frame (111.300.00.5)
• Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)
• Geberit DUOFIX wall mounting set  ( 111.815.00.1)
• Geberit Sigma01 Trigger plate - Matt chrome  (115.770.46.5)

.

Geberit Duofix UP320 wall mounting frame (111.300.00.5) :

• Geberit Duofix WC element with concealed cistern
• Type UP320
• With front controls
• Equipped with self-supporting frame
• 100-112cm (H) x 50 (W) x 12 (D)
• Suitable for sigma control panel

Use :

• For mounting with floor structure from 0 to 20 cm
• For mounting in wall or partition
• For installation in a wall at room height
• For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
• Can be connected to Geberit AquaClean

Technical information :

• Geberit Sigma concealed cistern 12 cm, front operation
• 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
• Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
• Adjustable flush water quantity
• Concealed cistern for tool-free installation and maintenance
• Acoustically insulated trigger rods, quickly adjustable without tools
• Universal water connection, compatible with MeplaFix, for toolless installation
• Flexible connection hose to the shut-off valve, can be screwed on without tools
• Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
• Self-adjusting feet adjustable from 0 to 20 cm
• Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
• Concealed cistern with anti-condensation insulation
• Frame with C-profile 4/4 cm
• Frame painted ultramarine blue
• 5 cm push-on feet
• Water connection from above in the middle, from the back or from above

.

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601) :

Includes :

• Ideal Standard TESI Rimless porcelain sanitary ware toilet bowl (T007901)

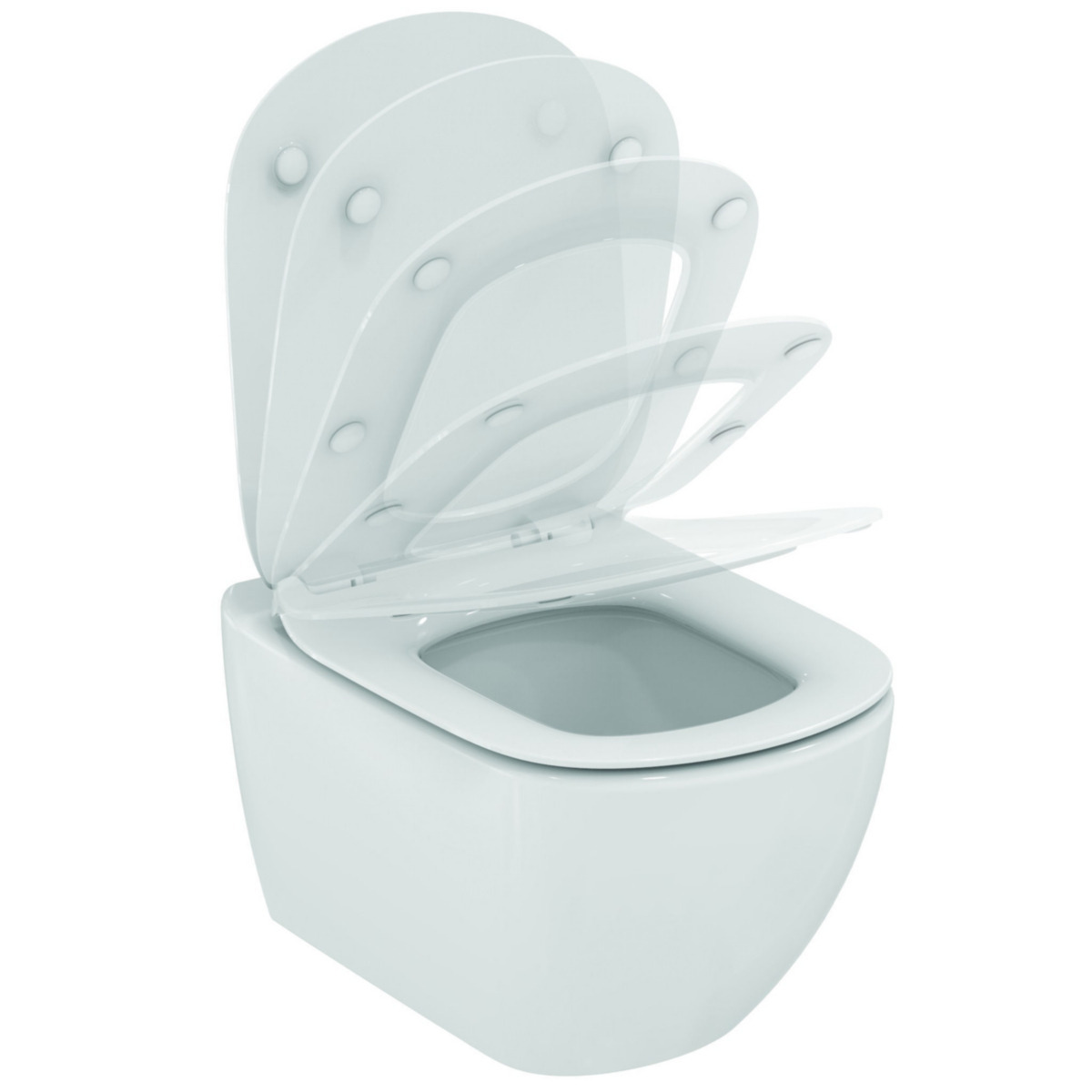

• Ideal Standard TESI Toilet seat with soft close system (T352701)

.

Features :

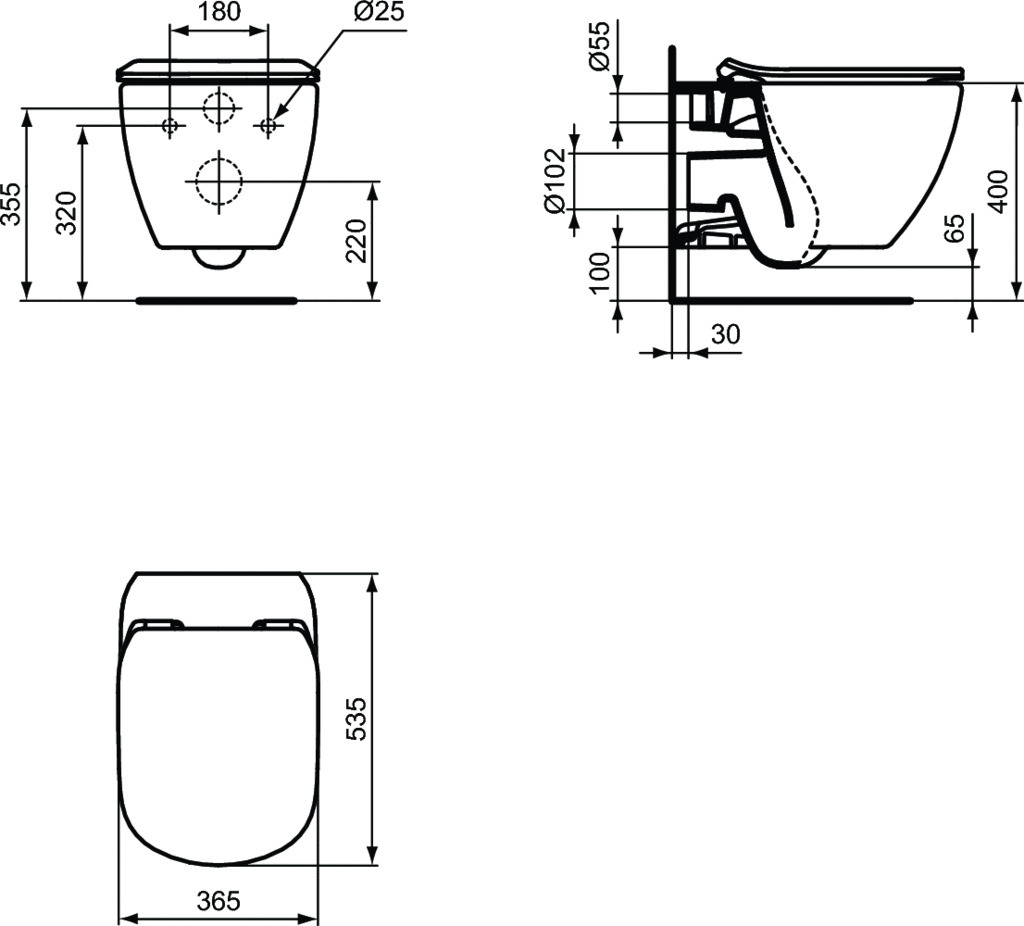

• Dimensions (WxDxH): 365 x 535 x 355 mm
• Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
• Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
• Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
• Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
• Elegantly designed hanging bowl with no protrusions
• Width of the back wall: 285 cm
• Bowl made without flange, fully enamelled for easy cleaning

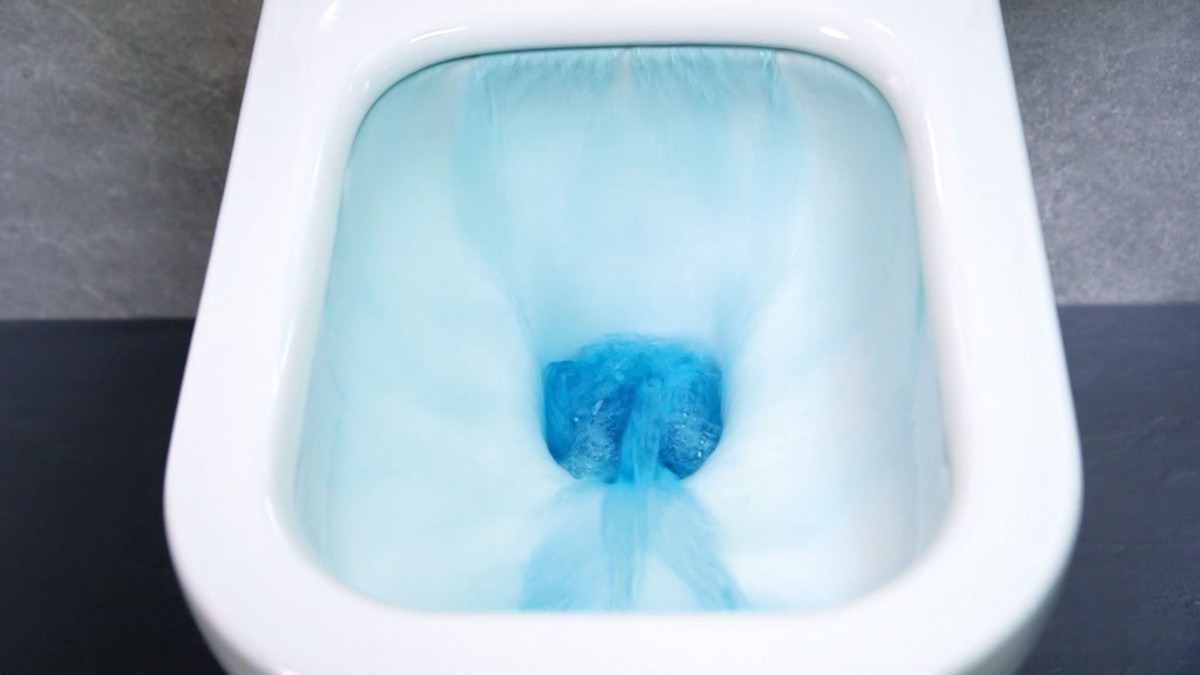

• Water passes through two open side channels and a central hole
• Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
• Distance between fixings: 180mm
• The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
• In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
• The toilet bowl is equipped with a specific drop-brake seat
• The manufacturer's name appears in full on the product
• Complies with the standard: EN 997 & EN 33

.

Geberit DUOFIX wall mounting set  ( 111.815.00.1) :

• For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
• For fastening the cladding in front of partial-height overlay walls.

.

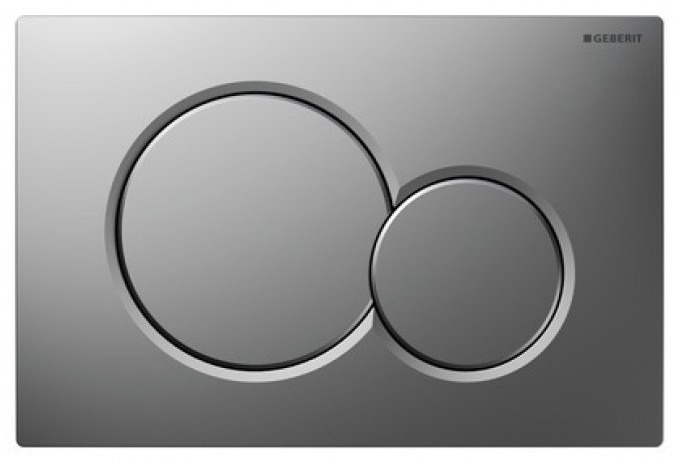

Geberit Sigma01 Trigger plate - Matt chrome (115.770.46.5) :

• For the release of Geberit built-in tanks
• For two buttons
• For front release
• For use with Geberit Sigma 12 cm (UP320 and UP300), and Sigma 8 cm (UP720 and UP700) concealed cisterns
• Not suitable for use with Geberit Delta 12 cm (UP100) and Kappa 15 cm (UP200) concealed cisterns and Twinline
