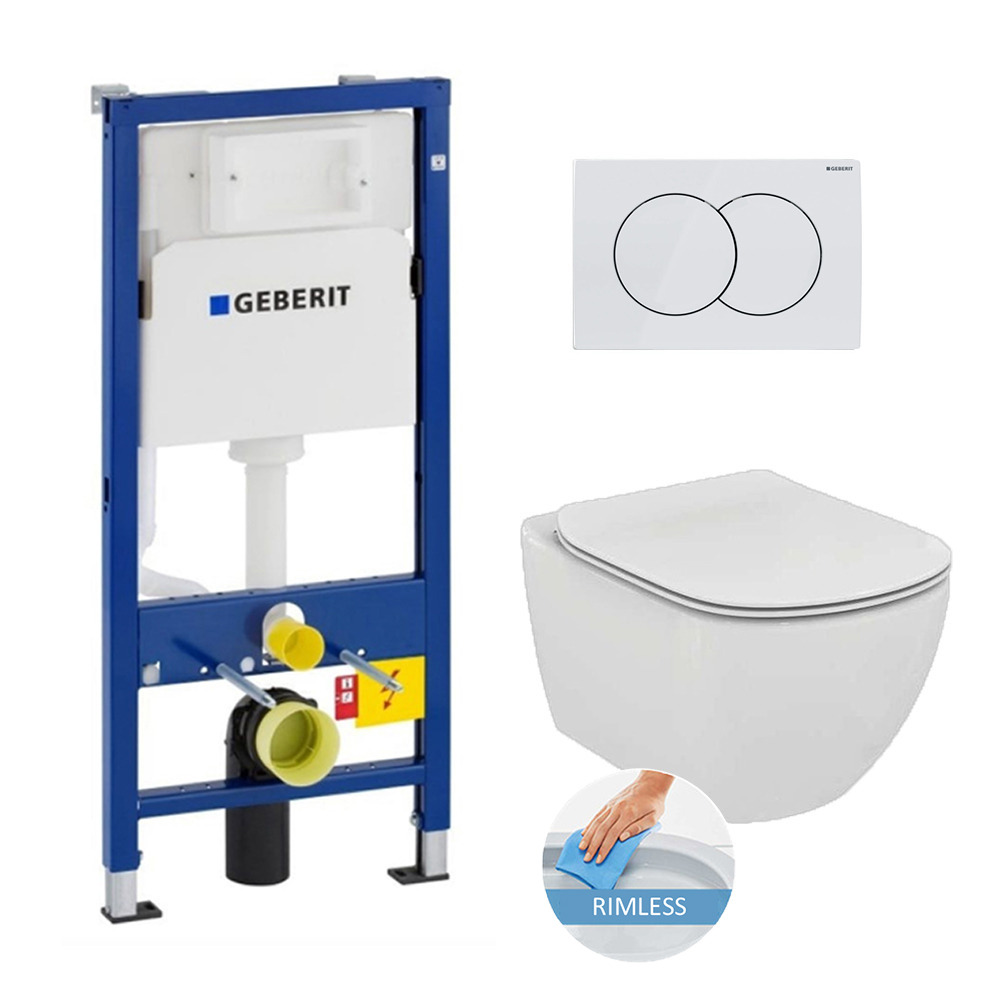

Geberit toilet set duofix UP100 + Ideal Standard Tesi Aquablade toilet bowl + Delta50 white flush plate (SETUP100-AQUA5)

Features of the Geberit toilet set duofix UP100 + Ideal Standard Tesi Aquablade toilet bowl + Delta01 white flush plate (SETUP100-AQUA5) :

• Geberit Duofix UP100 support frame + cistern for WC 112 cm (458.103.00.1)
• Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)
• White DELTA50 two-button flush plate (115.135.11.1)

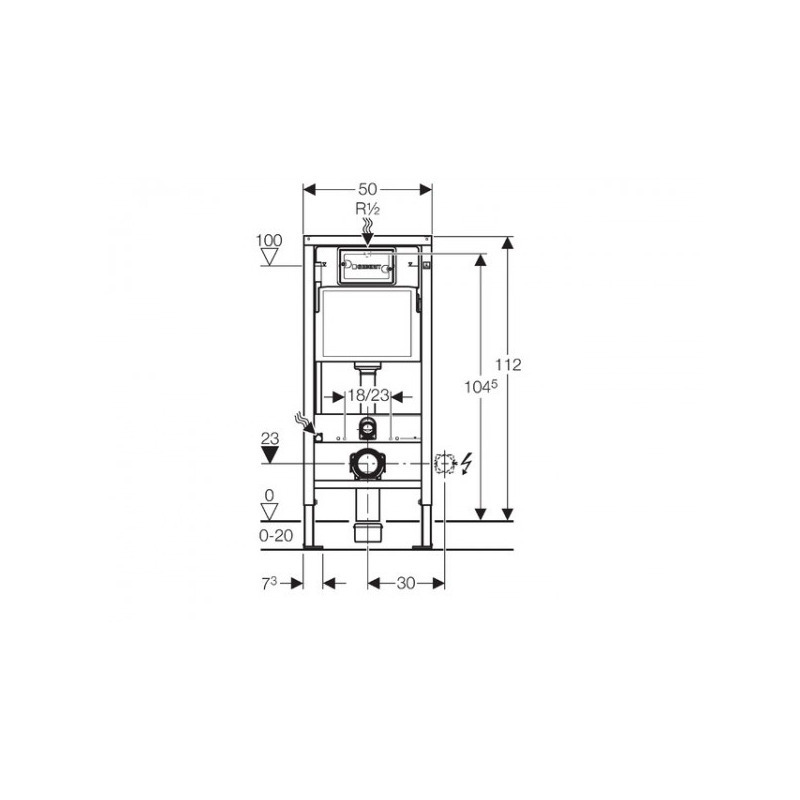

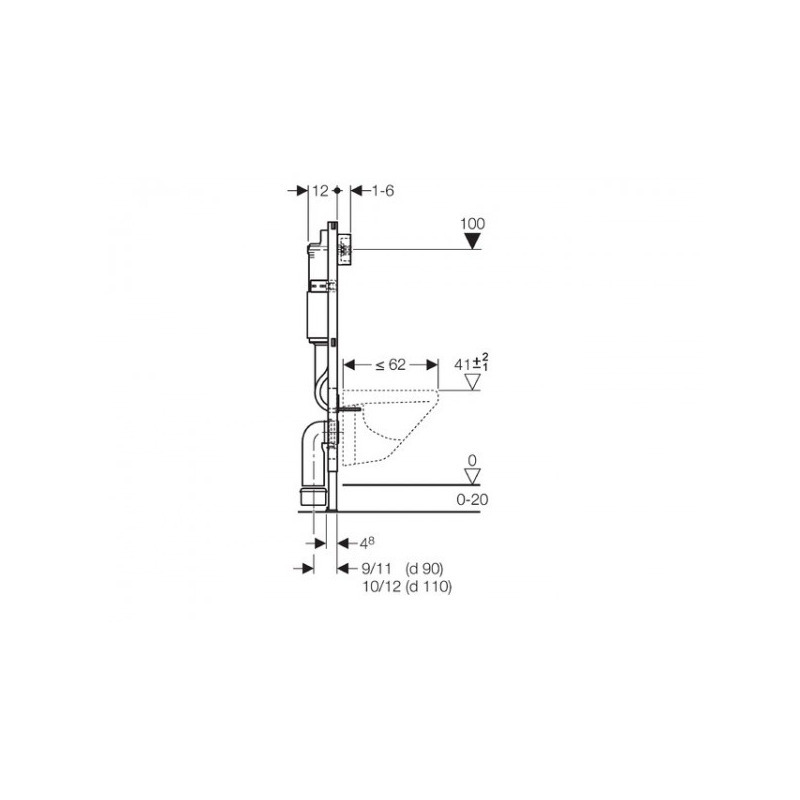

Geberit Duofix UP100 support frame + cistern for WC 112 cm (458.103.00.1) :

The set includes :

• 112 cm galvanised support frame with adjustable feet from 0-20 cm
• UP100 water tank (with 25-year manufacturer's warranty on spare parts)
• pre-painted frame in Geberit blue
• support feet with cm scale marking
• swivel feet for mounting in UW50/UW75 profile
• crossbar for cladding support
• 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
• concealed cistern 4-6-7.5 l, insulated against condensation
• two-stage front operation with Delta21, Delta20 or Delta50 plates
• supply from the back/top
• angle stop valve R1/2",
• housing for inspection hatch
• construction protection made of styrophor
• drain elbow Ø 90 mm
• sleeve fitting Ø 90 mm
• transition sleeve Ø 90/110 mm
• fixing material

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601) :

• Ideal Standard TESI Rimless porcelain sanitary ware toilet bowl (T007901)
• Ideal Standard TESI Toilet seat with soft close system (T352701)

Features:

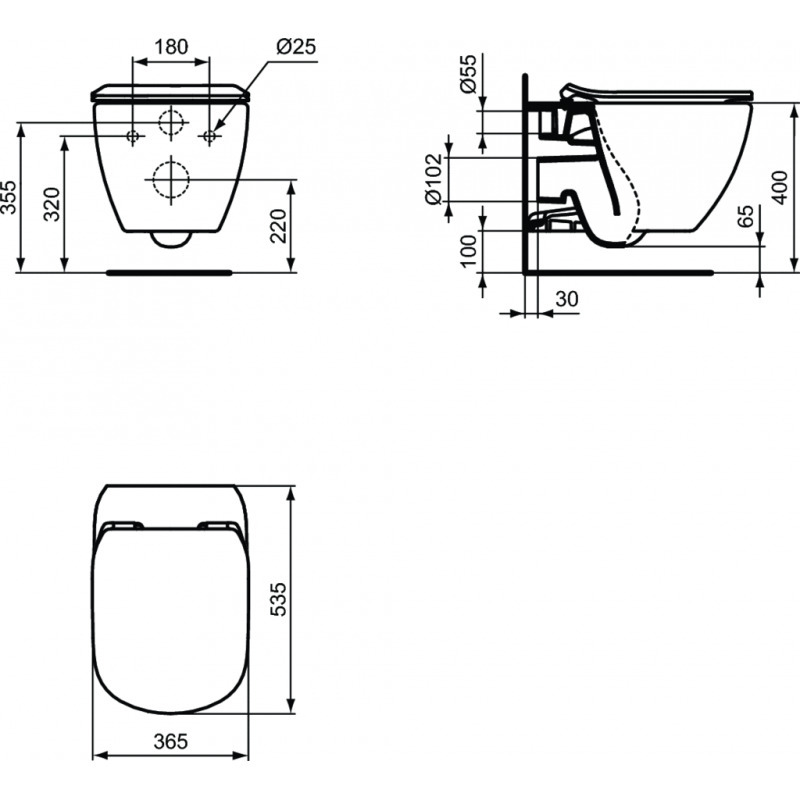

• Dimensions (WxDxH): 365 x 535 x 355 mm
• Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
• Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
• Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
• Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
• Elegantly designed hanging bowl with no protrusions
• Width of the back wall: 285 cm
• Bowl made without flange, fully enamelled for easy cleaning
• Water passes through two open side channels and a central hole
• Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
• Distance between fixings: 180mm
• The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
• In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
• The toilet bowl is equipped with a specific drop-brake seat
• The manufacturer's name appears in full on the product
• Complies with the standard: EN 997 & EN 33

White DELTA50 two-button flush plate (115.135.11.1) :

flush plate with ABS double button device
