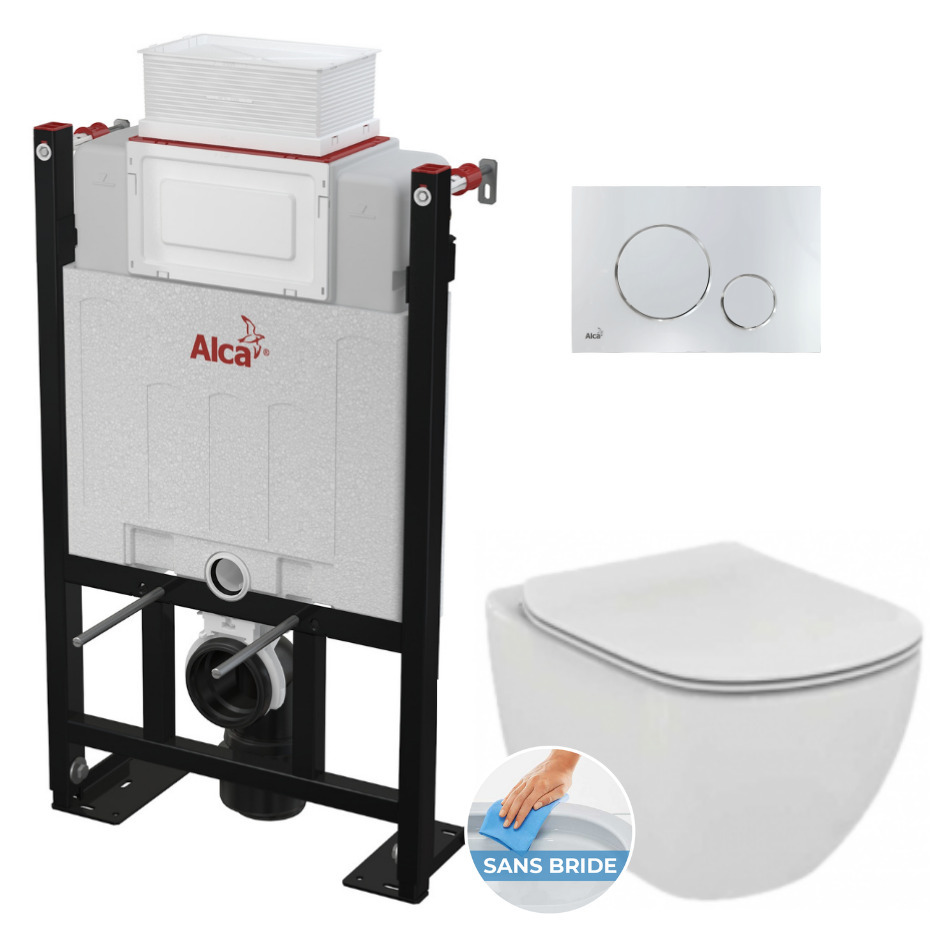

Alca Pack WC 85 cm self-supporting frame + Ideal Standard Tesi rimless + softclose seat + Gloss chrome plate (Alca85FTesi-8)

Features of the Pack WC 85 cm self-supporting frame + Ideal Standard Tesi rimless + softclose seat + Gloss chrome plate (Alca85FTesi-8) :

• Alcaplast self-supporting frame for suspended toilet, 85cm (AM118/850F)
• Alcaplast Gloss chrome two-touch control panel with chrome trim (M671)

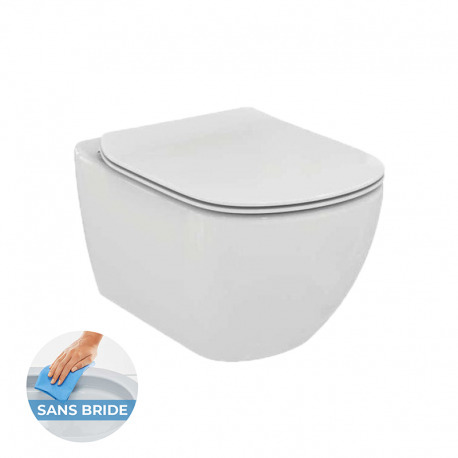

• Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)

.

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin seat with soft close (T354601)  :

• • Rimless porcelain sanitary ware toilet bowl (T007901)

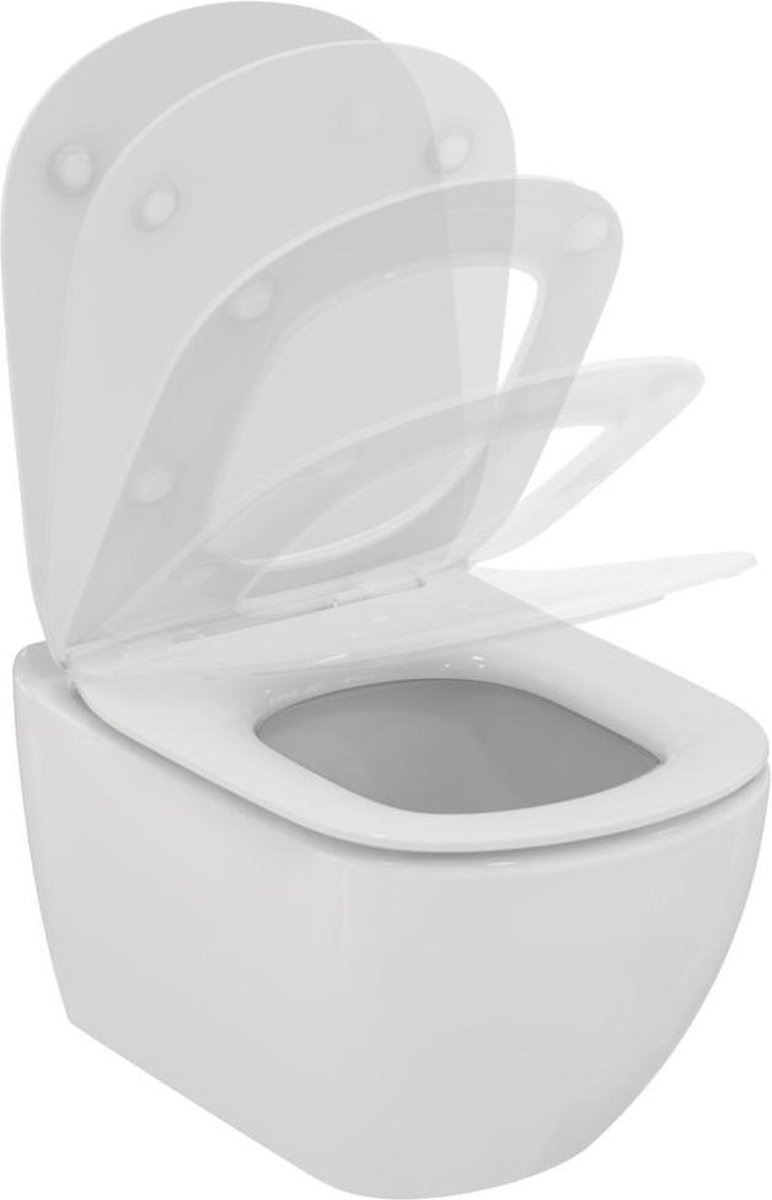

  • Toilet seat with soft close system (T352701)

Features:

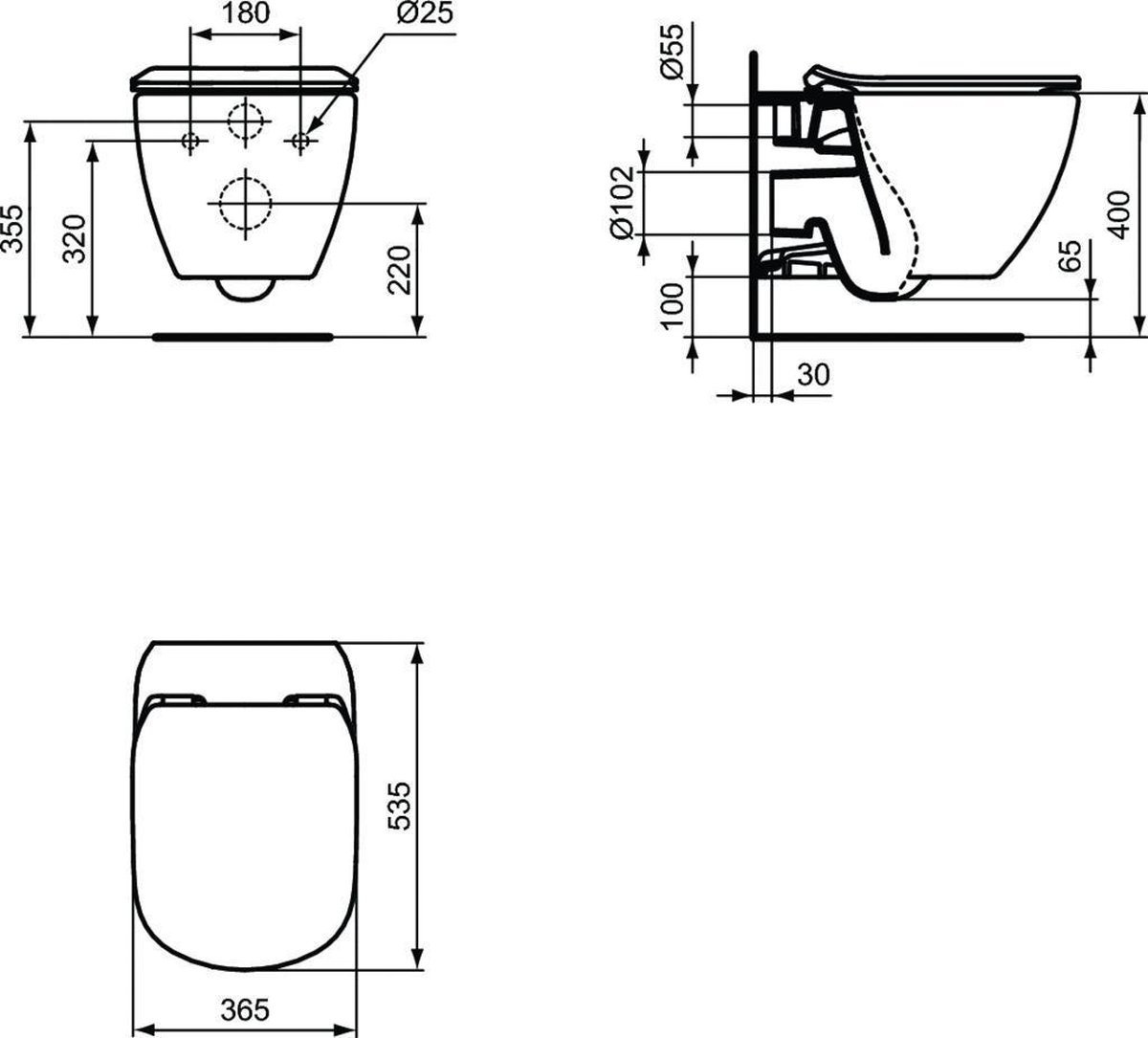

• • Dimensions (WxDxH): 365 x 535 x 355 mm
  • Porcelain fired at 1270°, insensitive to light and unalterable to basic acids
  • Porosity lower than 0.1%, the breaking point is between 500 and 600Kg/cm2
  • Enamel (thickness of 0.7mm) placed directly on the porcelain and fired at the same temperature, without engobe
  • Enamel standard NF D14-503 (02/2012) concerning the resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resists to chemical products described in the standard NF D14-508
  • Elegantly designed hanging bowl with no protrusions
  • Width of the back wall: 285 cm
  • Bowl made without flange, fully enamelled for easy cleaning
  • Water passes through two open side channels and a central hole
  • Bowl designed for efficient rinsing at 4/2 & 6/3 liters (class 2)
  • Distance between fixings: 180mm
  • The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
  • In the case of a fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
  • The toilet bowl is equipped with a specific drop-brake seat
  • The manufacturer's name appears in full on the product
  • Complies with the standard: EN 997 & EN 33

Sound insulation set SP 156SET not included. Not mandatory but strongly recommended.

.

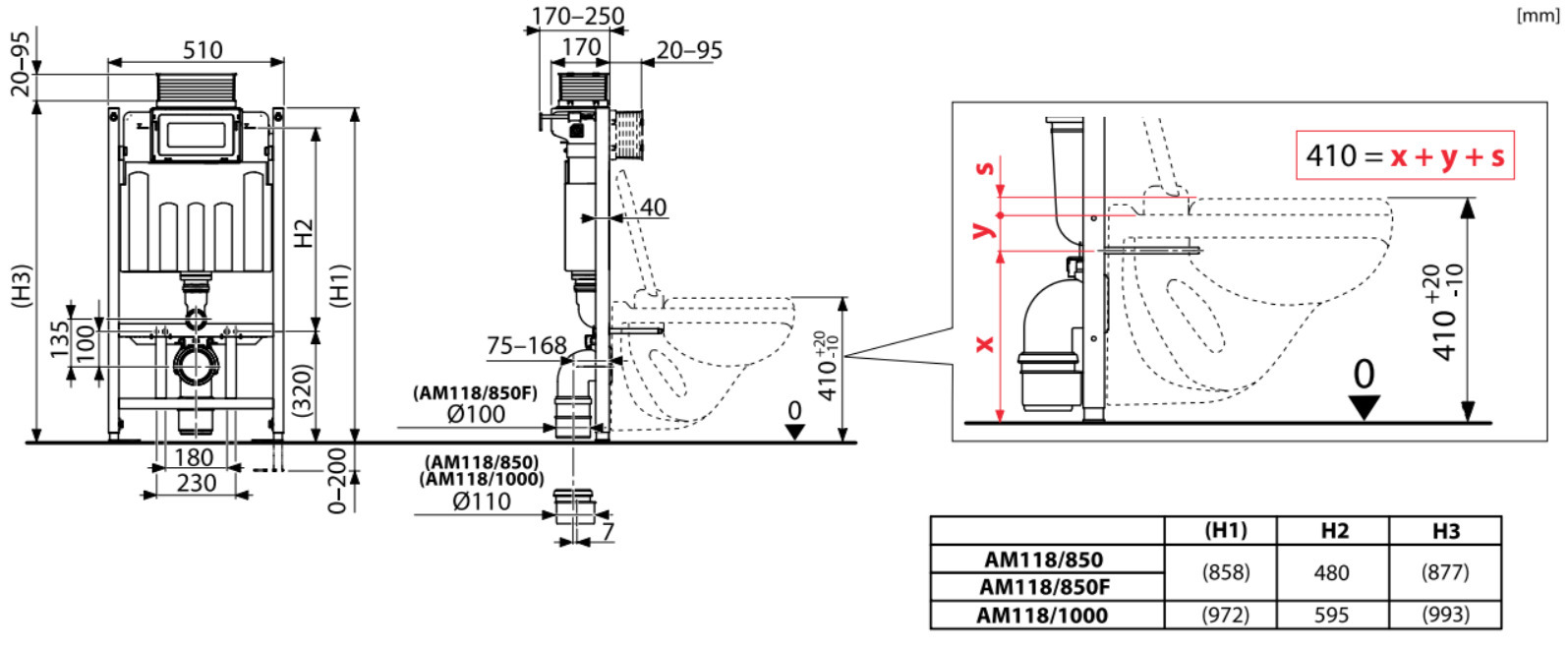

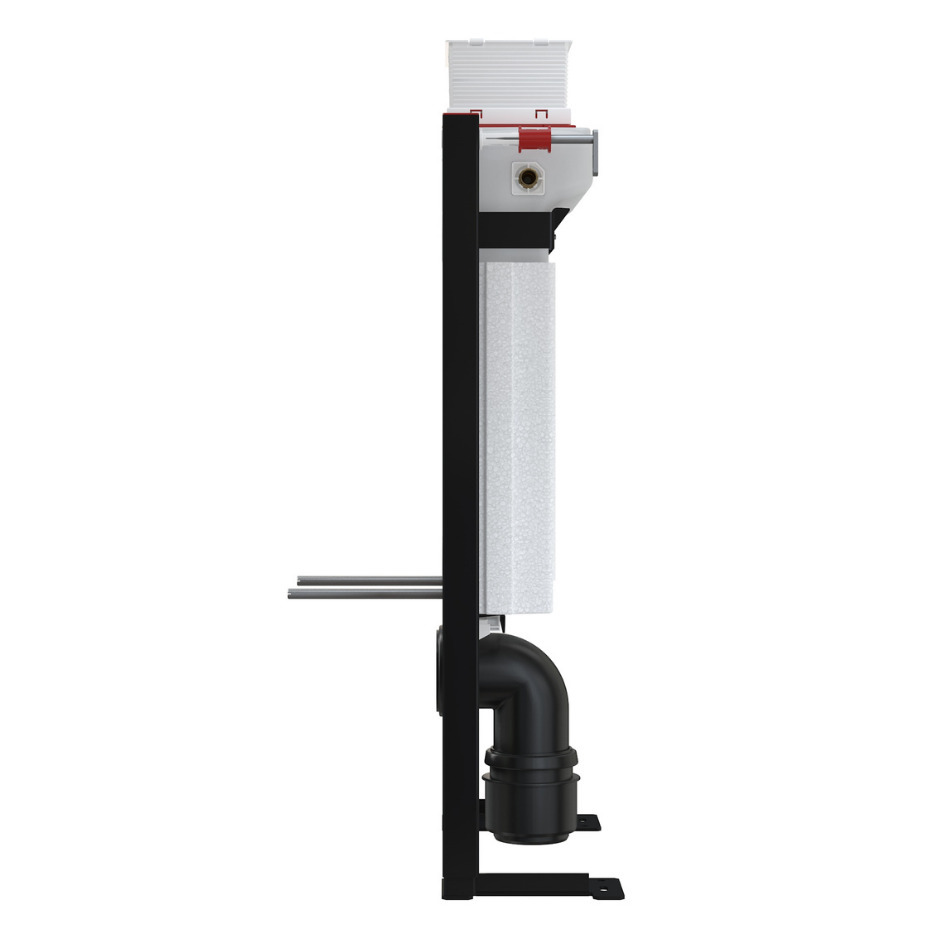

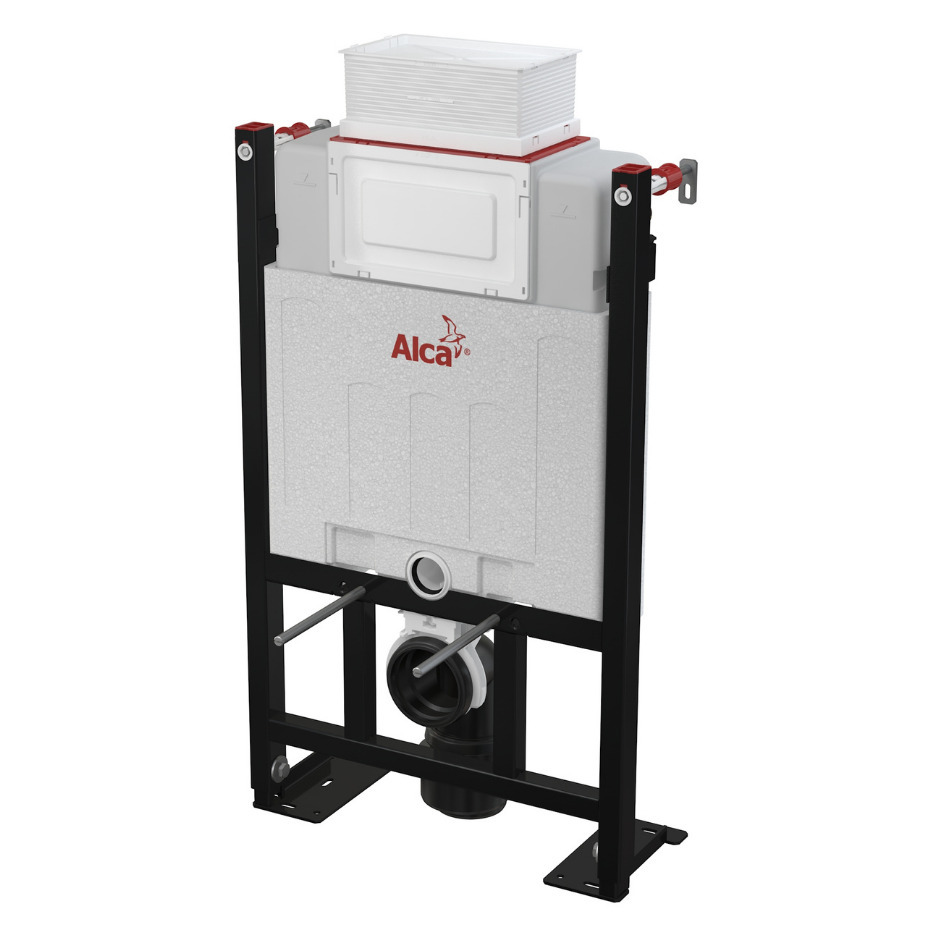

Alcaplast self-supporting frame for suspended toilet, 85cm (AM118/850F) :

• Freestanding toilet frame
• For wall-hung toilets
• Suitable for installation in front of a load-bearing wall or in a plasterboard construction
• For floor thicknesses of 0 to 200 mm
• For installation of wall-hung toilet bowls with a connection pitch of 180 mm or 230 mm
• Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
• The sliding rail support for the waste connector can be adjusted to eight positions between 0 and 93 mm
• Angle valve with the option to connect to the Mepla piping system
• The frame allows for anchoring to a separate plasterboard partition that is sufficiently strong, in front of the load-bearing wall
• For drywall, completely pre-assembled
• The installed module is covered with a plasterboard panel and no additional fixing or anchoring elements are required
• The polystyrene insulation construction prevents condensation from forming on the surface of the tank and dampens tank vibrations in the building structure
• Prepared for connecting a support with a DG 1/2" conversion for bidet seats and sprays
• Double flush independently adjustable with hygiene reserve
• Top or front actuation
• Maintenance work can be performed without tools
• Water supply from the back/top
• The tank is made of a single piece, ensuring 100% waterproofing
• The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
• Adjustable installation depth from 20 to 95 mm
• Frame material: powder-coated metal
• Metal feet
• Schell shut-off valve included

.

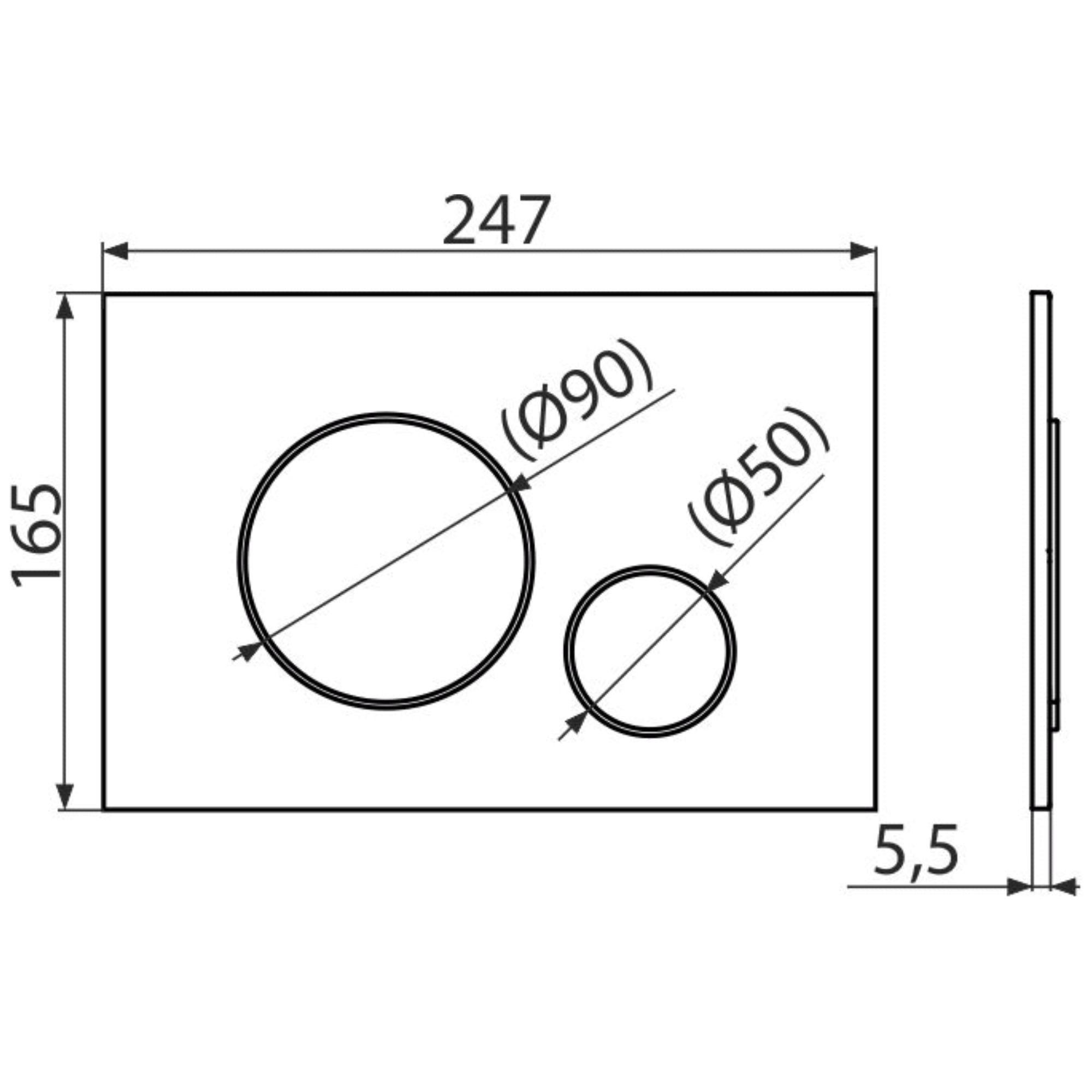

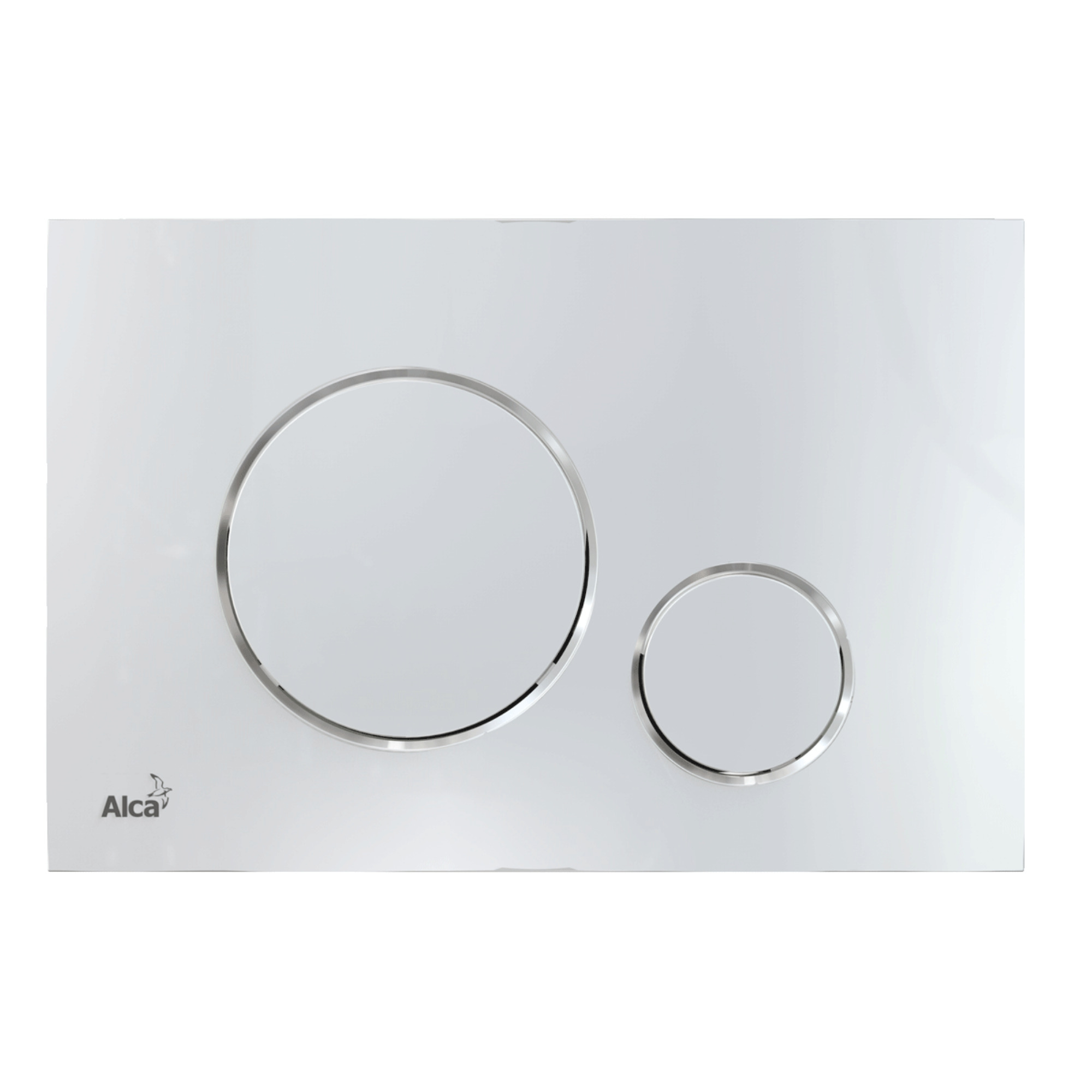

Alcaplast gloss chrome two-touch control panel with chrome trim (M671)  :

• Compatible with all Alcaplast installation systems and pre-wall tanks.
• Thanks to its slim 5.5 mm profile, this plate protrudes only slightly from the lining.
• Double action mechanical flushing.
• Colour: bright chrome Surface finish: chrome polished
• Material: plastic

.
