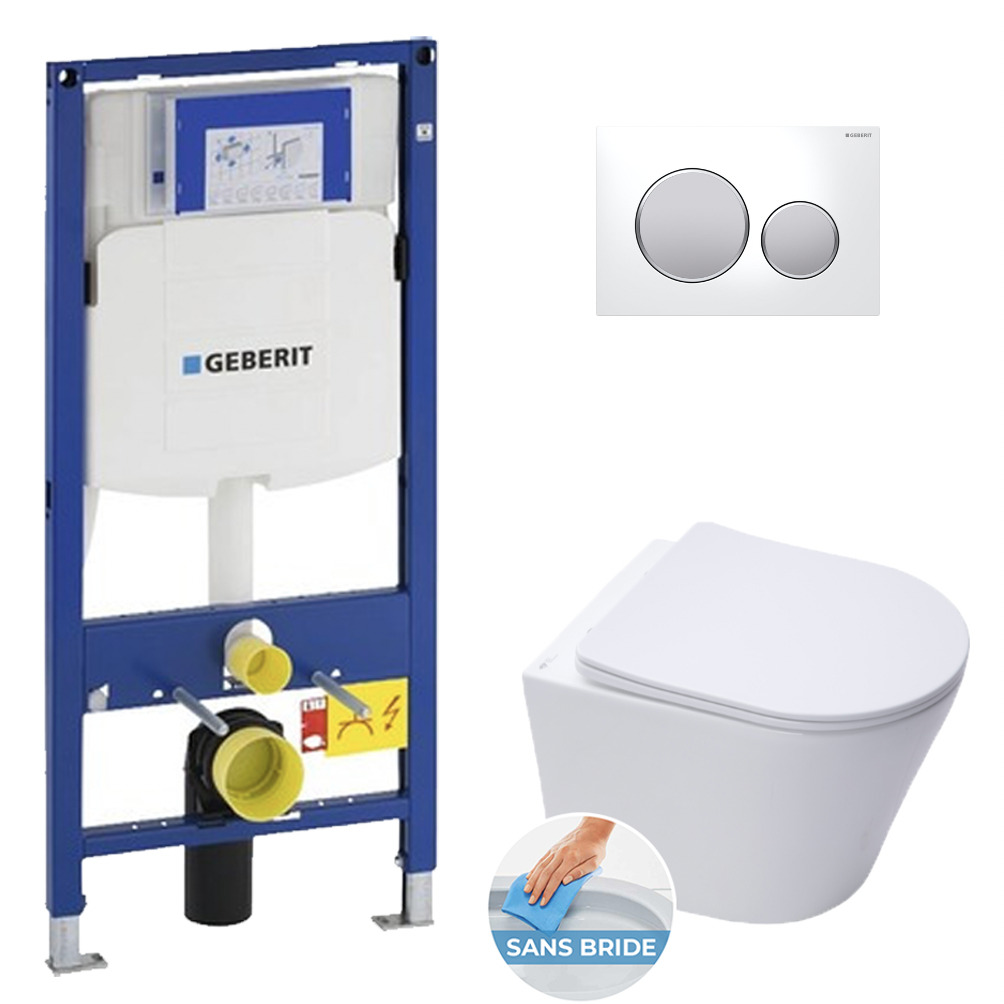

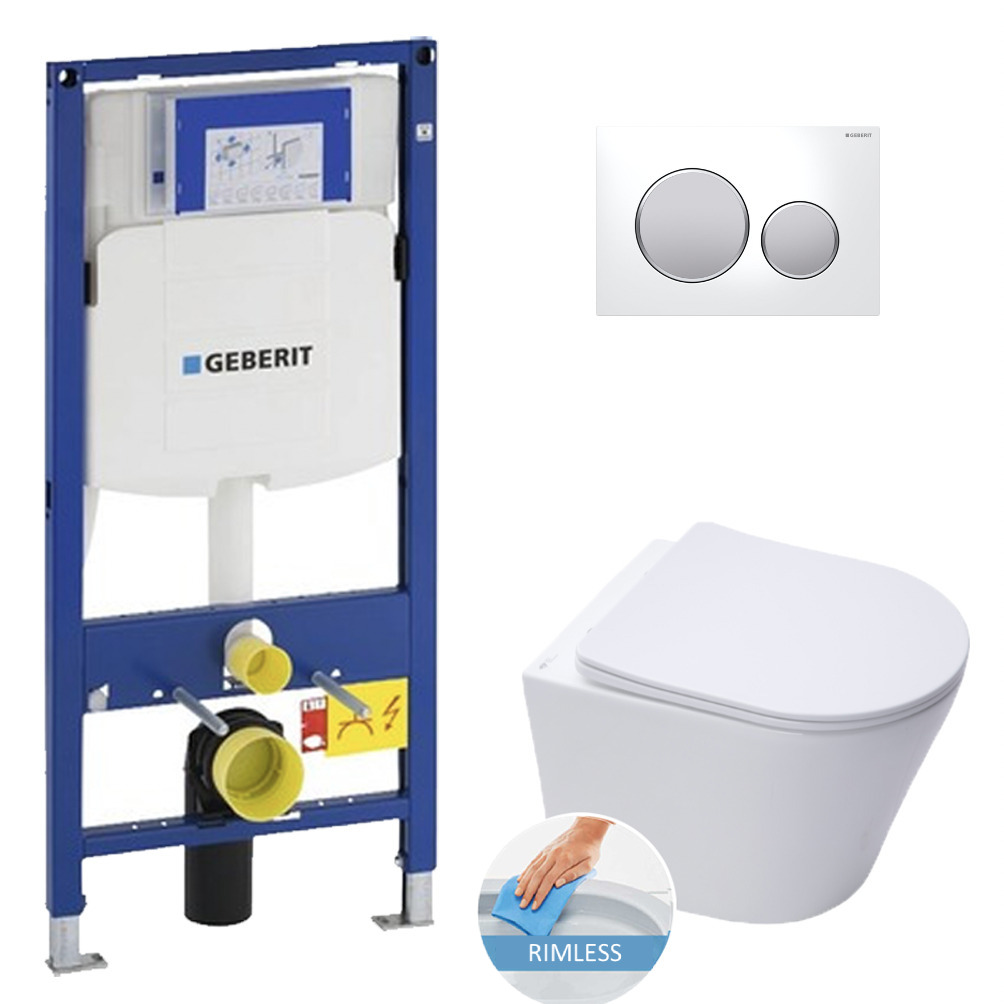

Geberit Toilet set UP320 support frame + SAT Infinitio rimless toilet + Softclose seat + White flush plate (GebInfinitio-I)
- Product reference: GebInfinitio-I
- EAN: 0750122364503
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Toilet set UP320 support frame + SAT Infinitio rimless toilet + Softclose seat + White flush plate (GebInfinitio-I) :
- Geberit Duofix UP320 wall mounting frame (111.300.00.5)
- Swiss Aqua Technologies Infinitio rimless wall-hung toilet with invisible fixings + softclose seat (Infinitiorimless)
- Features of the Sigma 20 Flush Plate, white/ matt chrome (115.882.KL.1)
- Geberit DUOFIX wall mounting set (111.815.00.1)
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:Chrome
- New:New
- Bowl colour:White
- Invisible fixings:Yes

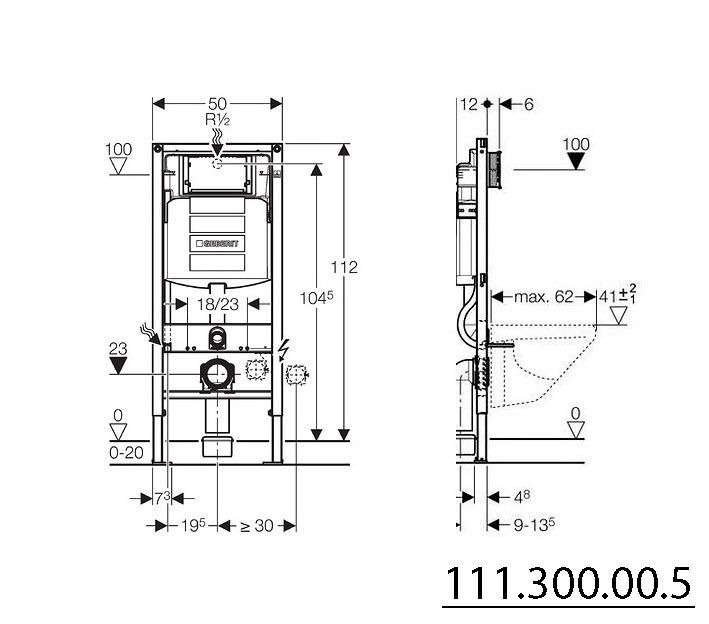

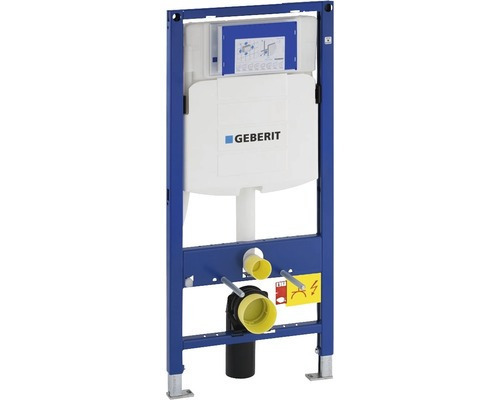

Geberit Duofix UP320 wall mounting frame (111.300.00.5) :
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above

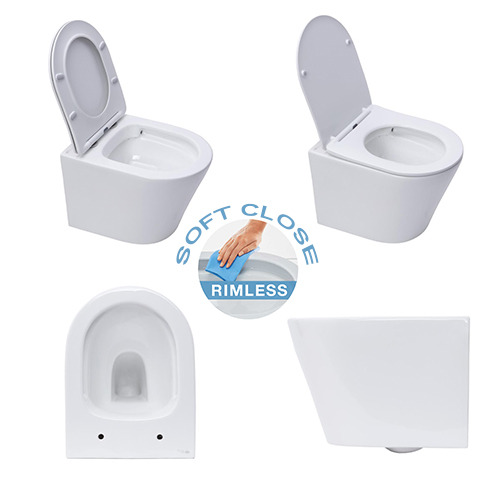

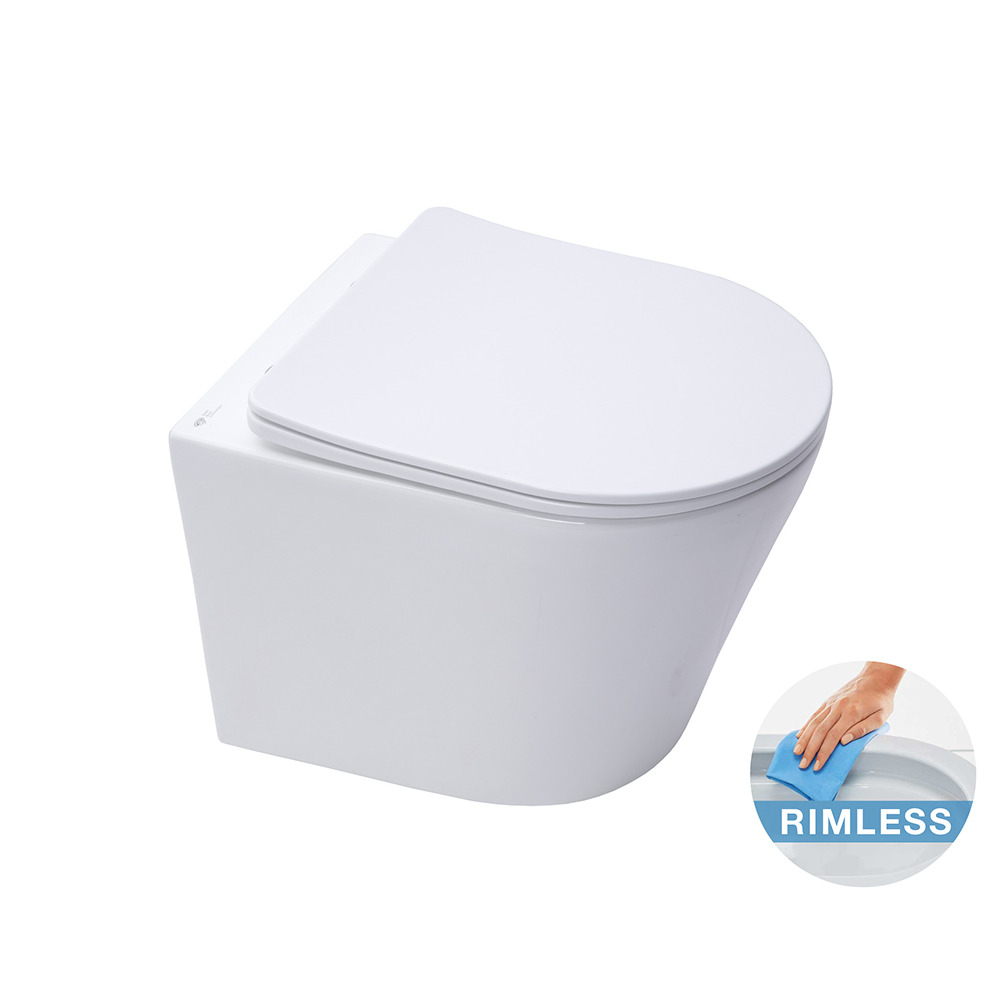

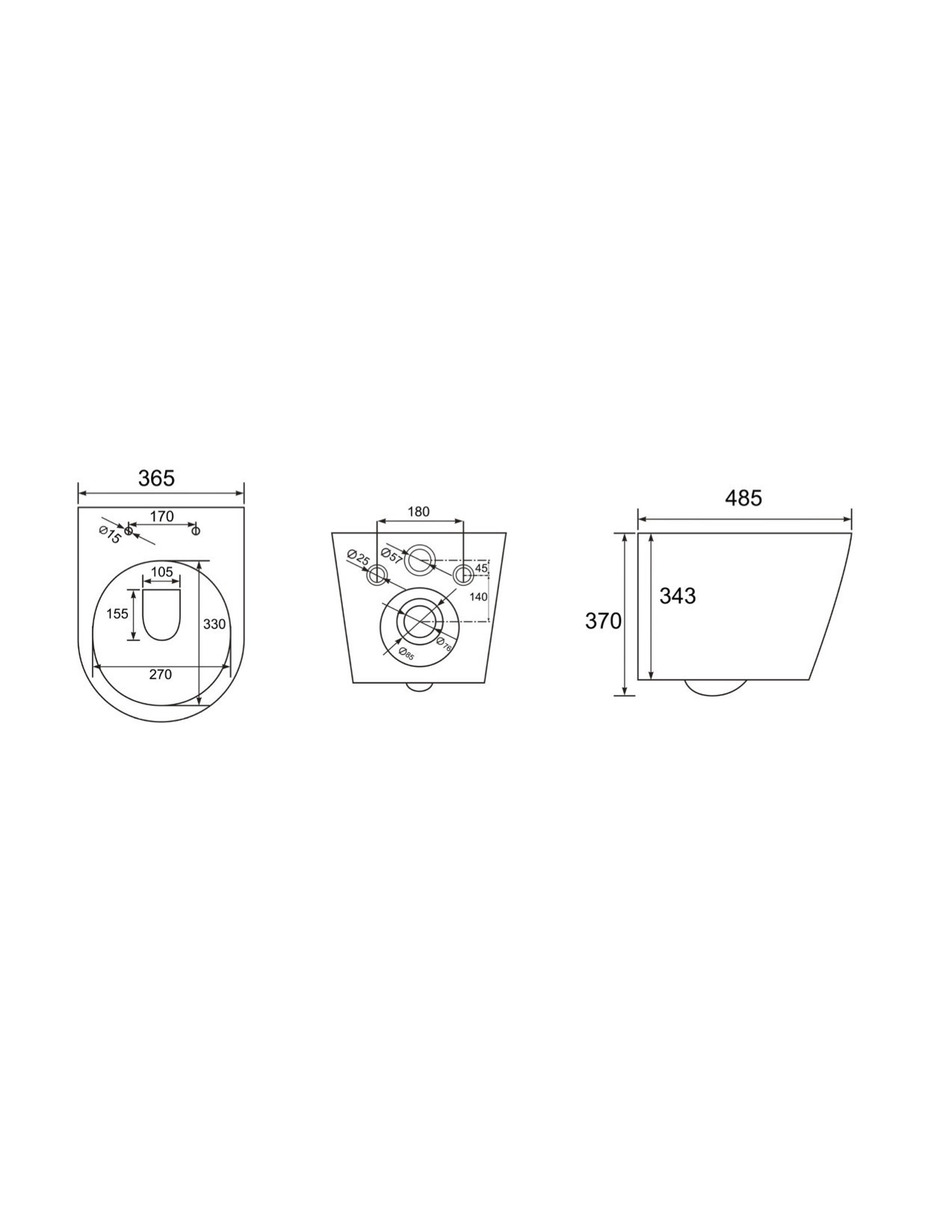

Swiss Aqua Technologies Infinitio rimless wall-hung toilet with invisible fixings + softclose seat (Infinitiorimless) :
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet adapted to small spaces
- Simple and clean design of the toilet bowl
- Flangeless bowl
- Hidden fixings
- 48 cm depth
- 3 / 6 L flush
- Flap with drop-brake
- Detachable seat
- Easy to clean thanks to the flangeless system and the removable flap
- Quick installation

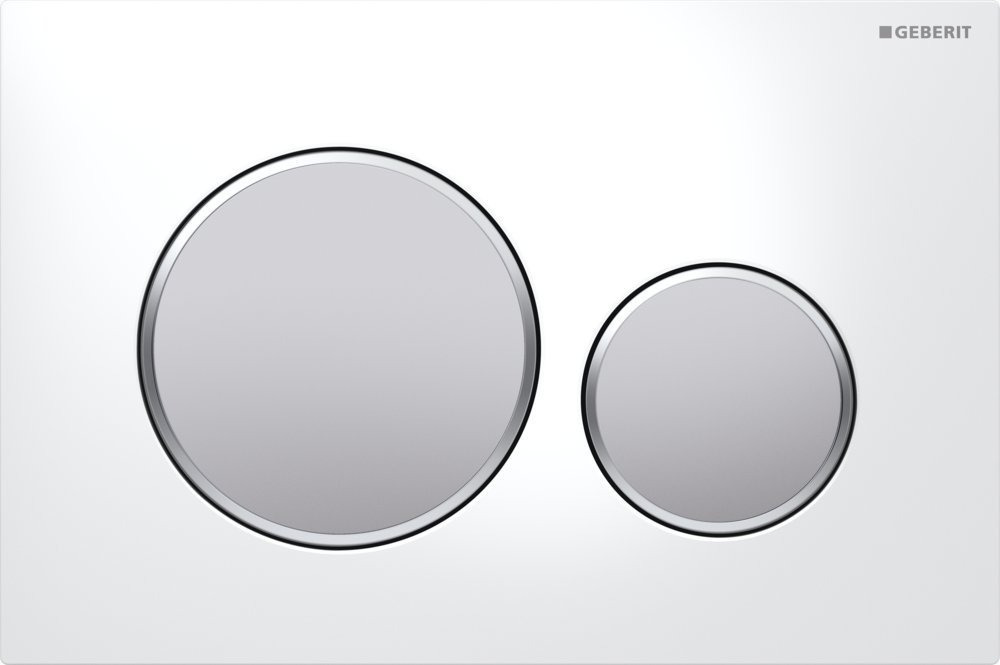

Features of the Sigma 20 Flush Plate, white/ matt chrome (115.882.KL.1) :
- Geberit Sigma 20 flush plate
- Mounting frame
- 2 distance bolts
- 2 actuator rods
- Actuation force < 20 N
Characteristics:
- Front actuation
- Sound-absorbing actuator rods, tool-free fast adjustment
Finish:
- Plate: white
- Design rings and buttons: matt chrome-plated
Use:
- For 2 flush
- For flush actuation with Geberit Sigma concealed cisterns

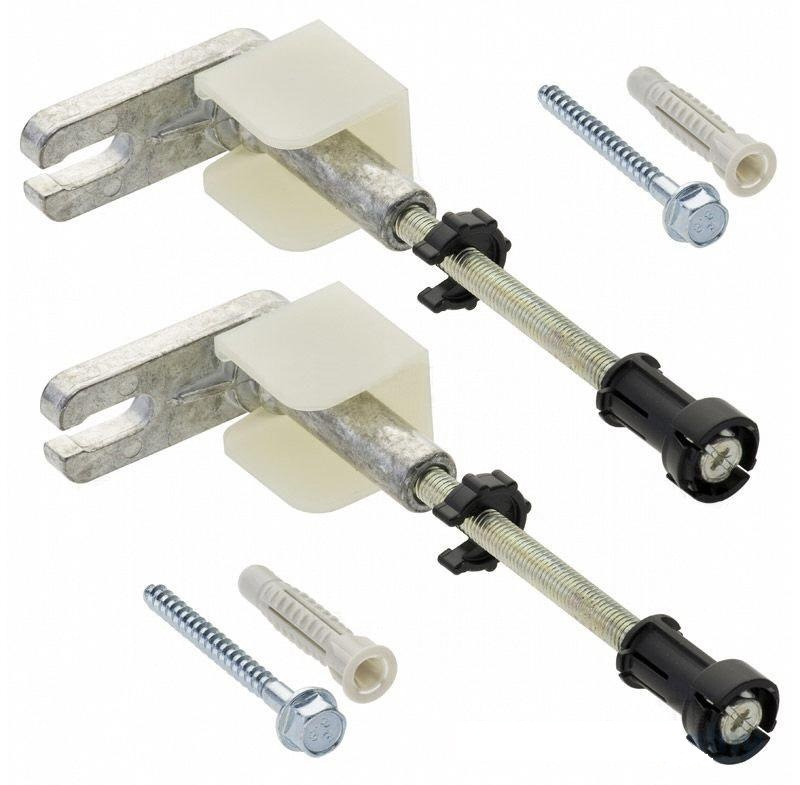

Geberit DUOFIX wall mounting set (111.815.00.1) :
- For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
- For fastening the cladding in front of partial-height overlay walls.
