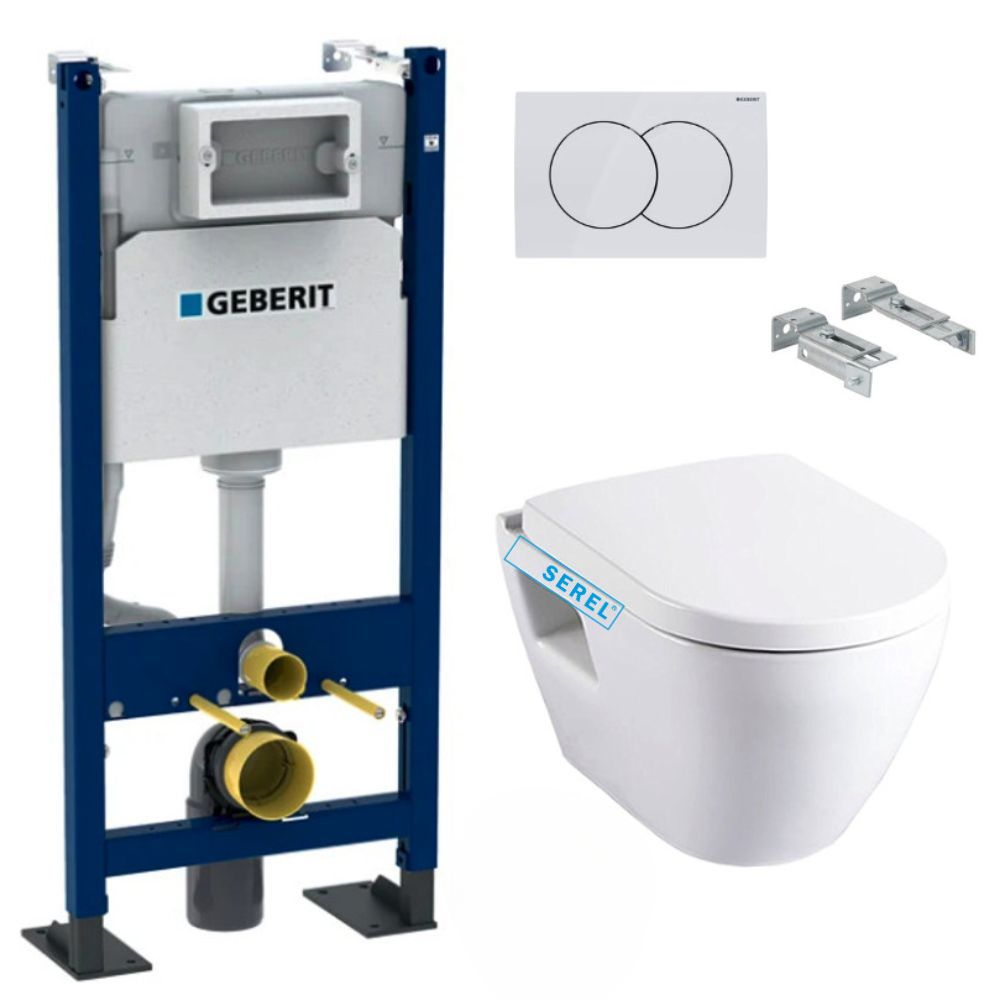

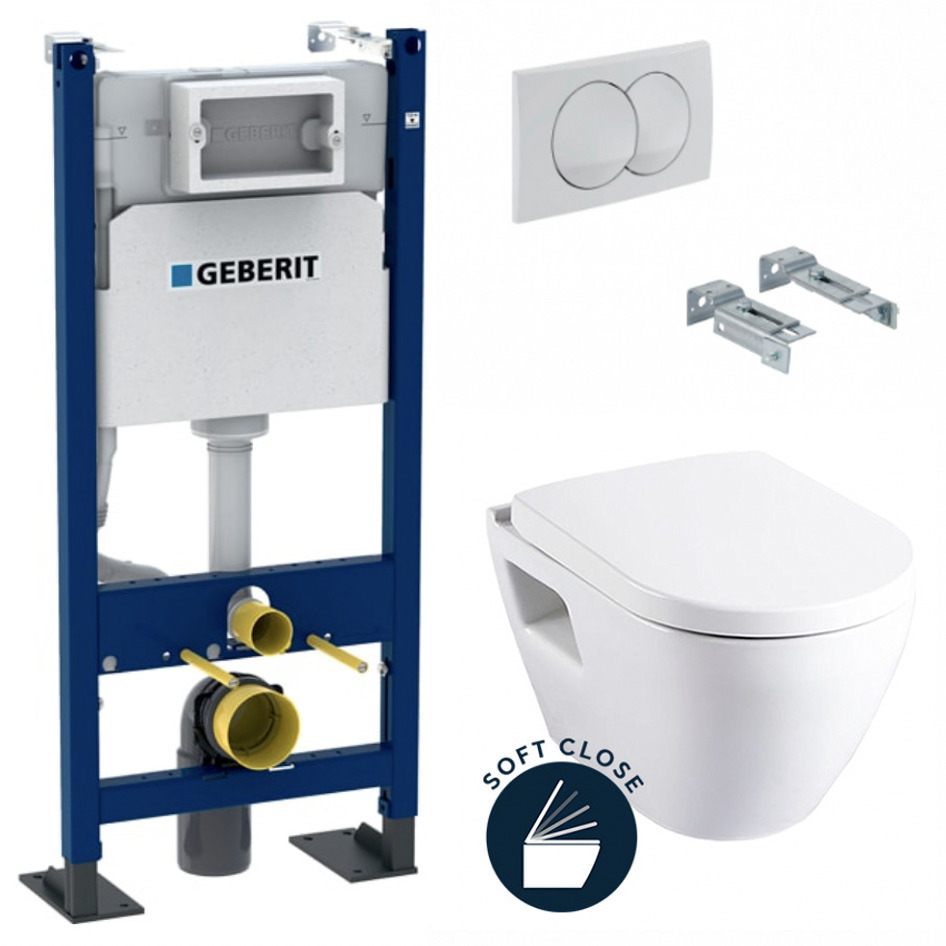

Geberit Toilet set Duofix Self-supporting frame + Serel SM10 toilet + Softclose seat + White flush plate (SM10GebX)
- Product reference: SM10GEBX
- EAN: 0750122368846
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
This toilet pack includes the Geberit Self-supporting Metal Feet. By purchasing this toilet pack, you can install your Geberit support frame at your convenience according to your wall. You have two options:
- If you have a load-bearing wall: you can install the support frame as is using the wall fixings.
- If you do not have a load-bearing wall: thanks to the Geberit Self-Supporting Feet, you can fix the support frame to the floor, perfect for light wall constructions!
To accompany your frame, this pack includes our best-selling Serel SM10 toilet. Modern design and easy maintenance guaranteed.
see detailed description- Toilet bowl brand:SEREL
- Toilet bowl:With rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Self-supporting
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:No
Features of the Toilet set Duofix Self-supporting frame + Serel SM10 toilet + Softclose seat + White flush plate (SM10GebX) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
- Geberit Set of self-supporting feet for Geberit Duofix support frame (111.849.00.2)
- Serel bowl Solido compact + Softclose seat (SM10)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
- Geberit DELTA20 white flush plate (115.107.11.1)

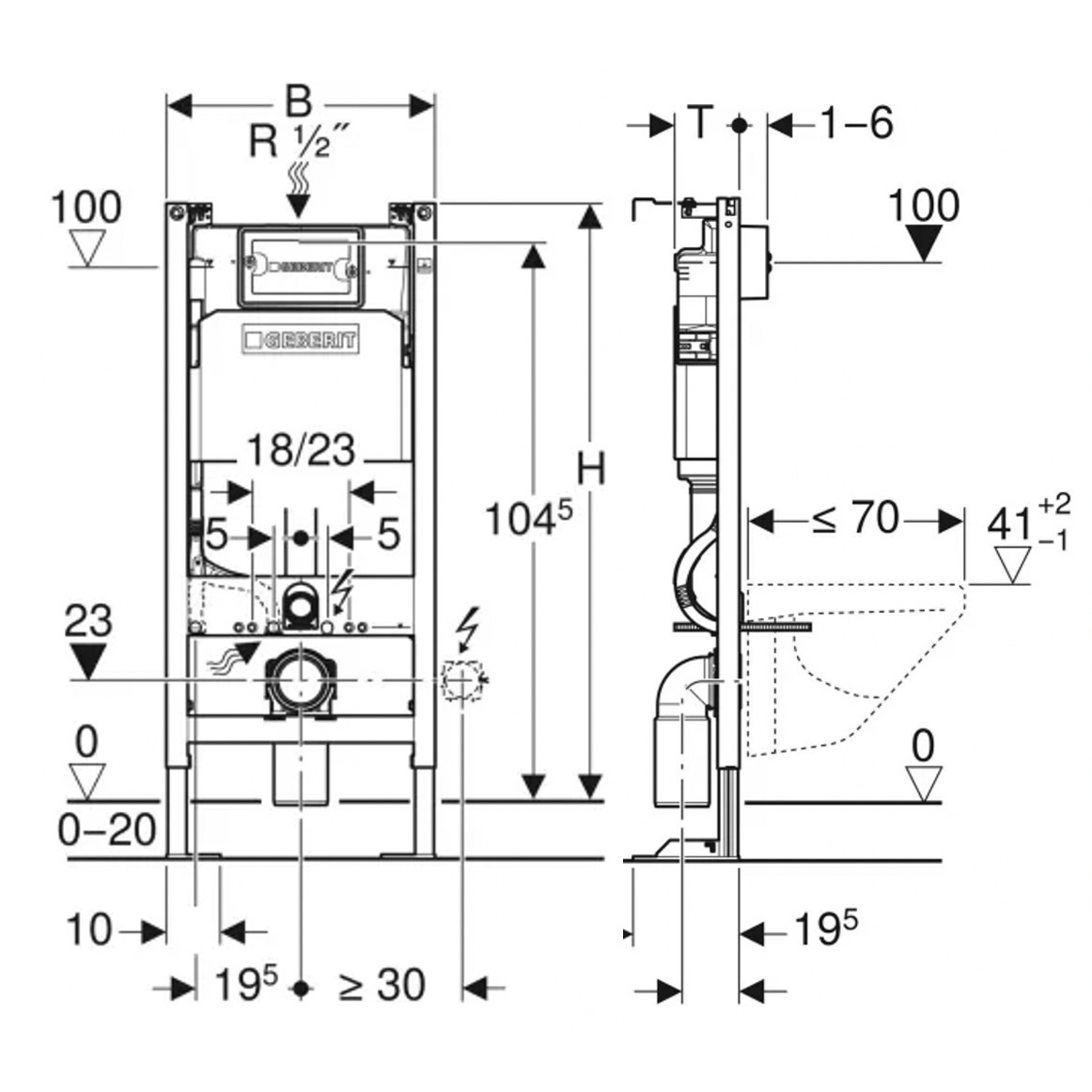

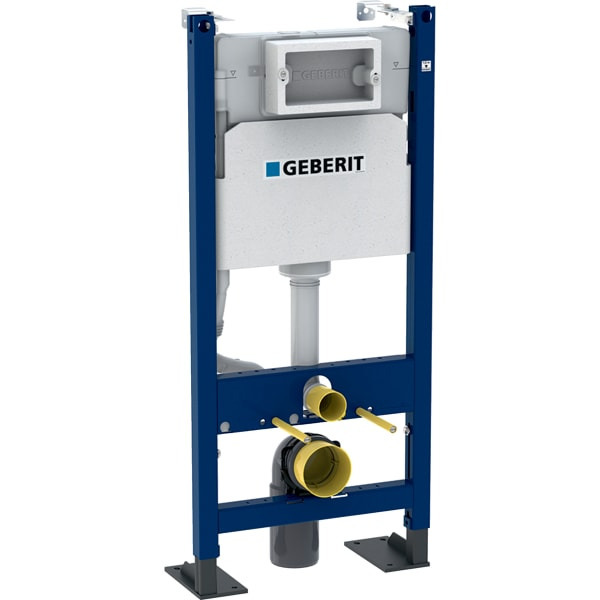

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
Geberit Set of self-supporting feet for Geberit Duofix support frame (111.849.00.2) :
- For screed heights of 0-20 cm
- For use with Geberit Duofix support frames for better force transfer to the floor
- Continuously adjustable feet
- Metal feet, protected against corrosion
- Self-supporting wide legs, suitable for all types of walls

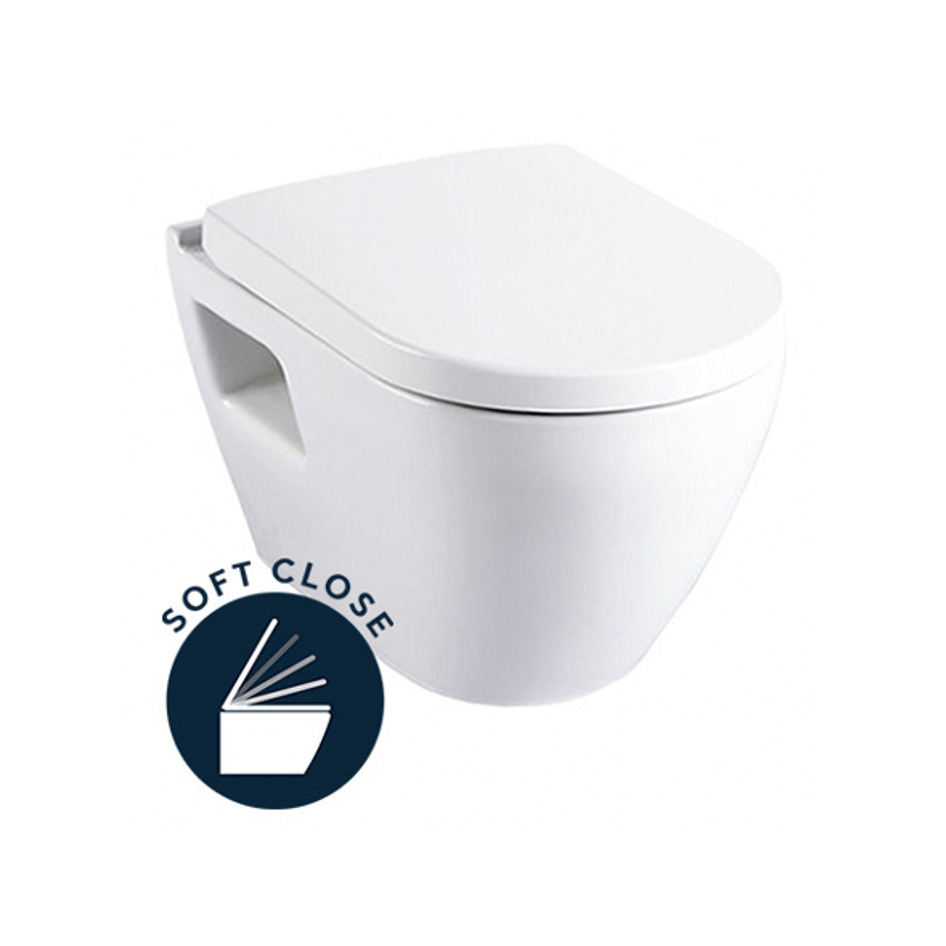

Serel bowl Solido compact + Softclose seat (SM10)
- Hanging toilet bowl with ceramic rimless SEREL Hygiène vitrified white
- SEREL ABS toilet seat with fall prevention

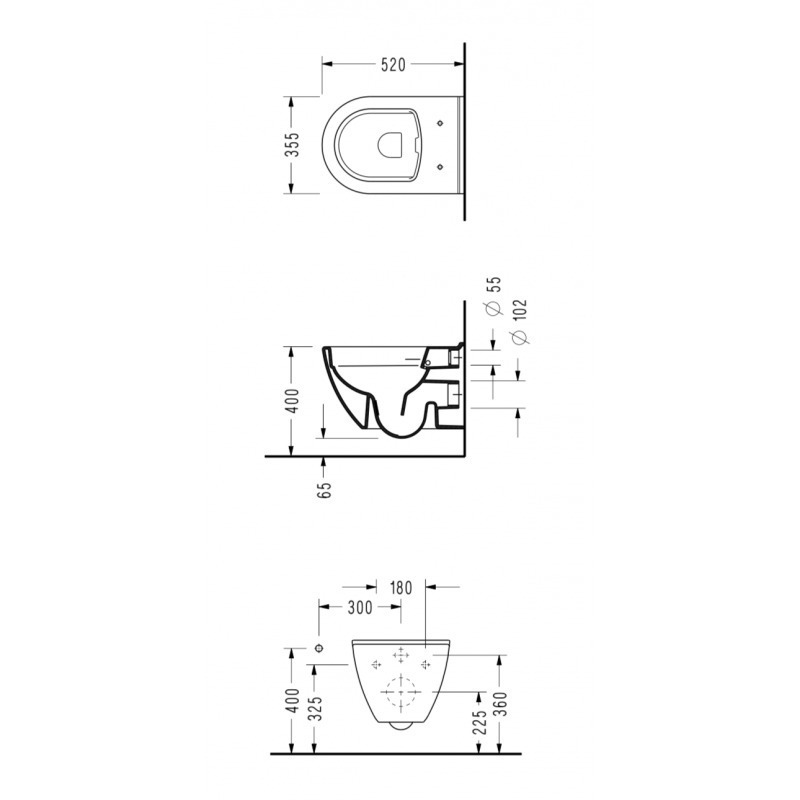

- Dimensions L52xW36xH33 (cm)
- CE mark
- Scratchproof
- Serel
A bowl that combines style and comfort. Resolutely design and minimalist, it adapts to all bathrooms and toilets.

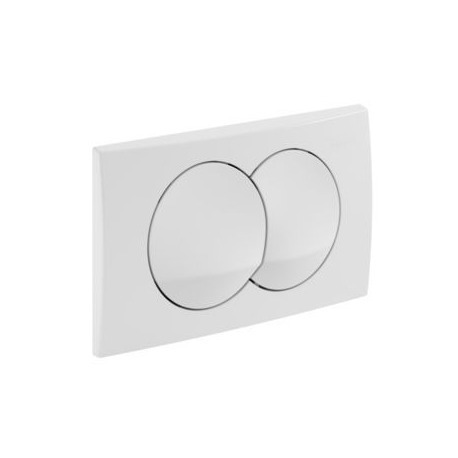

Geberit DELTA20 white flush plate (115.107.11.1) :
- Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
- Water saving
- Frontal release
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(38.88% saving)
