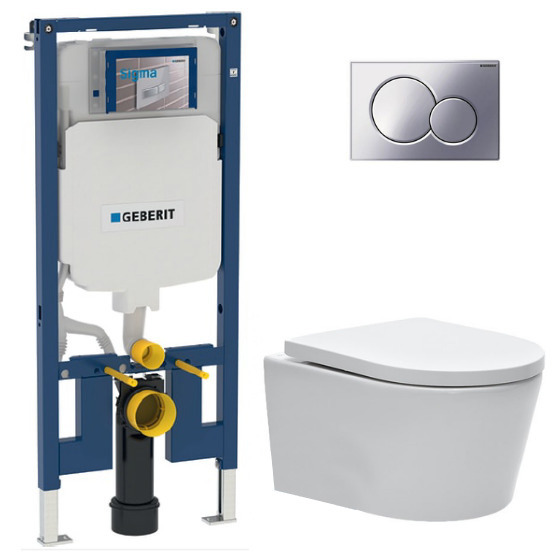

Geberit UP720 extra-flat frame + SAT rimless toilet + Softclose seat + Gloss chrome flush plate (SLIM-SATrimless-N)
- Product reference: SLIM-SATRIMLESS-N
- EAN: 0633710859325
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Opt for the quality and ease of installation of the UP720 extra-flat toilet + SAT rimless toilet + Softclose seat + Gloss chrome plate (SLIM-SATrimless-N).
The quality of the items in this pack is well known and the modernity and design of these items will surely satisfy you by providing you with solutions adapted to your projects. In addition, the pack includes a connecting sleeve that allows you to connect your frame quickly and easily to the European Standards.
see detailed description- Colour:White
- Material:Ceramic
- Length (cm):114
- Width (cm):24.6
- Height (cm):48
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard Extra Flat
- Plate colour:Gloss chrome
- New:New
- Weight:35
- Bowl colour:White
- Invisible fixings:Yes
Features of the UP720 extra-flat frame + SAT rimless toilet + Softclose seat + Gloss chrome flush plate (SLIM-SATrimless-N) :
-
Geberit Flush plate Sigma01 for dual flush, Gloss chrome-plated (115.770.21.5)
-
Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
-
Geberit UP720 extra-flat stand 114 cm support frame, space-saving, with Sigma concealed cistern (111.796.00.1)
.

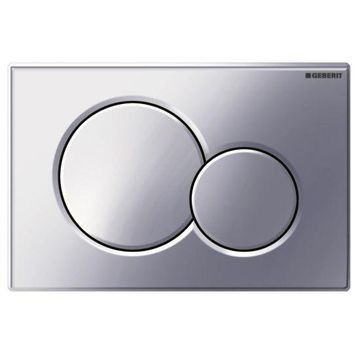

Geberit Flush plate Sigma01 for dual flush, Gloss chrome-plated (115.770.21.5) :
- Actuation force: < 20 N
- Characteristics: Front actuation, sound-absorbing actuator rods, tool-free fast adjustment
- Delivered with: Mounting frame, 2 distance bolts, 2 actuator rods
.

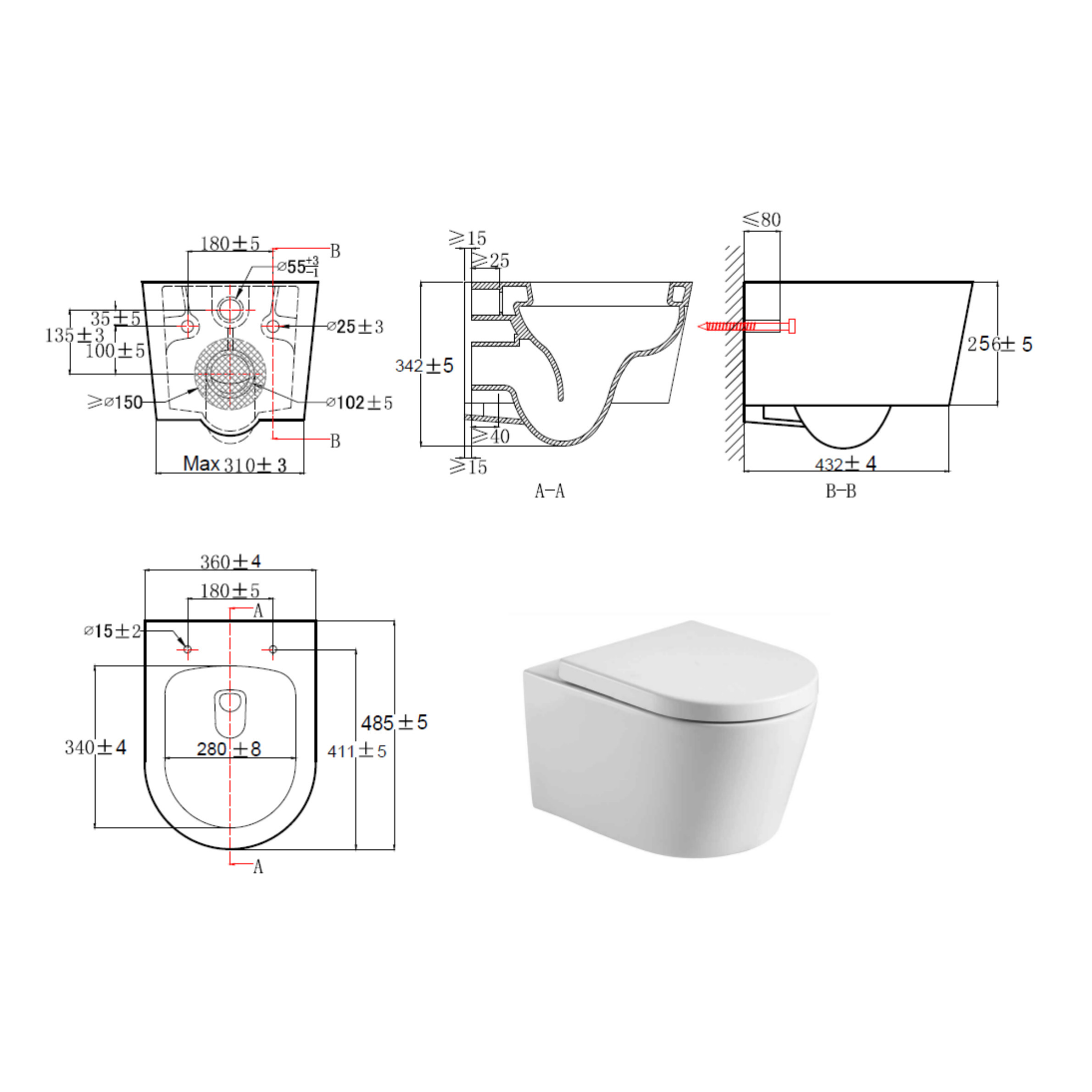

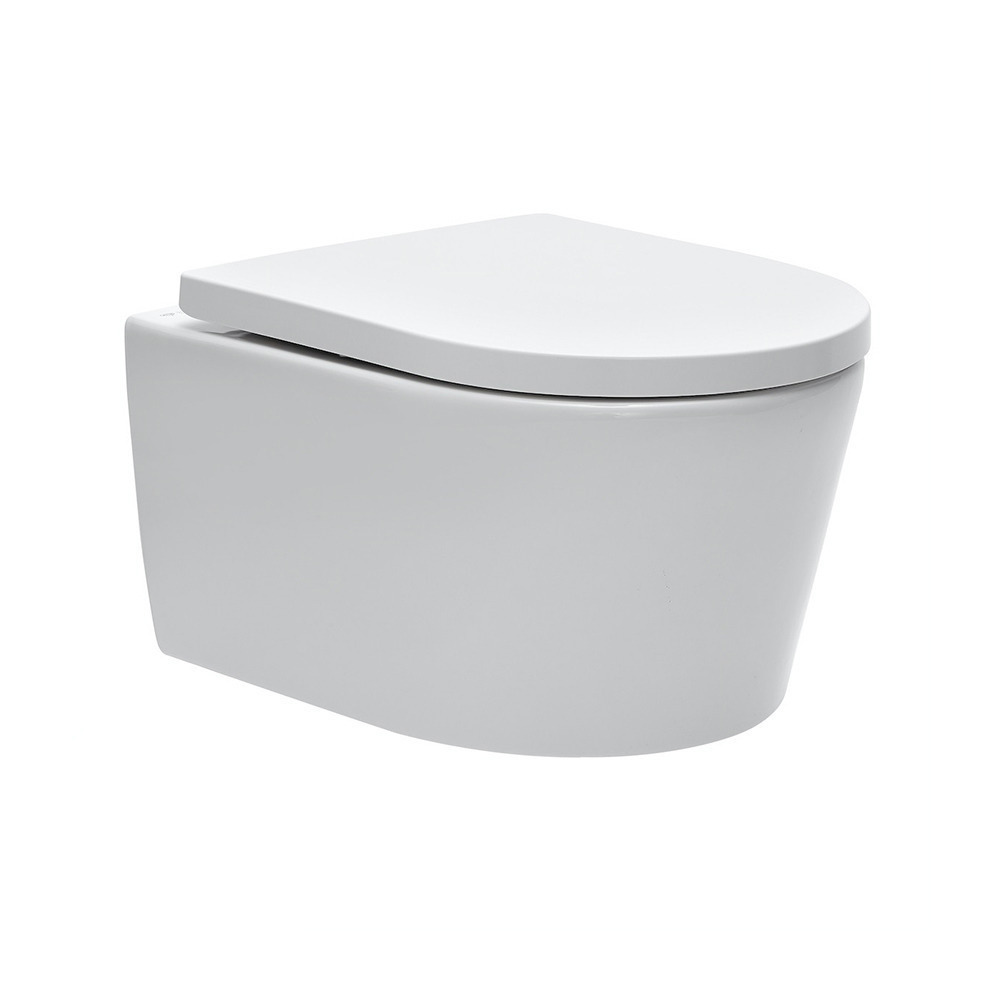

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless) :
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L
- Toilet seat with fall brake
- Snap-on flap
- Easy to maintain thanks to the rimless system and removable flap
- Quick setup
.

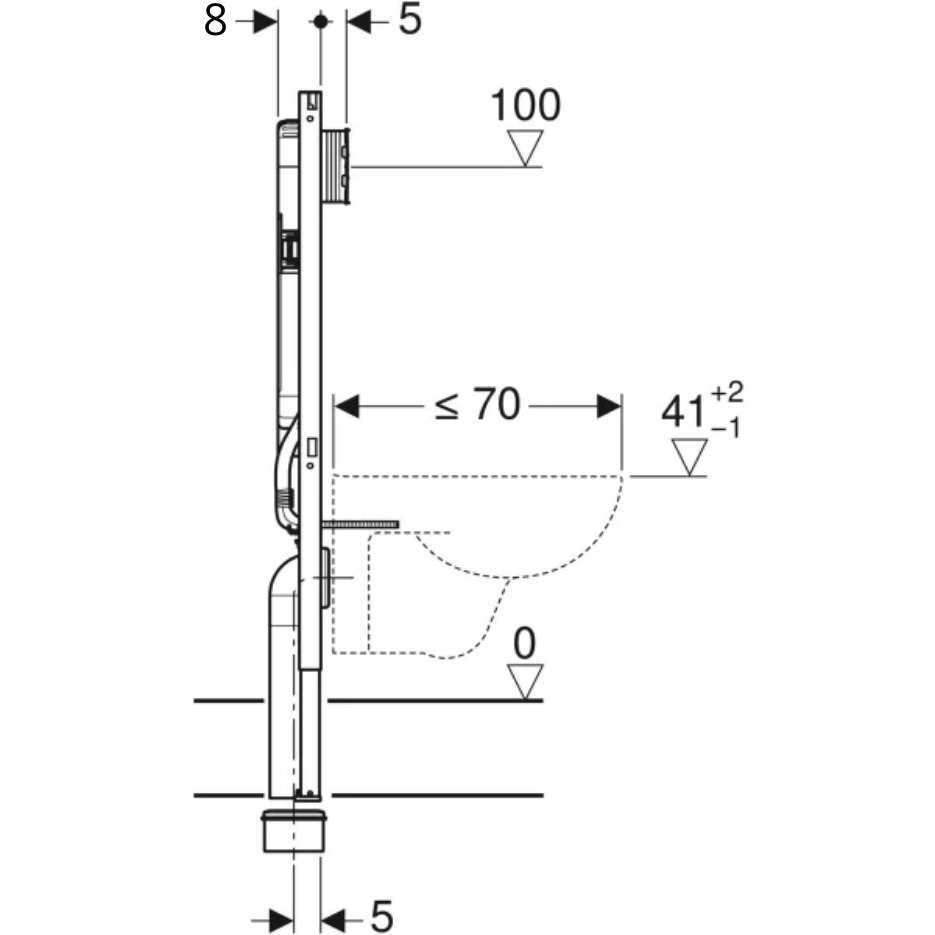

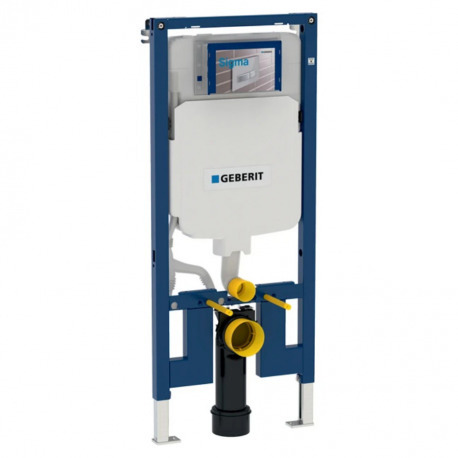

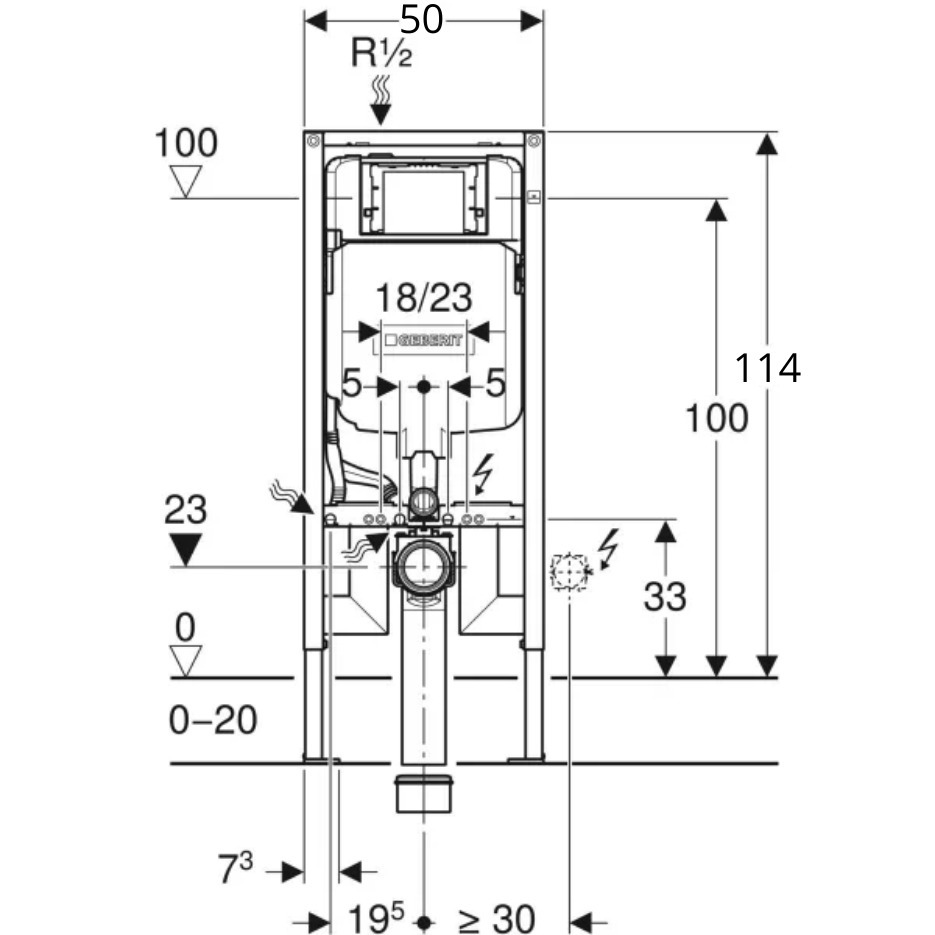

Geberit UP720 extra-flat stand 114 cm support frame, space-saving, with Sigma concealed cistern (111.796.00.1) :
- Frame suitable for WC bowls with small support surface (with pressure-resistant wall cladding)
- Galvanised, infinitely adjustable, non-slip support feet
- Depth of foot plates suitable for installation on UW 50 profiles and Geberit Duofix system rails
- Connecting bend for different depth positions, can be mounted without tools
- Connecting bend for depth position flush with the front for vertical installation
- Extended connection bend, for floor connection
- Connection bend fastening with sound insulation
- Built-in tank with front release
- Built-in tank insulated against condensation
- Immediate post-flushing possible with factory setting
- Installation and maintenance work on concealed cisterns without tools
- Water inlet from the top left
- Access panel housing, protects against moisture and dust
- Access panel box, can be cut to size, suitable for flush-mounted trigger plates
- Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
- With fixing possibilities for electrical connection
Use :
- For dry wall construction
- For installation in walls at room height or partial height
- For installation in installation walls at room height
- For wall-hung toilets extended to 70 cm
- For one-touch, two-touch or interruptible flushing
- For screed heights of 0-20 cm
Scope of delivery :
- R 1/2" supply line, MF compatible, with integrated angle valve and hand wheel
- Reservation box for inspection hatch
- 2 wall mountings
- WC connection set, ø 90 mm
- 90° PE-HD connection bend, ø 90 mm
- Transition sleeve made of PE-HD, ø 90 / 110 mm
- 2 protective caps
- 2 threaded rods M12
- Fixing material
.
