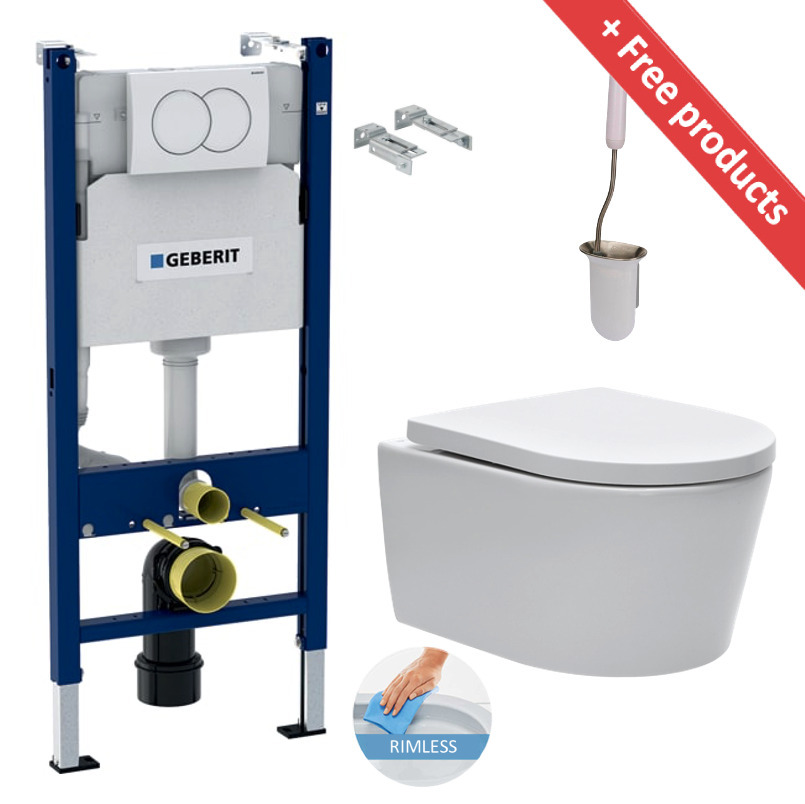

Geberit Duofix support frame set + SAT rimless+ Softclose seat + White flush plate + FREE toilet brush (SATrimlessGeb3-Flex2)
- Product reference: SATrimlessGeb3-Flex2
- EAN: 0734077001034
- Line: Duofix
Brand:
Product warranty:
2
years
Opt for the quality and ease of installation of the Duofix support frame + SAT rimless toilet + Softclose seat + White plate + White toilet brush FREE.
The quality of the items in this pack is recognised and the modernity and design of these items will certainly satisfy you by providing you with solutions adapted to your projects.
see detailed descriptionProduct technical properties
- Colour:White
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:Yes

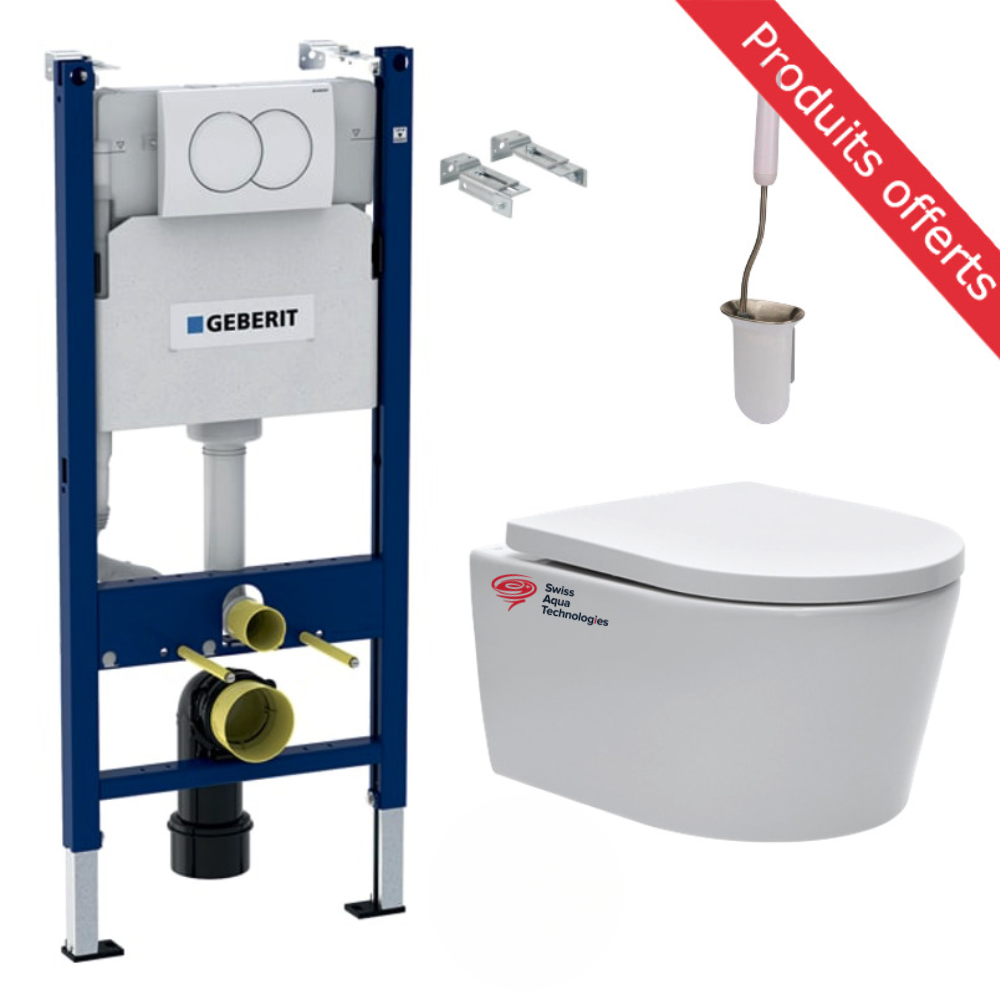

Features of the Duofix support frame set + SAT rimless+ Softclose seat + White flush plate + FREE toilet brush (SATrimlessGeb3-Flex2) :
- Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
- Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1)
- Joseph Joseph Flex™ Wall-hung toilet brush with wall holder, White (70528)
.

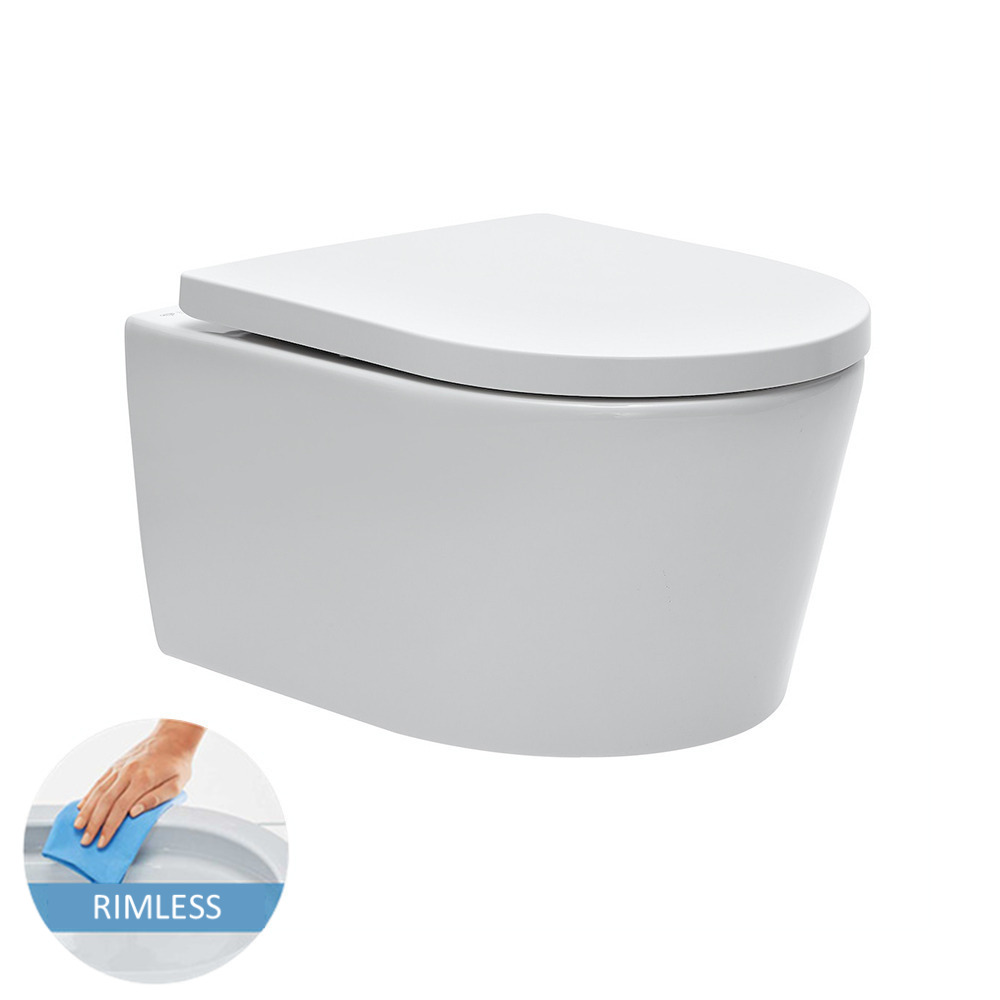

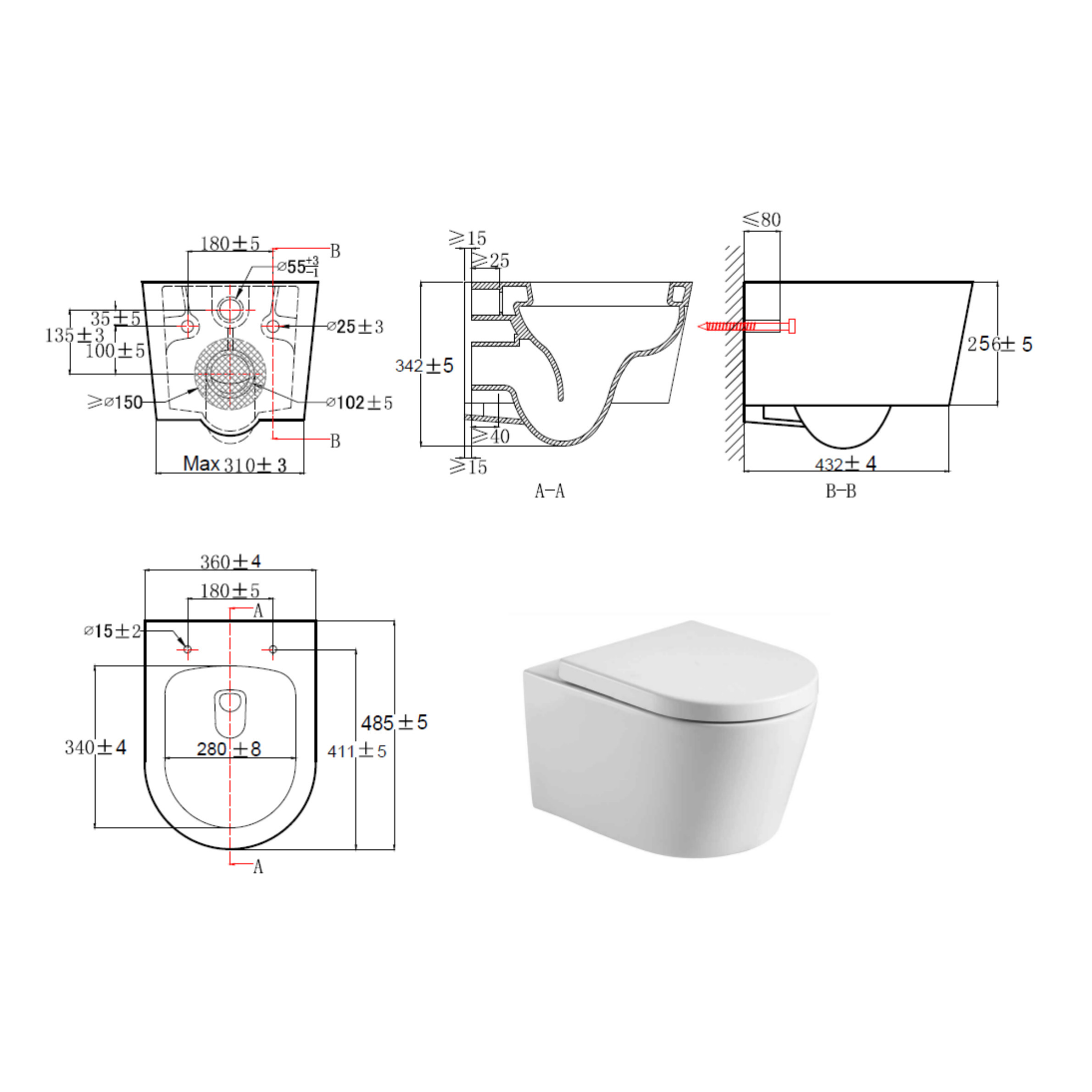

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless) :
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L
- Toilet seat with fall brake

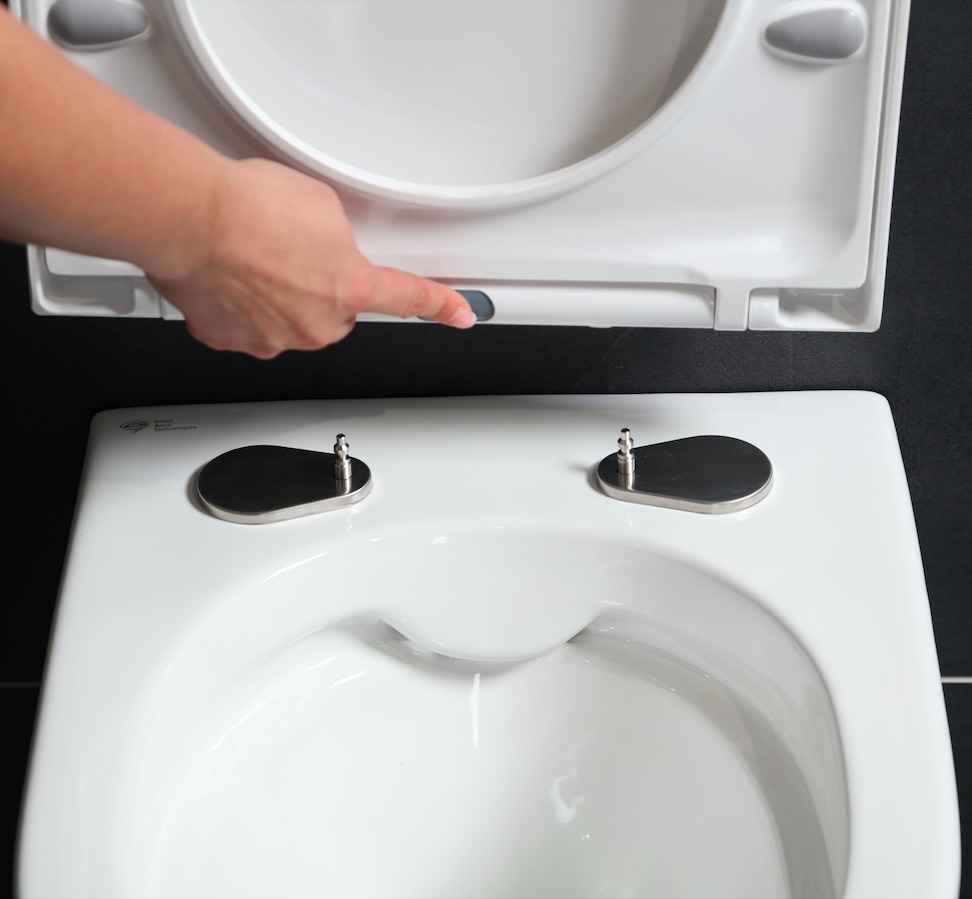

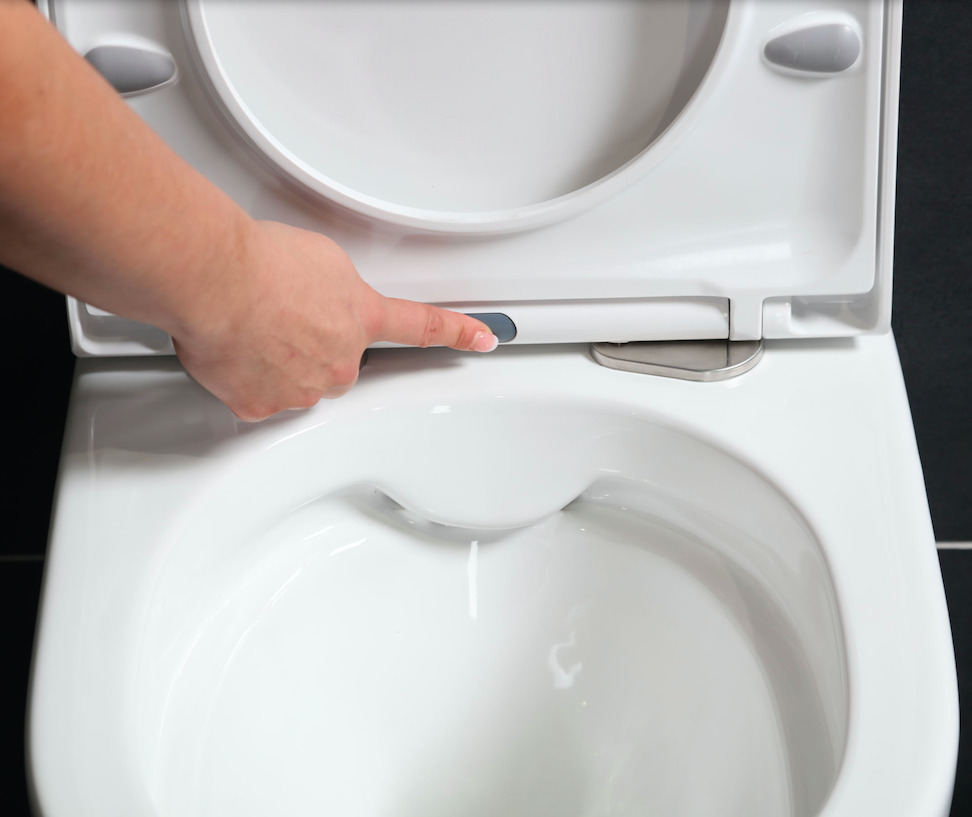

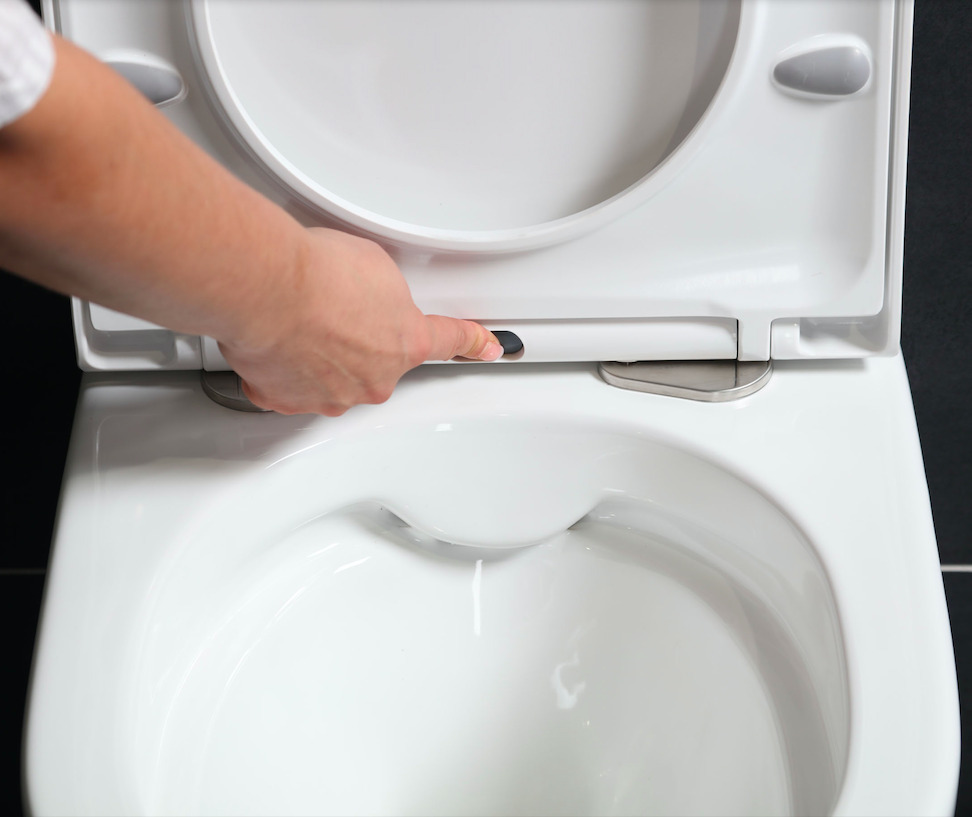

- Snap-on flap
- Easy to maintain thanks to the rimless system and removable flap
- Quick setup
Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1) :
- Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1)
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
- Geberit Trigger plate DELTA20 white (115.100.11.1)
.
Features of the pack :

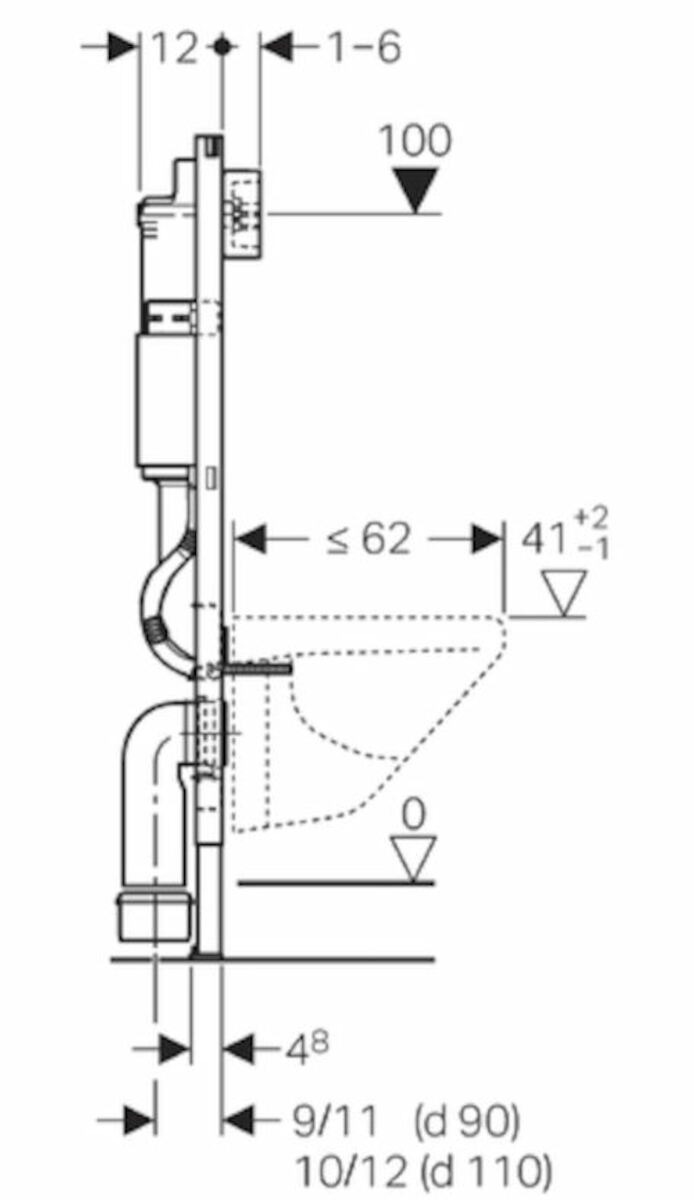

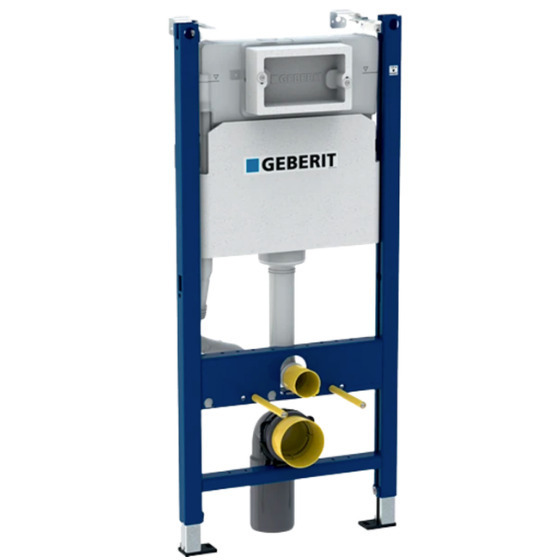

Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1) :
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)

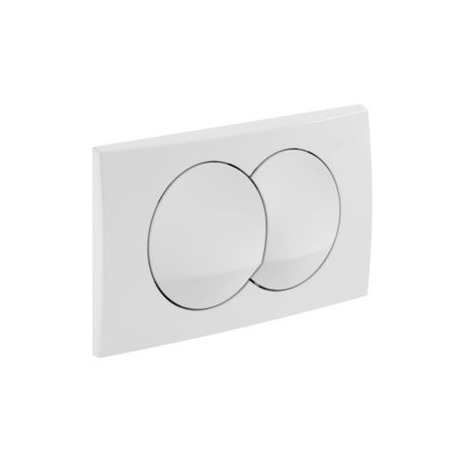

Geberit Trigger plate DELTA20 (115.100.11.1) :
- 2 actuator rods, one for a small 3L flush and one for a large 6L flush
- Water saving
- Front actuation

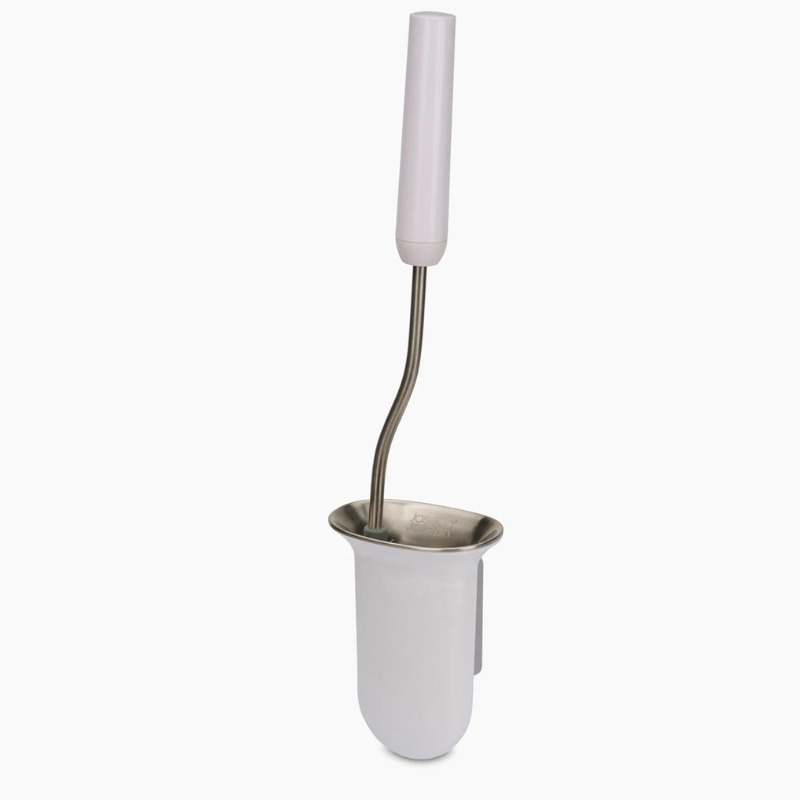

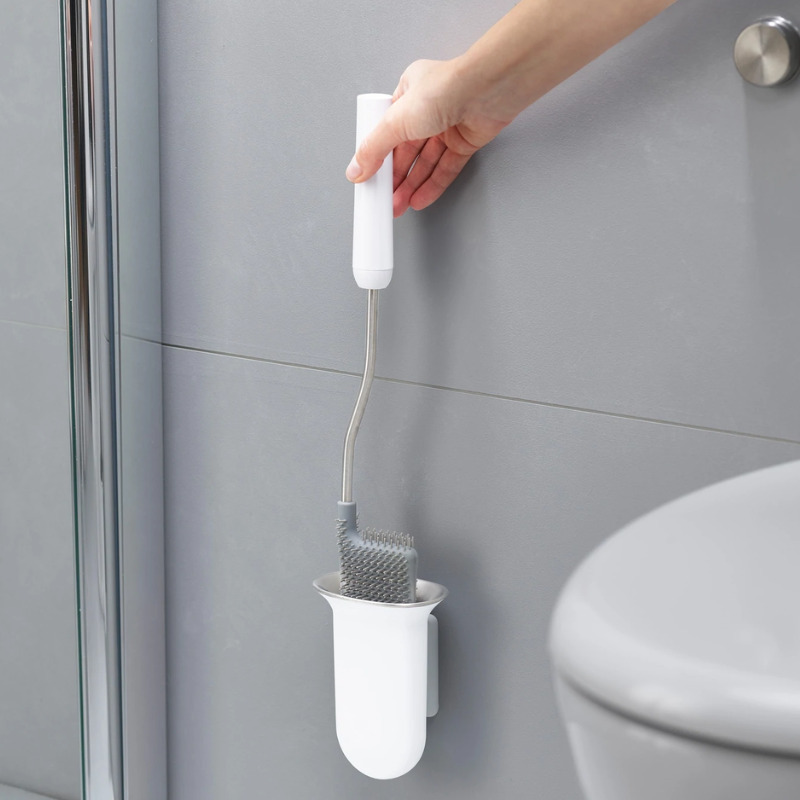

Joseph Joseph Flex™ Wall-hung toilet brush with wall holder, White (70528)
- Flexible, D-shaped head reaches all areas, even under the rim
- Anti-drip: less dripping between cleaning and storing
- Anti-clog: wide bristle spacing ensures dirt rinses off easily
- Space-saving wall-mounted holder with screws and fixings included
- Stainless-steel shaft and holder trim
- Brush & holder - clean with bleach or hot soapy water (if using bleach, rinse thoroughly and avoid prolonged contact with stainless-steel parts)
- Do not submerge holder in water
- Find the full instruction booklet here
- H43.5 x W10 x D8cm (H17¼ x W4 x D3¼ inches)
