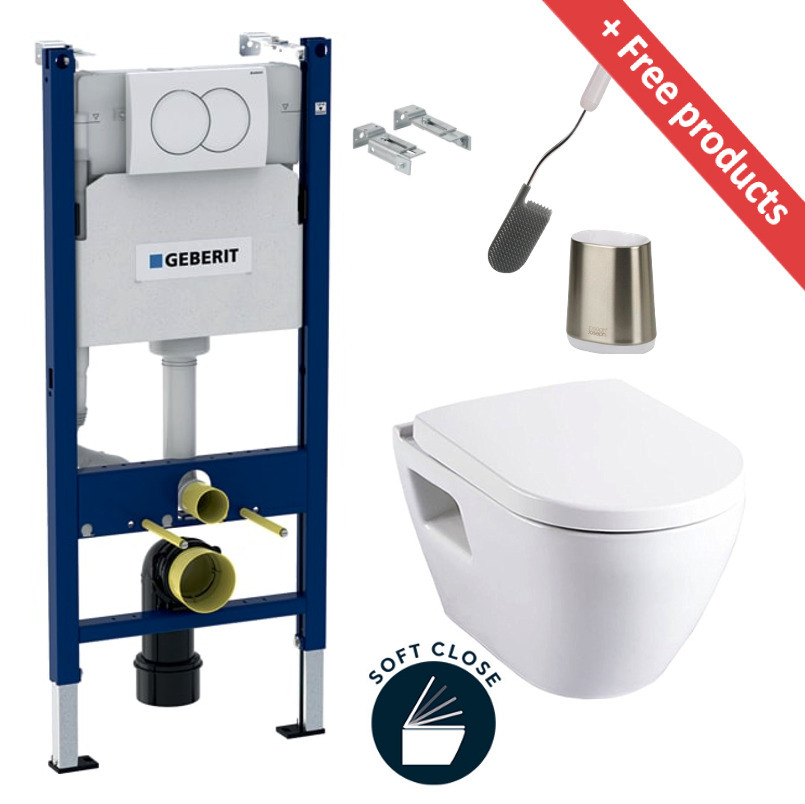

Geberit Toilet set Duofix frame + Serel SM10 wall-hung toilet + Softclose seat + White plate + FREE toilet brush ( SM10Geb3-Flex1 )
- Product reference: SM10Geb3-Flex1
- EAN: 0734077001041
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Opt for the quality and ease of installation of the Duofix support frame + Serel SM10 wall-hung toilet + Softclose seat + White plate + FREE Grey toilet brush.
The quality of the items in this pack is recognised and the modernity and design of these items will certainly satisfy you by providing you with solutions adapted to your projects.
see detailed description- Colour:White
- Toilet bowl brand:Serel
- Toilet bowl:With rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:No
Features of the Toilet set Duofix frame + Serel SM10 wall-hung toilet + Softclose seat + White flush plate + FREE grey toilet brush ( SM10Geb3-Flex1 ) :
- Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.2)
- Joseph Joseph Flex™ Lite Steel Anti-drip toilet brush with compact stainless steel anti-fingerprint holder, Grey (70561)
- Serel bowl Solido compact + fall arrest seat (SM10)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
.
Geberit Delta Pack Duofix support frame 112cm + Delta20 white trigger plate + wall anchors (111.154.11.1) :
- Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1)
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
- Geberit Trigger plate DELTA20 white (115.107.11.1)
.
Features of the pack :
.

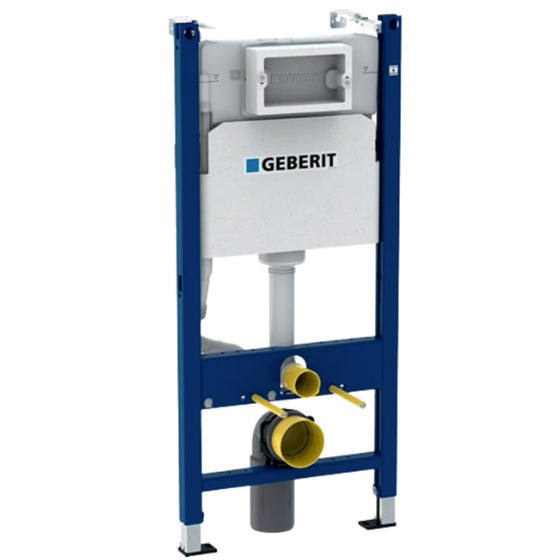

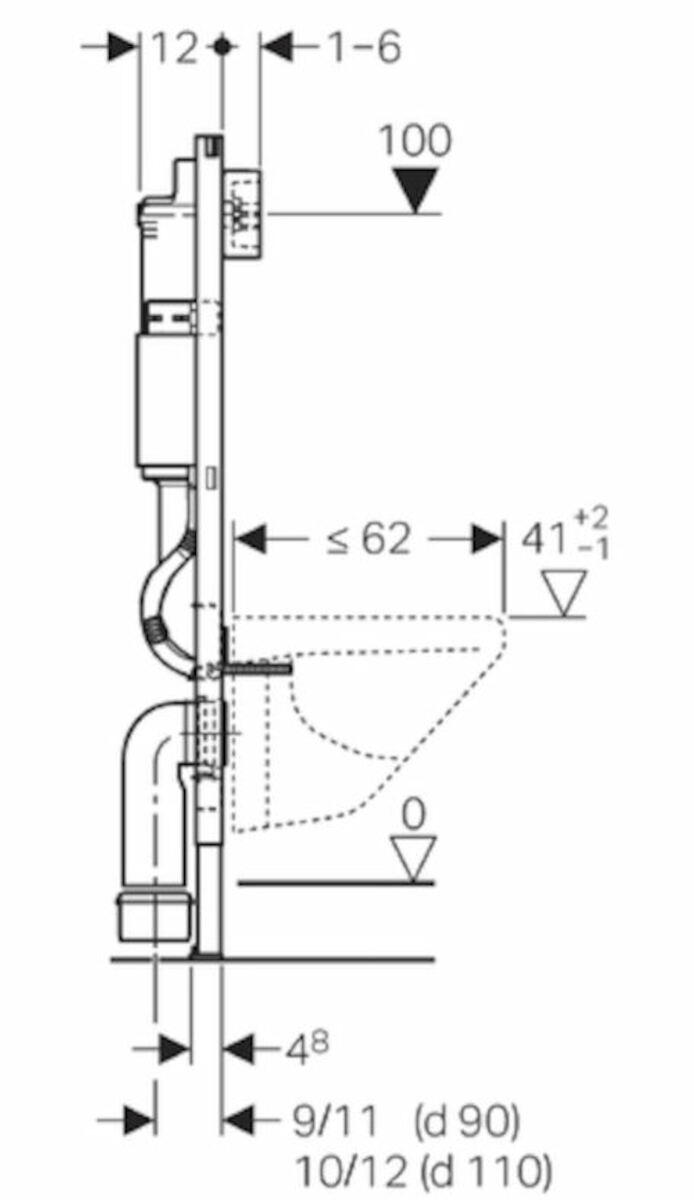

Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1) :
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Characteristics :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
.

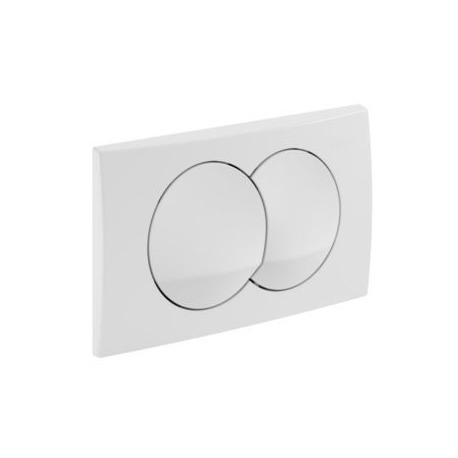

Geberit Trigger plate DELTA20 (115.100.11.1) :
- 2 actuator rods, one for a small 3L flush and one for a large 6L flush
- Water saving
- Front actuation
.

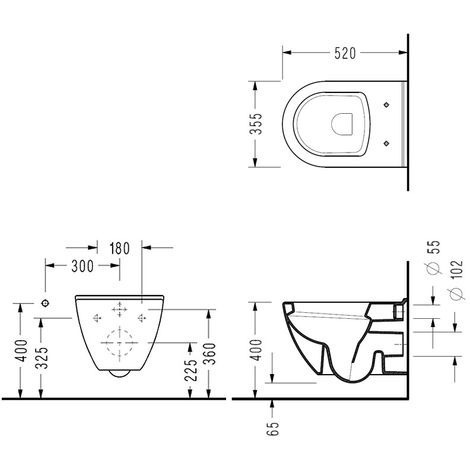

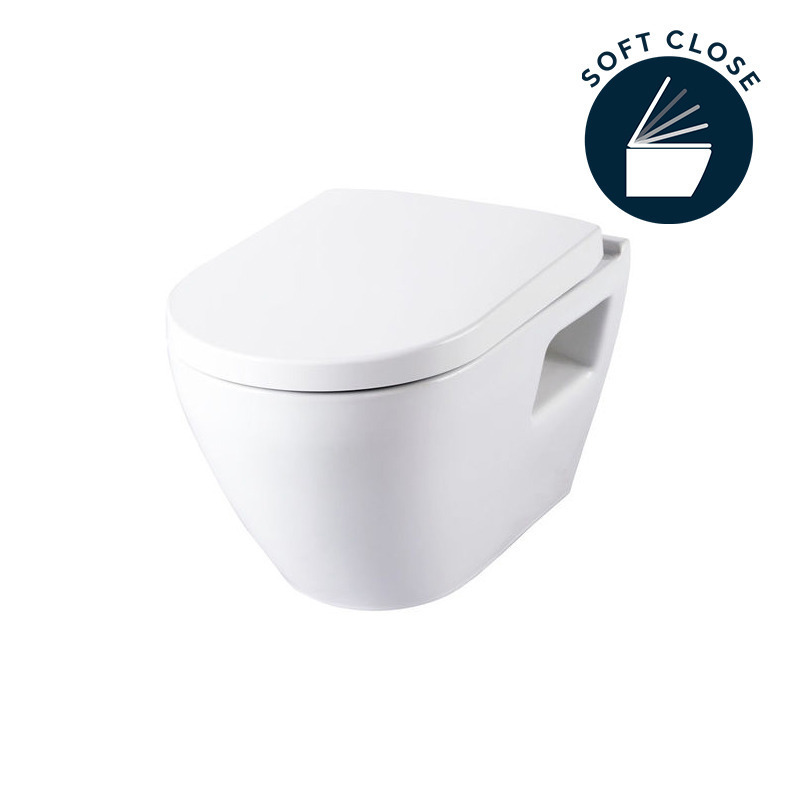

Serel Serel bowl Solido compact + fall arrest seat (SM10) :
- Wall-hung toilet bowl with ceramic flange SEREL Hygiene glazed white
- SEREL ABS toilet seat with fall protection
- Dimensions L52xW36xH33 (cm)
- CE mark
- Scratchproof
- Serel
- A bowl that combines style and comfort. Resolutely design and minimalist, it adapts to all bathrooms and toilets.
.
Geberit DuofixBasic pre-wall mounting set (111.839.00.1) :
- Material: Steel
- For fixing Geberit Duofix frames to partitions and load-bearing walls
- For Geberit Duofix frames with open top
- Adjustable depth
- Galvanised
.

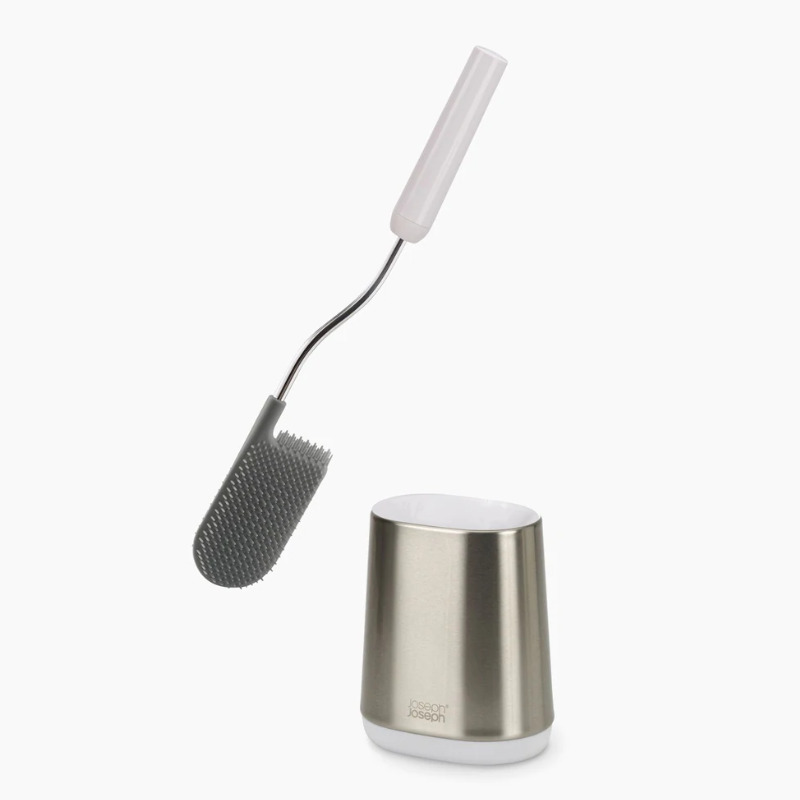

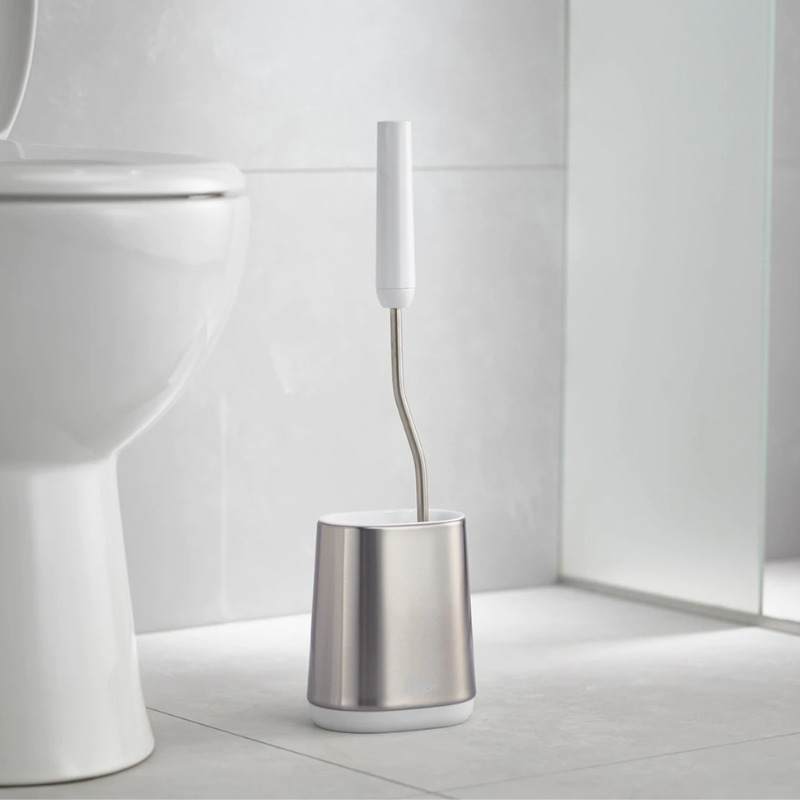

Joseph Joseph Flex™ Lite Steel Anti-drip toilet brush with compact stainless steel anti-fingerprint holder, Grey (70561) :
- Flexible, D-shaped head reaches all areas, even under the rim
- Anti-drip - less dripping between cleaning and storing
- Anti-clog design - wide bristle spacing ensures dirt rinses off easily
- Durable bristles
- Slimline holder with a stainless-steel finish
- Holder - wipe clean with a damp cloth
- Do not use abrasive cloths or strong chemical cleaners on stainless-steel parts
- Brush - clean with bleach or hot soapy water (if using bleach, avoid prolonged contact with stainless-steel shaft)
- H42.5 x W12.5 x D8.9 cm (H16¾ x W5 x D3½ inches)
.
Please note! It is imperative to check the products on receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(38.68% saving)
