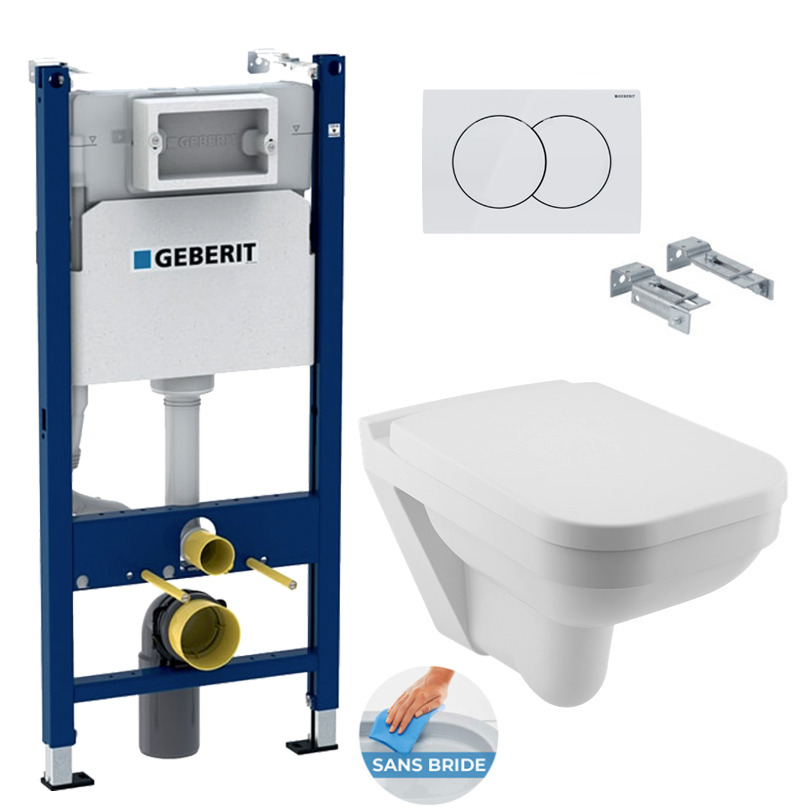

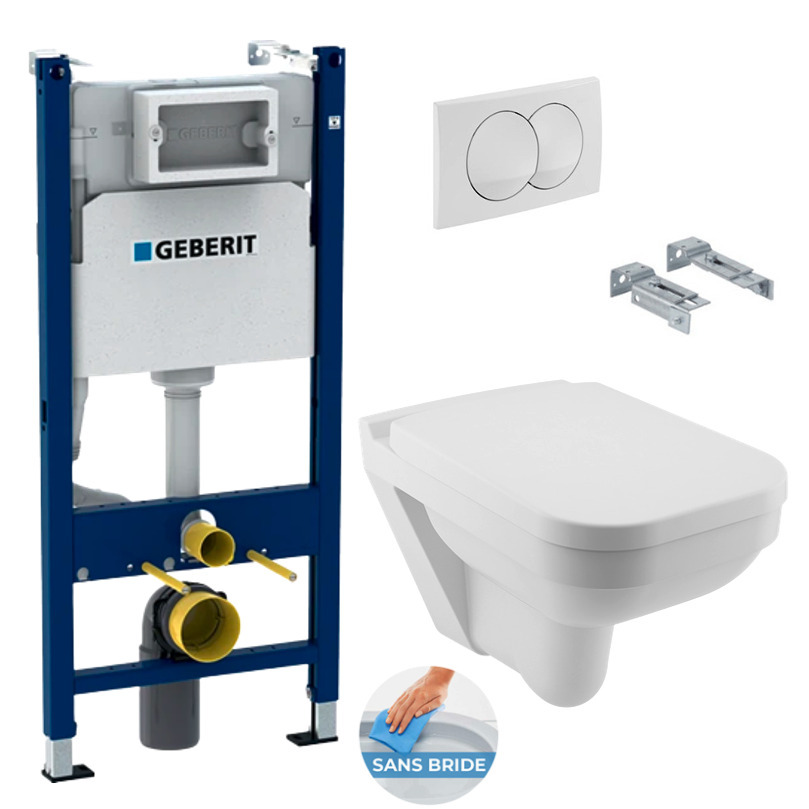

Geberit Toilet set Duofix 112cm frame + Delta20 White flush Plate + Serel Square rimless wall-hung bowl (SA26Geb3)
- Product reference: SA26Geb3
- EAN: 0750122355716
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Duofix 112cm support frame set + Delta20 White flush Plate + Serel Square rimless wall-hung bowl (SA26Geb3) :
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
- Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
- Geberit DELTA20 white flush plate (115.107.11.1)
- SEREL rimless Star wall mounted toilet bowl + seat (SA26)
.

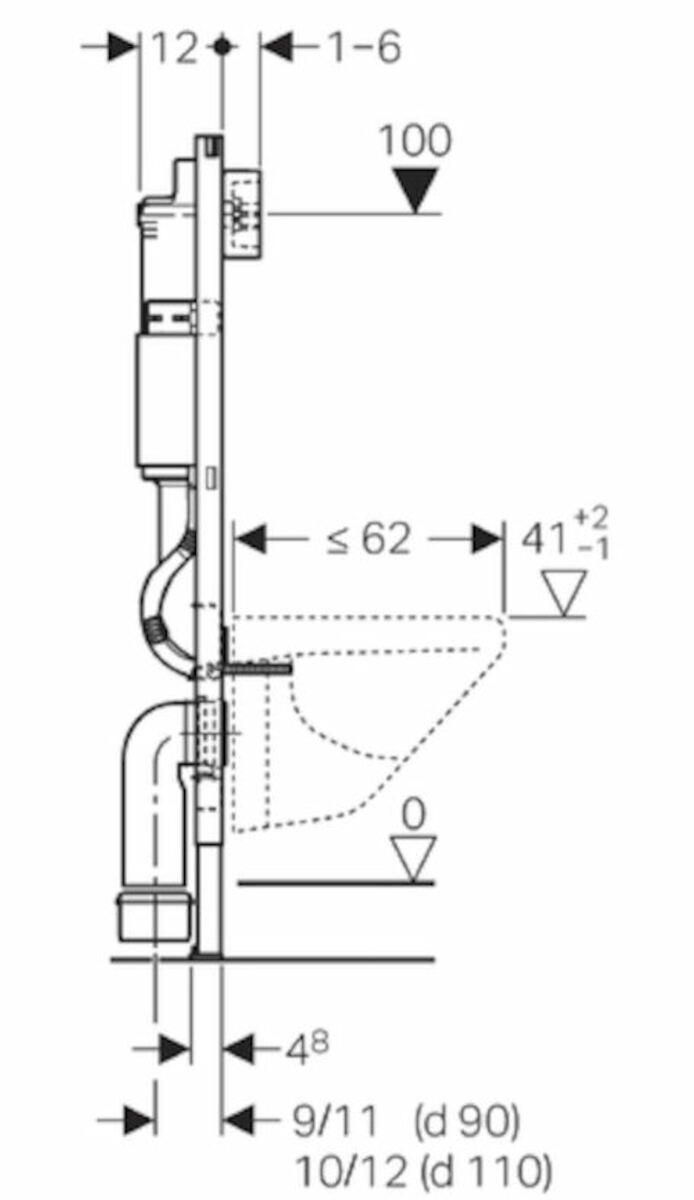

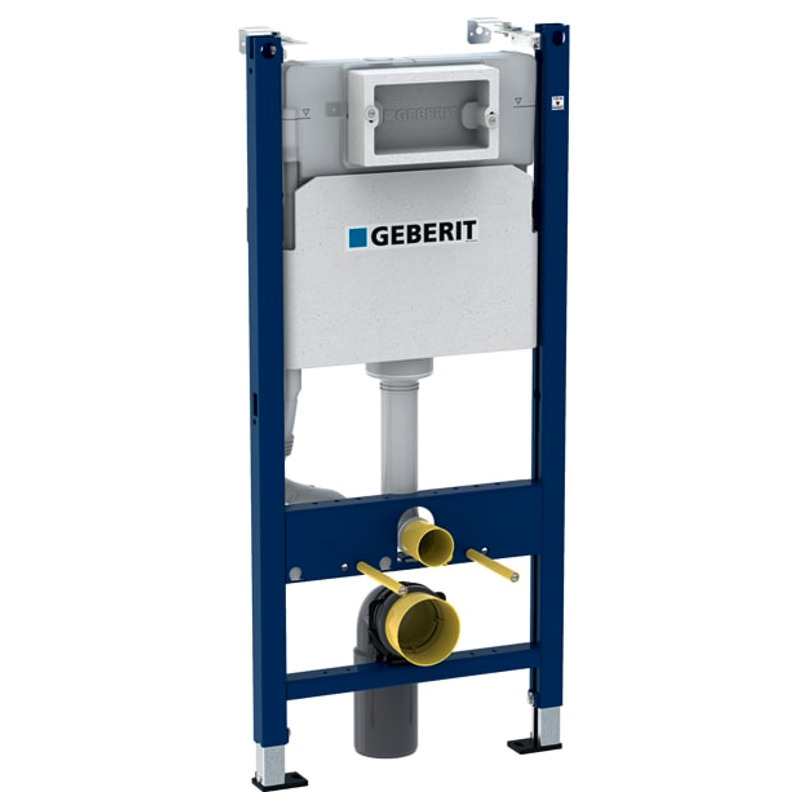

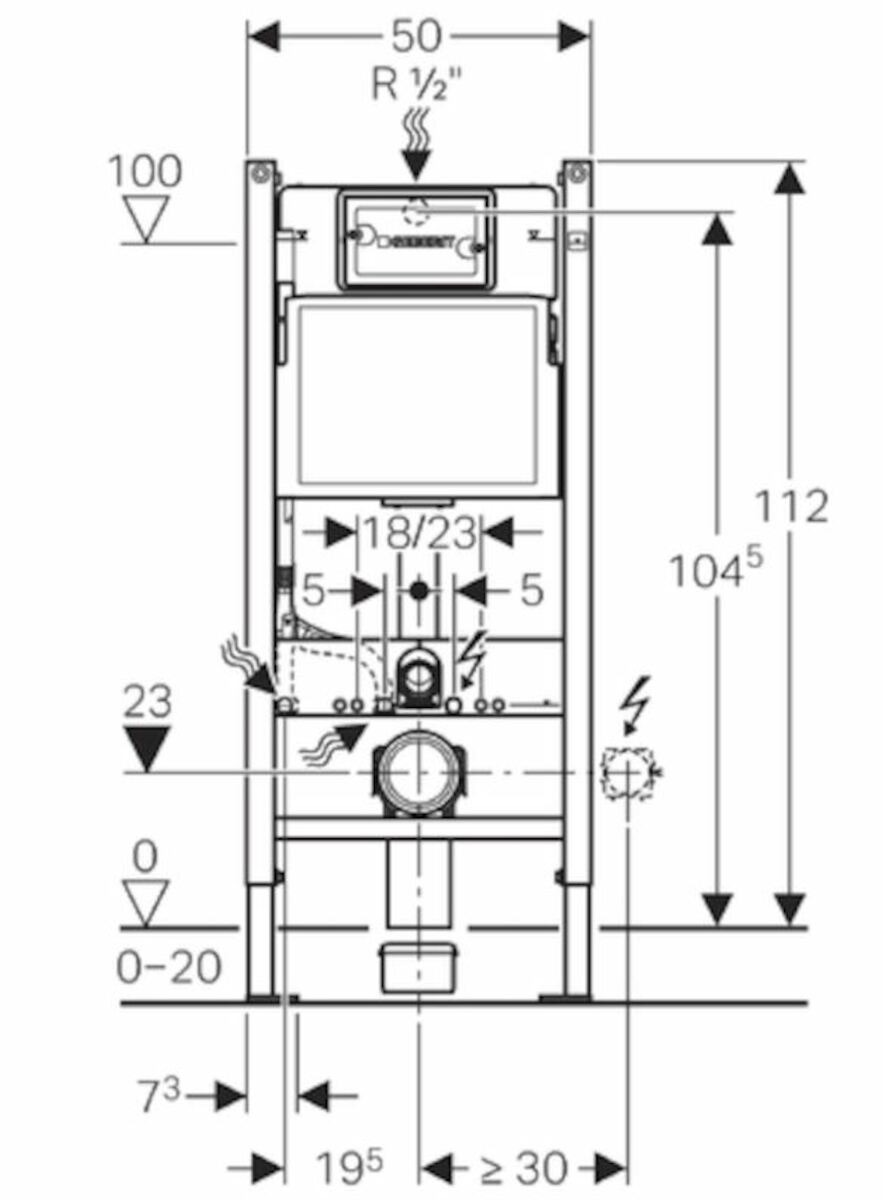

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
.

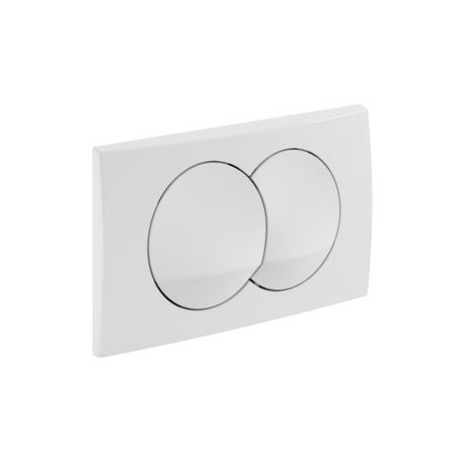

Geberit DELTA20 white flush plate (115.107.11.1) :
- Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush, allowing you to save water. For the Basic frame with the Delta plate, the release is done from the front.
.

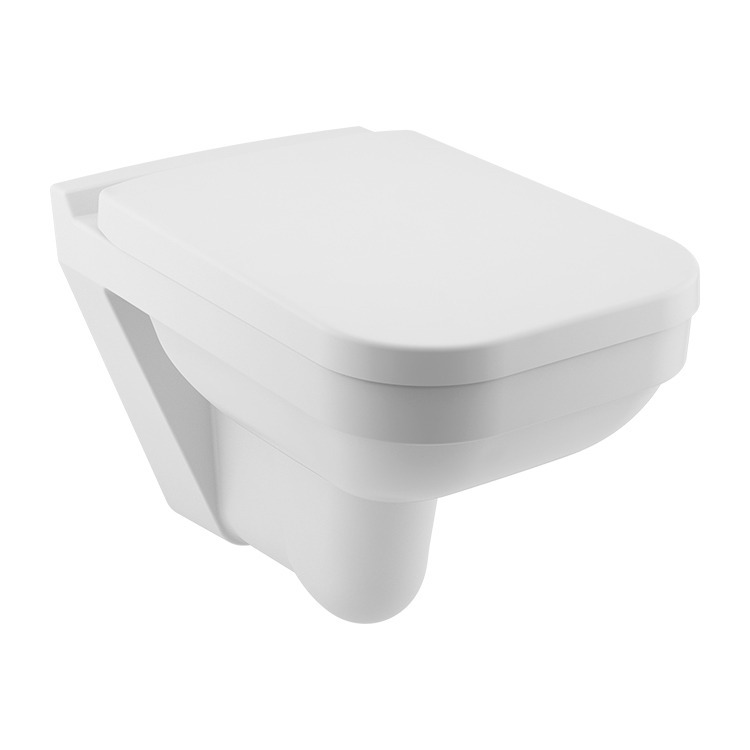

SEREL rimless Star wall mounted toilet bowl + seat (SA26) :
- SEREL Hygiene plus ceramic rimless bowl
- anti-bacterial treatment
- Rimless technology for a total cleaning of the bowl surface
- SEREL toilet bowl

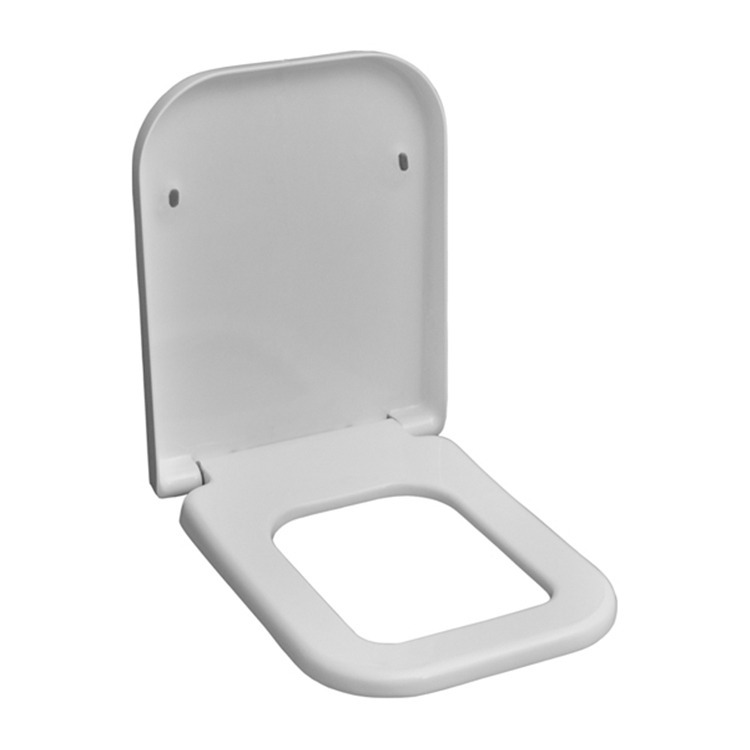

- SEREL toilet seat (223zt00002)
- colour : white alpine
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
- Toilet bowl brand:Serel
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Bowl colour:White
- Invisible fixings:No
