Geberit Toilet set Support frame + SAT Infinitio Design Rimless Toilet, Invisible Fixings + White Plate (SquareInfinitioGeb3)
- Product reference: SINFIGEB3
- EAN: 0734077003724
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Opt for the quality and ease of installation of the Toilet set Support frame + SAT Infinitio Design Rimless Toilet, Invisible Fixings + White Plate.
This toilet pack links the Geberit brand and the Infinitio range from Swiss Aqua Technologies, products of renowned quality. This support frame and the advanced technology of this toilet bowl offer solutions adapted to all your projects and will surely satisfy all your expectations.

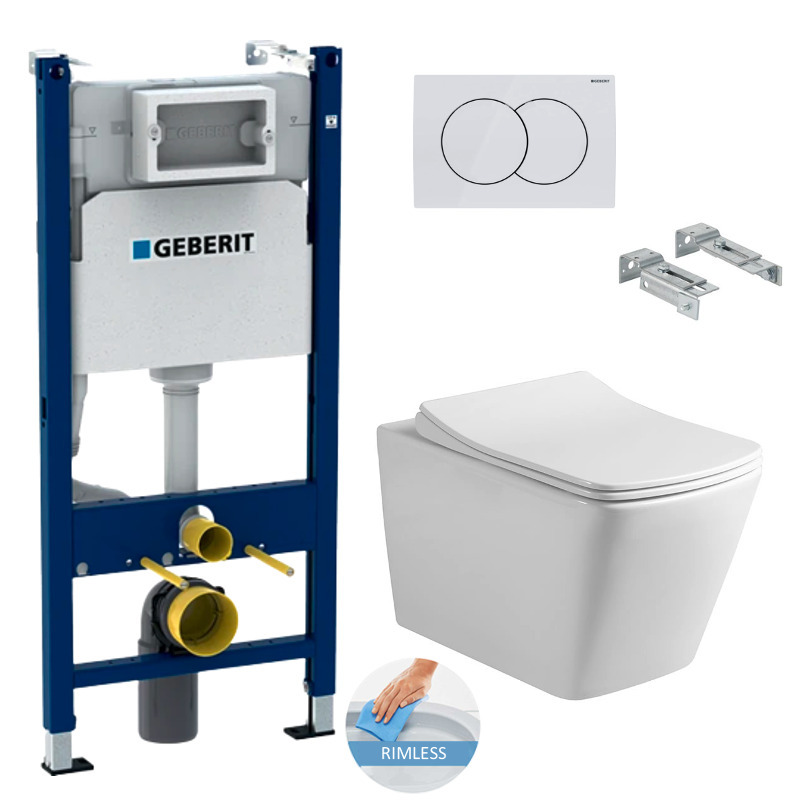

Features of the Toilet set Support frame + SAT Infinitio Design Rimless Toilet, Invisible Fixings + White Plate (SquareInfinitioGeb3) :
- Swiss Aqua Technologies Infinitio wall-hung toilet without rim , invisible fixings + Softclose seat (SquareInfinitio)
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
- DuofixBasic pre-wall mounting set (111.839.00.1)
- Geberit DELTA01 flush plate white (115.107.11.1)
.

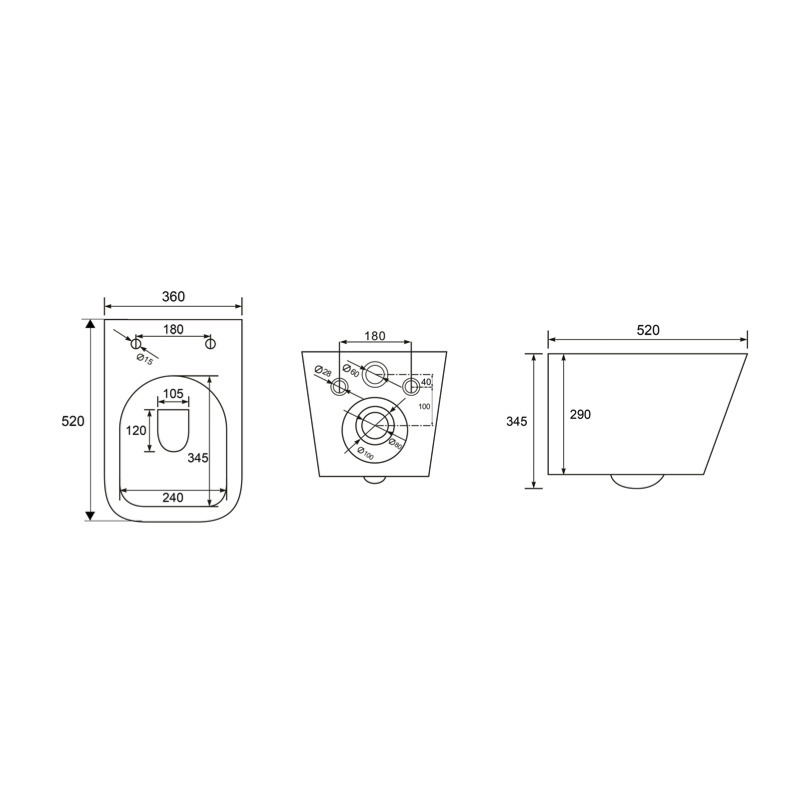

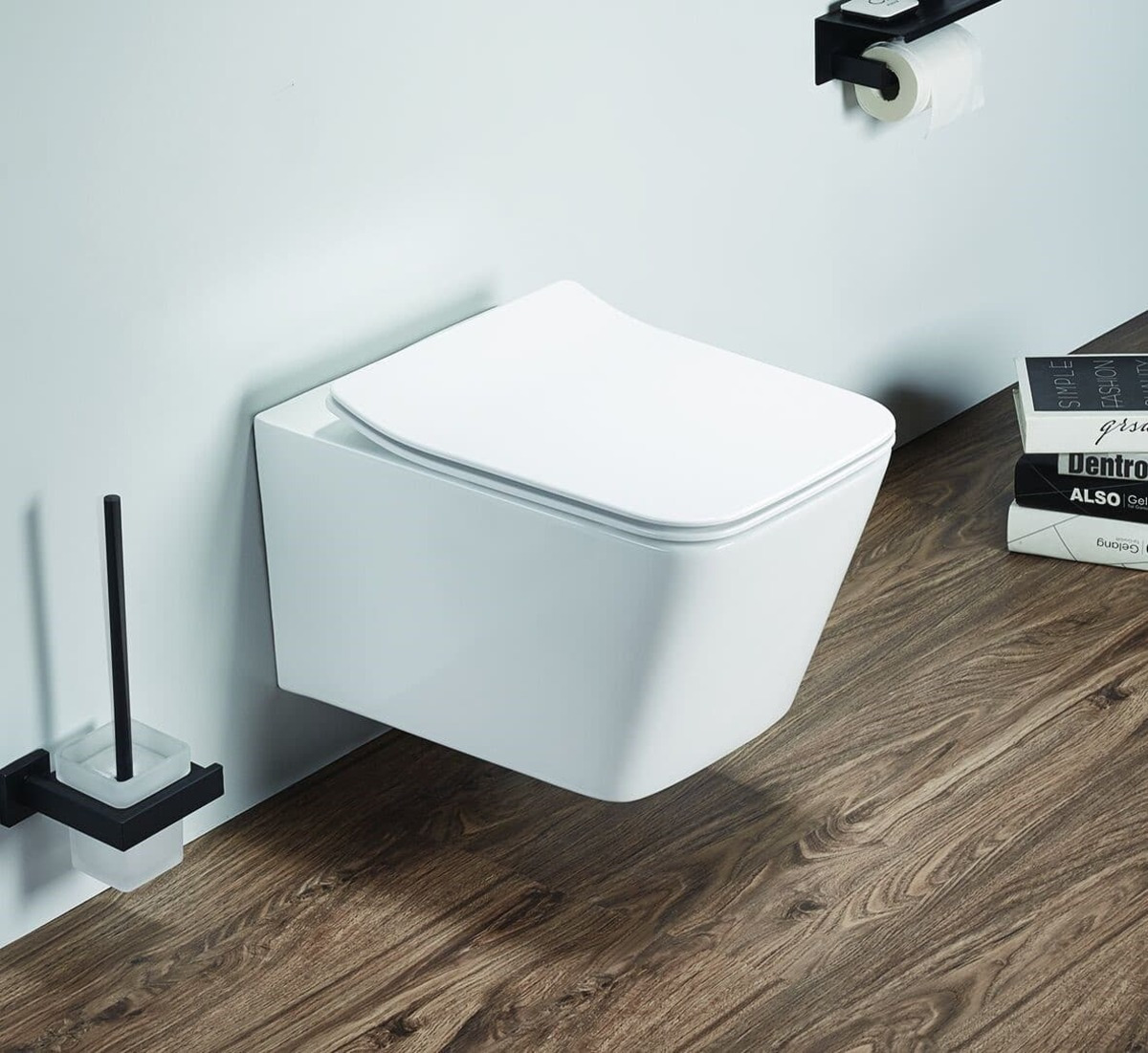

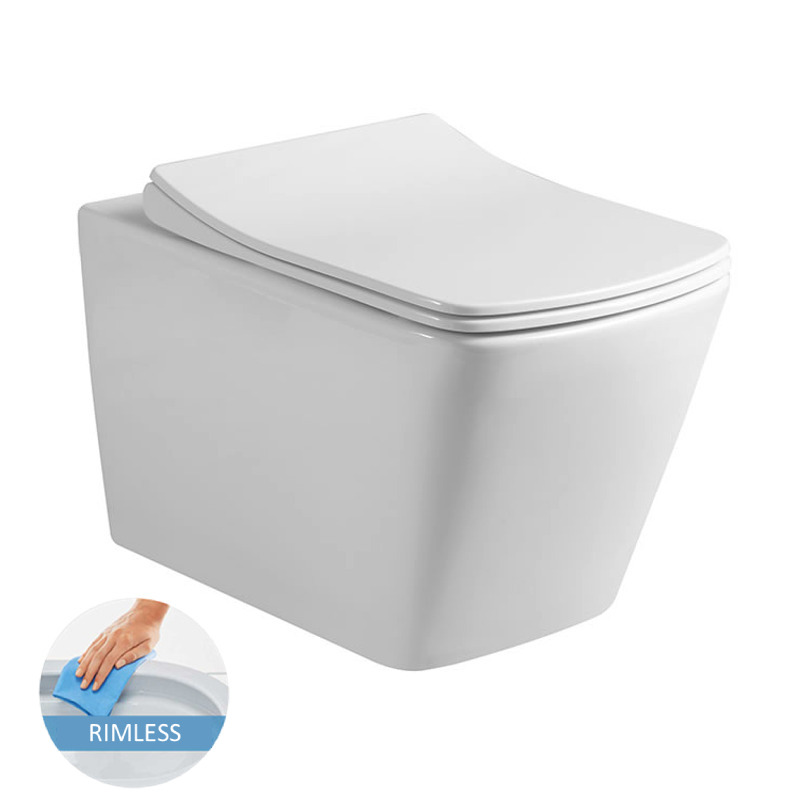

Swiss Aqua Technologies Infinitio wall-hung toilet without rim , invisible fixings + Softclose seat (SquareInfinitio) :
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Design bowl
- Rimless bowl
- Hidden fixings
- Depth of 52 cm
- Rinsing 3 / 6 L
- Seat with fall brake
- Detachable seat
- Slim seat
- Easy to clean thanks to the rimless system and the removable seat
- Quick installation.

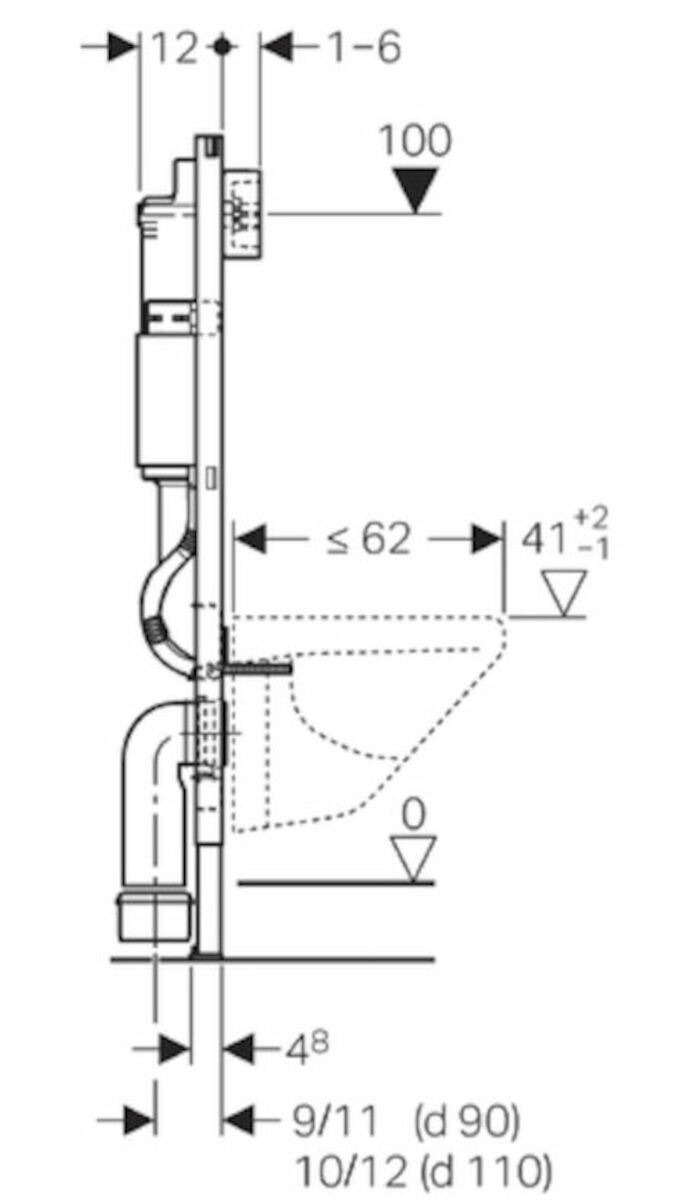

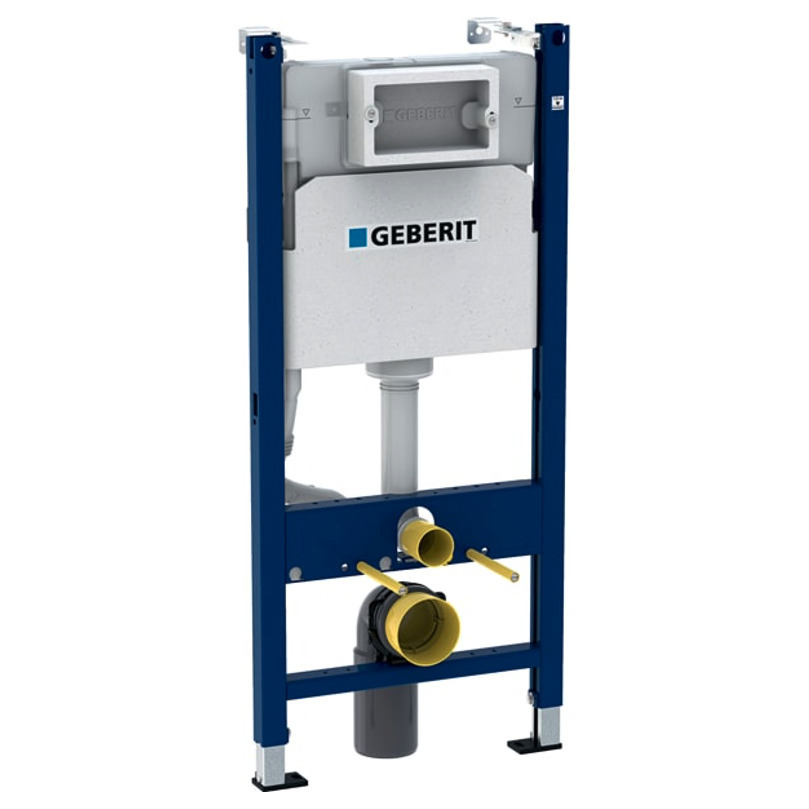

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
Purpose of use
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
.

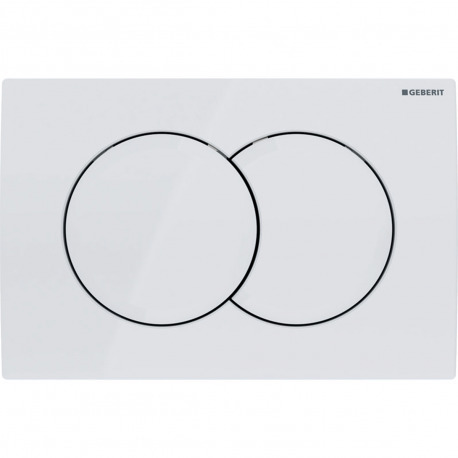

Geberit DELTA01 flush plate white (115.107.11.1) :
- Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
- Water saving
- Frontal release
.
Please note! It is imperative to check the good condition of the package, both inside and out, at the time of delivery.
You have a maximum of 72 hours from receipt of the product to report any damage. After this period, complaints cannot be taken into account. Furthermore, we strongly advise you to check and, if necessary, refuse the goods if you notice a problem at the time of receipt. We thank you for your understanding.
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:Yes
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(34.18% saving)
