Geberit Toilet set Duofix Toilet Frame + Porcher rimless wall-hung bowl + Ideal Standard ASTOR seat + White plate (PorcherGeb3)
- Product reference: PORCHERGEB3
- EAN: 0034966358196
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

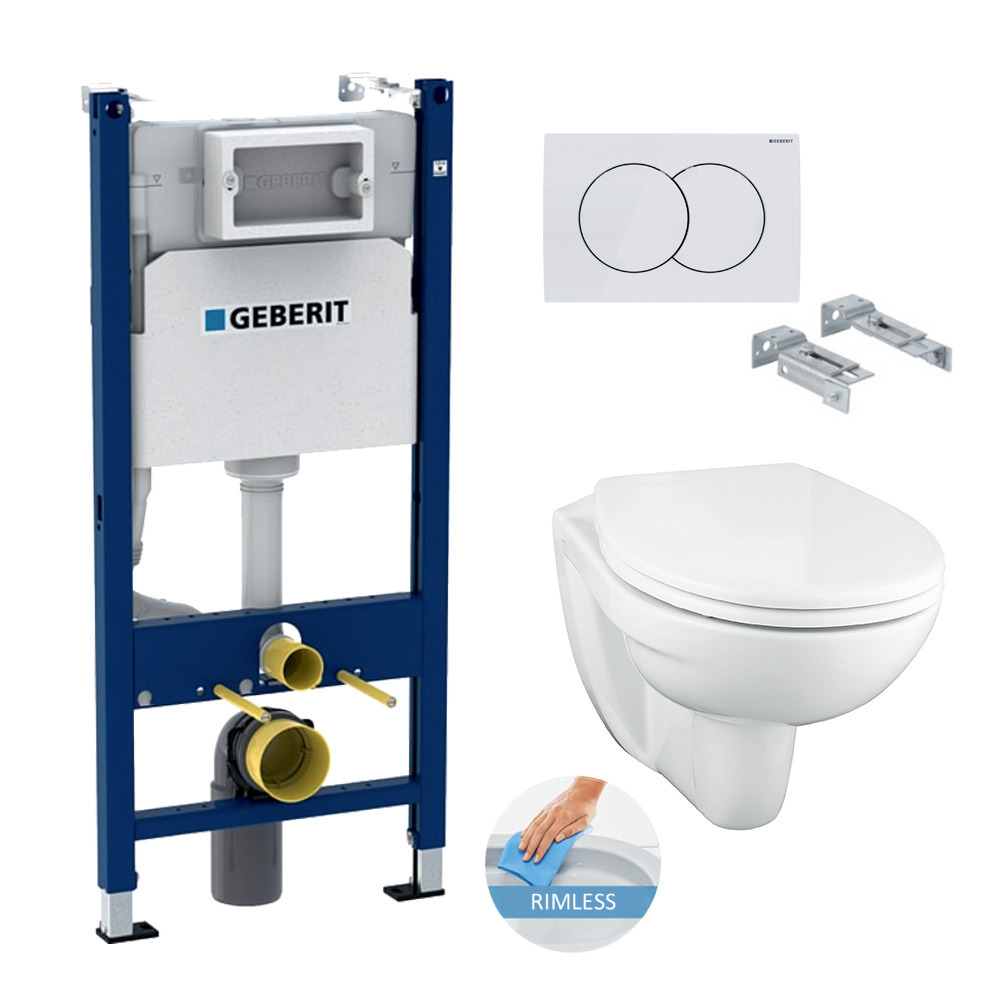

Opt for the design and ease of installation of the Pack Duofix Support Frame + Porcher rimless wall-hung bowl + Softclose seat + White plate.
Thanks to its Duofix support frame from Geberit, as well as its rimless Porcher wall-hung toilet with its seat, this pack will certainly satisfy your expectations for your interior work.
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
see detailed description- Colour:White
- Material:Porcelain
- Length (cm):52
- Width (cm):35.5
- Height (cm):35
- Toilet bowl brand:Porcher
- Toilet bowl:Rimless
- Soft closing seat:STANDARD
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Weight:16.5
- Bowl colour:White
- Invisible fixings:No
Features of the Toilet set Duofix Toilet Frame + Porcher rimless wall-hung bowl + Ideal Standard ASTOR seat + White plate (PorcherGeb3) :
.
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank (111.153.00.1)
- Geberit Duofix pre-wall mounting set (111.839.00.1)
- Geberit DELTA01 flush plate white (115.107.11.1)
- Porcher Hanging toilet 355x520x370 Rimless (P006701)
- Ideal Standard ASTOR - Toilet seat 370*525 mm (W302601)
.

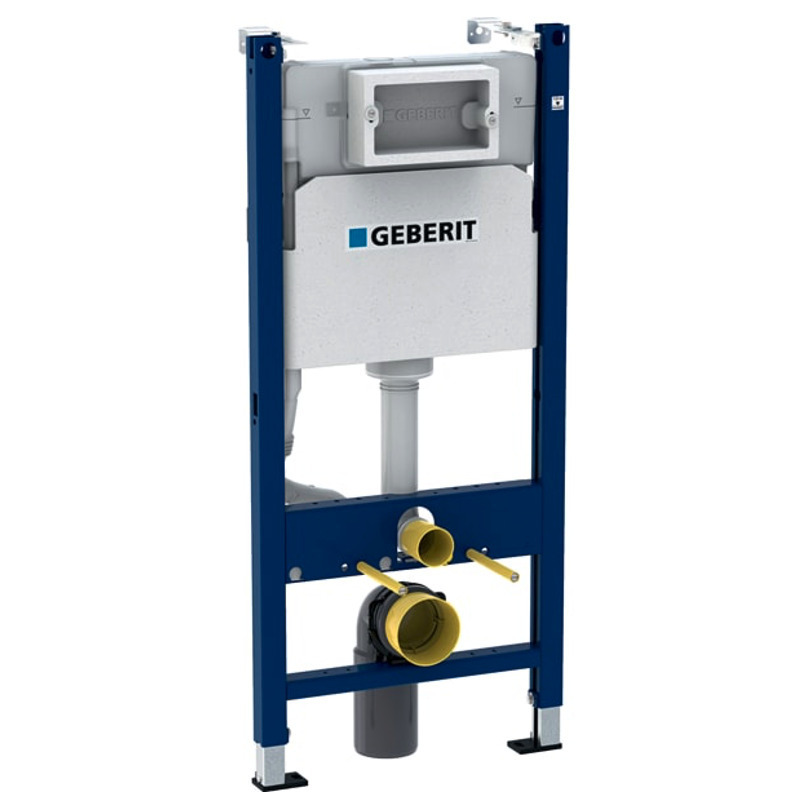

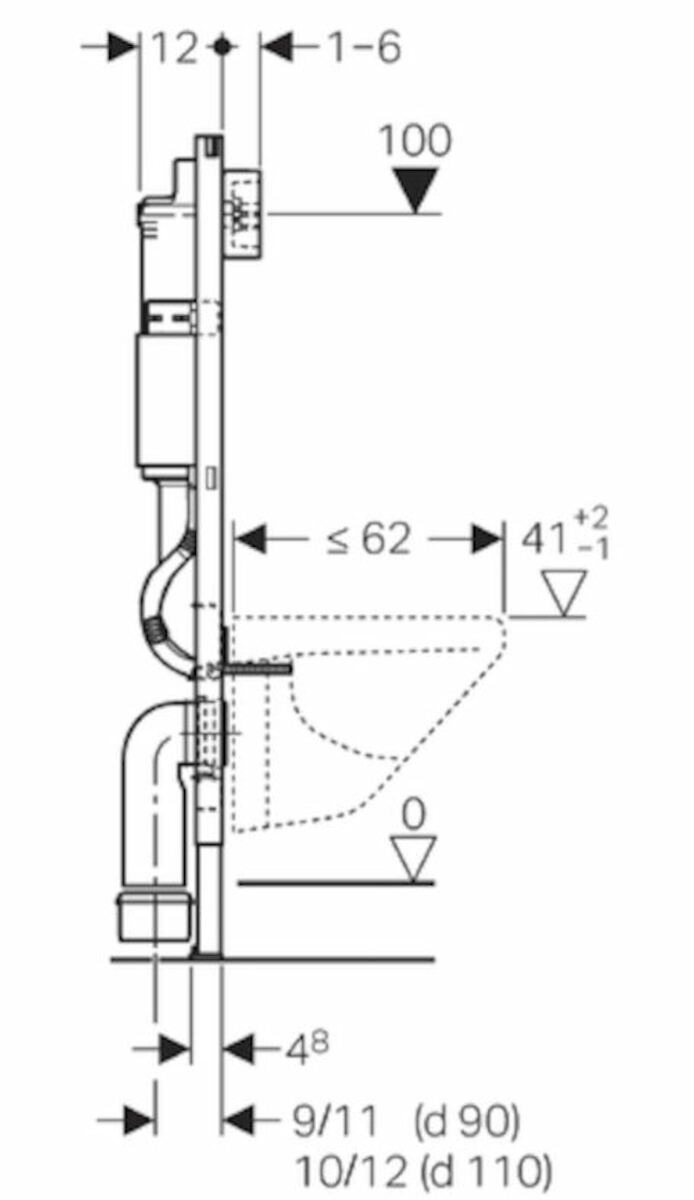

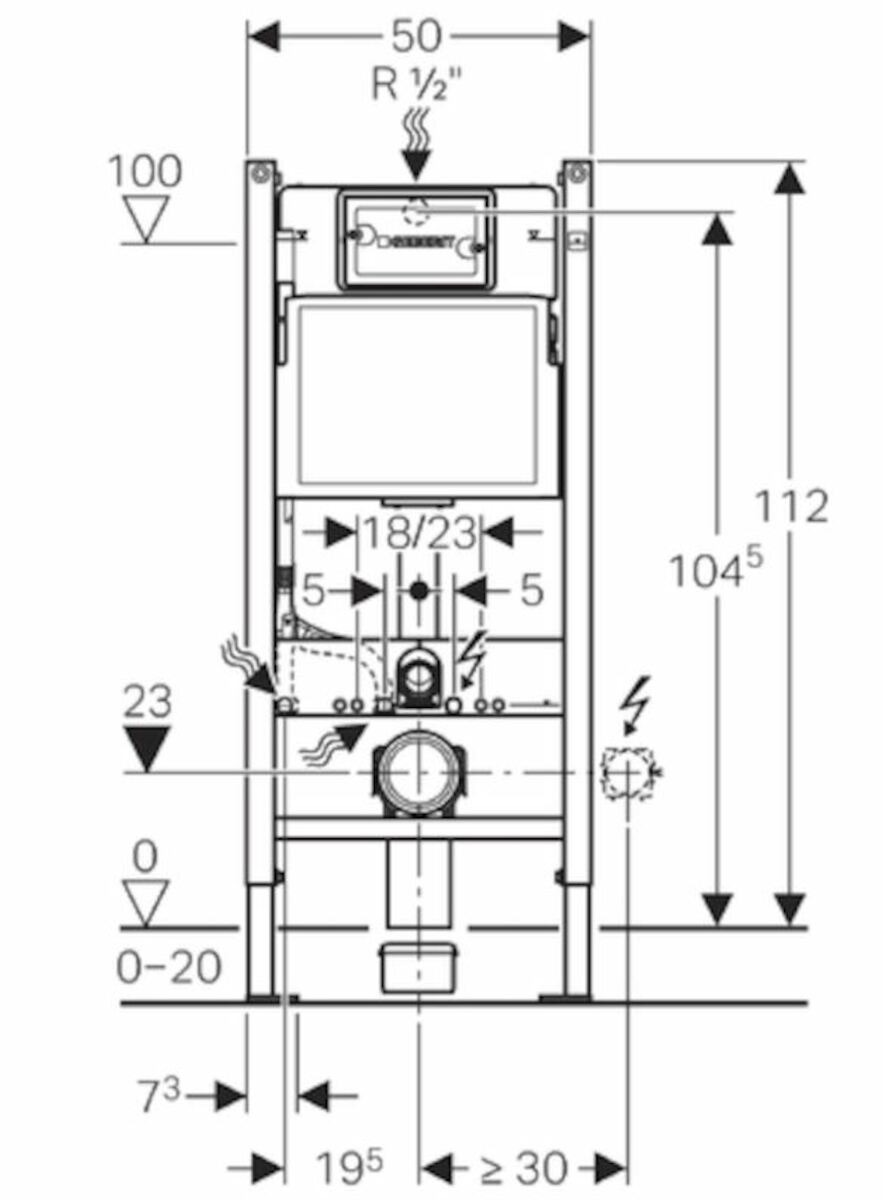

DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
Purpose of use
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
.

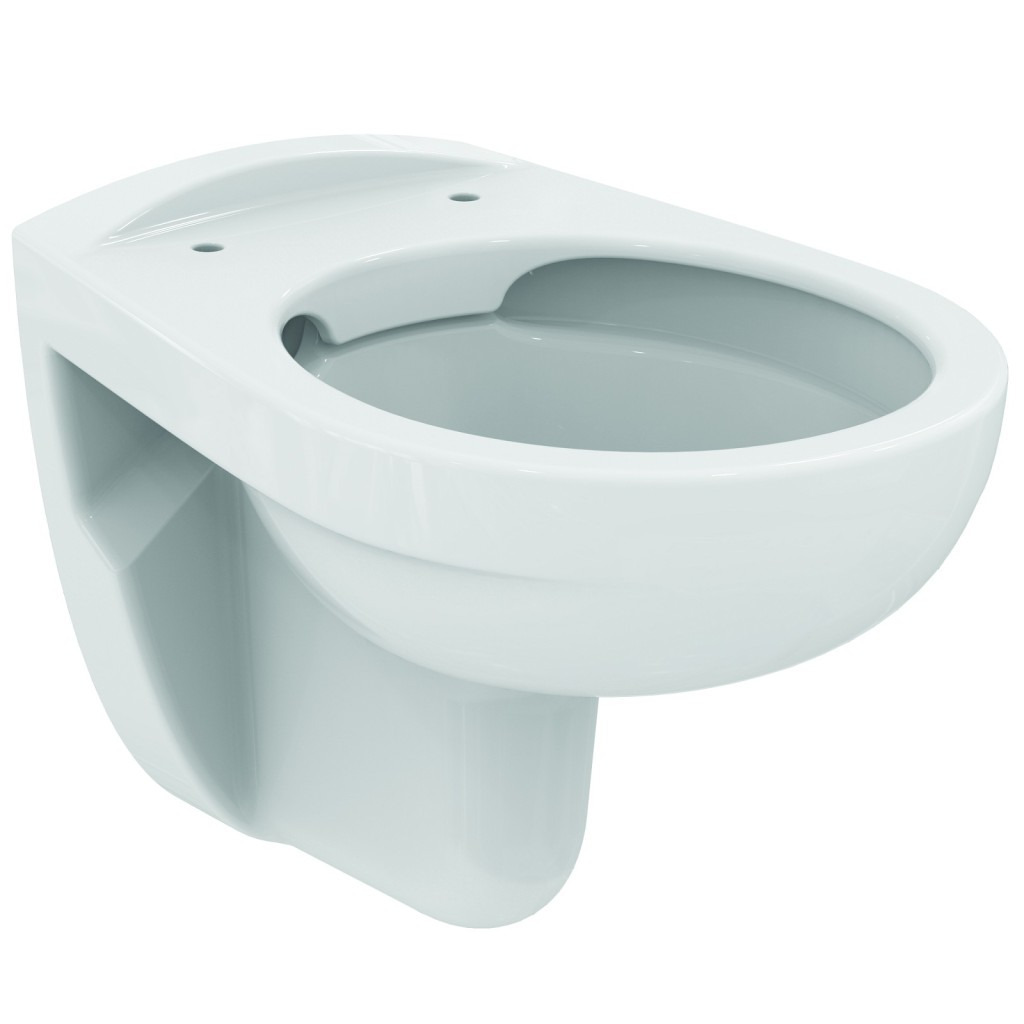

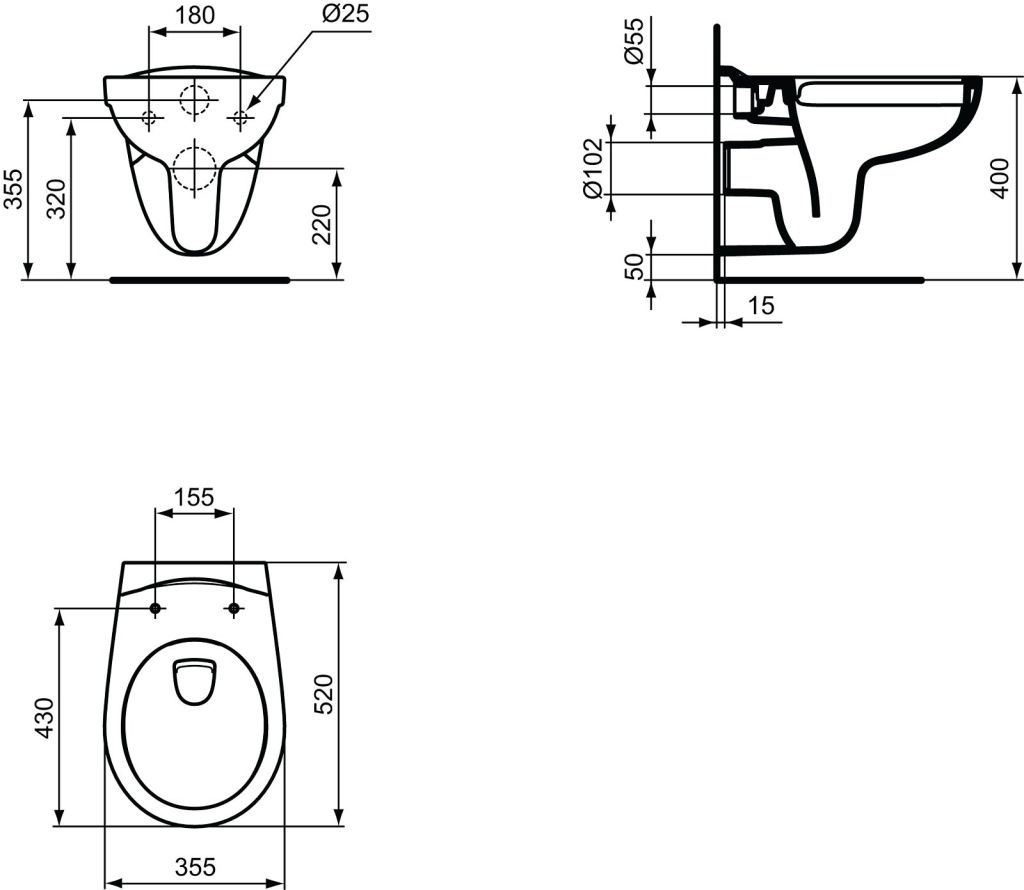

Porcher Hanging toilet 355x520x370 Rimless (P006701) :
- Wall mounted toilet
- Rimless
- Material: porcelain
- Water requirement: 4.5 liters
- Standards: DIN EN 997 CL1-6 a/5 a and DIN EN 33
- Inlet: rear
- Width: 355 mm
- Depth of throat: 520 mm
- Height: 350 mm
- Rear width: 280 mm
- Seat mounting distance front / middle: 430 mm
- Seat attachment spacing: 155 mm
- Color: Alpine White
- Weight: 16.5 kg
.

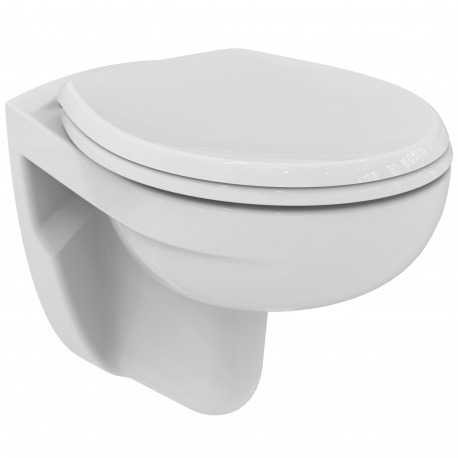

Ideal Standard ASTOR - Toilet seat 370*525 mm (W302601) :
- Toilet seat for standard WC with normal white stainless steel hinges.
- Seat and cover made of UREA 131.5 Duroplast.
- Adjustable stainless steel hinges with mounting from below.
- Extended stops in the seat and circular stops in the lid.

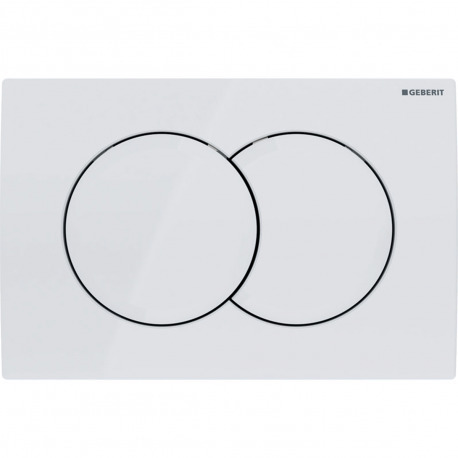

Geberit DELTA01 flush plate white (115.107.11.1)
- Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
- Water saving
- Frontal release
.
.
Please note! It is imperative to check the good condition of the package, both inside and out, at the time of delivery.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(22.41% saving)
