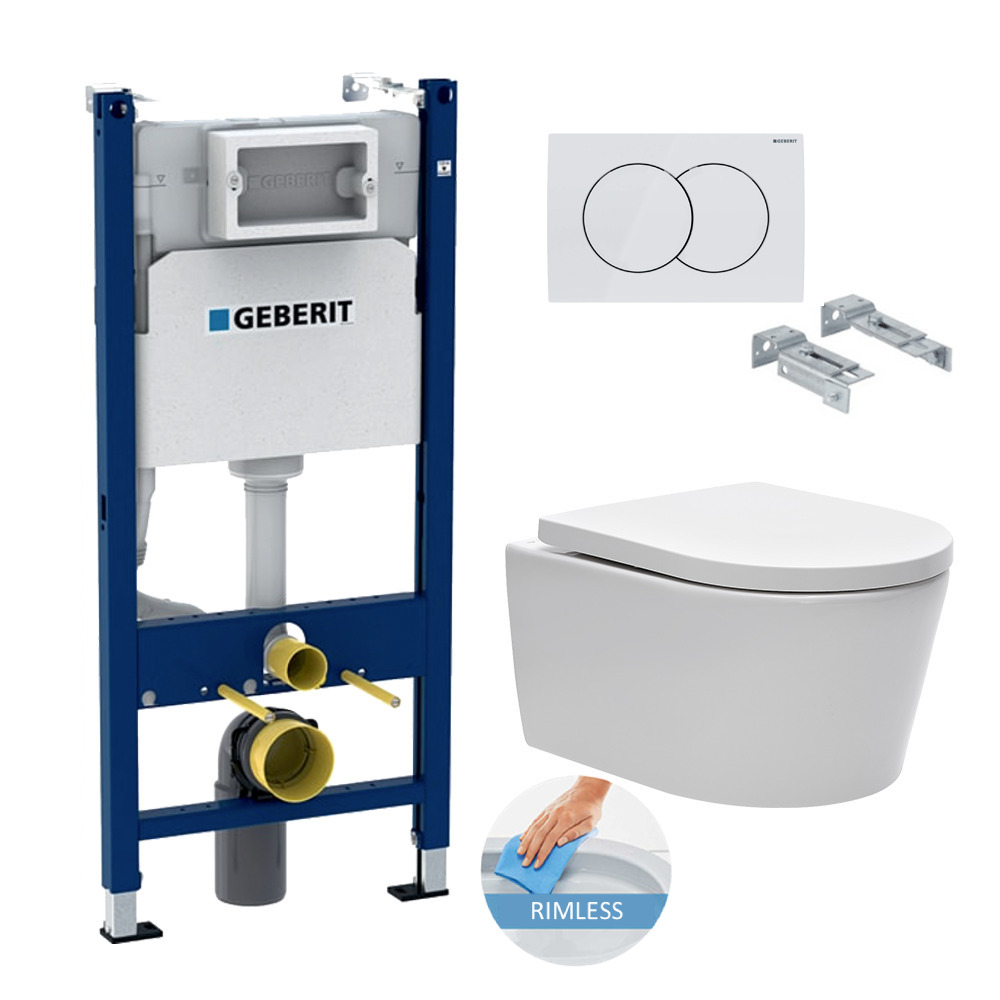

Geberit Toilet set Support Frame 112cm + Swiss Aqua Technologies Rimless toilet + White flush plate + Insulation set
- Product reference: SATrimlessGeb3SET
- EAN: 0633710858113
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Opt for the quality and ease of installation of the 112cm Support Frame + Swiss Aqua Technologies rimless bowl + White plate + Insulation set (SATrimlessGeb3SET).
The quality of the items in this pack is well known and the modernity and design of these items will certainly satisfy you by providing you with solutions adapted to your projects.
see detailed description- Colour:White
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- Bowl colour:White
- Invisible fixings:Yes
Features of the Toilet set Support Frame 112cm + Swiss Aqua Technologies Rimless toilet + White flush plate + Insulation set (SATrimlessGeb3SET) :
- Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + soft close seat (SATrimless)
- Geberit DUOFIXBasic for wall-hung toilets, with Delta tank (111.153.00.1)
- DuofixBasic pre-wall mounting set (111.839.00.1)
- Geberit DELTA01 white flush plate (115.107.11.1)

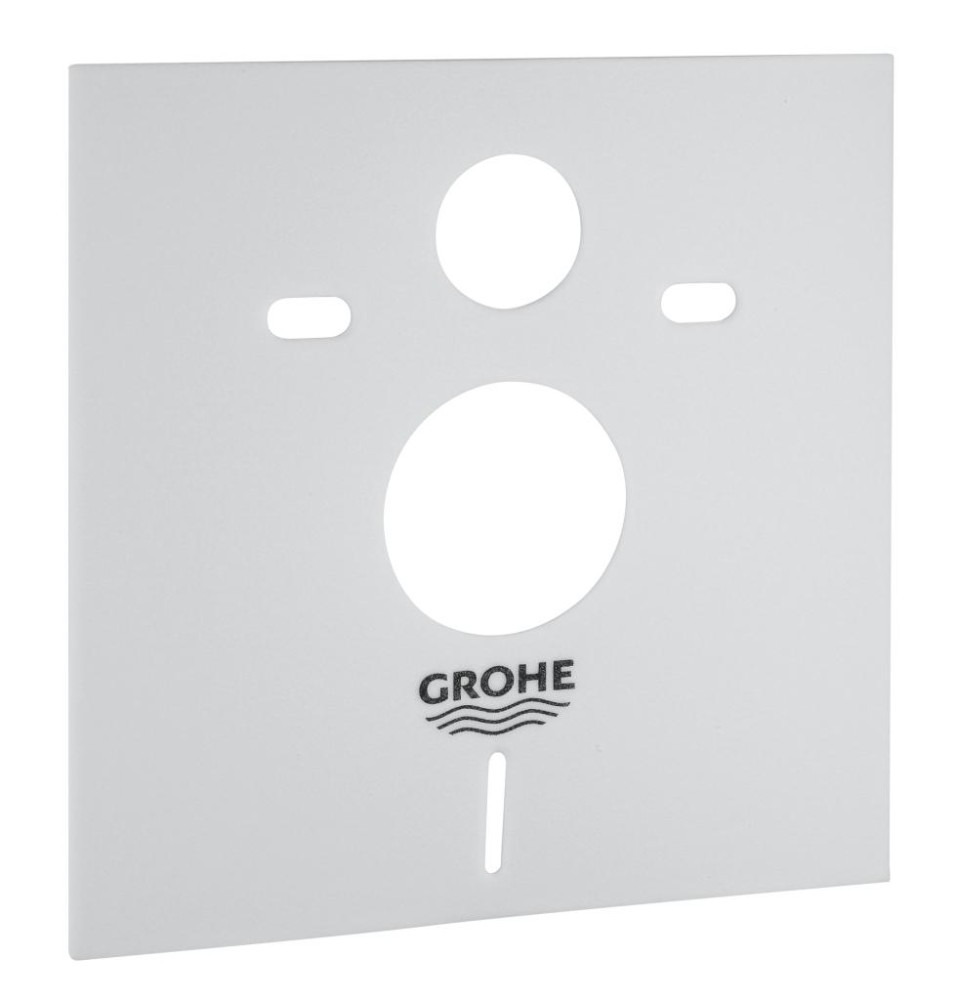

- Grohe Sound insulation set (37131000)
.

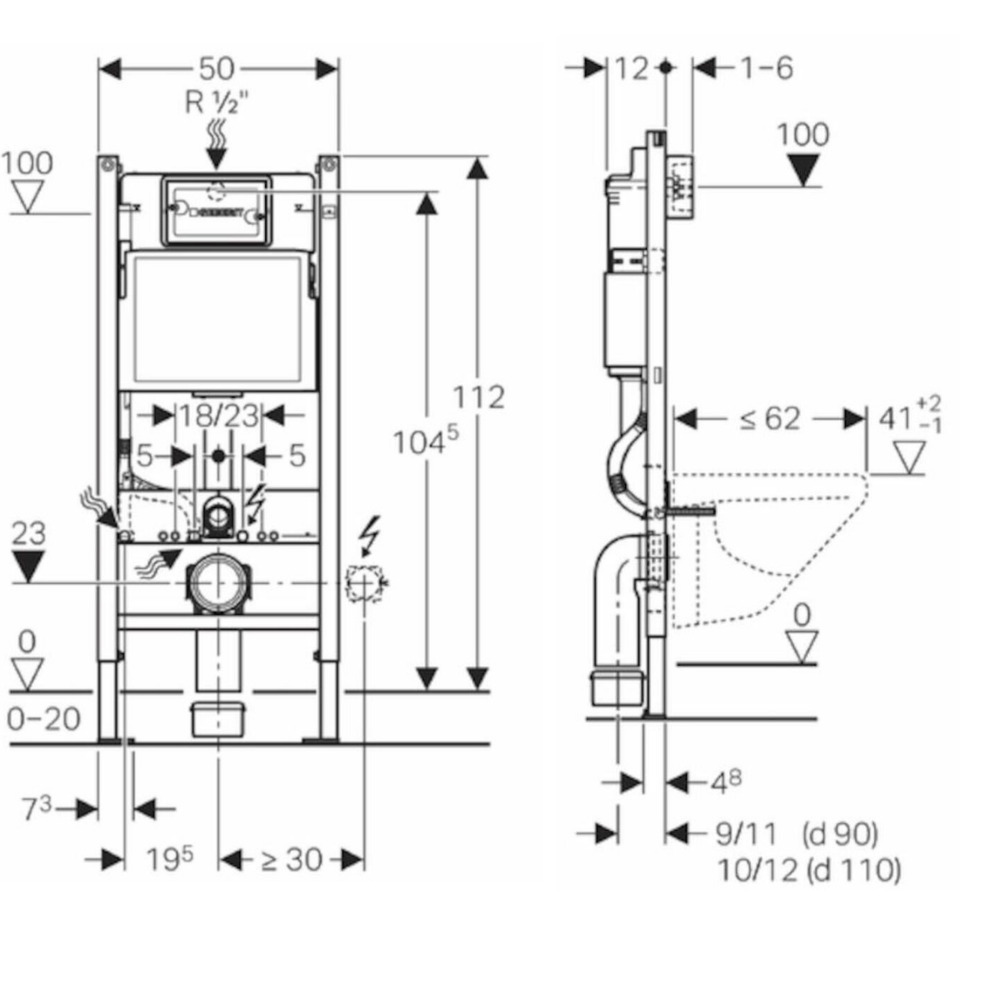

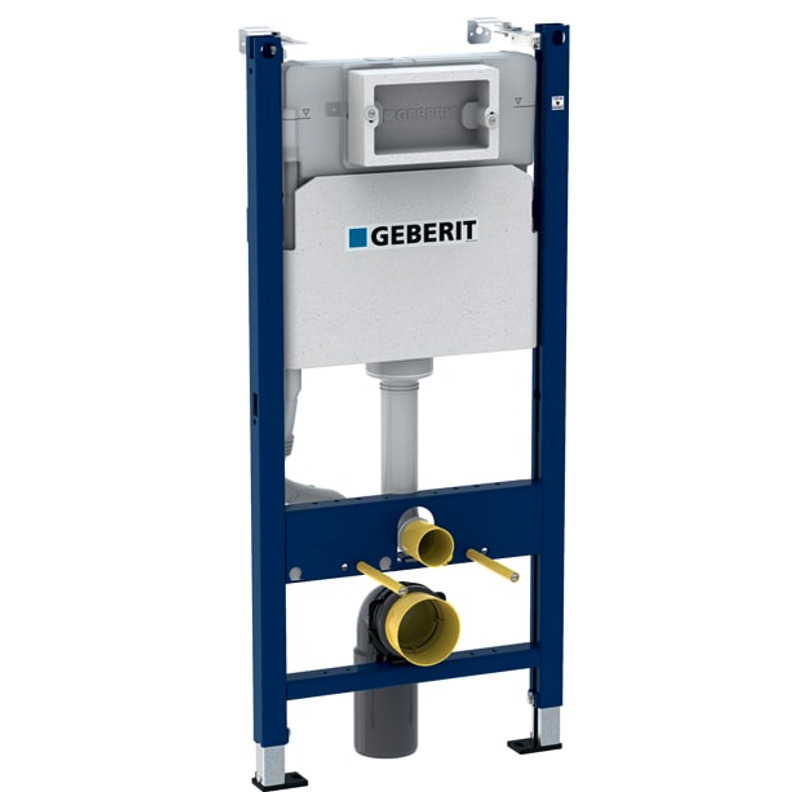

Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1) :
Purpose of use
- For installation in the pre-wall installation in all or part
- The height of the room in front of a solid wall or a dry wall
- For mounting a wall-hung toilet with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- For Geberit control, use the Delta control buttons
- For Geberit AquaClean
- Not suitable for concreting
Characteristics
- Delta Geberit flush tank 12 cm (UP100) front control
- Flush tank against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flushing possibility
- Water supply from the rear/upper center
- Connection pipe to the corner valve can be screwed on manually
- 1 flush with Geberit Delta15 control knob
- 2 flushes with Geberit Delta20 control knobs
- Powder-coated frame surface, color blue Geberit self-supporting element
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanized supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for installation UW50
- Installation depth 12 cm
Technical information
- Flush quantity - factory setting 6 and 3.5 l
- Large flush volume - setting range 4.5 / 6 / 7.5 l
Scope of delivery
- 2 threaded rods M12 for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Corner valve R 1/2" with adapter ring
- Geberit AquaClean water supply hose
- Repairing the knee joint
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Does not contain: Control knob
- Does not contain: Construction kit for wall mounting
.

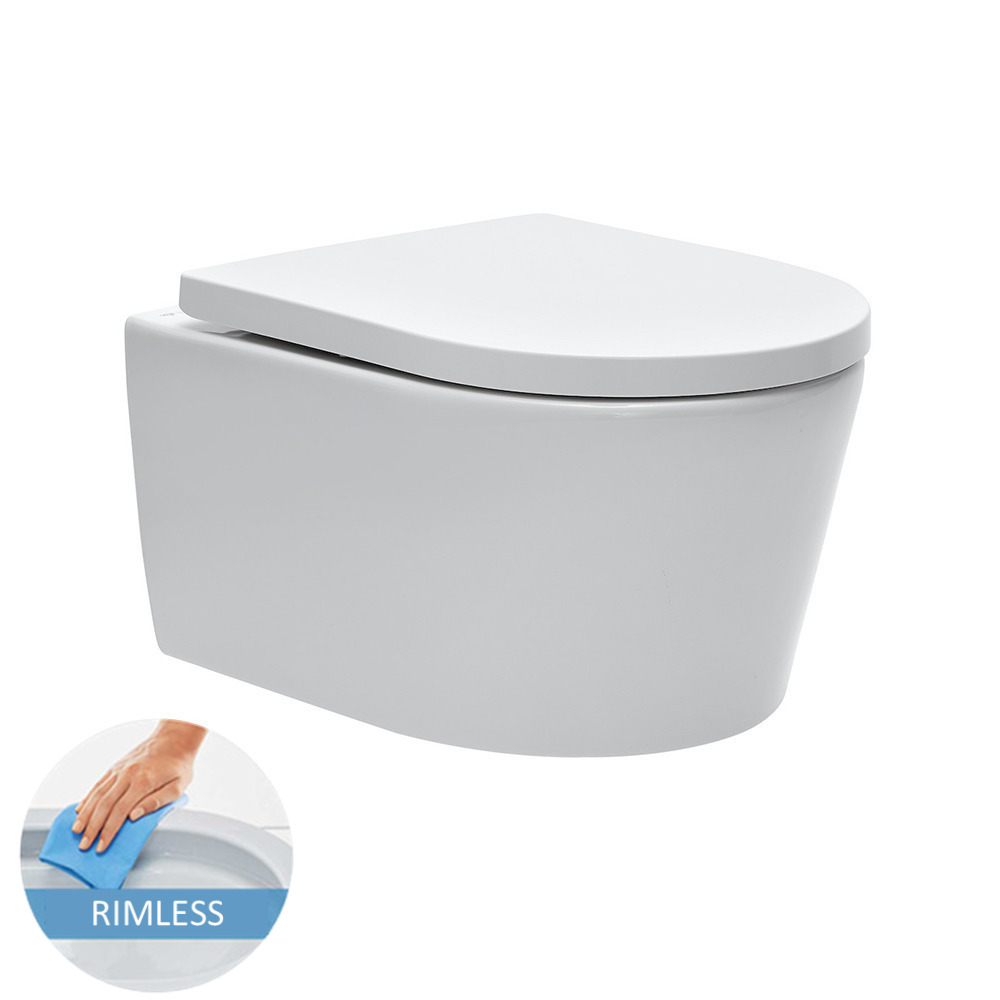

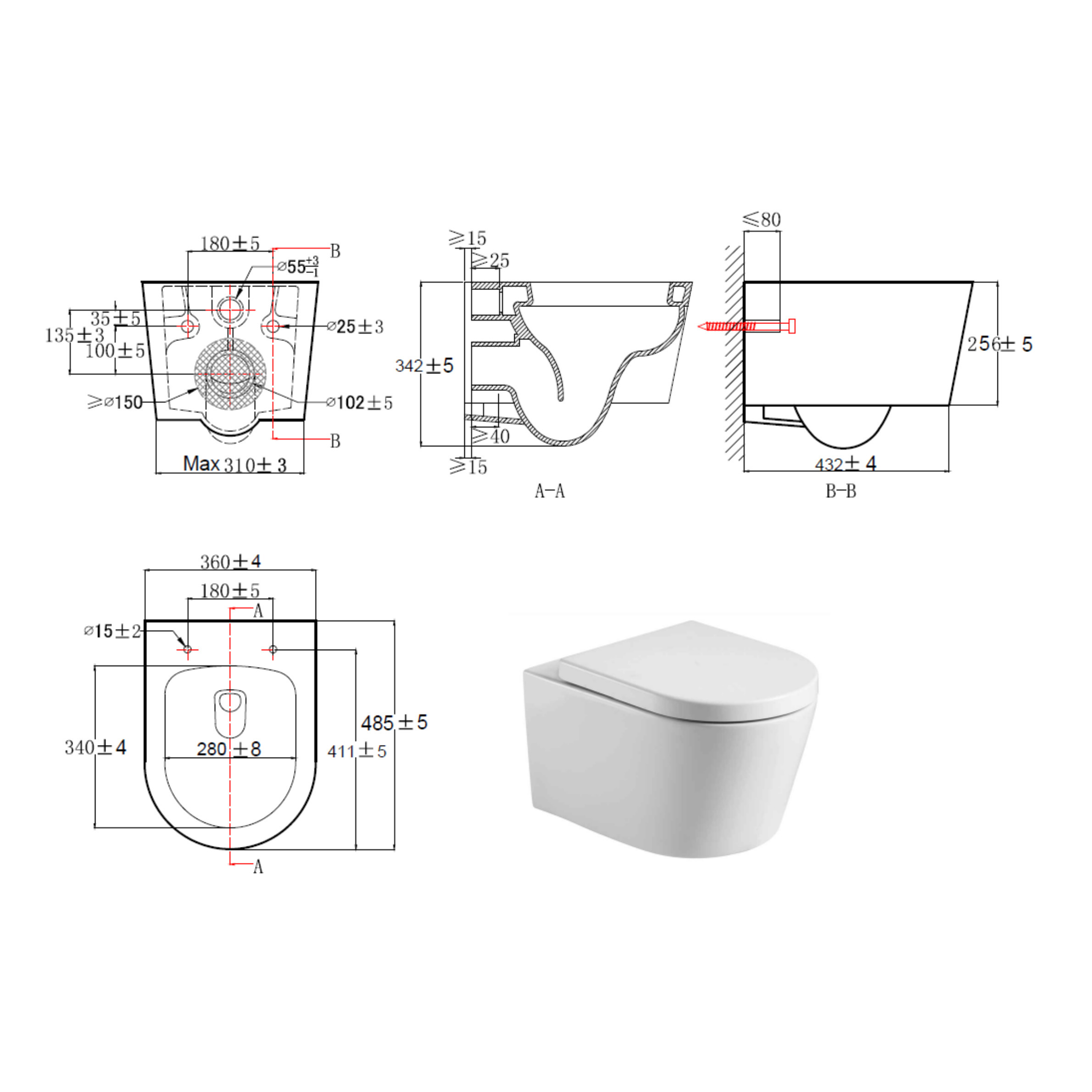

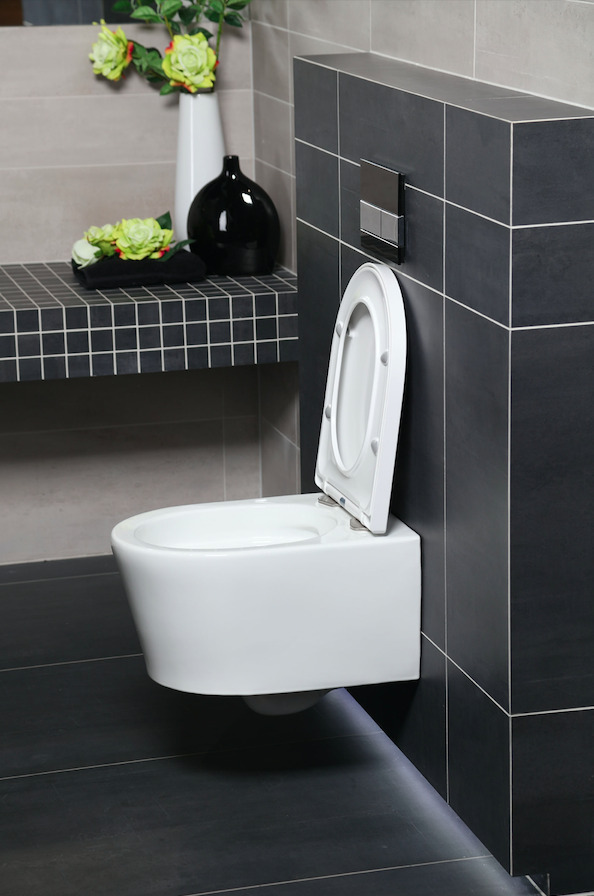

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless) :
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L

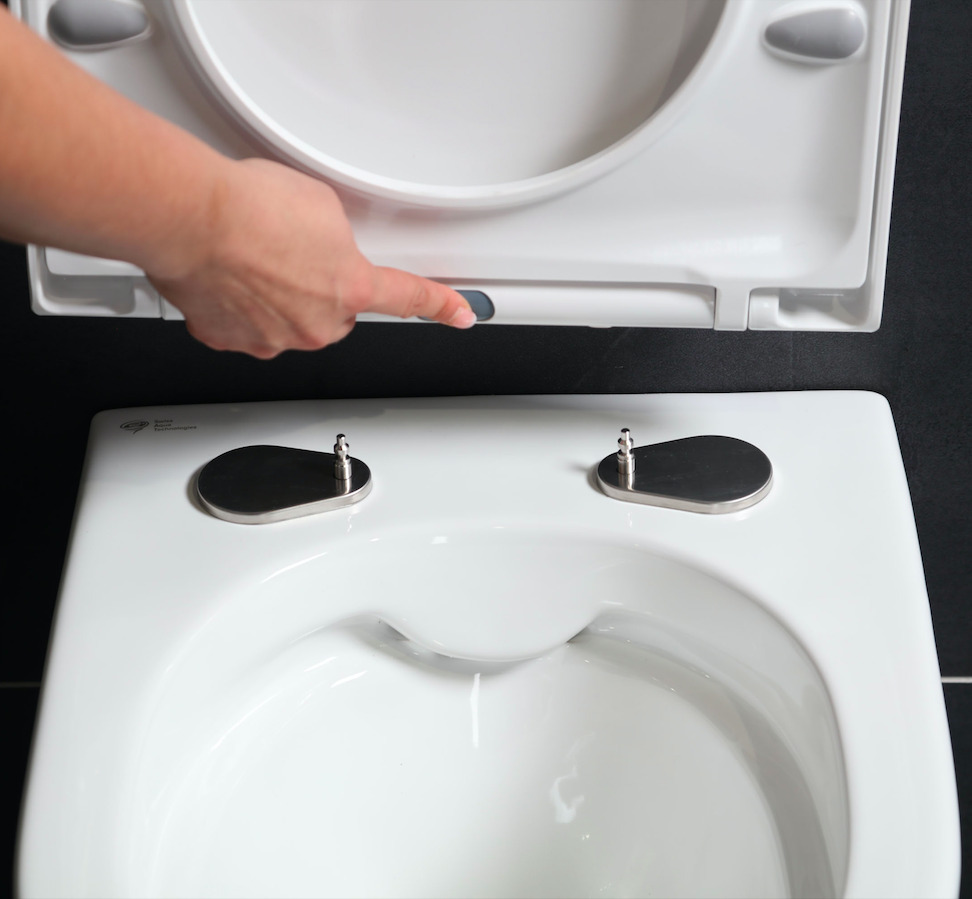

- Toilet seat with soft close
- Snap-on flap
- Easy to maintain thanks to the rimless system and removable flap
- Quick setup

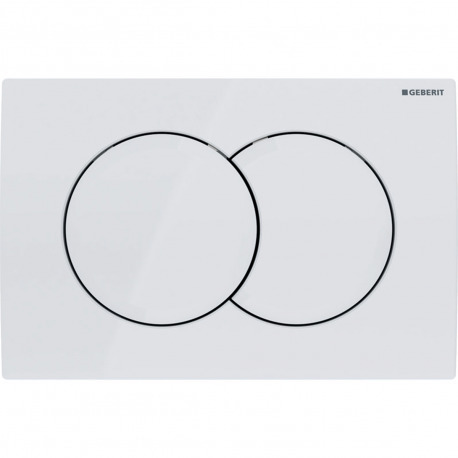

Geberit DELTA01 flush plate white (115.107.11.1) :
- Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
- Water saving
- Frontal release
Please note! It is imperative to check the products on receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
