Geberit WC Set Duofix frame + O.novo Villeroy & Boch Rimless bowl with hollow bottom + Softclose seat + White plate (O.NOVORIMLESSGEB3)
- Product reference: O.NOVORIMLESSGEB3
- EAN: 0734077006244
Brand:
Product warranty:
2
years

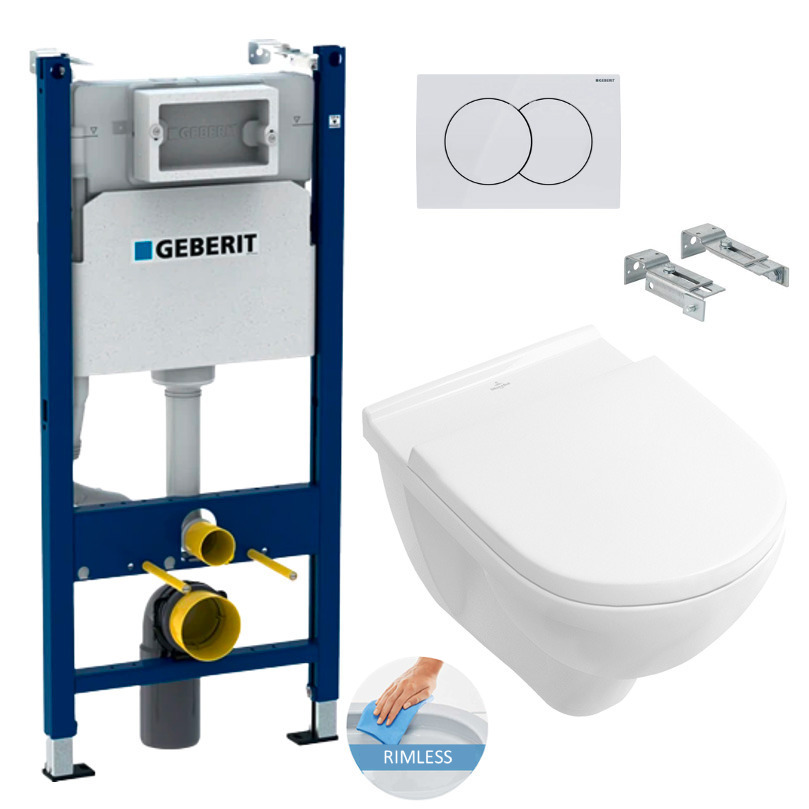

Features of the Toilet Set Duofix support frame + O.novo Villeroy & Boch Rimless bowl with hollow bottom + Softclose seat + White plate (BrillaGeb3) :
- Geberit Delta Pack Duofix support frame 112cm + Delta01 White flush plate + Wall fixings (111.154.11.2)
- Villeroy & Boch O.novo Washdown toilet, rimless, wall-mounted, Alpine White , 360 mm x 560 m (5660R001)
- Villeroy & Boch O.Novo removable seat with soft close for toilet bowl and wall-hung toilet (9M38S101)
.
see detailed descriptionProduct technical properties
- Toilet bowl brand:Villeroy & Boch

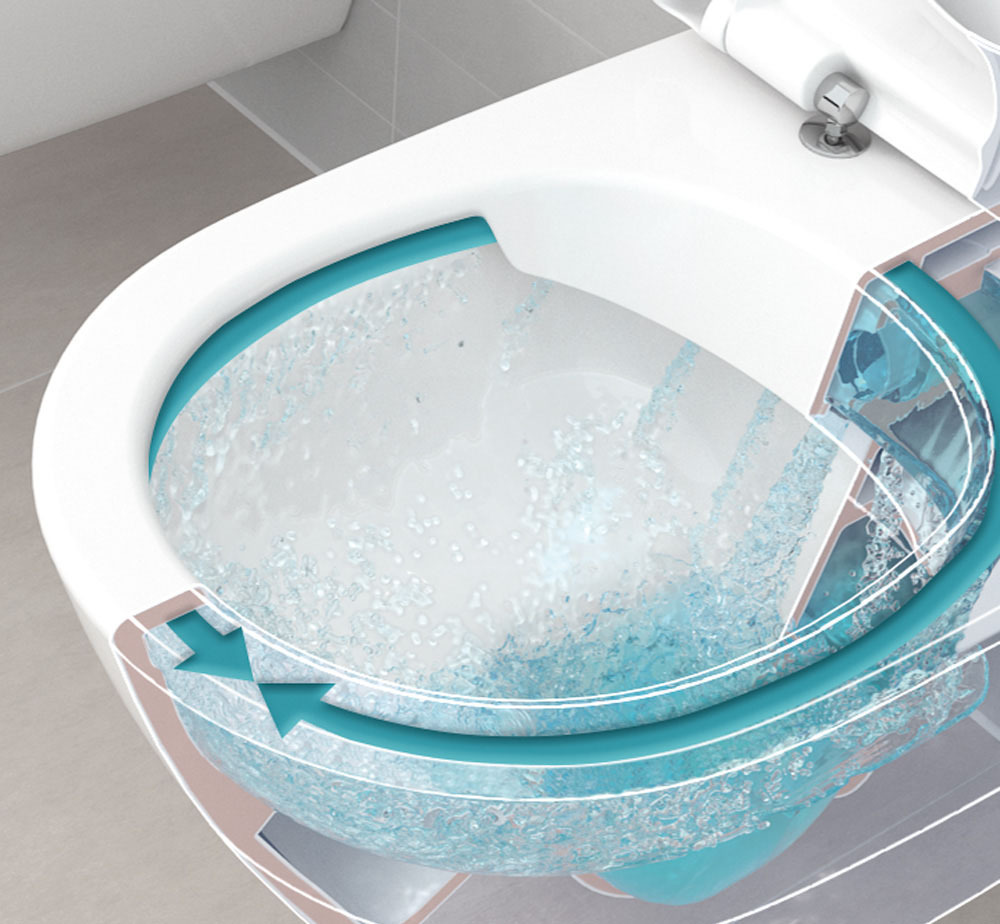

- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:No

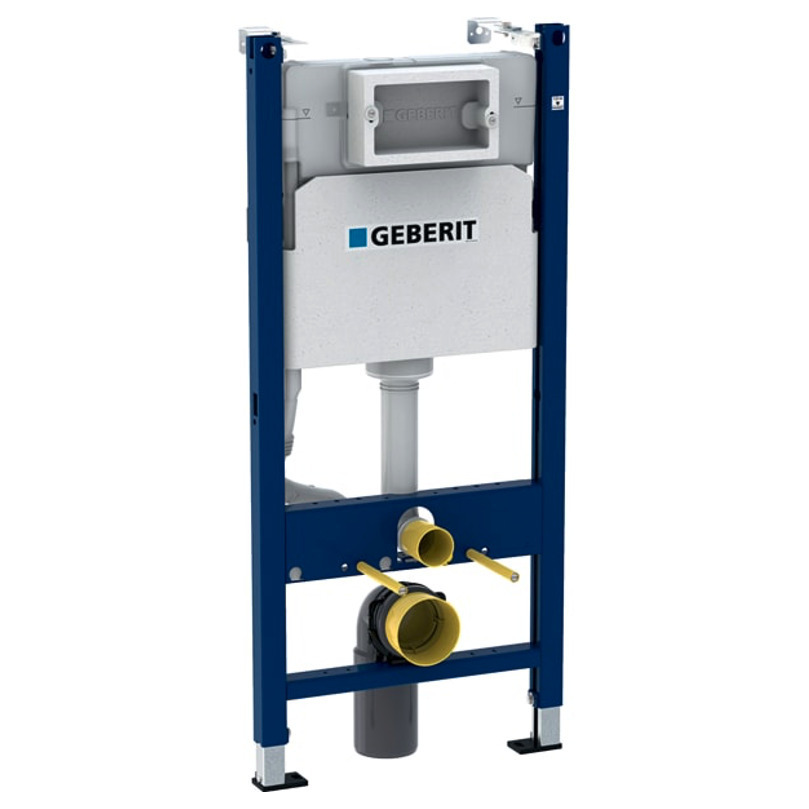

Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1) :
Use :
-
For drywall construction
-
For installation in part- or room-height prewall installations
-
For installation in room-height installation walls
-
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
-
For wall-hung WCs with projection up to 62 cm
-
For floor constructions 0–20 cm
-
Geberit AquaClean
-
Not suitable for concreting
Features :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)
.

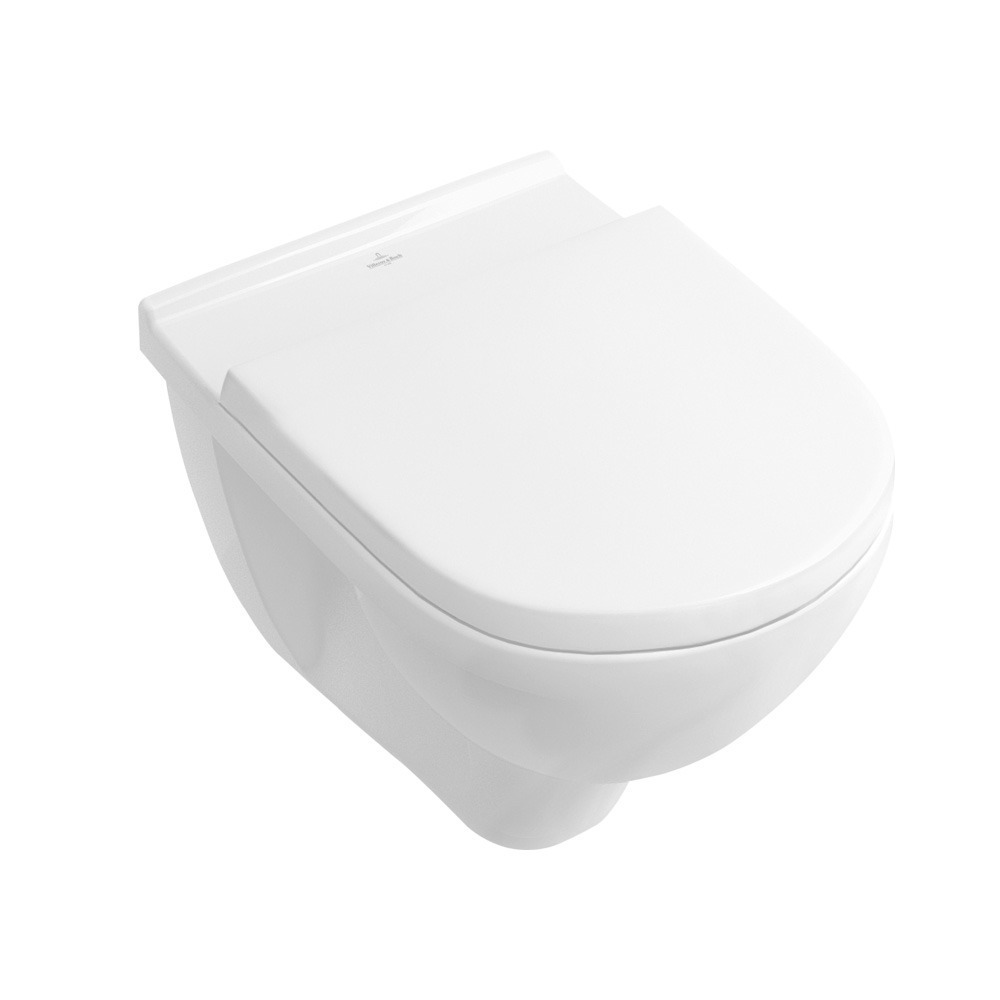

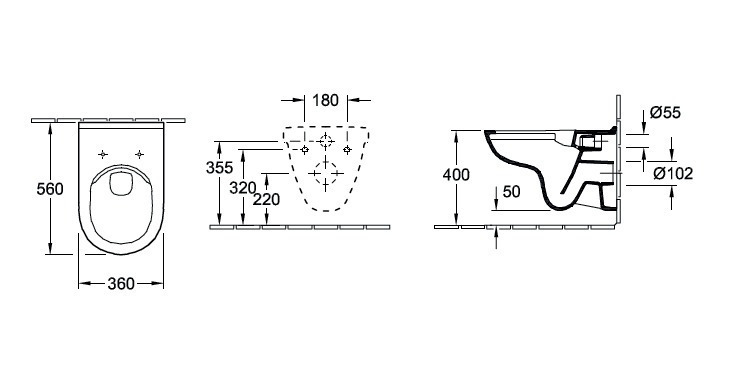

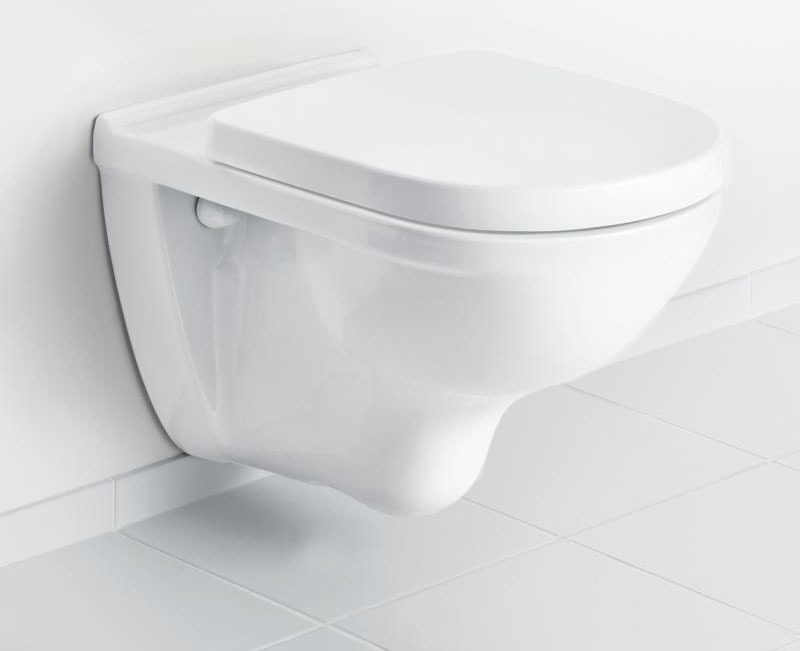

Villeroy & Boch O.novo Washdown toilet, rimless, wall-mounted, Alpine White , 360 mm x 560 m (5660R001) :
- System: AQUAREDUCT®
- Suitable for: Concealed cistern

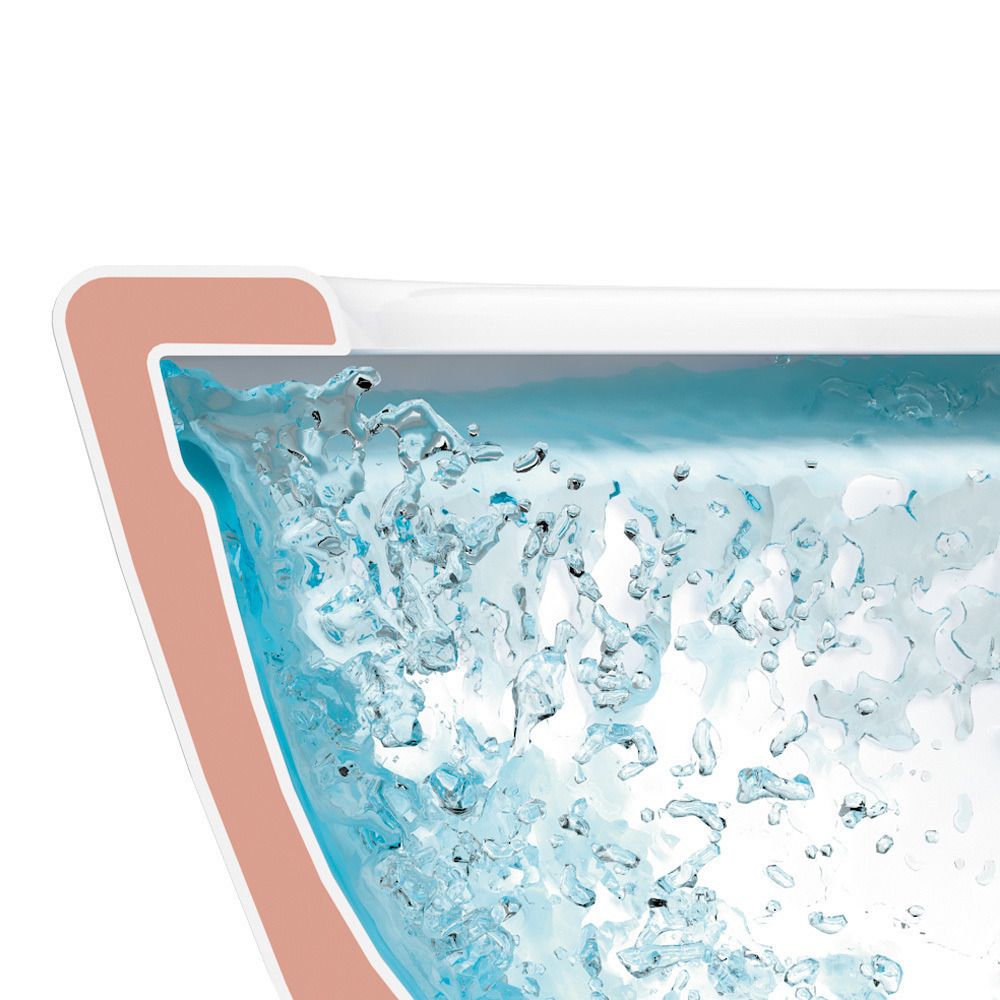

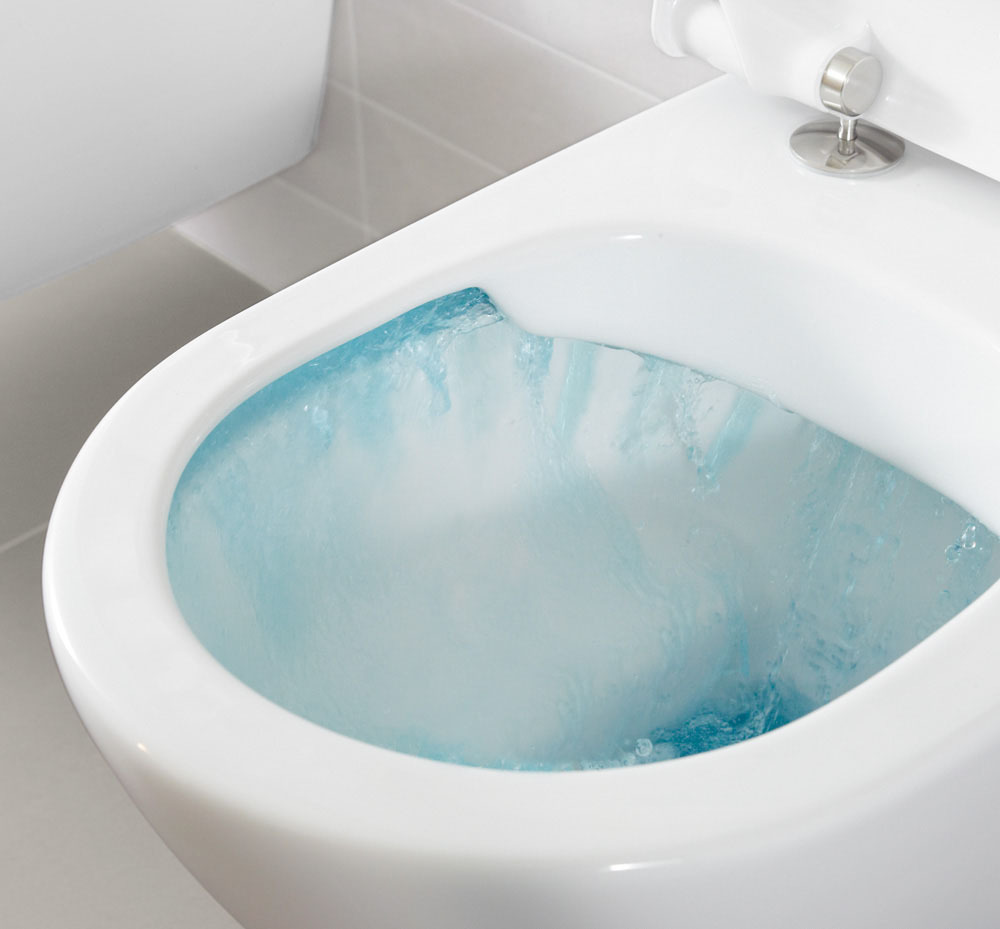

- Direct Flush
- Horizontal output
- Flush volume: 3 / 4,5 l
- Wall-mounted
- Sanitary ceramics
.
Villeroy & Boch O.Novo removable seat with soft close for toilet bowl and wall-hung toilet (9M38S101) :
- The new O.novo toilet seats from Villeroy & Boch combine functionality and aesthetics
- Matching toilet seats create a harmonious design for your toilet
- Particularly quiet closing of the toilet seat cover thanks to SoftClosing

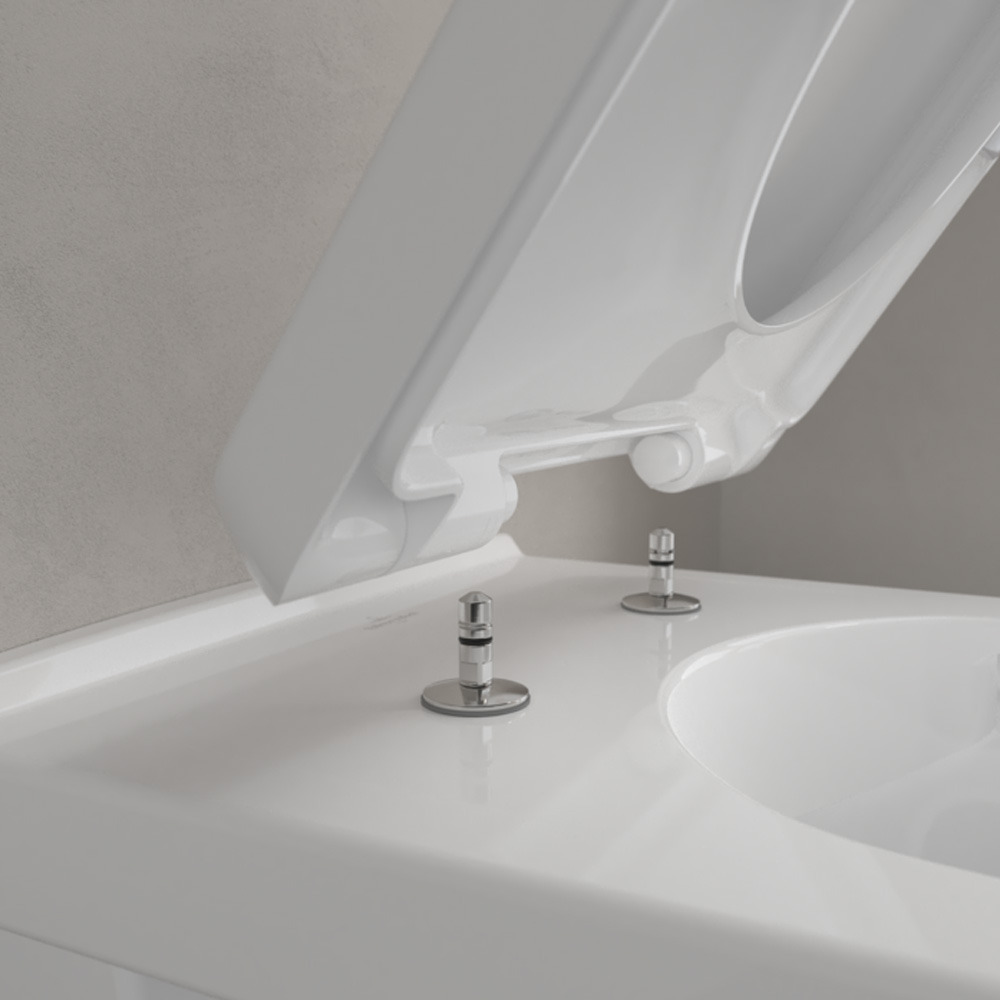

- QuickRelease: easy removal and installation of the toilet seat
- Duroplast seat with stainless steel hinges.
- Fixing distance: 15.5 cm.
.
Geberit DELTA20 white flush plate (115.107.11.1) :
- New from Geberit 2022
- Mechanical two-button front release
- Water saving
- For Delta tank
.
