Geberit Toilet Set Geberit Duofix frame + Grohe Bau Ceramic wall-hung toilet + Removable seat + White plate (BauClassicGeb3)
- Product reference: BAUCLASSICGEB3
- EAN: 34966358165
- Line: Duofix
Brand:
Product warranty:
2
years

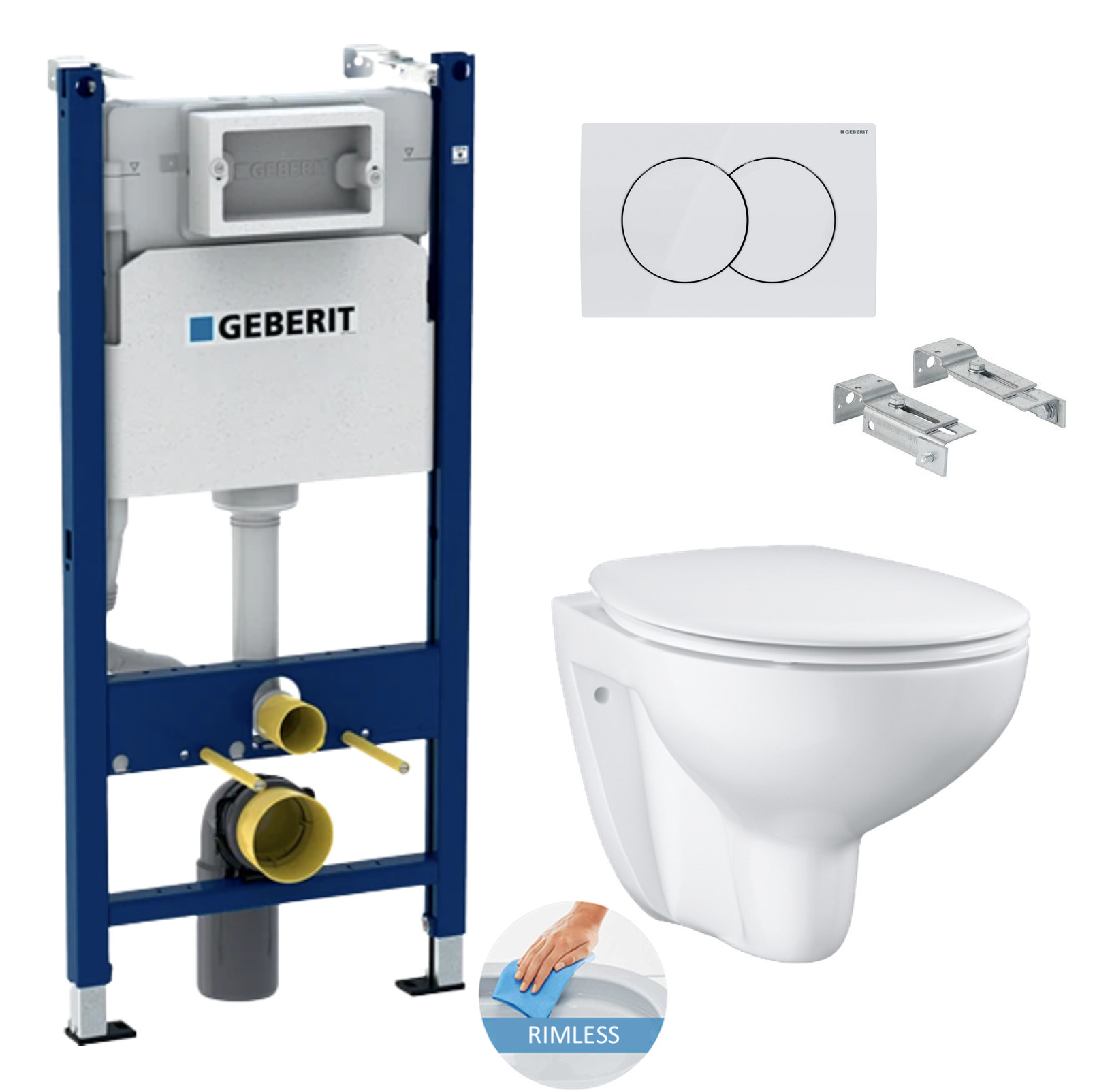

Features of the Toilet Set Duofix frame + Grohe Bau Ceramic wall-hung toilet + Removable seat + White plate (BauClassicGeb3) :
- Geberit Delta Pack Duofix support frame 112cm + Delta01 White flush plate + Wall fixings (111.154.11.2)
- Grohe Bau Ceramic Wall mounted toilet bowl, alpine white (39427000)
- Grohe Bau Ceramic WC seat, White (39492000)
Product technical properties
- Colour:White
- Material:Composite
- Toilet bowl brand:Grohe
- Toilet bowl:Rimless
- Soft closing seat:STANDARD
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Weight:35
- Bowl colour:White
- Invisible fixings:No

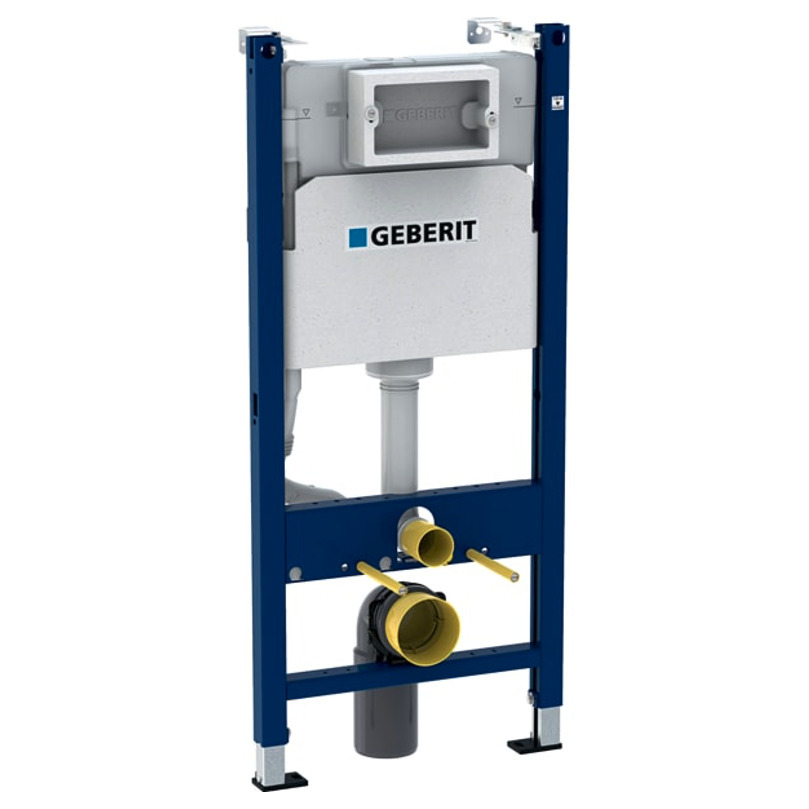

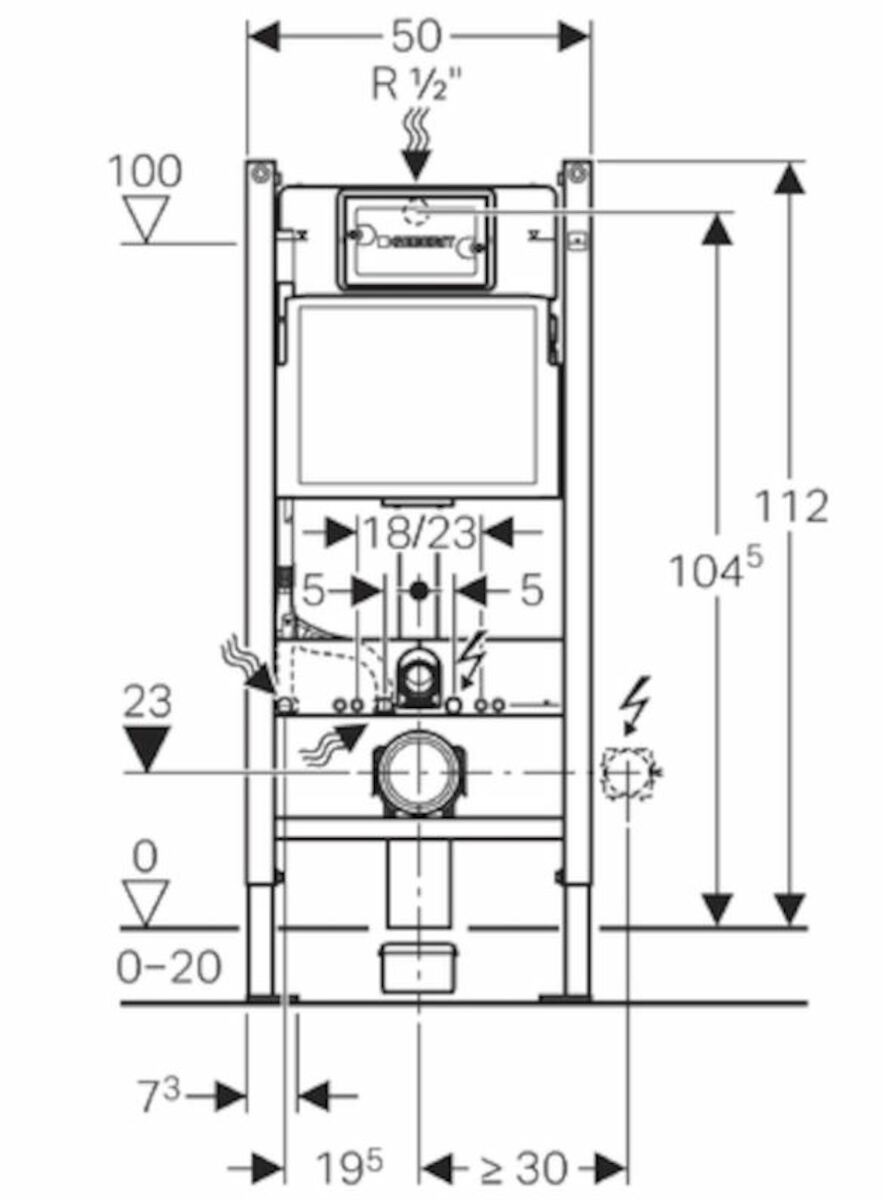

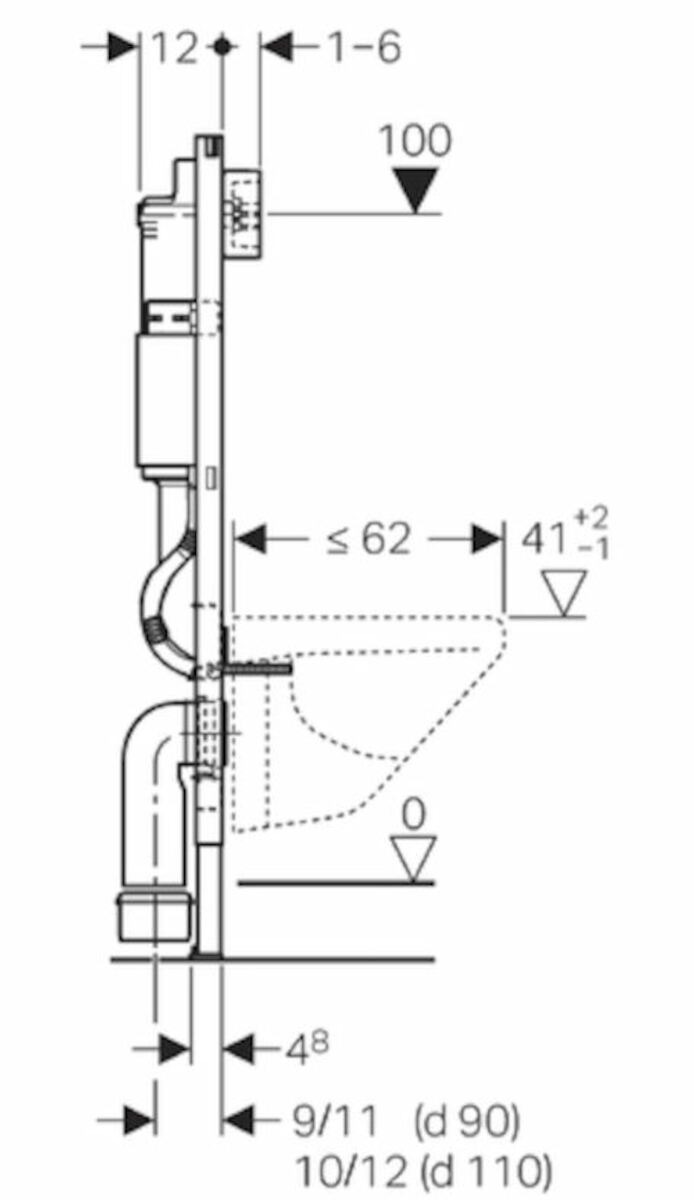

Geberit DUOFIXBasic for wall hung WC, with Delta concealed cistern (111.153.00.1) :
Use :
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Features :
- Delta Geberit concealed cistern 12 cm (UP100) front control
- Concealed cistern, fully insulated against condensation
- Adjustable large flow rate
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical data :
- Flush volume, factory setting 6 et 3,5 l
- Flush volume large, adjustment range 4,5 / 6 / 7,5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening, made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for WC, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fastening material
- Geberit Duofix set of wall anchors for single installation (111.839.00.1)

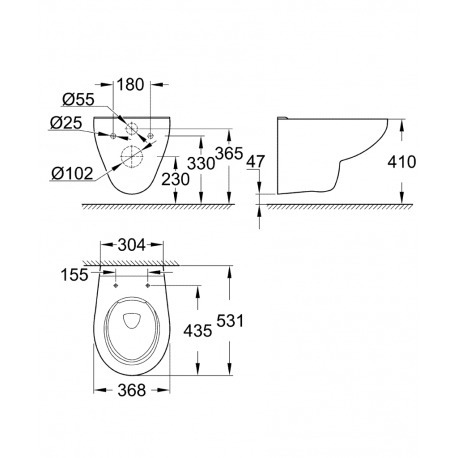

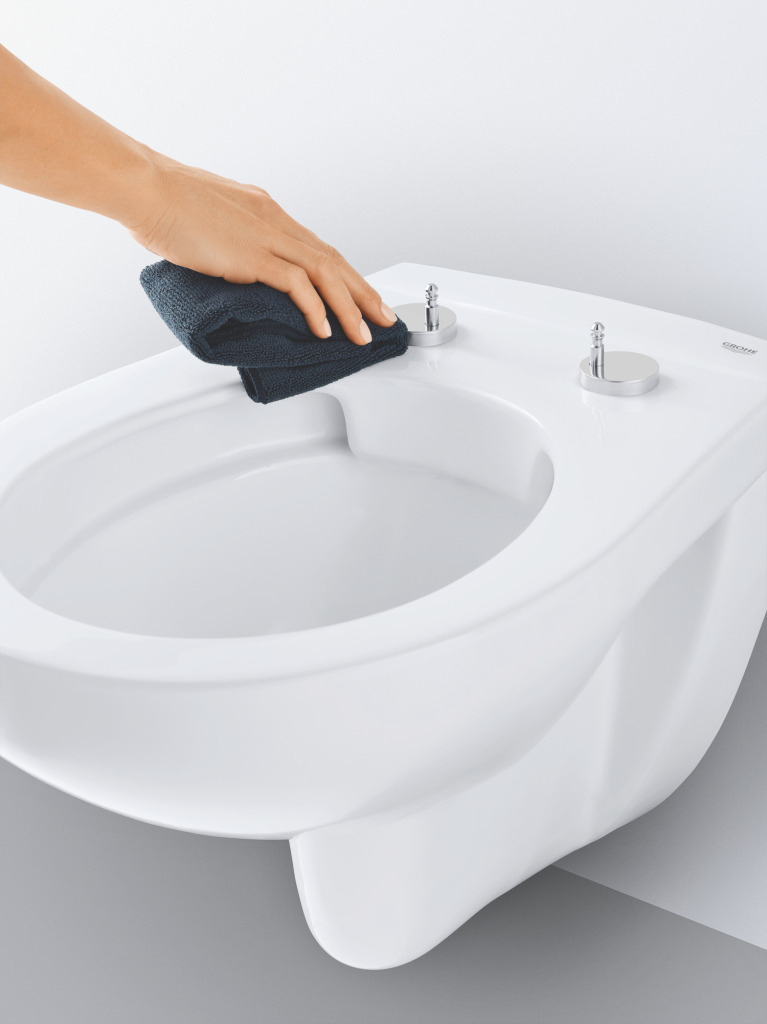

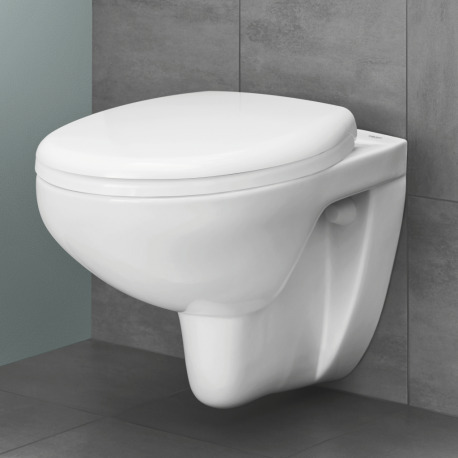

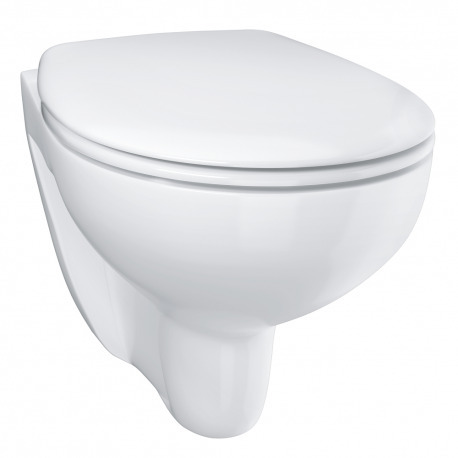

Grohe Bau Ceramic Wall mounted toilet bowl, alpine white (39427000):
- Bau Ceramic, wall-hung toilet bowl
- For concealed cistern
- Flush

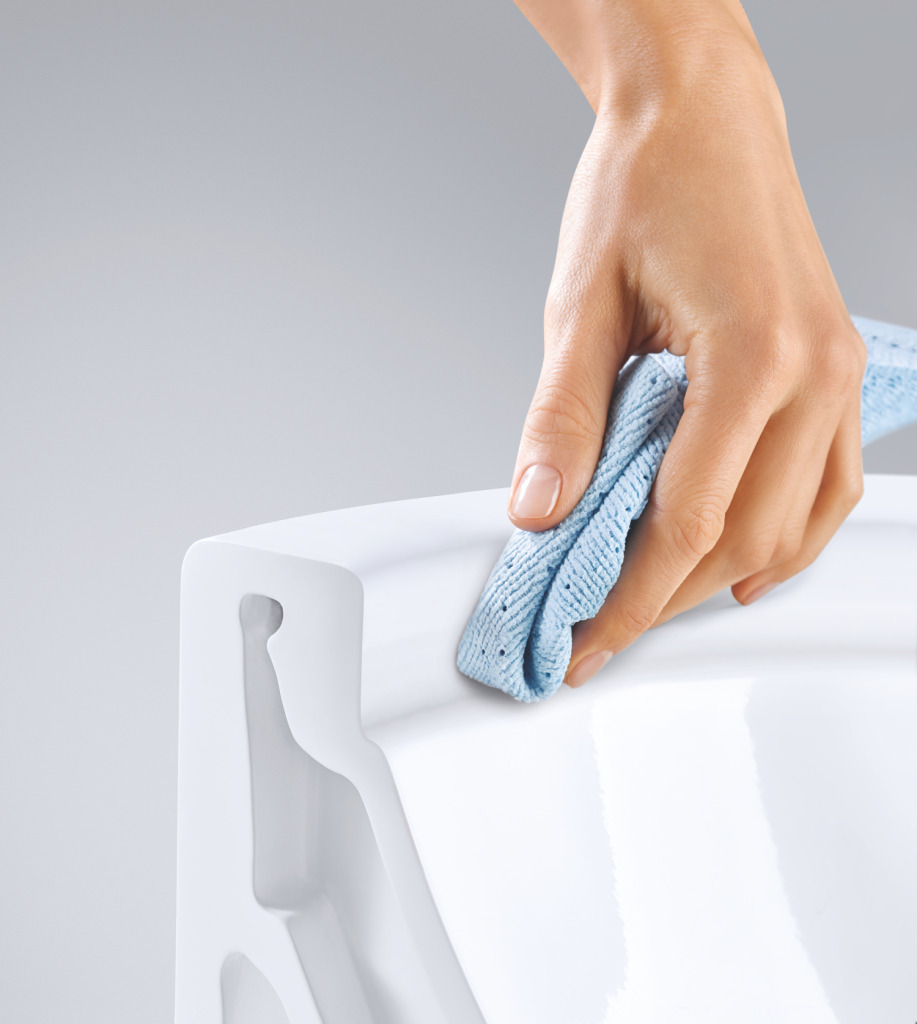

- Rimless
- Horizontal outlet
- Flush volume 3/6 l

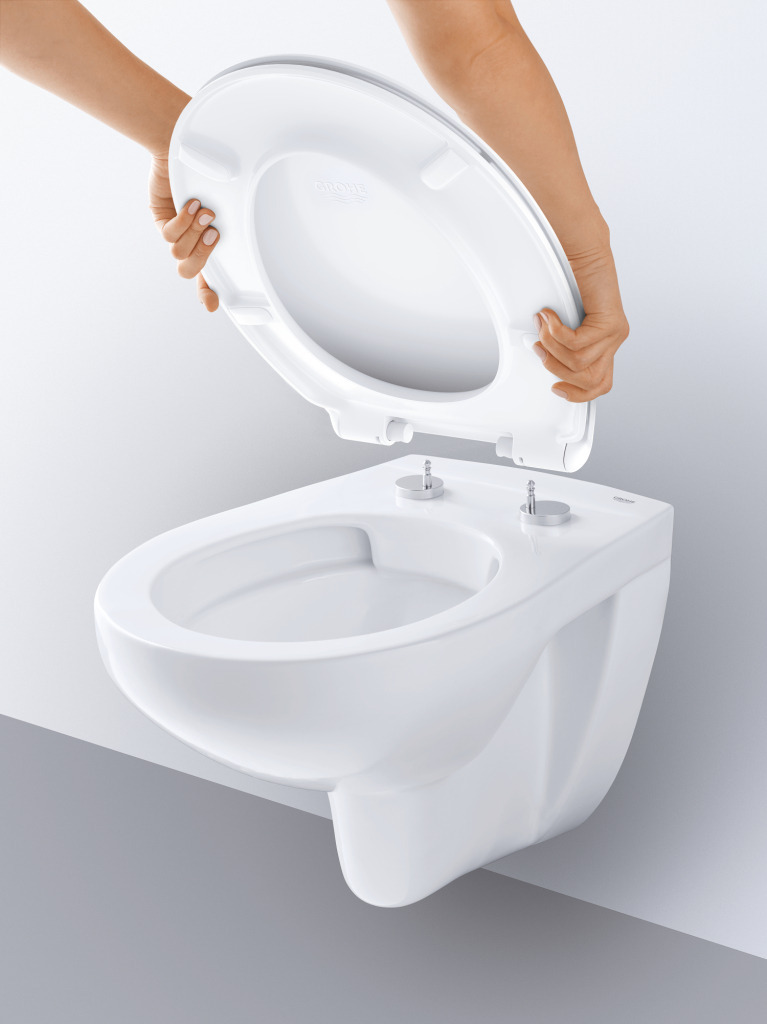

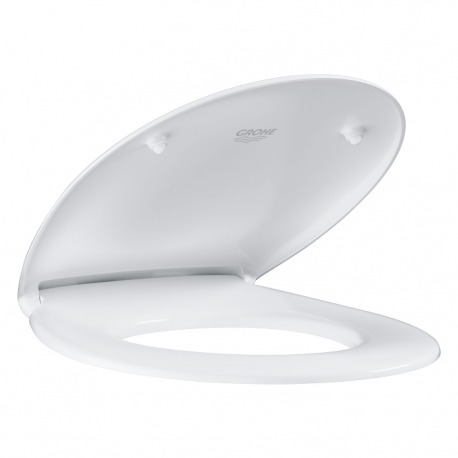

Grohe Bau Ceramic WC seat, White (39492000):
- With lid
- Quick release function
- Detachable
- Material: Duroplast
- Including fixation set
- Stainless steel hinges
- Easy fixation from above
- Weight bearing capacity 150 kg
- Compatible with all Bau Ceramic bowls

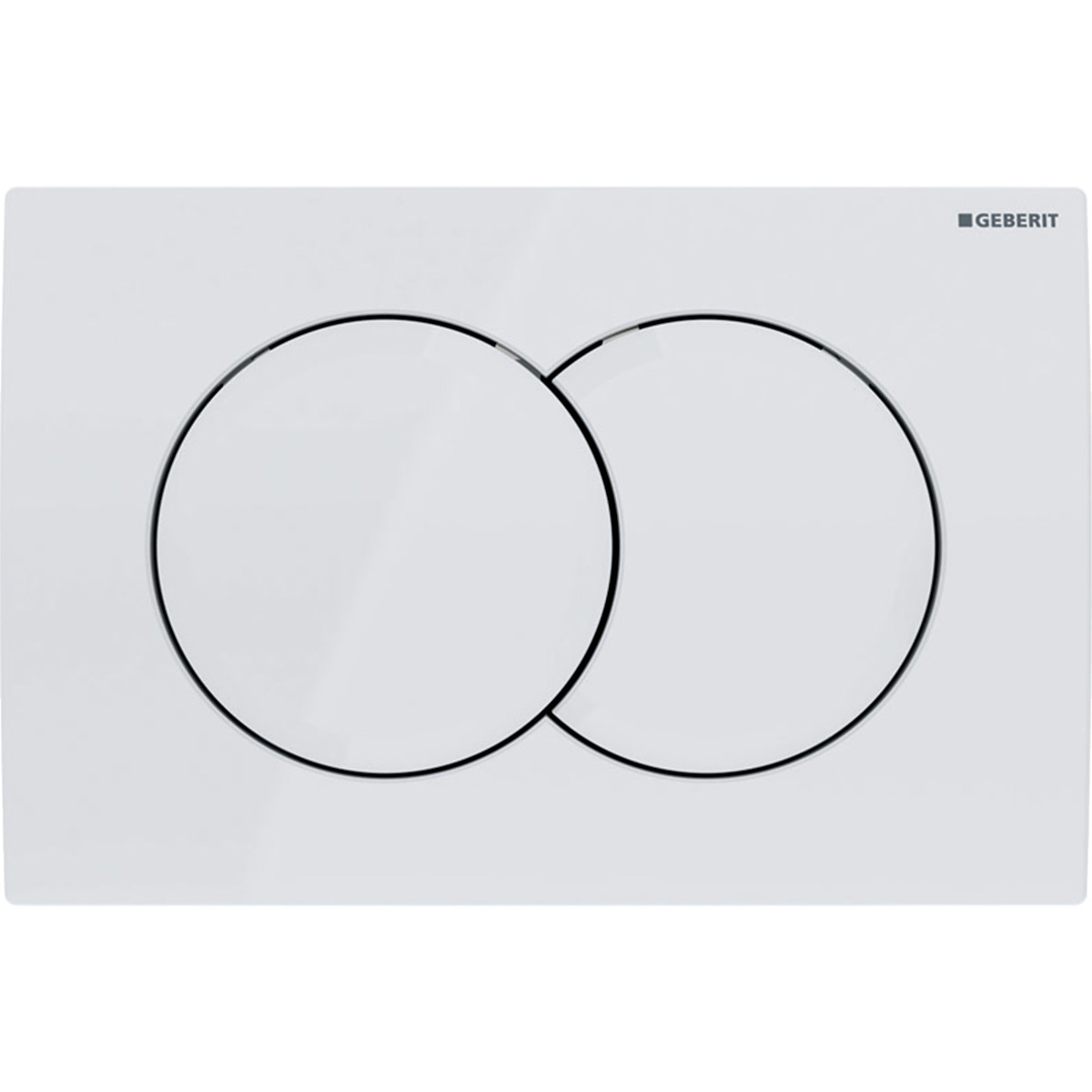

Geberit DELTA20 white flush plate (115.107.11.1) :
- New from Geberit 2022
- Mechanical two-button front release
- Water saving
- For Delta tank
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
