Geberit Toilet Set Geberit support frame with Idevit Alfa Black rimless bowl + Softclose seat + Black chrome plate (GebBlackAlfa-D)
- Product reference: GEBBLACKALFA-D
- EAN: 750122357116
Brand:
Product warranty:
2
years

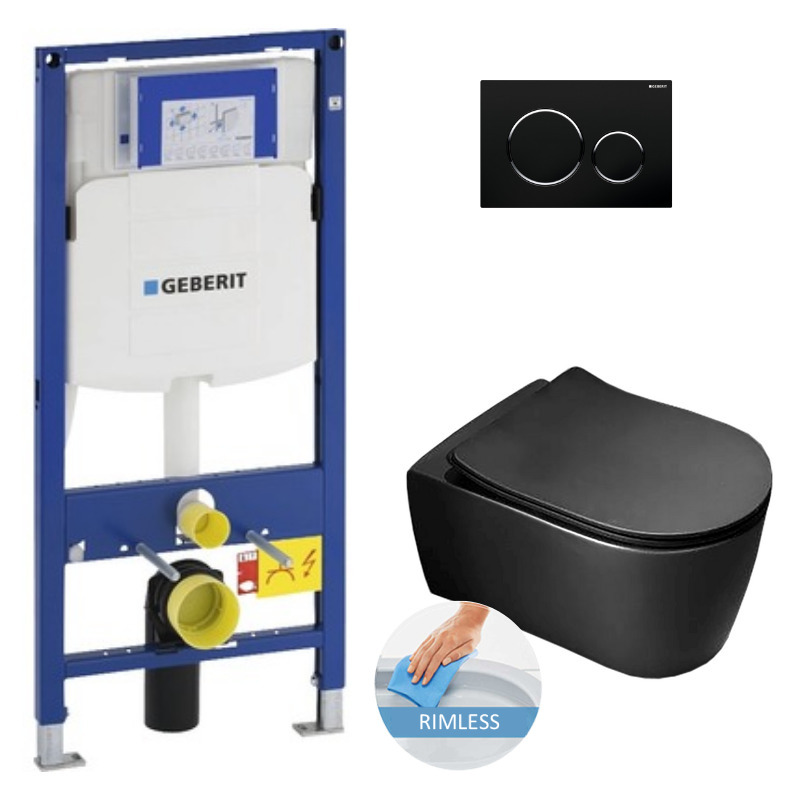

Features of the Toilet Set support frame with Idevit Alfa Black rimless bowl + Softclose seat + Black chrome plate (GebBlackAlfa-D):
- Geberit Duofix UP320 wall mounting frame (111.300.00.5)
- Idevit Alfa Wall-hung rimless toilet bowl, Matt black (AL010BL)
- Idevit Alfa Soft close seat, Matt black (AL030SBL)
- Flush plate DUOFIX SIGMA 20 black chrome (115.882.KM.1)
.

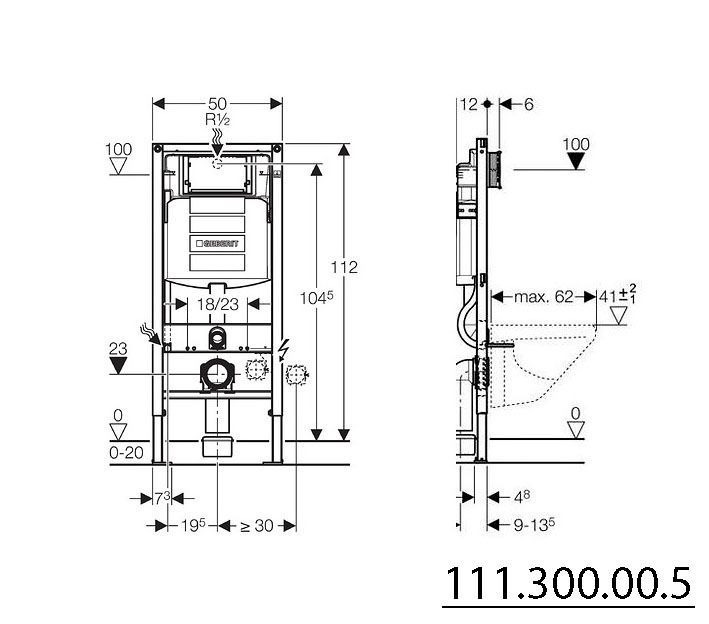

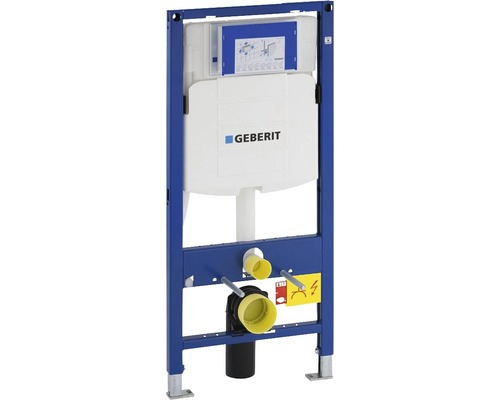

Geberit Duofix UP320 wall mounting frame (111.300.00.5) :
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above
.

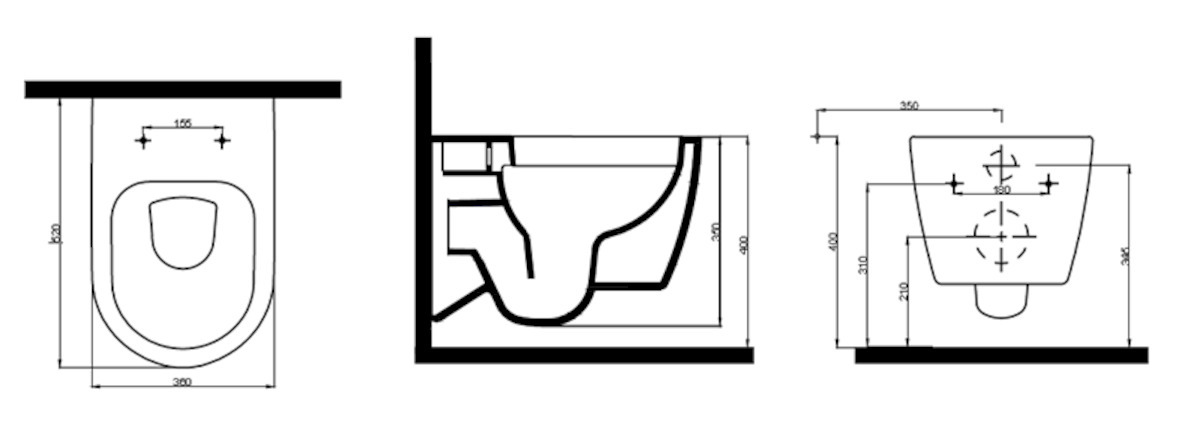

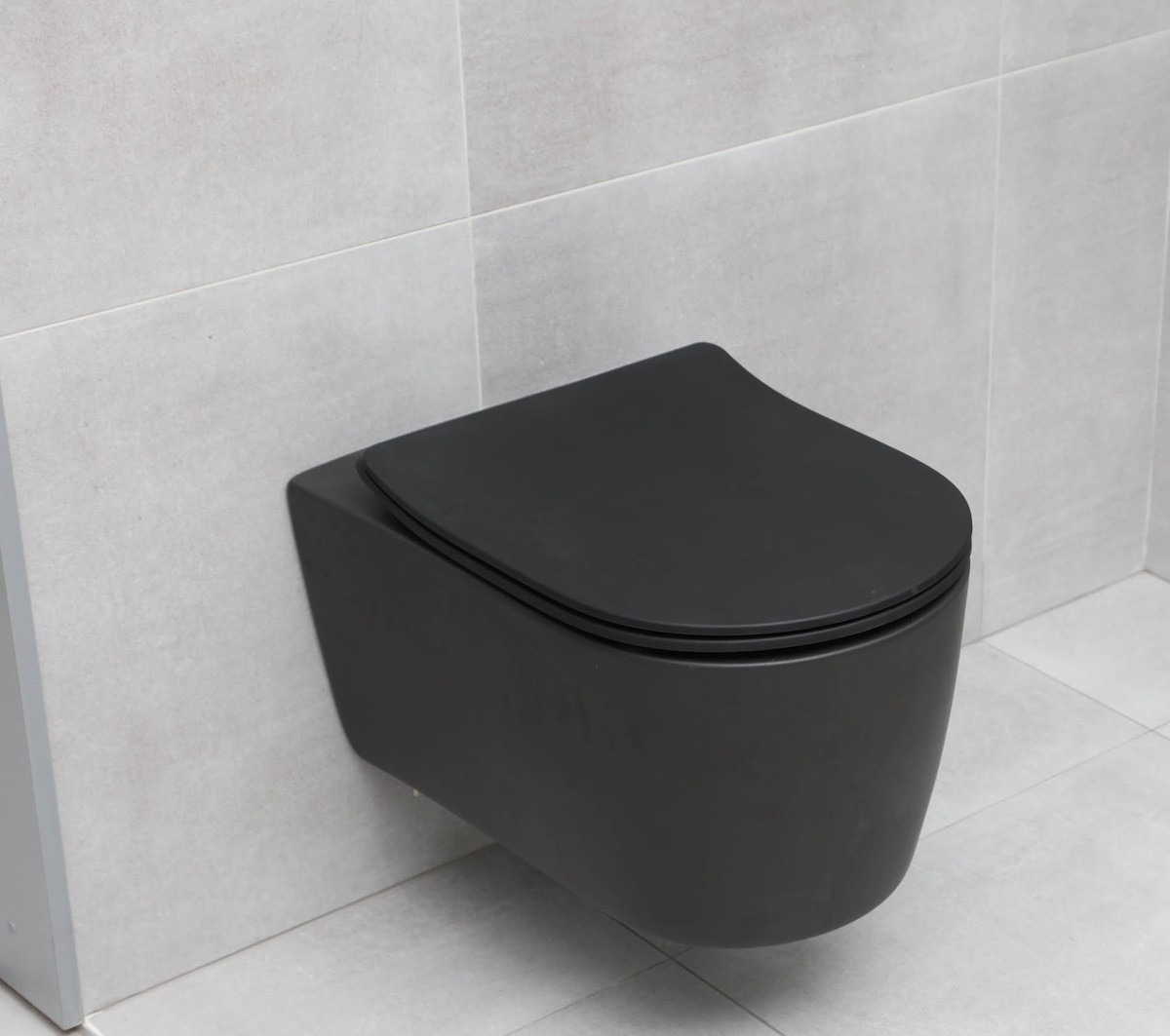

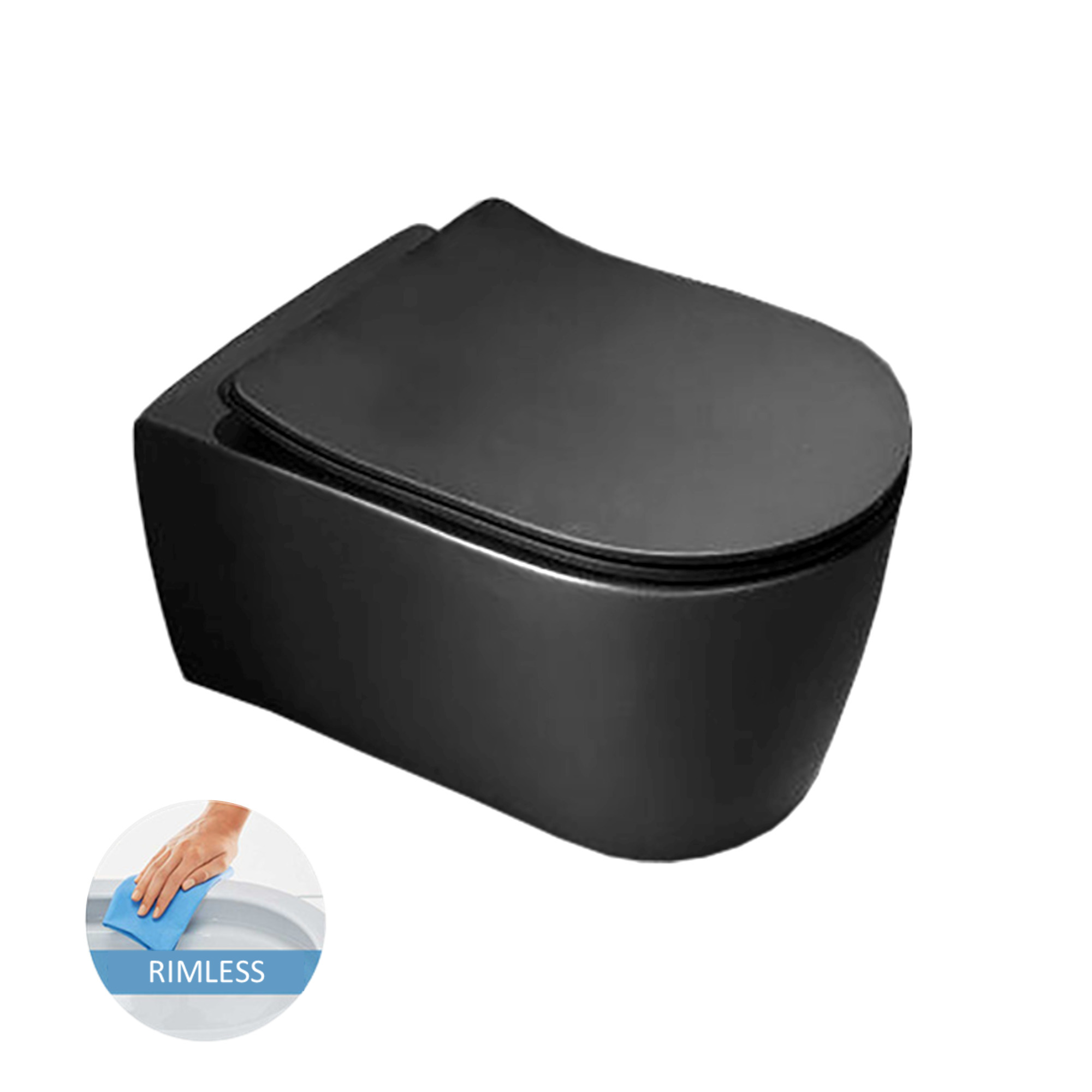

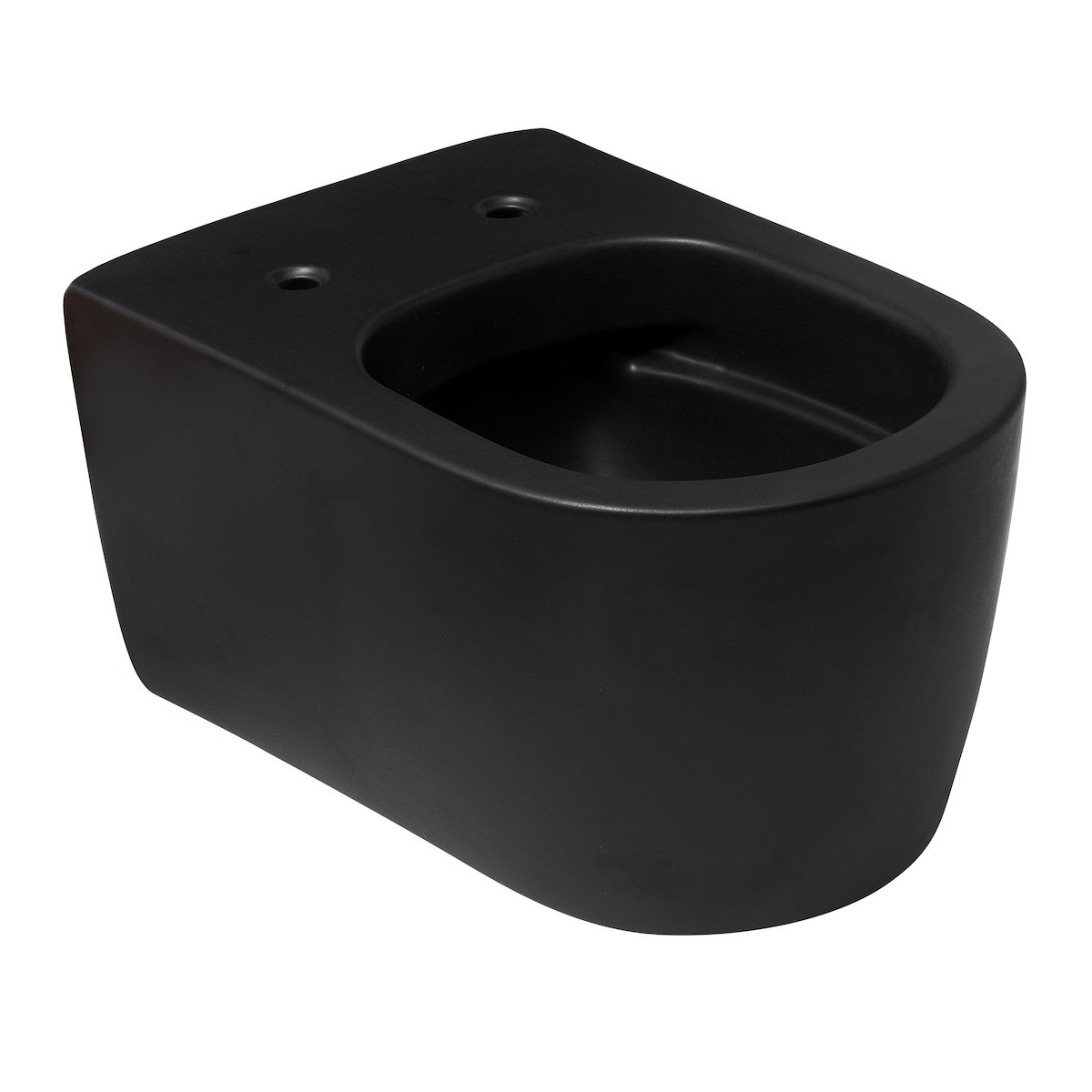

Idevit Alfa Wall-hung rimless toilet bowl, Matt black (AL010BL) :
The Alfa black wall-hung rimless toilet has all the characteristics of a modern toilet: a matt colour, concealed installation and an open flush system.
- Material: Ceramic
- Colour: Matt black
- Width: 37 cm
- Height: 35 cm
- Depth: 51.5 cm
- Rimless
.

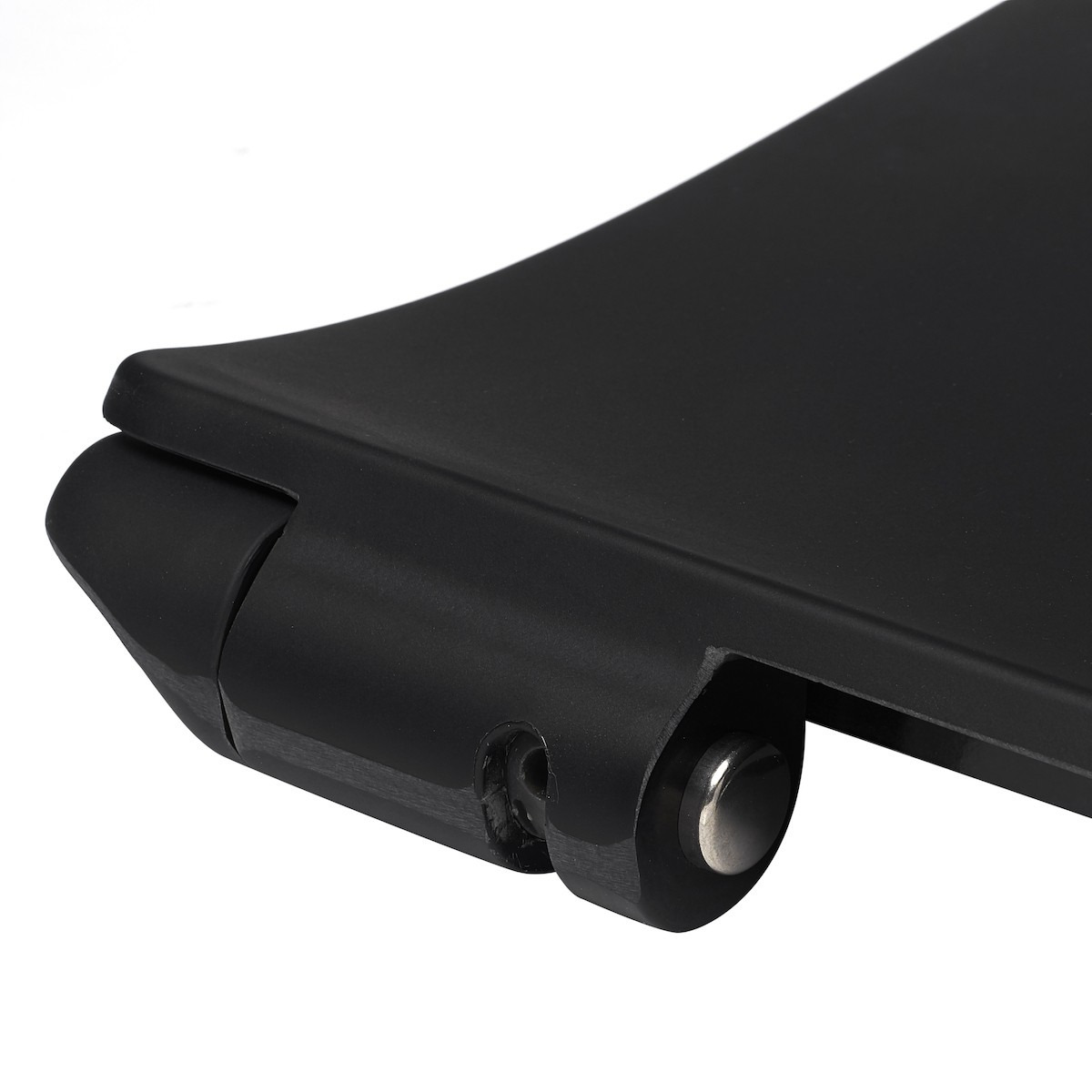

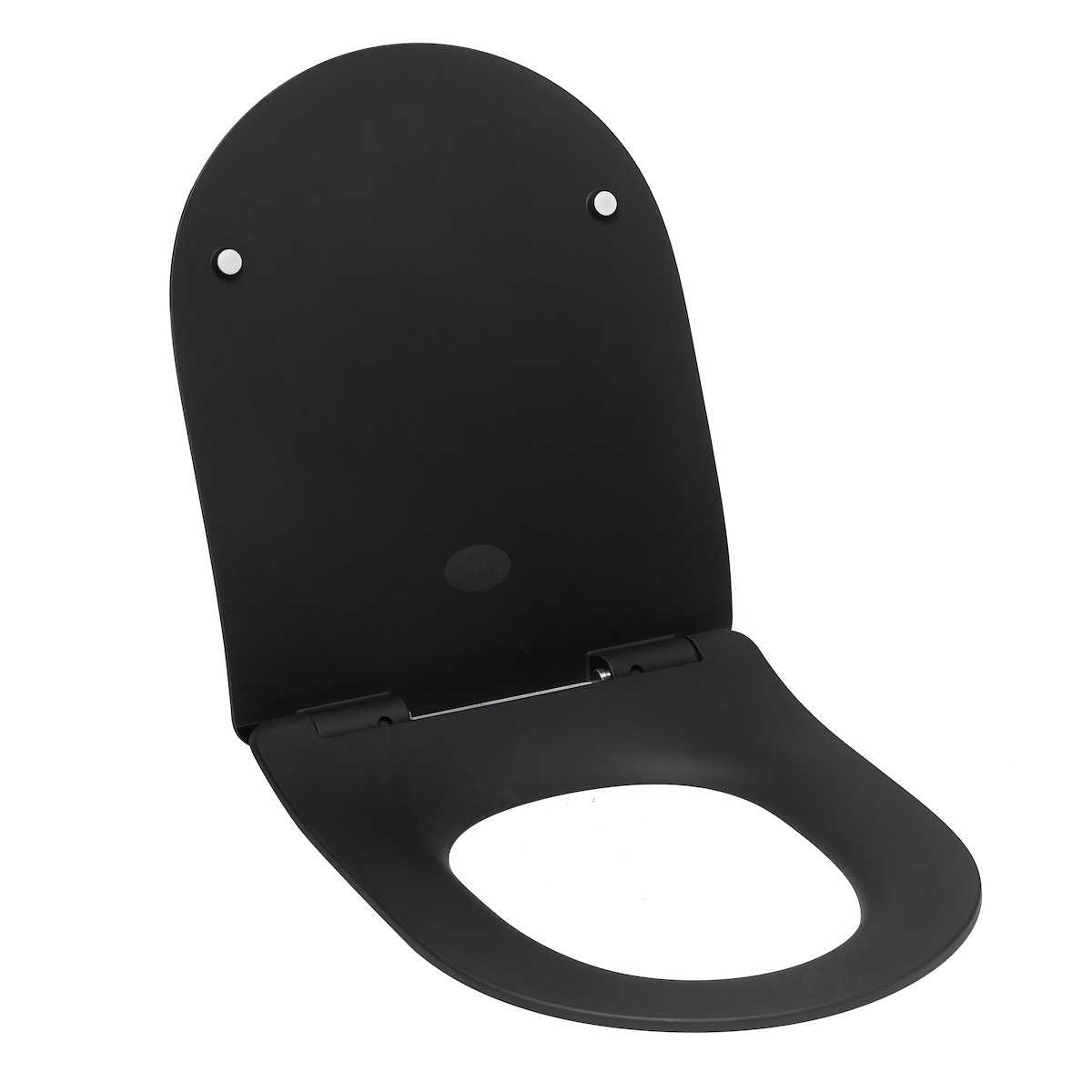

Idevit Alfa Soft close seat, Matt black (AL030SBL) :
- Softclose
- Colour: Black
- Material: Duroplast
- Width: 36.5 cm
- Length: 42.5 cm
- Fits Idevit AL010BL matt black toilet
.

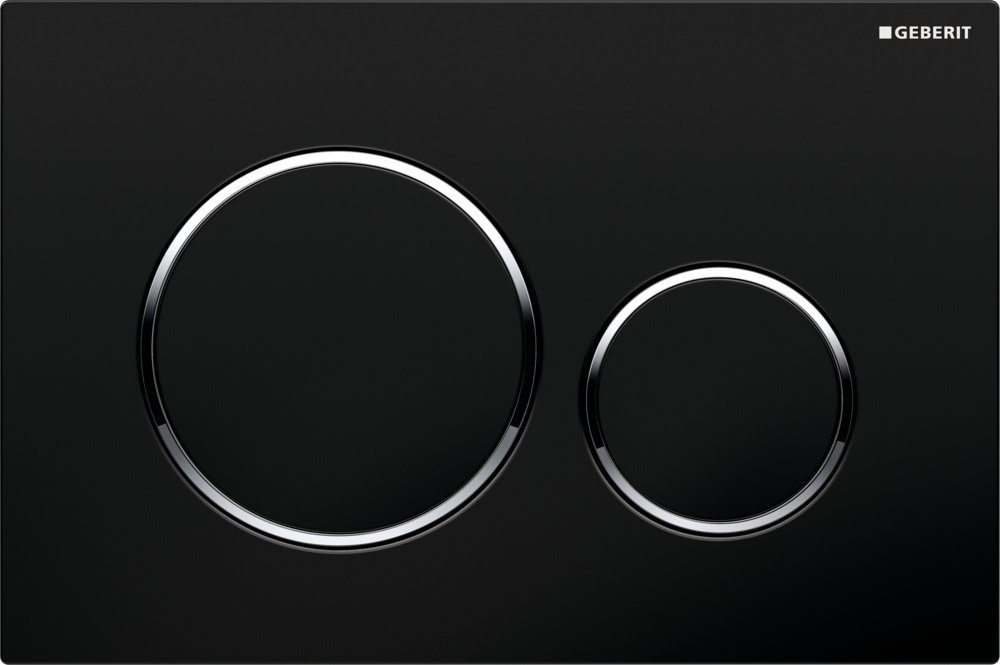

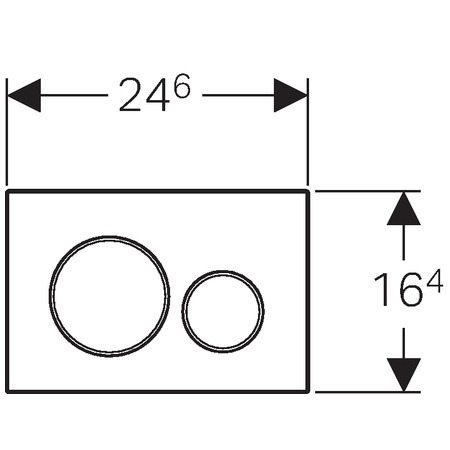

Flush plate DUOFIX SIGMA 20 black chrome (115.882.KM.1) :
- Sigma20 flush plate suitable for Sigma built-in tanks
- Frontal release
- Tool-free mounting of the support frame
- Double button
- Synthetic material
- Perfect colorfastness over time
- Resistant to cleaning agents and scratches
Supplied with support frame, threaded release rods and fixing material
.
The DUOFIX wall mounting set is not included in the scope of supply, please order under order number 111.815.00.1.
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
Product technical properties
- Toilet bowl brand:Idevit
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:Black
- Bowl colour:Matt black
- Invisible fixings:Yes
