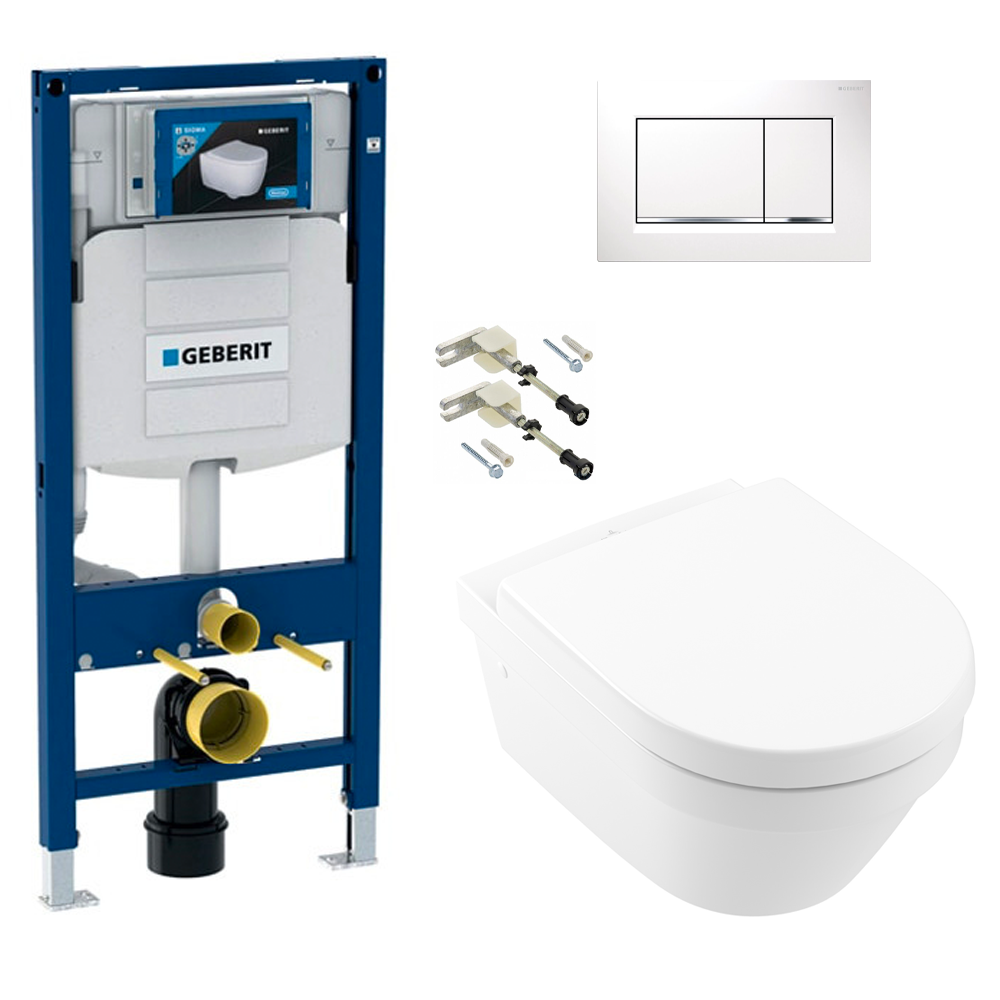

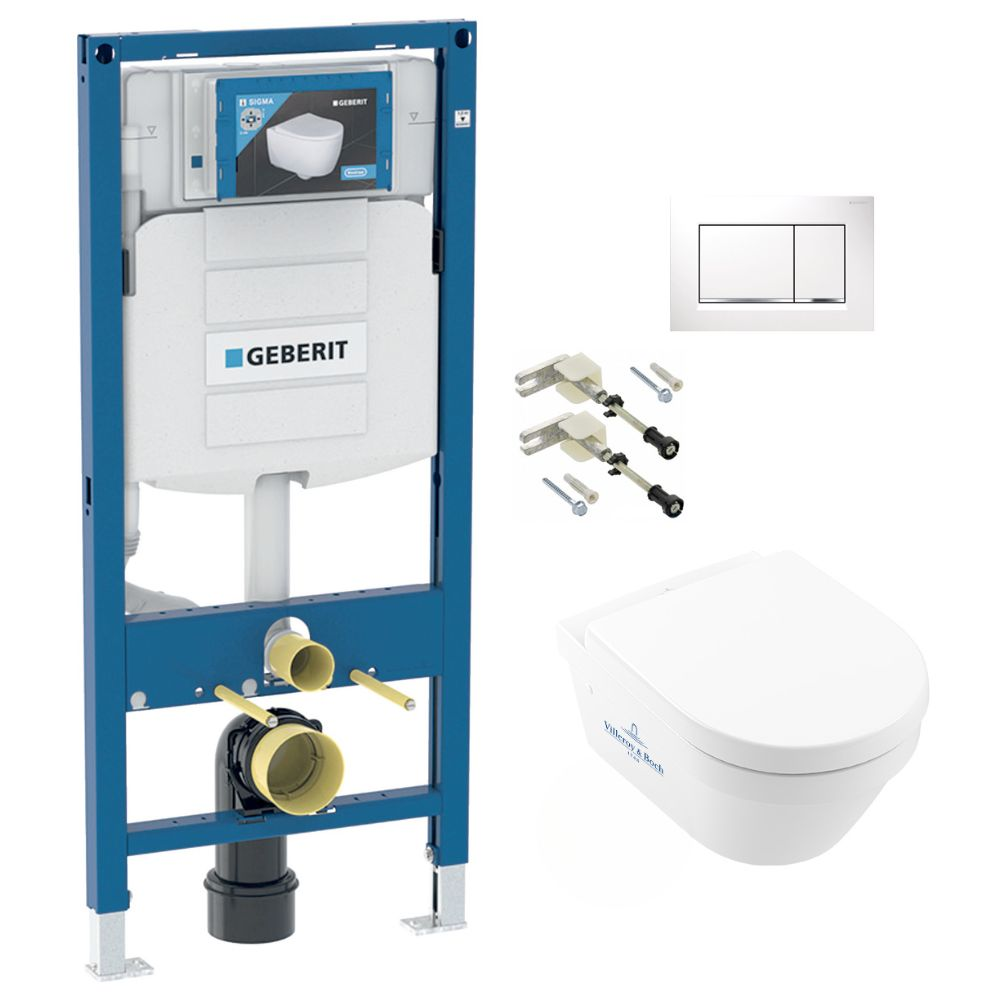

Geberit Toilet Pack UP320 Frame + Villeroy & Boch Architectura Toilet + Soft-Close Seat + White Flush Plate (GebArchitectura2-H)

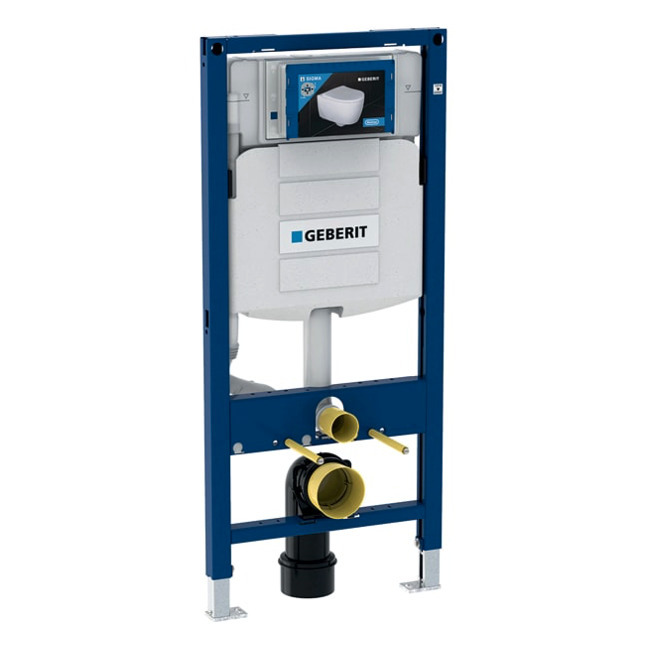

Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5):

• Geberit Duofix support frame with concealed cistern
• Front actuation
• Self-supporting frame
• 100-112cm (H) x 50 (W) x 12 (D)
• Suitable for Sigma flush plates

Use:

• For drywall construction
• For installation in part- or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung toilets with connection dimensions in accordance with EN 33:2011
• For wall-hung toilets with projection up to 62 cm
• For single flush, dual flush or stop-and-go flush
• For floor constructions 0–20 cm

Technical information:

• Self-supporting frame, powder-coated
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for ceramic toilets with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20 cm
• Non-slip leg supports
• Rotatable foot plates
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation
• Concealed cistern fully insulated against condensation
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection

Included:

• Water supply connection R 1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 protection plugs
• Connection set for toilets, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adapter socket made of PE-HD, ø 90 / 110 mm
• 2 threaded M12 rods
• Fixing material

Villeroy & Boch Architectura rimless toilet with hollow bottom, invisible fixings, DirectFlush + Softclose Seat (SetArchitectura2) :

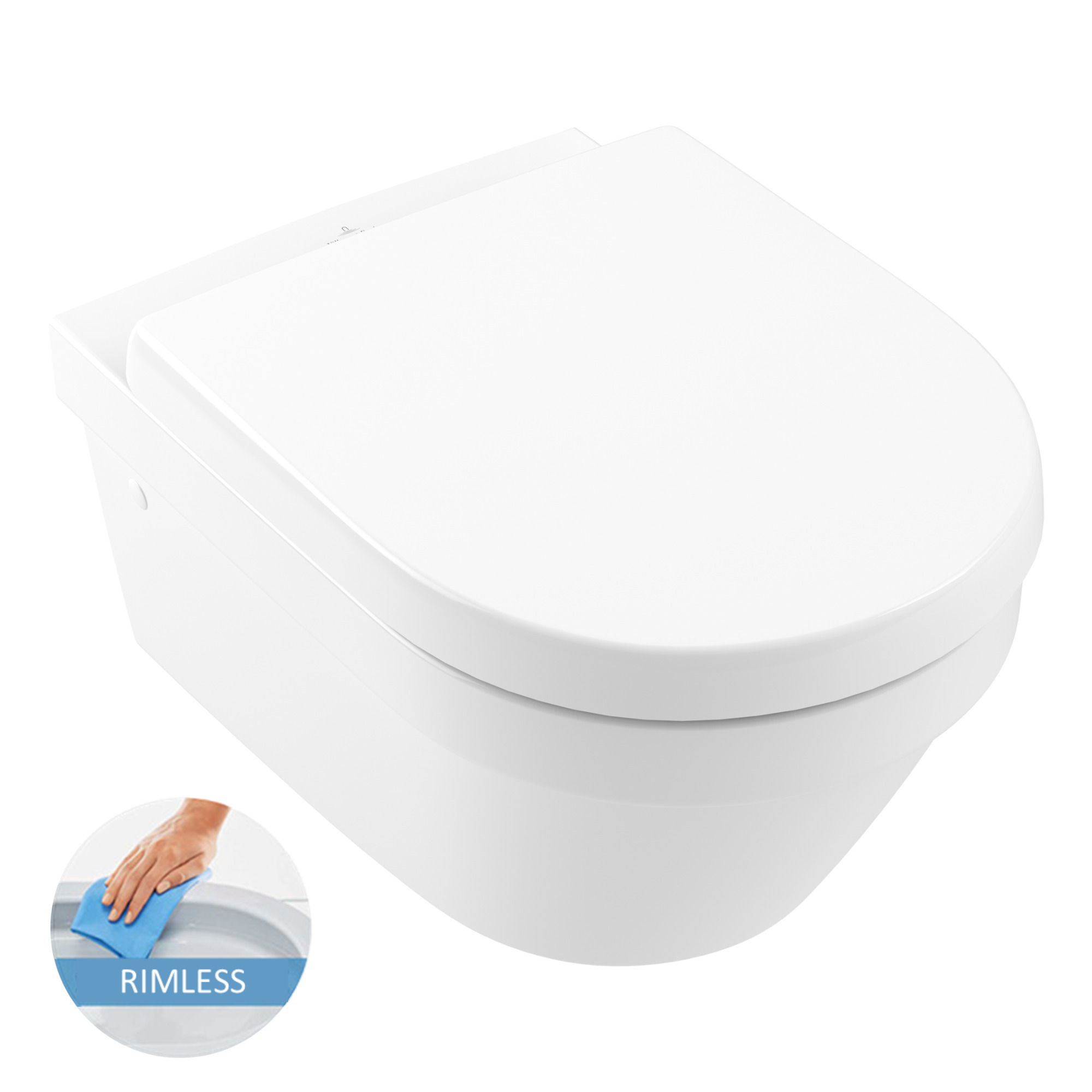

Villeroy & Boch Architectura Rimless Toilet Pan with invisible fixings (4694R001):

• Rimless
• Invisible fixings
• Sanitary ceramic
• DirectFlush
• Water-saving AQUAREDUCT® system: flush volume 3/4.5 L
• Fixing kit included
• Compatible with seats: 9M7061, 9M70S1, 98M9D1, 9M6361, 98M9C1
• Not suitable for installation with flush valves

Villeroy & Boch Architectura Soft-Close Quick-Release Toilet Seat (98M9C101):

• Modern design
• Duroplast seat with stainless steel hinges
• Matches the toilet perfectly
• Soft-Close
• QuickRelease: easy removal and replacement

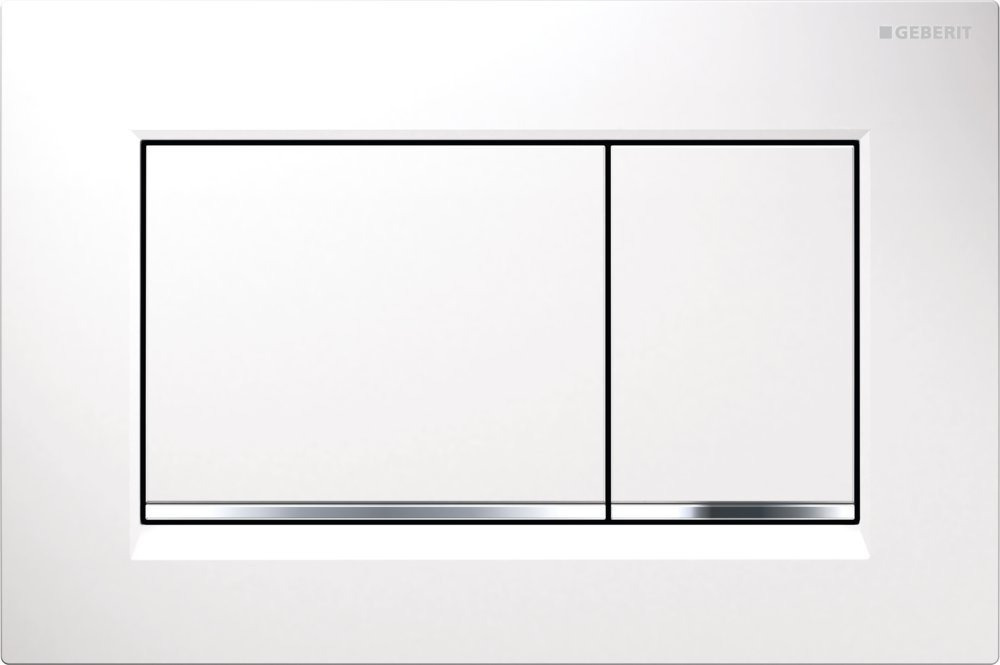

Geberit Flush Sigma30 Dual Flush Plate, White/Gloss Chrome (115.883.KJ.1):

• Suitable for Sigma 12 cm and Sigma 8 cm concealed cisterns
• Tool-free installation
• Dual flush
• Made of synthetic material
• Colour doesn't fade
• Resistant to cleaning agents and scratches
• Acts as an access hatch to the cistern

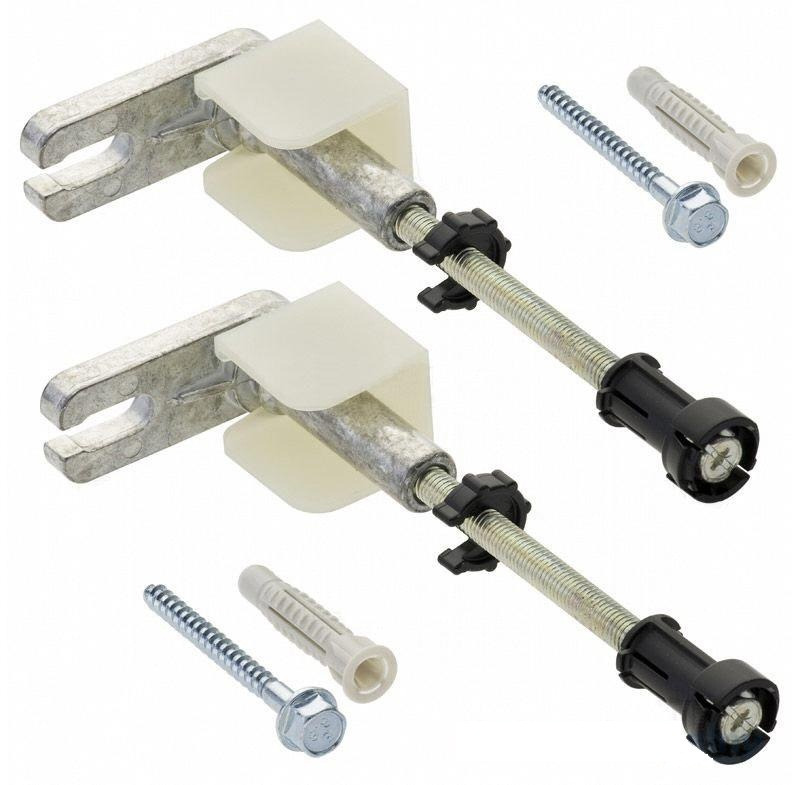

Geberit Duofix Wall Anchoring Set (111.815.00.1)

• For fastening Geberit Duofix installation elements in front of drywalls and solid walls
• For fastening panelling in part-height prewall installations
• Can be adjusted in depth from the front, infinitely variable, with fast adjustment
• Wall inlet rotatable by 360°
• Threaded rod M10, zinc-plated

IMPORTANT: Please make sure to check the products upon delivery. If there's any damage, be sure to note it with the delivery person on the delivery note for each specific item. Unfortunately we won't be able to accept any claims otherwise as the delivery companies are very strict about this. Thank you for your understanding.
