Geberit Toilet Pack Duofix Frame + Villeroy & Boch O.Novo Toilet + Soft-Close Seat + White Flush Plate (O.NovoGeb3)
- Product reference: O.NovoGeb3
- EAN: 0734077004394
- Line: Duofix
Brand:
Product warranty:
2
years
Choose modern design and ease of installation with this Toilet Pack Duofix Frame + Villeroy & Boch O.Novo Toilet + Soft-Close Seat + White Flush Plate (O.NovoGeb3).
Thanks to its Duofix support frame from Geberit and its O.Novo wall-hung toilet with softclose seat from Villeroy & Boch, this pack will meet all your interior design project needs.
see detailed descriptionProduct technical properties
- Toilet bowl brand:Villeroy & Boch
- Toilet bowl:With Rim
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White
- New:New
- Bowl colour:White
- Invisible fixings:No

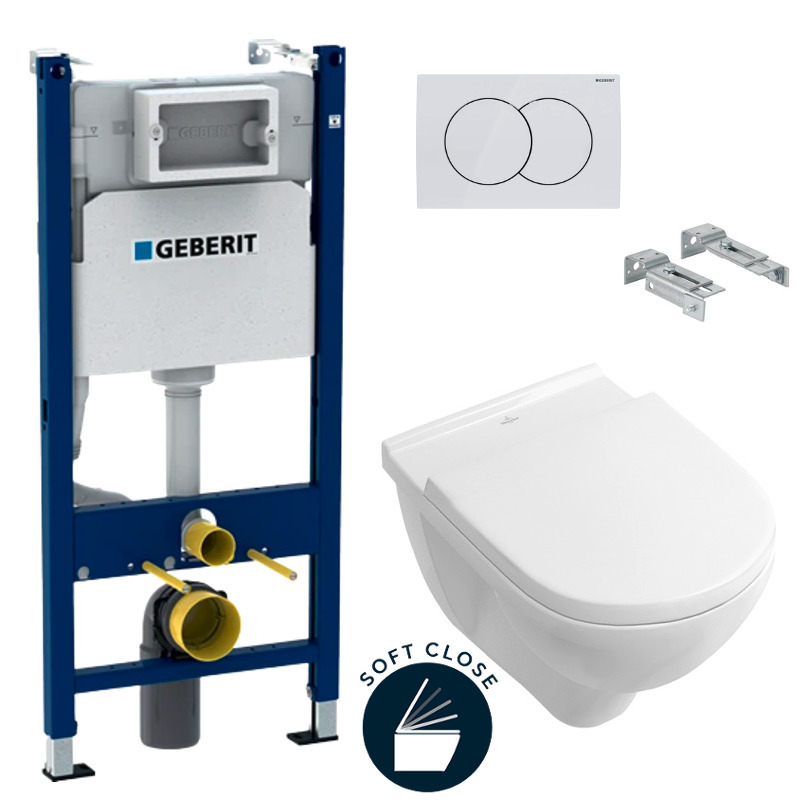

Features of Geberit Toilet Pack Duofix Frame + Villeroy & Boch O.Novo Toilet + Soft-Close Seat + White Flush Plate (O.NovoGeb3):
.
- Geberit DUOFIXBasic for Wall-Hung Toilets, with Delta Concealed Cistern (111.153.00.1)
- Geberit Duofix set of wall fixings for single installation (111.839.00.1)
- Geberit DELTA20 Dual Flush Plate, Alpine White (115.107.11.1)
- Villeroy & Boch Oval wall-hung toilet bowl O.NOVO alpine white for support frame (56601001)
- Villeroy & Boch O.Novo removable seat with soft close for toilet bowl and wall-hung toilet (9M38S101)
.

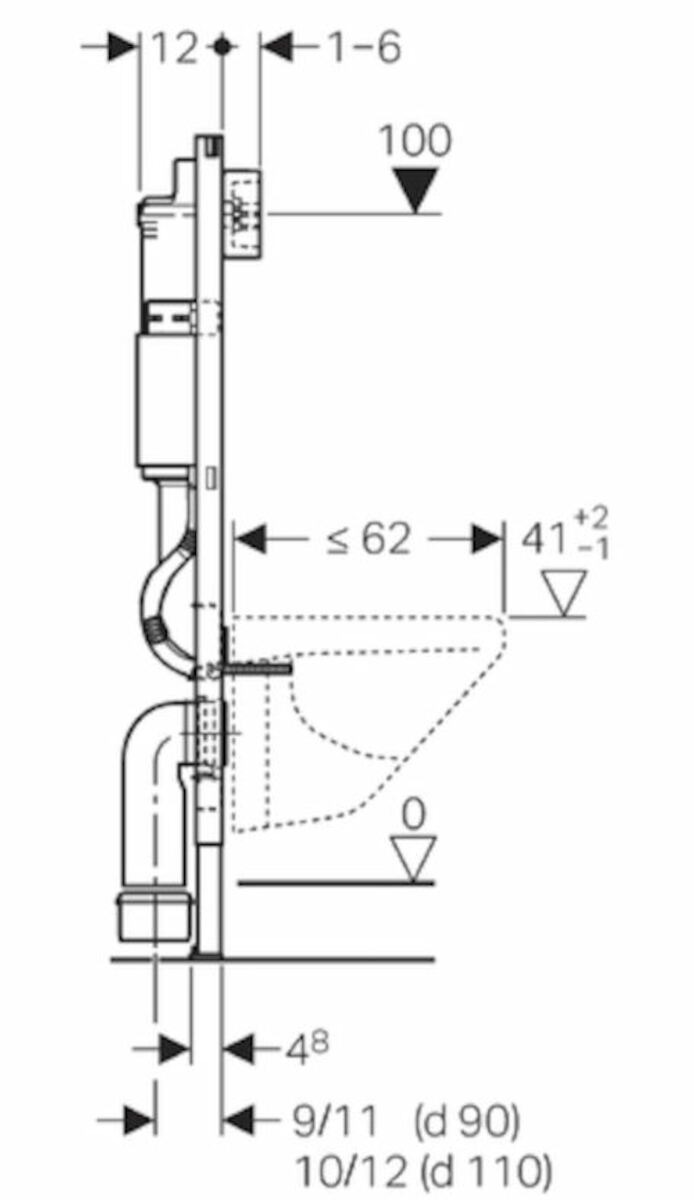

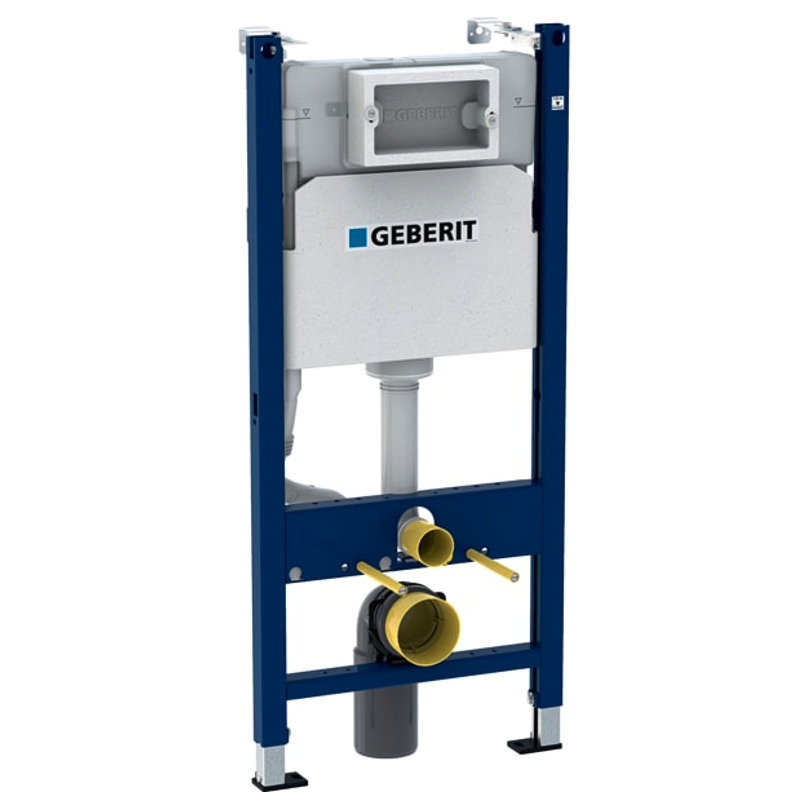

Geberit DUOFIXBasic for Wall-Hung Toilets, with Delta Concealed Cistern (111.153.00.1):
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For wall-hung toilets with connection dimensions in accordance with EN 33:2011
- For wall-hung toilets with projection up to 62 cm
- For floor constructions 0–20 cm
- Geberit AquaClean
- Not suitable for concreting
Features:
- Delta Geberit concealed cistern 12 cm (UP100) front actuation
- Concealed cistern is fully insulated against condensation
- Adjustable large flush
- Fixed small flush
- Adjustable instantaneous flush
- Water supply connection on the rear or top centre
- Connection bend can be mounted without tools
- 2 flushes with Geberit Delta20 control buttons
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet, adjustable 0–20 cm
- Foot plates made of plastic, suitable for installation in U-profiles UW 50
- Installation depth 12 cm
Technical info:
- Flush volume factory setting: 6 / 3.5 L
- Large flush volume adjustment range: 4.5 / 6 / 7.5 L
Included with the frame:
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Protection box for service opening made of polystyrene foam
- 2 protection plugs
- Angle stop valve R 1/2", with adaptor ring
- Geberit AquaClean water supply hose
- Connection set for toilet, ø 90 mm
- Connection bend 90° made of PE-HD, ø 90 mm
- Adaptor socket made of PE-HD, ø 90 / 110 mm
- Fixing material
- Geberit Duofix set of wall fixings for single installation (111.839.00.1)
.

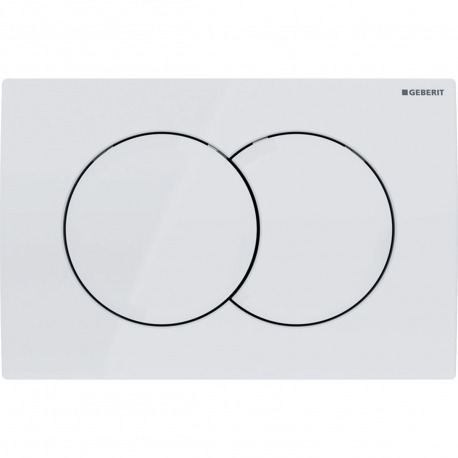

Geberit DELTA20 Dual Flush Plate, Alpine White (115.107.11.1):
- Dual flush
- Water-saving
- For Delta cisterns
.

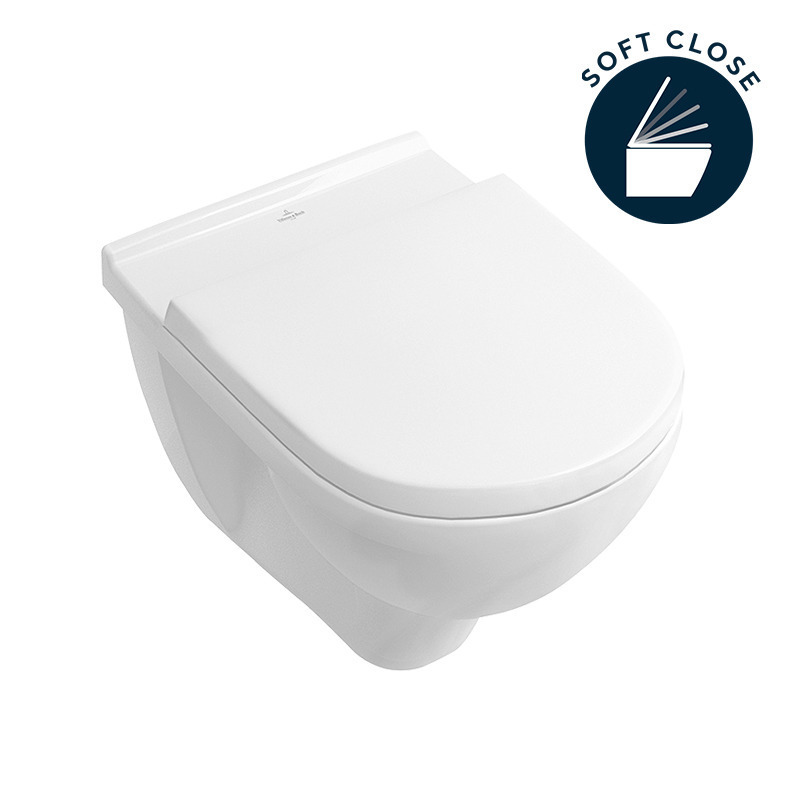

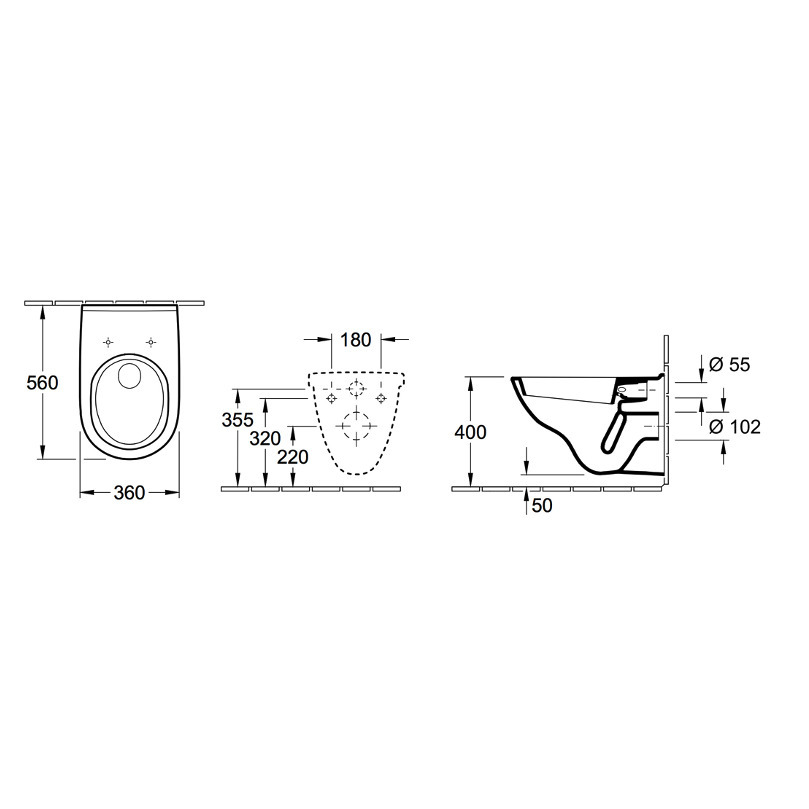

Villeroy & Boch O.NOVO Oval Wall-Hung Toilet, Alpine White (56601001):
- Series: O.novo
- Rimless
- Colour: Alpine white
- Material: Sanitary porcelain
- Width: 360 mm
- Depth: 560 mm
- Fastened with 2 bolts m12 x 150 mm
- High-performance flush 3/6 litres
- Outlet: horizontal outlet
.
Villeroy & Boch O.Novo Soft-Close Toilet Seat (9M38S101):
- The new O.novo toilet seats from Villeroy & Boch combine functionality and aesthetics
- Soft-close
- QuickRelease: easy to remove and install
- Duroplast seat with stainless steel hinges
- Fixing distance: 15.5 cm
.
.
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
