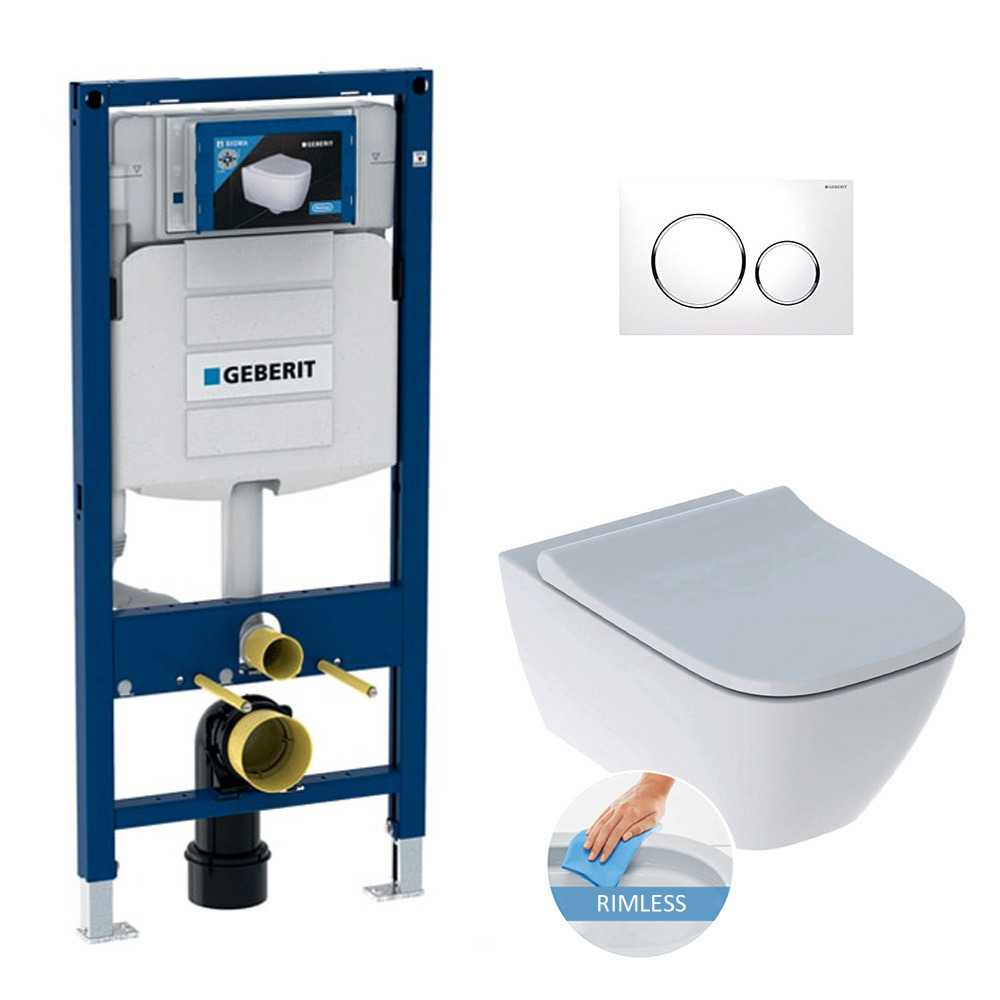

Geberit Toilet Set Duofix + Geberit Square Rimless wall-hung toilet + Sigma20 White chrome flush plate (GEBSMYLE-C)
- Product reference: GEBSMYLE-C
- EAN: 734077007388
- Line: Duofix
Brand:
Product warranty:
2
years
Features of the Geberit Toilet Set Duofix + Geberit Square Rimless wall-hung toilet + Sigma20 White chrome flush plat (GebSmyle-C) :
- Geberit Duofix UP320 wall mounting frame (111.300.00.5)
- Geberit DUOFIX Sigma 20 toilet flush plate, white and chrome (115.882.KJ.1)
- Smyle Square Wall-hung rimless WC, White, (500.208.01.1)
- Smyle soft close seat 45cm, White (500.687.01.1)
- Geberit DUOFIX wall mounting set (111.815.00.1)
.
see detailed descriptionProduct technical properties
- Toilet bowl brand:Geberit
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:White / Chrome
- Bowl colour:White
- Invisible fixings:Yes

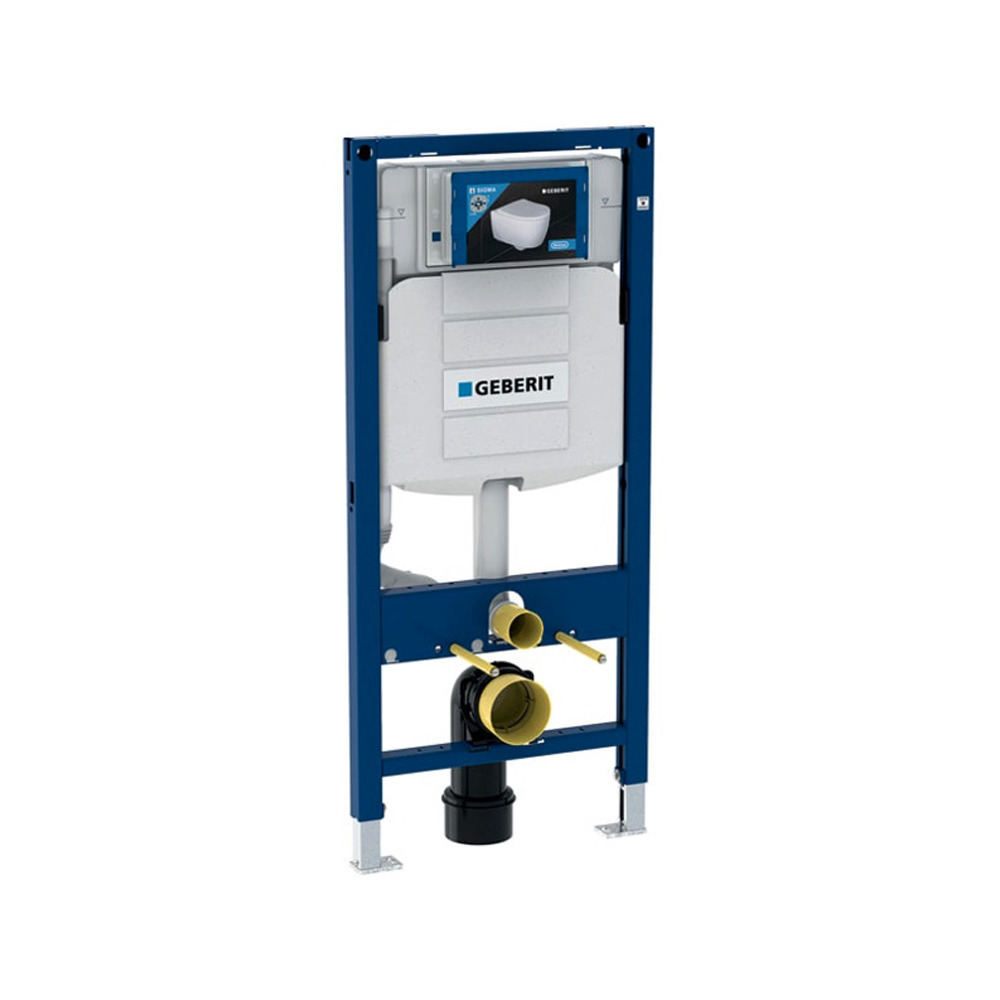

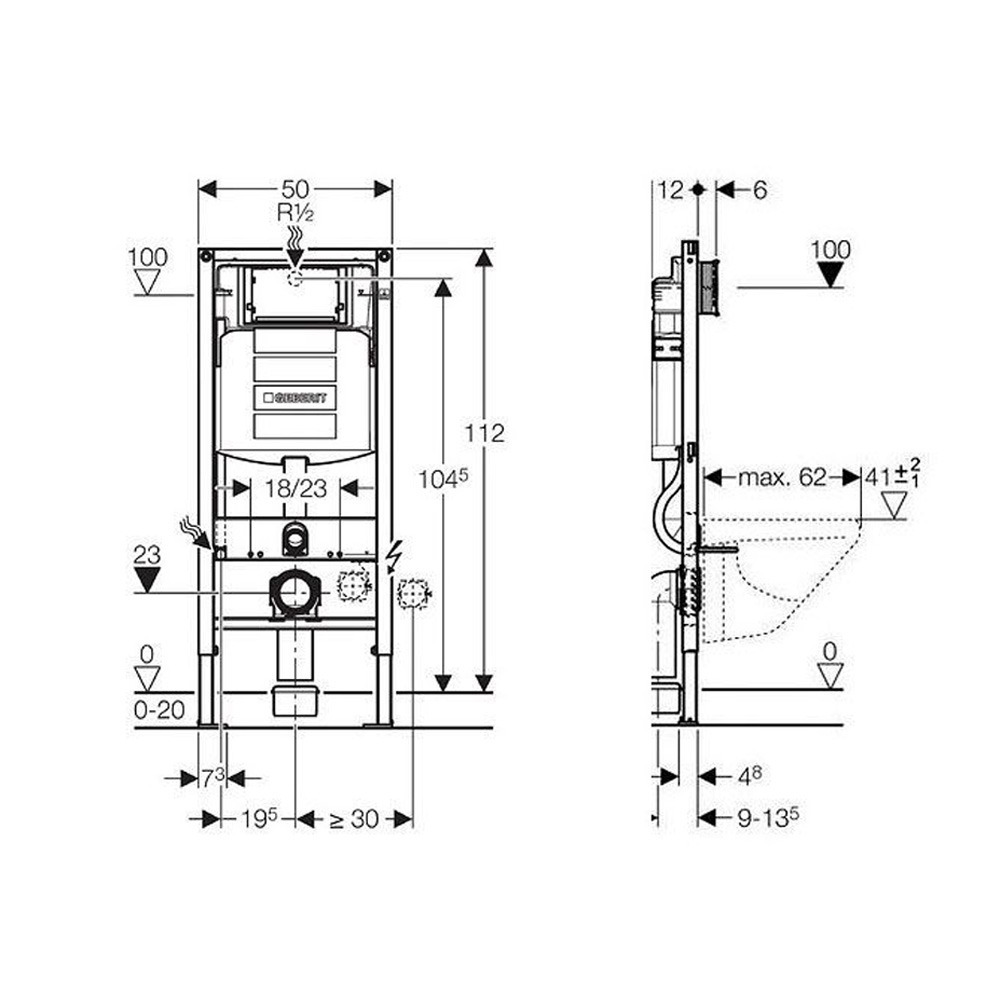

Geberit Duofix UP320 wall mounting frame (111.300.00.5):
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame
- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above
.

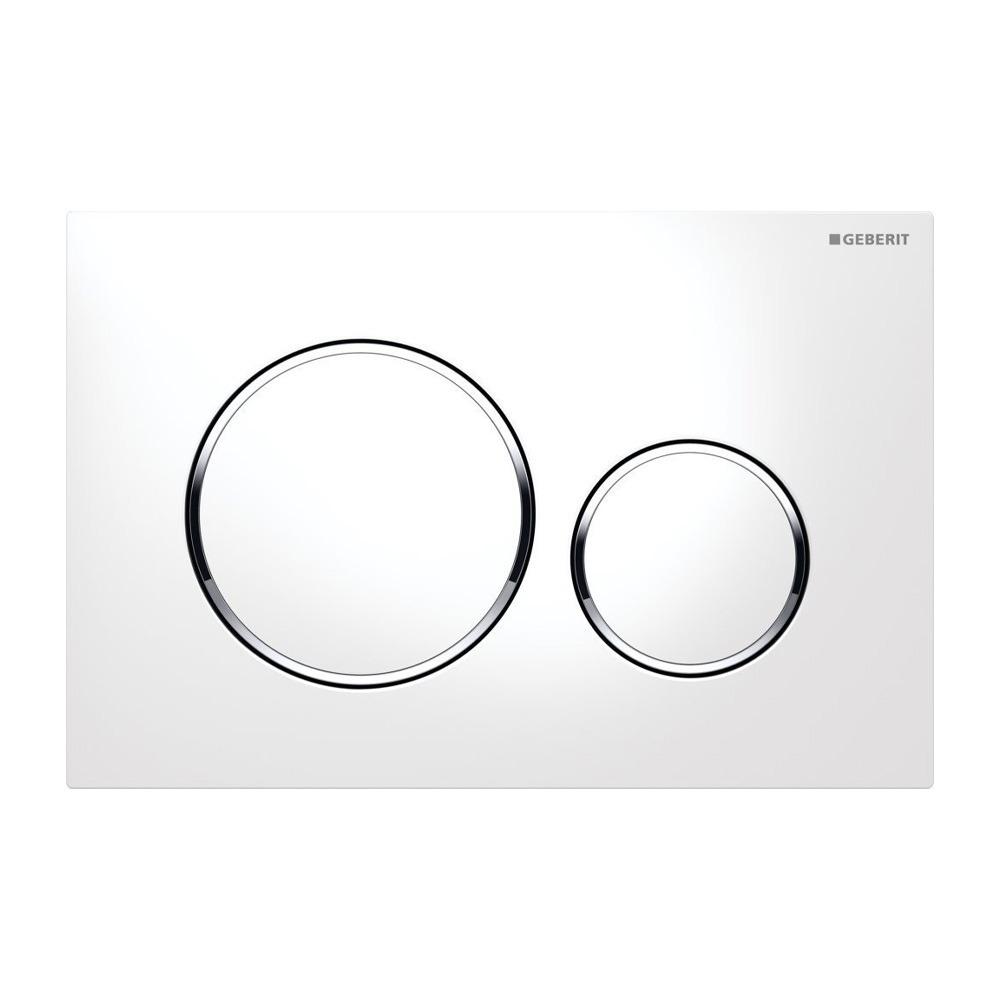

Geberit DUOFIX Sigma 20 toilet flush plate, white and chrome (115.882.KJ.1):
- Colour: White and Chrome
- Suitable for Sigma concealed cisterns
- Front release
- Tool-free installation of the support frame
- Double button
- Synthetic material
- Perfect colour retention over time
- Resistant to cleaning agents and scratches
- Supplied with support frame, threaded release rods and fixing material
.

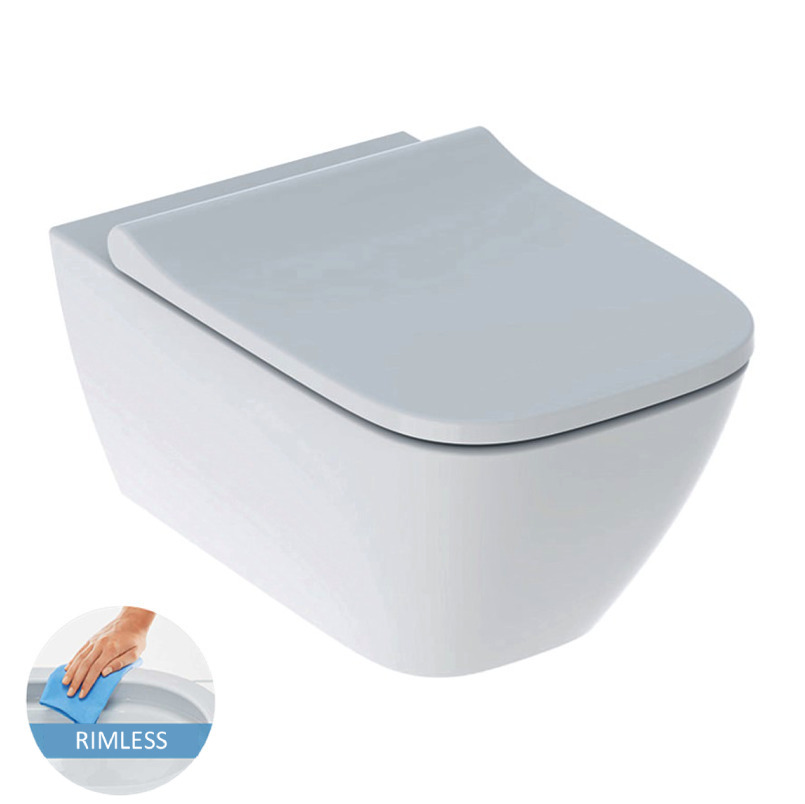

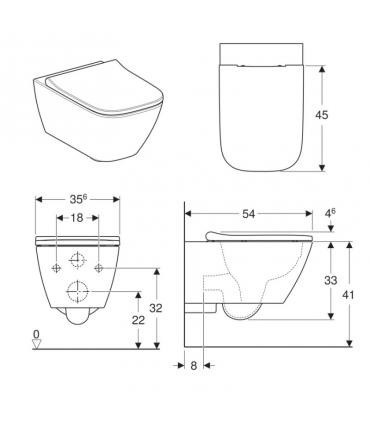

Smyle Square Wall-hung rimless WC, White, (500.208.01.1)
- Brand: Geberit
- Series: Smyle
- Colour: White
- Material: sanitary ceramic
- Width (cm): 35cm
- Height (cm): 33cm
- Depth (cm): 54cm
- Weight (kg): 21
- For concealed cistern
- Rimless
- Flush volume (l): Eeconomical 3 / 4.5 l
.
Smyle soft close seat 45cm, White (500.687.01.1)
- Color: White
- Material: Duroplast
- Width: 35.5cm
- Height: 4.5cm
- Length: 45cm
- With softclose function
- Hinges in chromed brass, quick opening
- Fixing from above
- Slim design
- Antibacterial
.
Geberit DUOFIX wall mounting set (111.815.00.1):
- For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
- For fastening the cladding in front of partial-height overlay walls.
