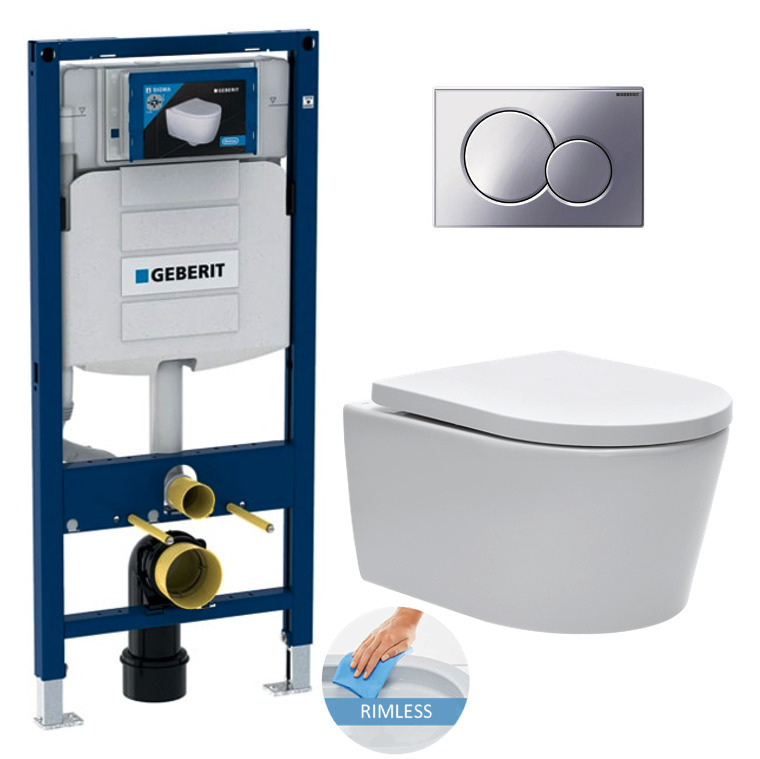

Geberit Toilet Set Geberit Duofix + SAT rimless toilet, invisible fixings + Softclose seat + Chrome plate (GebSATrimless-N)
- Product reference: GEBSATRIMLESS-N
- EAN: 734077007692
- Line: Duofix
Brand:
Product warranty:
2
years
Features of the Toilet Set Geberit Duofix + SAT rimless toilet, invisible fixings + Softclose seat + Chrome plate (GebSATrimless-N):
- Geberit Duofix UP320 wall mounting frame (111.300.00.5)
- Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)
- Geberit DUOFIX wall mounting set (111.815.00.1)
- Flush plate Sigma01 for dual flush, Gloss chrome-plated (115.770.21.5):
Product technical properties
- Colour:White
- Material:Ceramic
- Length (cm):48
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:Chrome
- New:New
- Weight:38
- Bowl colour:White
- Invisible fixings:Yes

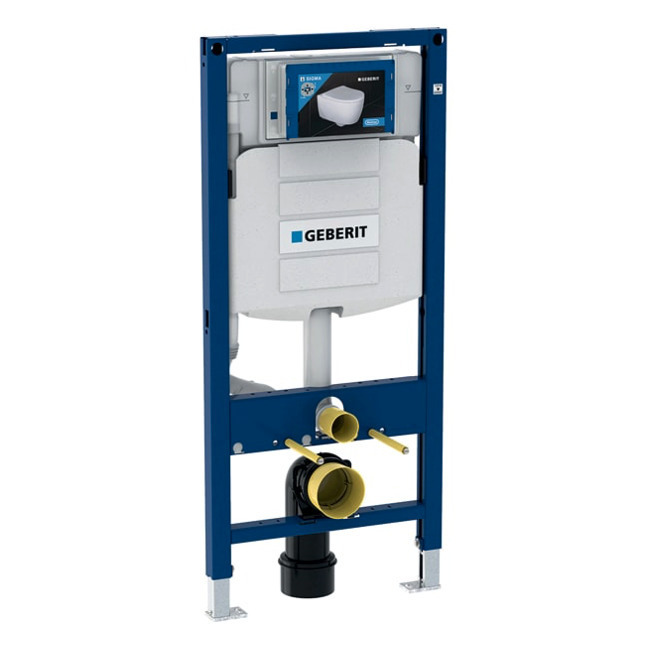

Geberit Duofix UP320 wall mounting frame (111.300.00.5)
- Geberit Duofix WC element with concealed cistern
- Type UP320
- With front controls
- Equipped with self-supporting frame

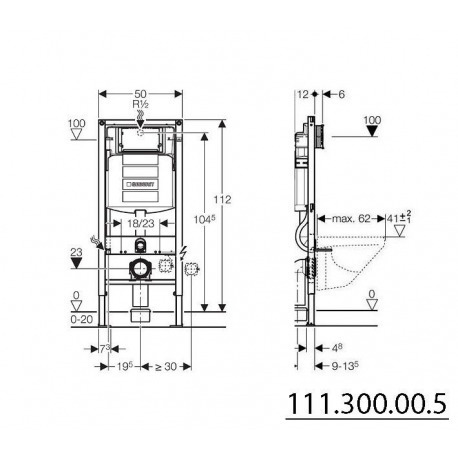

- 100-112cm (H) x 50 (W) x 12 (D)
- Suitable for sigma control panel
Use :
- For mounting with floor structure from 0 to 20 cm
- For mounting in wall or partition
- For installation in a wall at room height
- For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
- Can be connected to Geberit AquaClean
Technical information :
- Geberit Sigma concealed cistern 12 cm, front operation
- 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
- Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
- Adjustable flush water quantity
- Concealed cistern for tool-free installation and maintenance
- Acoustically insulated trigger rods, quickly adjustable without tools
- Universal water connection, compatible with MeplaFix, for toolless installation
- Flexible connection hose to the shut-off valve, can be screwed on without tools
- Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
- Self-adjusting feet adjustable from 0 to 20 cm
- Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
- Concealed cistern with anti-condensation insulation
- Frame with C-profile 4/4 cm
- Frame painted ultramarine blue
- 5 cm push-on feet
- Water connection from above in the middle, from the back or from above

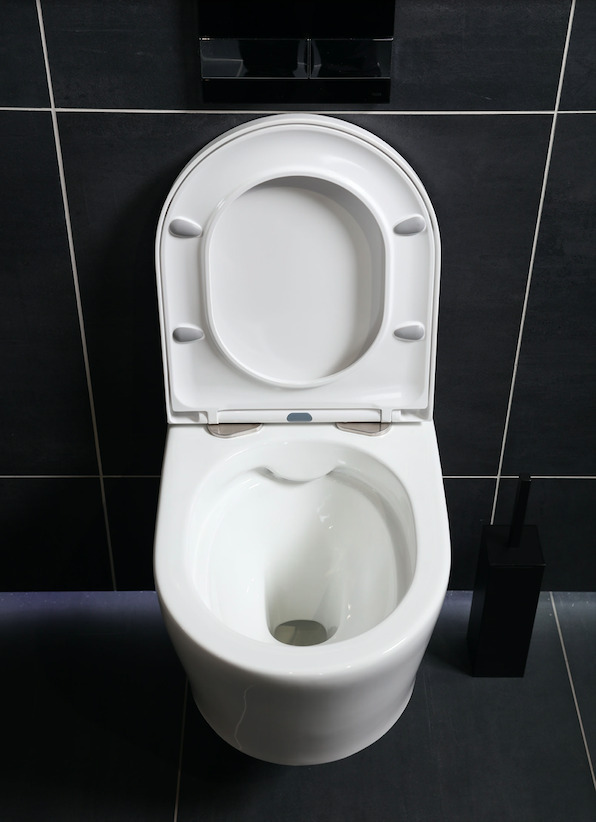

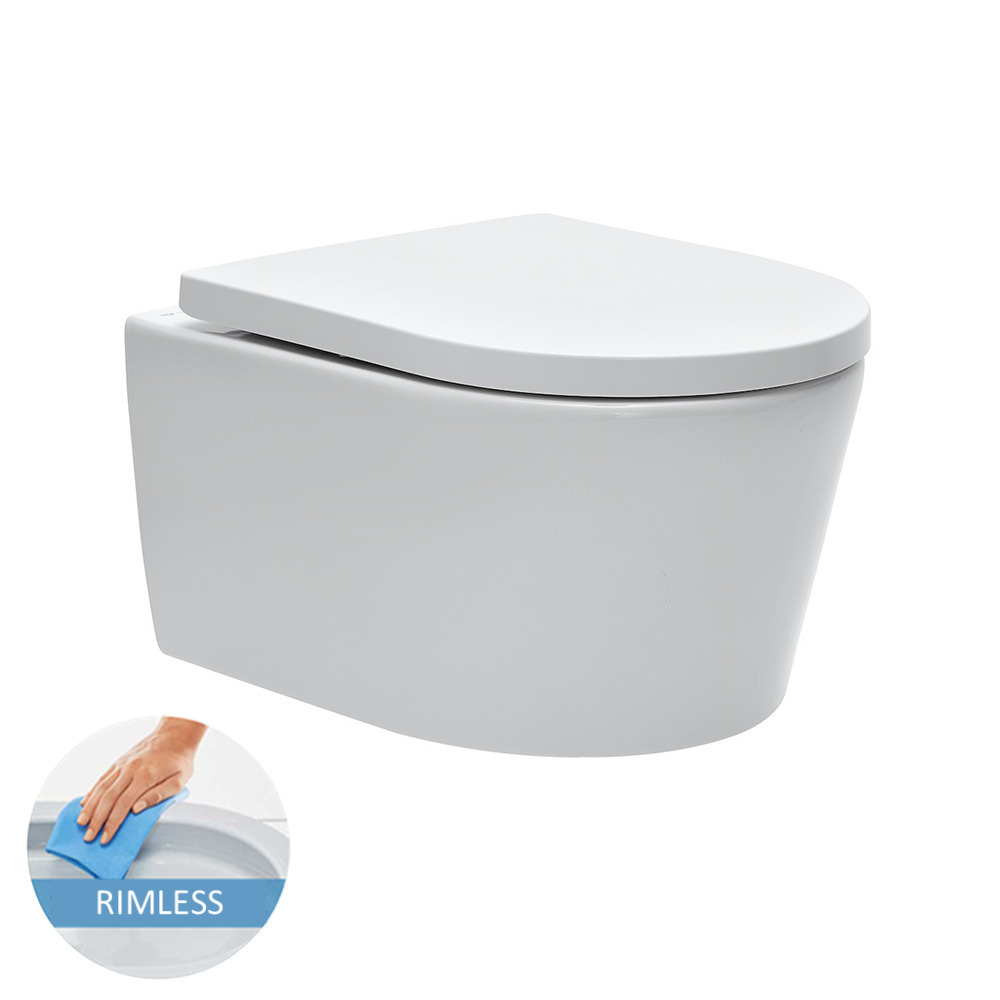

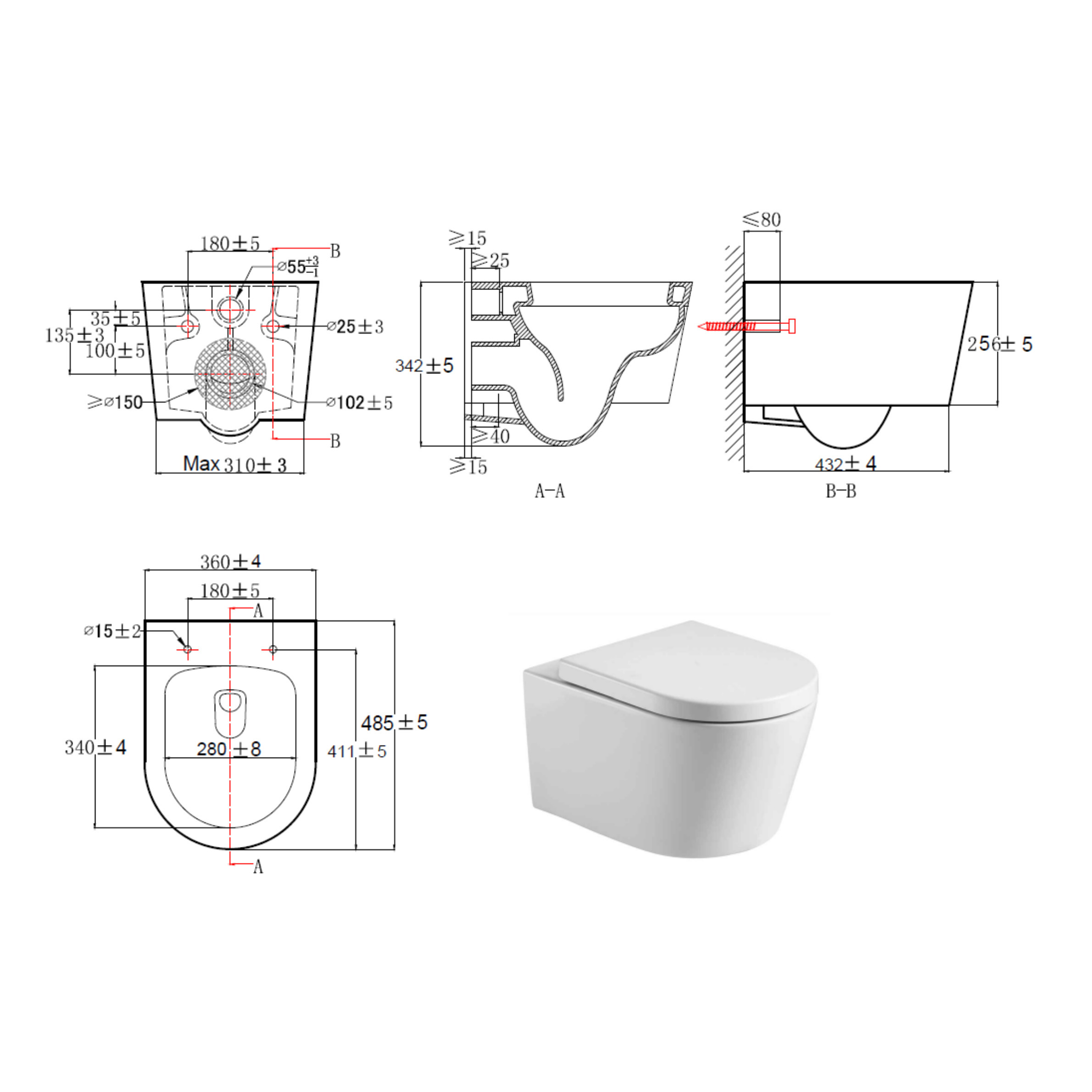

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless):
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Hidden fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L
- Toilet seat with softclose

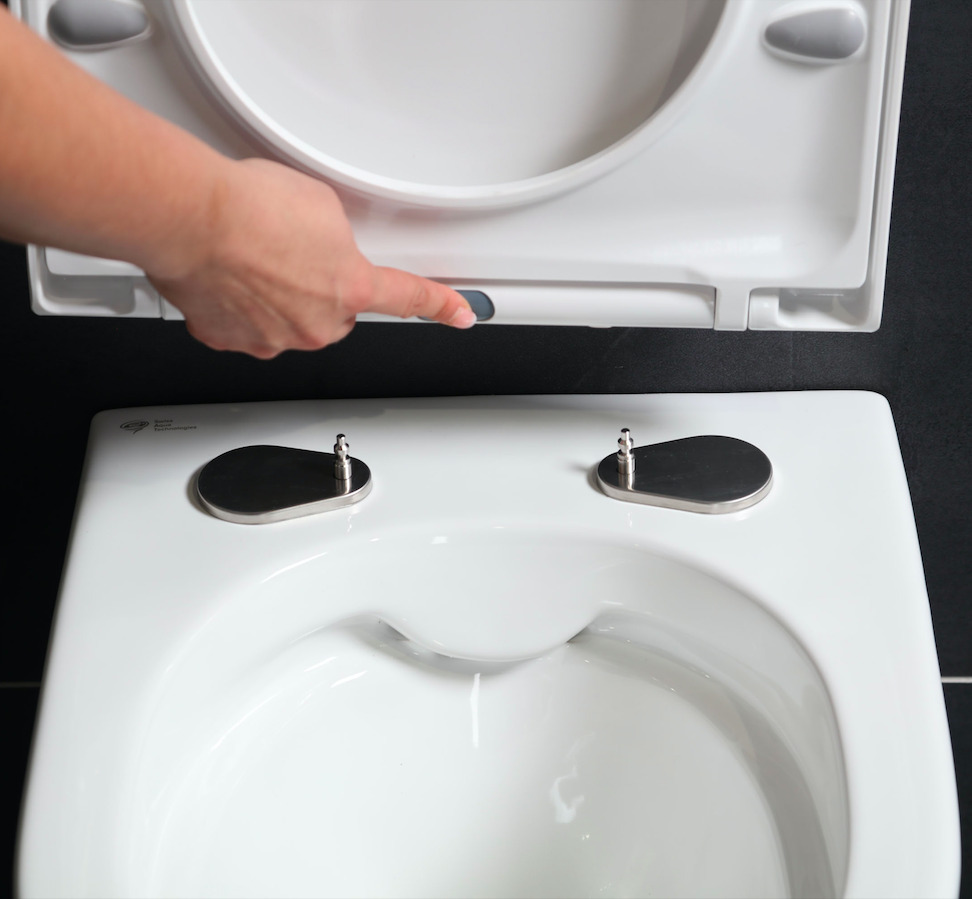

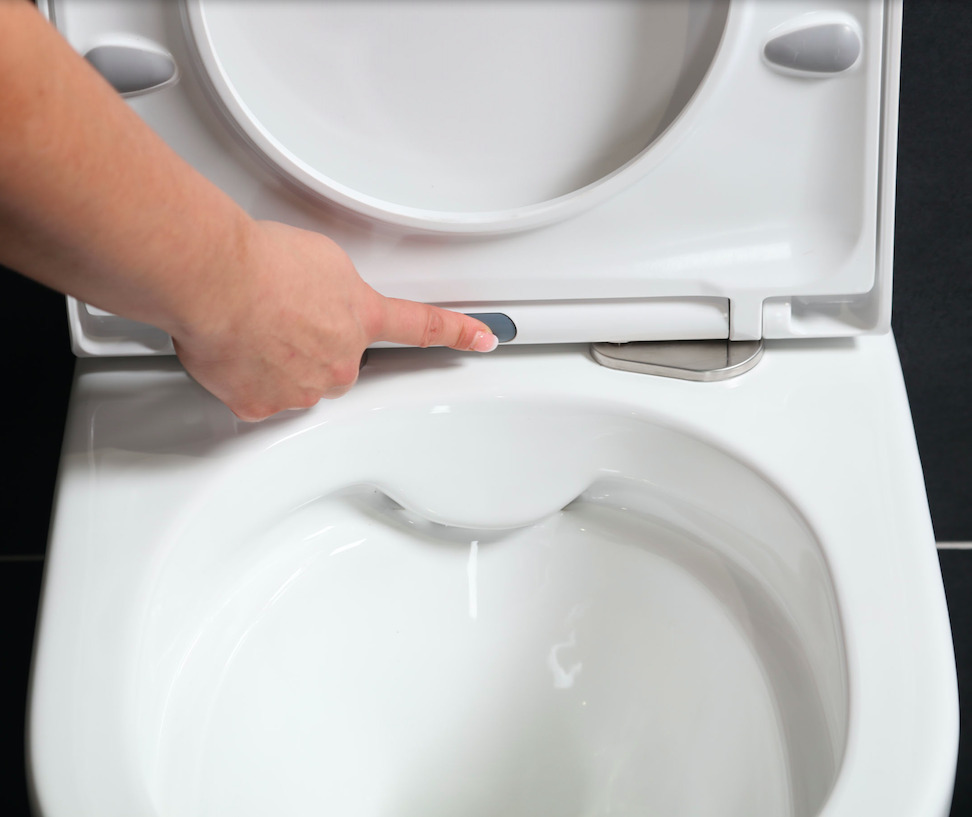

- Snap-on seat
- Easy to maintain thanks to the rimless system and removable seat
- Quick setup

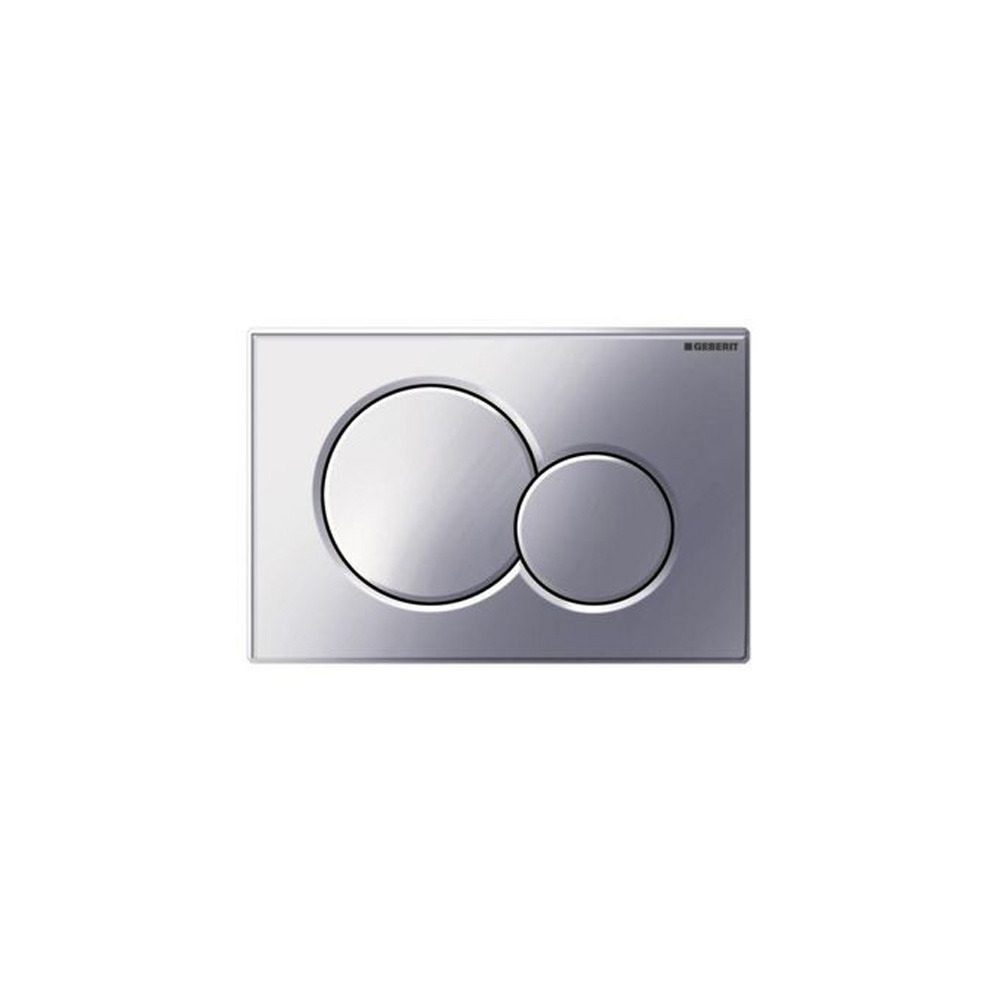

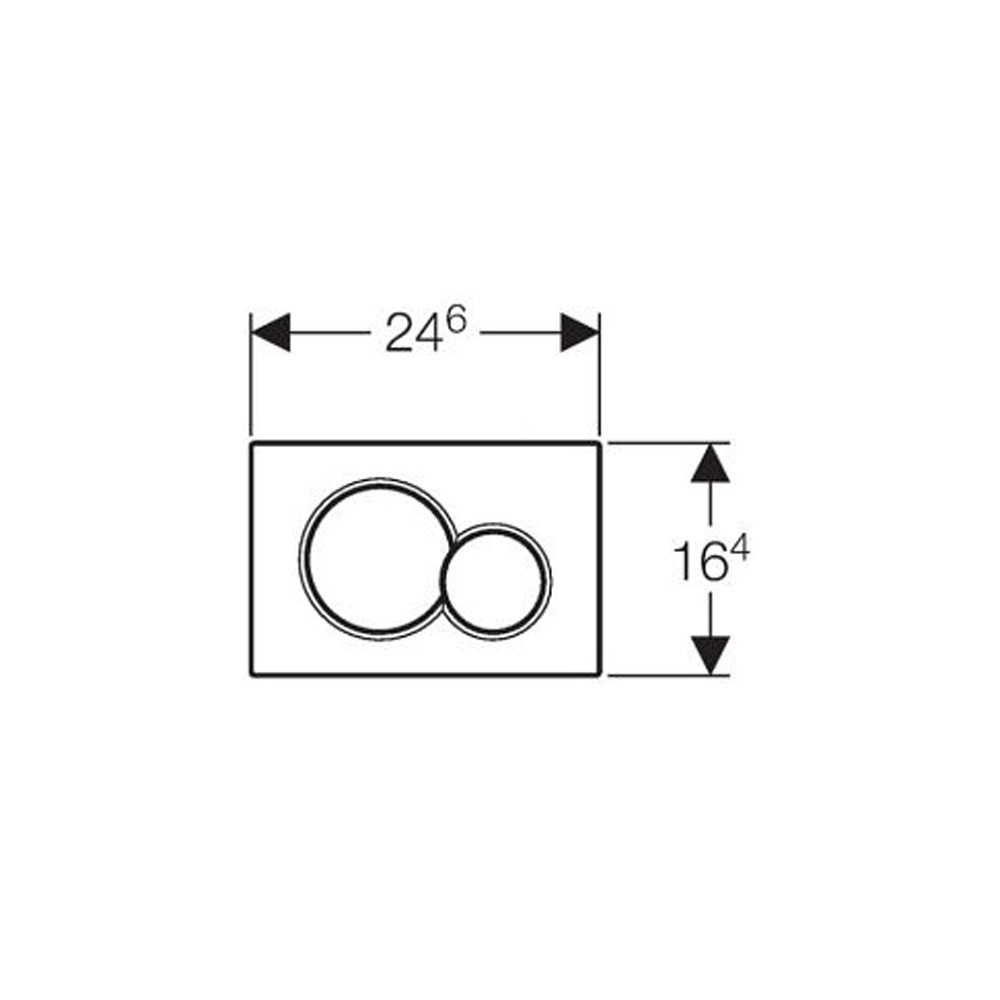

Flush plate Sigma01 for dual flush, Gloss chrome-plated (115.770.21.5):
- Colour: Gloss chrome
- Water-saving: two-touch 3/6 L
- Made of high quality synthetic material.
- Compatible with the blue water block diffuser
- Dimensions : 246x164 mm
- Actuation force: < 20 N
- Characteristics: Front actuation, sound-absorbing actuator rods, tool-free fast adjustment
- Delivered with: Mounting frame, 2 distance bolts, 2 actuator rods
Geberit DUOFIX wall mounting set (111.815.00.1):
- For fixing Geberit Duofix support frames in front of drywall or solid construction walls.
- For fastening the cladding in front of partial-height overlay walls.
