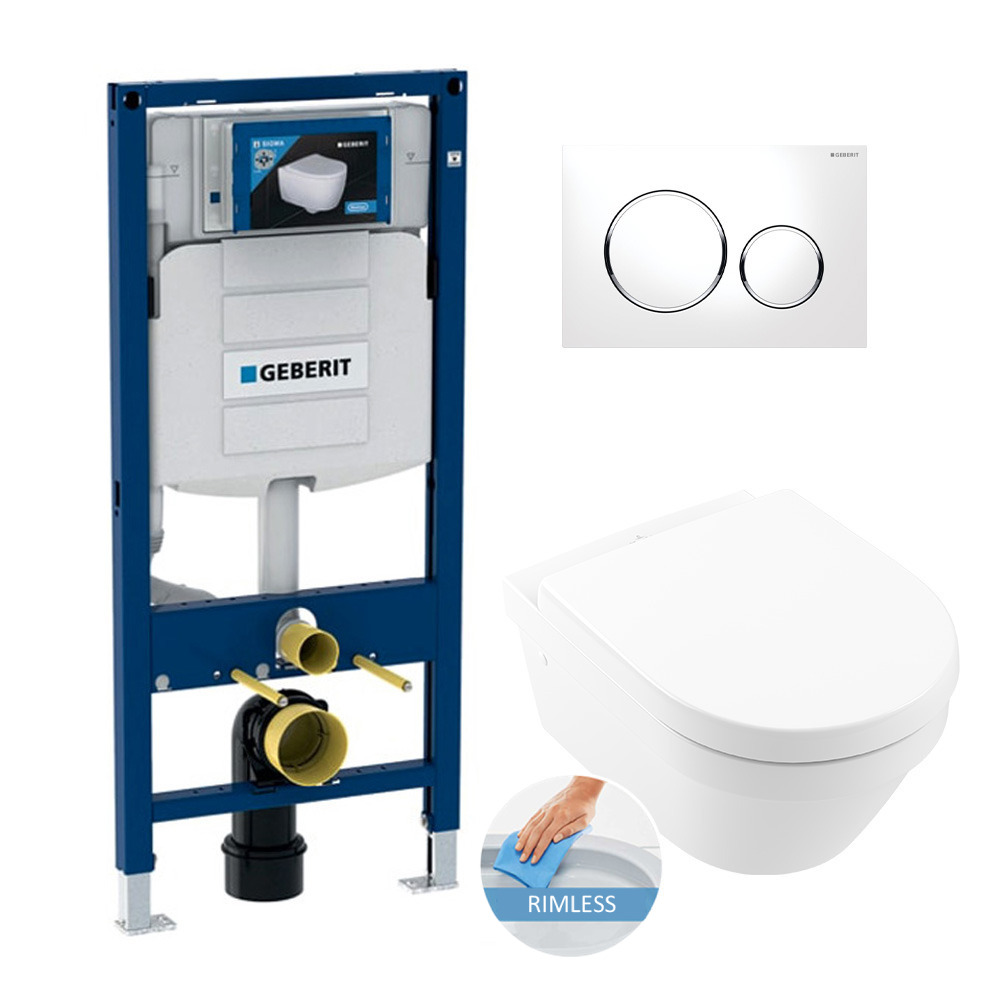

Geberit Toilet Pack Duofix UP320 Frame + Architectura Rimless Toilet + Soft-Close Seat + White/Chrome Flush Plate (GebArchi3-C)

Features of Geberit Toilet Pack Duofix UP320 Frame + Architectura Rimless Toilet + Soft-Close Seat + White/Chrome Flush Plate (GebArchi3-C):

• Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5)
• Villeroy & Boch Architectura Rimless Toilet Pan with invisible fixings (4694R001)
• Villeroy & Boch Architectura Duroplast Toilet Seat (98M9D101)
• Geberit Duofix Wall Anchoring Set (111.815.00.1)
• Geberit Duofix Sigma 20 Dual Flush Plate, White/Chrome (115.882.KJ.1)

.

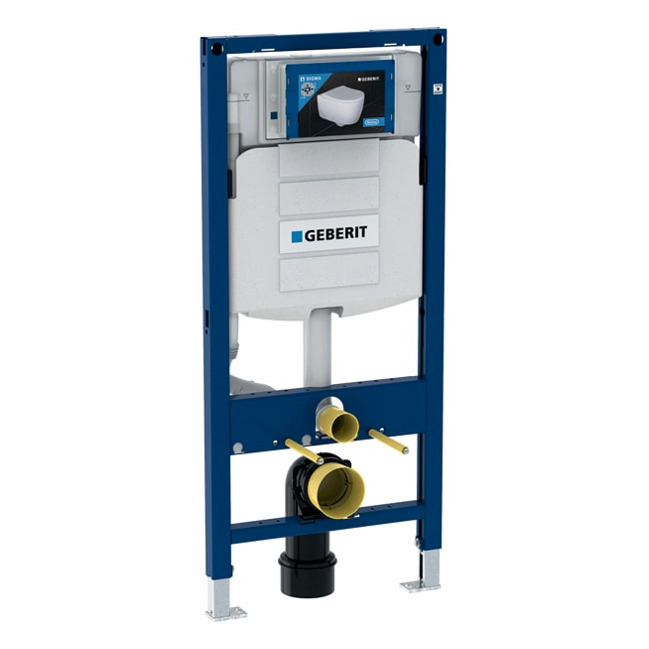

Geberit Duofix UP320 Toilet Support Frame + Concealed Cistern (111.300.00.5):

• Geberit Duofix support frame with concealed cistern
• Front actuation
• Self-supporting frame

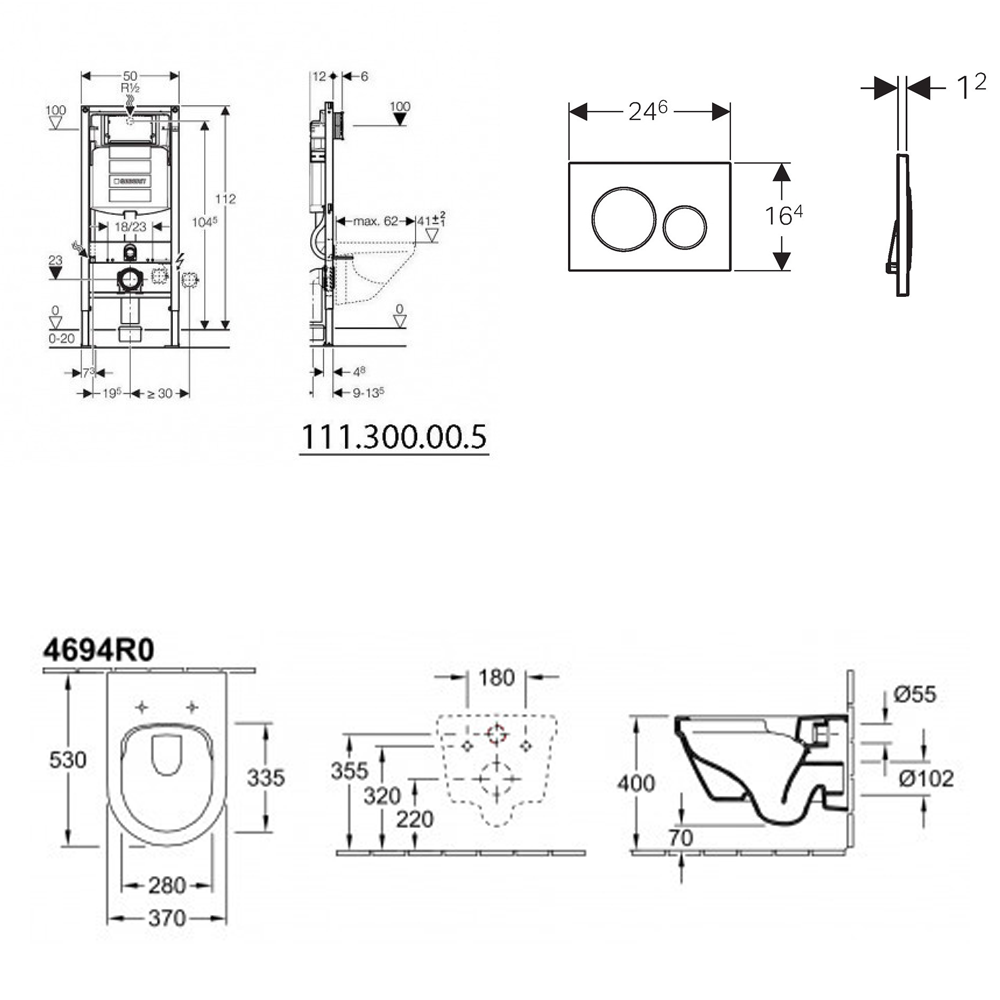

• 100-112cm (H) x 50 (W) x 12 (D)
• Suitable for Sigma flush plates

Use:

• For drywall construction
• For installation in part- or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung toilets with connection dimensions in accordance with EN 33:2011
• For wall-hung toilets with projection up to 62 cm
• For single flush, dual flush or stop-and-go flush
• For floor constructions 0–20 cm

Technical information:

• Self-supporting frame, powder-coated
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for ceramic toilets with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20 cm
• Non-slip leg supports
• Rotatable foot plates
• Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation
• Concealed cistern fully insulated against condensation
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the rear or top centre
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• With fastening option for electrical connection

Included:

• Water supply connection R 1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 protection plugs
• Connection set for toilets, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adapter socket made of PE-HD, ø 90 / 110 mm
• 2 threaded M12 rods
• Fixing material

.

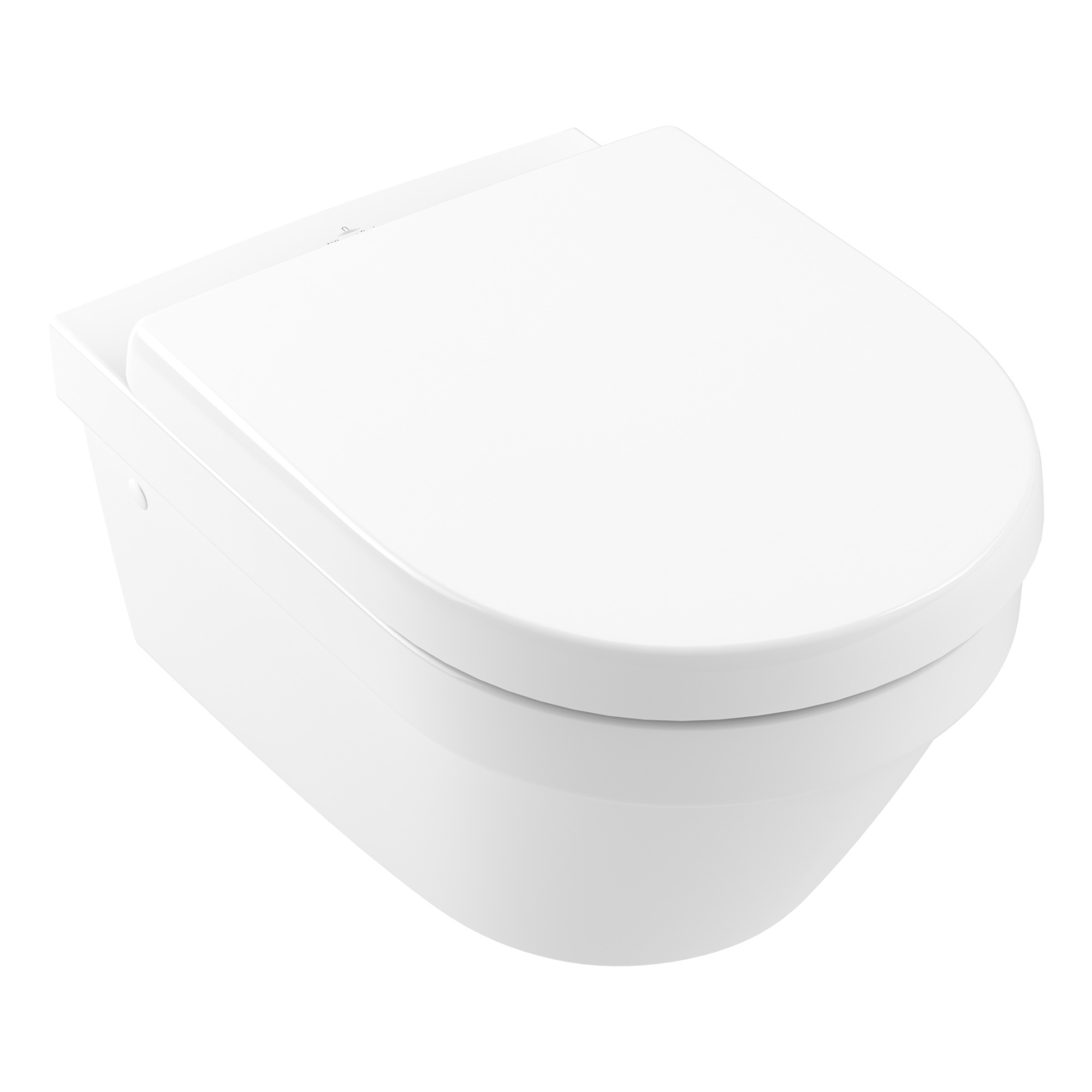

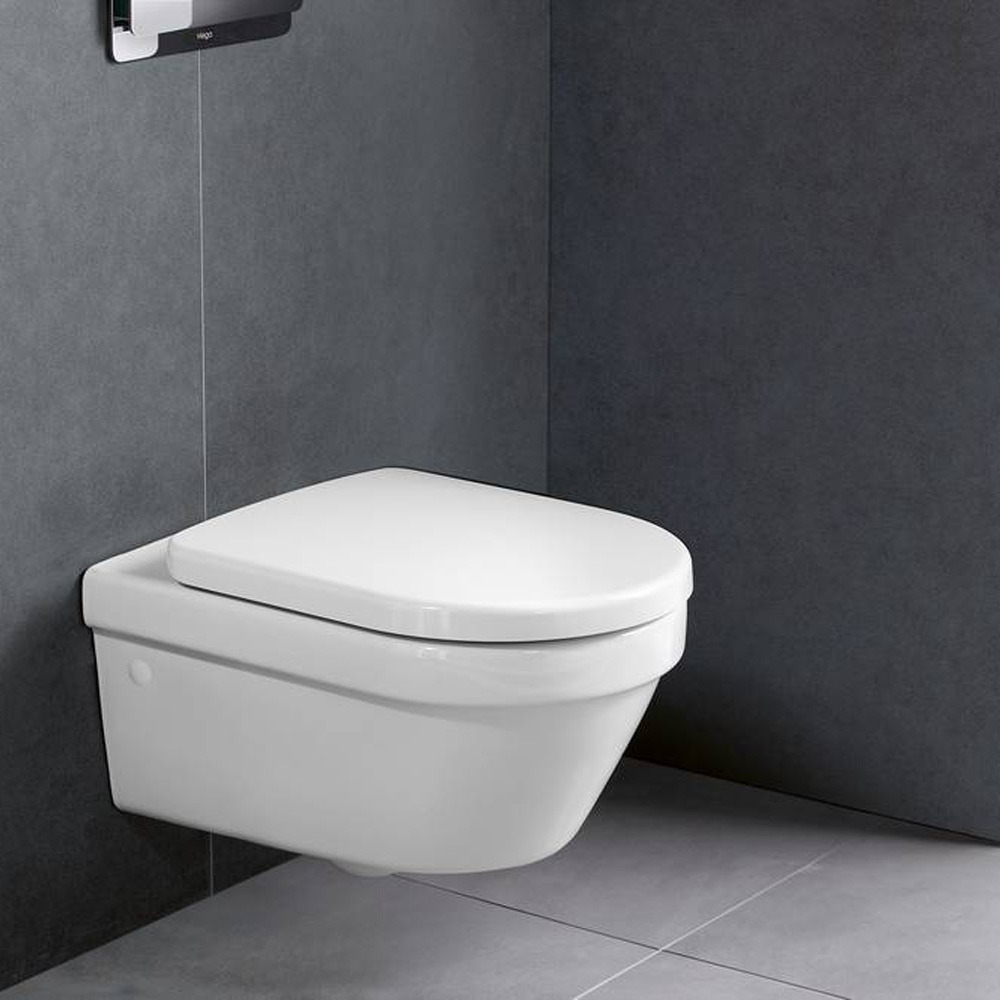

Villeroy & Boch Architectura Rimless Toilet Pan with invisible fixings (4694R001):

• Rimless
• Invisible fixings
• Sanitary ceramic
• DirectFlush
• Water-saving AQUAREDUCT® system: flush volume 3/4.5 L
• Fixing kit included
• Compatible with seats: 9M7061, 9M70S1, 98M9D1, 9M6361, 98M9C1
• Not suitable for installation with flush valves

.

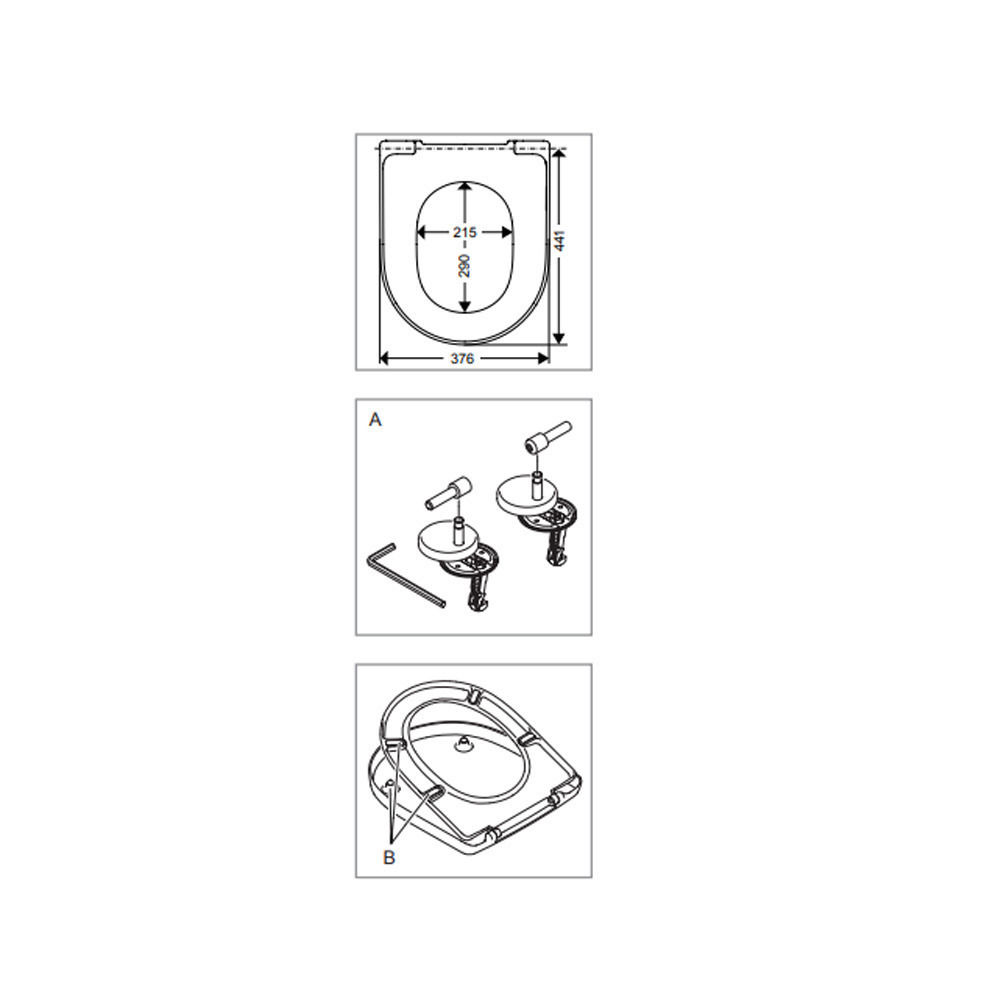

Villeroy & Boch Architectura Duroplast Toilet Seat (98M9D101):

• Length: 452 mm
• Width: 376 mm
• Height: 42 mm
• Collection: Architectura
• Weight: 2.57 kg
• Material: Duroplast
• Colour: Gloss white
• Shape: Oval
• Hinges: Steel

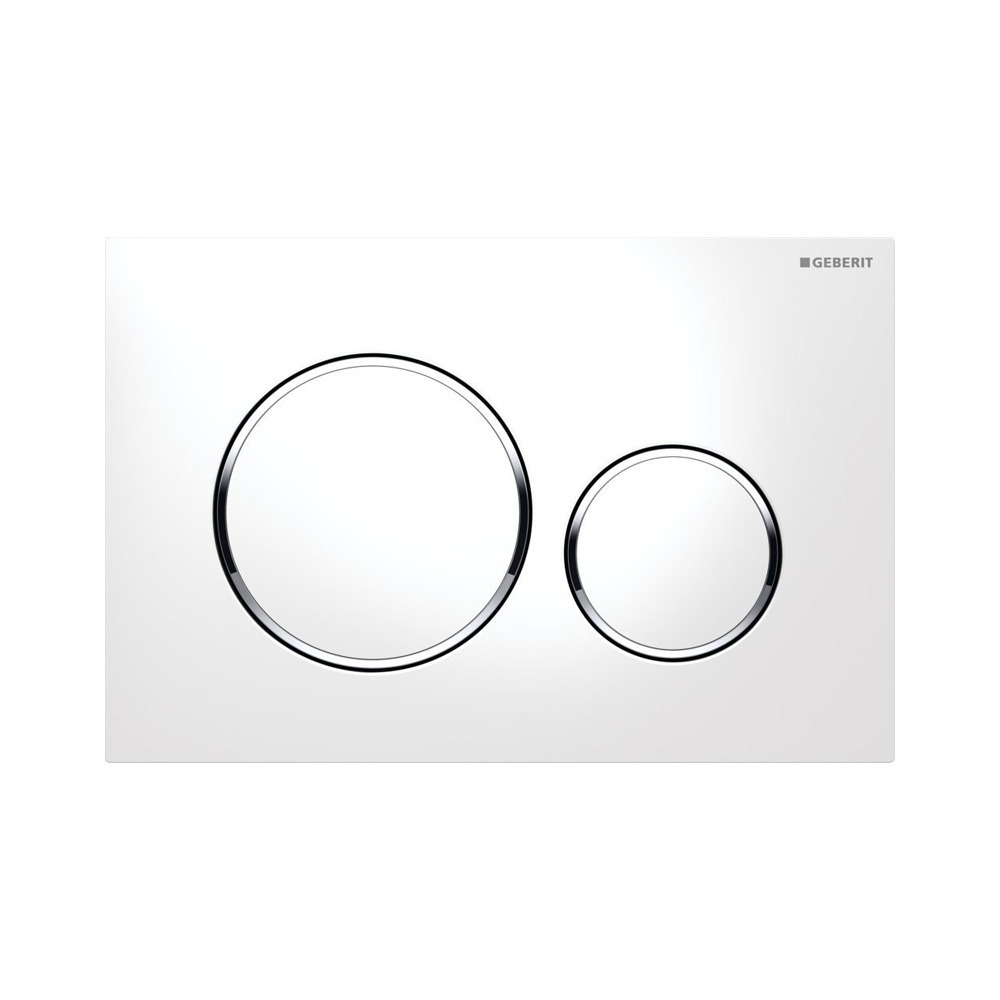

Geberit Duofix Sigma 20 Dual Flush Plate, White/Chrome (115.882.KJ.1):

• Colour: White and Chrome
• Compatible with Sigma concealed cisterns
• Front actuation
• Tool-free installation of the support frame
• Dual flush
• Synthetic material
• Perfect colour retention over time
• Resistant to cleaning agents and scratches
• Supplied with support frame, threaded release rods and fixing material

.

Geberit Duofix Wall Anchoring Set (111.815.00.1):

• For fastening Geberit Duofix installation elements in front of drywalls and solid walls
• For fastening panelling in part-height prewall installations
• Can be adjusted in depth from the front, infinitely variable, with fast adjustment
• Wall inlet rotatable by 360°
• Threaded rod M10, zinc-plated

.
