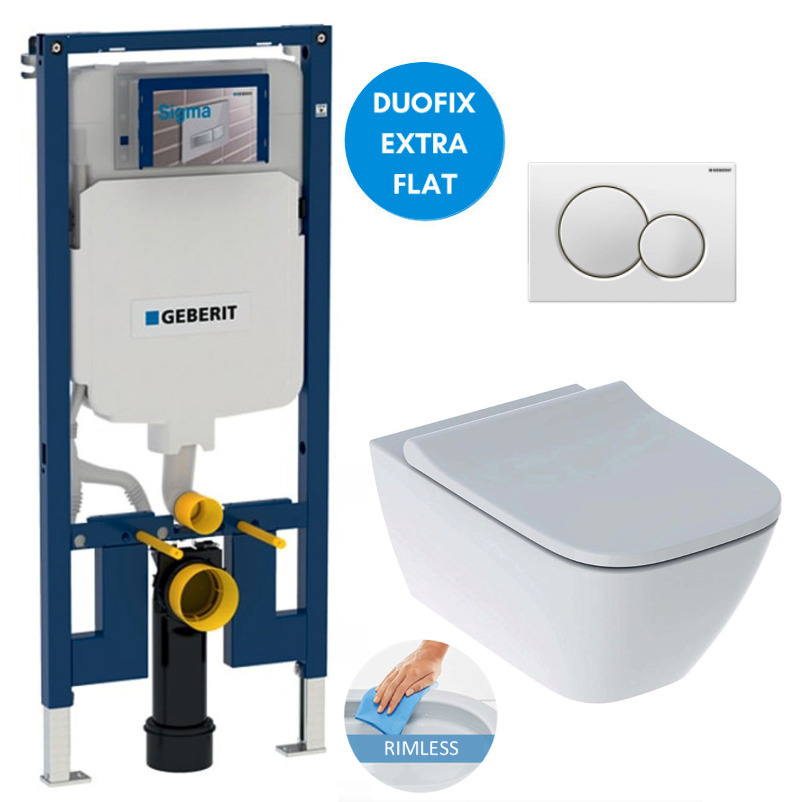

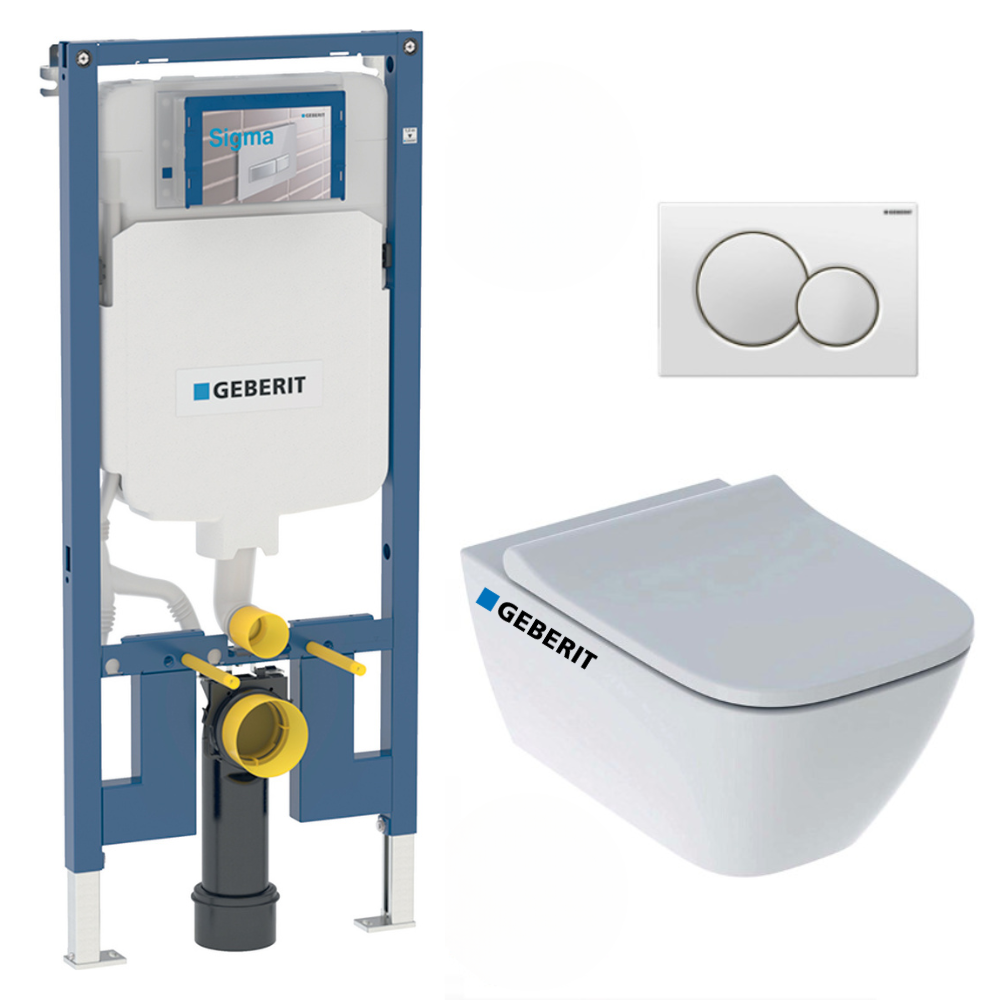

Geberit Toilet Set Duofix extra-flat support frame + Geberit Smyle rimless toilet + Softclose seat + White plate
- Product reference: SLIM-SMYLE-B
- EAN: 0734077010265
- Line: Duofix
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Opt for the quality and ease of installation of the Toilet Set Duofix extra-flat support frame + Geberit Smyle rimless toilet + Softclose seat + White plate (SLIM-Smyle-B).
The quality of the items in this pack is recognised and the modernity and design of these items will certainly satisfy you by providing you with solutions adapted to your projects.
see detailed description- Colour:White
- Material:Ceramic
- Length (cm):114
- Toilet bowl brand:Geberit
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Standard Extra Flat
- Plate colour:White
- New:New
- Weight:36.63
- Bowl colour:White
- Invisible fixings:Yes
Features of the Toilet Set Duofix extra-flat support frame + Geberit Smyle rimless toilet + Softclose seat + White plate (SLIM-Smyle-B) :
- Geberit Duofix UP720 extra-flat stand 114 cm support frame, space-saving, with Sigma concealed cistern (111.796.00.1)
- Geberit Smyle Square Wall-hung rimless WC, White, (500.208.01.1)
- Geberit Smyle Soft close seat 45cm, White (500.687.01.1)
- Geberit White SIGMA 01 two-touch flush plate (115.770.11.5)
.

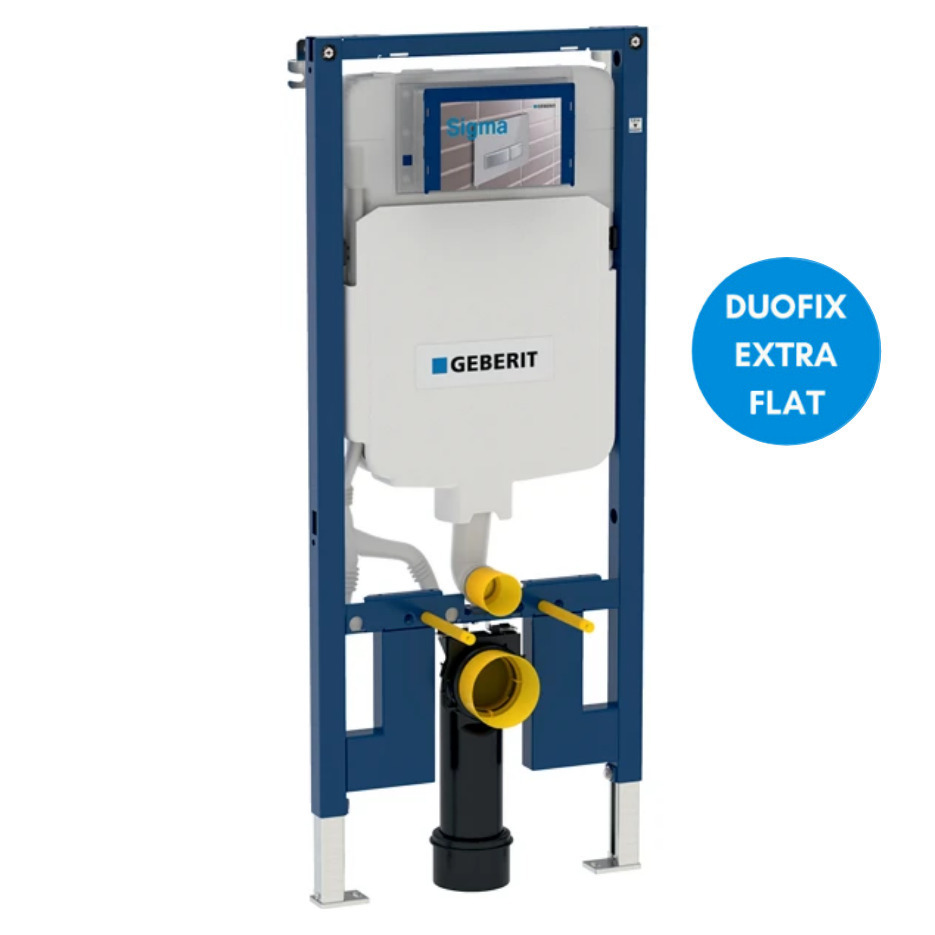

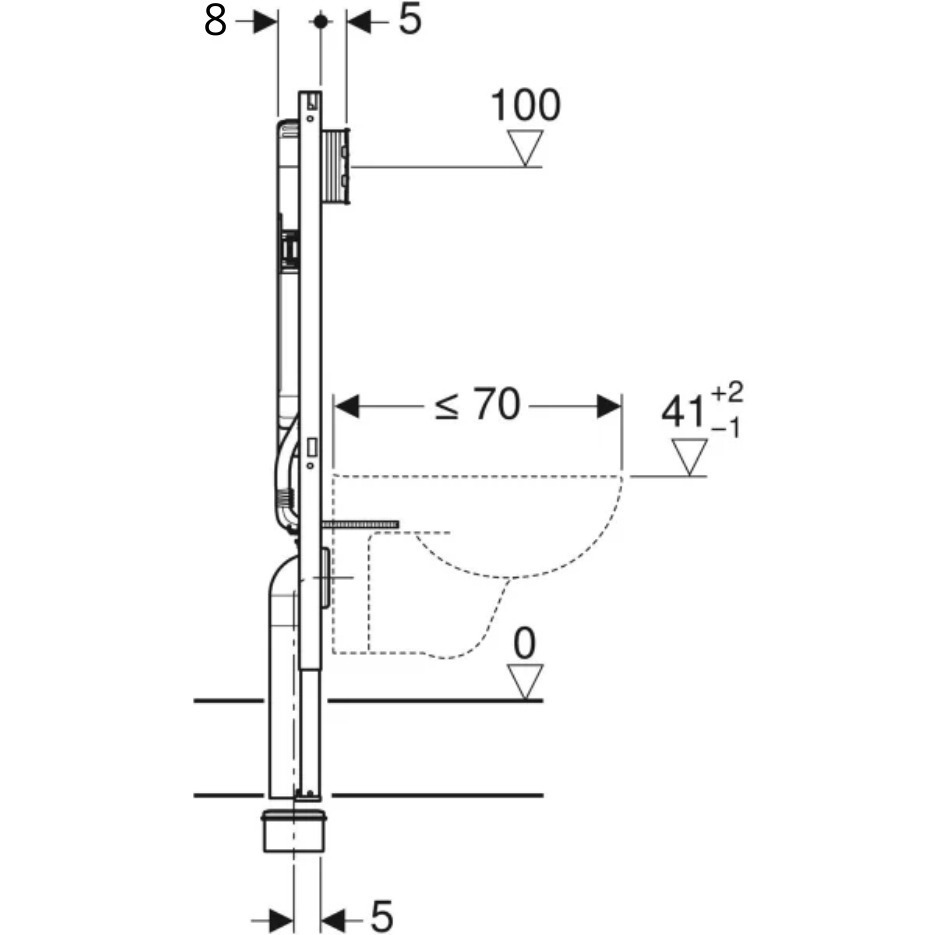

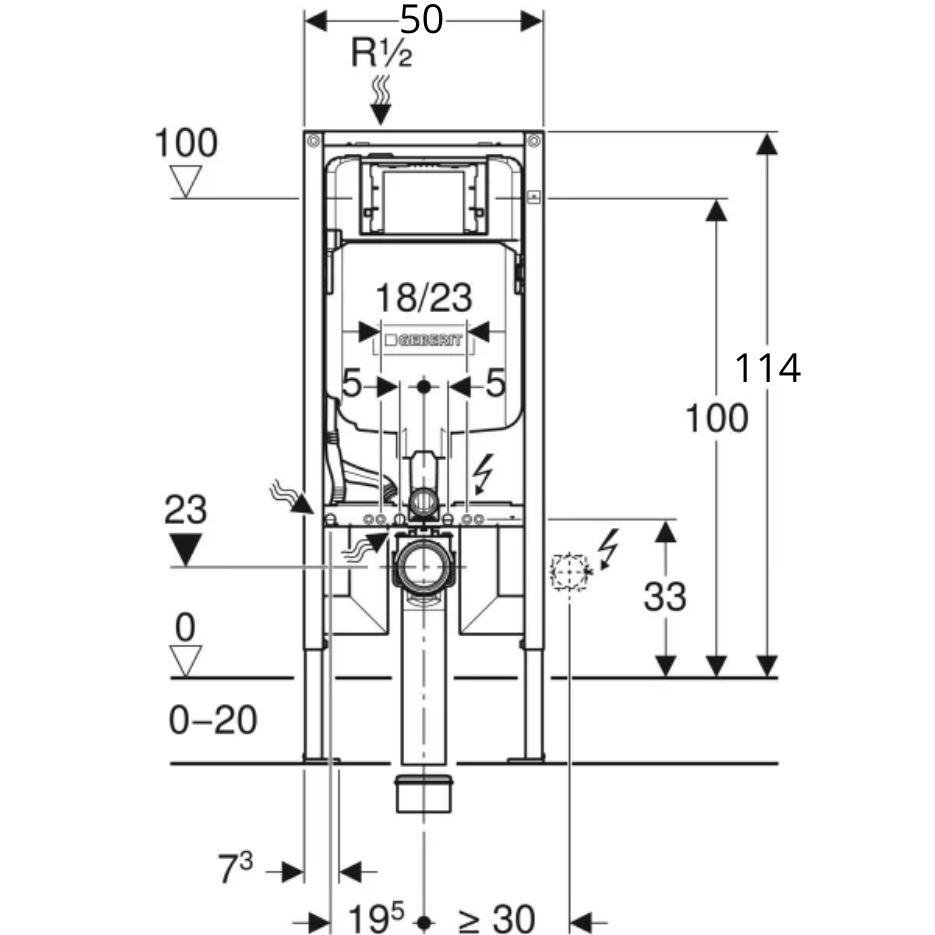

Geberit Duofix UP720 extra-flat stand 114 cm support frame, space-saving, with Sigma concealed cistern (111.796.00.1) :
-
Frame suitable for WC bowls with small support surface (with pressure-resistant wall cladding)
-
Galvanised, infinitely adjustable, non-slip support feet
-
Depth of foot plates suitable for installation on UW 50 profiles and Geberit Duofix system rails
-
Connecting bend for different depth positions, can be mounted without tools
-
Connecting bend for depth position flush with the front for vertical installation
-
Extended connection bend, for floor connection
-
Connection bend fastening with sound insulation
-
Built-in tank with front release
-
Built-in tank insulated against condensation
-
Immediate post-flushing possible with factory setting
-
Installation and maintenance work on concealed cisterns without tools
-
Water inlet from the top left
-
Access panel housing, protects against moisture and dust
-
Access panel box, can be cut to size, suitable for flush-mounted trigger plates
-
Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
-
With fixing possibilities for electrical connection
Use :
- For dry wall construction
- For installation in walls at room height or partial height
- For installation in installation walls at room height
- For wall-hung toilets extended to 70 cm
- For one-touch, two-touch or interruptible flushing
- For screed heights of 0-20 cm
Scope of delivery :
- R 1/2" supply line, MF compatible, with integrated angle valve and hand wheel
- Reservation box for inspection hatch
- 2 wall mountings
- WC connection set, ø 90 mm
- 90° PE-HD connection bend, ø 90 mm
- Transition sleeve made of PE-HD, ø 90 / 110 mm
- 2 protective caps
- 2 threaded rods M12
- Fixing material
.

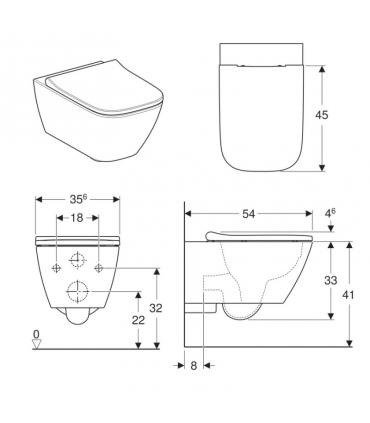

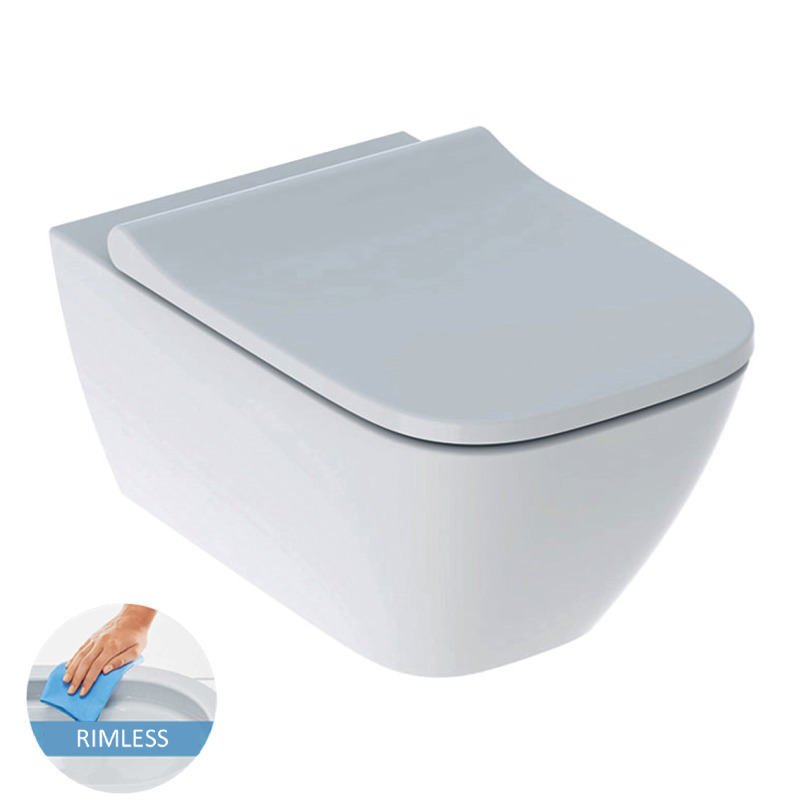

Geberit Smyle Square Wall-hung rimless WC, White, (500.208.01.1) :
- Brand: Geberit
- Material: Sanitary ware
- Rimfree bowl
- Shrouded bowl
- Invisible fixings
- Toilet seat with soft closing system
- Duroplast seat, antibacterial
- Quick release seat
- Easy to clean thanks to the Rimfree system and the Quick release seat
- Quick installation
.

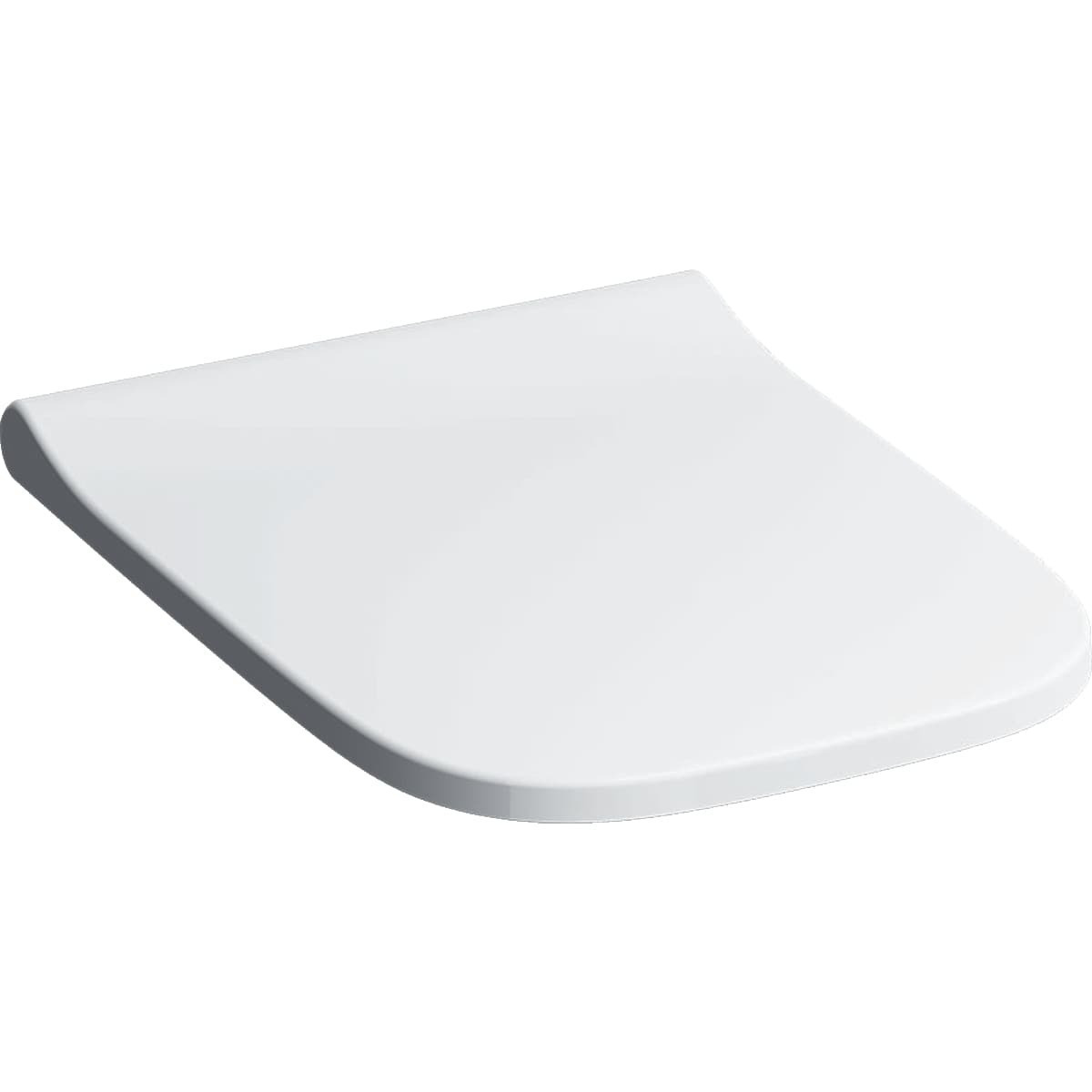

Geberit Smyle soft close seat 45cm, White (500.687.01.1)
- Color: White
- Material: Duroplast
- Width: 35.5cm
- Height: 4.5cm
- Length: 45cm
- With softclose function
- Hinges in chromed brass, quick opening
- Fixing from above
- Slim design
- Antibacterial
.

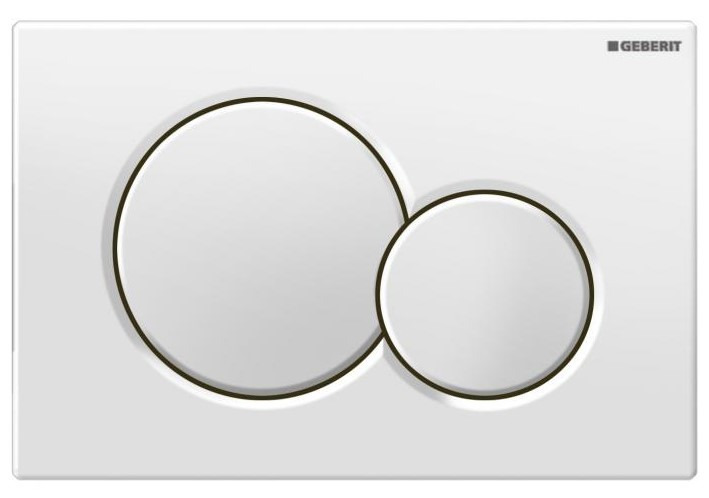

Geberit White SIGMA 01 two-touch flush plate (115.770.11.5):
Trigger plate with two circular buttons.
- Double button 3/6L water saving
- Made of high quality synthetic material
- Plate compatible with the blue water block diffuser
- Dimensions: 246x164 mm.
.
Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(50.11% saving)
